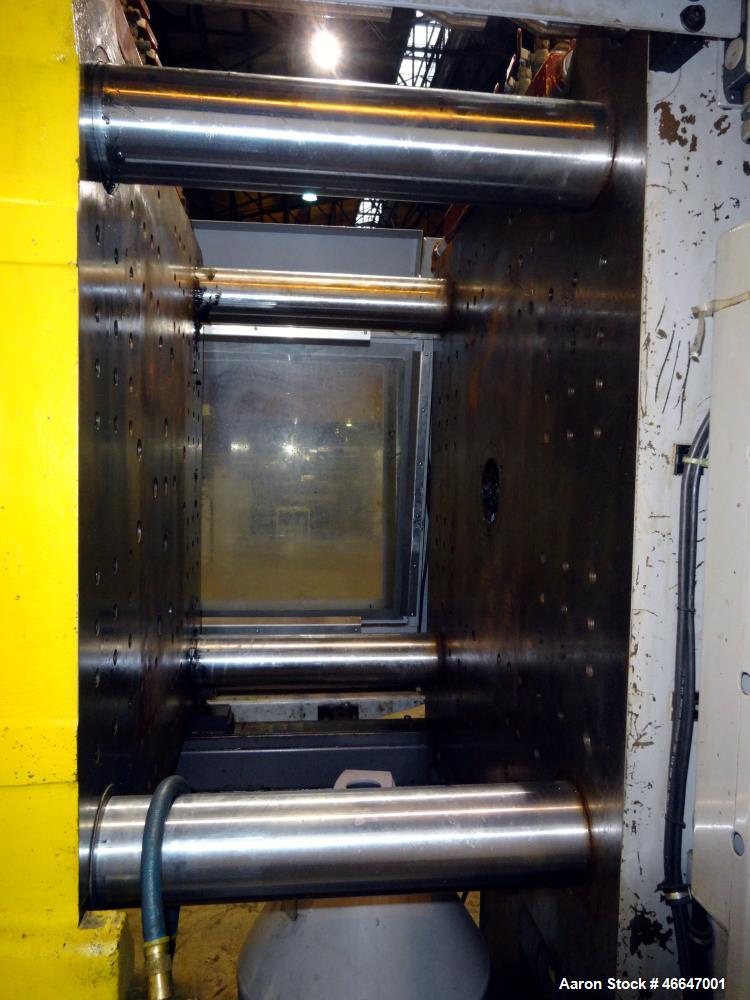

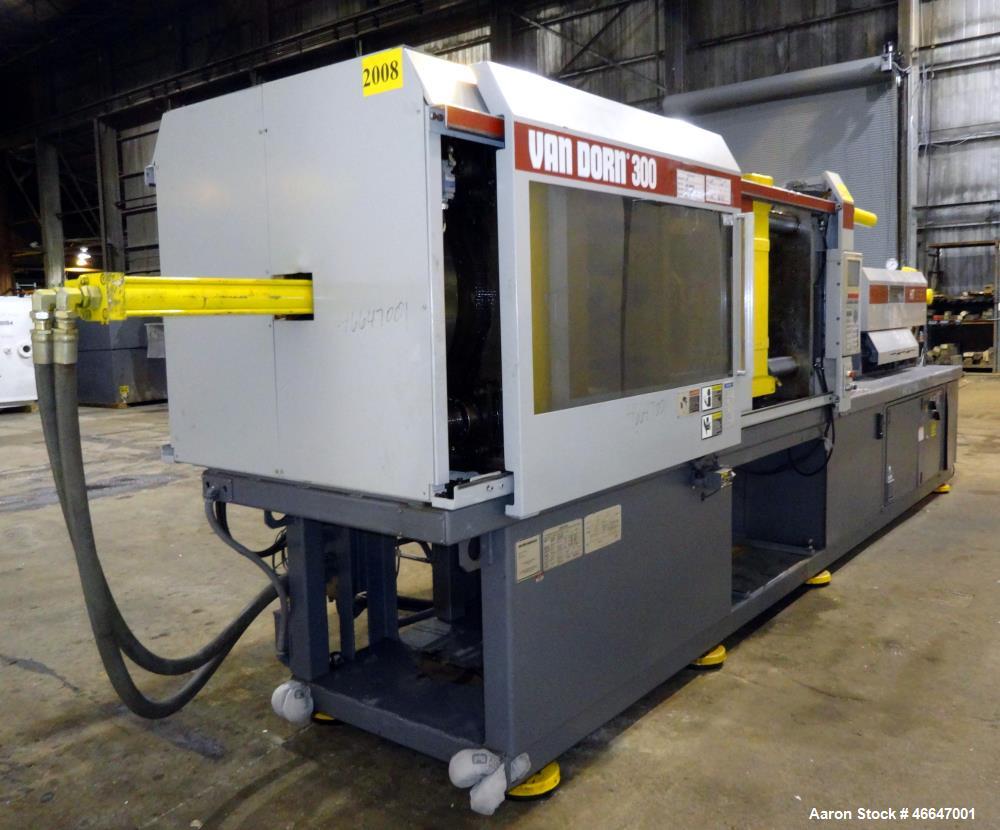

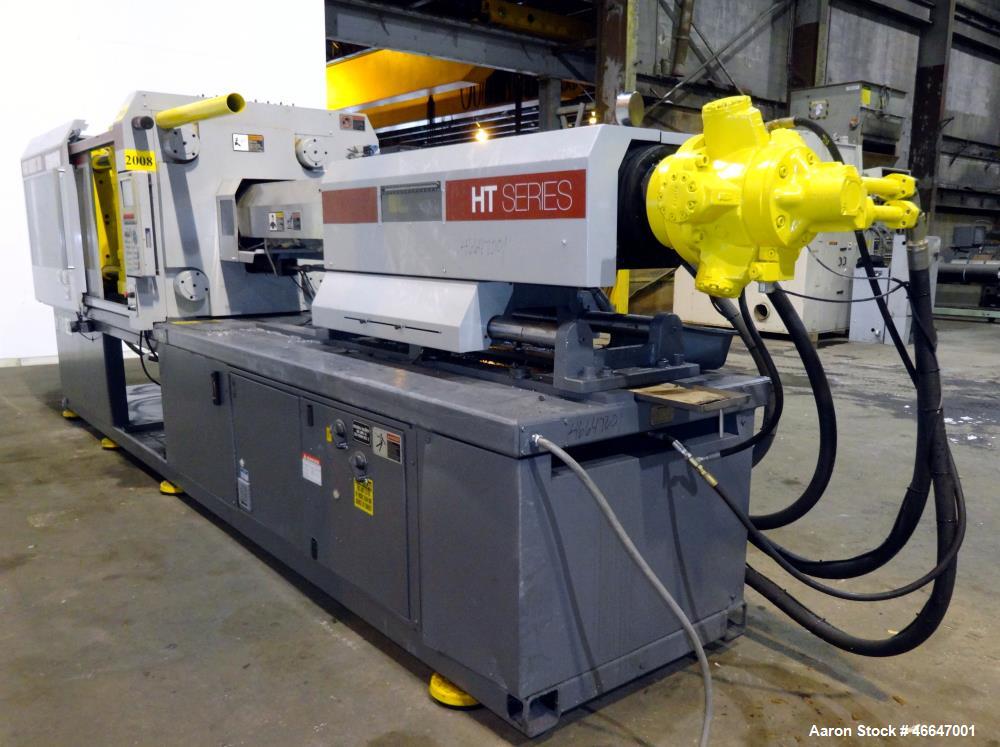

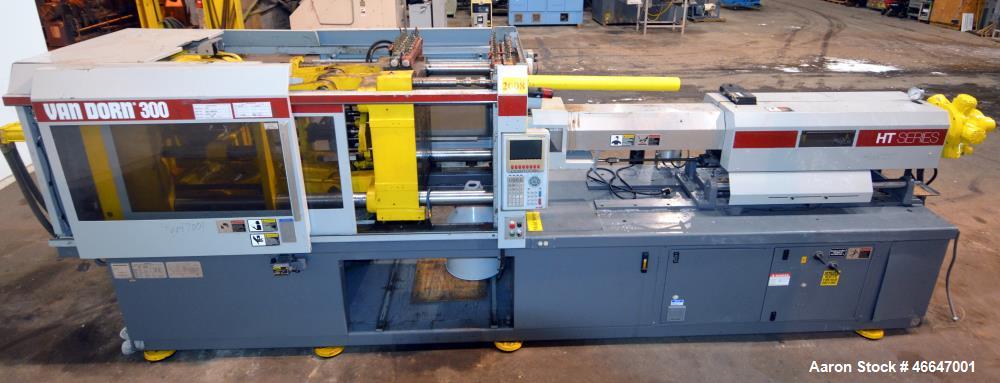

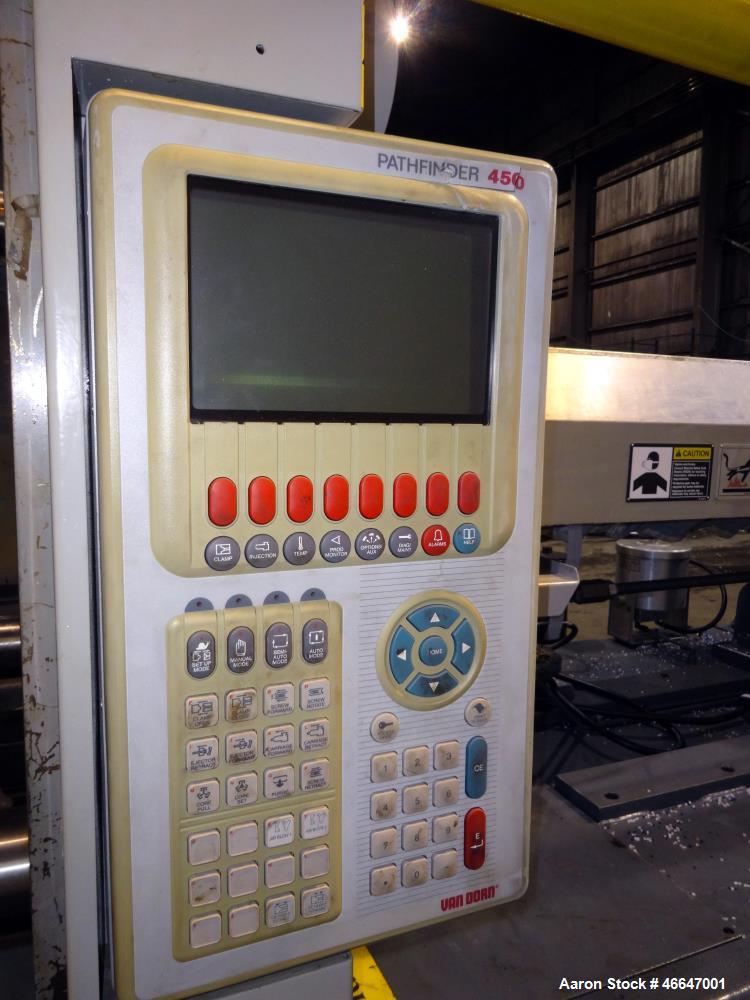

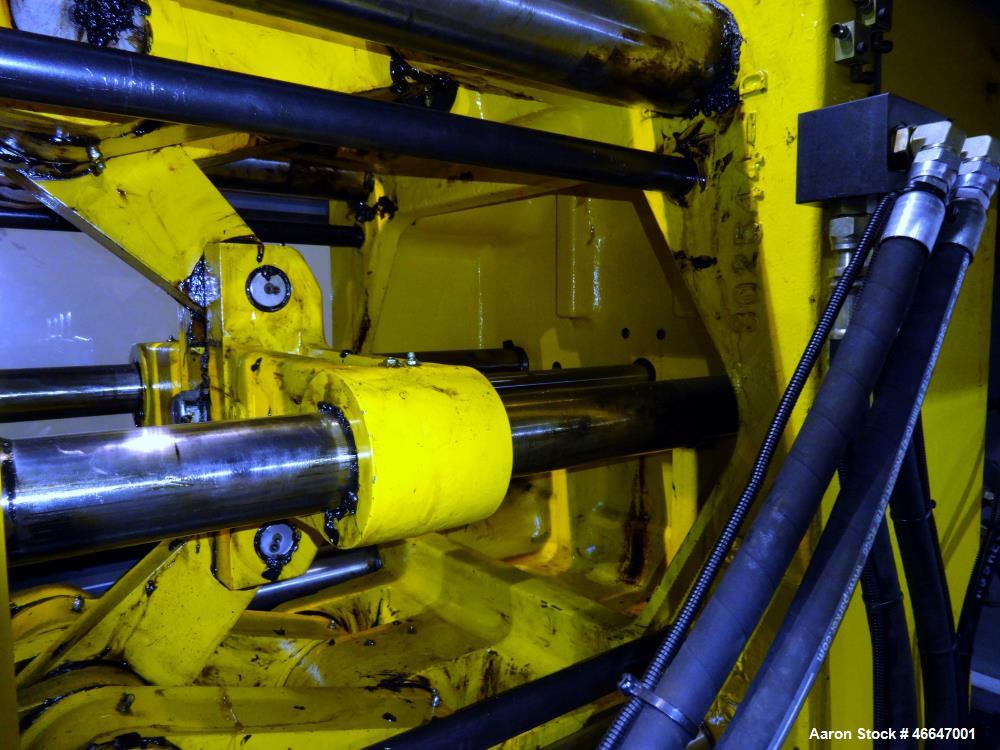

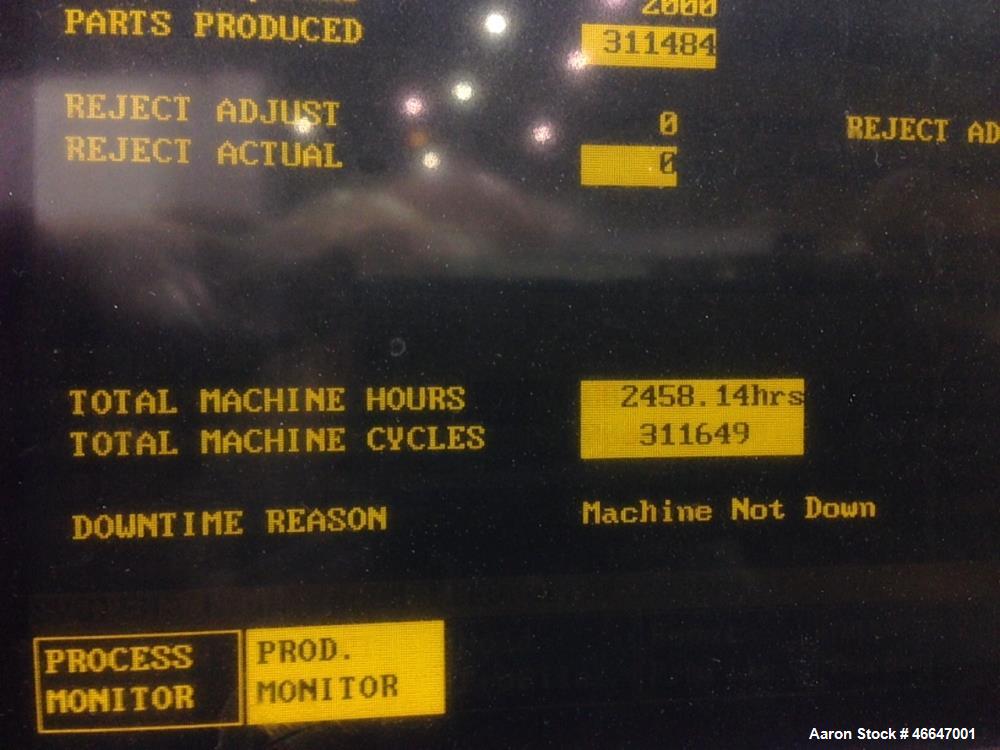

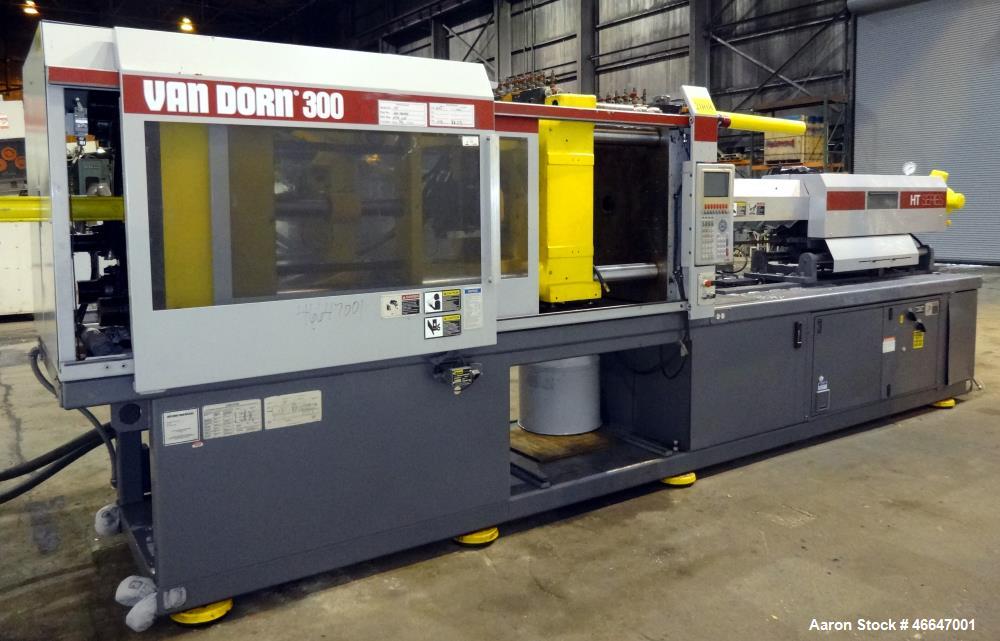

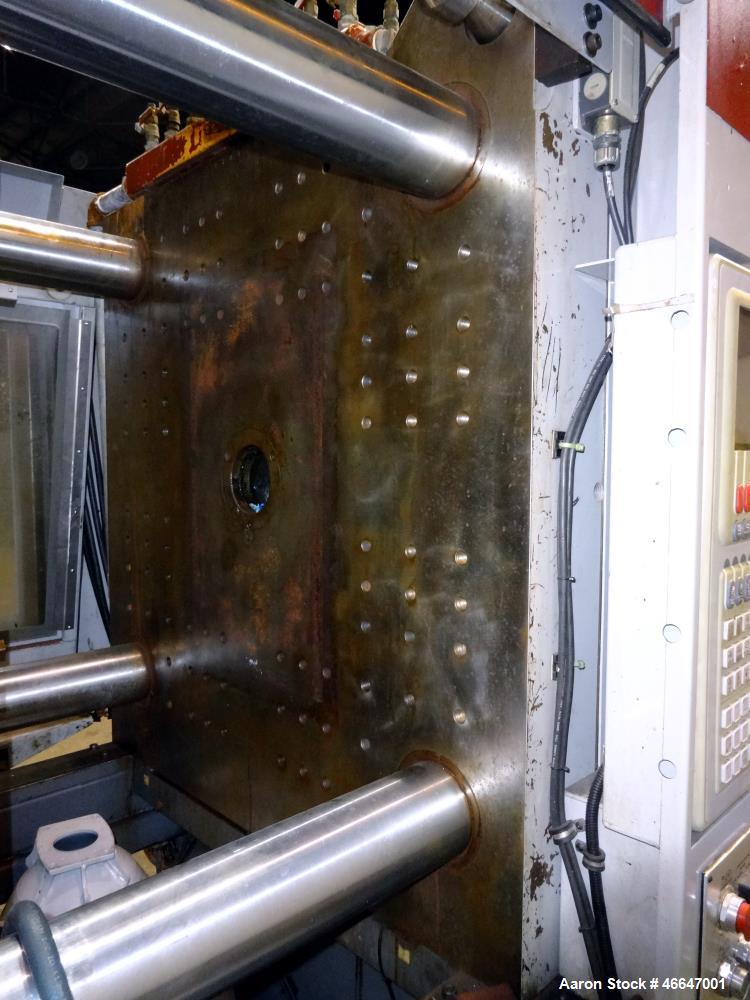

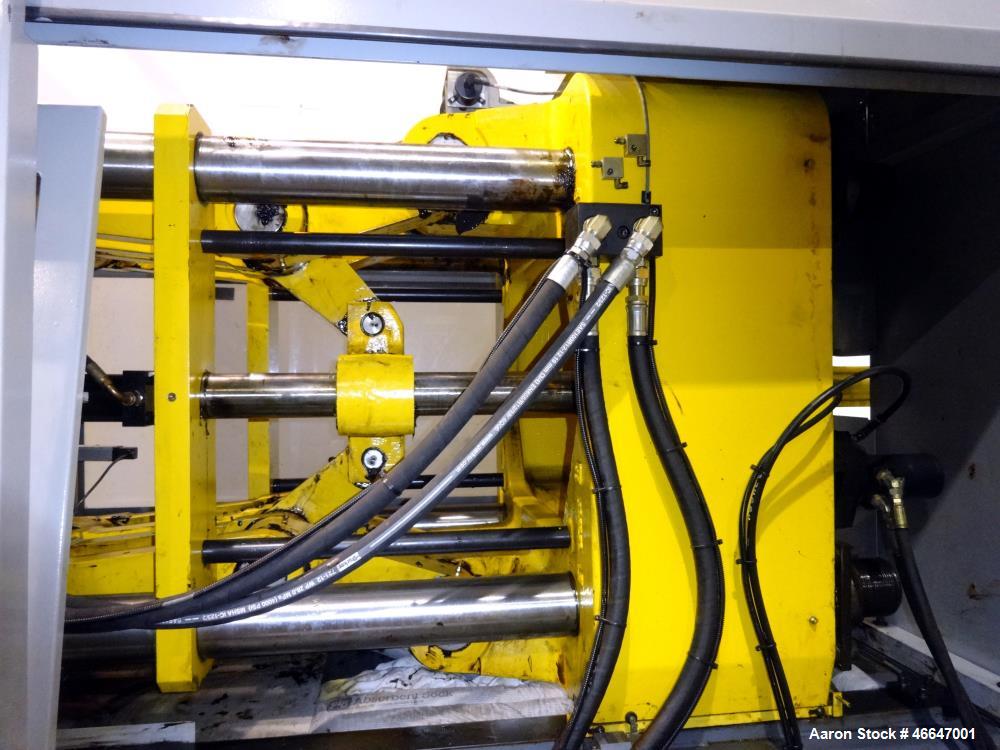

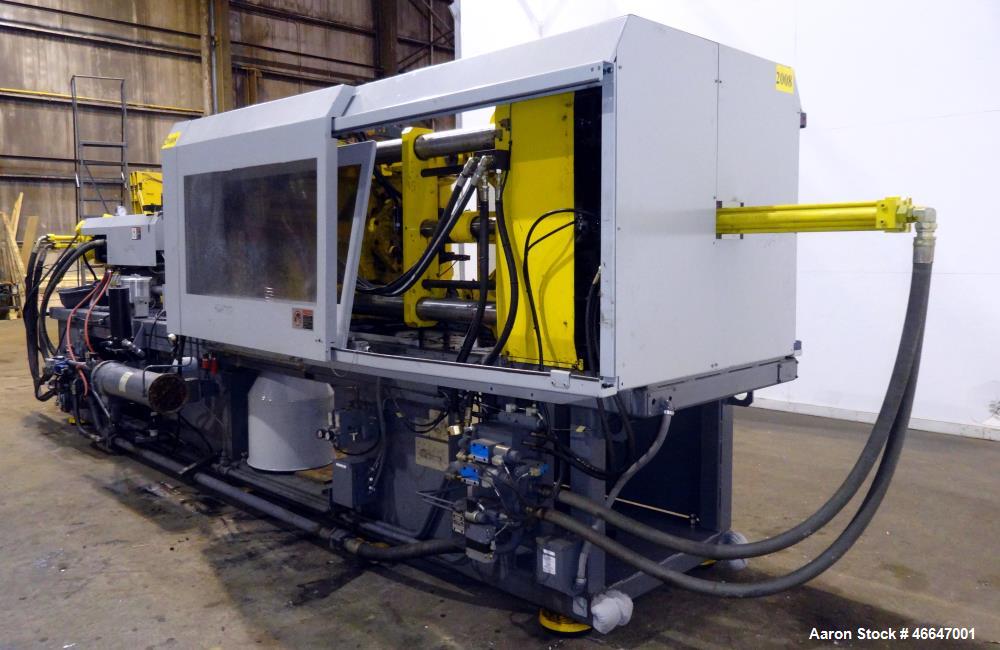

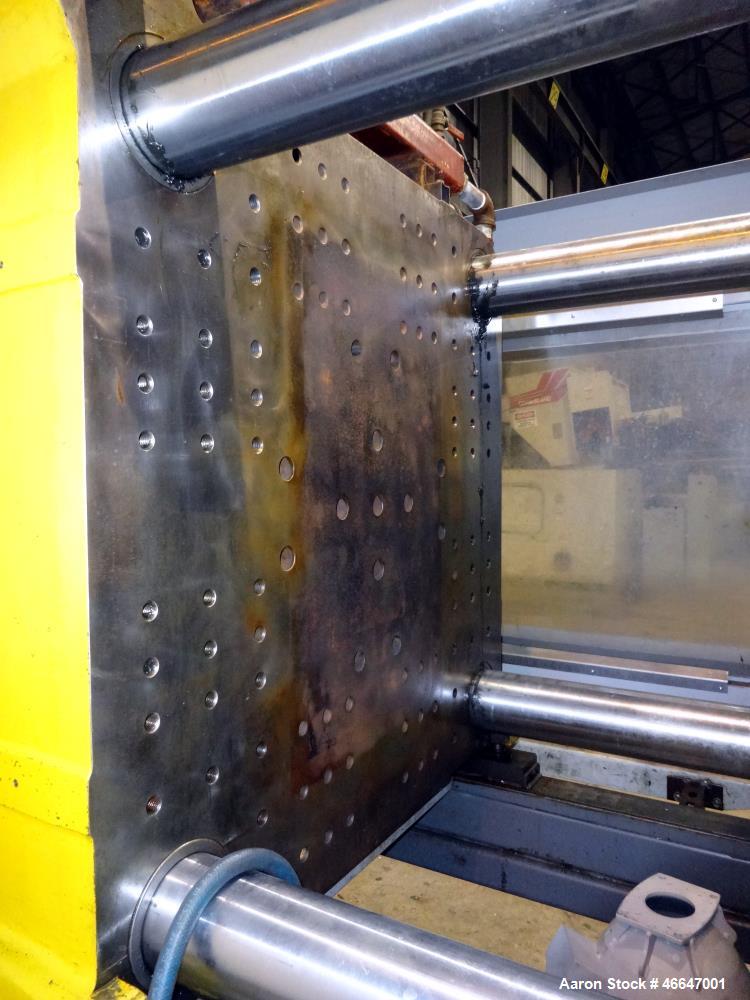

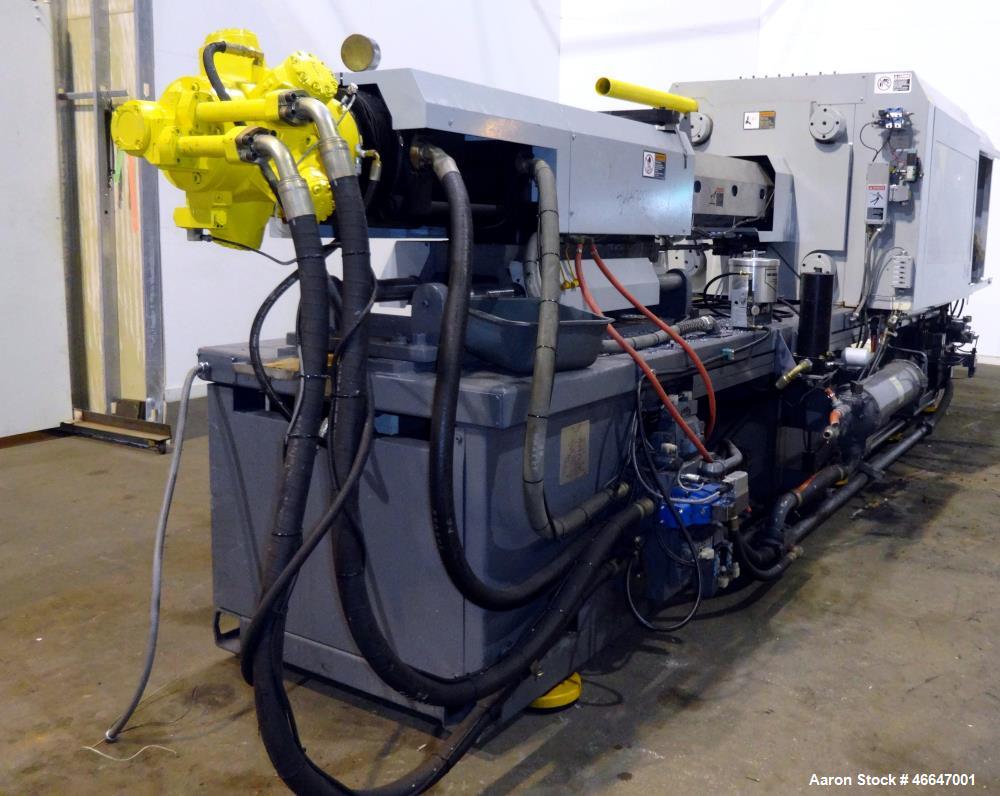

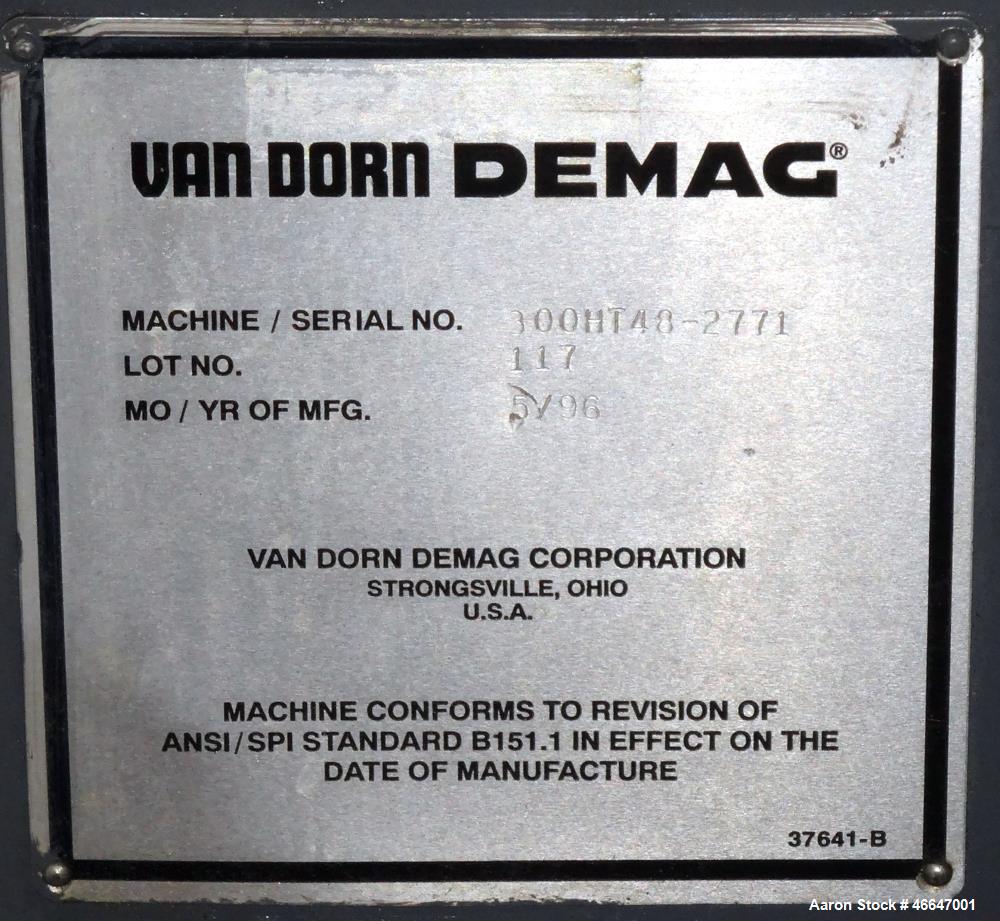

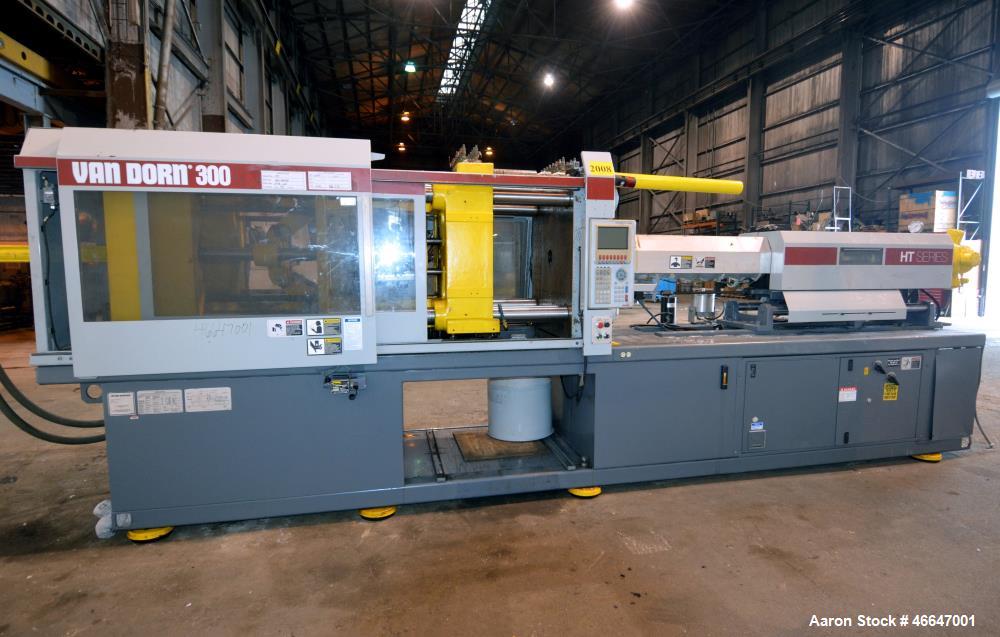

Used Van Dorn HT Toggle Clamp Horizontal Injection Mold Machine, 300 Ton, Model 300HT48. Maximum clamp stroke 24", maximum open daylight 49", minimum mold thickness 8". Approximate platen size 37" x 37", 4.25" tie rod diameter approximate, distance between rods 25" x 25". Ejector stroke 6", ejector force 8.3 tons, closing speed 27" a second, opening speed 39" a second. Injection unit shot size approximate 48 ounce, approximate screw diameter 75mm. Unit includes a Pathfinder 4500 operator panel. Serial# 2771, lot# 117, built 1996.
Used Van Dorn HT Toggle Clamp Horizontal Injection Mold Machine, 300 Ton, Model 300HT48. Maximum clamp stroke 24", maximum open daylight 49", minimum mold thickness 8". Approximate platen size 37" x 37", 4.25" tie rod diameter approximate, distance between rods 25" x 25". Ejector stroke 6", ejector force 8.3 tons, closing speed 27" a second, opening speed 39" a second. Injection unit shot size approximate 48 ounce, approximate screw diameter 75mm. Unit includes a Pathfinder 4500 operator panel. Serial# 2771, lot# 117, built 1996.
