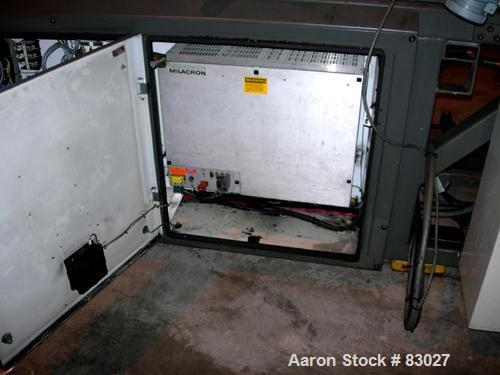

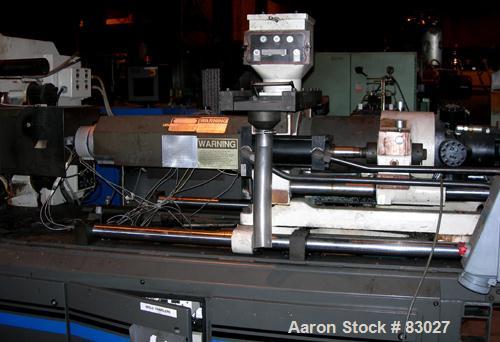

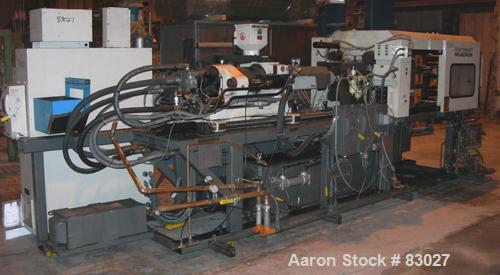

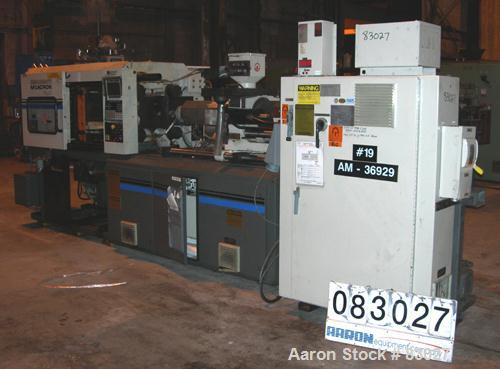

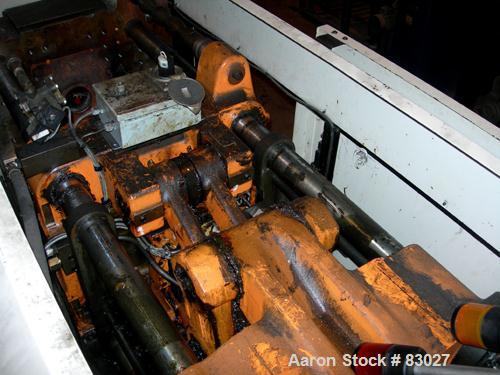

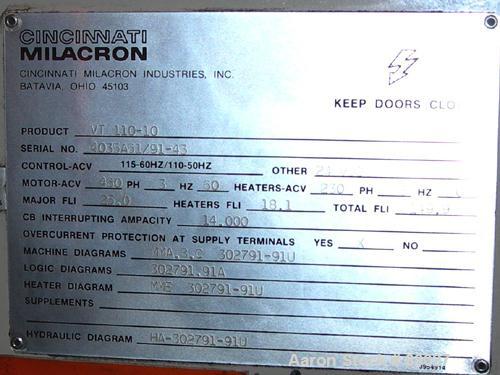

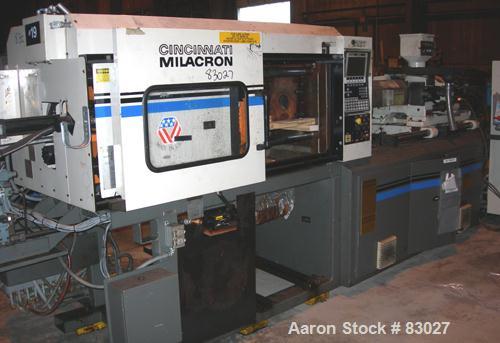

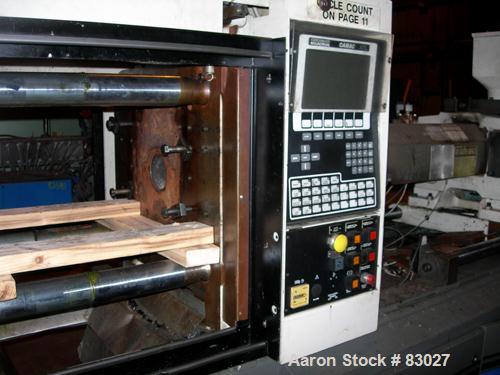

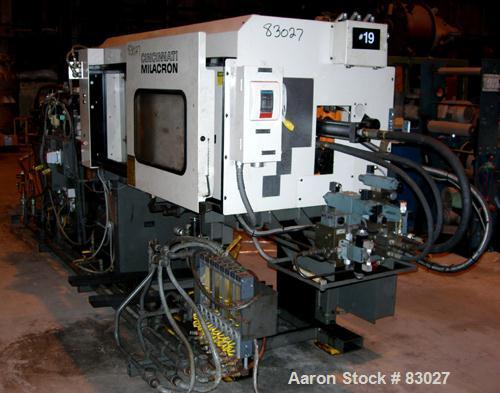

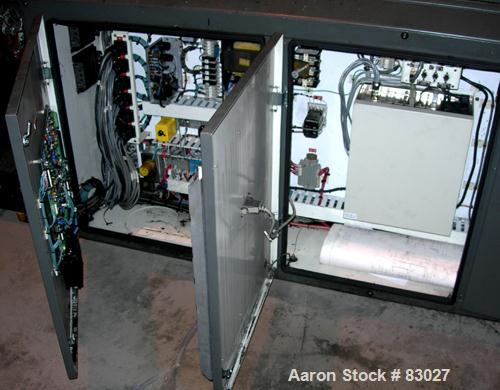

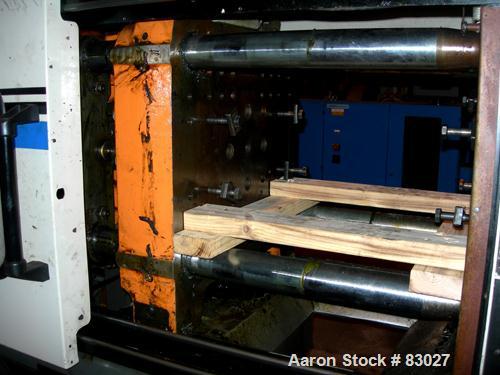

Used Cincinnati 110 Ton Toggle Injection Molding Machine, Model VT110-10. Platen size 24.8" x 22.8". Distance between 2.8" diameter tie bars 14.2" left to right x 16.1" top to bottom. Max daylight 27.6", mold height min/max 5.9"/15.7". Clamp stroke 11.8", clamp speed typical dry cycle time 1.53 seconds. 1.772" diameter screw, 20:1 L/D ratio, approximate 10 oz shot capacity. 20 HP, 30 GPM hydraulic motor. Includes Camac XTL control board.
Used Cincinnati 110 Ton Toggle Injection Molding Machine, Model VT110-10. Platen size 24.8" x 22.8". Distance between 2.8" diameter tie bars 14.2" left to right x 16.1" top to bottom. Max daylight 27.6", mold height min/max 5.9"/15.7". Clamp stroke 11.8", clamp speed typical dry cycle time 1.53 seconds. 1.772" diameter screw, 20:1 L/D ratio, approximate 10 oz shot capacity. 20 HP, 30 GPM hydraulic motor. Includes Camac XTL control board.
