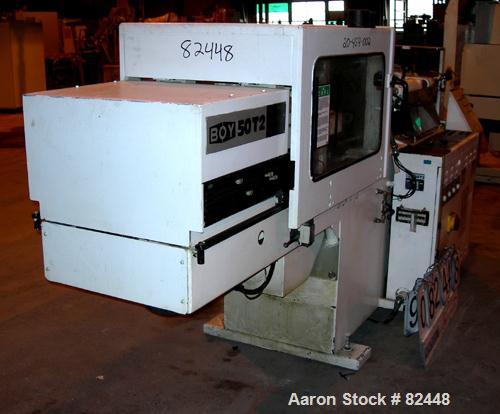

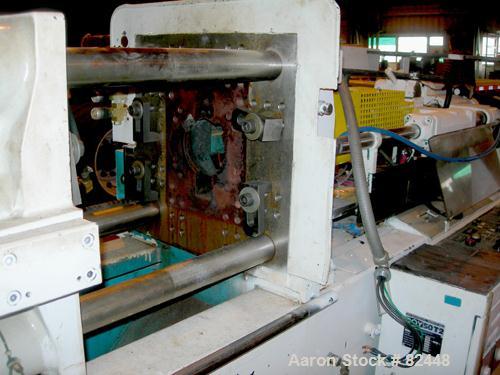

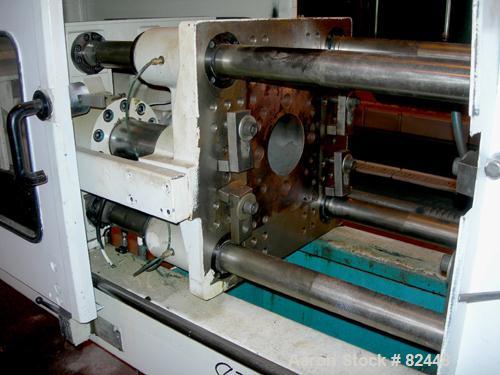

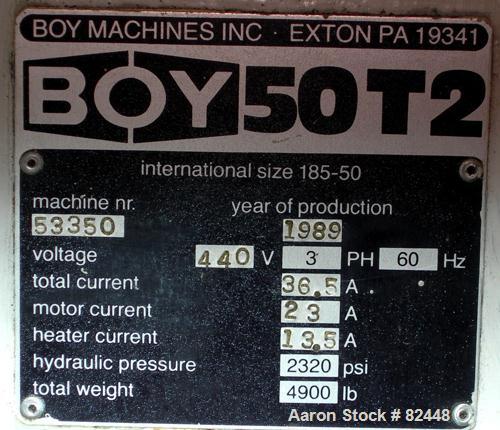

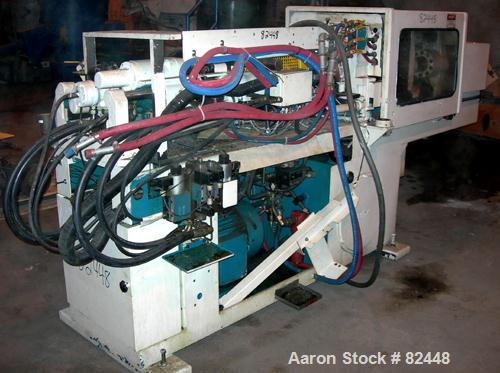

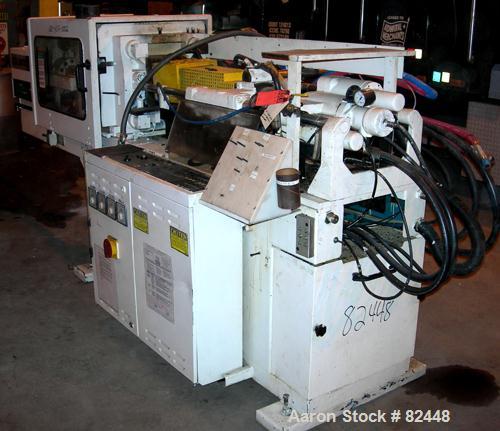

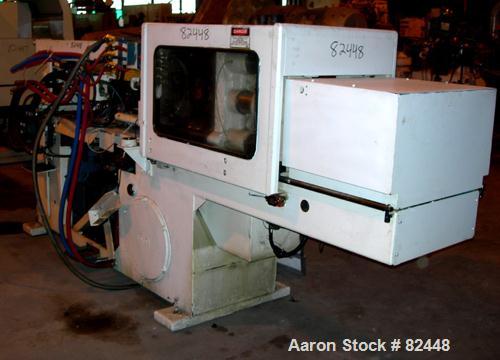

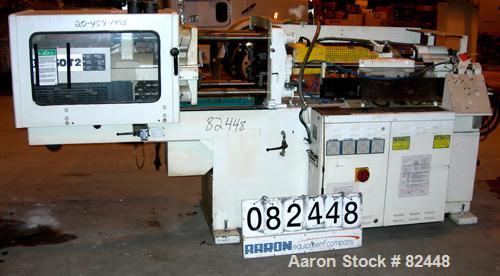

Used Boy Hydraulic Injection Mold Machine, Model 50T2. 50 Ton clamping pressure. Approximate shot sizes, 5.57 ounce with a 42mm screw, 4.58 with a 38mm screw, 3.25 with a 32mm screw, 2.5 with a 28mm screw. Platen size 19-1/2" x 19-1/2". Distance between 2" diameter tie bars 12". Max daylight 23". Maximum stroke of hydraulic ejector 3.14". Mold opening stroke adjustable to 13.77". Approximate 1" diameter screw. Unit includes Dipronic control panel. Last ran on 440 volt, 60 hz..
Used Boy Hydraulic Injection Mold Machine, Model 50T2. 50 Ton clamping pressure. Approximate shot sizes, 5.57 ounce with a 42mm screw, 4.58 with a 38mm screw, 3.25 with a 32mm screw, 2.5 with a 28mm screw. Platen size 19-1/2" x 19-1/2". Distance between 2" diameter tie bars 12". Max daylight 23". Maximum stroke of hydraulic ejector 3.14". Mold opening stroke adjustable to 13.77". Approximate 1" diameter screw. Unit includes Dipronic control panel. Last ran on 440 volt, 60 hz..
