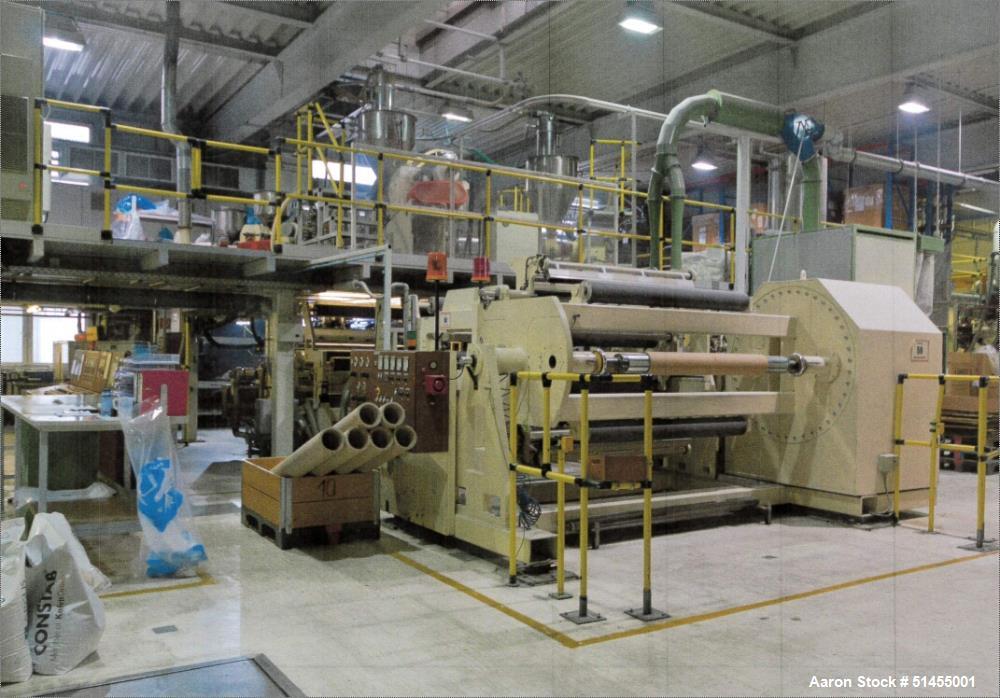

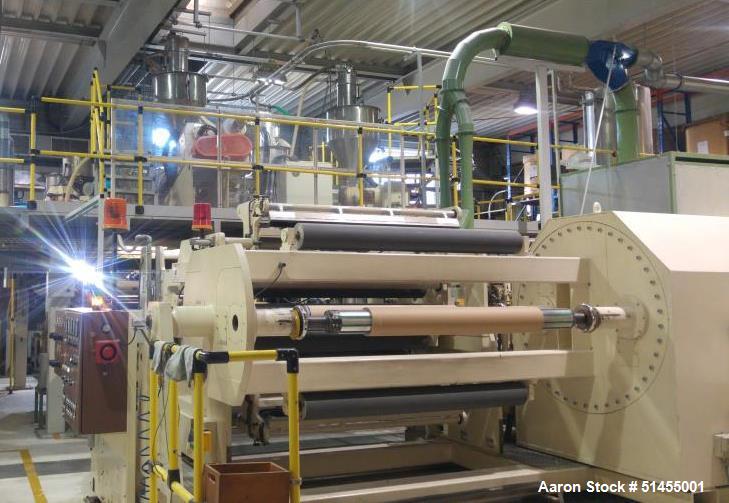

Used ER-WE-PA 5 Layer Extrusion Cast Film Line. Has a capacity of up to 1100 pounds/hour (500 kg/hour) / Mechanical speed 3900" minute (100 meter/minute). 62.8" (1600 mm) width. Thickness range 0.050-0.300 mm consisting of: (2) ER-WE-PA single screw extruders, Type 3.5" x 32D. 90 mm diameter screw, Electrically heated, air cooled. 150 HP/100 Kw belt driven motor. (1) ER-WE-PA single screw extruder, Type 2.5" x 28D. 65 mm diameter screw. Electrically heated, air cooled. 75 HP/50 Kw belt driven motor. (2) ER-WE-PA single, Type 1.5" x 28D. 40 mm single screw extruder. Electrically heated, air cooled. 22.5 HP/15 Kw belt driven motor. (5) Kreyenburg Screen changers, (1) 5-layer feed block, (1) 62.4" (1600 mm) automatic die head, (1) Thickness control, (1) ER-WE-PA Double roll chill section (1) ER-WE-RA Automatic winder for 31.2" (800 mm) diameter finished product, (1) Edge trim and removal, (1) Granulator. Complete with controls, feeding system, pumps, vacuum equipment, water equipment, temperature control, piping, platforms, and additional infrastructure. New year 1991. Previous used on PA, Polyolefine, EVA, EVOH, Ionomer in a cast film application.
Used ER-WE-PA 5 Layer Extrusion Cast Film Line. Has a capacity of up to 1100 pounds/hour (500 kg/hour) / Mechanical speed 3900" minute (100 meter/minute). 62.8" (1600 mm) width. Thickness range 0.050-0.300 mm consisting of: (2) ER-WE-PA single screw extruders, Type 3.5" x 32D. 90 mm diameter screw, Electrically heated, air cooled. 150 HP/100 Kw belt driven motor. (1) ER-WE-PA single screw extruder, Type 2.5" x 28D. 65 mm diameter screw. Electrically heated, air cooled. 75 HP/50 Kw belt driven motor. (2) ER-WE-PA single, Type 1.5" x 28D. 40 mm single screw extruder. Electrically heated, air cooled. 22.5 HP/15 Kw belt driven motor. (5) Kreyenburg Screen changers, (1) 5-layer feed block, (1) 62.4" (1600 mm) automatic die head, (1) Thickness control, (1) ER-WE-PA Double roll chill section (1) ER-WE-RA Automatic winder for 31.2" (800 mm) diameter finished product, (1) Edge trim and removal, (1) Granulator. Complete with controls, feeding system, pumps, vacuum equipment, water equipment, temperature control, piping, platforms, and additional infrastructure. New year 1991. Previous used on PA, Polyolefine, EVA, EVOH, Ionomer in a cast film application.
