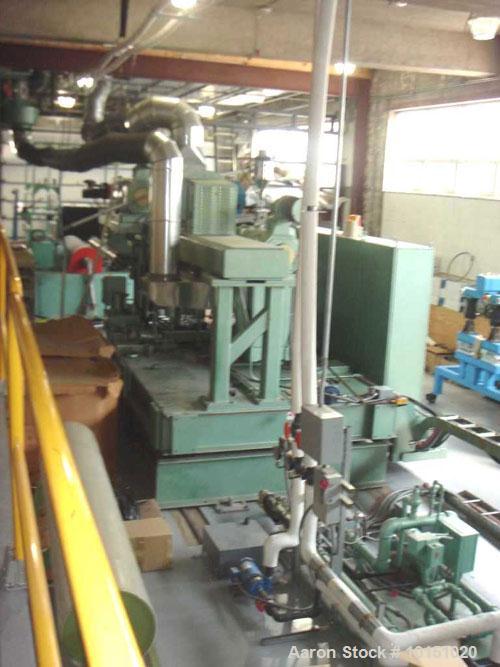

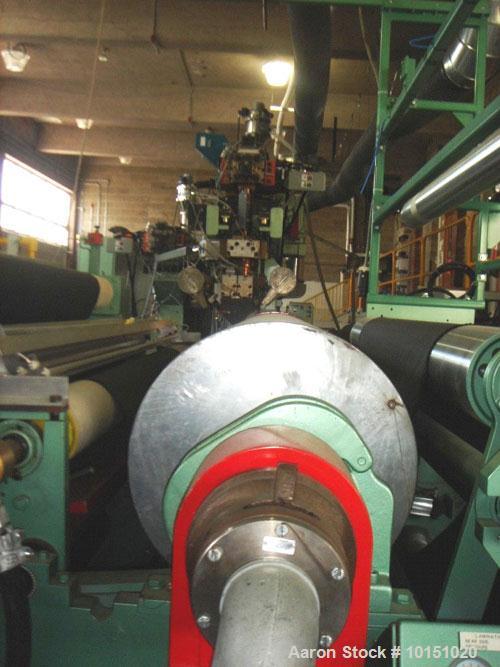

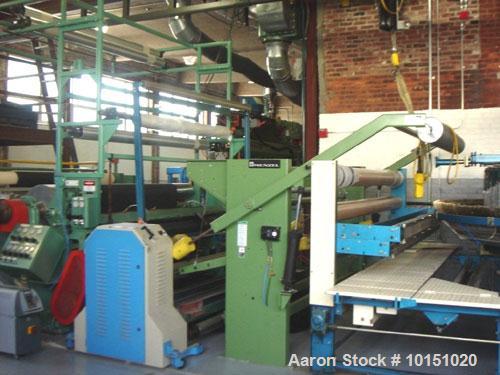

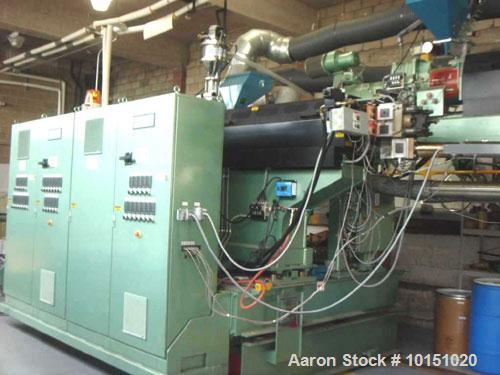

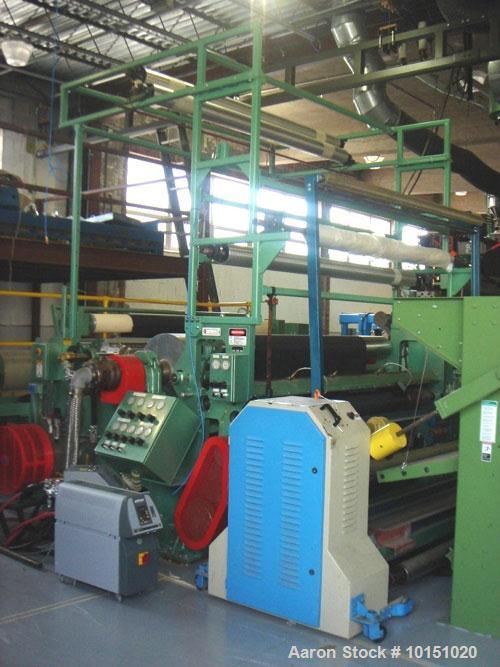

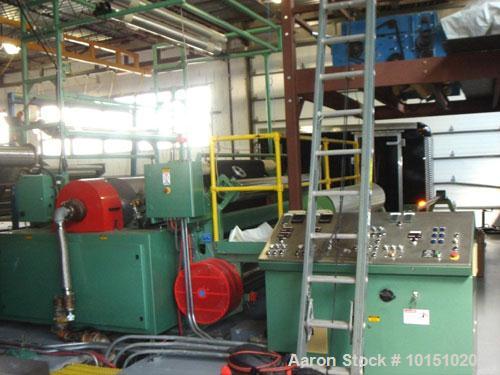

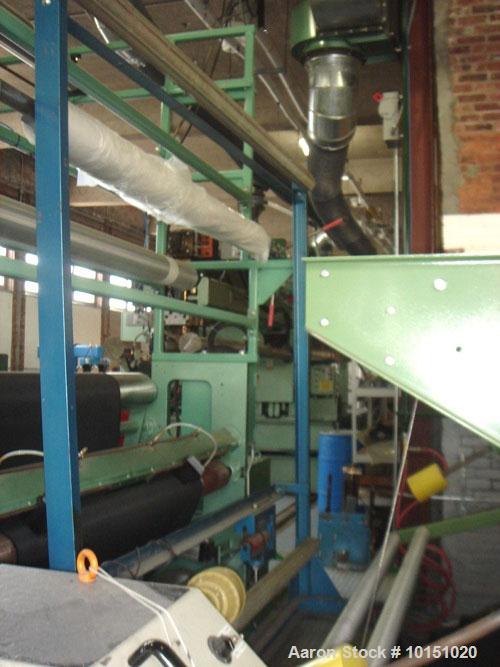

Used Davis Standard Extrusion Coating Package designed to make 40" to 85" finished web width. Line rated at 400 feet per minute mechanical line speed. Unit was last used for .01" of low density of PE coating on 85" fabric at 170 feet per minute. Line uses approximately 1200 amps at 460 volt, 3 phase, 60 cycle. Requires 80 psi of plant air and a 50 ton chiller. Line consists of the following: A) (2) 2", 32:1 Davis Standard DEAC extruders with 50 hp DC drive systems and mixing screws. Mounted on extruder dischage is 2.5" hydraulic screen changer. Extruder is mounted on a 3 way extrusion carriage. Both extruders are controlled by a single unitized panel. B) 52" die. C) 94" 3 roll extrusion laminator with high nip force, 12" diameter steel backing roll, 6" diameter rubber nip roll and 24" diameter DSS chill roll. Includes exit pull roll and end trim station and 20 hp AC drive. D) 2 position unwinds with manual splice nip good for 40" diameter x 87" roll face and rated at 2500 lbs with edge and center guiding and (3) 3" air shafts. E) (1) Used single drum surface winder with transverse knife. Designed to handle up to 40" diameter x 84" face roll bundles of 3,000 lbs. Space for (1) winding shaft and (1) staged roll. Includes (3) 3" air shafts. F) General Engineering interface and platform idlers, etc. Programmable logic controls, extruder to line drive interface, mechanical engineering interface, platforms for over the web and idlers between machine components. Line still installed as offered. Line originally manufactured in 2000 and has 200 hours of use.
