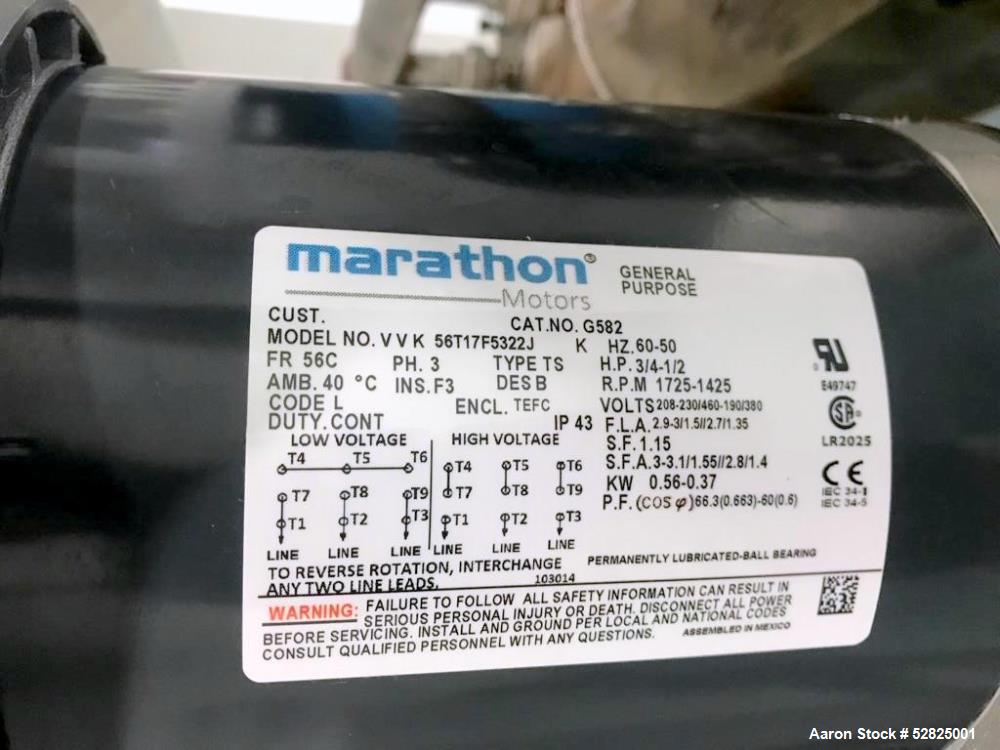

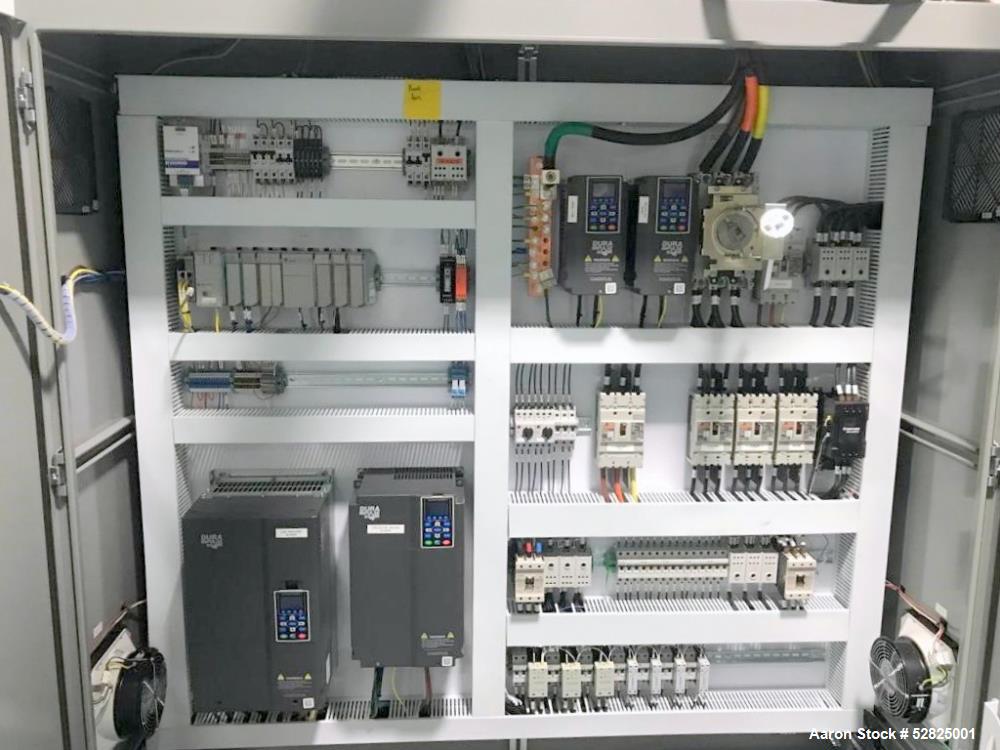

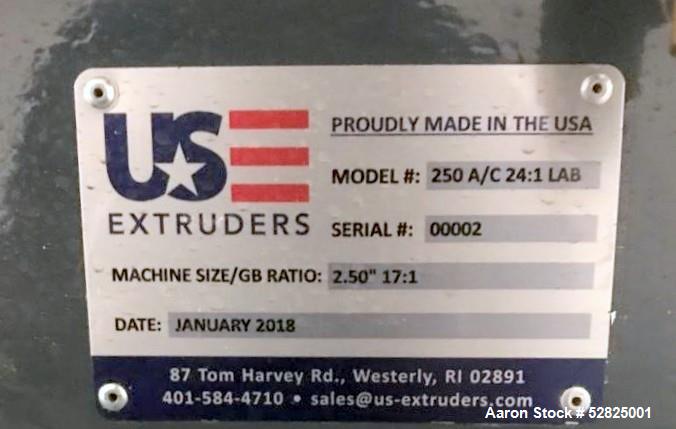

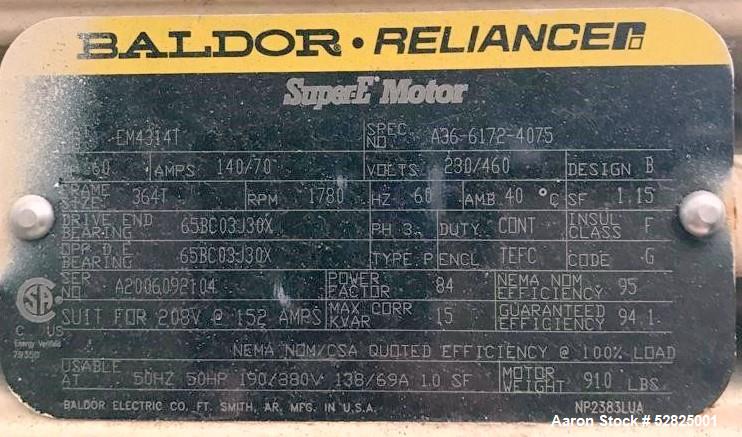

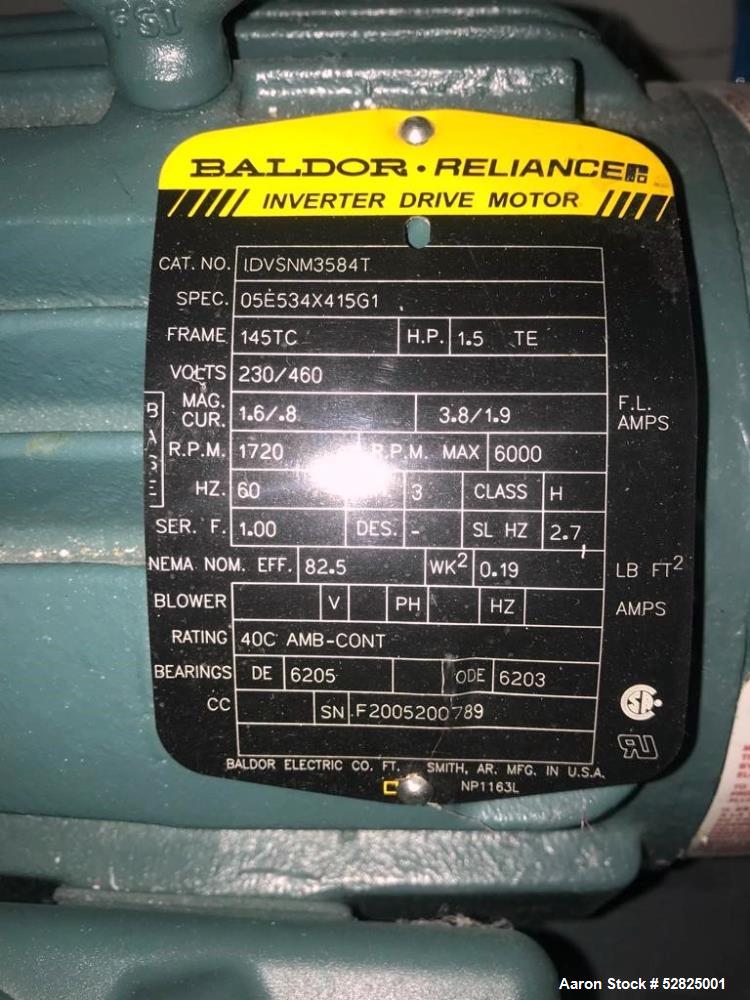

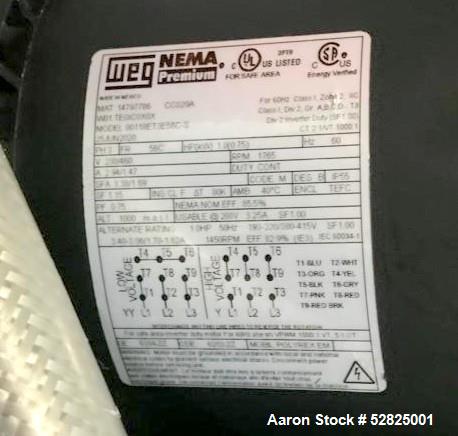

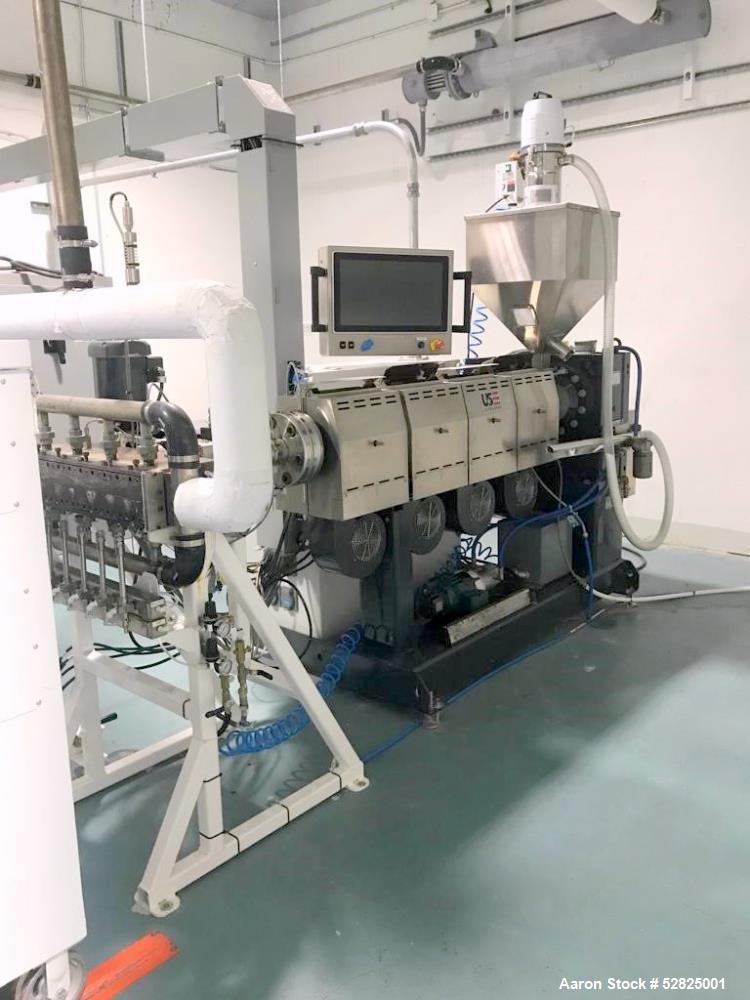

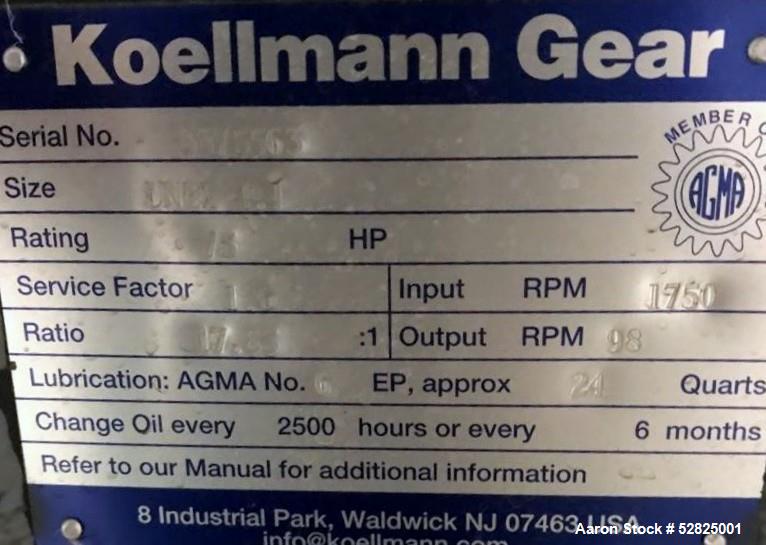

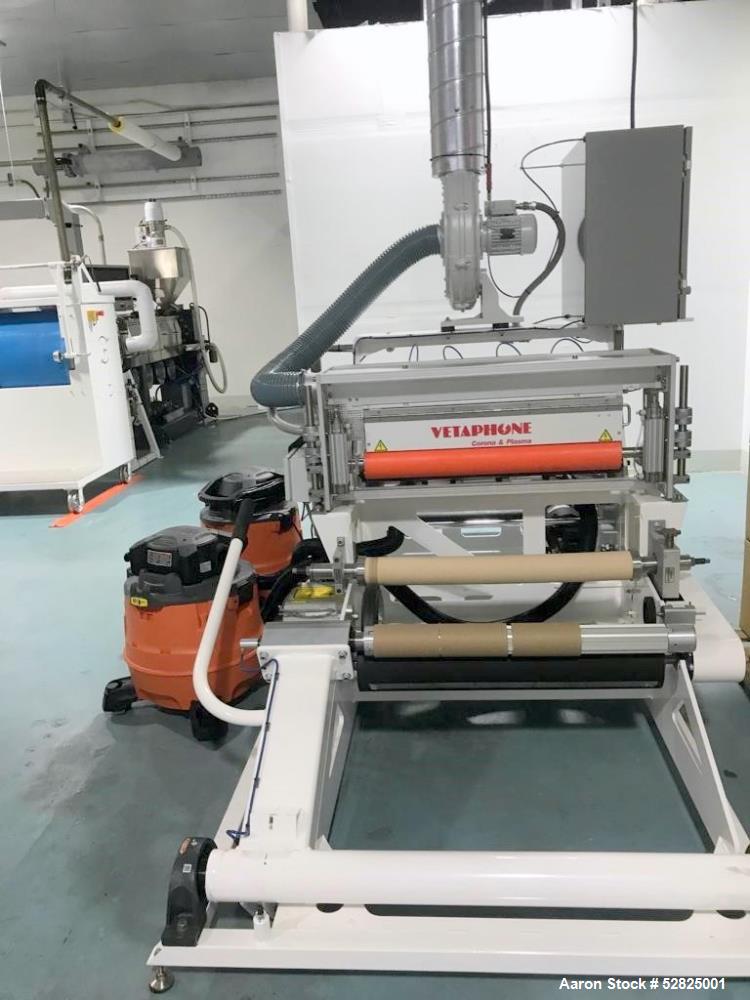

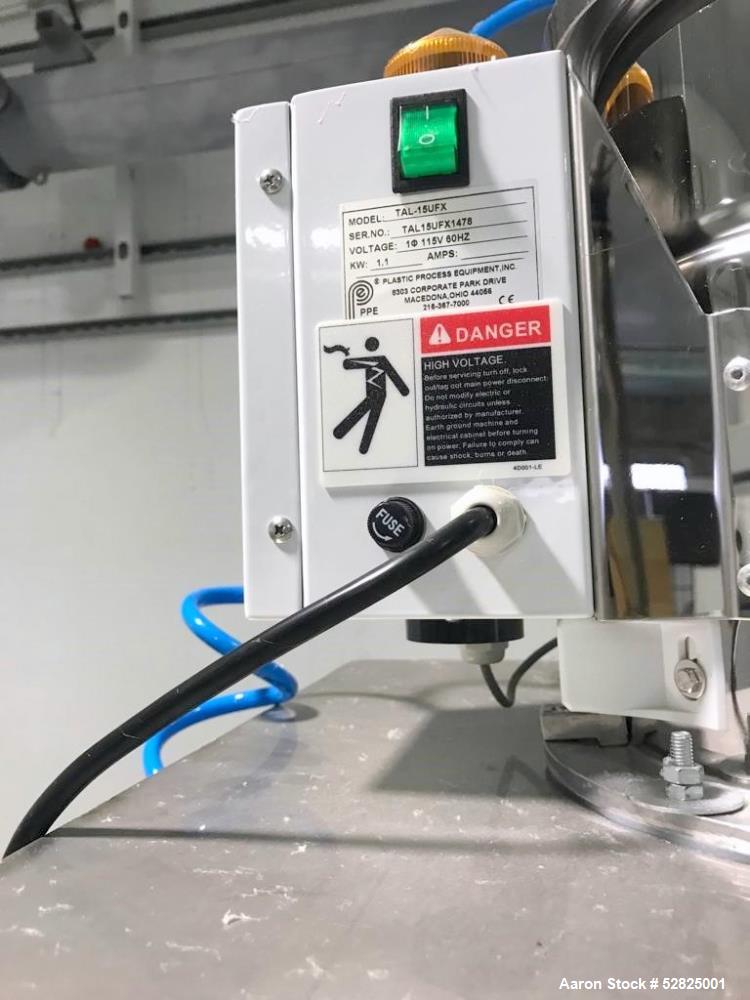

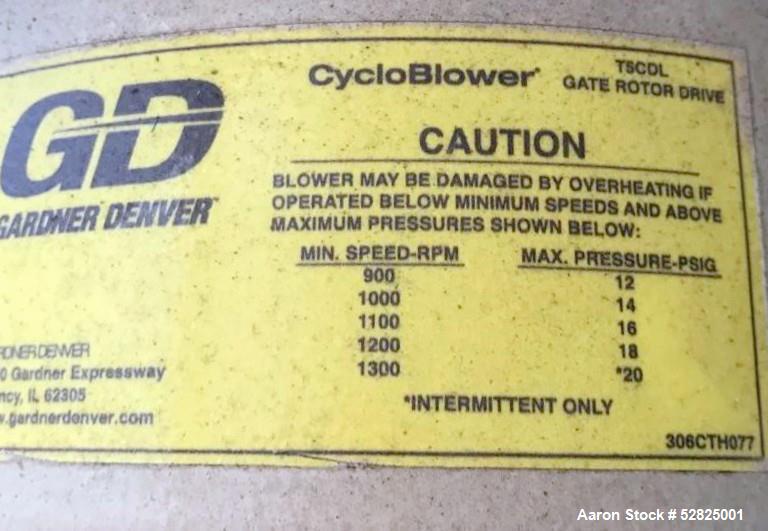

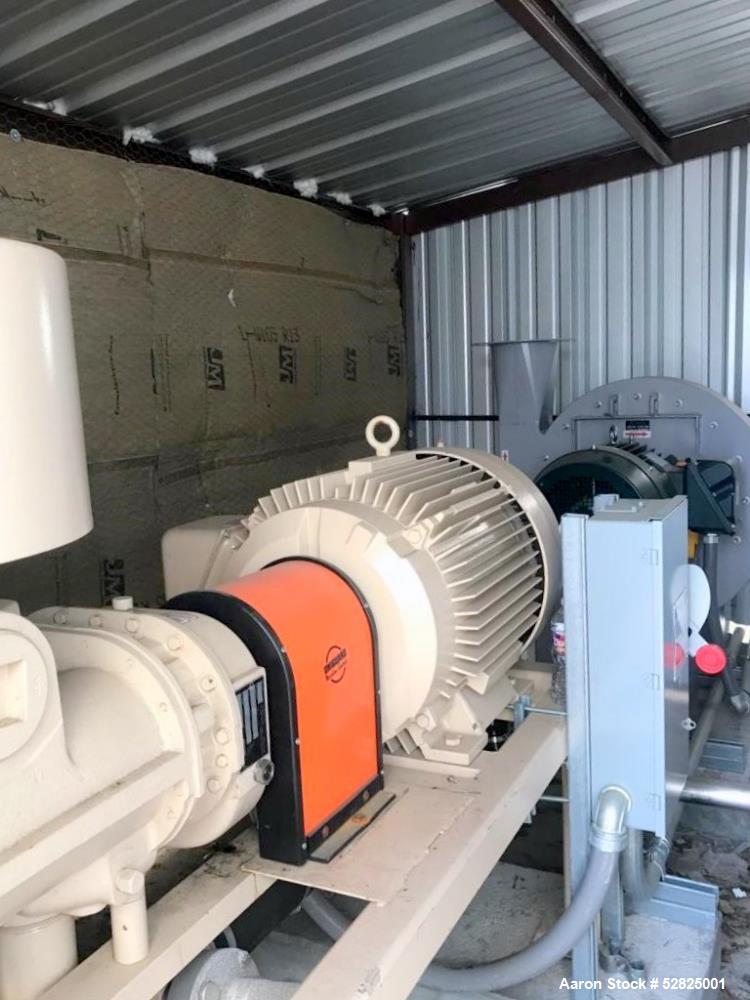

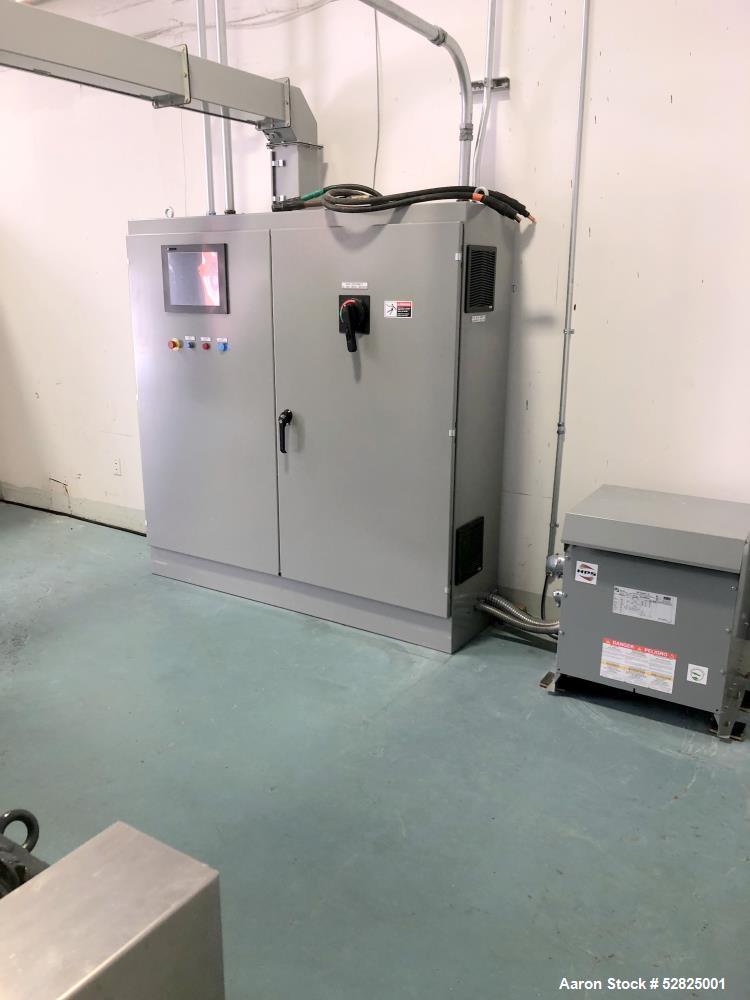

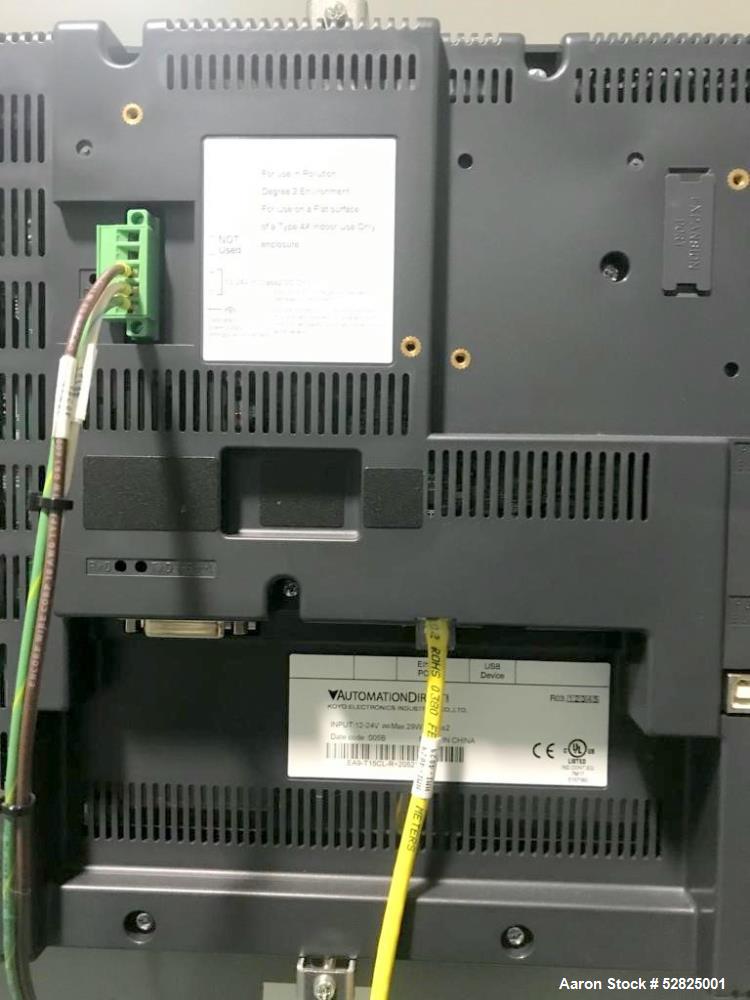

Used Southern Costal Machinery, LLC 24" Melt Blown Line. Production capacity approximately 36 kg (79.3 lbs)/ hour at nominal throughput of 0.5 ghm. Line consists of: Pneumatic pellet loader; 40 kg hopper with sightglass; 2.5" diameter extruder, 24:1 L/D, 4 zone, high temperature heaters, air cooled, 20hp VFD, (70 kg/hr maximum) with motor and gearbox. Electrically heated manual screen changer, steel to steel seals, circular type filter screen; Polymer melt pump, monitoring tied to variable speed drives, electronic melt transducers; Transfer pipe with in-line mixer port; Die and Nozzle, 24" active spray width, 17-4ph stainless steel die assembly, 300 degrees C compatible; 35 kW air heater; 450 CFM blower; Stainless steel forming screen with VFD, manual DCD; Electrostatic charger, (5) slitting blades for edge trim, trim removal; Winder with pneumatic tension control; Control panel, HMI, automatic control, air temperature, air flow, extrusion process, winder/product speed. Markets include HEPA filters, ULPA filters, liquid filers, oil separators, oil sorbents, wipes, barrier, fabrics, and medical fabrics, as well as other Thermoplastic Polymers.
