Used Horizontal Flow Wrappers

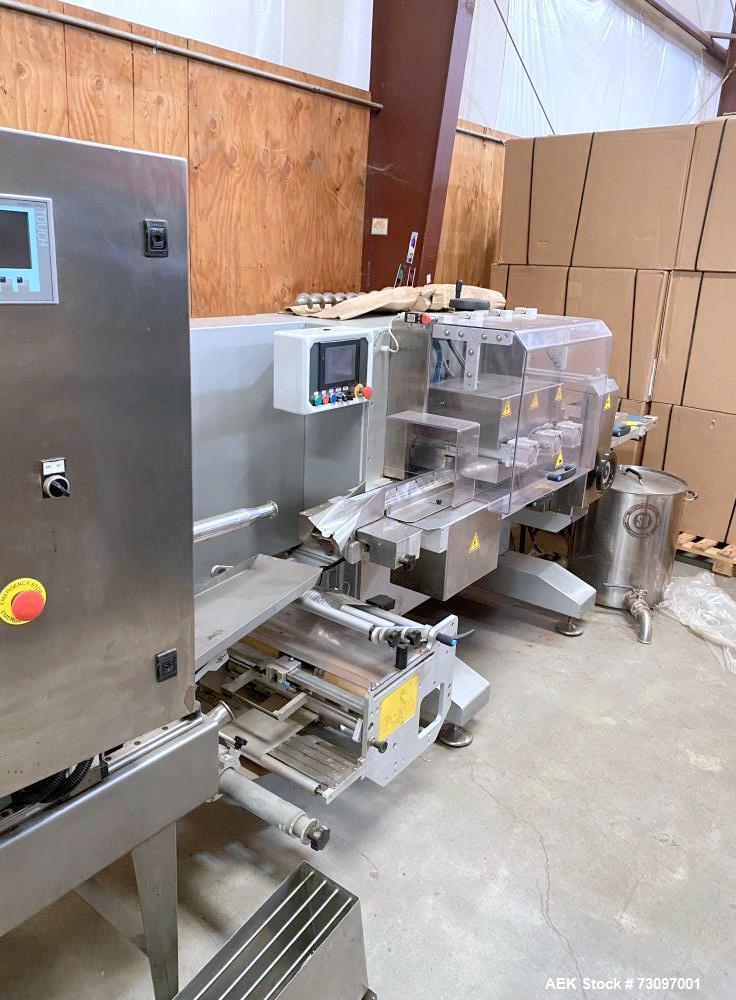

Stock# 73097001

Used- Delfin Horizontal Flow Wrapper, Model Sirio 500-E and Single Dosing-Head Depositior, capable of approx. 120 packs/minute. Electronic Horizontal Flow-Pack machine complete with long dwell sealing jaws and film roll holder from the bottom, composed of: Main machine body in painted steel RAL 9006; Machine from left to right; Self centering film roll from the bottom (maximum film roll 500mm); Three sets of fin wheels complete of pre-heating plates and air cooling for fin seal; Transport conveyor under the fin wheel assembly, with easy release to facilitate maintenance and cleaning operations; Box motion sealing jaws; Zig-zag knives; Discharge conveyor 1 meter long motorized by an independent motor and controlled by an inverter; Motorized roller on the discharge conveyor belt; Air blow for empty bag; Photocell for print-registered film; Provision for printer (signal and controls on the touch screen control panel); Color touch screen control panel; Three brushless motors to drive the fin wheels assembly, transverse sealing jaws and the conveyor belt under the fin wheels; Pneumatic components FESTO - Air consumption 120 lt/min (6 bars); Voltage 400V / 3 phase / N+ Kw 6,5: Molasses dosing machine characteristics: Machine constructed entirely in stainless steel AISI 304; Main hopper complete of two worm screws in order to ensure a constant product flow density; Total hopper capacity 140 Kg; Rotating rake in order to create a constant product density; Main worm screw to dose the product and maintain a constant weight; Extruding and cutting head controlled by a pneumatic cylinder; Three AC motors , worm screw motor controlled by means of an inverter; Touch screen control panel; Hose with gun for machine wash down; Pneumatic components : FESTO- Air consumption 70 Litres /min (6 bars); Voltage 400 V /3 phase / N+E Kw 3; Single depositor with one dosing head for 250 grams AND 25 GRAMS. Built 2016.

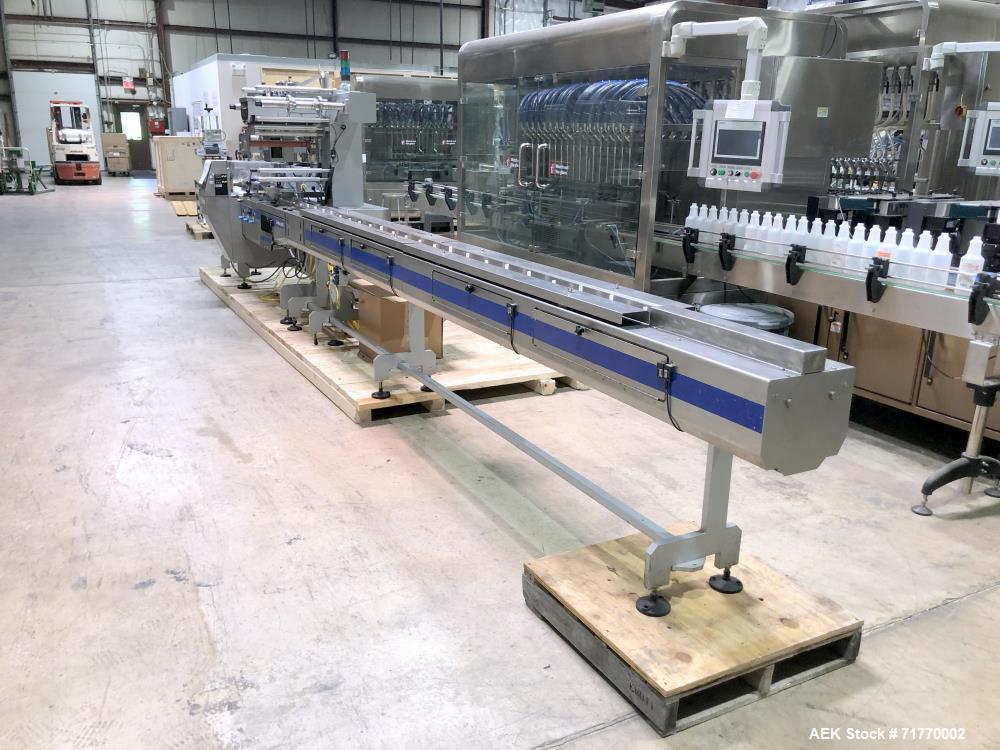

Stock# 71770002

Used-Bosch Doboy Model Linium 301 Horizontal Flow Wrapper. 2 up crimper, 7" wide. Capable of up to 350 ppm (Options required for max). Has registration, Smartdate 5 coder, gas flush. Last used in bakery application. Elec: 3/60/480V.

Stock# 71923001

Used- Bosch-Sigpack High-Speed Horizontal Flow Wrapper, Model HCS. Machine is capable of speeds up to 180 packages per minute, depending on product size and film. Has a package size range of 45 to 270 mm in length, up to 335 mm in width, and up to 130 mm in height. Includes Bosch-Sigpack product collator and transfer, Model FGM designed for 2" square biscuit/crackers. Has film registration. Has Allen Bradley Logix 5562 PLC and Allen Bradley Kinetix 6000 servo drivers. Last used on snack biscuits and crackers, slug pack size 2" x 2" x 8.5" product length, 12" total package length. 3/50/60/380-480V. Wye connection.

Stock# 72845001

Used-Bosch (Syntegon) Model Pack 101 Horizontal Wrapper. Product size range: (single jaw) 4" to 18" in Length; (two up jaw) 3" to 9.5" in Length; " to 8.5" in Width; up to 3-3/4" in Height. Equipped with 84" long lugged in feed, pop out lugs, adjustable former, registration , two sets of fin seal wheels, two up 8" wide cross seal and safety guarding. Includes Markem Smart Date Coder. Web specifications: up to 25" in width; up to 16" in diameter; 3" core. Mounted on casters with height adjustable legs. Elec: 1/60/208/240V.

Stock# 72200003

Used- Delta Systems Eagle High Speed Automatic Horizontal Flow Wrapper. Capable of production rates up to 240 PPM. Equipped with dual arbor film feed, film splicer, printed film registration, accepts maximum 12.24" web width structured cold seal film and Video Jet 1610 Ink Jet code printer. 2 up, 3-1/4" wide end seal crimpers with horizontal lines and serrated knife cut-off. Infeed is 68" Long, on 5-7/8" centers with 2" high pin lugs on 6" centers. Infeed is equipped with a Houdijk Holland 4 row automated biscuit cracker feeder for variable height stacks. Infeed also equipped with an air knife reject for over-height stacks. Last running biscuit cracker approximate 2" x 4" in variable height stacks up to 2". Cracker feeder has AB Kintetic 6000 servo motion drives, Wrapper has Rexroth servo motion Indradrives. Controls are Allen Bradley PanelView plus 1000 HMI, and Allen Bradley CompactLlogix L435. Right to Left product flow. Serial # 5546-002. Built 9/2011. 3/60/480 Volt.

Stock# 72200004

Used- Delta Systems Eagle High Speed Automatic Horizontal Flow Wrapper. Capable of production rates up to 240 PPM. Equipped with dual arbor film feed, film splicer, printed film registration accepts maximum 12.24" web width structured cold seal film and Video Jet 1610 Ink Jet code printer. 2 up, 3-1/4" wide end seal crimpers with horizontal lines and serrated knife cut-off. Infeed is 68" Long, on 5-7/8" centers with 2" high pin lugs on 6" centers. Infeed is equipped with a Houdijk Holland 4 row automated biscuit cracker feeder for variable height stacks. Infeed also equipped with an air knife reject for over-height stacks. Last running biscuit cracker approximate 2" x 4" in variable height stacks up to 2". Cracker feeder has AB Kintetic 6000 servo motion drives. Wrapper has Rexroth servo motion Indradrives. Controls are Allen Bradley PanelView plus 1000 HMI, and Allen Bradley CompactLlogix L435. Left to Right Product flow. Serial # 5546-001. Built 9/2011. 3/60/480 Volt.

Stock# 72861002

Used-Delta Systems Model Eagle High Speed Horizontal Wrapper with sanitary lugged infeed conveyor. Machine is capable of cycling at speeds up to 400 PPM. Set up for both cold and heat seal films. Has 20'L lugged chain infeed. Has film print registration, Video Jet Dataflex 6330 date coder, Dual arbor film feed with auto film splicing, Includes 15"w x 20'L product conveyor to facilitate hand loading into the load chain conveyor. Last doing single count nutrition bars but never ran in production

Stock# 72861001

Used-Delta Systems Model Hawk High Speed Horizontal Wrapper with sanitary lugged infeed conveyor. Currently equipped with a 2 up 120mm seal jaw. Has lugged chain infeed with single arbor servo driven card sheet feeder. Has pneumatically actuated card perforators that allow perforation of card stock for forming of U-Card. Has film print registration, Video Jet date coder, Dual arbor film feed with auto film splicing, Last doing single count nutritition bars. 3/60/480 Volt, 30 A. Built 2020.

Stock# 72401001

Used- Delta Systems Eagle High Speed Automatic Horizontal Flow Wrapper. Capable of production rates up to 240 PPM. Equipped with dual arbor film feed, film splicer, printed film registration for 12.24 web width structured film and Video Jet 1610 Ink Jet code printer. 2 up, 3-1/4" wide end seal crimpers with horizontal lines and serrated knife cut-off. Infeed is 68" Long, on 5-7/8" centers with 2" high pin lugs on 6" centers. Infeed is equipped with a Houdijk Holland 4 row automated biscuit cracker feeder for variable height stacks. Infeed also equipped with an air knife reject for over-height stacks. Last running biscuit cracker approximate 2" x 4" in variable height stacks up to 2", Cracker feeder has AB Kintetic 6000 servo motion drives. Wrapper has Rexroth servo motion Indradrives. Controls are Allen Bradley PanelView plus 1000 HMI, and Allen Bradley CompactLlogix L435. Right to Left product flow. Serial # 5546-004. Built 9/2011. 3/60/480 Volt.

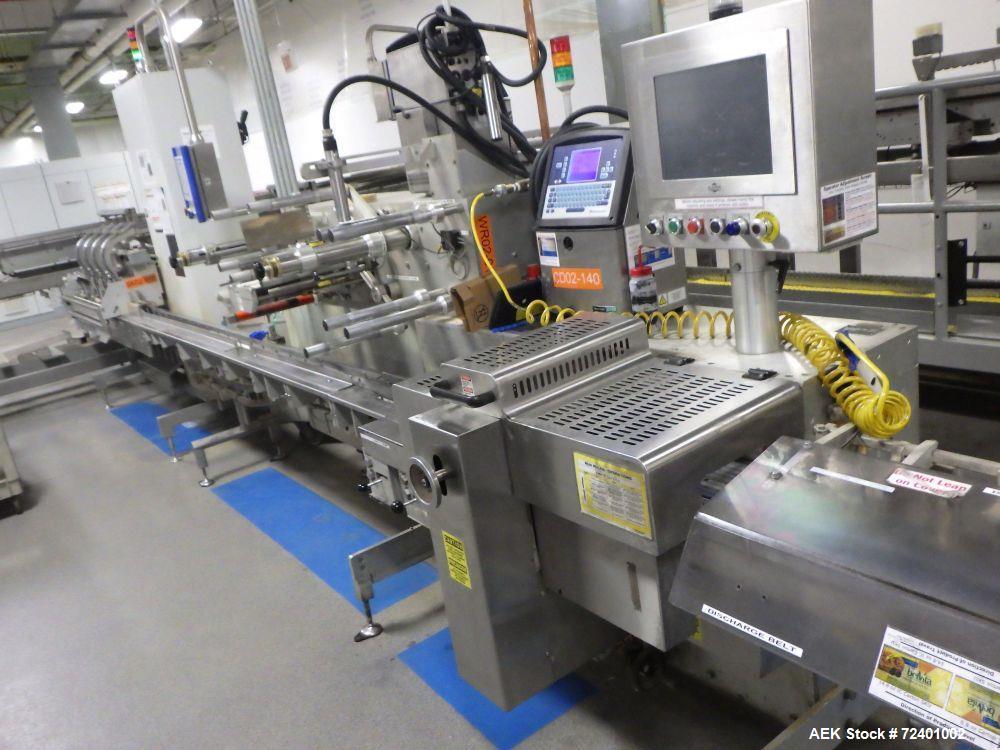

Stock# 72401002

Used- Delta Systems Eagle High Speed Automatic Horizontal Flow Wrapper. Capable of production rates up to 240 PPM. Equipped with dual arbor film feed, film splicer, printed film registration, accepts maximum 12.24" web width structured cold seal film and Video Jet 1610 Ink Jet code printer. 2 up, 3-1/4" wide end seal crimpers with horizontal lines and serrated knife cut-off. Infeed is 68" Long, on 5-7/8" centers with 2" high pin lugs on 6" centers. Infeed is equipped with a Houdijk Holland 4 row automated biscuit cracker feeder for variable height stacks. Infeed also equipped with an air knife reject for over-height stacks. Last running biscuit cracker approximate 2" x 4" in variable height stacks up to 2", Cracker feeder has AB Kintetic 6000 servo motion drives, Wrapper has Rexroth servo motion Indradrives. Controls are Allen Bradley PanelView plus 1000 HMI, and Allen Bradley CompactLlogix L435. Left to Right product flow. Serial # 5546-003. Built 9/2011. 3/60/480 Volt.

Stock# 72773001

Used- Doboy Super Mustang Horizontal Flow Wrapper. Includes- infeed, Markem coder and photocell. Production speed: up to 120 ppm with one-up head and up to 180 ppm with two-up head. Controls- Variable speed 3 HP DC drive motor, mechanical drives and Watlow temperature controllers. Designed to run products with size ranges of Length: 4"-15", Width: 0.5"-7", Max. Height: 2.75"-3.75". OADs: 170.5"L x 79.25"W. Reported to be reconditioned.

Stock# 72824001

Used-Doboy Model Mustang IV Horizontal Flow Wrapper with Markem Coder. Machine is capable of speeds up to 90 cpm. 1 up unit with film registration. Package size range: length up to 15"; height up to 2-1/4"; width up to 6-1/2". Has 7" wide crimp seal jaws. Approximate 8' long lugged chain infeed on 8" centers. Unit mounted on casters. Has Markem 9820 coder. 3/60/208V.

Stock# 73026001

Used- Doboy Horizontal Flow Wrapper, Model Mustang IV. Unit has 9" wide seal jaws and is capable of speeds up to 150 packages per minute (depending on product size and application). Has VideoJet coder set-up for lot and date coding and Tri-Tronics electronic registration eye for printed films. Servo driven with updated Allen Bradley PLC and touch screen HMI. 3/60/220V. Reported to be reconditioned. Last used in novelty baked foods.

Stock# 73026002

Used- Doboy Horizontal Flow Wrapper, Model Mustang IV. Unit has 9" wide seal jaws and is capable of speeds up to 150 packages per minute (depending on product size and application). Has VideoJet coder set-up for lot and date coding. Servo driven with updated Allen Bradley PLC and touch screen HMI. 3/60/220V. Reported to be reconditioned. Last used in novelty baked foods.

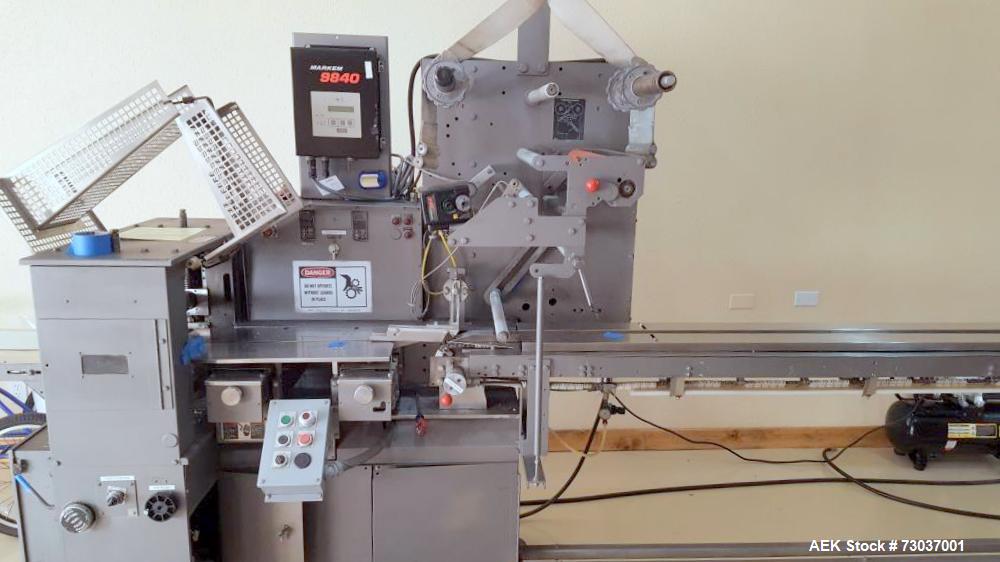

Stock# 73037001

Used- Doboy Super Mustang Horizontal Flow Wrapper. Approximate Production speed: up to 120 ppm with one-up head and up to 180 ppm with two-up head. Designed to run products with approximate size ranges of Length: 4"-15", Width: 0.5"-7", Max. Height: 2.75"-3.75". 7088 W, 18 FLA, 3/60/220V.

Stock# 73081002

Unused- Fuji Machinery FW3410/B Alpha 8 Continuous Flow Wrappers, Left & Right Side Feed. Includes 2021 Markem Imaje SmartDate X65 Thermal Transfer Printers (New in Box). Capable of speeds from 10 - 150 packages per minute (depending on application). Cut off length: 130mm - 430mm, largest product size: 200mm/100mm. Built 2021.

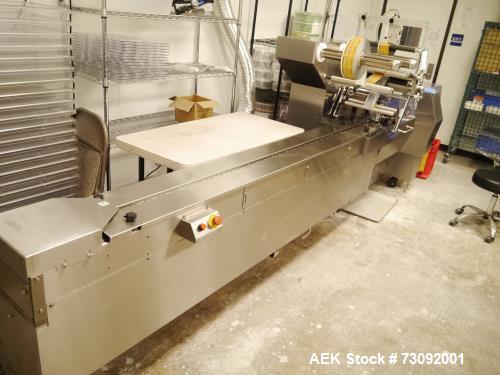

Stock# 73092001

Used- Fuji Formost Model FW-3400CX Horizontal Flow Wrapper. Capable of speeds up to 150 items per minute (depending on application). Two up head with gas flush, blade flight infeed origin sensor for running small products, mounting box for printer, film tightener. Product size range: 140mm (width) x 60mm (height). Cut off length: 60mm - 350mm. Largest film width: 430mm. Built 2017.

Stock# 70143015

Used- Fuji Foremost Model FW3480B Right Hand Stainless Steel One-Up Horizontal Flow Wrapper with Gas Flush System. Designed For Larger Products. Operating Speed 10-80 Packs Per Minute. Product Dimensions 13-1/2" Maximum Width, 4-7/8" Maximum Height. Maximum Film Width 32-13/16". Film Cutoff Length 5-1/8" - 16-15/16". Left to Right Configuration. 13' Long Infeed Conveyor with Lugged Chain on 12" Centers, (1) Markem Smart Date Coder and (1) Markem Smart Date 5 Coder. Film Registration. 13-1/4" Wide Forming Box Conveyor. 16" Long Single Heat Seal Bar with Knife. 12" x 12" Tamp Down Pad. 13-1/4" Wided x 34" Long Discharge Conveyor. With Extended Film Feed System. 230 V, 3 Ph, 60 Hz.

Stock# 72416002

Used- Pfankuch VP4508 Collating OPP Film Wrapping Line. With: Modular collating and wrapping line previously running telephone cards, Typical product applications include: telephone cards, greeting cards, stickers and labels, office supply articles, catalogs, promotions inserts, direct mailings, etc. Modular and compact designed base machine concept, Extended lugged infeed and collating feeder head, Adjustability to different product sizes, Multi-track production for collating and sealing unit allows highest flexibility in running different products and output results, Lower film feed system, Machine control board 16-bit processor with Eprom and E-Eprom memory device for saving and call up of all necessary processing data, Microprocessor controlled servo motor machine drive, User friendly arranged machine control board with menu based interface and touch panel, Cycle speeds up to 120 products per minute and track, depending on product specifications, Product dimensions: Minimum: 3.93 inches long x 3.14 inches wide x 1 sheet thick, Maximum: 14.17 inches long x 14.17 inches wide x .59 inches thick. Film width: 15.74 inches.

Stock# 72702001

Used- PFM Model Tornado Inverted Seal Horizontal Wrapper. Mechanical speed rated up to 100 ppm (40 meters per minute longitudinal seal speed), however product length and film will determine final maximum output. Package size range of: length 3.9" - 19.6" (100mm-500mm); width .39" - 11" (10mm-280mm); height 0 - 3.5" (0-90mm). The three maximum sizes cannot be run simultaneously. 1 up long dwell seal jaw designed to run heat or cold seal wrapping material, polypropylene, perforated or laminates with hole punch jaws. Equipped with electric eye registration, Allen Bradley SLC 5/03 CPU with Panelview 900 operator, 16' long x 6" wide cleated belt product infeed conveyor with approximately 1/8" high cleats on 14" centers, Greydon Model 01SBM61 inline printer. Stainless steel construction. Electric 3/60/208/220V. Air 90 psi. Last ran medical device products. CE certified.

Stock# 73023002

Used- Semca Industries Horizontal Flow Wrapper, Model C.O 120. Capable of speeds up to 400 pieces per minute (depending on product size and application). Includes a centrifugal product placer, currently set-up for use with hard candies. Has Microlynx Semca controls. Has (2) 6-sided cutting wheels. 3/60/240V.

Stock# 72508001

Used- Sig (Syntegon/Bosch) Model HSM High Speed Horizontal Wrapper. Capable of speeds up to 1200 packages per minute. Size range: package cutoff length: 50 - 500mm (2-20"), product width: maximum 185mm (13.2"), product height: maximum 80mm (5.12"). Currently set up to run cold seal film. Has film registration, servo belt infeed system, dual web arbors with splice table. Last running enrobed and non enrobed granola bars. Has automatic bar orientor (turner) on infeed to line bars up into single file. Two up seal jaw configuration. Allen Bradley Micrologix 1000 PLC, A/B Logix 5555, HMI. Two like systems available with servo laner for orienting bars. Ideal for protein bars, energy bard, candy bars. 3/60/480 Volt.

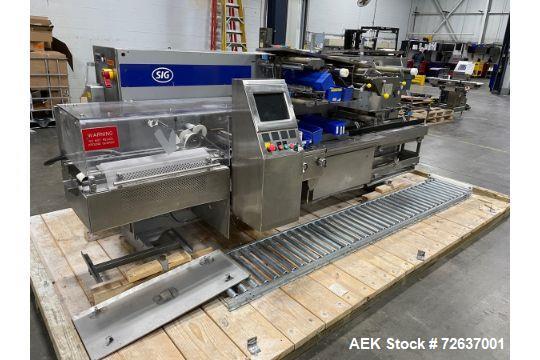

Stock# 72637001

Used- SIG Horizontal Flow Wrapper, Model HBM. Wrapper is rated for speeds from 50 to 350 packages per minute. Has a 7.5" serrated blade seal jaw for a package size range of 2" to 20" in length, up to 6" in width and up to 6" in height. Has a lugged chain infeed with adjustable 2" to 12" centers. Has touchscreen operated HMI, Allen Bradley SLC PLC. Stainless steel construction. 3/60/230V.

Stock# 71540002

Used- SIG Model HBL Horizontal Flow Wrapper for Hermetic Packaging. Capable of speeds up to 100 packages per minute. Has a package size range: 2"-20" (50mm - 300mm) length; up to 4" (100mm) wide; up to 3.94" (100mm) height. Has a long dwell walking beam or box motion hermetic sealing end seal 4-3/8" wide jaws Film web width: up to Maximum 16" (400mm) on 3" (76mm) diameter core. Uses Allen Bradley Logix5561 PLC controls. Has automatic three belt servo infeed with integrated MGS rotary placer. Equipped with servo drives, film registration, dual web arbors with automatic splice table, Video Jet Data Flex Date Coder with HMI control panel. Includes a Thermo Dynamics Portable Chiller. 3/60/480V. Serial # HBL J-1240-HBL-042. Last used in Pharmaceutical Nebulizer Refill overwrapping.

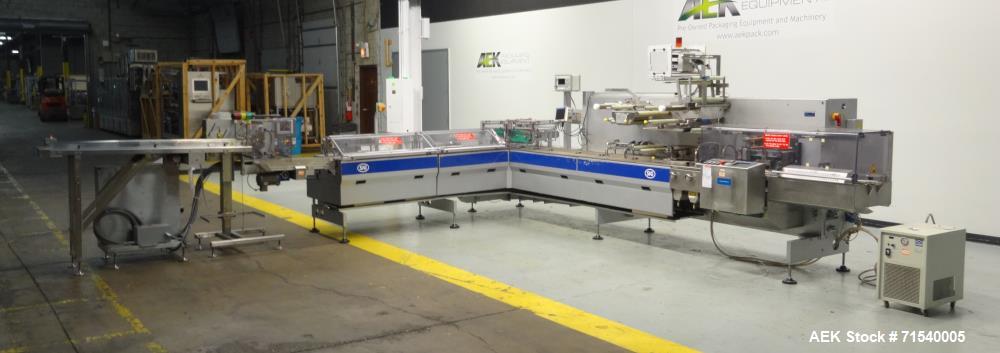

Stock# 71540005

Used- SIG Model HBL Horizontal Flow Wrapper for Hermetic Packaging. Capable of speeds up to 100 packages per minute. Has a package size range: 2"-20" (50mm - 300mm) length; up to 4" (100mm) wide; and 3.94" (100mm) height. Has a long dwell walking beam or box motion hermetic sealing end seal 4-3/8" wide jaws. Film web width: up to Maximum 16" (400mm) on 3" (76mm) diameter core. Uses Allen Bradley Micrologix 1500 PLC controls. Equipped with servo drives, film registration, dual web arbors with automatic splice table, VideoJet Dataflex+ Date Coder with HMI control panel and Laetus Argus bar code scanner with reject. Equipped with a right-angle 7" x 98" belt conveyor. Includes MGS RPP-331 Feeder and NESLAB portable chiller. 3/60/480V. Serial # S-1016-HBL-032. Built in 2002. Last used in Pharmaceutical Blow FIll Seal Nebulizer Refill overwrapping.

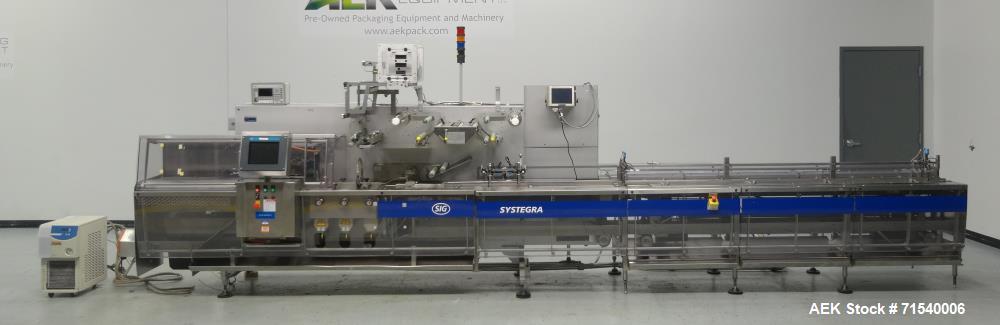

Stock# 71540006

Used- SIG Model HBL Horizontal Flow Wrapper for Hermetic Packaging. Capable of speeds up to 100 packages per minute. Has a package size range: 2" - 20" (50mm - 300mm) length; up to 4" (100mm) wide; and 3.94" (100mm) height. Has a long dwell walking beam or box motion hermetic sealing end seal 4-3/8" wide jaws. Has Smart Belt 109" long x 4" automatic infeed conveyor. Film web width: up to maximum 16" (400mm) on 3" (76mm) diameter core. Uses Allen Bradley Logix5555 PLC controls. Equipped with servo drives, film registration, dual web arbors with automatic splice table, VideoJet Dataflex+ Date Coder, chilled fin seal plates, with HMI control panel and Laetus Argus bar code scanner. Discharge conveyor 3.25" wide x 49" long, knife width 4.5". Includes a Thermo Electron Chiller. Mounted on adjustable height legs, 3/60/480V. Serial # J-01129-HBL-036. Manufactured in 2003. Last used in Pharmaceutical Nebulizer BFS Blow Fill Seal Refill packaging line. J-01129-HBL-036. 3/60/460 Retooling, set-up and testing services are available. Contact AEK for more information.
