Used Lantech Q Series Industrial Automatic Stretch Wrapper – 60 Loads Per Hour
Used Lantech Model Q Series Industrial Automatic Stretch Wrapper. Machine is capable of speeds up to 60 loads per hour (depending on film and pallet size). Has a maximum load capacity of up to 4000 pounds. Can handle a load size range of: 36" to 54" (width); 36" to 48" (length); and 24" to 92" (height). Has automatic pallet infeed and discharge conveyors at 18" elevation. Height to the top of the rollers is 18". Has an 84" (diameter) heavy duty automatic turntable. Allen Bradley Micrologix 1400 PLC and Planelview Plus 7 Performance 700 ethernet. Control logics 5555 PLC. Maximum roll dimensions: 10" (diameter) by 20" (width). Uses a reach arm with impulse (hot wire) film cutting and film wipe down system. 3/60/460 * 80-90psi comp air. Serial# QA0006441. Built in 2023.
Description
This used Lantech Q Series Industrial Automatic Stretch Wrapper is a high-speed, fully automated pallet wrapping system, capable of handling up to 60 loads per hour (depending on film and pallet size). It features an 84” diameter heavy-duty automatic turntable and a maximum load capacity of 4,000 pounds, making it ideal for high-volume warehouse and distribution applications.

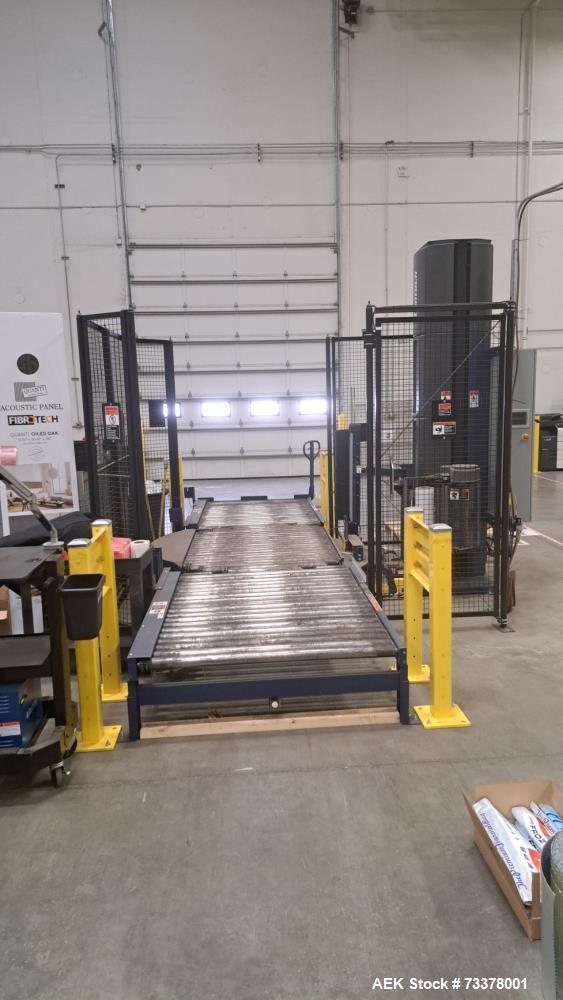

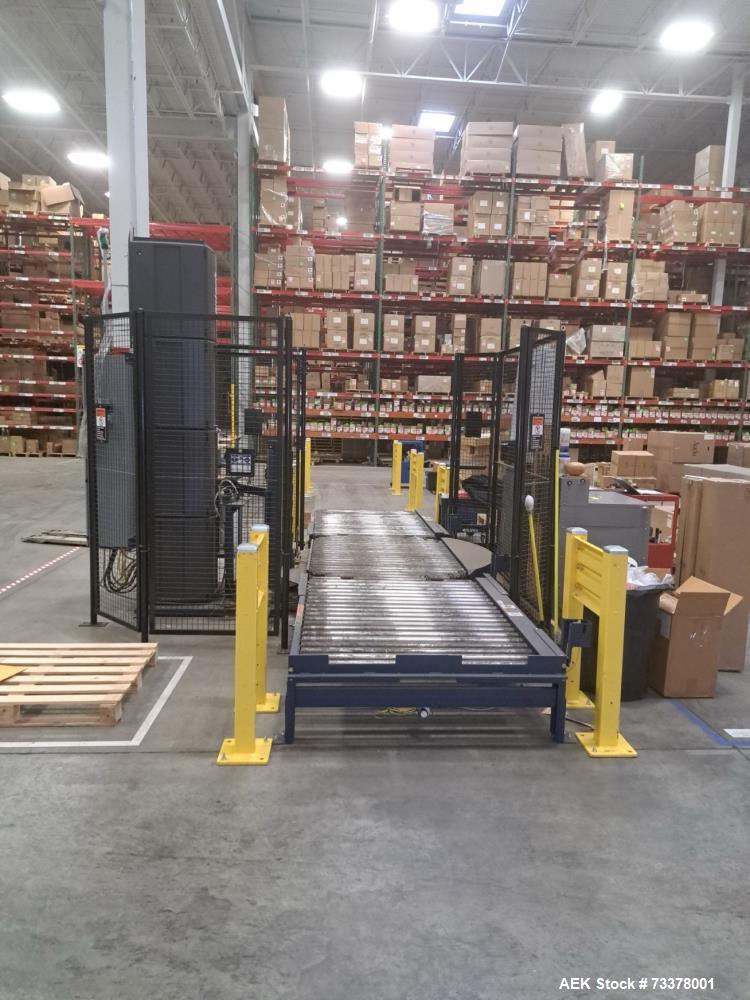

The system is designed to handle a wide range of pallet sizes, accommodating loads between 36” to 54” (width), 36” to 48” (length), and 24” to 92” (height). It is equipped with automatic pallet infeed and discharge conveyors at an 18” elevation, ensuring smooth and efficient workflow integration.
Powered by an Allen Bradley Micrologix 1400 PLC and PanelView Plus 7 Performance 700 Ethernet, this stretch wrapper offers advanced automation and precise control. It also features a ControlLogix 5555 PLC, a reach arm with impulse (hot wire) film cutting, and a film wipe-down system for consistent and secure pallet wrapping.
Specifications
- Wrapping Speed: Up to 60 loads per hour
- Maximum Load Capacity: 4,000 lbs
- Load Size Range:
- Width: 36” to 54”
- Length: 36” to 48”
- Height: 24” to 92”
- Turntable: 84” diameter heavy-duty automatic turntable
- Pallet Handling:
- Automatic pallet infeed and discharge conveyors (18” elevation)
- Height to top of rollers: 18”
- Film Handling:
- Maximum Roll Dimensions: 10” diameter x 20” width
- Reach arm with impulse (hot wire) film cutting and wipe-down system
- Control System:
- Allen Bradley Micrologix 1400 PLC
- PanelView Plus 7 Performance 700 Ethernet
- ControlLogix 5555 PLC
- Power Requirements: 3/60/460V
- Compressed Air Requirement: 80-90 PSI
Applications
This Lantech Q Series Stretch Wrapper is ideal for:
- Warehouse & Distribution Centers – High-speed pallet wrapping for logistics operations.
- Manufacturing & Industrial Packaging – Securely wrapping large and heavy products.
- Food & Beverage Packaging – Protecting perishable goods during transit.
- E-commerce & Retail Distribution – Streamlining packaging processes for large shipments.
- Pharmaceutical & Medical Supply Packaging – Ensuring stability and compliance in transport.
Compatible Products
This industrial stretch wrapper is suitable for wrapping:
- Palletized food, beverage, and pharmaceutical products
- Large industrial and manufacturing components
- Retail distribution goods and e-commerce shipments
- Bulk warehouse and logistics packaging
Beauty Products, beer, brewery, Beverage, Beverage / Brewing Industry, Building Materials, Building Products, Chemical Plants, Chemical Products, Consumer Goods, Consumer Products, Cosmetic, Cosmetics, Distribution Center, E-Commerce, Food and Beverage, Food Packaging, Food Plants, Food Products, Manufacturer, Manufacturing, Manufacturing Industry, Packaging, Packaging Equipment, Palletizer, Pharmaceutical Industries, Pharmaceutical Products, Pharmaceuticals
- Used Lantech Q Series Stretch Wrapper
- Automatic Pallet Wrapping Machine for Sale
- Industrial Stretch Wrapping System
- High-Speed Pallet Wrapper 60 Loads Per Hour
- Lantech Automatic Stretch Wrapper
- Used Lantech Q Series Automatic Stretch Wrapper for Sale
- Industrial Pallet Wrapping Machine with 84” Turntable
- High-Capacity Stretch Wrapper with Automatic Infeed & Discharge Conveyors
- Allen Bradley PLC Controlled Stretch Wrapping System
- Heavy-Duty Automatic Pallet Wrapping Equipment
- Used Lantech Q Series Industrial Stretch Wrapper with PLC Controls and 4,000 lb Capacity
- High-Speed 60 Loads Per Hour Automatic Pallet Wrapper for Warehouses & Distribution
- Fully Automated Stretch Wrapping System with Hot Wire Film Cutting & Wipe-Down
- Lantech Q Series Industrial Pallet Wrapper with Ethernet-Connected Control System
- Used High-Performance Lantech Stretch Wrapping Machine for Secure Pallet Packaging
