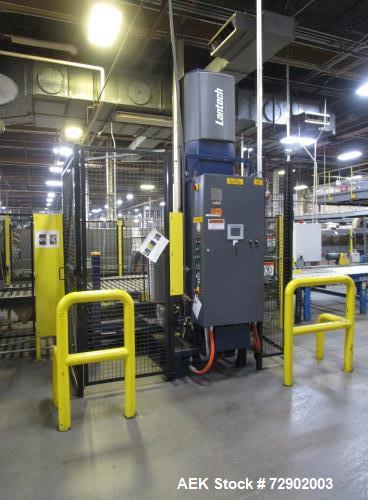

Used- Lantech, Model S2503, Automatic Stretch Wrapper.
Used- Lantech, Model S2503, Automatic Stretch Wrapper. Straddle / Spider wrap style. Machine is capable of speeds 60 - 80 loads per hour (depending on film and pallet size). Has a maximum load capacity up to 4000 pounds. Accepts load size range of: 36" to 51" Width; 36" to 58" Length; and 24" to 80" Height. Main rotating turntable is 51" wide x 59" length, with 4 sections of powered pallet conveyor that has 51" wide rollers, 6', 6', 8', and 5' lengths, 2-1/2" diameter rollers on 3" centers. Maximum stretch film roll dimensions: 10" (diameter) by 20" (width). Uses a reach arm with impulse (hot wire) film cutting and film wipe down system. Uses an Allen Bradley Micrologix 1500 PLC control system. Includes safety fencing. 15 amp. 3/60/460V.
