Used- Arpac Brandpac Model BP-MP-60 Multi Pack Bundler for Print Registered Film

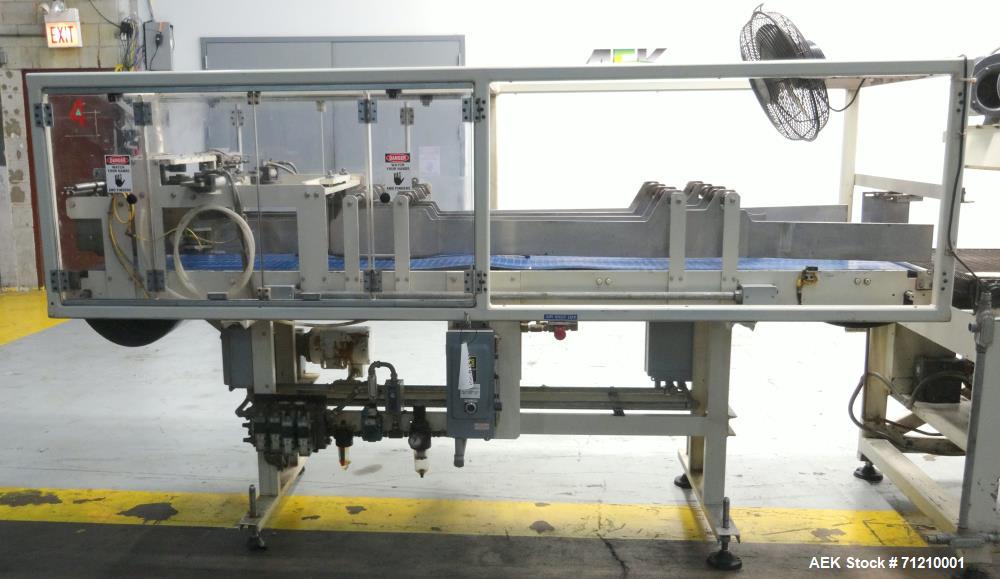

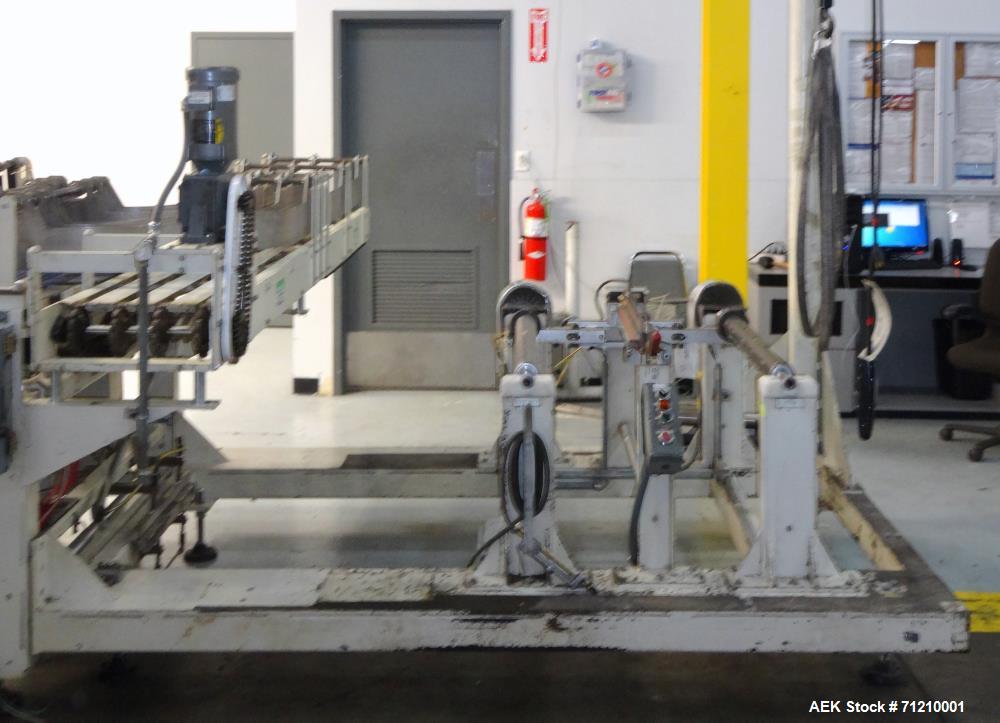

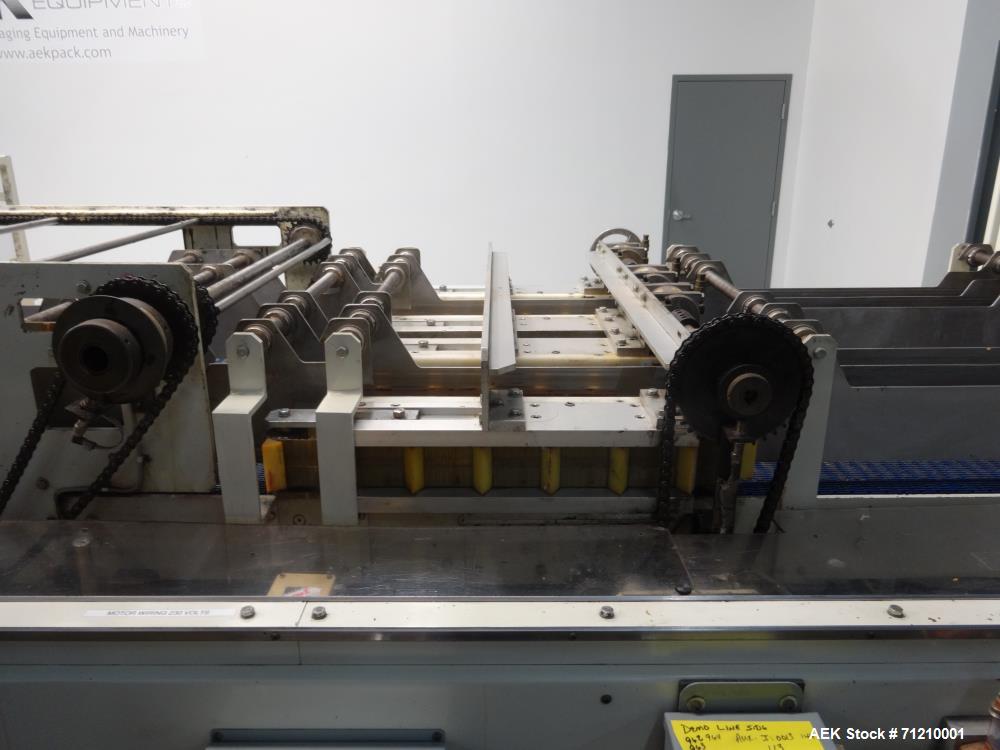

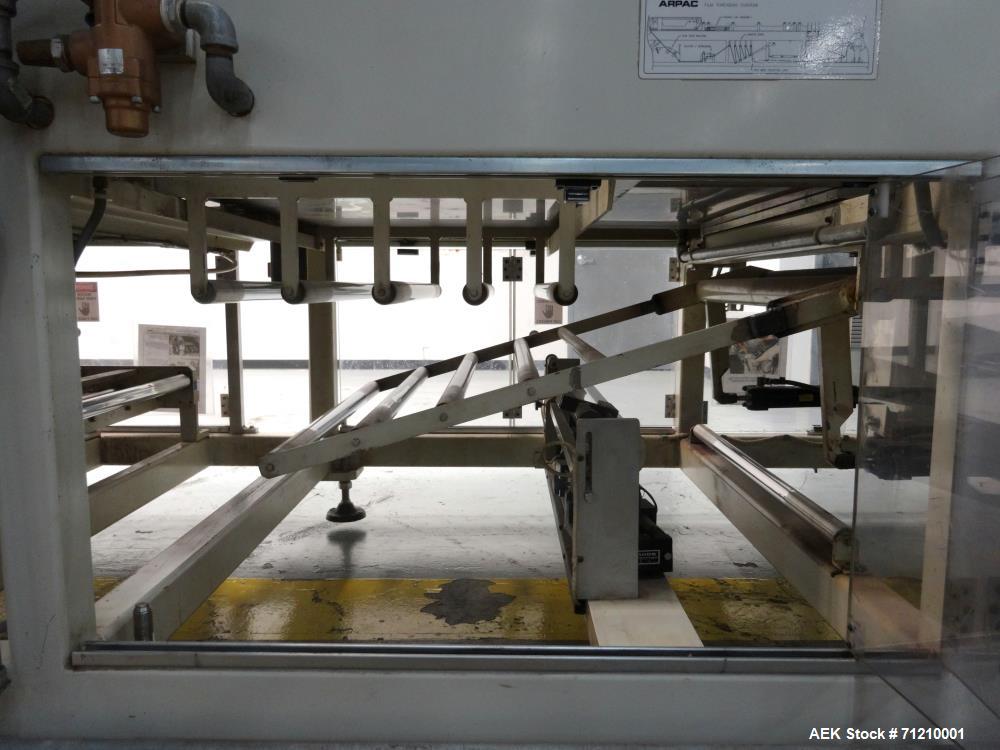

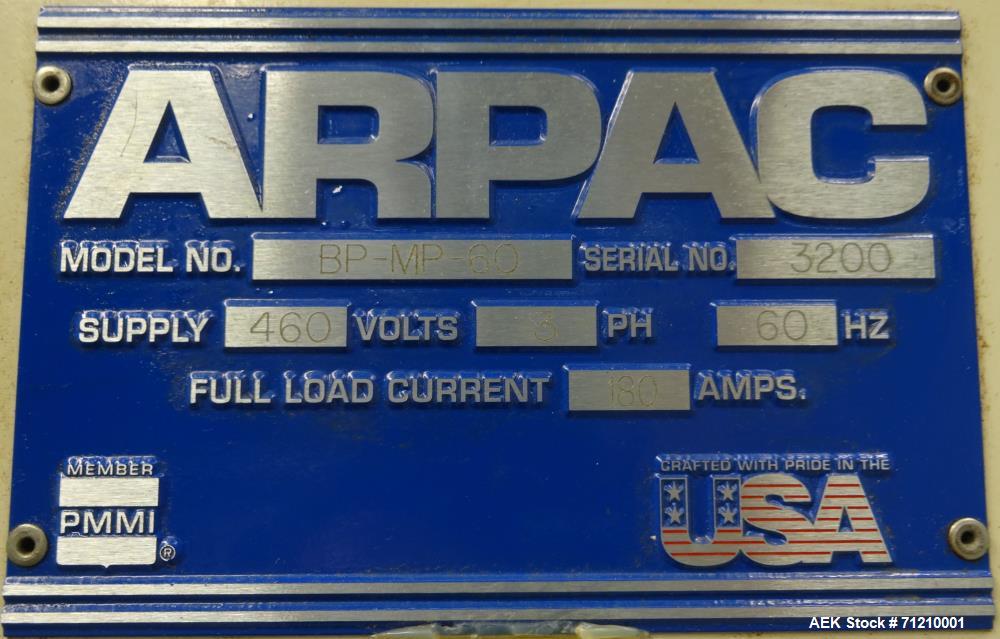

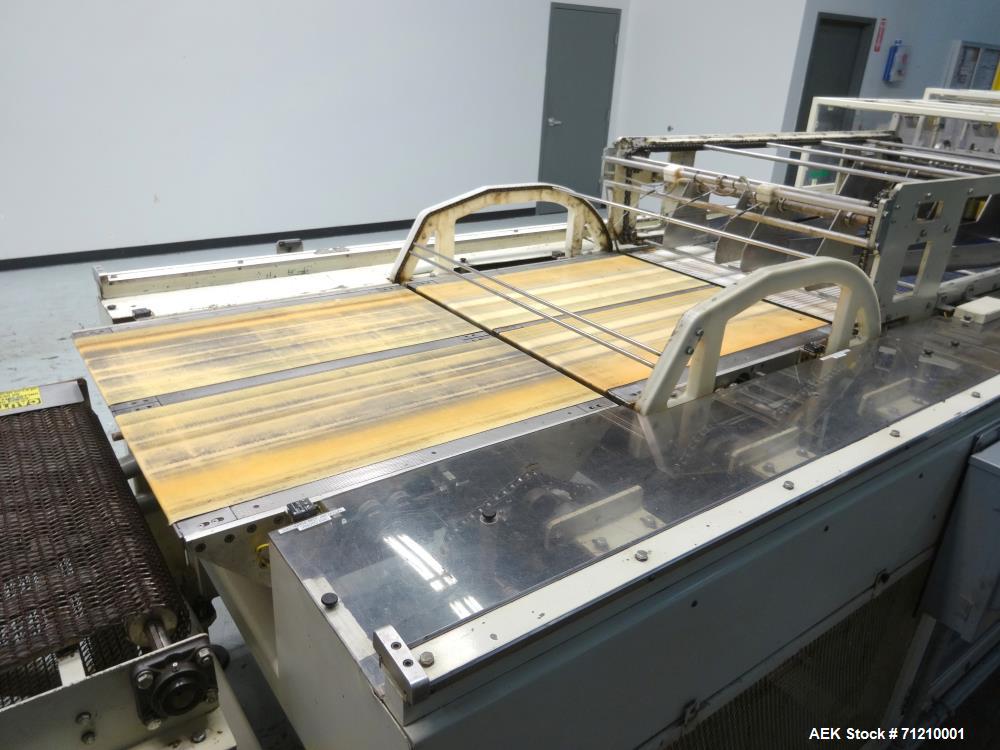

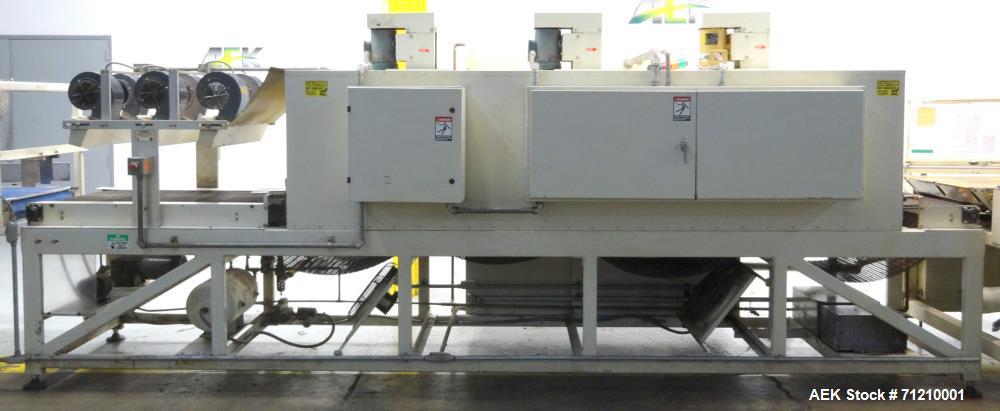

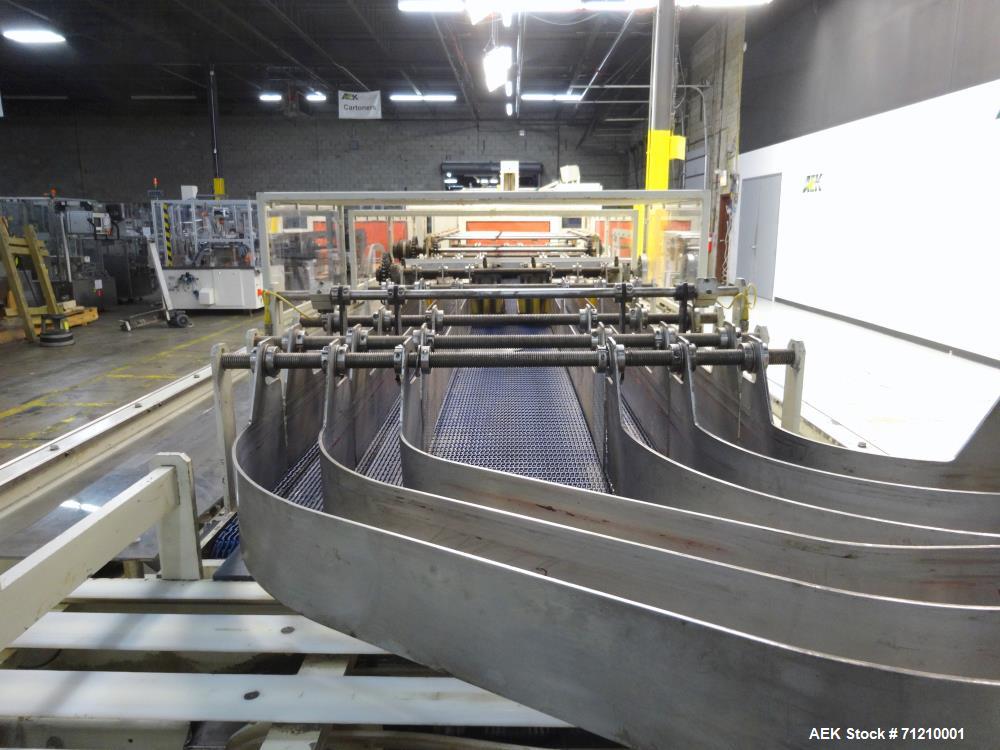

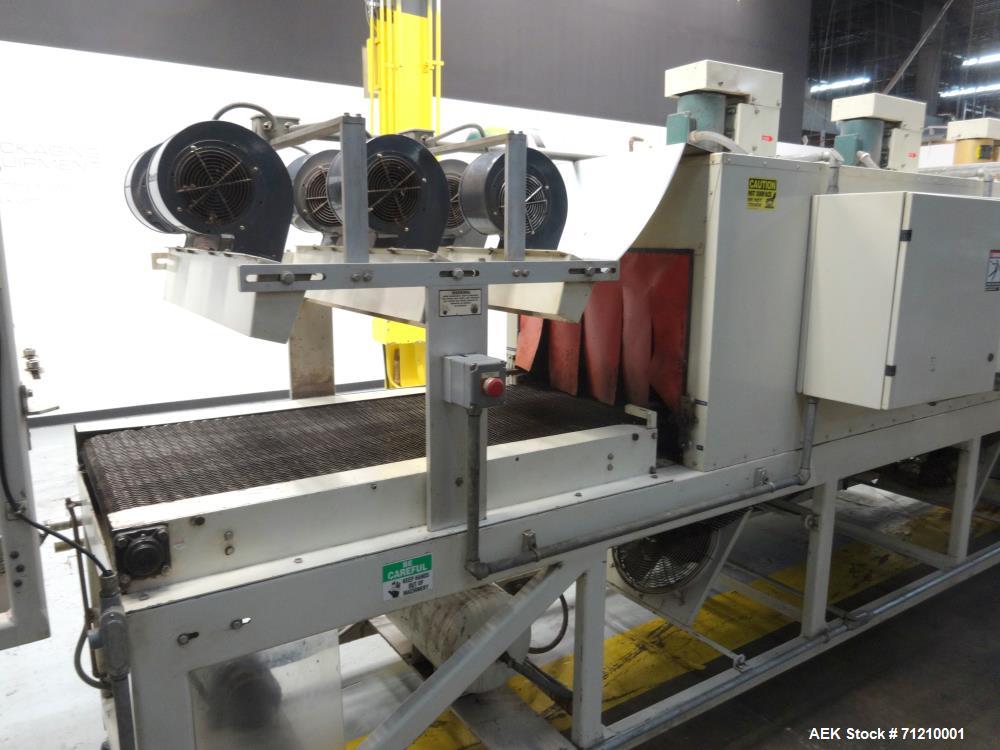

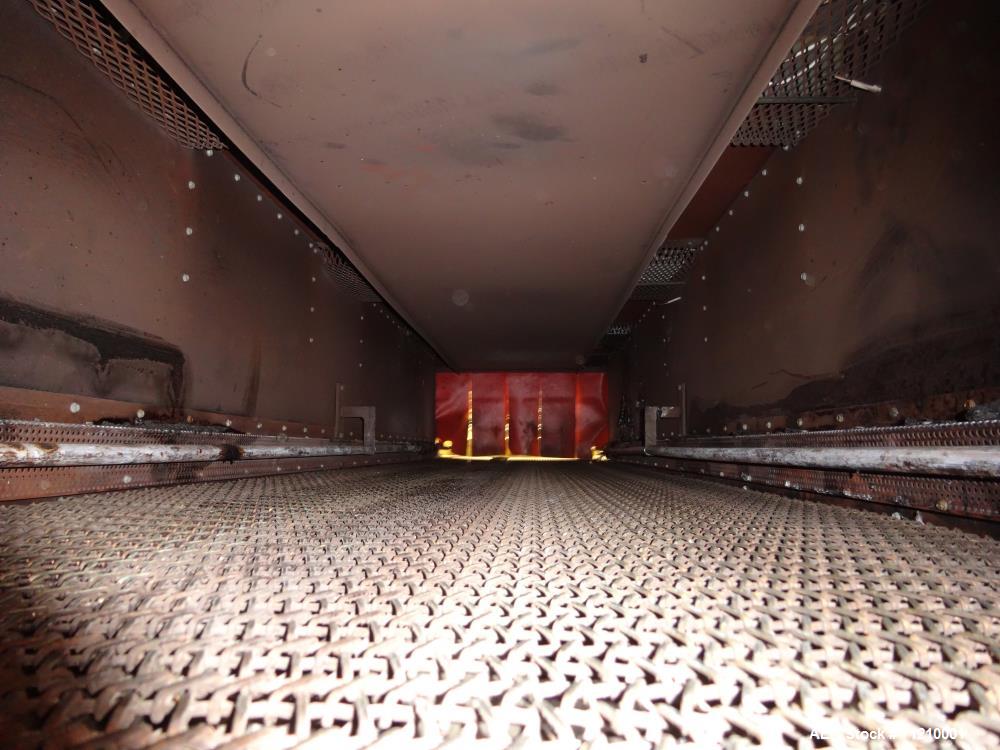

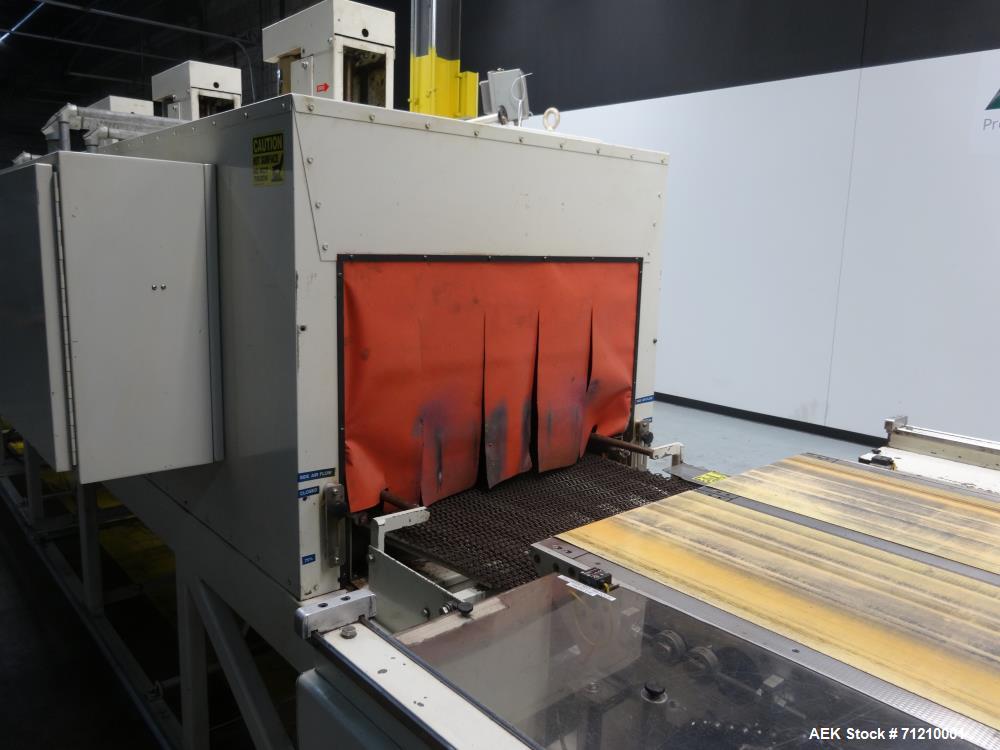

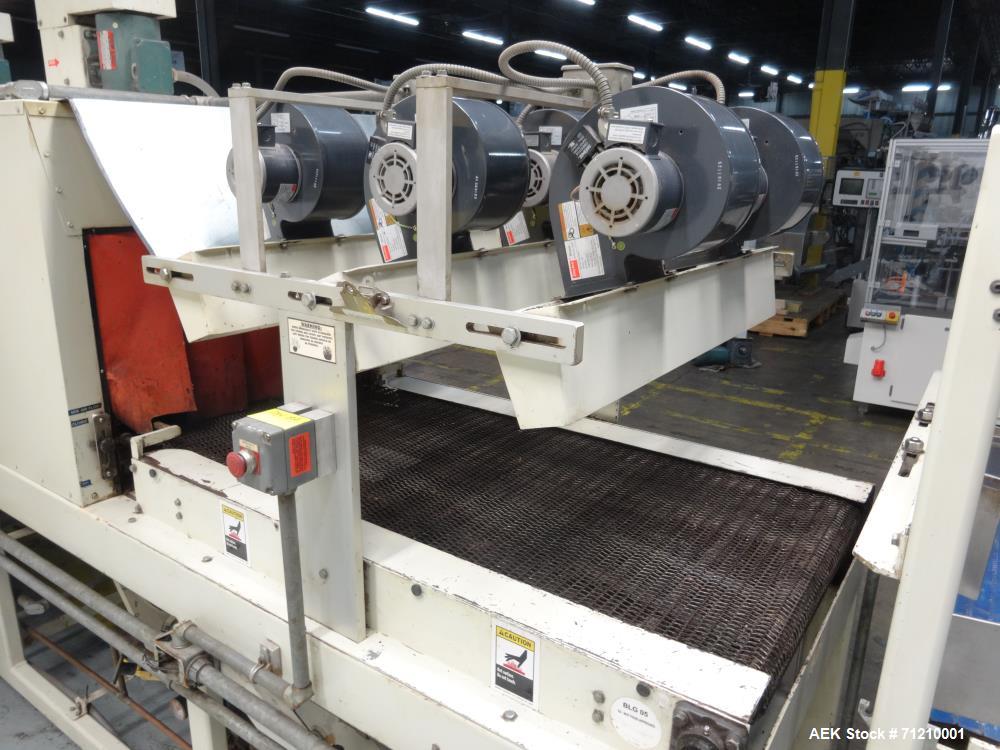

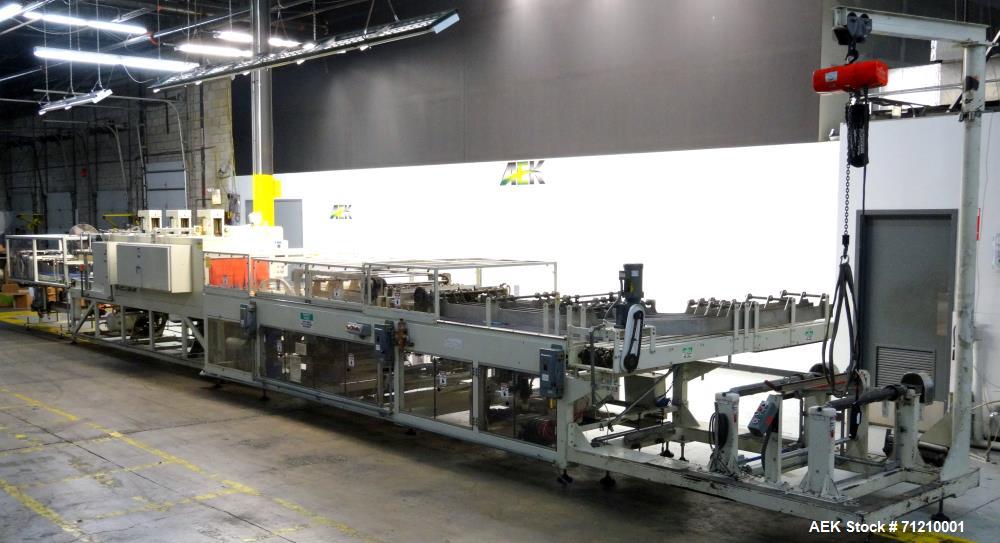

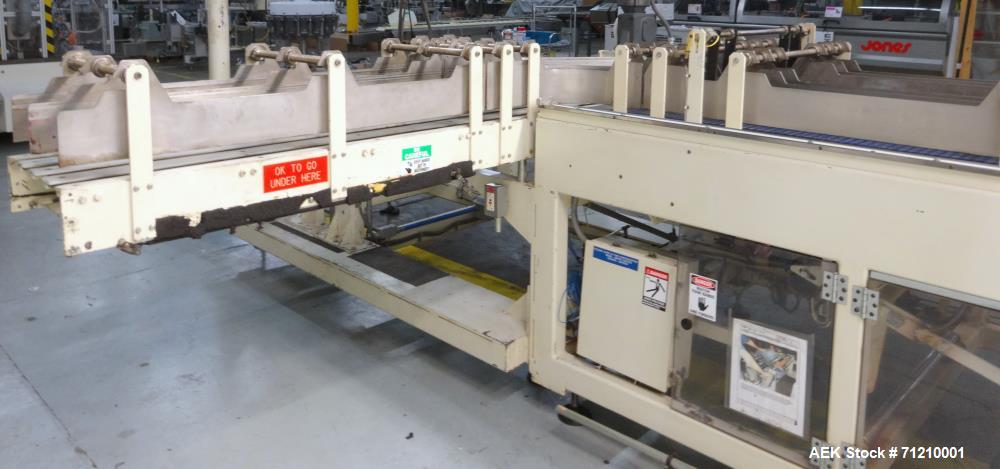

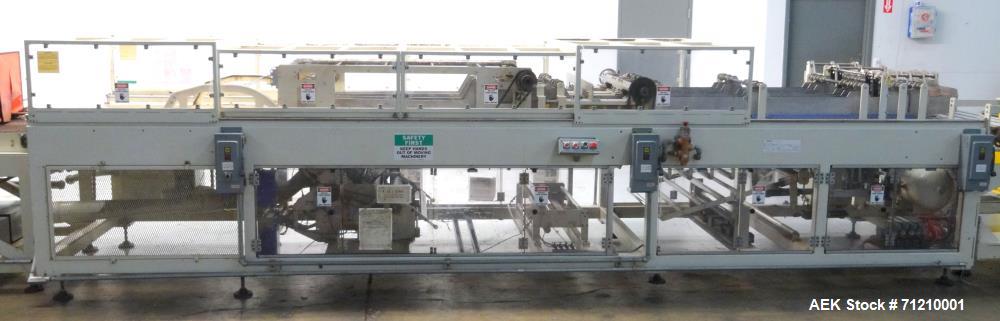

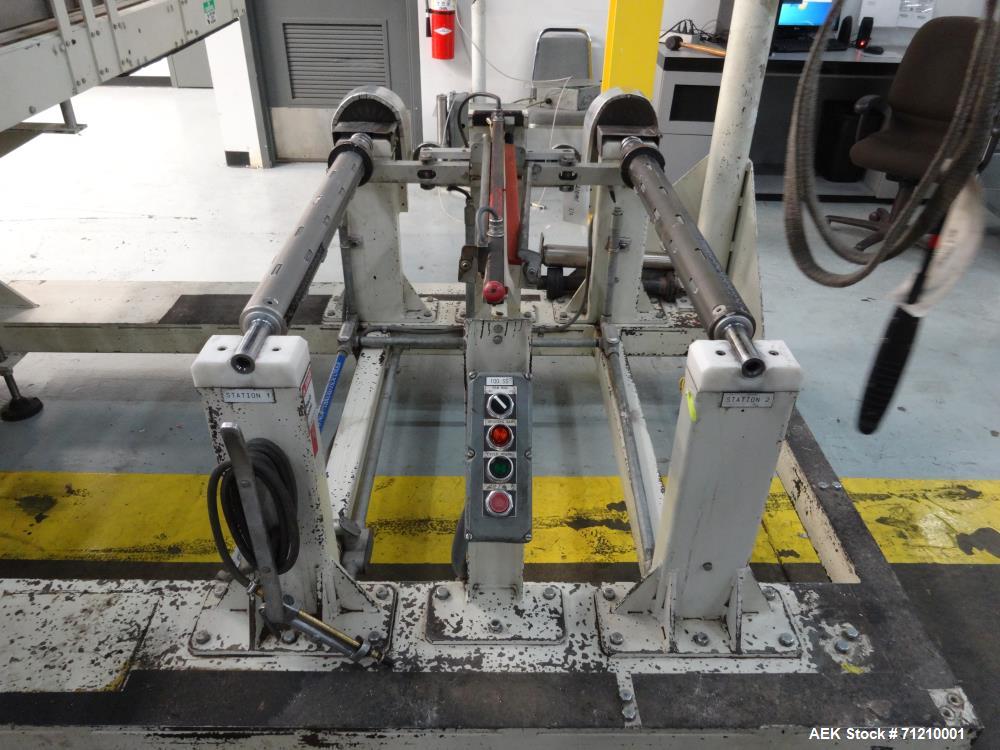

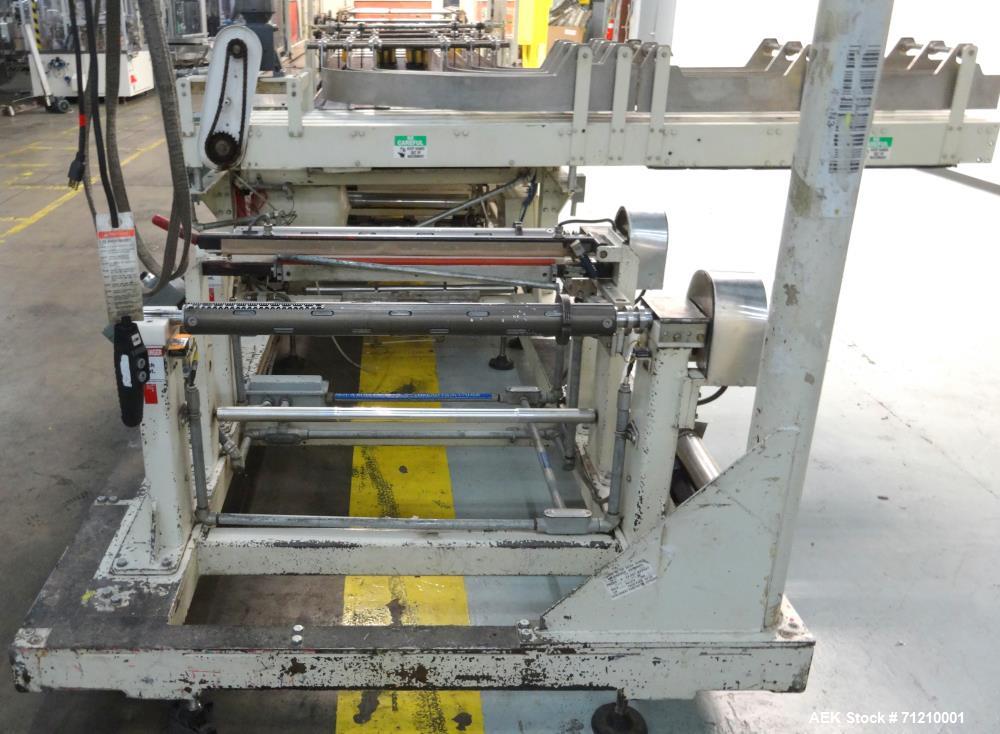

Used- Arpac Brandpac Model BP-MP-60 Multi Pack Bundler for Print Registered Film. Dual lane machine with single roll technology, Integrated infeed, film wrap and tunnel. Now set-up as dual lane, bundling two packs of two peanut butter jars each. Current size range accepts approximate maximum jar dimension of 3-7/8" diameter x 7-1/2" high, producing (2) 7-3/4" x 3-7/8" packs per cycle. The system unwinds a large roll of film and slides it down the middle to create two separate film feeds. Jars are separated into four lanes, then metered and released to be over-wrapped (2 x 2) (4) per cycle, creating two bundle packs at a time. The jars are bundle wrapped front to back, only leaving a small portion of the jars exposed on the two sides. It is then sent through a heat tunnel to shrink the film. After being wrapped the bundles are rotated and divided into four lanes. This equipment was run at 100 packs per minute.180a. 3/60/460V. Serial # 3200. Mfg 1997.
