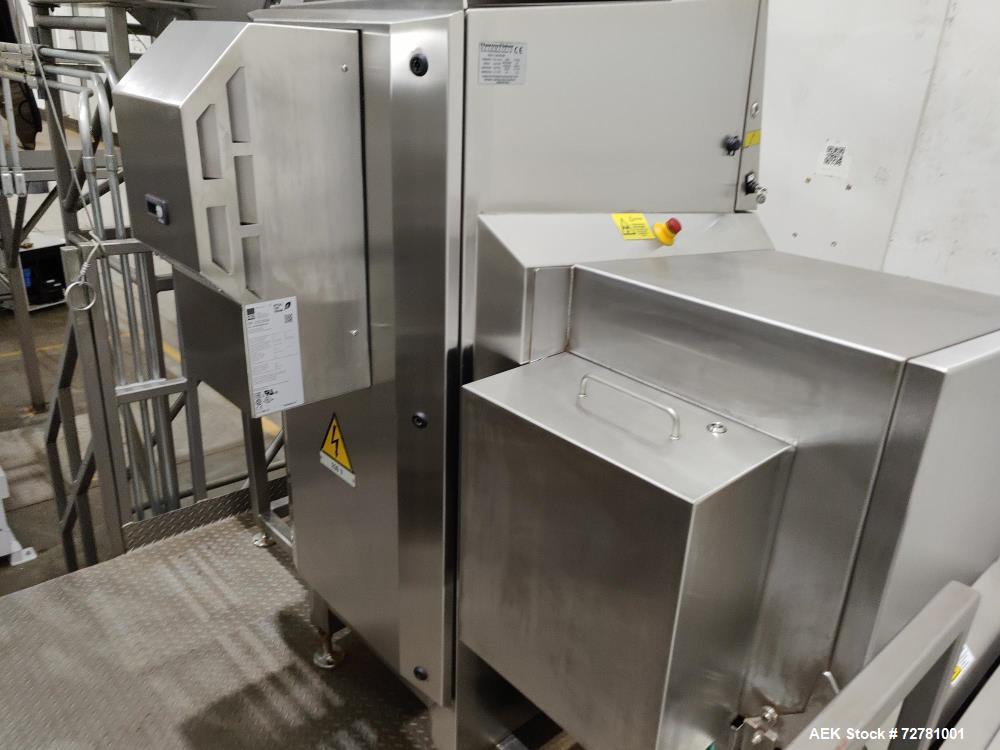

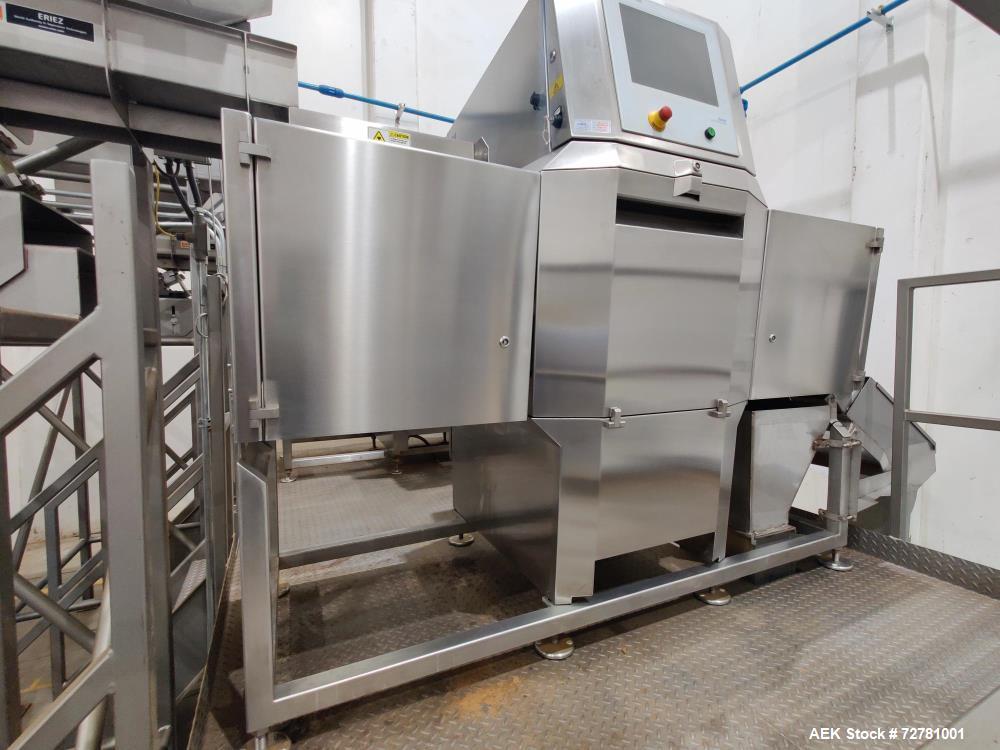

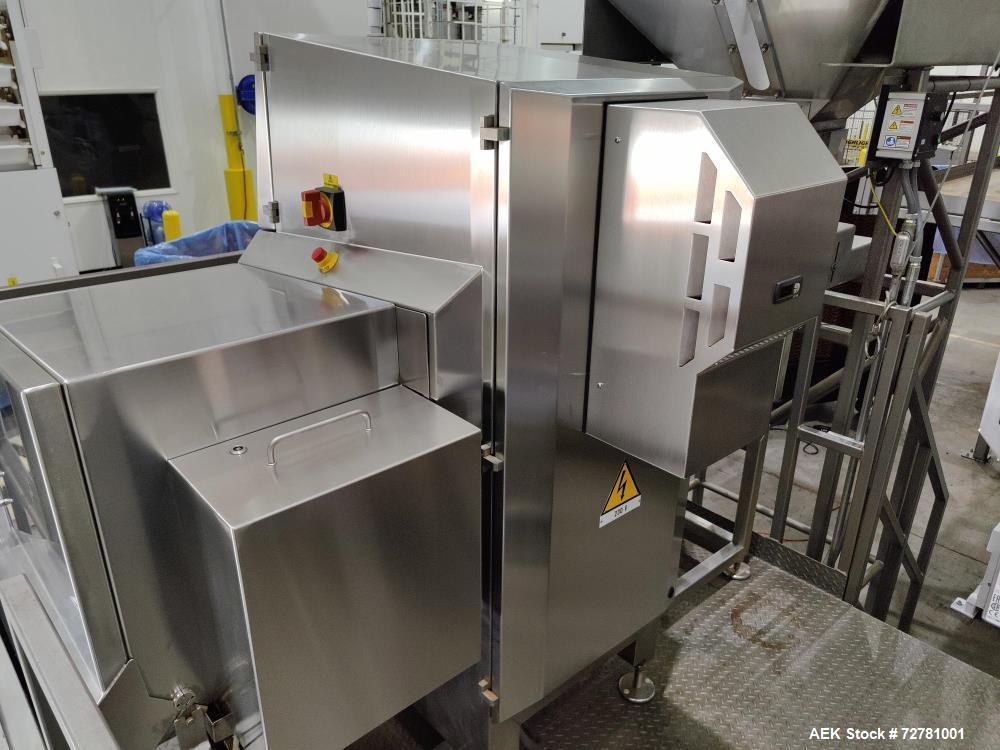

Used Thermo Ramsey Model Xpert b600 Xray Metal Detection System; Product Rate: 10,000 Bulk Density (lbs/cubic foot); Standard Features: Line Length: 2173mm (85.5"), including infeed funnel and outfeed reject system.: Typical inspectable belt width: 474mm (18.6")@ 72mm (2.8") product depth (see beam geometry chart for other widths/heights); lnfeed hopper height: 1350mm (53.1"), +75mm (2.95") / -30mm (1.18"); Outfeed reject chute height: 547/Bmm (21.57"), +75mm (2.95") I -30mm (1.18"); Long life x-ray source: 200W (75kV/2.0mA) standard; High sensitivity 0.8mm detectors; Typically detects 1-2mm dia. metal, 3-4mm for other dense contaminants like glass and stone; Belt Speeds from 14 to 34 MPM (45 to 113 FPM) or 27 to 68 MPM (90 to 223 FPM); Wash down drum motors; Input funnel can be fed from the back, end or front of the machine; Easy Set-Up wizard; Easy debug; Troughed belt, fabric guides or hard plastic guide; Max reduct weight on belt is 50k; Pneumatic gate style rejecter, 1/2/3 or 4 lanes; Up to 8 lanes inspection with standard guide rails & up to 6 lanes with troughed belt guide rails.; Binary threshold, contrast detection, gradient threshold, groups and morphology filters for contaminants; High quality real-time or frozen image display. Last 20 reject image buffer; Rugged HD for storing reject images/statistics.; Watertight USB port; Windows 7 PC based with HMI touchscreen, 381 mm/15" diagonal; Multiple level password security system; Built-in cabinet air conditioner
Used Thermo Ramsey Model Xpert b600 Xray Metal Detection System; Product Rate: 10,000 Bulk Density (lbs/cubic foot); Standard Features: Line Length: 2173mm (85.5"), including infeed funnel and outfeed reject system.: Typical inspectable belt width: 474mm (18.6")@ 72mm (2.8") product depth (see beam geometry chart for other widths/heights); lnfeed hopper height: 1350mm (53.1"), +75mm (2.95") / -30mm (1.18"); Outfeed reject chute height: 547/Bmm (21.57"), +75mm (2.95") I -30mm (1.18"); Long life x-ray source: 200W (75kV/2.0mA) standard; High sensitivity 0.8mm detectors; Typically detects 1-2mm dia. metal, 3-4mm for other dense contaminants like glass and stone; Belt Speeds from 14 to 34 MPM (45 to 113 FPM) or 27 to 68 MPM (90 to 223 FPM); Wash down drum motors; Input funnel can be fed from the back, end or front of the machine; Easy Set-Up wizard; Easy debug; Troughed belt, fabric guides or hard plastic guide; Max reduct weight on belt is 50k; Pneumatic gate style rejecter, 1/2/3 or 4 lanes; Up to 8 lanes inspection with standard guide rails & up to 6 lanes with troughed belt guide rails.; Binary threshold, contrast detection, gradient threshold, groups and morphology filters for contaminants; High quality real-time or frozen image display. Last 20 reject image buffer; Rugged HD for storing reject images/statistics.; Watertight USB port; Windows 7 PC based with HMI touchscreen, 381 mm/15" diagonal; Multiple level password security system; Built-in cabinet air conditioner
