Used- Pentavac Volumetric Vertical Form Fill Machine

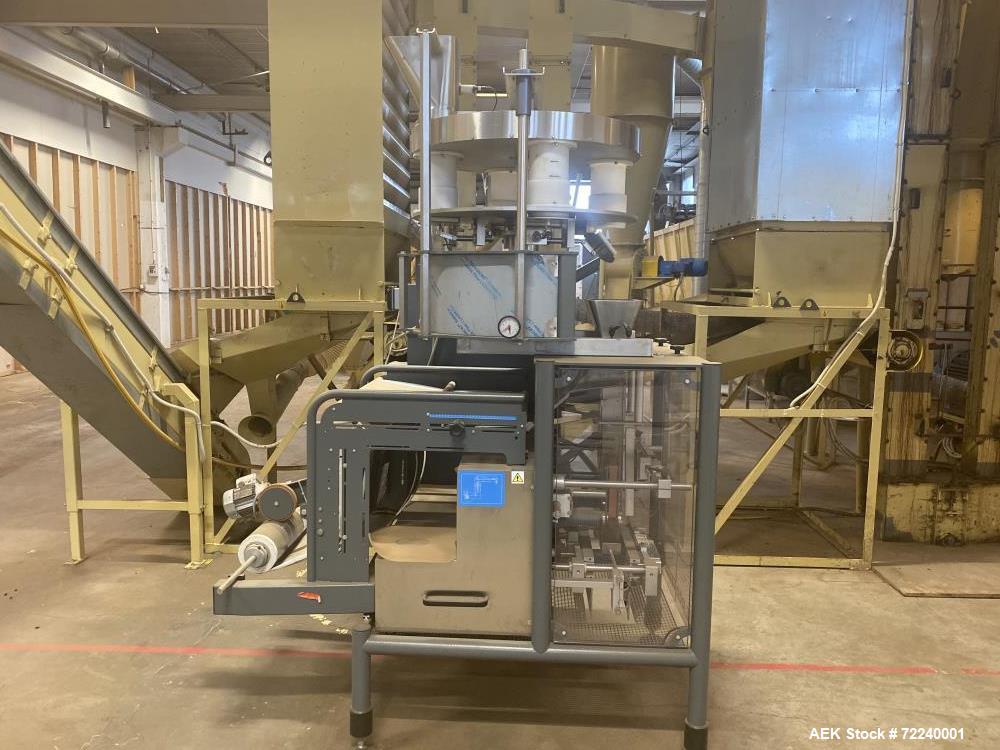

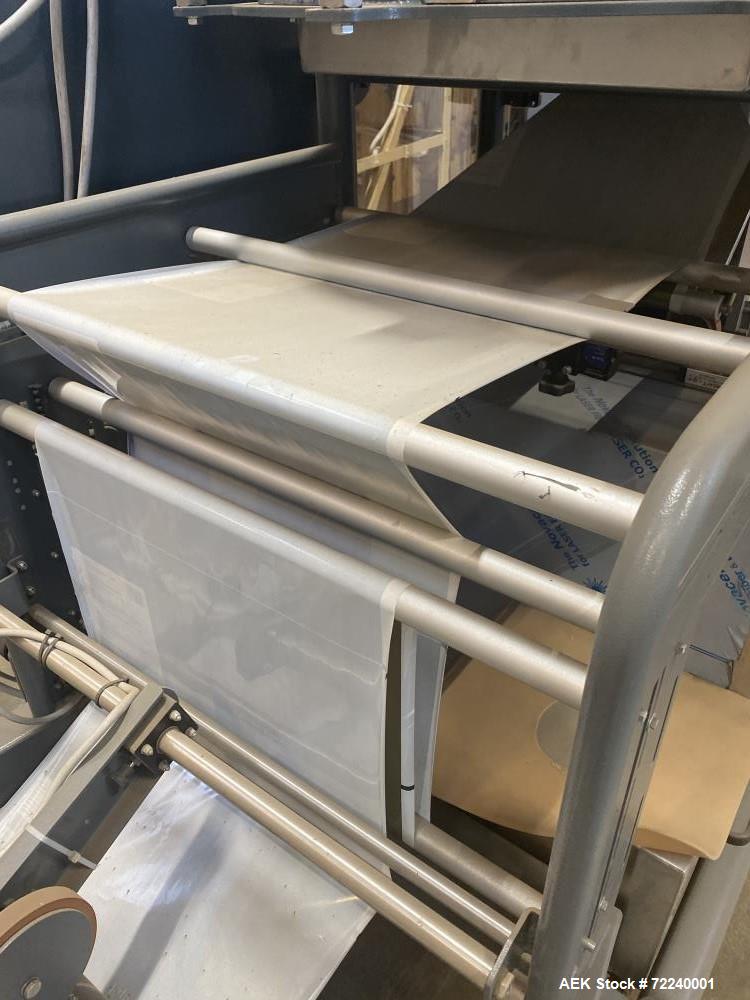

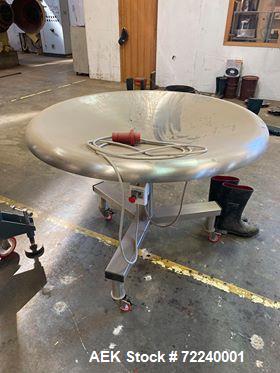

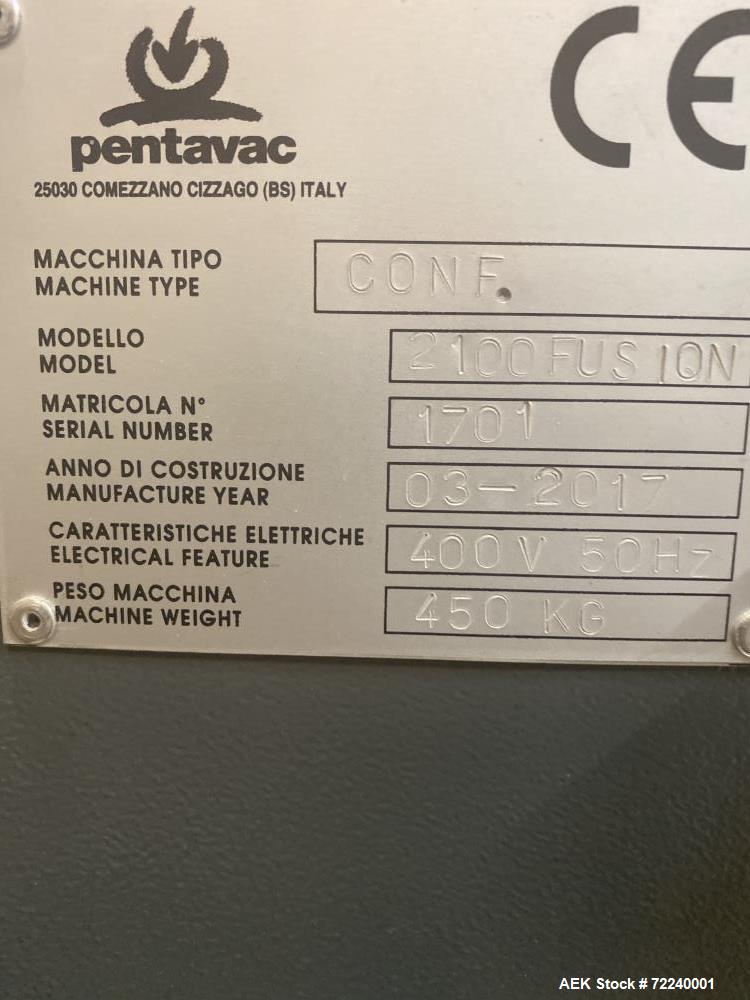

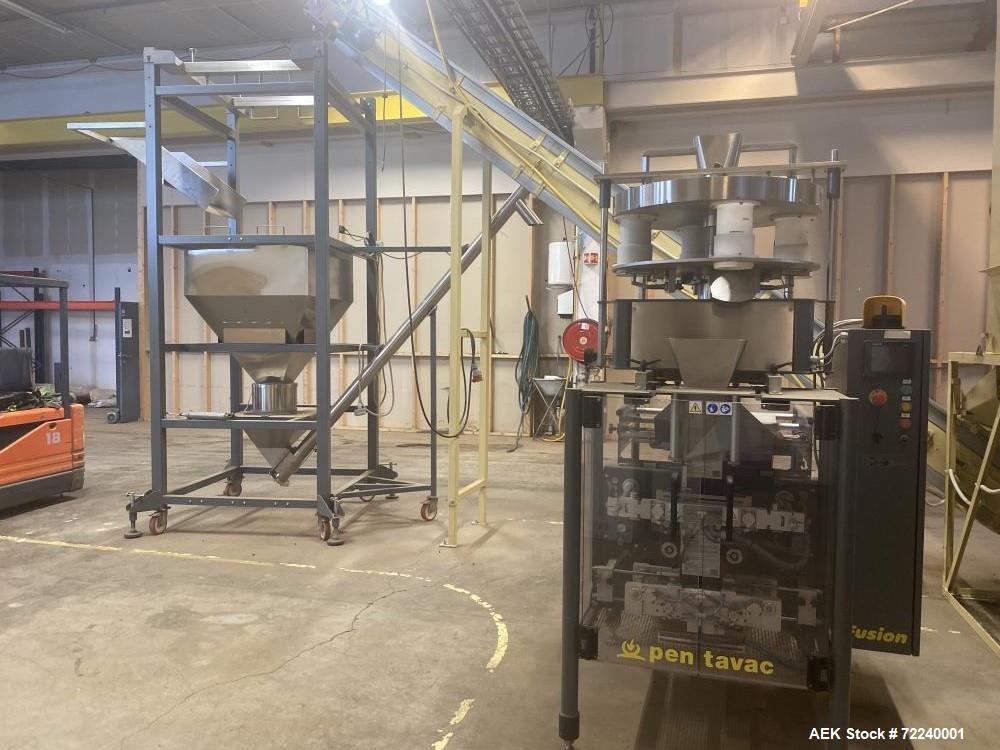

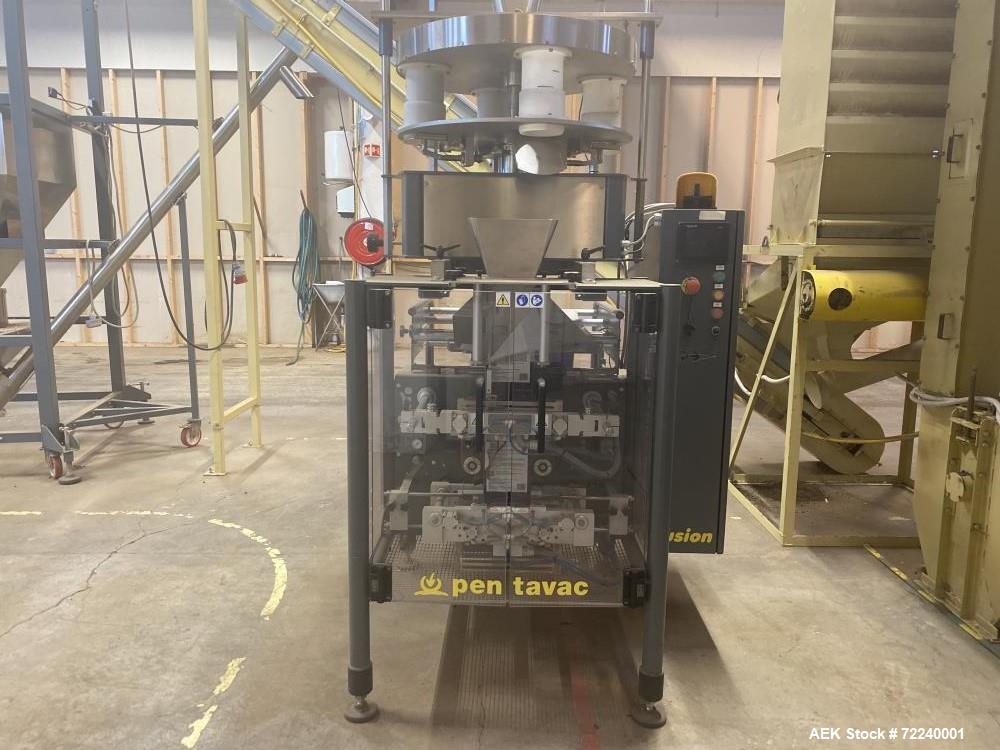

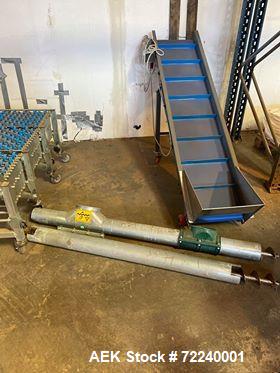

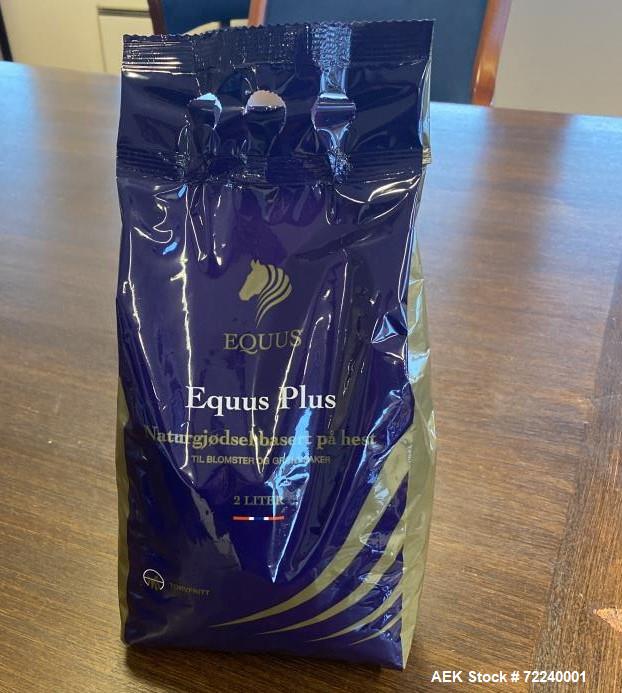

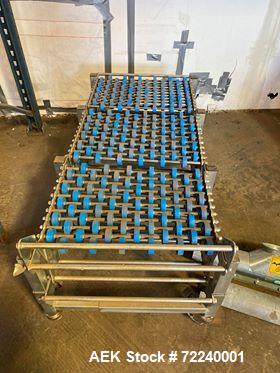

Used- Pentavac Volumetric Vertical Form Fill Machine, Type 2100 Fusion. Capacity is 50-80 bags per minute. Currently running 4.4 pounds (2 kgs) pre-printed polyethylene, laminated materials (including aluminum), heat-seal paper, polypropylene bags. 150 mm long x 70 mm width x 313 mm high. (4) 3.9" (100 mm) diameter volumetric product filling stations. Forming tube, overlap area of the webs left and right, left edge of web, right edge of web, Collar. 24 Solenoid air valves. Compressed-air Supply Machine inlet pressure 120-150 psi (0. 8 1 MPa (8 -10 bar), compressed-air consumption 5 NI/cycle ?" diameter of air inlet tubes. Operating power 400volt/50cycle/3Ph. Bag discharge. Includes Schneider Industry M25 PLC touch screen control panel. Weight 990 pounds (450 kgs). Serial # 1701. Mfg. 2017. Includes (1) Belt conveyer for product feeding includes motor, (1) Feeding system, Stainless steel control panel IP 65 220/380volt/50cycle, (1) Belt conveyer for product discharge includes motor, (1) Round table for manual product discharge, (1) Roll packaging band, (1) Pallet wrapper and additional infrastructure. Previous in an application for organic soil and fertilizer-pellets from horse dung for flowers and vegetables.
