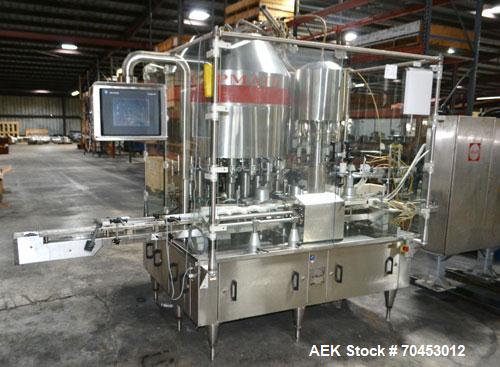

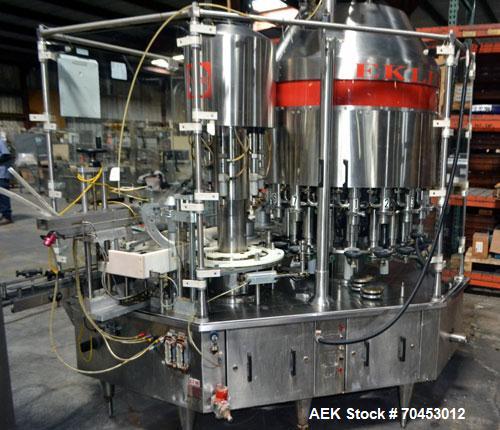

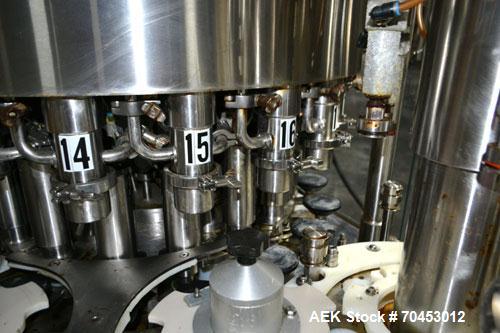

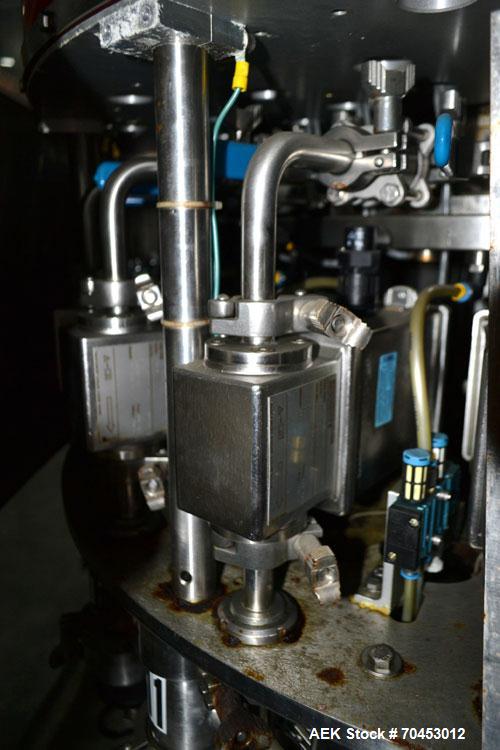

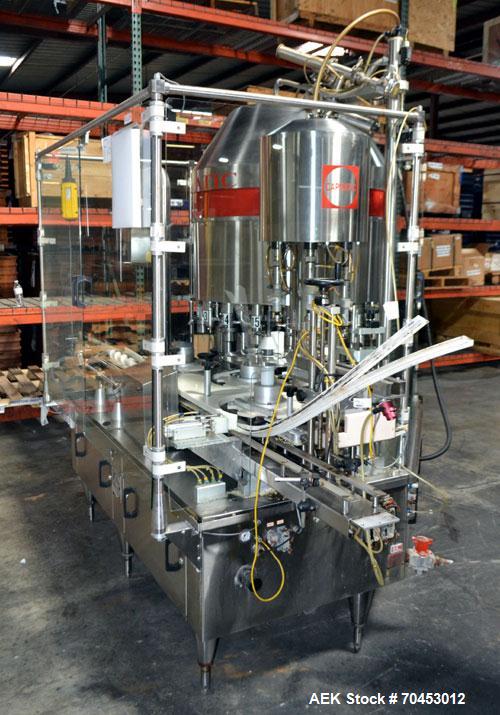

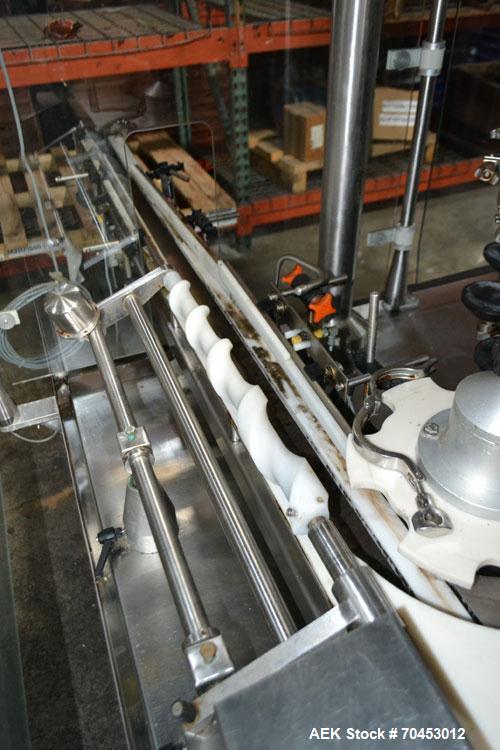

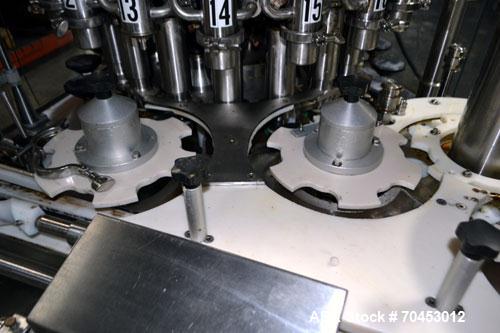

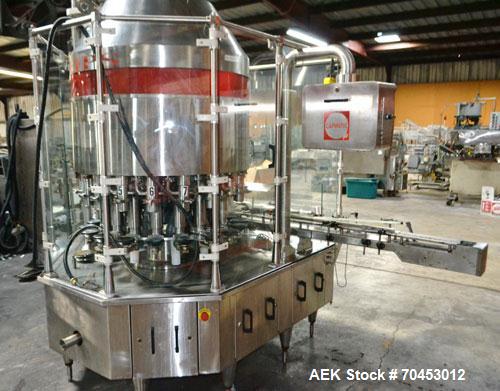

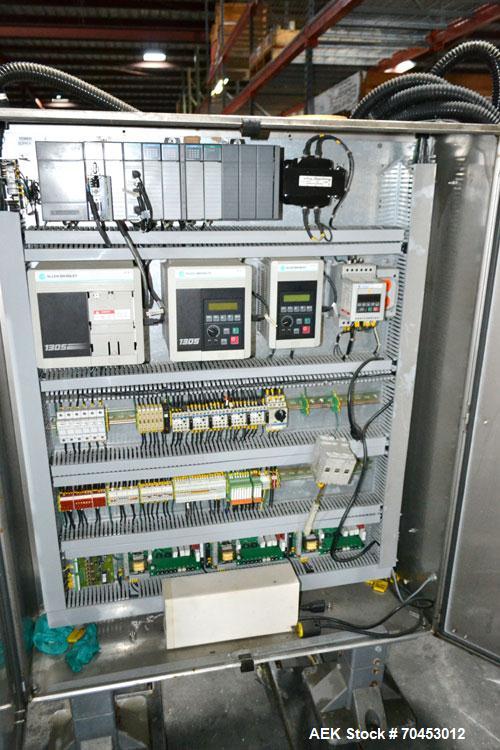

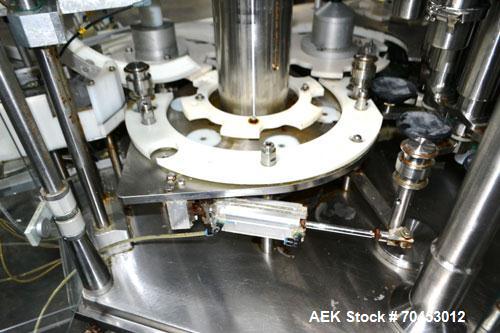

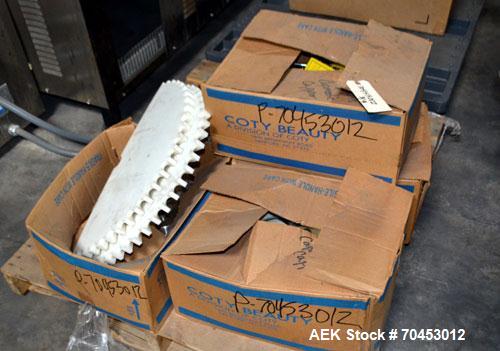

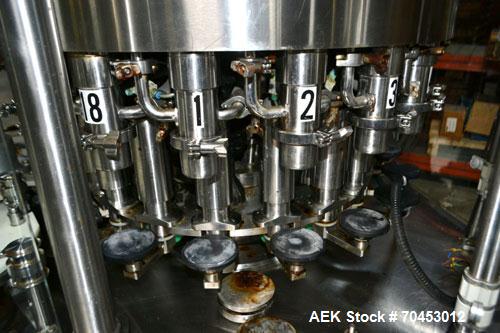

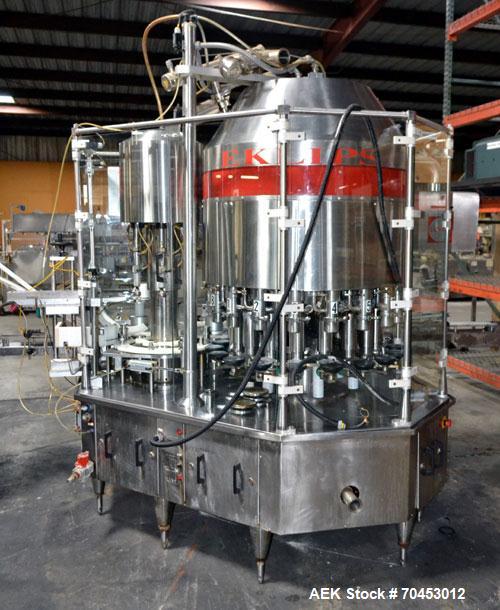

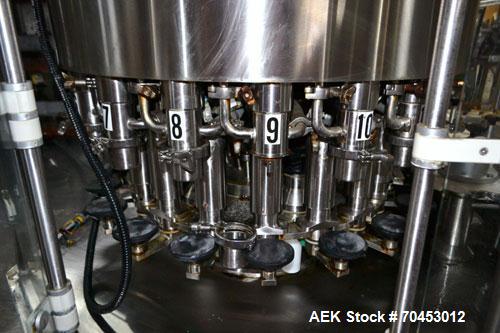

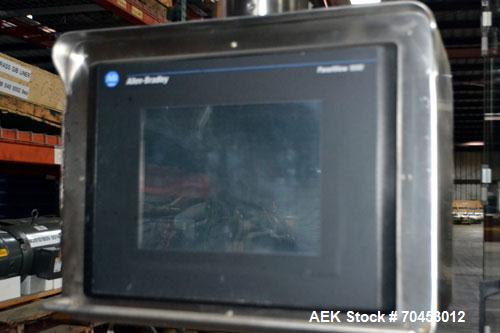

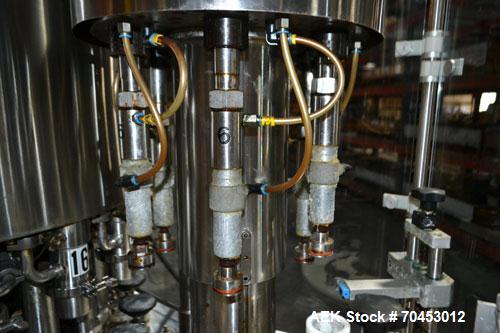

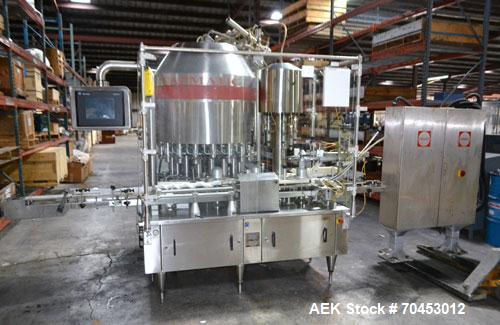

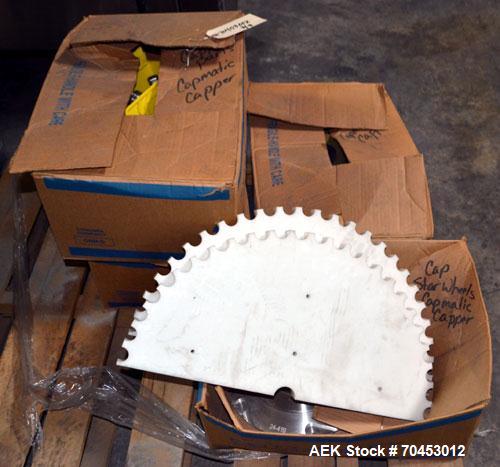

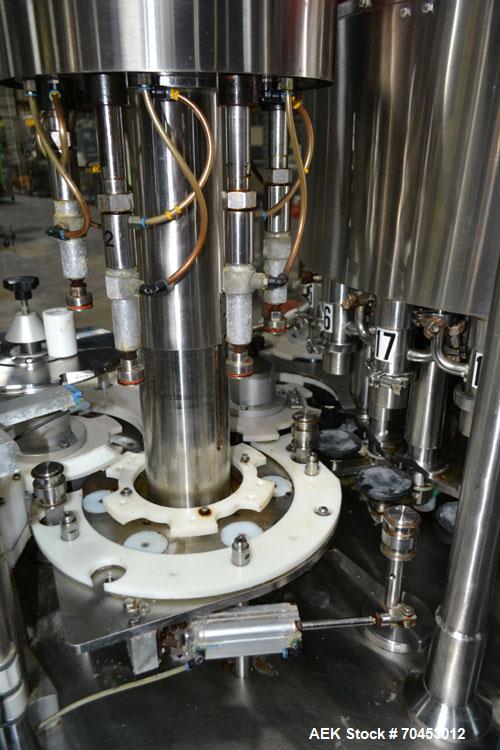

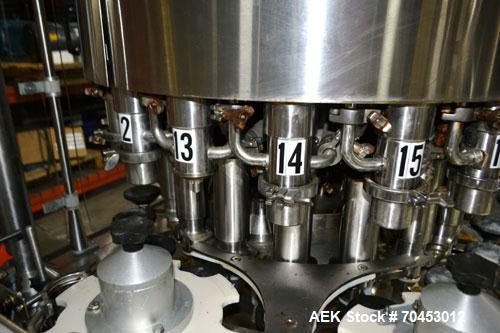

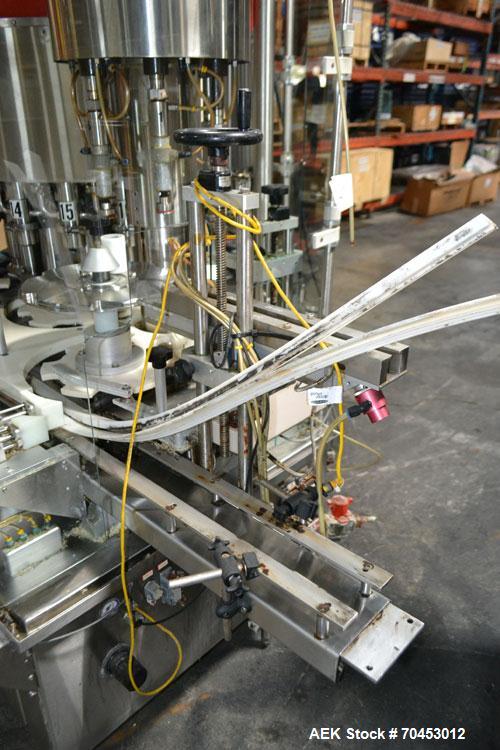

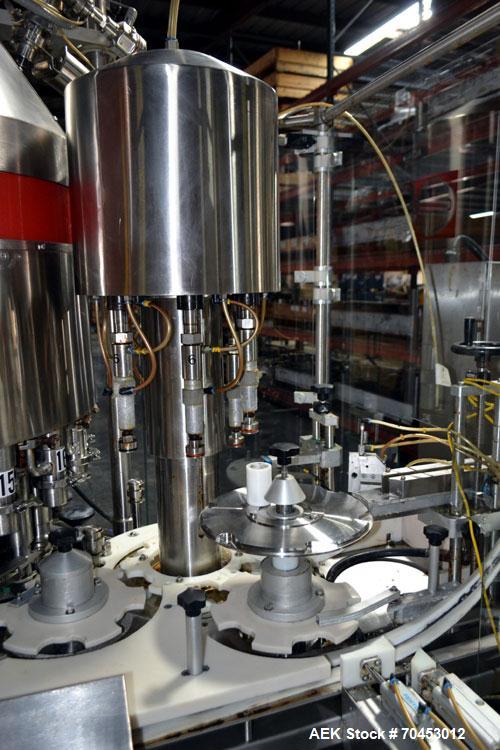

Used - Capmatic EKLIPS model 18/6 Monoblock Liquid Filler & Screw Capper. Features 18 head rotary pressure filler (with CIP fill caps) and 6 position rotary screw capper, stainless steel frame with Lexan guards, infeed bottle conveyor with timing screw and rotary container change parts, Allen Bradley PanelView 1000 HMI and secondary electrical cabinet. Capable of speeds up to 120 containers per minute. Has a container size range: (Diam) 1" - 5-1/8" or 25mm to 130mm (Height) 2" - 14" or 50mm to 355mm. Cap size range: (Diam) 5/8" - 3-3/8" or 15mm to 85mm (Height) 3/8" - 1-3/4" or 10mm to 45mm. Currently missing the cap feeder. Machine looks like it was last running 24mm-420 finish size cap. The machine is a full sanitary design utilizing mass flow metering (Endress & Hauser dosimag "A") through a pneumatic positive shut off nozzle. The supply tubing to each nozzle is 1\2" sanitary. The containers enter the filler via a 6 pocket star on 6" centers then onto a spring loaded pedestal that is cam actuated. The machine is set up for CIP cleaning and currently does not have a supply pump. The capping station is also setup on 6" centers utilizing 6 pocket infeed and discharge stars. The capping chucks are of a friction spring loaded style and are driven by independent air motors. Anti rotation through the capper is a combination of a outside guide and a "belly band" rotating belt
Used - Capmatic EKLIPS model 18/6 Monoblock Liquid Filler & Screw Capper. Features 18 head rotary pressure filler (with CIP fill caps) and 6 position rotary screw capper, stainless steel frame with Lexan guards, infeed bottle conveyor with timing screw and rotary container change parts, Allen Bradley PanelView 1000 HMI and secondary electrical cabinet. Capable of speeds up to 120 containers per minute. Has a container size range: (Diam) 1" - 5-1/8" or 25mm to 130mm (Height) 2" - 14" or 50mm to 355mm. Cap size range: (Diam) 5/8" - 3-3/8" or 15mm to 85mm (Height) 3/8" - 1-3/4" or 10mm to 45mm. Currently missing the cap feeder. Machine looks like it was last running 24mm-420 finish size cap. The machine is a full sanitary design utilizing mass flow metering (Endress & Hauser dosimag "A") through a pneumatic positive shut off nozzle. The supply tubing to each nozzle is 1\2" sanitary. The containers enter the filler via a 6 pocket star on 6" centers then onto a spring loaded pedestal that is cam actuated. The machine is set up for CIP cleaning and currently does not have a supply pump. The capping station is also setup on 6" centers utilizing 6 pocket infeed and discharge stars. The capping chucks are of a friction spring loaded style and are driven by independent air motors. Anti rotation through the capper is a combination of a outside guide and a "belly band" rotating belt
