Manufacturer Information

Manufacturer: Jones Packaging Machinery
Model: CMV5
Equipment Type: Semi-Automatic Continuous Motion Vertical Tuck Cartoner
Carton Style: Tuck Cartons
Condition: Used
Previous Application: Pharmaceutical Solid Dose Packaging

Description

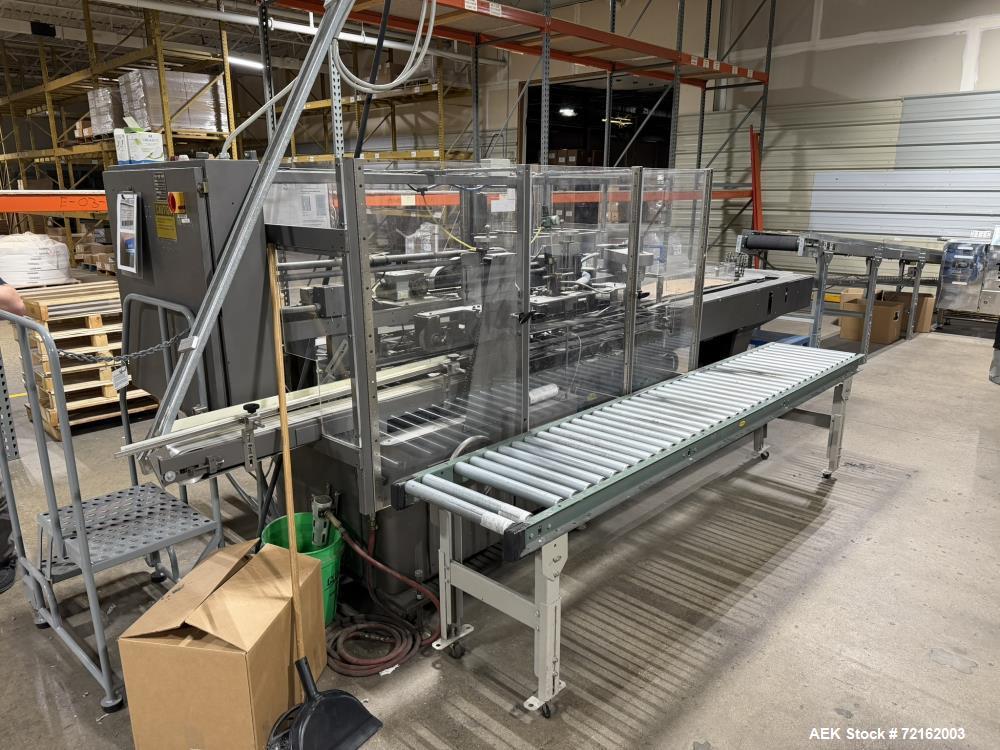

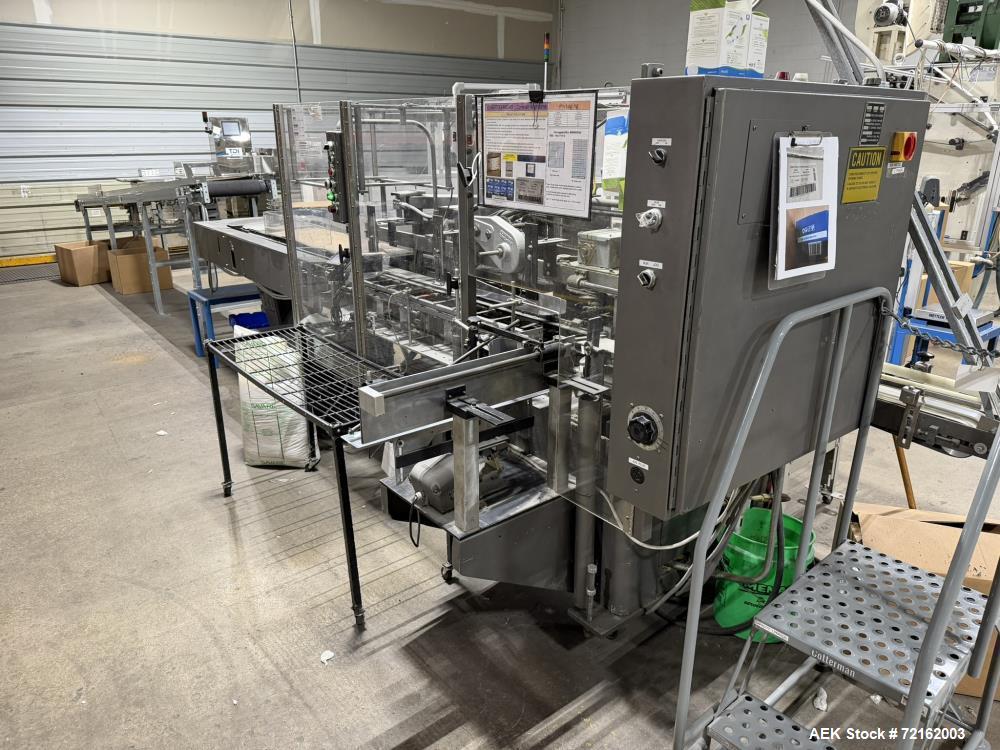

Available for sale is a Jones Model CMV5 Semi-Automatic Continuous Motion Vertical Tuck Cartoner designed for high-speed pharmaceutical, nutraceutical, cosmetic, personal care, and consumer product packaging applications. The machine is capable of operating at speeds of up to 120 cartons per minute, depending upon carton size, product characteristics, and application requirements.

Configured on 5-inch centers, the CMV5 accommodates a wide range of tuck-style cartons and was previously utilized in a pharmaceutical solid dose packaging operation. The machine includes a Laetus Argus 4 barcode scanner for package verification and quality control, as well as a drive for a bottom emboss date coder.

Mounted on casters for flexibility and ease of installation, this continuous motion cartoner provides efficient carton erection, product insertion, carton closing, and package verification in a compact footprint.

Specifications

General Information

• Manufacturer: Jones Packaging Machinery
• Model: CMV5
• Equipment Type: Semi-Automatic Continuous Motion Vertical Cartoner
• Carton Style: Tuck Cartons
• Condition: Used
• Previous Application: Pharmaceutical Solid Dose Packaging

Performance

• Maximum Speed: Up to 120 Cartons Per Minute
• Continuous Motion Operation
• Semi-Automatic Product Loading

Carton Size Range

Length

• Minimum: 1 Inch
• Maximum: 4-1/4 Inches

Width

• Minimum: 3/4 Inch
• Maximum: 4-1/4 Inches

Depth / Height

• Minimum: 2-1/2 Inches
• Maximum: 8 Inches

Machine Configuration

• 5-Inch Center Design
• Standard Frame Setup
• Vertical Cartoning Configuration
• Continuous Motion Cartoning System
• Tuck Carton Capability

Inspection & Coding Features

Barcode Verification

• Manufacturer: Laetus
• Model: Argus 4
• Barcode Inspection System
• Package Verification Capability

Coding Capability

• Drive for Bottom Emboss Date Coder
• Date and Lot Coding Integration

Mobility

• Mounted on Casters
• Flexible Production Line Placement
• Easy Plant Relocation

Applications

• Pharmaceutical packaging
• Solid dose packaging
• Nutraceutical packaging
• Cosmetic packaging
• Personal care product packaging
• Medical device packaging
• Consumer product cartoning
• Healthcare product packaging
• Contract packaging operations
• Secondary packaging applications
• Retail packaging
• Promotional product packaging

Products This Equipment Would Be Used For

• Tablet bottles
• Blister packs
• Pharmaceutical cartons
• Nutritional supplements
• Vitamins
• Capsules
• Medical products
• Cosmetic products
• Personal care items
• Healthcare products
• Small consumer goods
• Specialty packaged products

Frequently Asked Questions

• What is the maximum operating speed of the Jones CMV5?
  The machine is capable of speeds up to 120 cartons per minute depending on carton size and product characteristics.
• What type of cartoner is this?
  This is a semi-automatic continuous motion vertical tuck cartoner.
• What carton styles can the machine handle?
  The machine is configured for tuck-style cartons.
• What carton size range can be accommodated?
  Carton sizes range from 1" to 4-1/4" in length, 3/4" to 4-1/4" in width, and 2-1/2" to 8" in depth/height.
• What was the machine's previous application?
  The cartoner was previously used in a pharmaceutical solid dose packaging operation.
• Does the machine include package inspection equipment?
  Yes, the machine includes a Laetus Argus 4 barcode scanner.
• What is the purpose of the Laetus Argus 4 system?
  The barcode scanner verifies printed codes and package information to improve quality assurance and compliance.
• Does the machine include coding capability?
  Yes, the machine includes a drive for a bottom emboss date coder.
• What industries commonly use vertical cartoners?
  Pharmaceutical, nutraceutical, cosmetic, personal care, food, healthcare, and consumer product manufacturers frequently use cartoning equipment.
• Is the machine mobile?
  Yes, the cartoner is mounted on casters for ease of movement and installation.
• Can Aaron Equipment assist with shipping and logistics?
  Yes, Aaron Equipment can coordinate inspections, rigging, dismantling, transportation, export documentation, and worldwide logistics services.
• Does Aaron Equipment buy and sell used packaging equipment?
  Yes, Aaron Equipment actively purchases and sells used cartoners, case packers, fillers, labelers, packaging lines, and complete manufacturing facilities worldwide.
