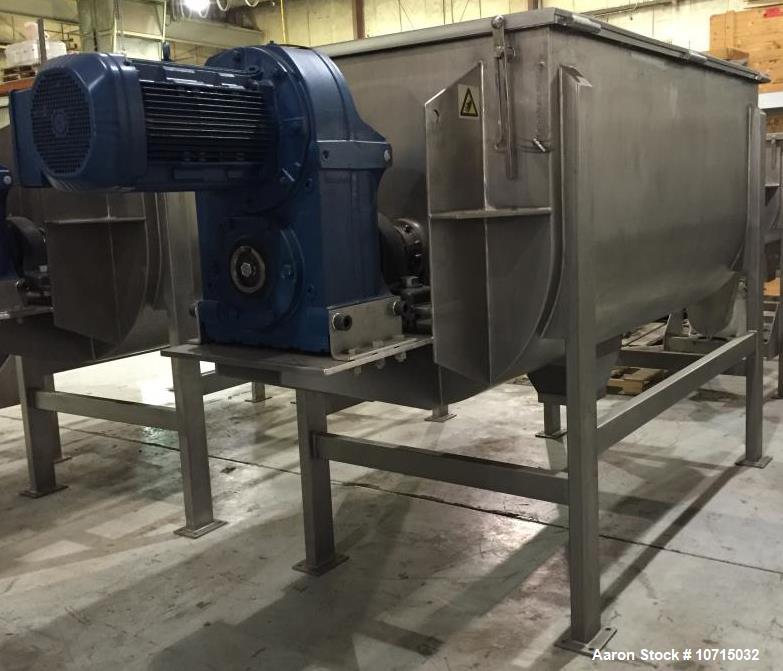

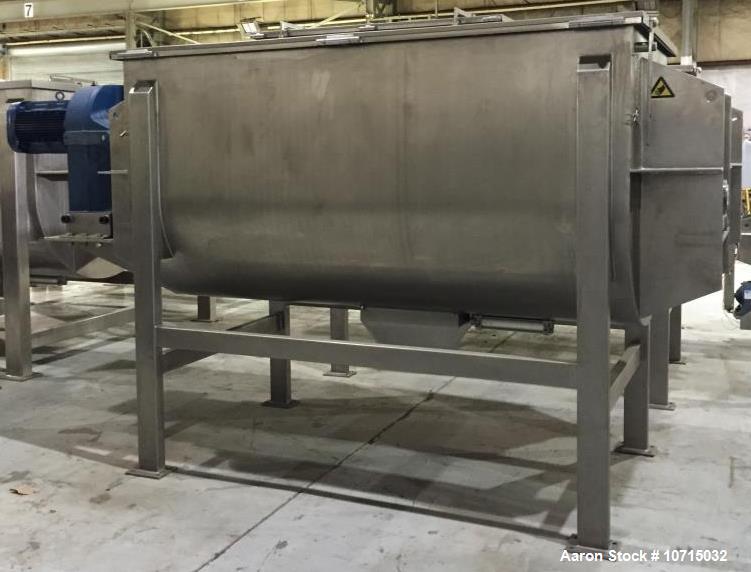

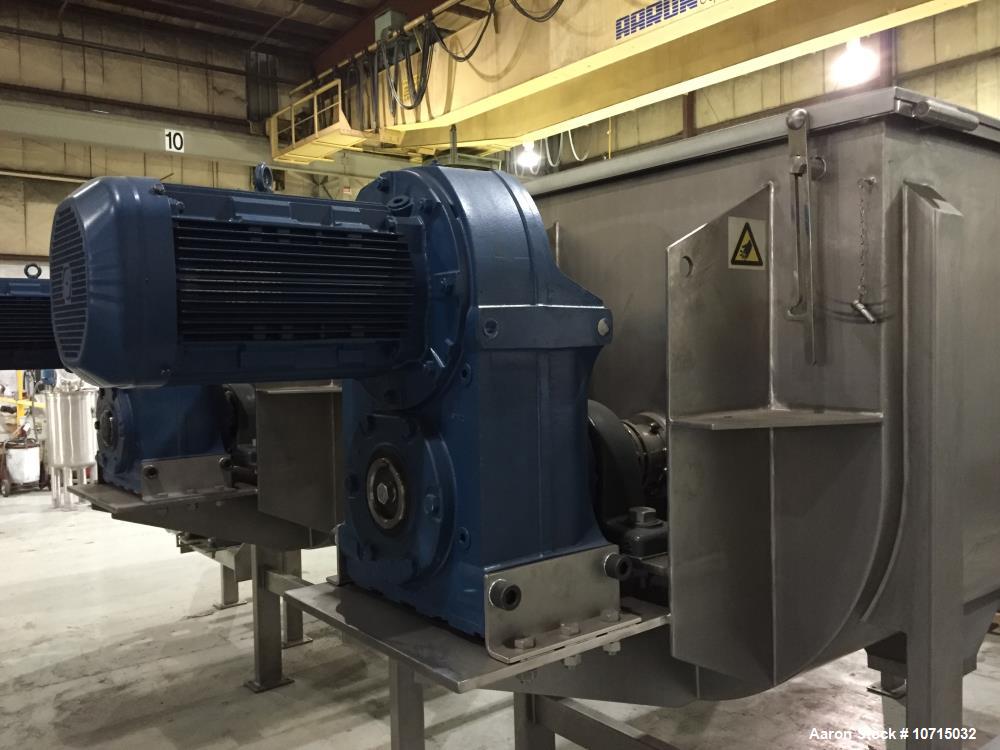

Used- New-In-Stock- Paul O. Abbe Model IMB-100 Cubic Foot Ribbon Mixer. 1 Year Warranty. 304 Stainless Steel. All external stiffeners, legs, ribs and supports are constructed of 304 SS. Inside trough measures 46" wide x 96" long x 51" deep. 8" center bottom outlet with Air Operated Slide Gate Valve. Polished finish exterior and interior. Double ribbon design agitator constructed of 304 SS. Removable main shaft arranged for 25 RPM approximately single hinged top cover with safety grate. Includes the hollow-bore gear reducer (SEW Eurodrive) with integral motor. The reducer is mounted directly to the mixer shaft. The hollow-bore eliminates exposed drive components and guards. The mixer shaft is supported by external roller bearings, allowing removal of the reducer without disturbing the agitator. 30 HP, TEFC, 230/460 volt, 60 Hz, 3-phase, direct connect gear motor. Mounted on 304SS Legs providing an approximate 21" clearance to the floor from the valve guard. Overall dimensions are approximatley 87" high x 55" wide x 127" long. Approximate weight is 4,580 lbs.
