Manufacturer Information

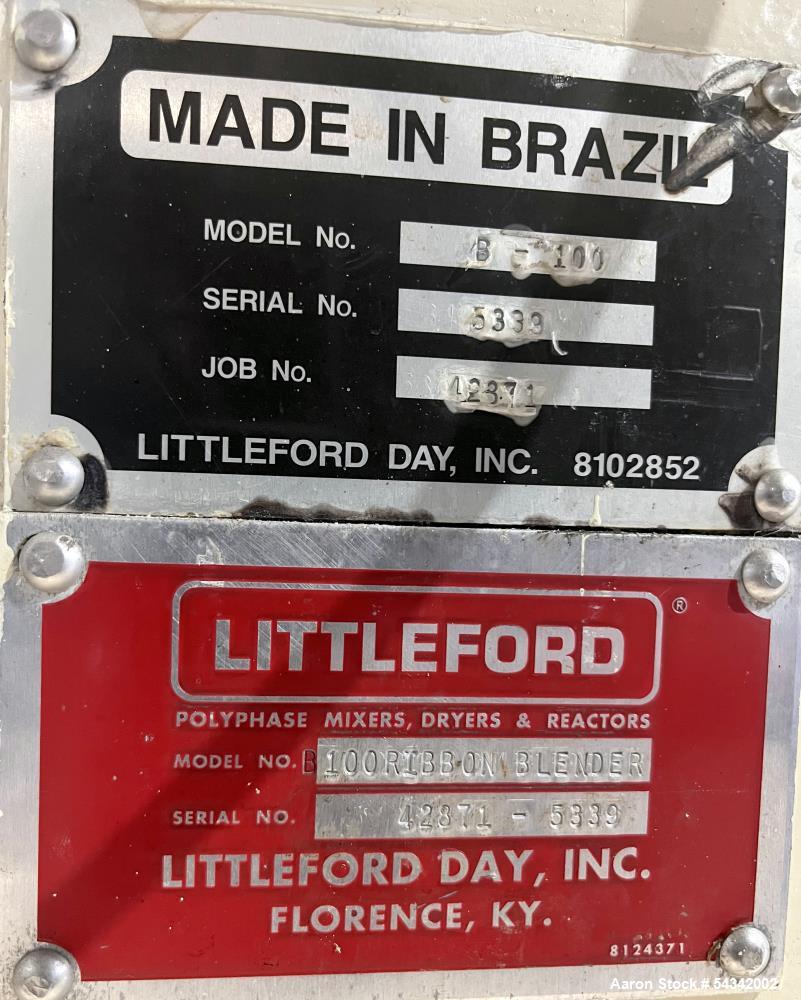

• Manufacturer: Littleford Day / Littleford Mixer Company

• Equipment Type: Double Ribbon Blender / Horizontal Mixer

• Capacity: Approximately 100 Cubic Feet

• Construction: 304 Stainless Steel Product Contact

• Frame: Carbon Steel Support Frame

Littleford is a well-known manufacturer of industrial mixing and blending equipment used across food processing, pharmaceutical, chemical, and powder processing industries.

Description

This used Littleford Double Ribbon Blender features an approximate working capacity of 100 cubic feet and is constructed with 304 stainless steel contact surfaces for sanitary processing applications. The trough measures approximately 119-5/8 inches long x 40 inches wide x 50 inches deep, providing substantial capacity for blending dry powders, granules, and bulk materials.

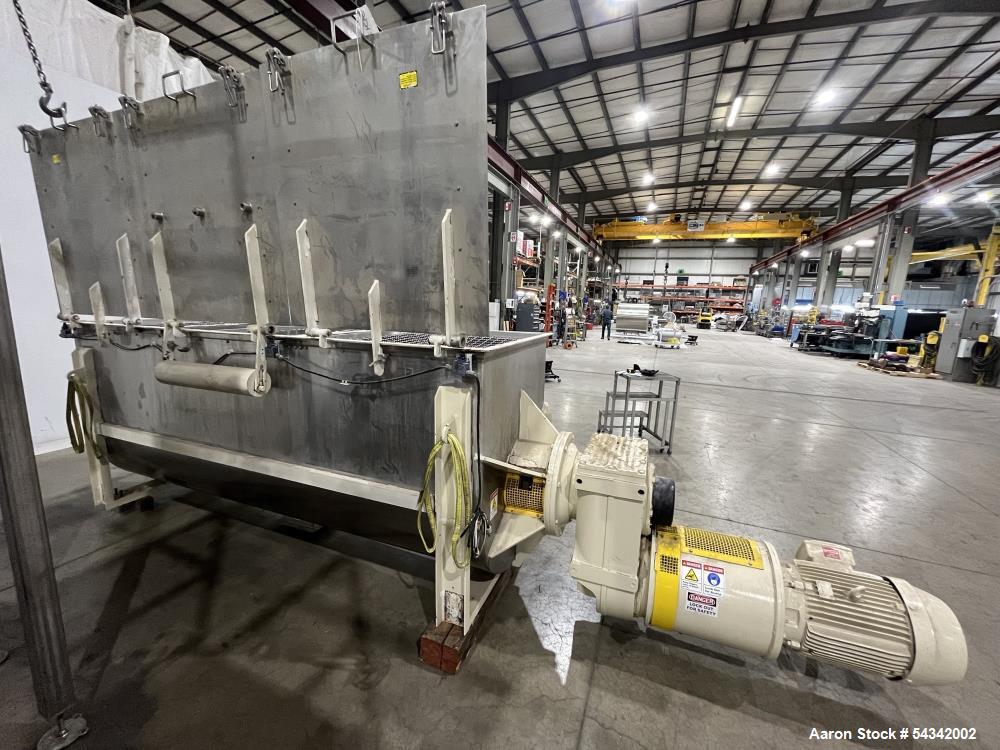

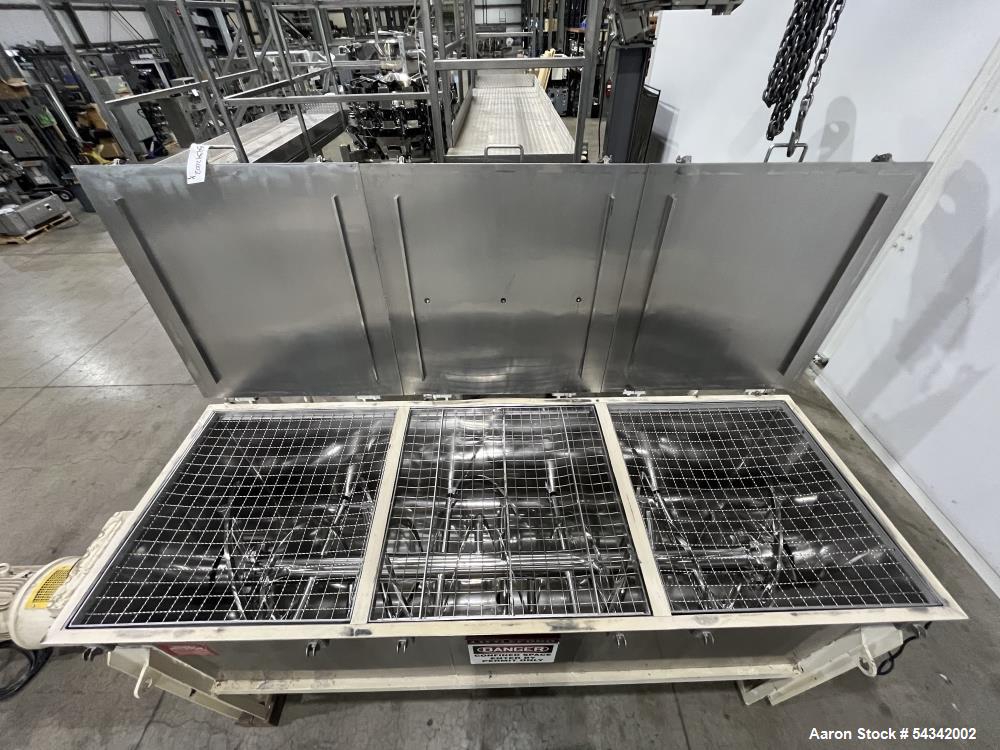

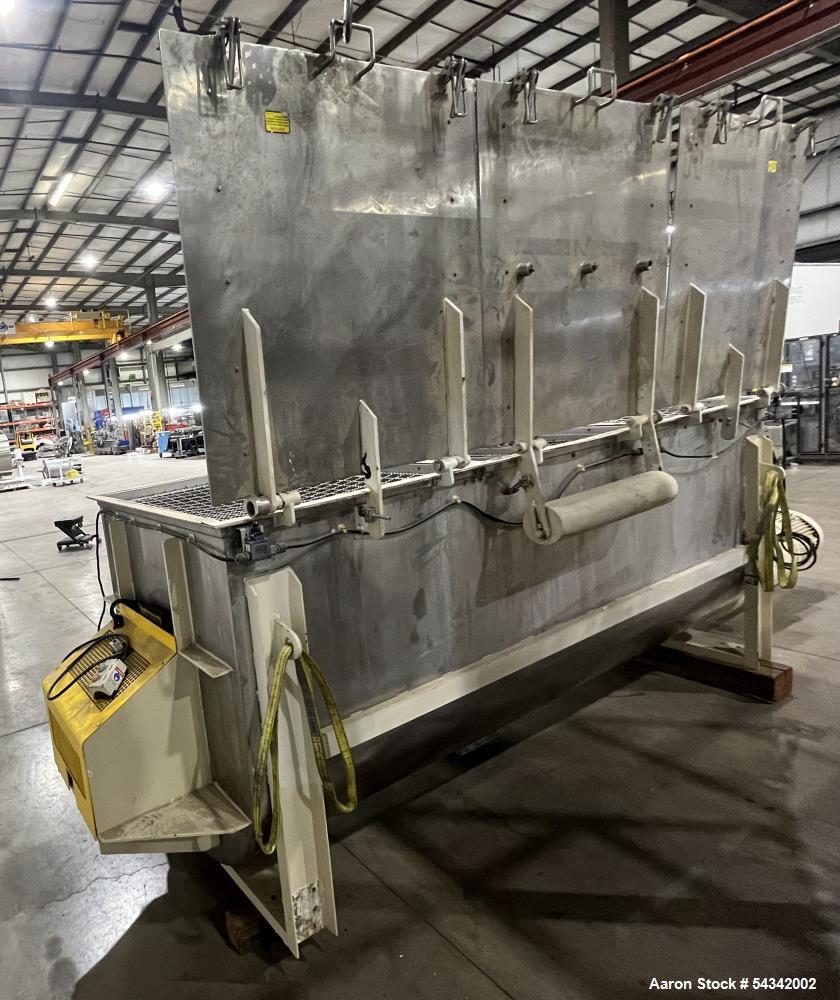

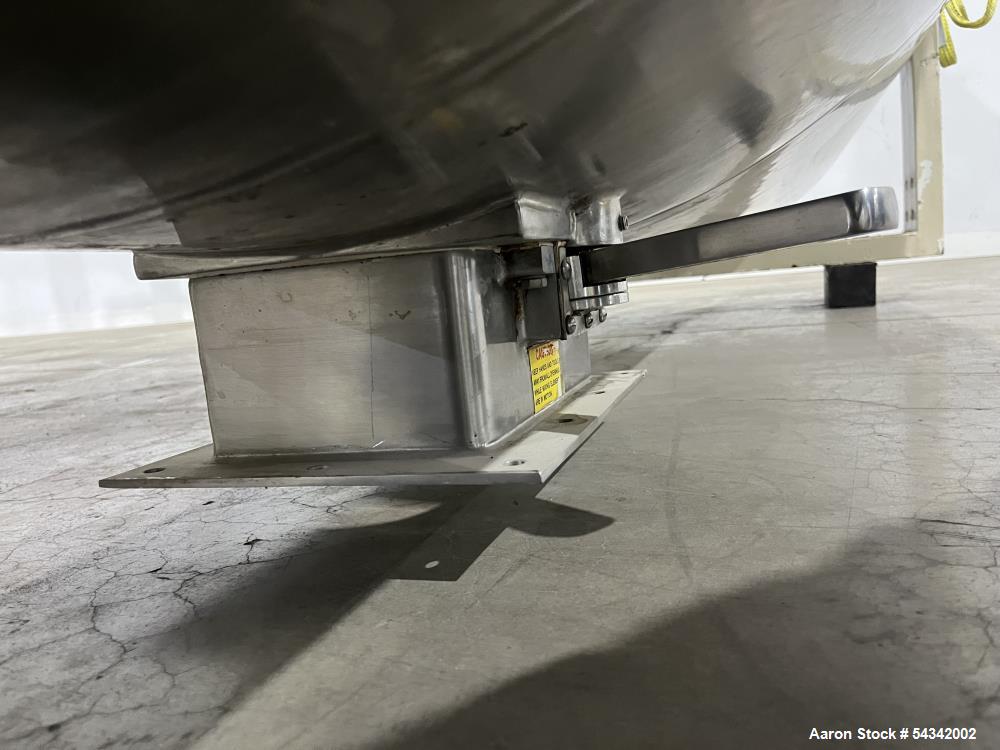

The mixer includes hinged covers with a safety grate, allowing safe loading and inspection of the mixing chamber during operation. Product discharge is handled through a 4-inch diameter center bottom outlet equipped with a sliding disc valve, enabling controlled product release.

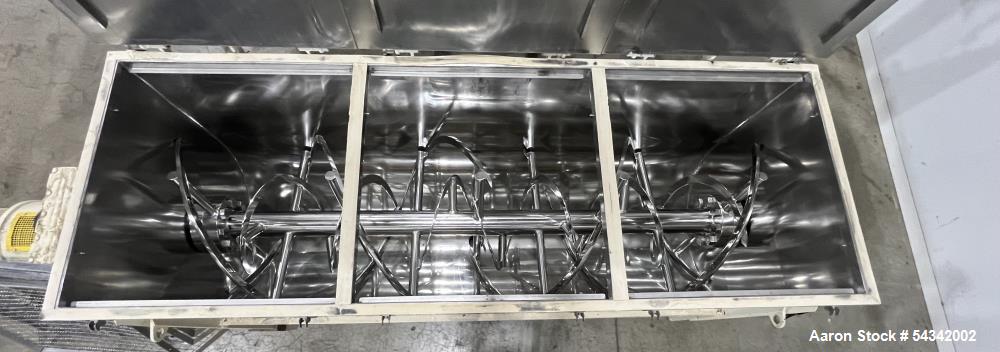

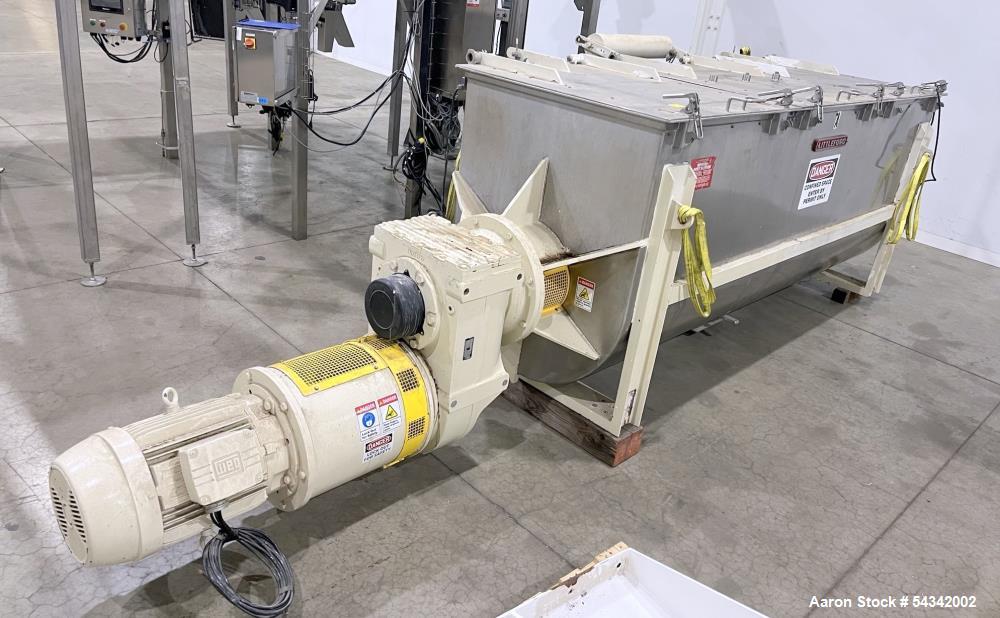

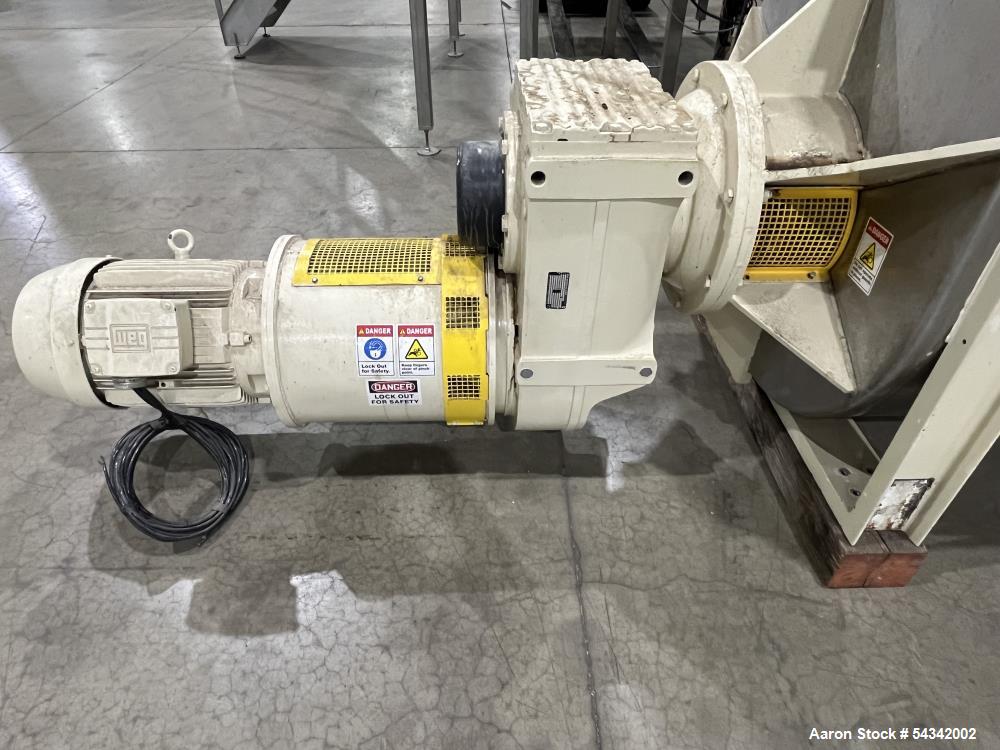

The ribbon agitator is powered by a 40 HP motor (3 phase, 460V, 1770 RPM) through a gear reducer, delivering consistent torque for efficient blending performance. The unit is mounted on a carbon steel support frame, making it suitable for installation in industrial production environments.

Double ribbon blenders are widely used for uniform blending of dry powders, granules, and bulk solids where consistent mixing and high throughput are required.

Specifications

General

• Manufacturer: Littleford

• Equipment Type: Double Ribbon Blender

• Capacity: Approx. 100 Cubic Feet

• Construction: 304 Stainless Steel

Trough Dimensions

• Length: Approx. 119-5/8 inches

• Width: Approx. 40 inches

• Depth: Approx. 50 inches

Discharge

• Outlet Size: 4-inch diameter

• Type: Center bottom discharge

• Valve: Sliding disc valve

Drive System

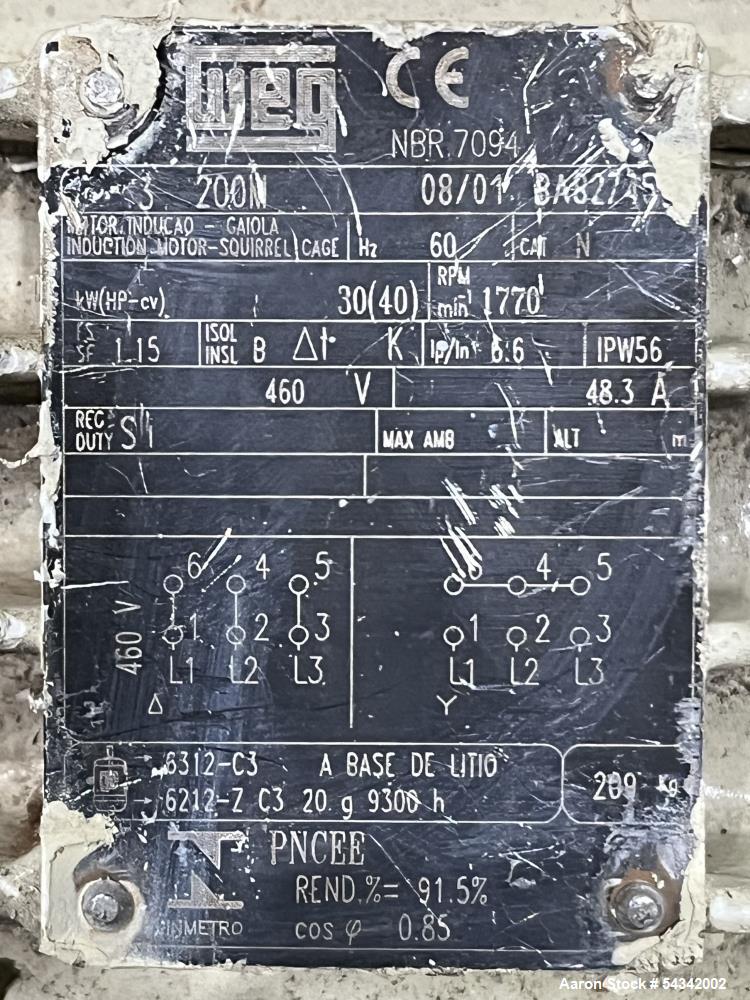

• Motor: 40 HP

• Motor Speed: 1770 RPM

• Electrical: 3 / 60 / 460V

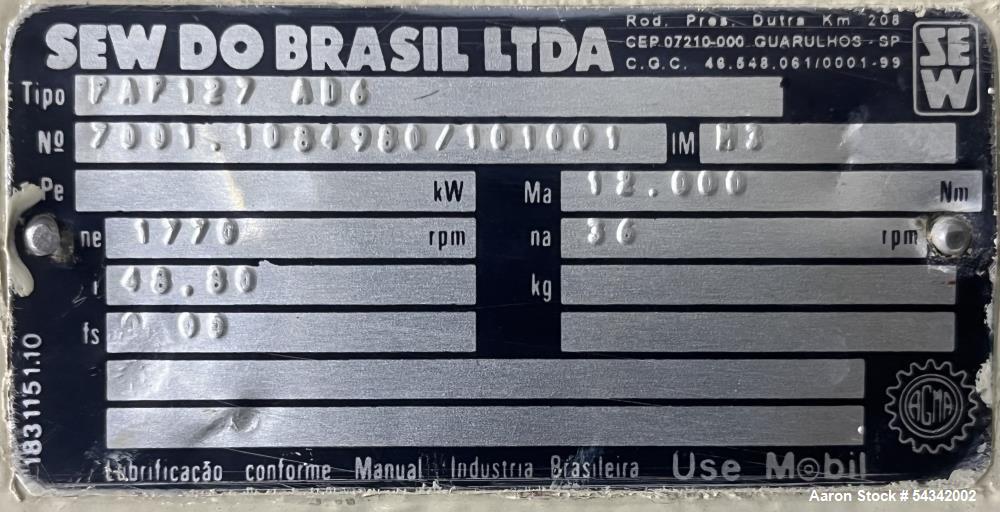

• Drive: Gear reducer

Additional Features

• Hinged covers

• Safety grate

• Carbon steel support frame

Applications

• Food ingredient blending

• Nutraceutical powder mixing

• Pharmaceutical powder blending

• Chemical powder mixing

• Agricultural feed blending

• Mineral powder mixing

• Dry ingredient mixing

• Plastic resin blending

• Industrial powder processing

• Bulk solids mixing

What Products Would This Be Used For

• Food seasoning blends

• Baking mixes

• Nutritional supplements

• Protein powders

• Pharmaceutical powders

• Chemical powder blends

• Fertilizer blends

• Animal feed products

• Mineral powders

• Plastic additives
