Stock No.: 54186002

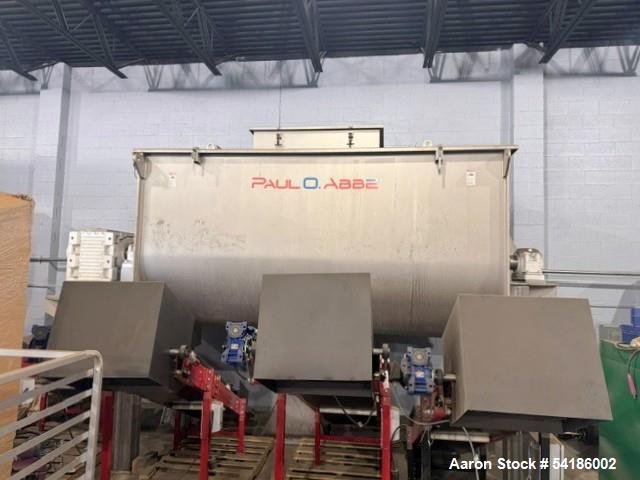

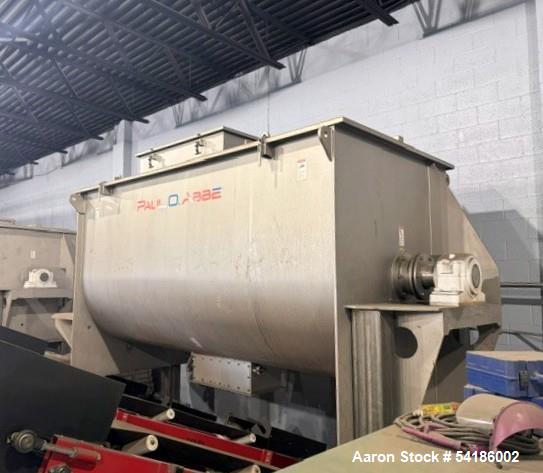

Used Paul O. Abbe RB-315 Ribbon Blender – 315 Cu Ft Stainless Steel Food Grade Industrial Mixer

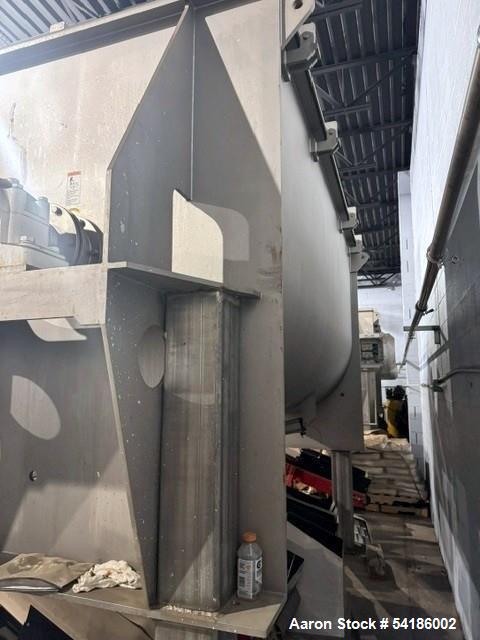

Used Paul O. Abbe RB-315 Ribbon Blender 315 Cu Ft Stainless Steel Food Grade Industrial Mixer. 356 Cubic Foot total volume. Type 304 stainless steel polished. Food grade. All stainless steel construction. Trough dimensions: Approximately 65.4" wide x 141.8" long x 73.3" deep. Internal double spiral ribbon. Packing glands and pillow block bearings. 75 hp SEW Euro drive hollow bore design. 230/460 volt, 1775 rpm, 3/60 with approximately output 20 rpm. Top cover with hold down clamps and limit switch. Center Loading cover with welded safety grate, 30" wide x 50" long. Approximate 5.5" wide x 27.6" flush air operated plug valve. Discharge housing is approximate 20.5" wide x 36.2" long. Approximately 4" discharge height. Approximate weight 19,580 pounds. Approximate overall dimensions: 87.8" wide x 218.4" long x 100.4" high.
-
ManufacturerPaul O Abbe
-
ModelRB-315
-
CategoryMixers
-
SubcategoryRibbon Blenders
Used equipment facts about this machine
Manufacturer Information

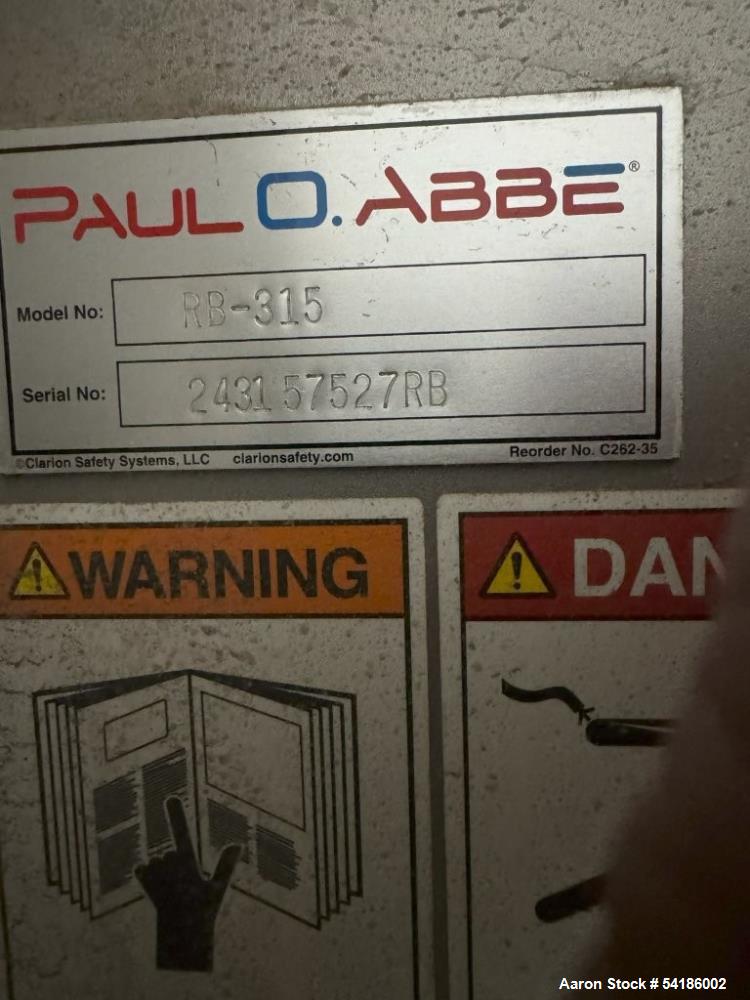

Manufacturer: Paul O. Abbe
Model: RB-315
Type: Ribbon Blender / Industrial Mixer
Condition: Used
Description
Used Paul O. Abbe Model RB-315 Ribbon Blender, a heavy-duty food-grade stainless steel mixer designed for efficient blending of powders, granules, and bulk solids. With a 315 cubic foot working capacity and 356 cubic foot total volume, this unit is ideal for high-volume industrial mixing applications.
Constructed entirely from Type 304 polished stainless steel, this blender meets food and sanitary processing standards. The internal double spiral ribbon agitator ensures thorough, uniform mixing by moving material both radially and laterally within the trough.
Driven by a robust 75 HP SEW Eurodrive hollow bore motor, the system operates at approximately 20 RPM output speed, delivering consistent mixing performance for dense or high-volume materials.
Equipped with a top cover with hold-down clamps and safety limit switch, as well as a center loading port with welded safety grate, this unit is designed for safe and efficient operation. The air-operated flush plug discharge valve allows controlled and complete discharge of materials.
Specifications
- Manufacturer: Paul O. Abbe
- Model: RB-315
- Machine Type: Ribbon Blender
- Construction: Type 304 stainless steel (polished, food grade)
- Working Capacity: 315 cubic feet
- Total Volume: 356 cubic feet
Mixing System

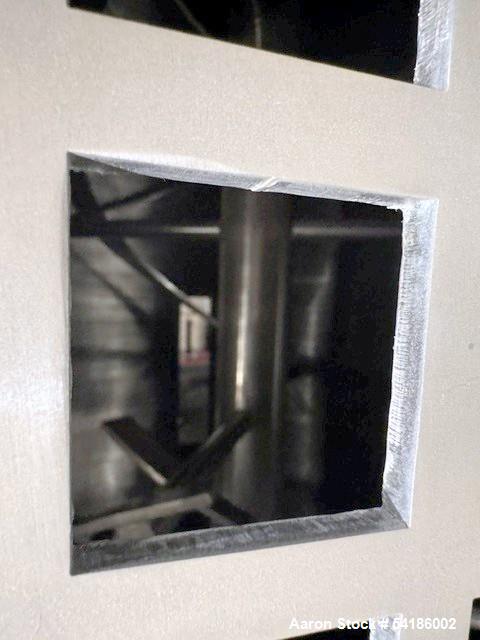

- Internal double spiral ribbon agitator
- Designed for uniform and efficient blending
Trough Dimensions
- Width: 65.4"
- Length: 141.8"
- Depth: 73.3"
Drive System
- Motor: 75 HP SEW Eurodrive
- Design: Hollow bore
- Voltage: 230/460 Volt
- Speed: 1775 RPM input
- Output Speed: Approx. 20 RPM

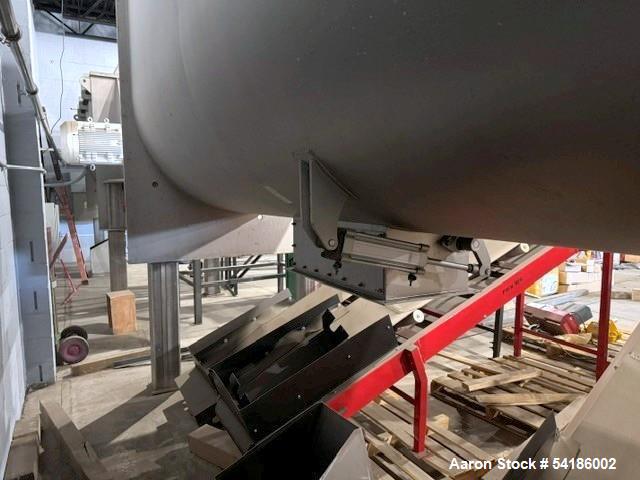

Discharge System
- Air-operated flush plug valve
- Valve Size: Approx. 5.5" wide x 27.6"
- Discharge Housing: Approx. 20.5" wide x 36.2" long
- Discharge Height: Approx. 4"
Feeding & Access

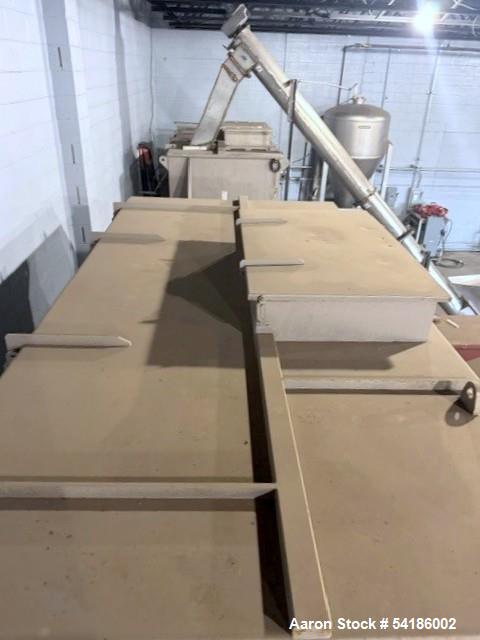

- Top cover with hold-down clamps
- Safety limit switch
- Center loading cover: 30" x 50"

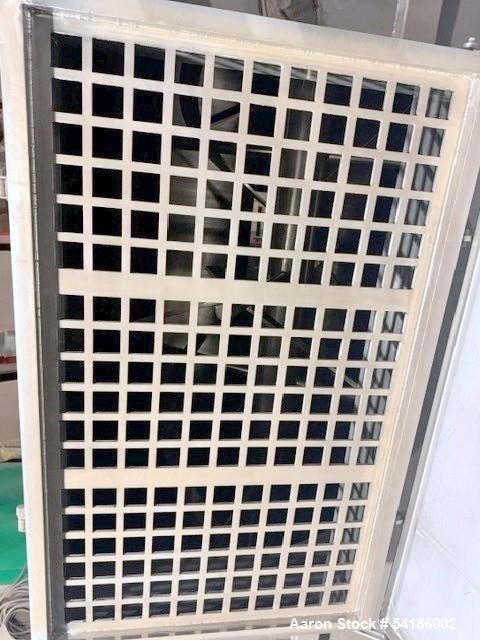

- Welded safety grate
Mechanical
- Packing glands
- Pillow block bearings
Dimensions & Weight
- Overall Dimensions:
- Width: 87.8"
- Length: 218.4"
- Height: 100.4"
- Weight: Approx. 19,580 lbs
Applications
- Food ingredient blending
- Powder mixing
- Nutraceutical processing
- Chemical blending
- Pharmaceutical mixing
- Dry bulk material blending
- Spice and seasoning mixing
- Animal feed blending
- Fertilizer mixing
- Industrial powder processing
What might this be used for
- Blending dry powders uniformly
- Mixing bulk ingredients in large batches
- Combining additives into base materials
- Preparing food-grade formulations
- Producing spice blends or seasonings
- Mixing chemical powders safely
- Creating nutraceutical products
- Handling large-scale batch processing
- Improving product consistency
- Preparing materials for packaging or further processing
Products this machine would be used for
- Food powders
- Spices and seasonings
- Nutraceutical blends
- Protein powders
- Chemical powders
- Fertilizers
- Animal feed
- Dry additives
- Bulk ingredients
- Industrial powder blends
