Used 300 Cu Ft Stainless Steel Ribbon/Paddle Blender – 75 HP

Manufacturer Information

The blender's manufacturer is not specified in the supplied equipment information. The unit is equipped with a Siemens motor and a Jiangsu Weihung direct-drive gear reducer. These are identified component manufacturers and should not be represented as the manufacturer of the complete blender.

Main Product Description

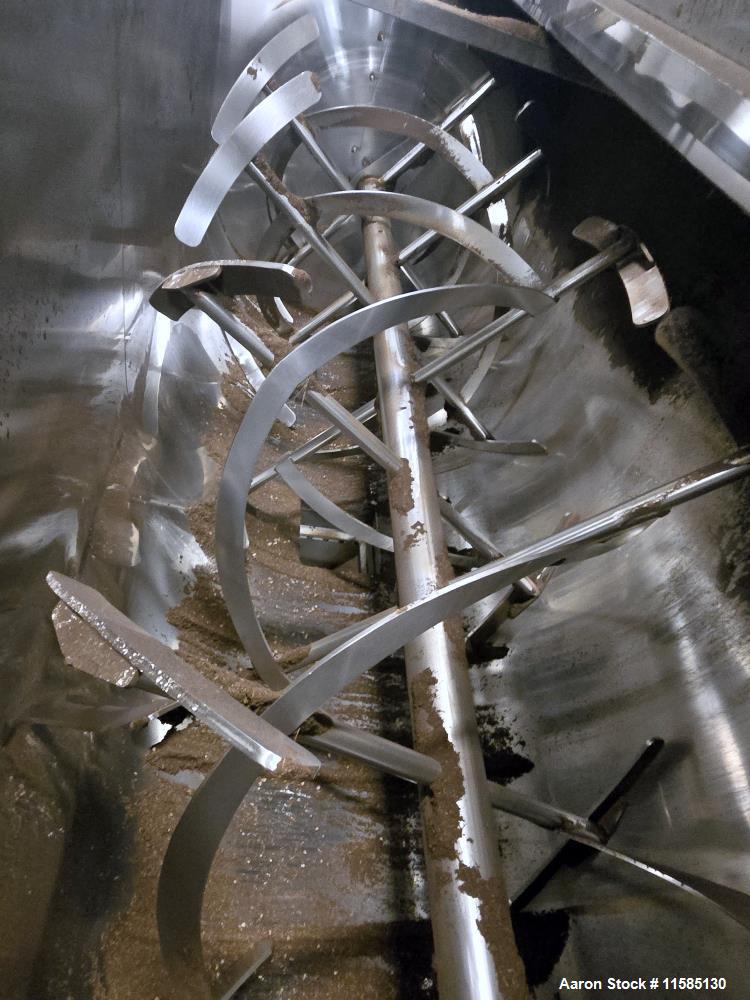

Used stainless steel ribbon/paddle blender, manufactured in 2024, featuring an approximately 300 cubic foot mixing capacity and internal chamber dimensions of approximately 157" long x 66" wide x 69" deep. This large-capacity industrial batch blender features a stainless steel hinged top, center discharge outlet, and stainless steel support frame and legs. The mixing system is driven by a 55 kW (75 HP) Siemens motor coupled to a Jiangsu Weihung direct-drive gear reducer, Model WHK157, with a reported 61/.36:1 reduction ratio and an approximate output speed of 29 RPM at 60 Hz. The equipment includes a 75 kVA, 3-phase, 60 Hz transformer with 480 V primary and 240/120LT secondary specifications, along with associated controls. Designed for industrial batch blending, this stainless steel ribbon/paddle mixer is suitable for evaluating applications involving dry powders, granular materials, and compatible bulk ingredients requiring mechanical agitation and blending. Its large mixing chamber, center outlet, and heavy-duty drive arrangement make it a potential option for high-volume industrial mixing and material processing operations.

Specifications

• Equipment Type: Ribbon/Paddle Blender

• Condition: Used

• Year Built: 2024

• Approximate Mixing Capacity: 300 Cubic Feet

• Construction: Stainless Steel

• Internal Chamber Length: Approximately 157"

• Internal Chamber Width: Approximately 66"

• Internal Chamber Depth: Approximately 69"

• Top Cover: Stainless Steel Hinged Top

• Discharge Configuration: Center Outlet

• Frame Construction: Stainless Steel

• Support Legs: Stainless Steel

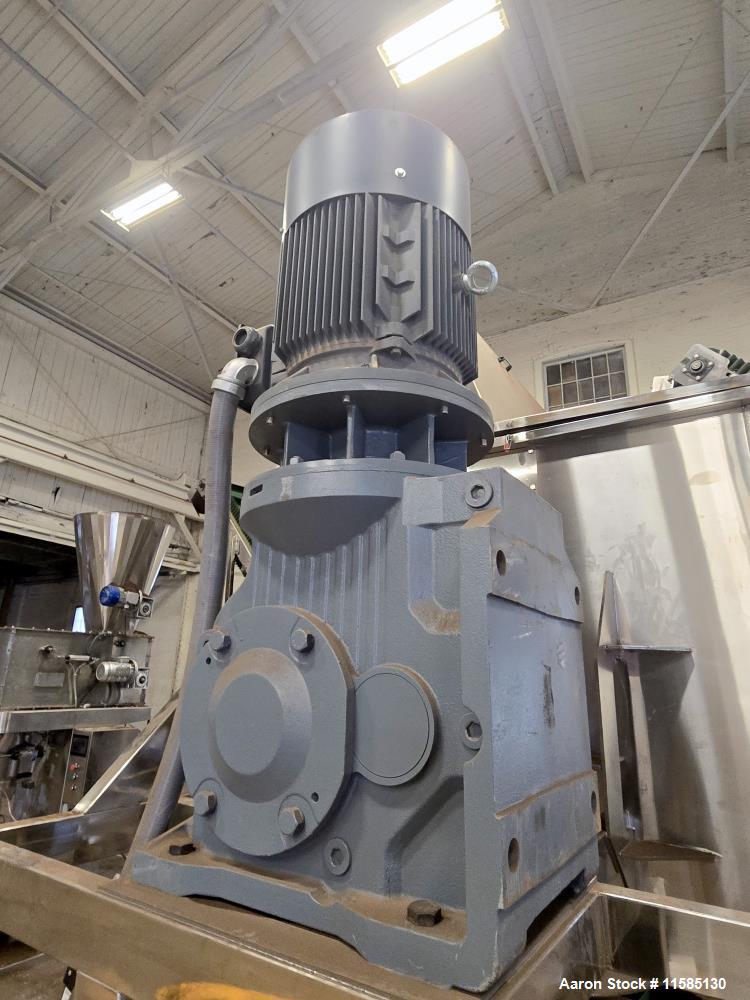

• Motor Manufacturer: Siemens

• Motor Power: 55 kW (75 HP)

• Gear Reducer Manufacturer: Jiangsu Weihung

• Gear Reducer Model: WHK157

• Gear Reducer Configuration: Direct Drive

• Reported Gear Reduction Ratio: 61/.36:1

• Approximate Output Speed: 29 RPM at 60 Hz

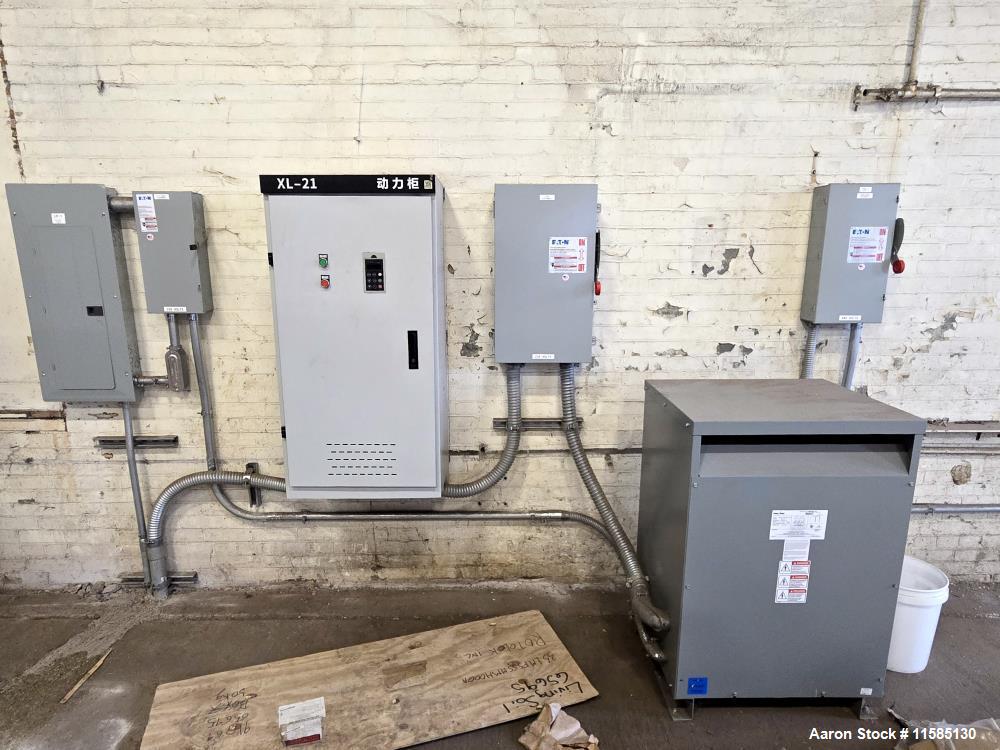

• Transformer Capacity: 75 kVA

• Transformer Primary Voltage: 480 V

• Transformer Secondary Voltage: 240/120LT (As Specified)

• Transformer Electrical Supply: 3 Phase, 60 Hz

• Controls: Included

Applications

• Large-batch industrial blending

• Dry powder mixing

• Granular material blending

• Bulk ingredient mixing

• Industrial batch processing

• Chemical powder blending

• Agricultural ingredient mixing

• Bulk solids processing

• Specialty material blending

• Industrial formulation mixing

Suitable Products and Materials

• Dry industrial powders

• Granular materials

• Bulk dry ingredients

• Compatible chemical powders

• Agricultural dry ingredients

• Industrial powder blends

• Free-flowing bulk solids

• Specialty dry formulations

• Compatible particulate materials

Material suitability depends on bulk density, particle size, flow characteristics, and the blender's operating requirements.

Frequently Asked Questions (FAQs)

- What is the capacity of this stainless steel ribbon/paddle blender?

The blender has an approximate mixing capacity of 300 cubic feet.

- What are the internal dimensions of the mixing chamber?

The internal chamber measures approximately 157 inches long, 66 inches wide, and 69 inches deep.

- What type of motor is installed on this blender?

The unit is equipped with a 55 kW (75 HP) Siemens motor.

- What is the mixing speed?

The drive system has an approximate output speed of 29 RPM at 60 Hz.

- What gear reducer is included?

The blender features a Jiangsu Weihung Model WHK157 direct-drive gear reducer.

- Does the blender have a stainless steel mixing chamber and frame?

The equipment is described as stainless steel construction with a stainless steel hinged top, frame, and support legs. The specific stainless steel grade is not specified.

- How is material discharged from the blender?

The unit features a center discharge outlet.

- Does this blender include a transformer?

Yes. The equipment includes a 75 kVA transformer with a 480 V primary and a secondary specified as 240/120LT, along with associated controls.

- What year was this ribbon/paddle blender manufactured?

The blender was built in 2024.

- Can this blender be used for powders and granular materials?

Ribbon and paddle blenders are commonly used for mixing dry powders, granules, and compatible bulk solids. Actual suitability depends on the material properties and mixing requirements.

- Can Aaron Equipment assist with shipping this large-capacity blender?

Aaron Equipment can help coordinate freight and transportation arrangements for this industrial blender. Contact our team to discuss equipment location, rigging requirements, loading arrangements, shipping dimensions, and available transportation options.

- How can Aaron Equipment help determine whether this blender meets my application requirements?

Aaron Equipment can assist with available specifications, equipment information, and purchasing questions to help evaluate whether this 300 cubic foot stainless steel ribbon/paddle blender meets your batch mixing and material handling requirements.
