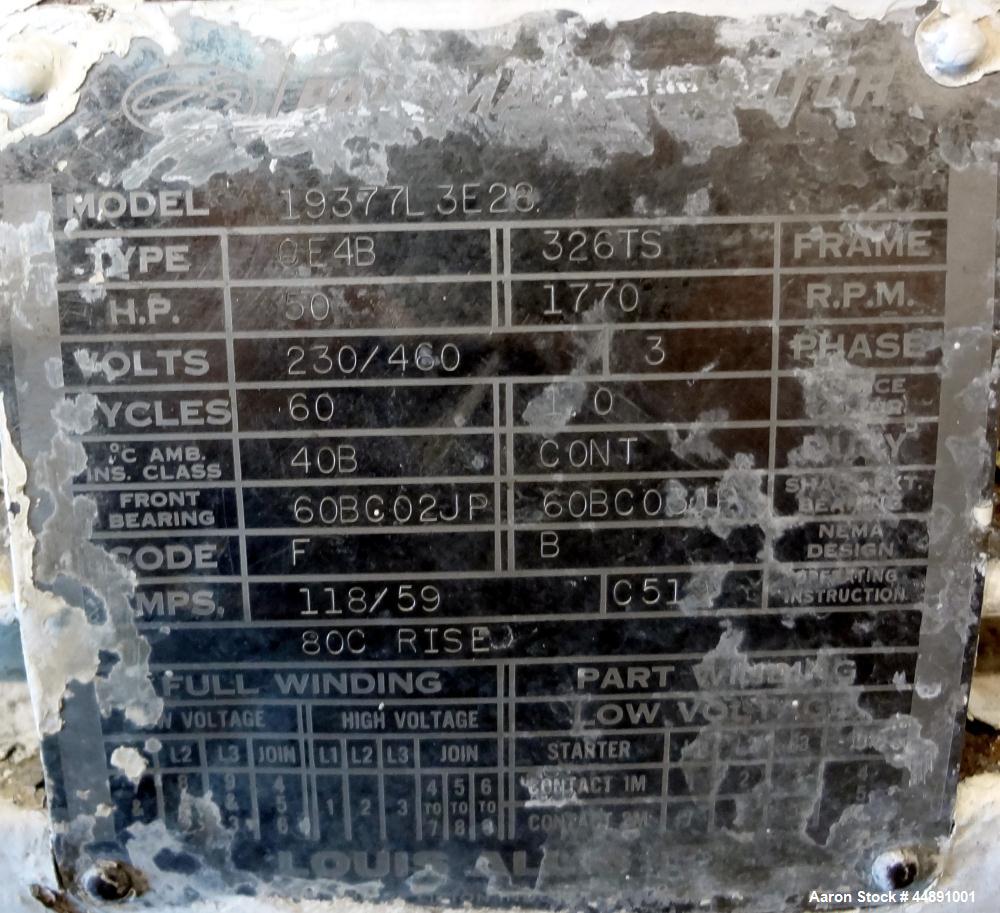

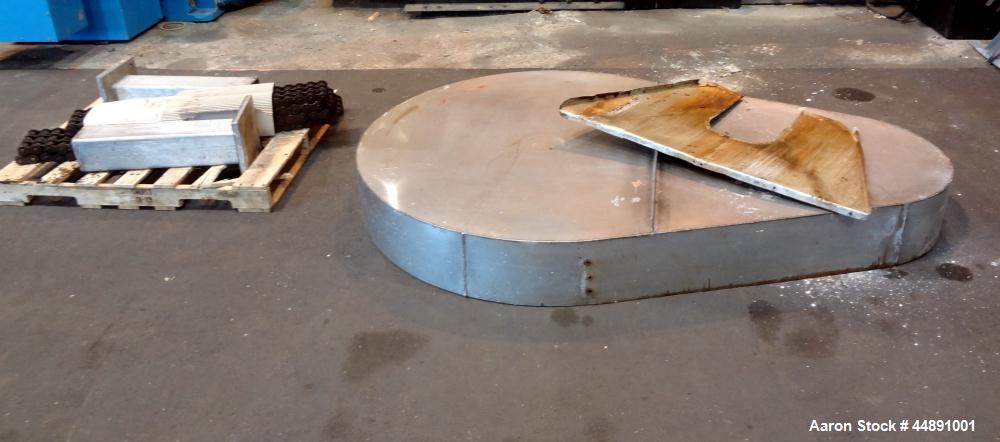

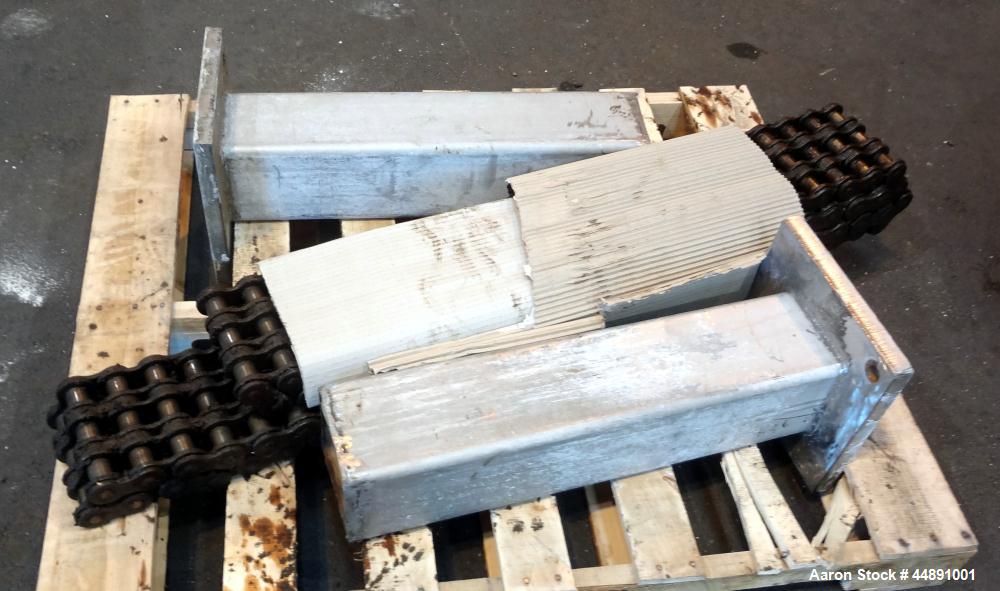

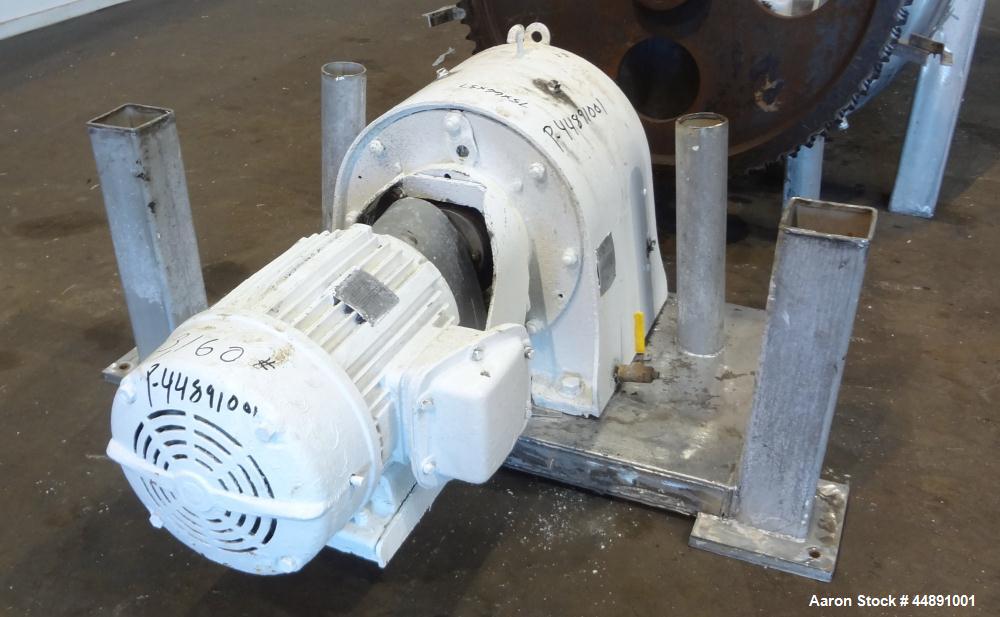

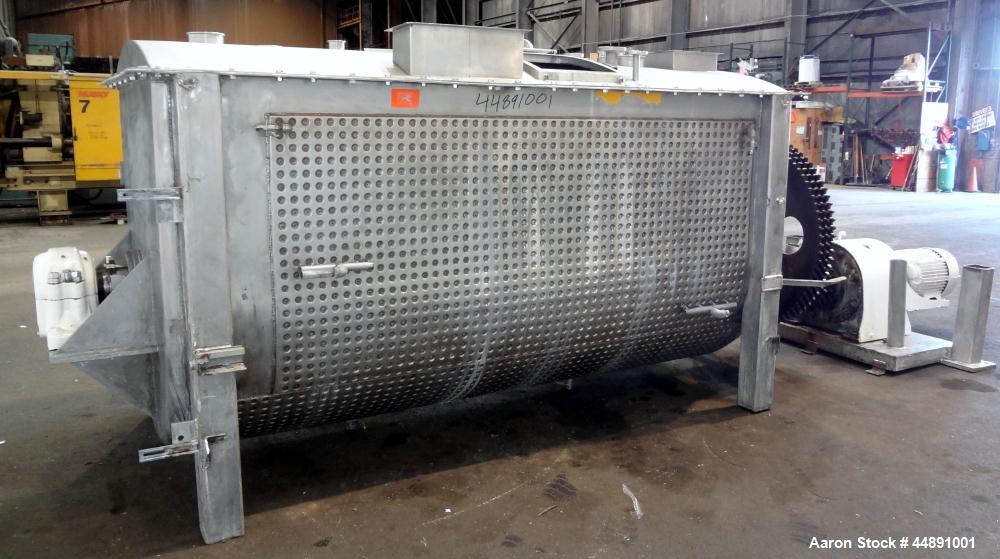

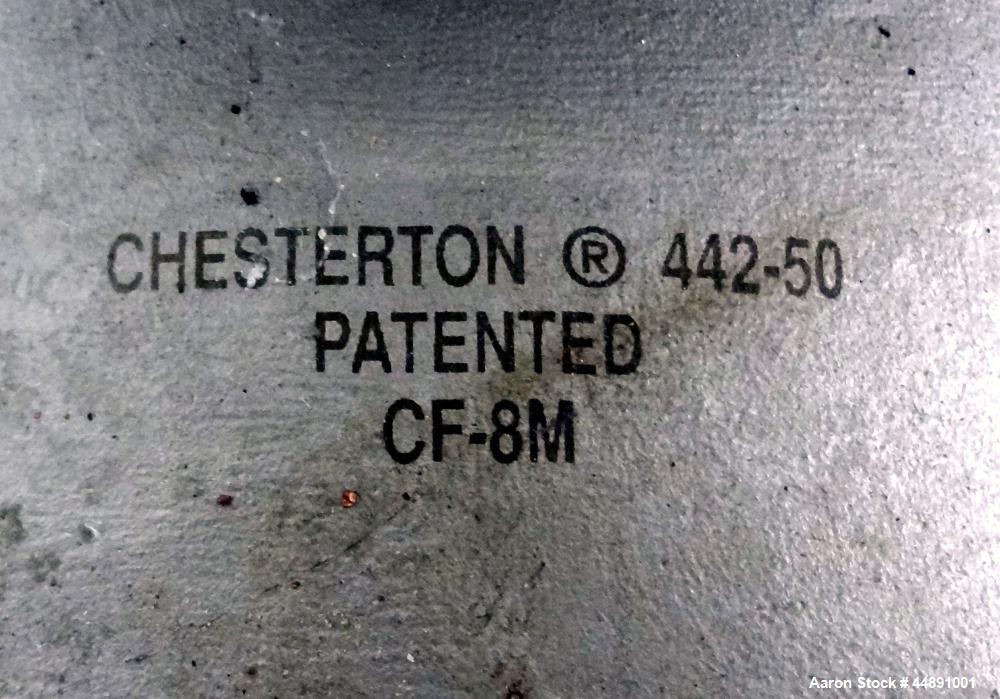

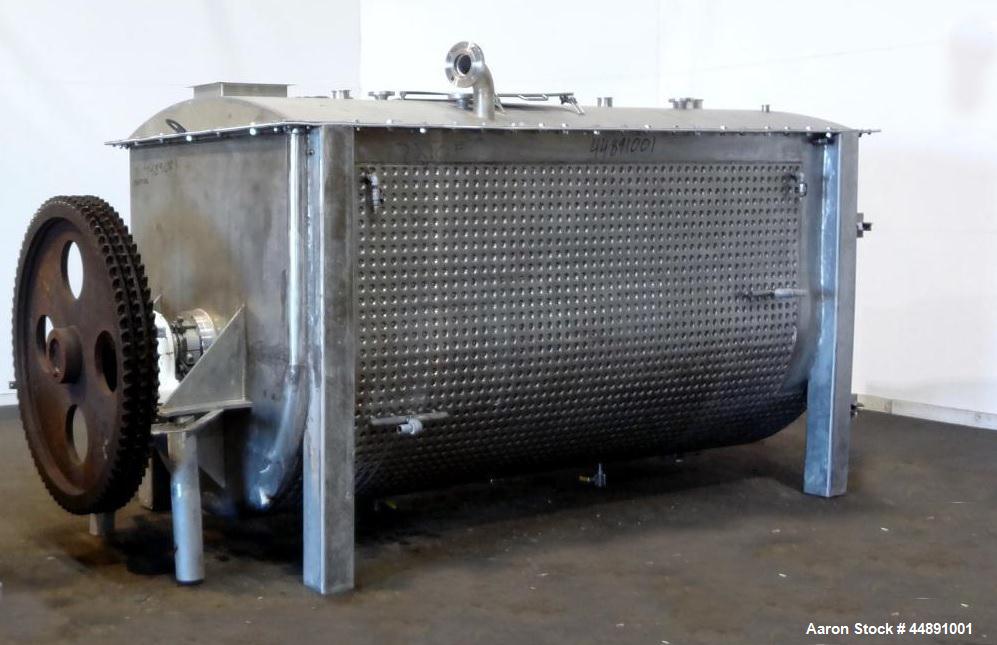

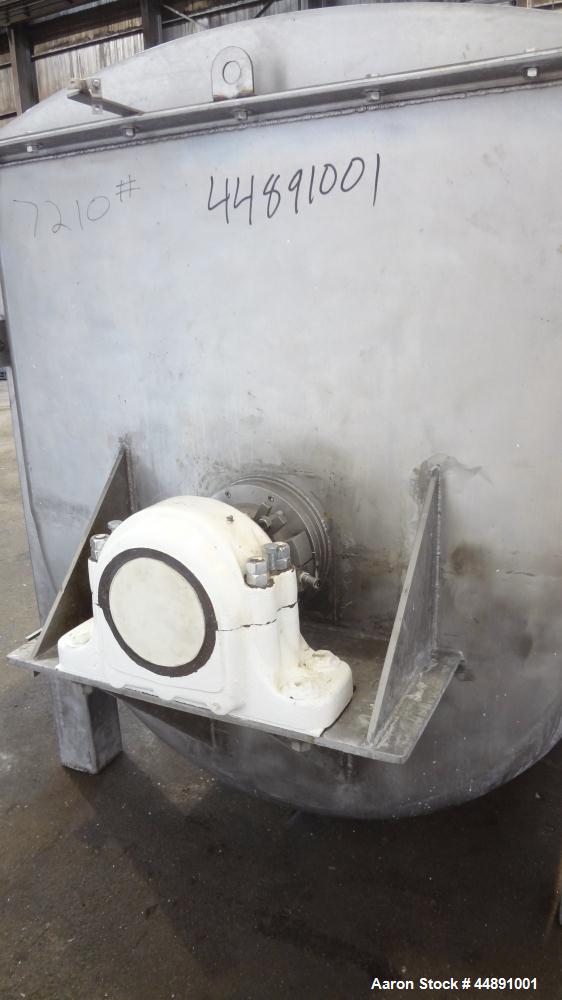

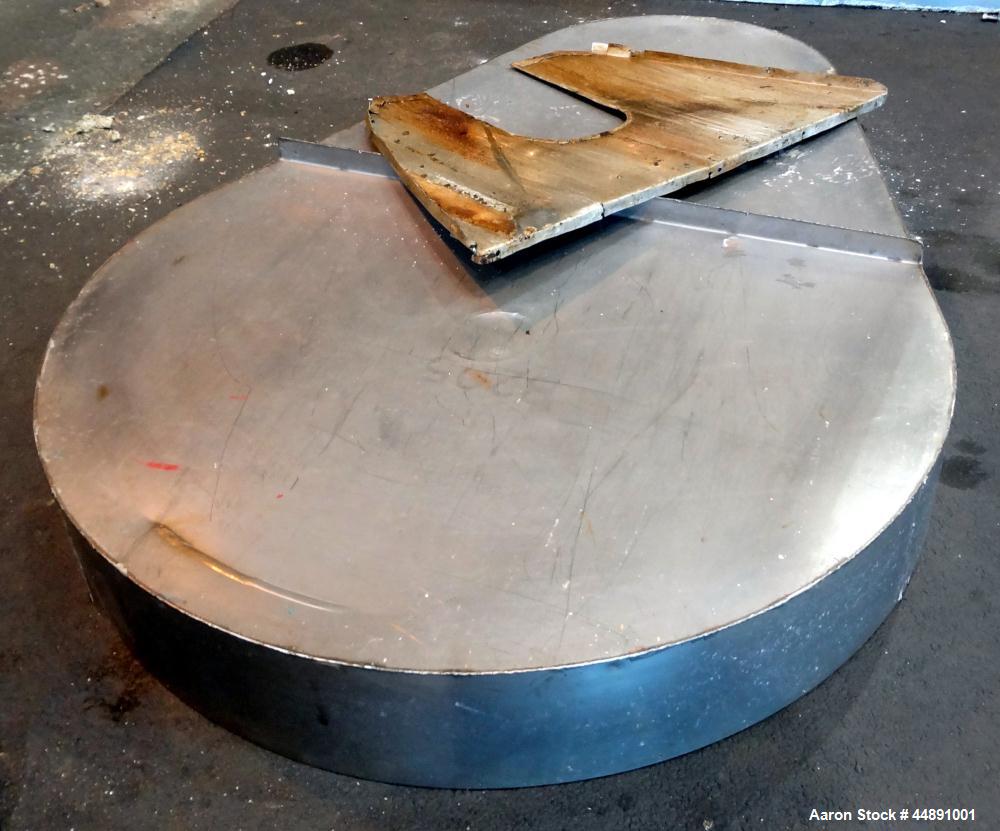

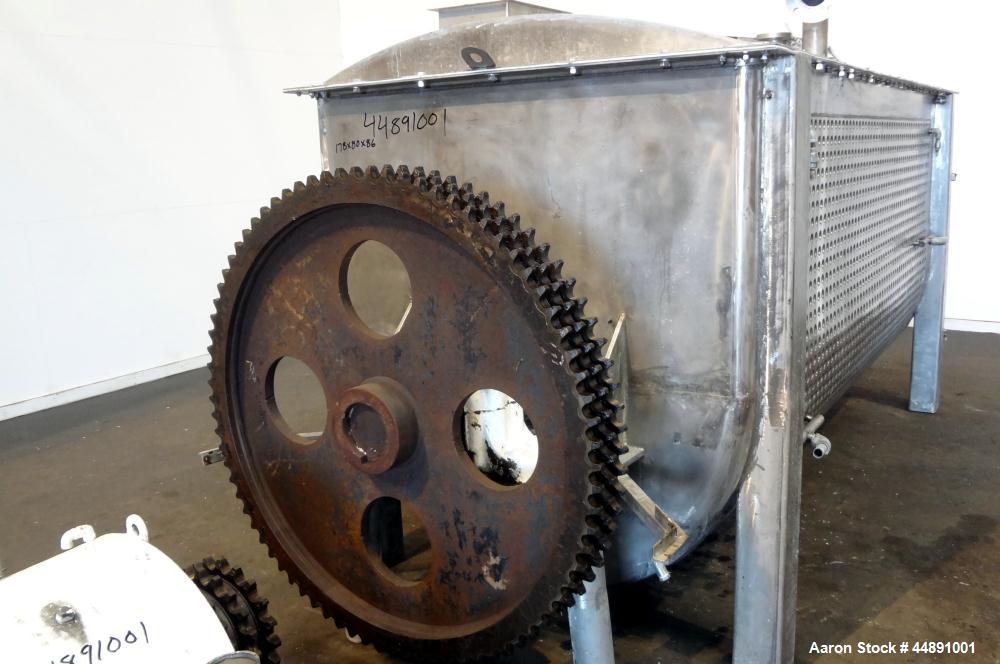

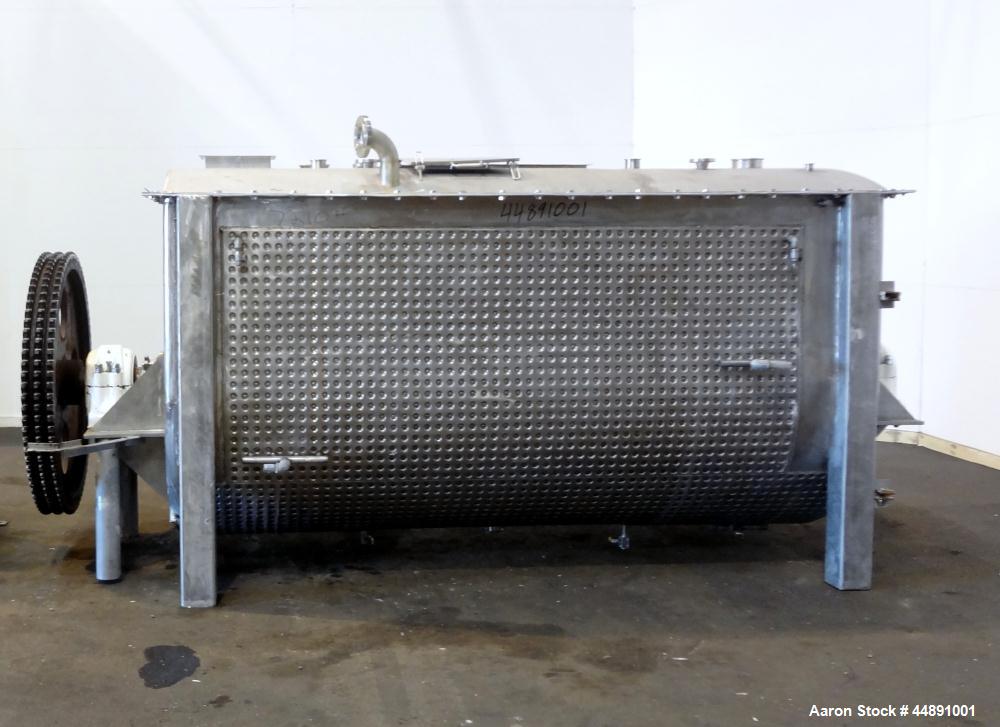

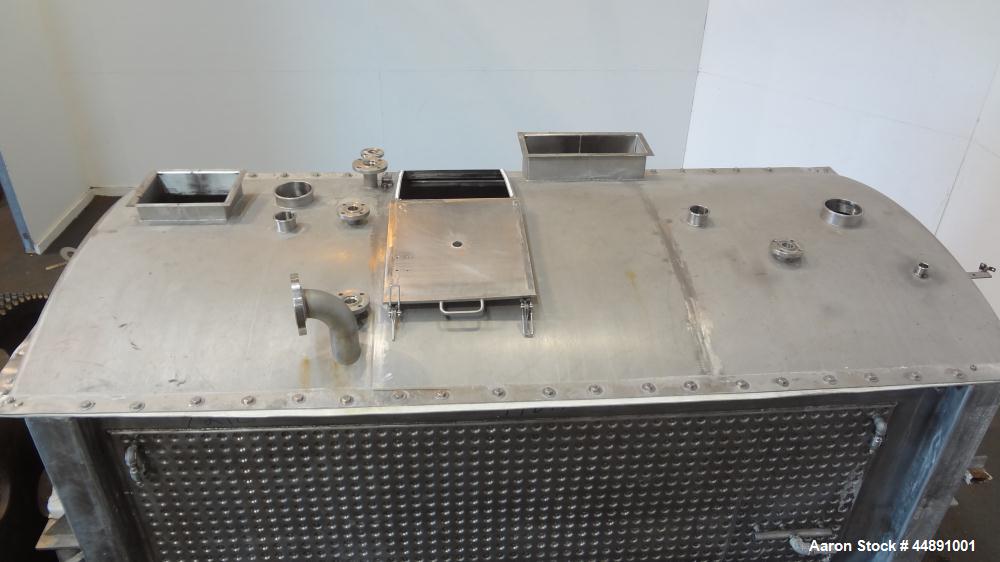

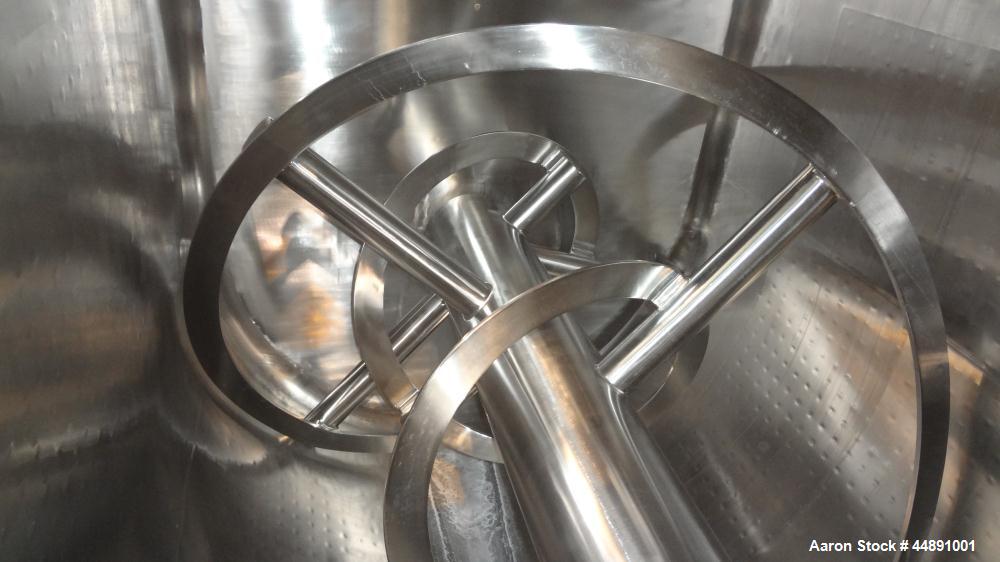

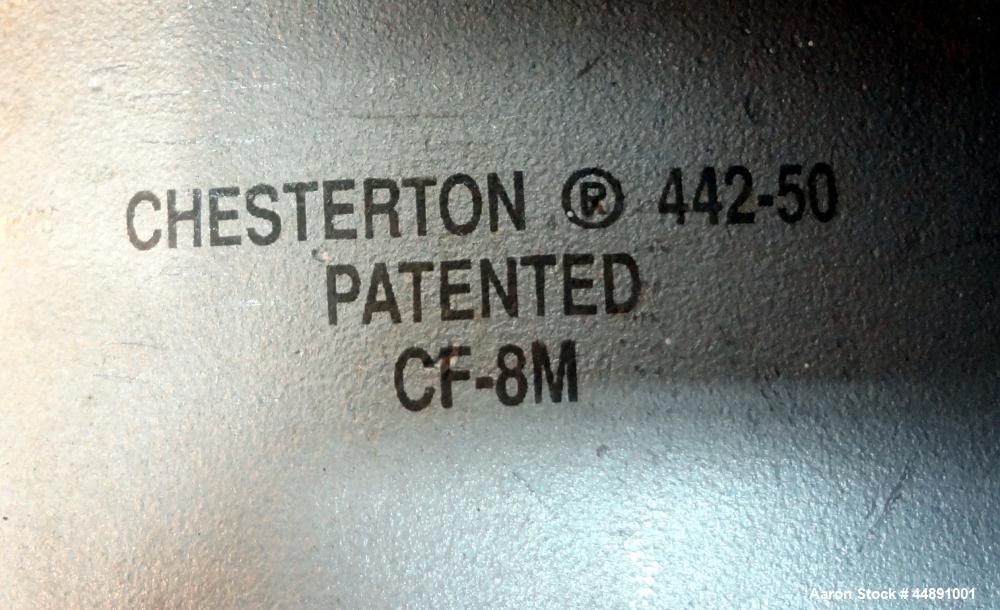

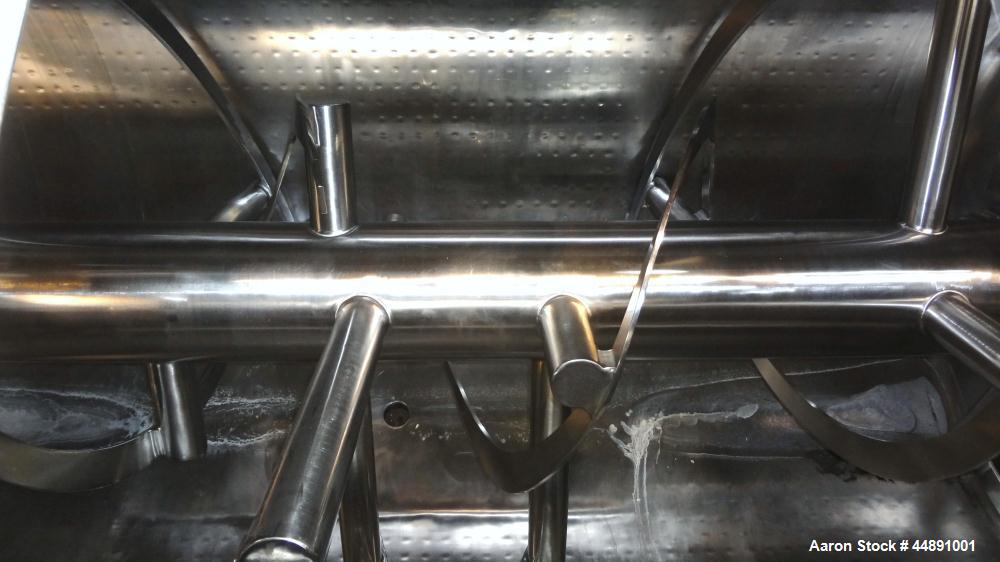

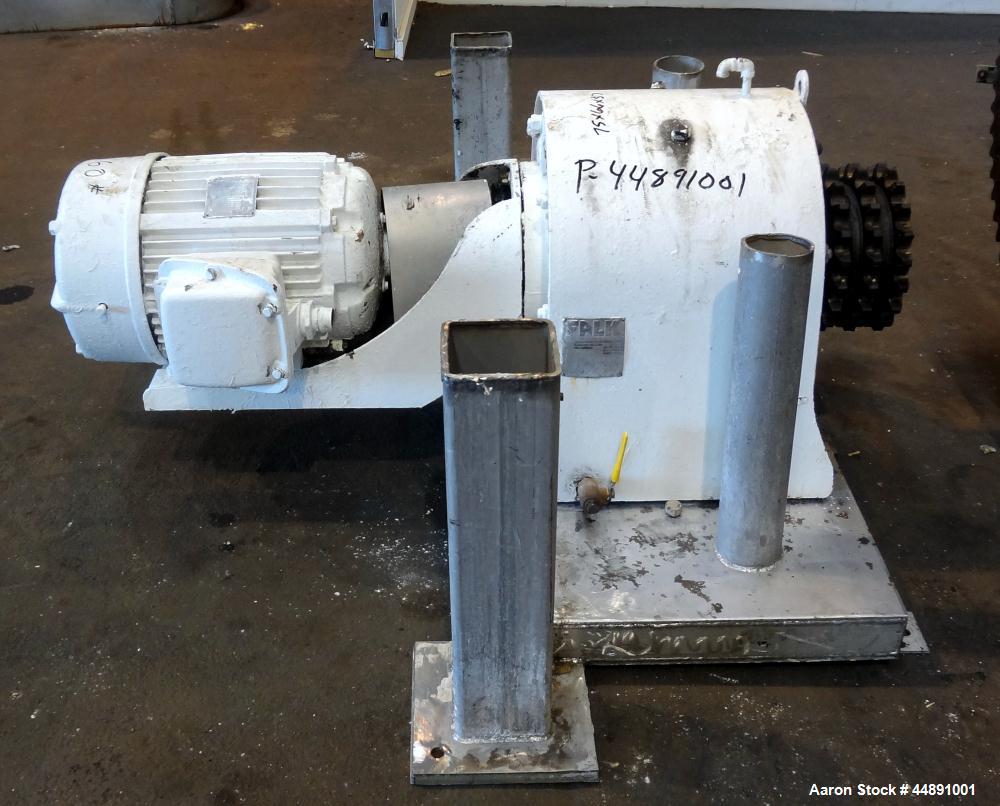

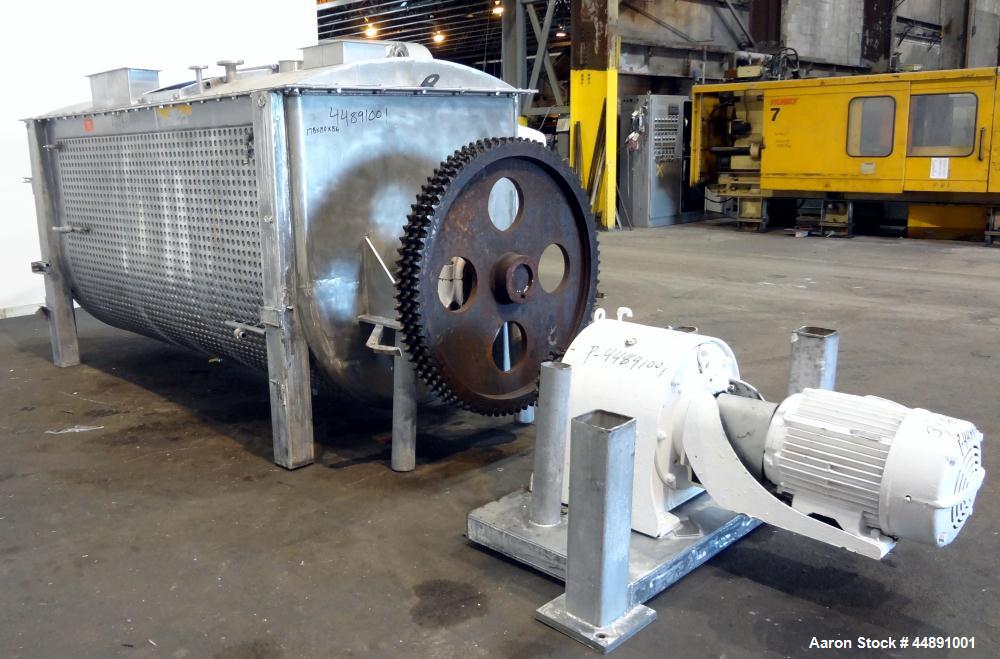

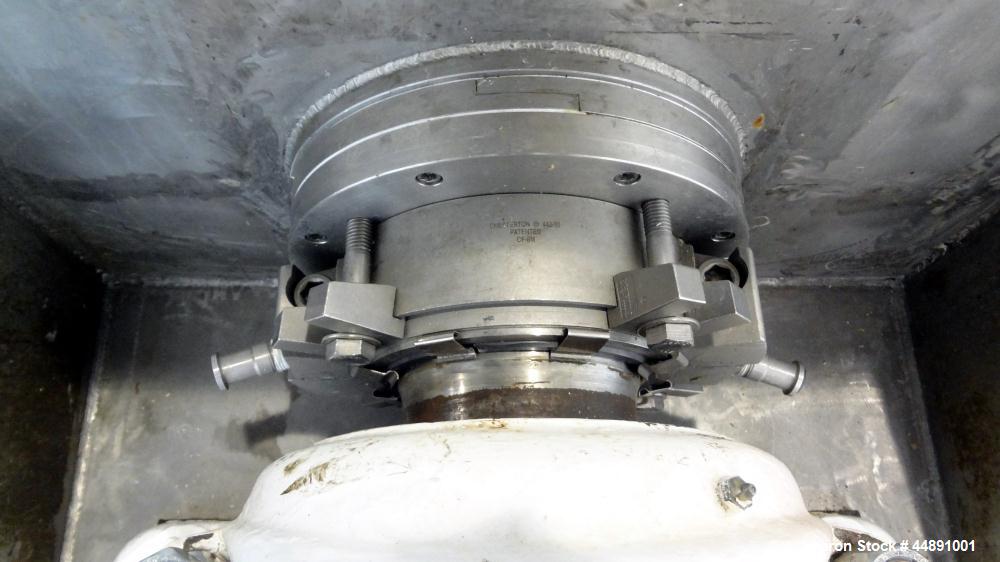

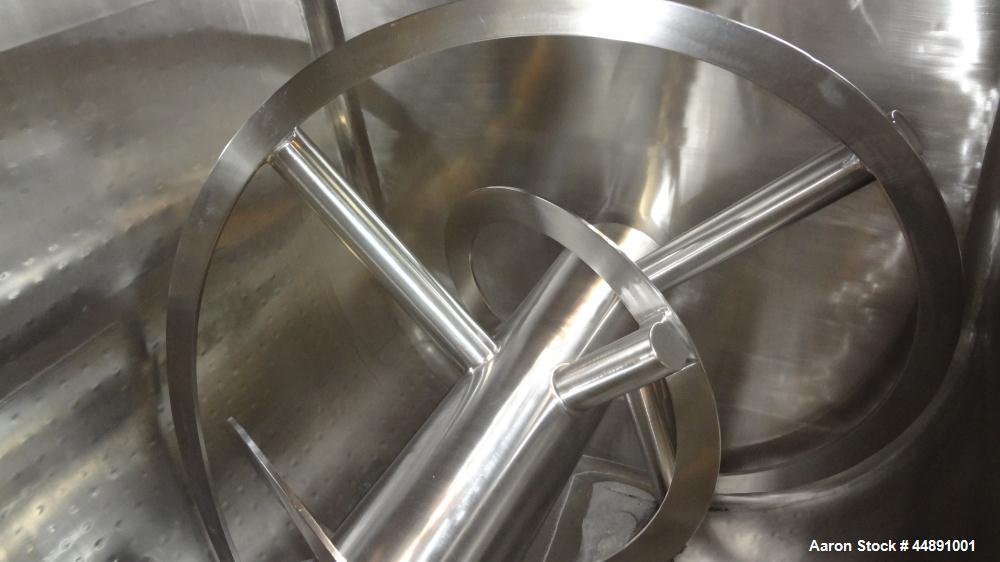

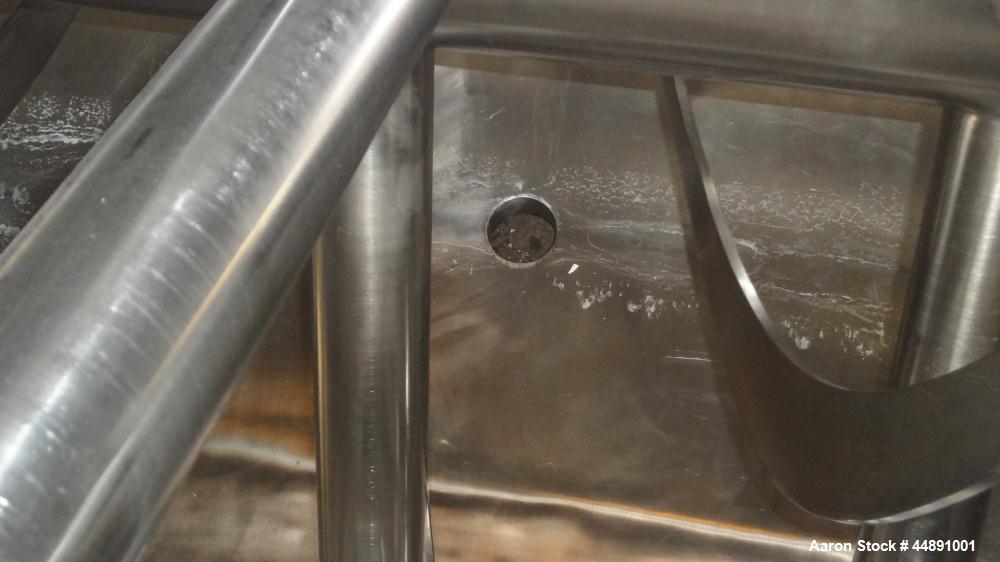

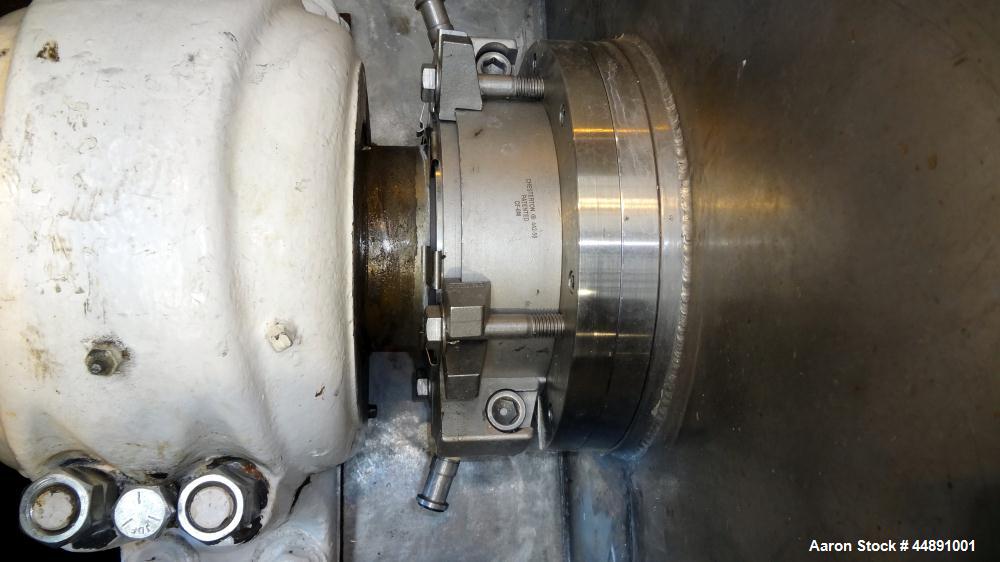

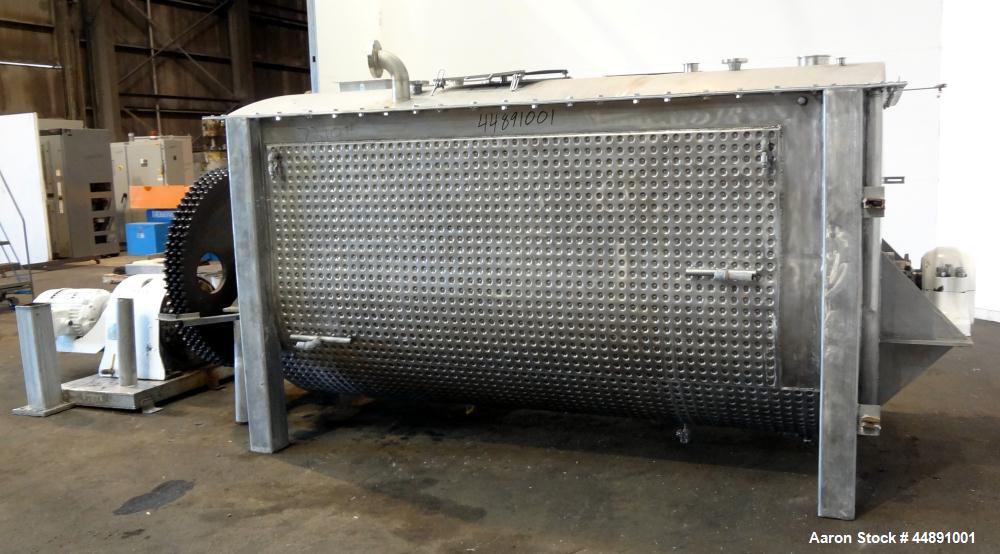

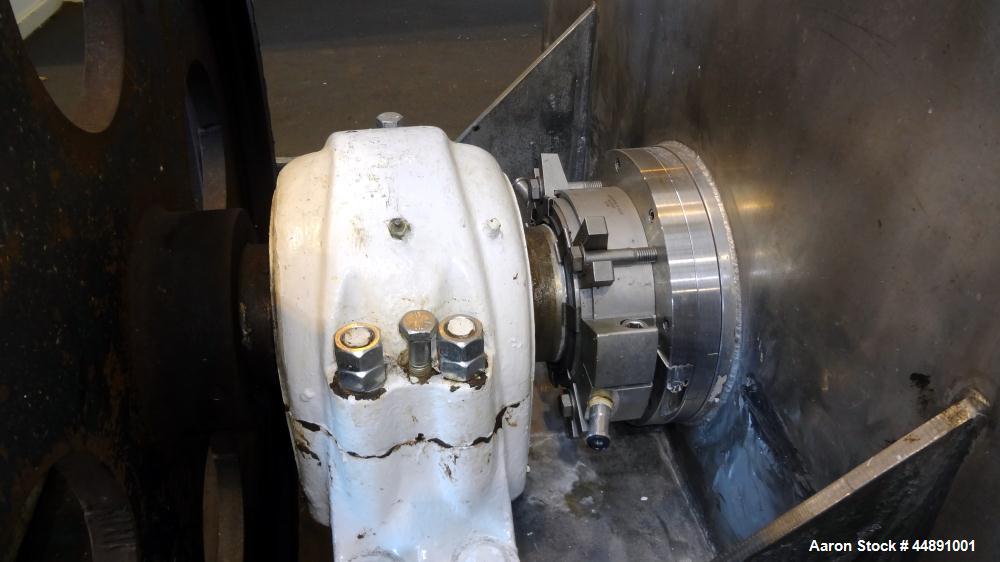

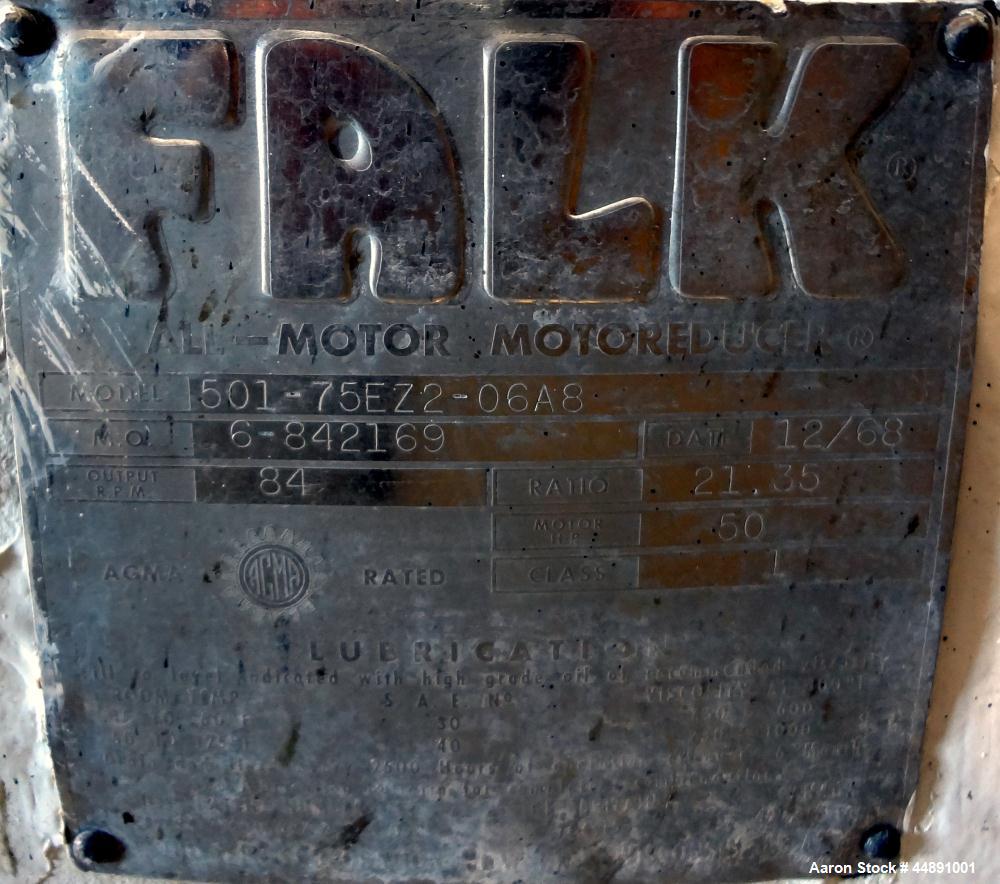

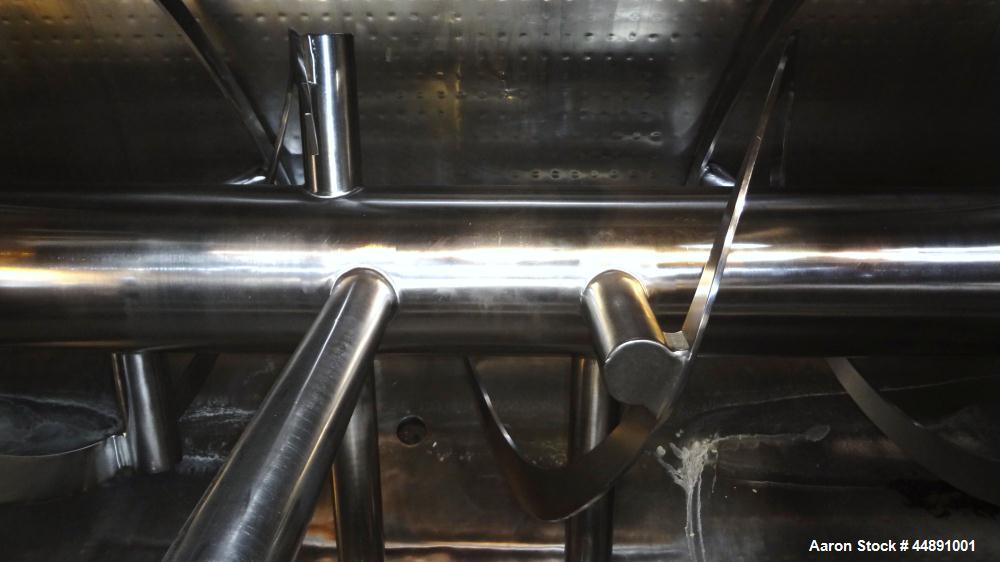

Used Mueller Double Spiral Ribbon Blender, 220 cubic feet working capacity, 304 stainless steel. 304 Stainless steel non-code dimple jacketed trough 60" wide x 129" long x approximately 60" deep, rated 300 psi at 400 degrees F. Approximately 6" diameter shaft, inner ribbon 3" wide x 1/4" thick, outer ribbon 3" wide x 1/2" thick, welded to 3-1/2" diameter posts. 3" Diameter center bottom outlet, no valve. (1) Piece domed top 316 stainless steel cover with 1", (4) 1-1/2", 2", (3) 3", (2) 6", 17" x 22" with hinged door, 7-1/2" x 21-1/2", 10-1/2" x 13". (2) Chesterton 442-50 split mechanical seals, outboard roller bearings. Mixer driven by a triple chain drive, 50 hp, 3/60/230/460 volt, 1770 rpm motor thru a Falk reducer, ratio 21.35 to 1. Mounted on stainless steel legs which have been cut.
Used Mueller Double Spiral Ribbon Blender, 220 cubic feet working capacity, 304 stainless steel. 304 Stainless steel non-code dimple jacketed trough 60" wide x 129" long x approximately 60" deep, rated 300 psi at 400 degrees F. Approximately 6" diameter shaft, inner ribbon 3" wide x 1/4" thick, outer ribbon 3" wide x 1/2" thick, welded to 3-1/2" diameter posts. 3" Diameter center bottom outlet, no valve. (1) Piece domed top 316 stainless steel cover with 1", (4) 1-1/2", 2", (3) 3", (2) 6", 17" x 22" with hinged door, 7-1/2" x 21-1/2", 10-1/2" x 13". (2) Chesterton 442-50 split mechanical seals, outboard roller bearings. Mixer driven by a triple chain drive, 50 hp, 3/60/230/460 volt, 1770 rpm motor thru a Falk reducer, ratio 21.35 to 1. Mounted on stainless steel legs which have been cut.
