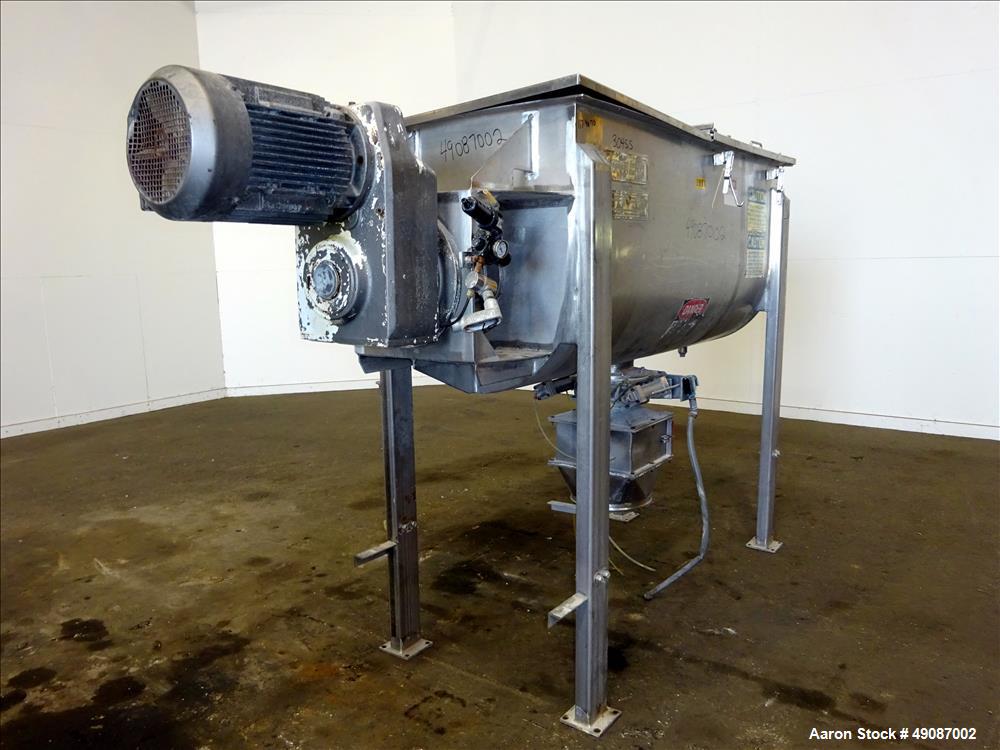

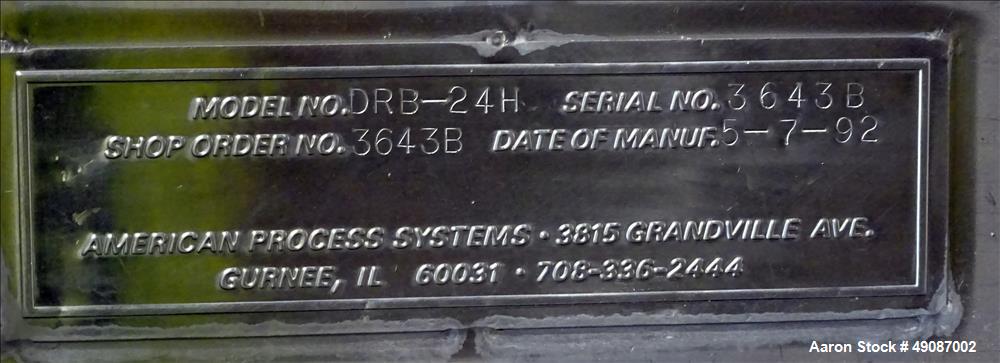

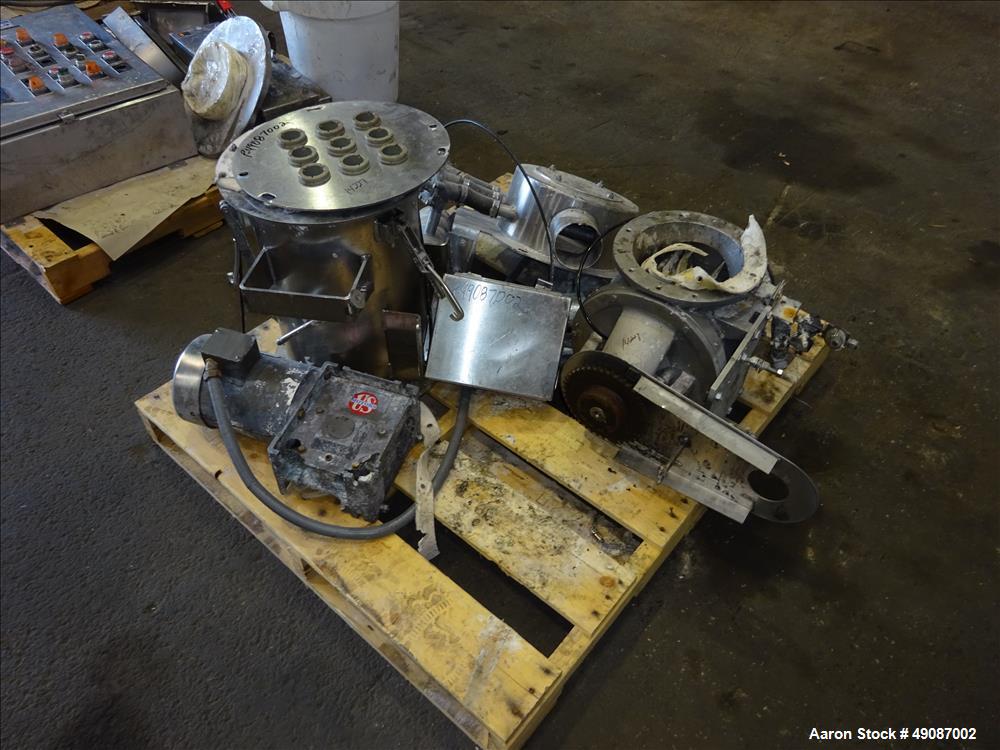

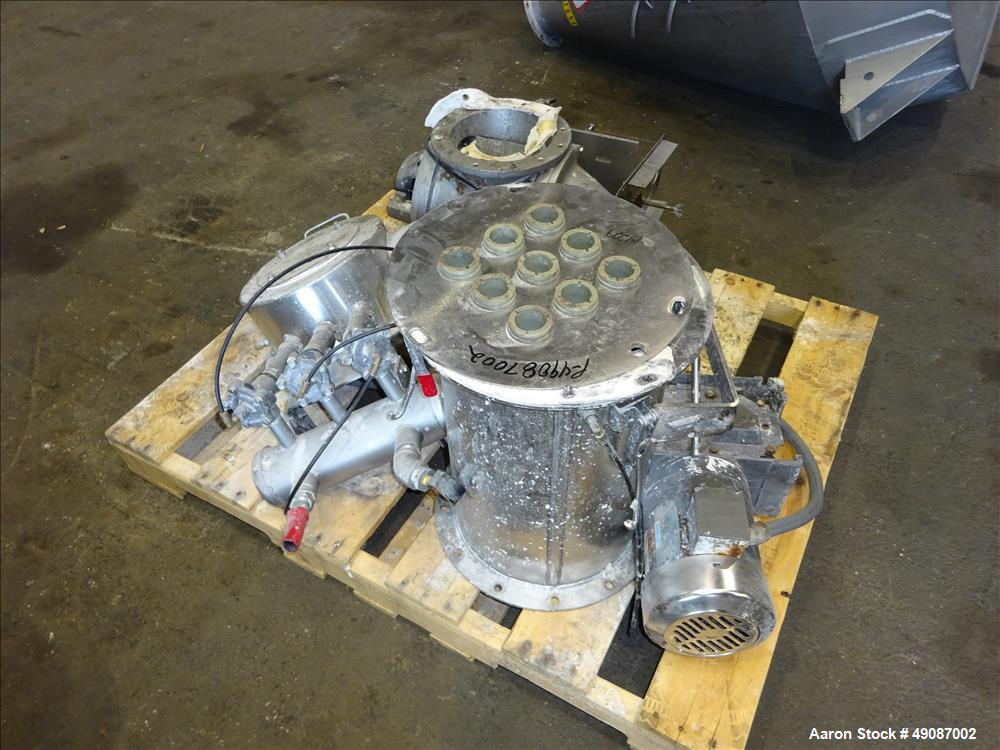

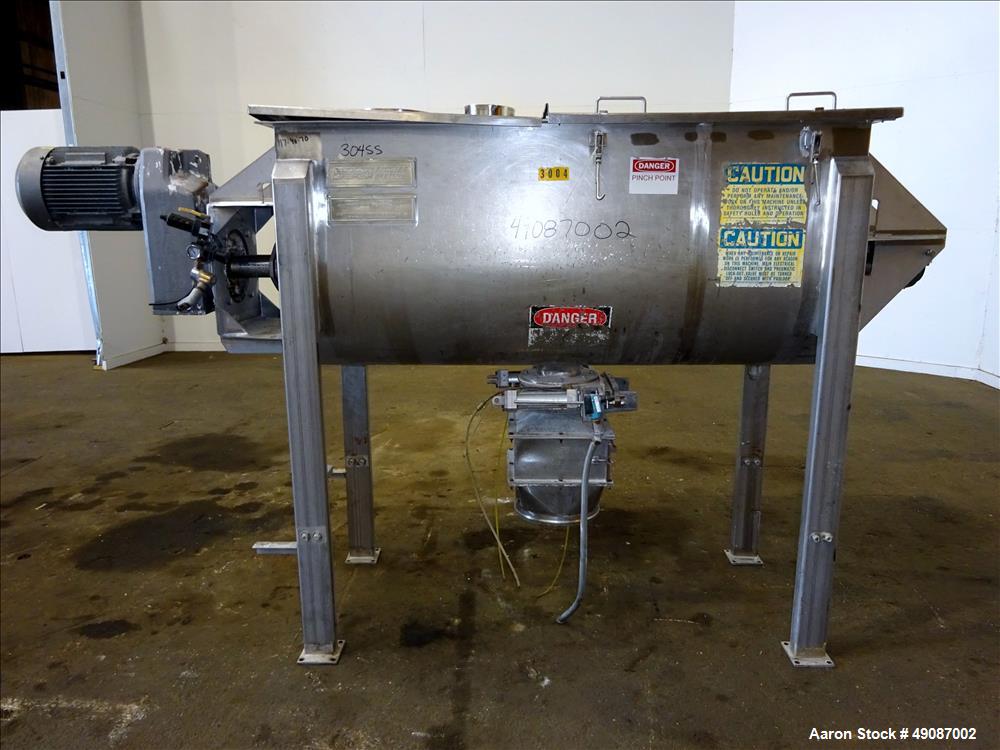

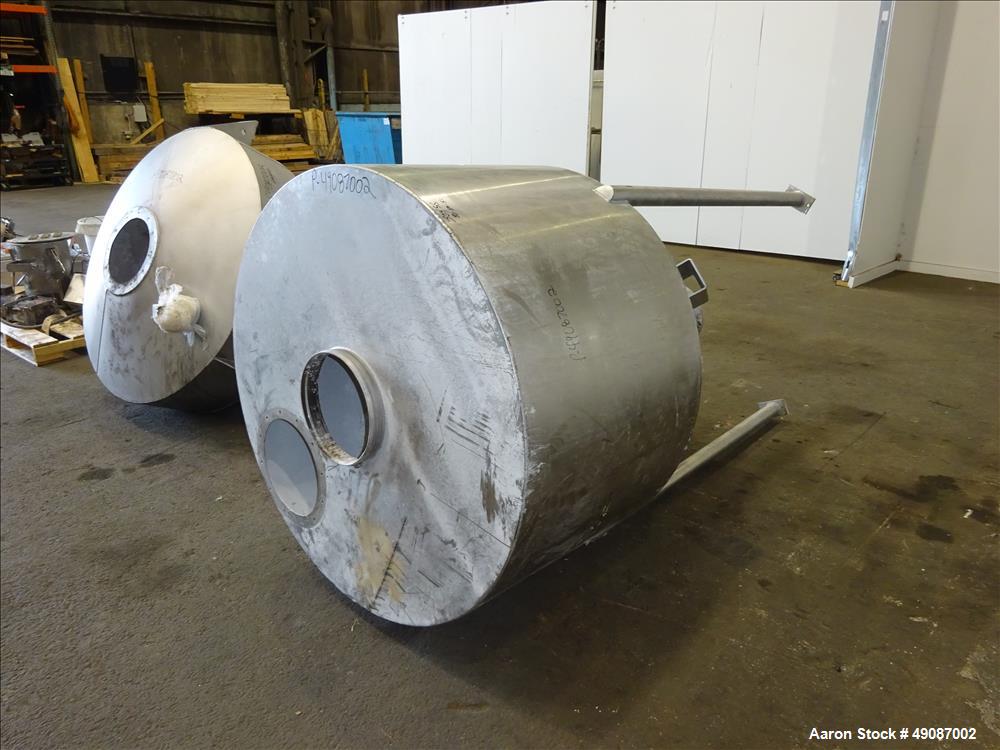

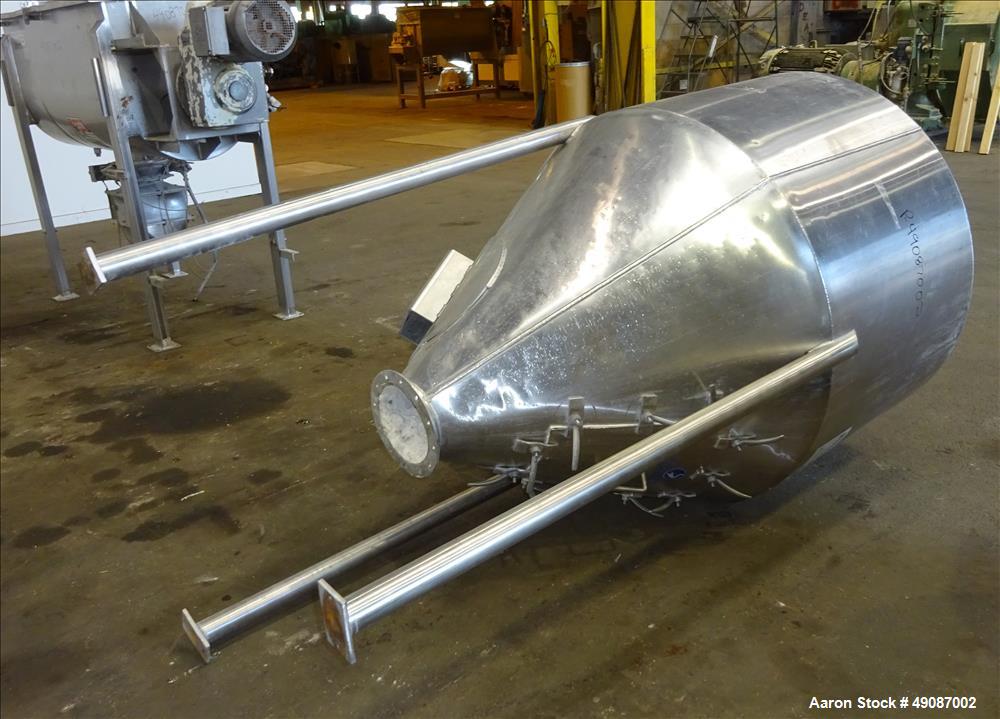

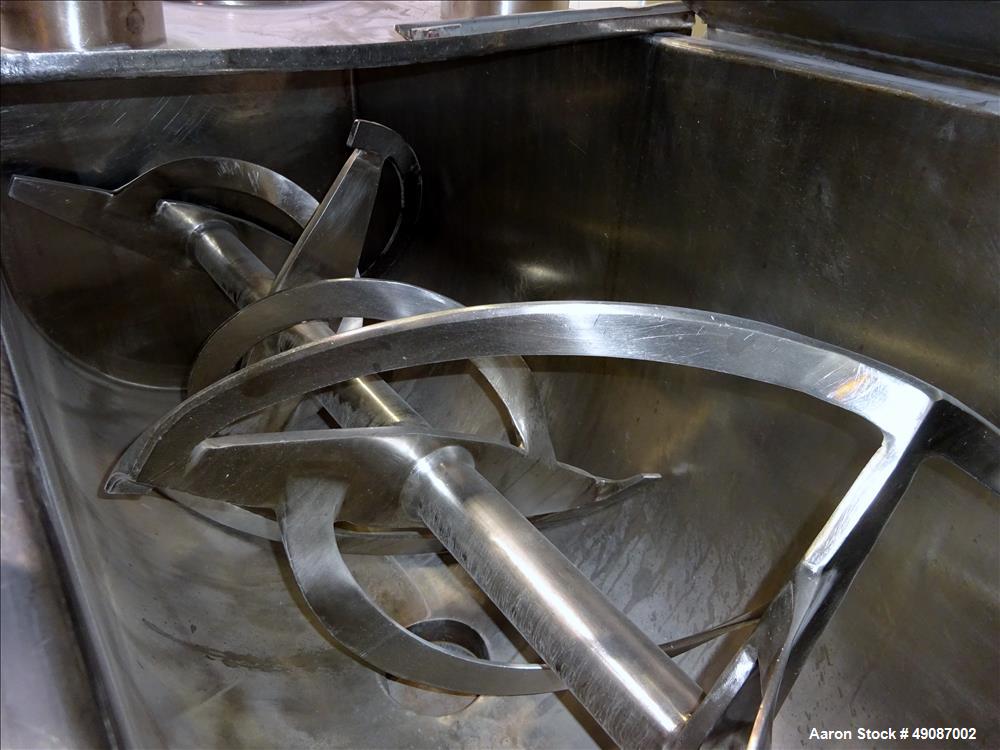

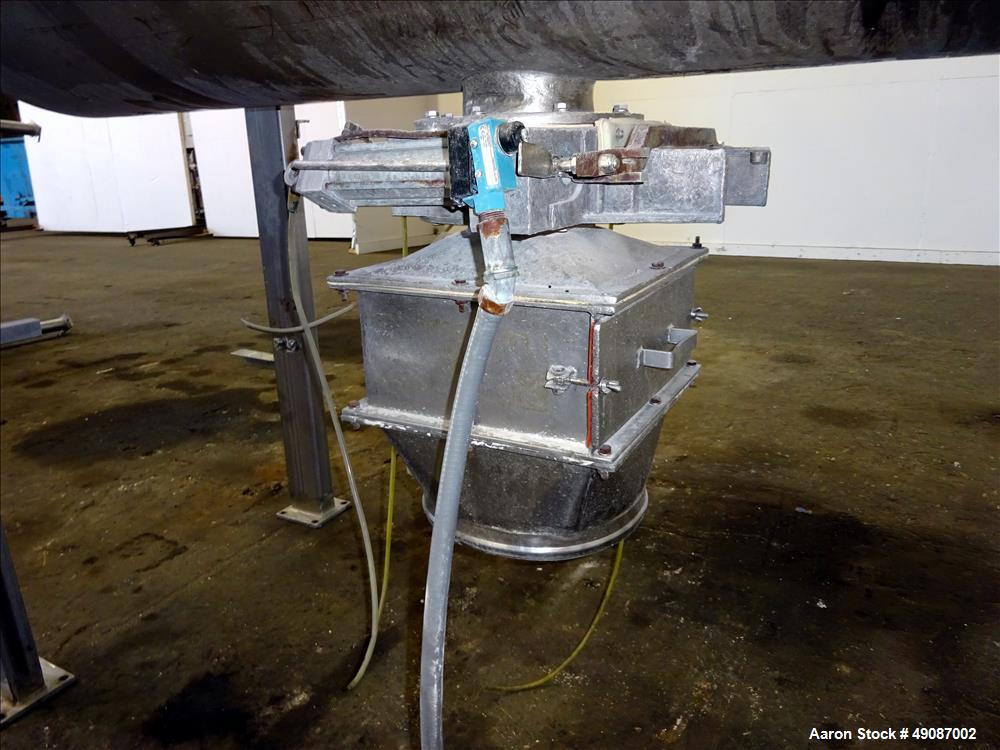

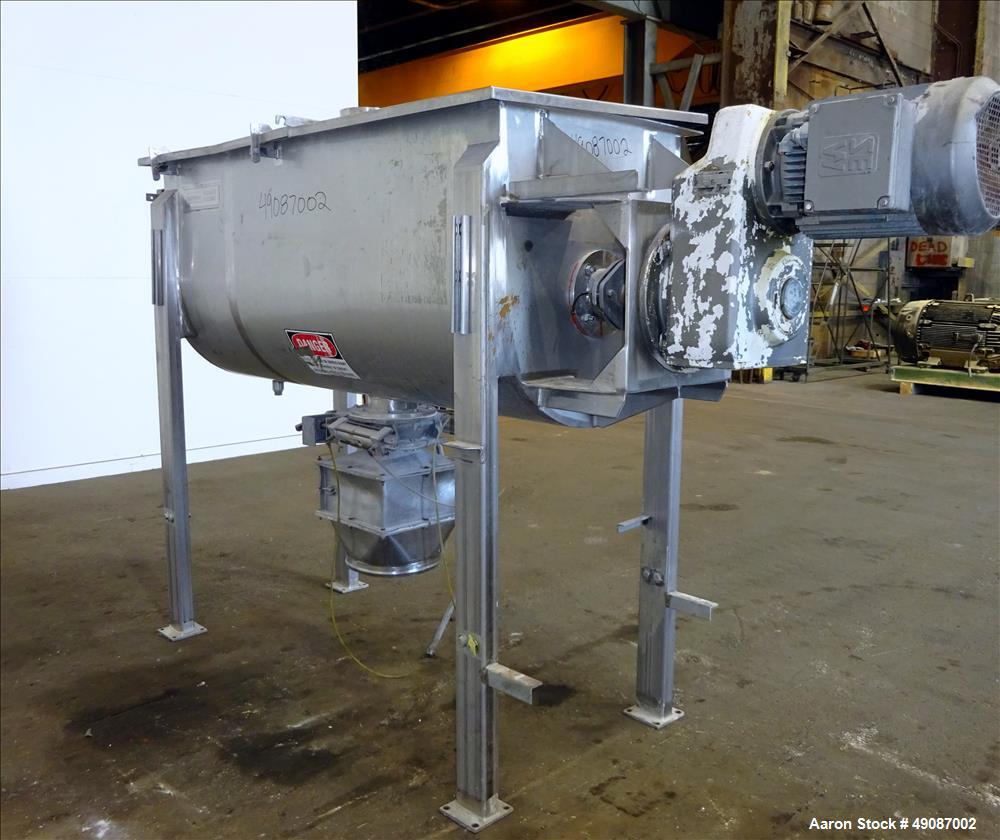

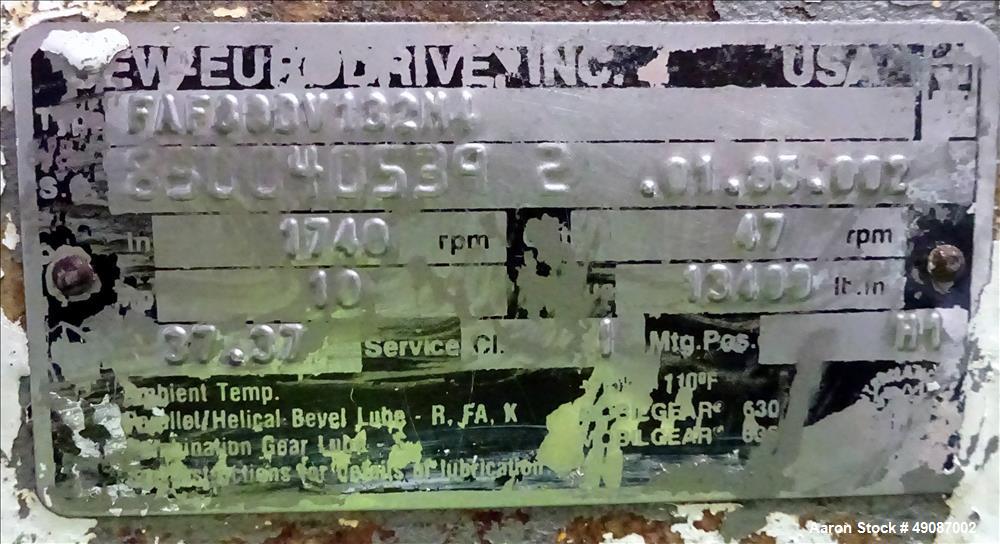

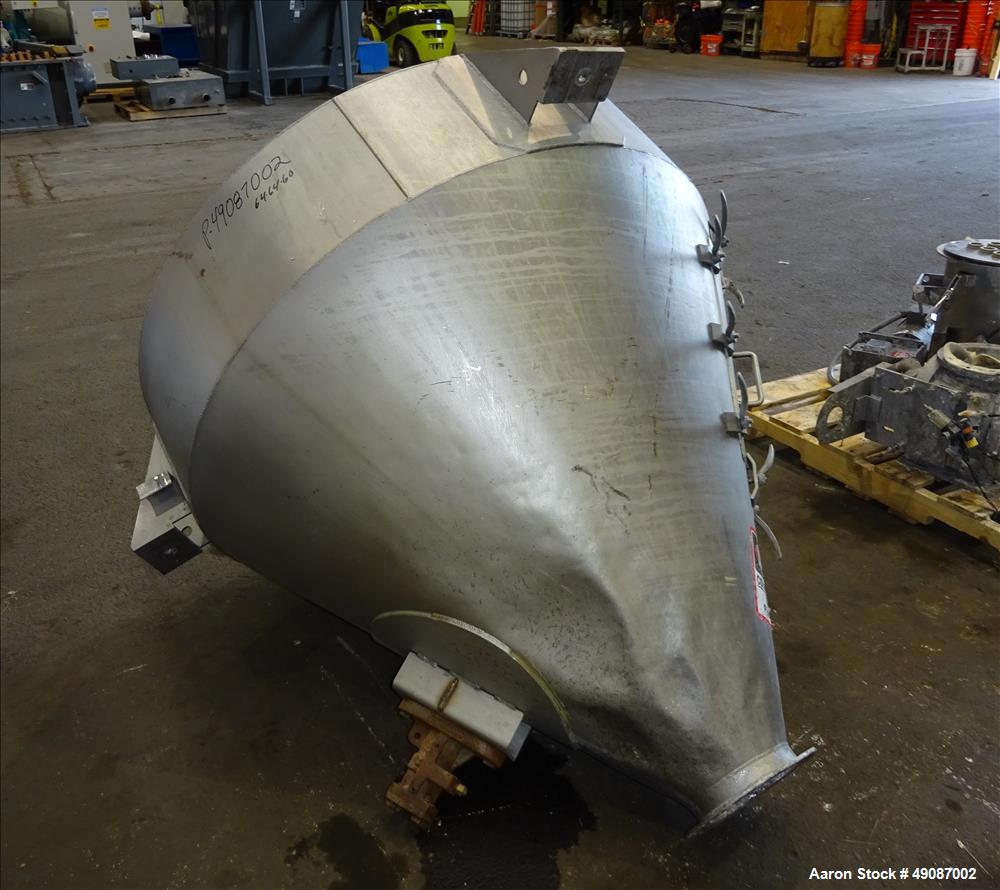

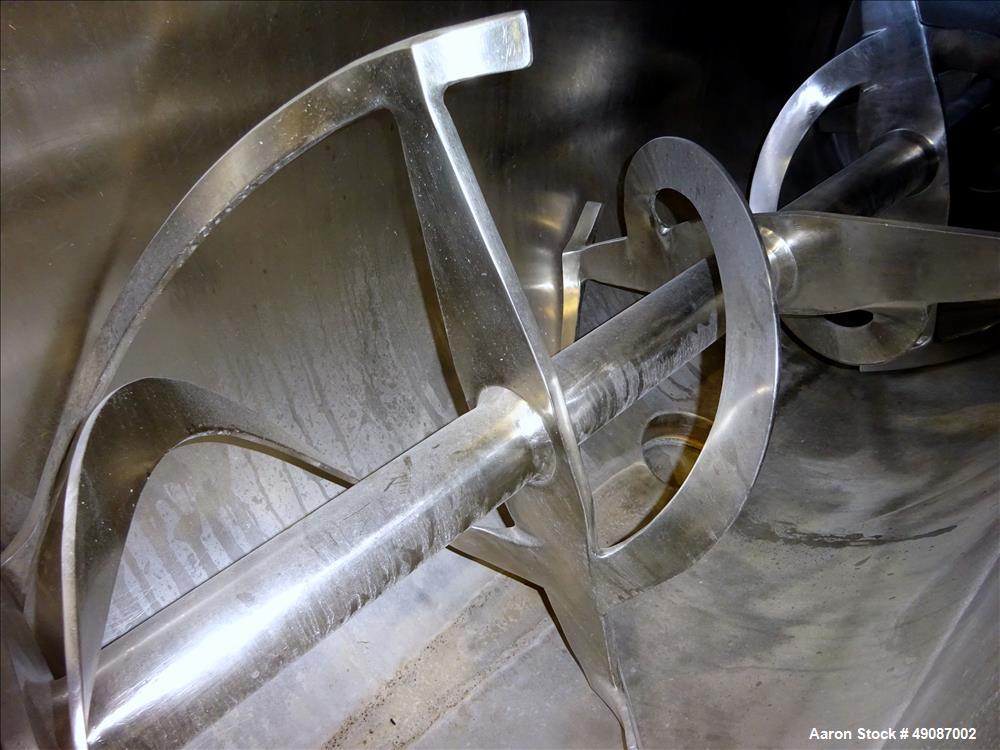

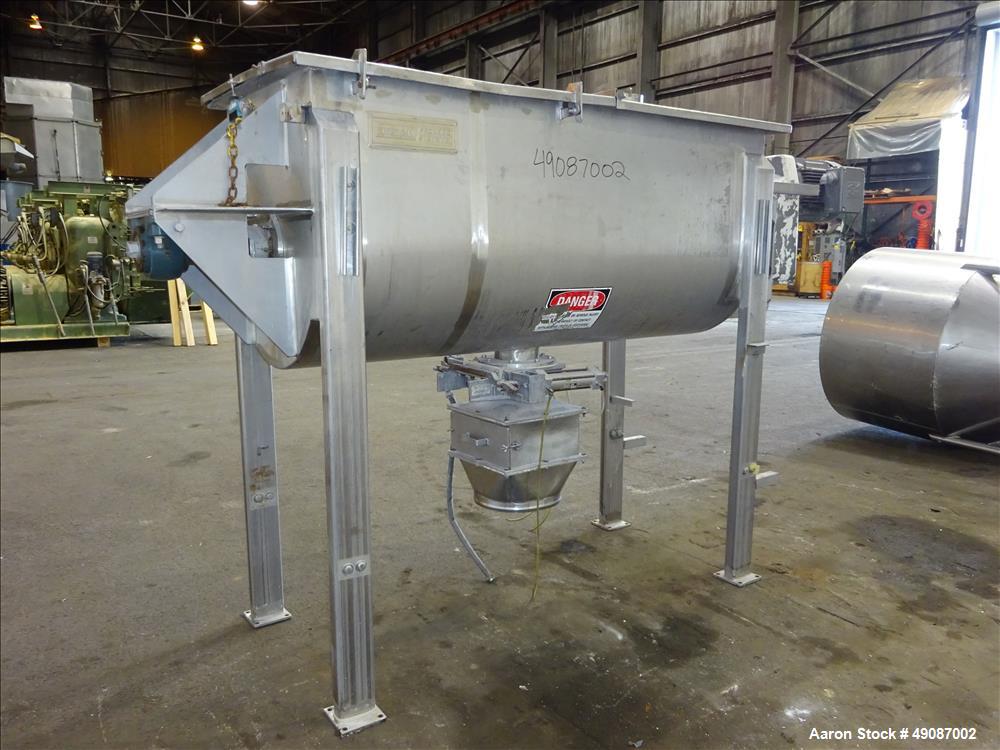

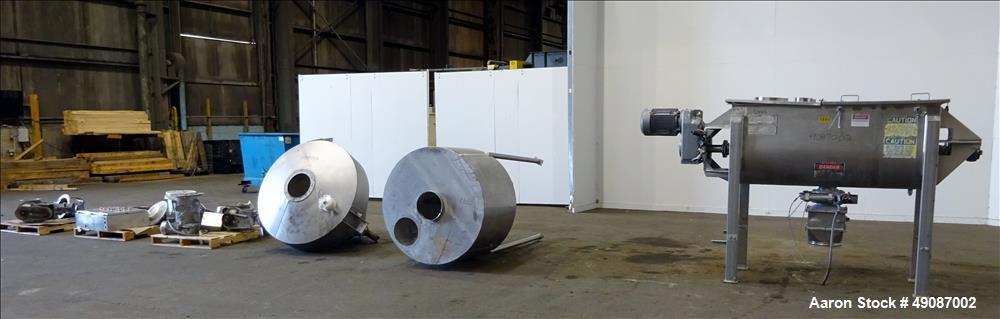

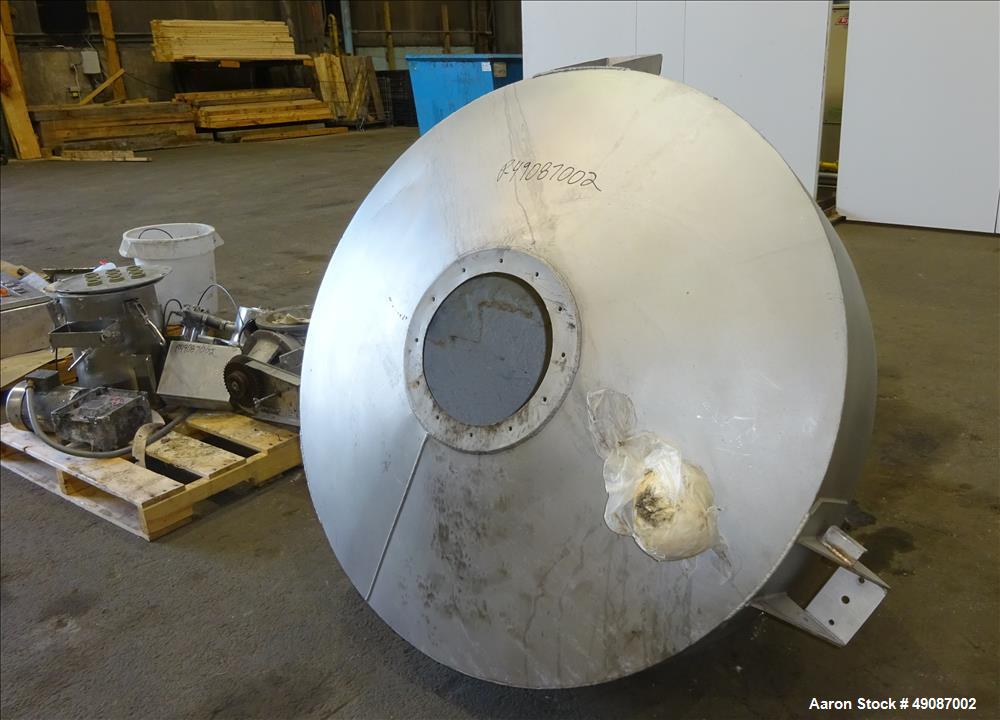

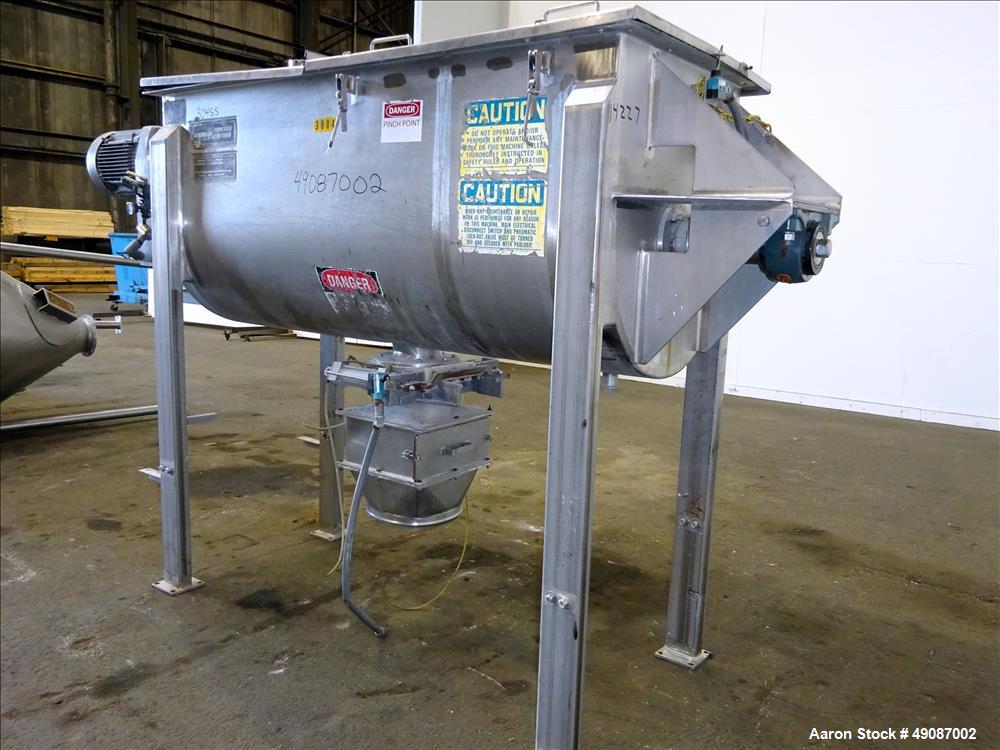

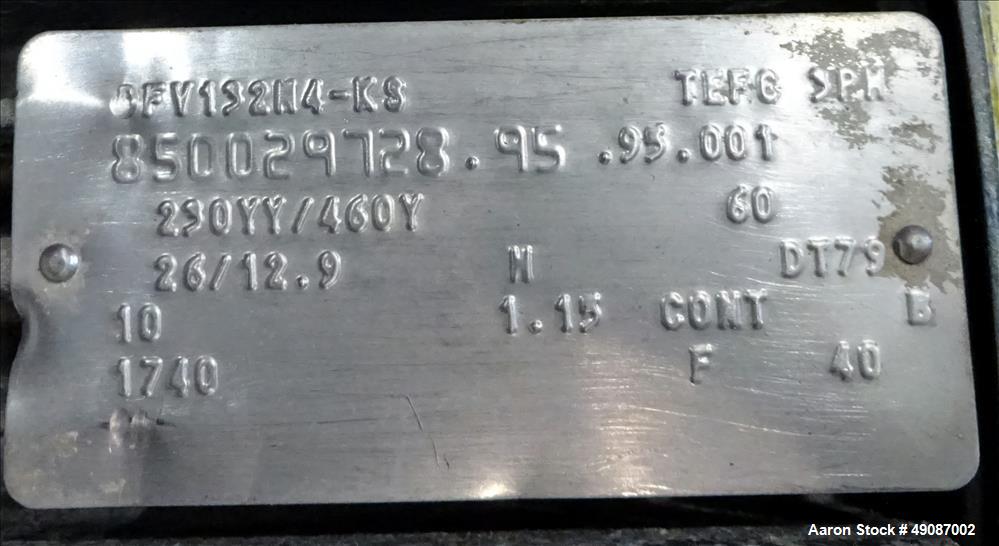

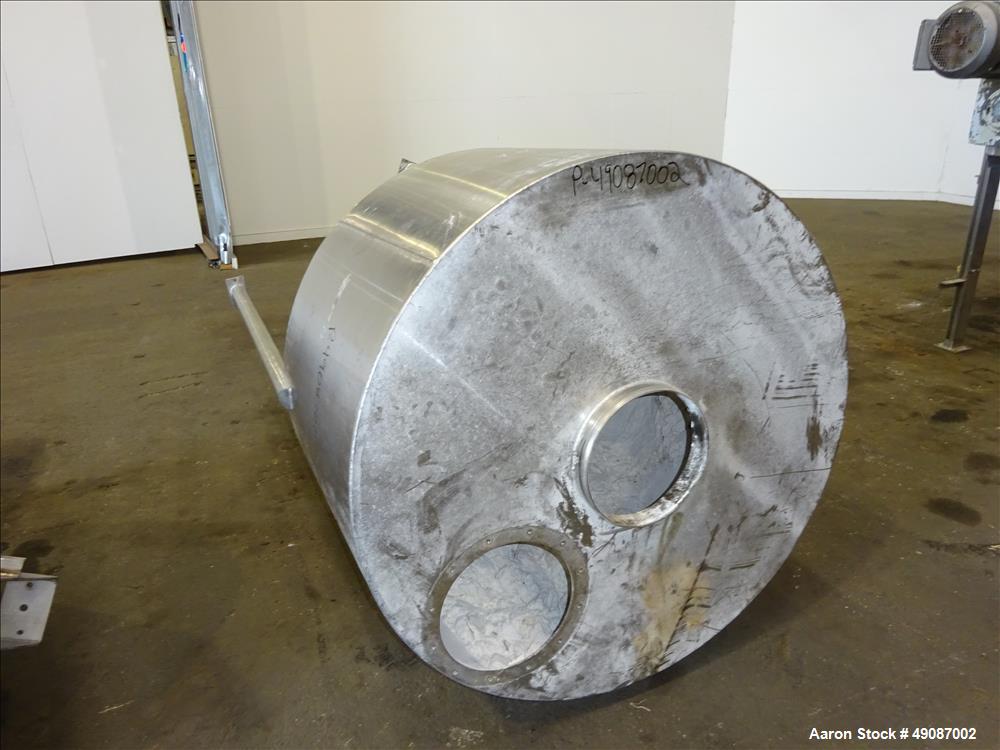

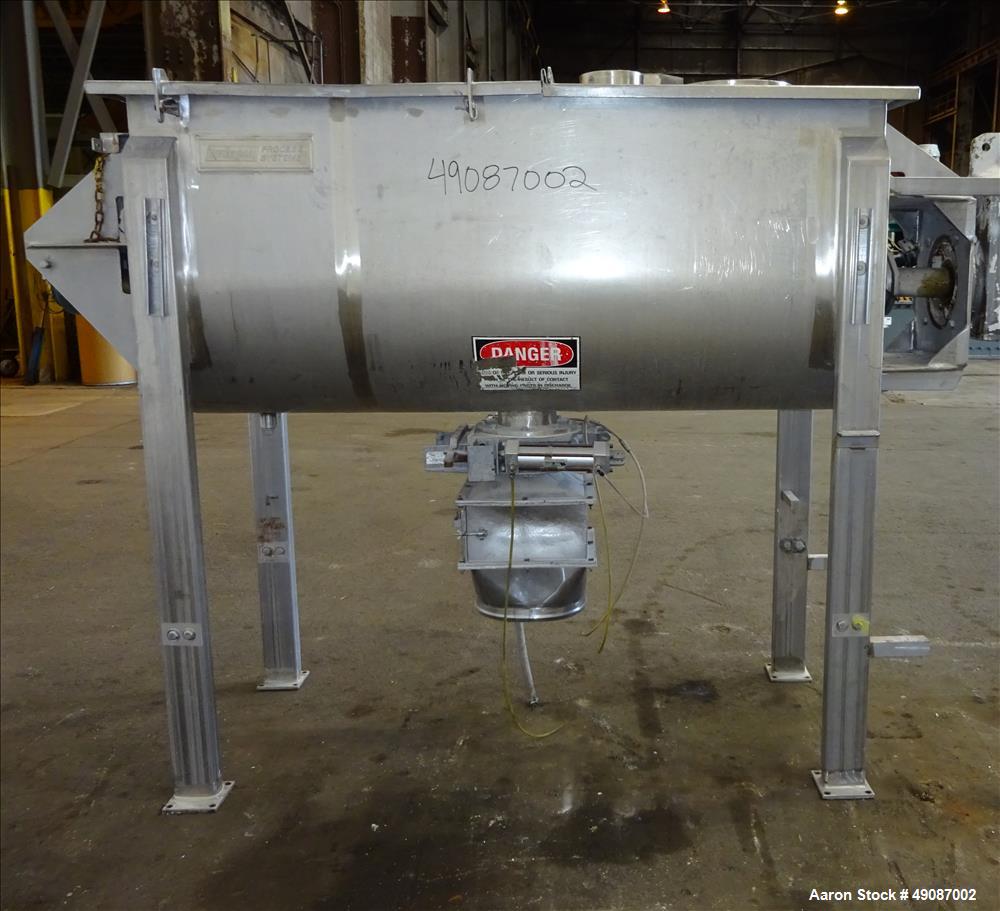

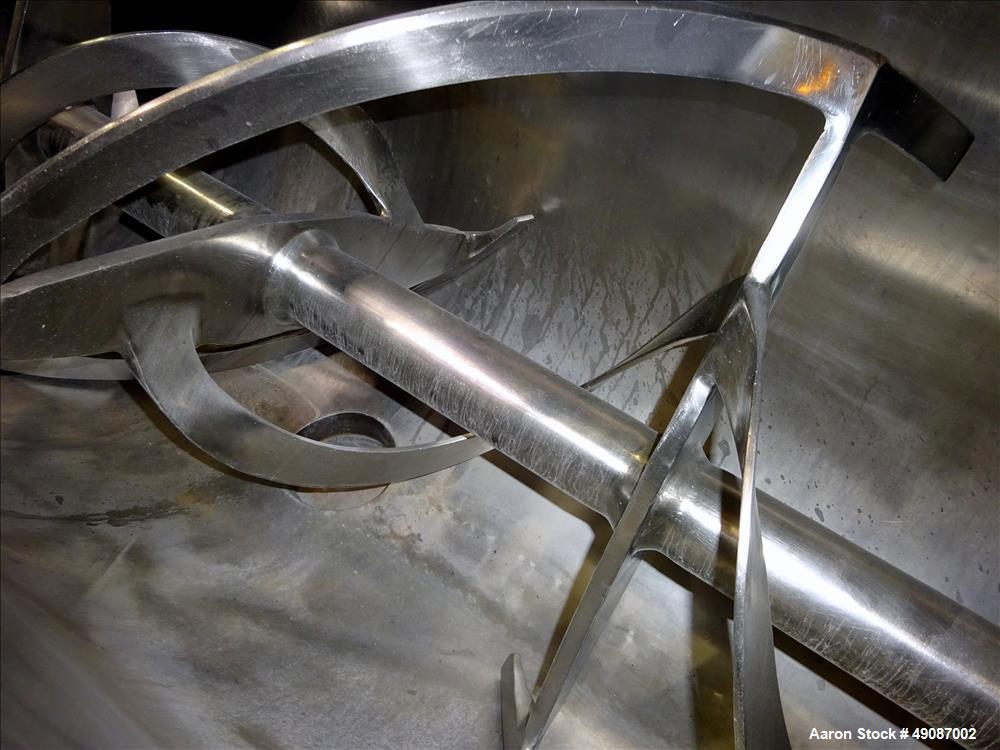

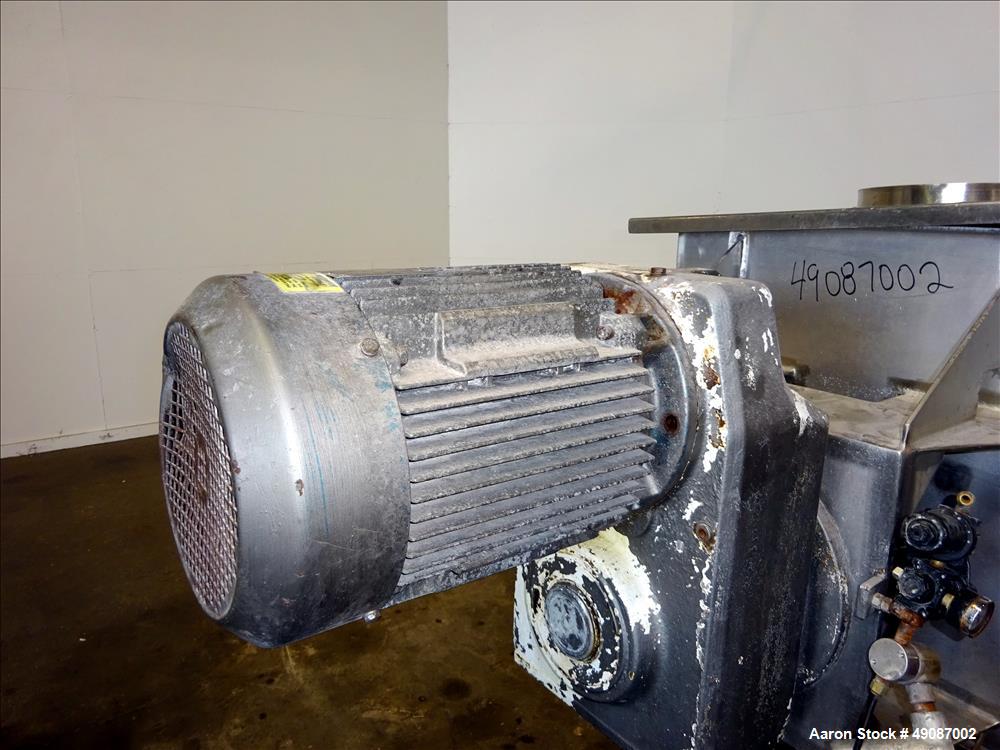

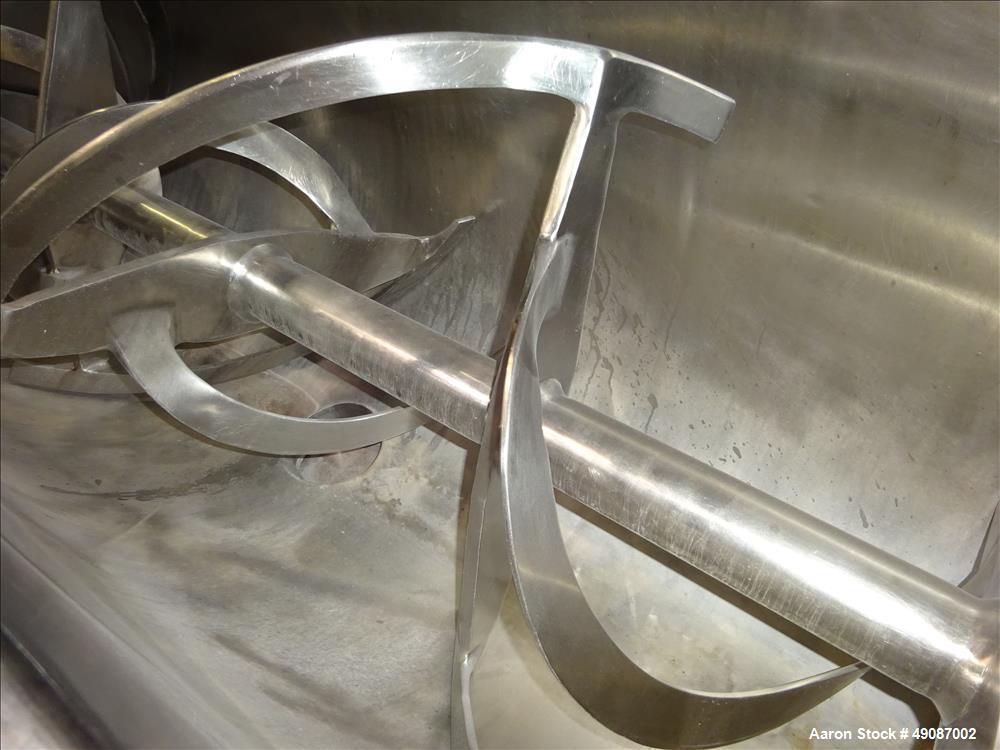

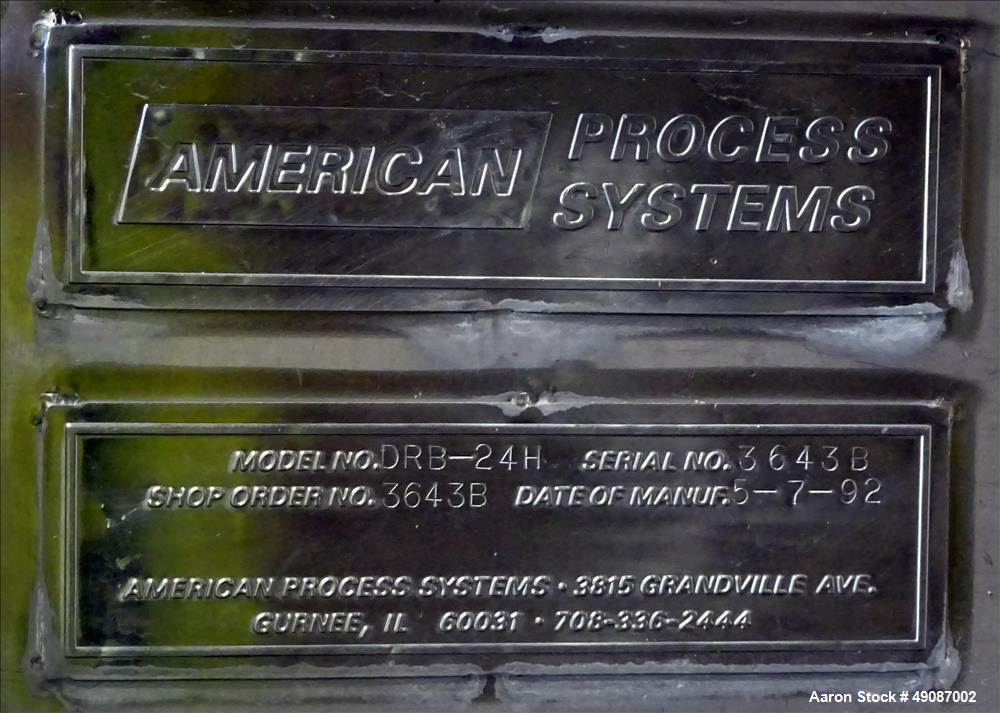

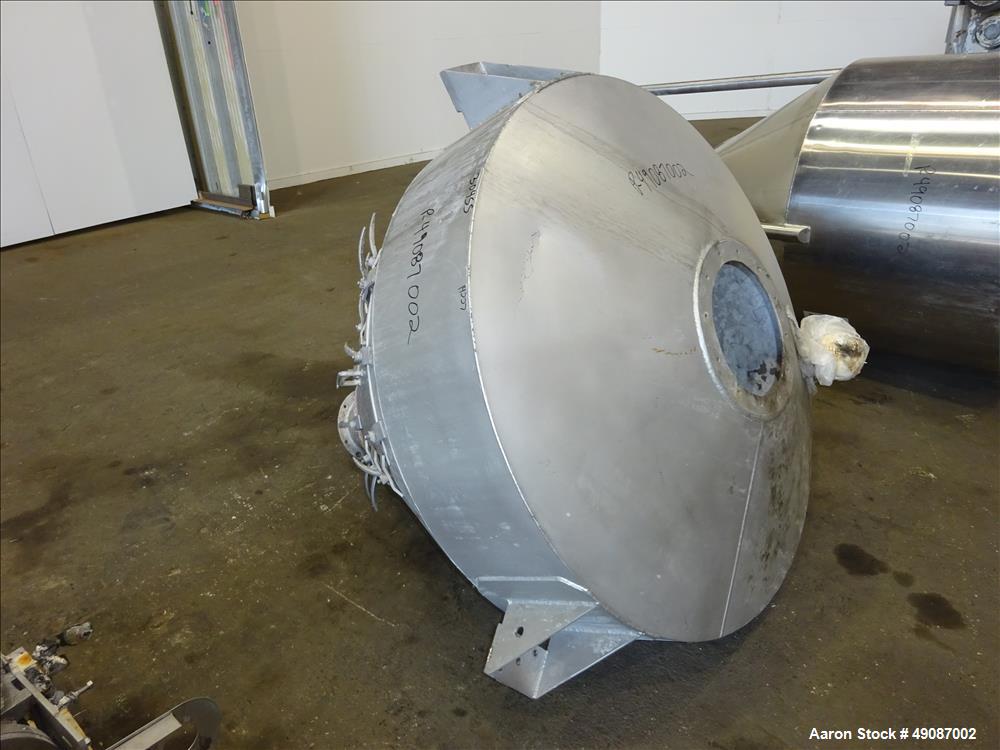

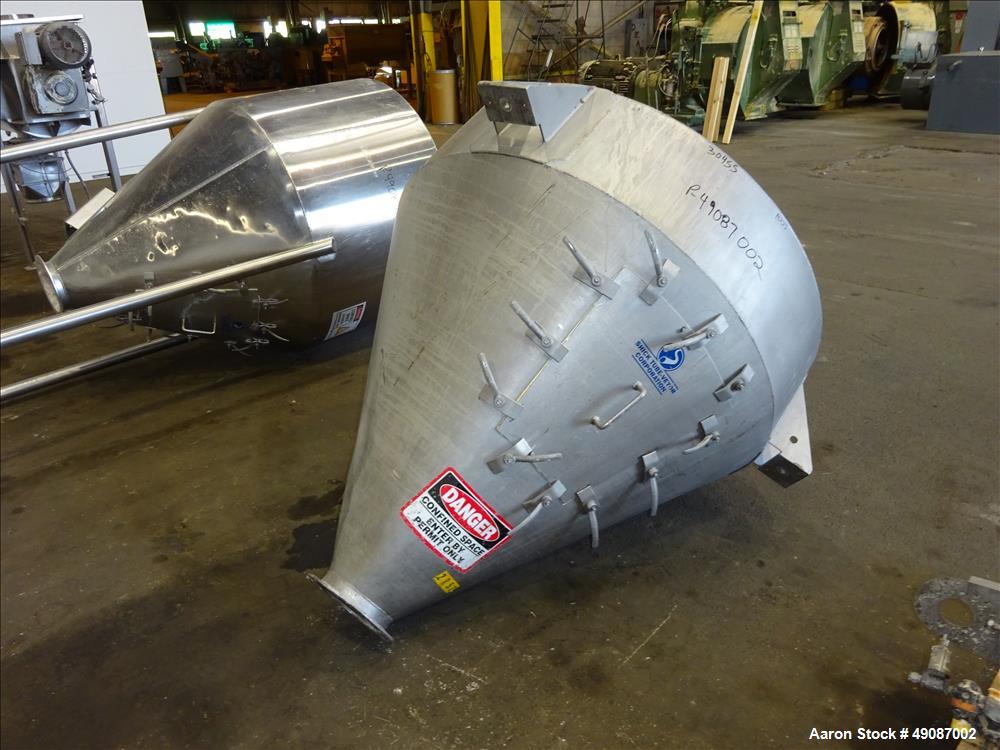

Used American Process Double Spiral Ribbon Blender, Model DRB-24H, 24 Cubic Feet Working Capacity, 304 Stainless Steel. Non-jacketed trough 26" wide x 66" long x 30" deep. Approximate 3" diameter shaft, inner ribbon 2" wide x 3/16" thick, outer 1-1/2" wide x 3/8" thick, welded to 5/8" thick posts. 6" Diameter center bottom outlet with pneumatic valve. Two piece top cover. Openings top: 12", (2) 6". Mixer driven by a 10 hp, 3/60/230/460 volt, 1740 rpm motor thru reducer 37.37 to 1 ratio. Outboard roller bearings. Includes Shick tube-veyor feeding system consisting of (1) hopper approximate 54" diameter x 12" straight side x 44" cone, side lug mounted, (1) hopper approximate 48" diameter x 30" straight side x 40" cone, mounted on (3) legs, (2) shick feeders driven by 3/4 hp motors, (1) dust collector. Serial# 3643B, built 1992.
Used American Process Double Spiral Ribbon Blender, Model DRB-24H, 24 Cubic Feet Working Capacity, 304 Stainless Steel. Non-jacketed trough 26" wide x 66" long x 30" deep. Approximate 3" diameter shaft, inner ribbon 2" wide x 3/16" thick, outer 1-1/2" wide x 3/8" thick, welded to 5/8" thick posts. 6" Diameter center bottom outlet with pneumatic valve. Two piece top cover. Openings top: 12", (2) 6". Mixer driven by a 10 hp, 3/60/230/460 volt, 1740 rpm motor thru reducer 37.37 to 1 ratio. Outboard roller bearings. Includes Shick tube-veyor feeding system consisting of (1) hopper approximate 54" diameter x 12" straight side x 44" cone, side lug mounted, (1) hopper approximate 48" diameter x 30" straight side x 40" cone, mounted on (3) legs, (2) shick feeders driven by 3/4 hp motors, (1) dust collector. Serial# 3643B, built 1992.
