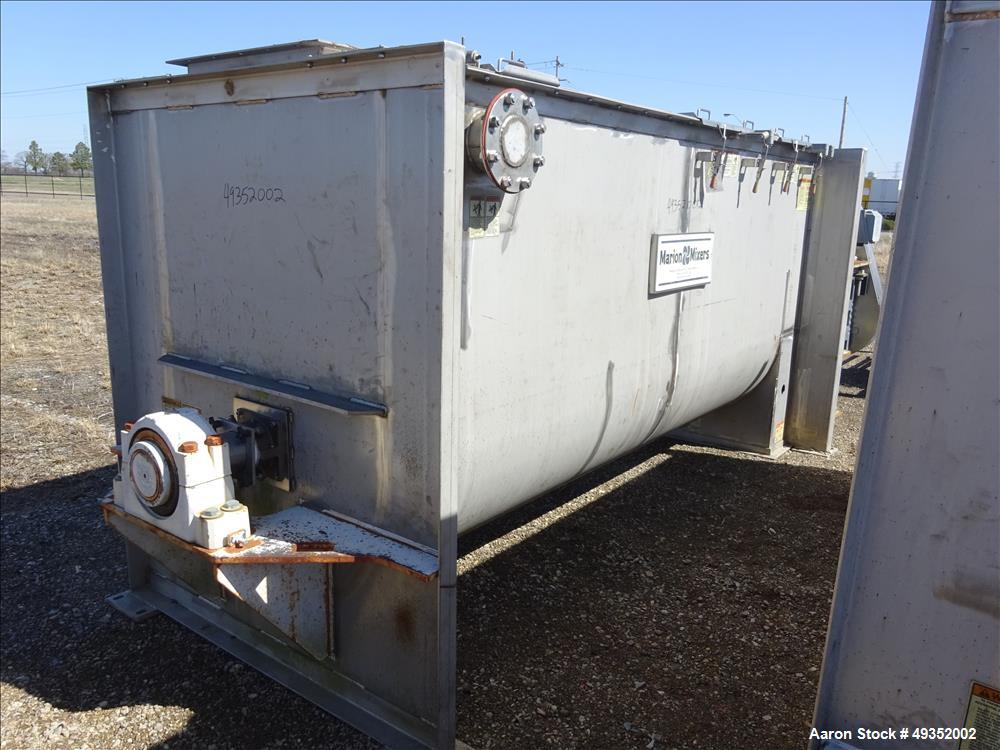

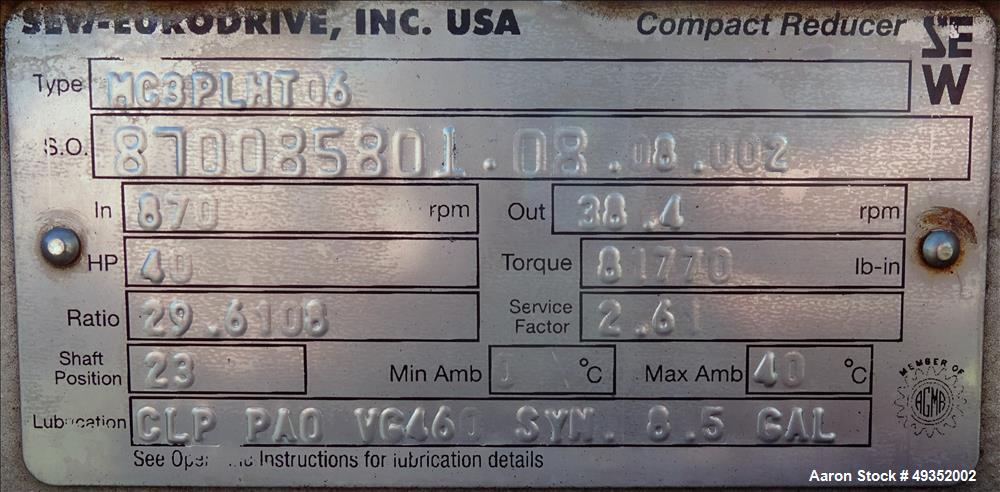

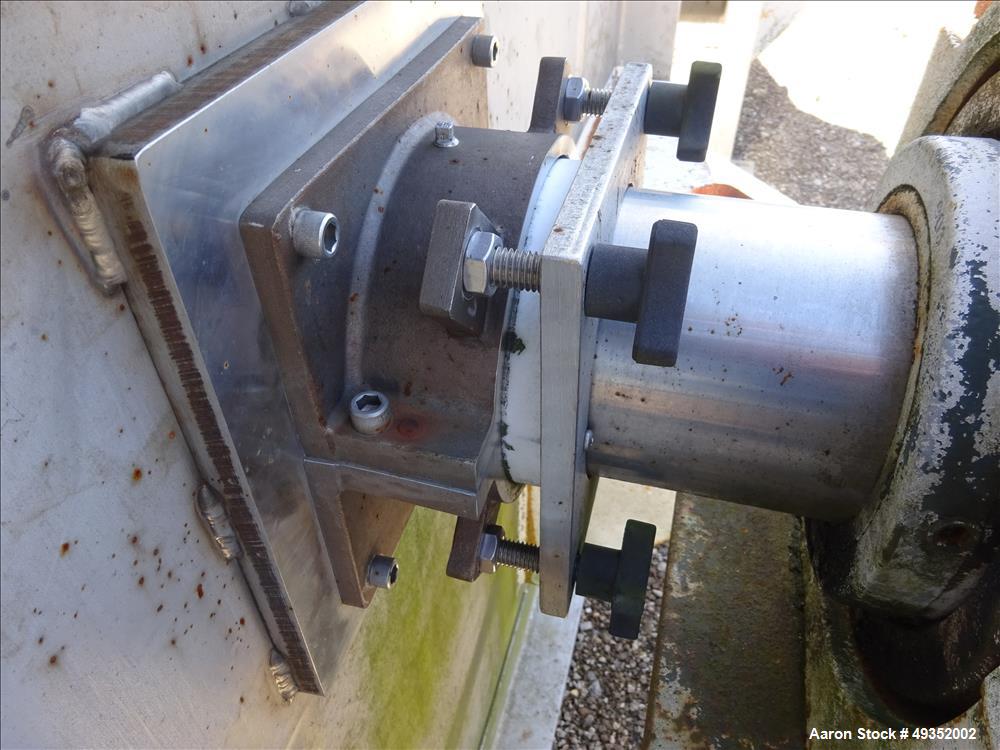

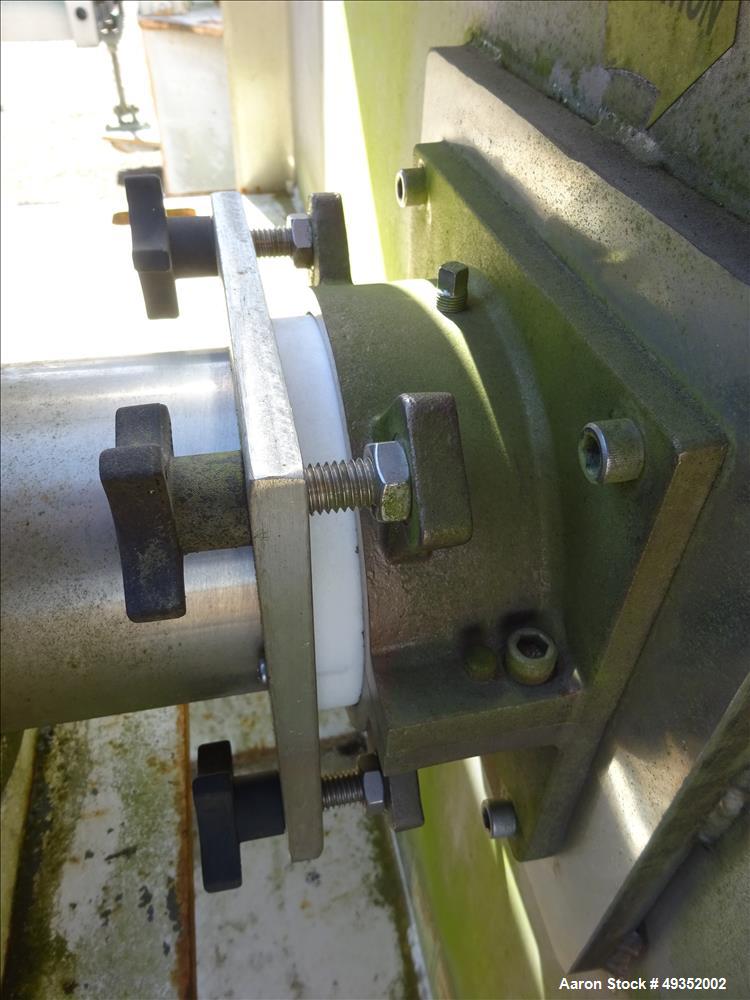

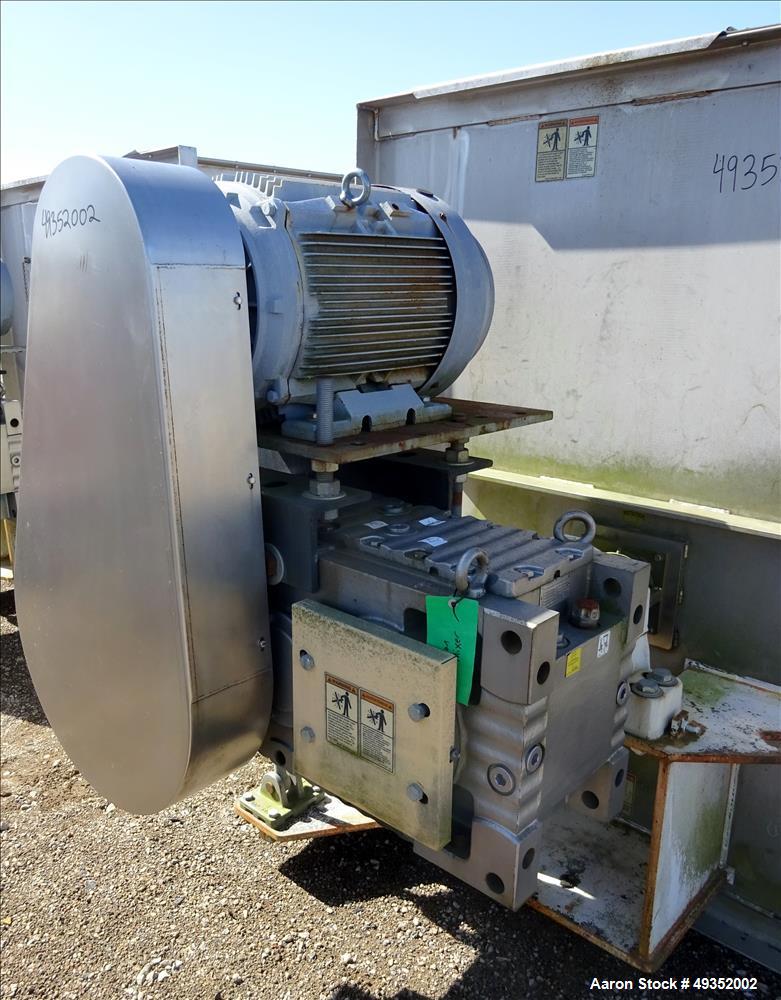

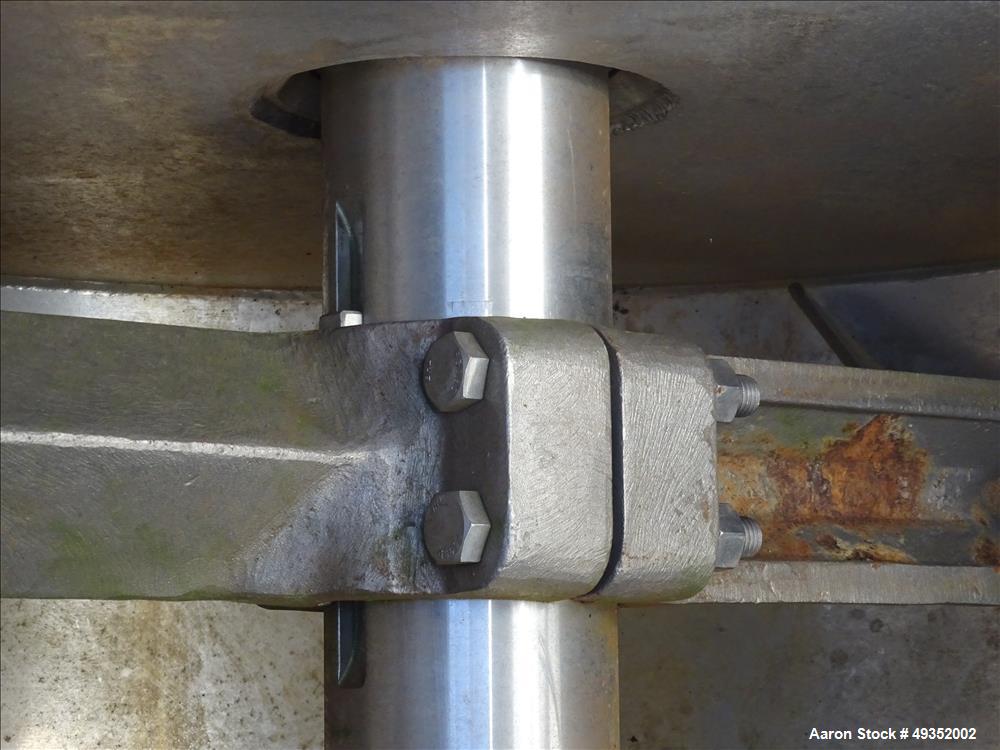

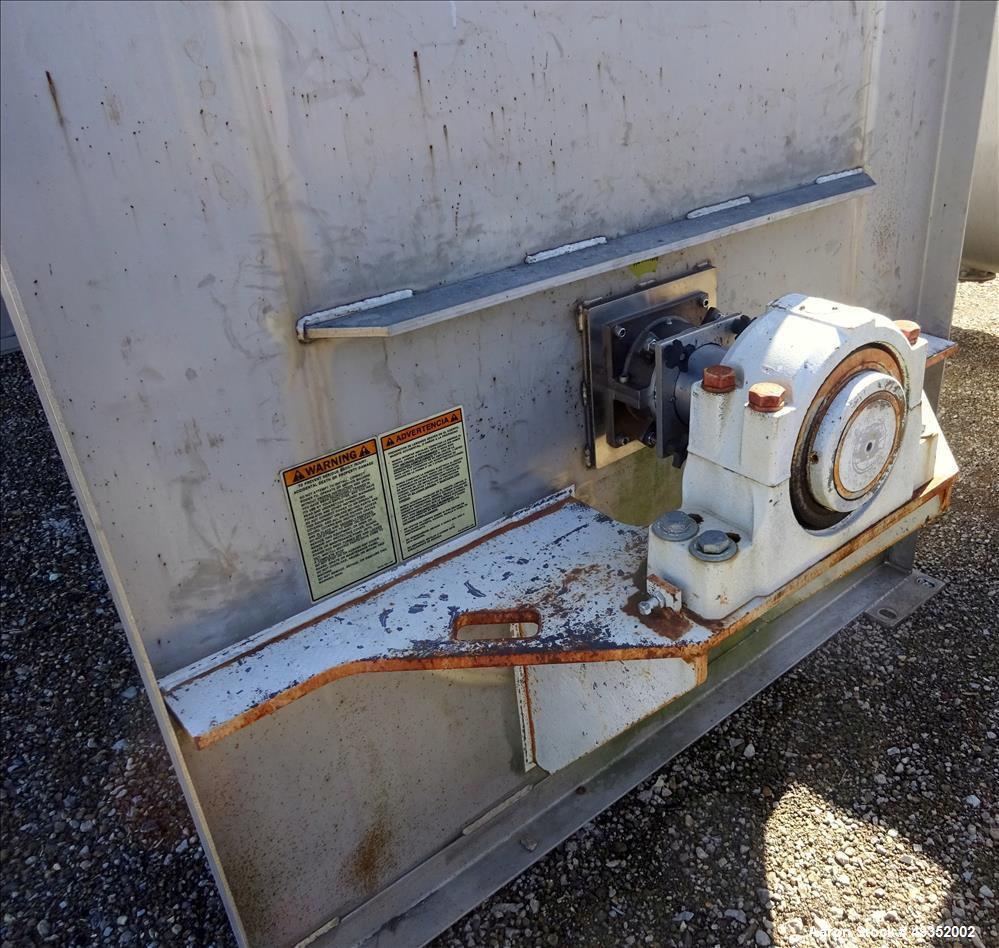

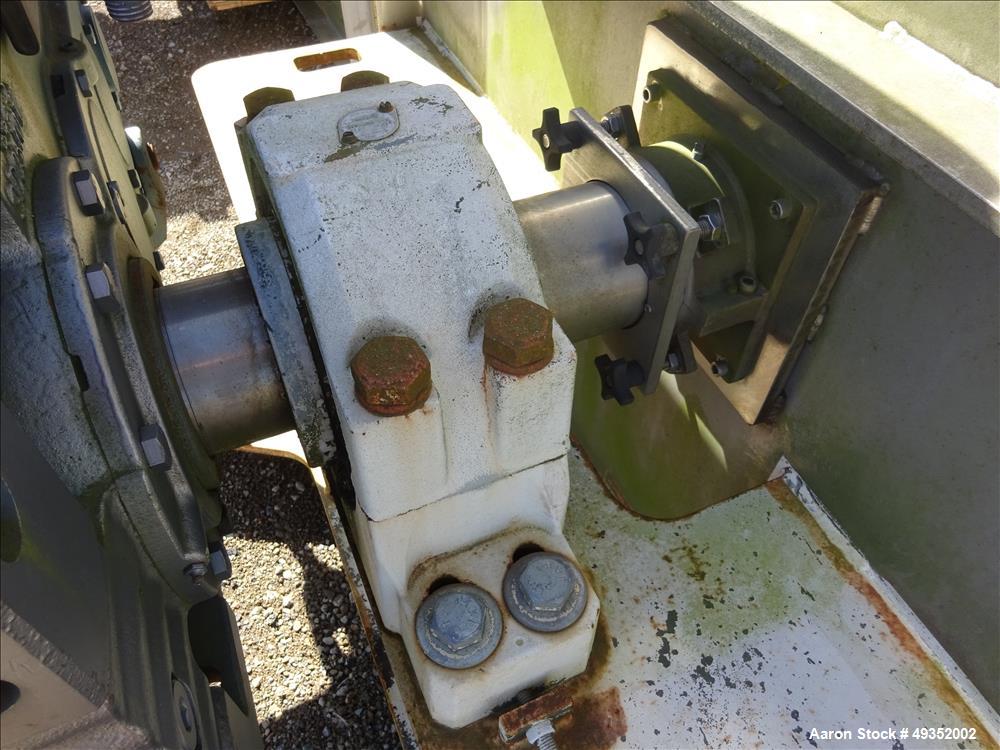

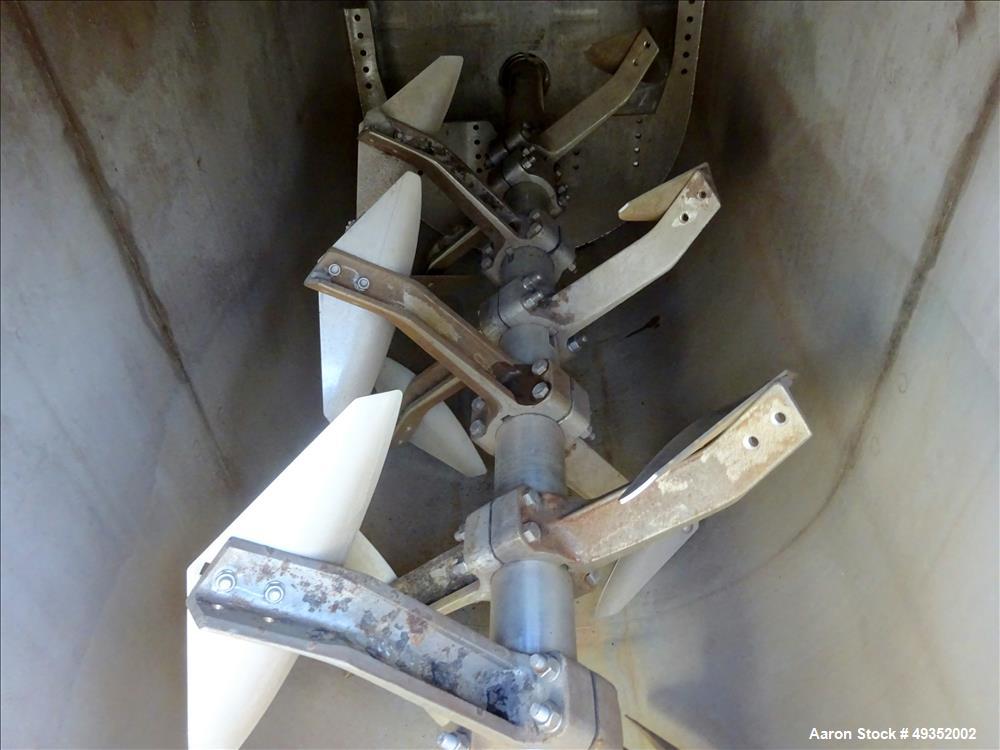

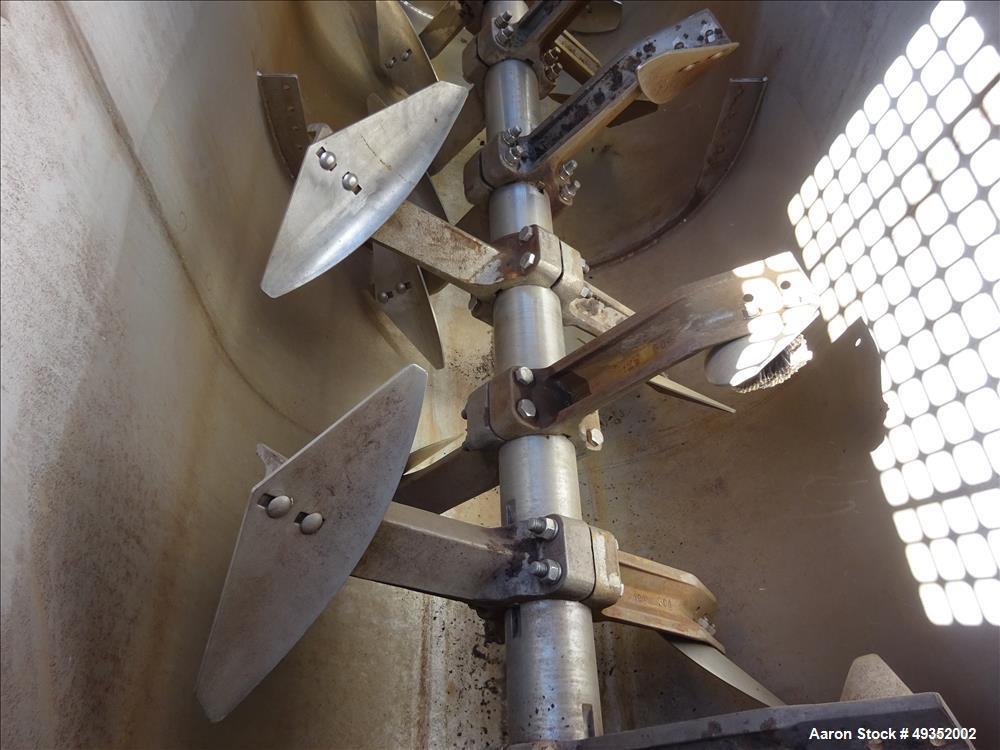

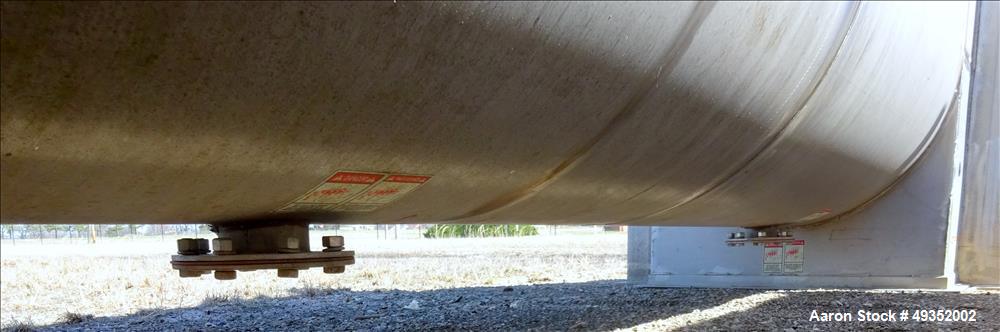

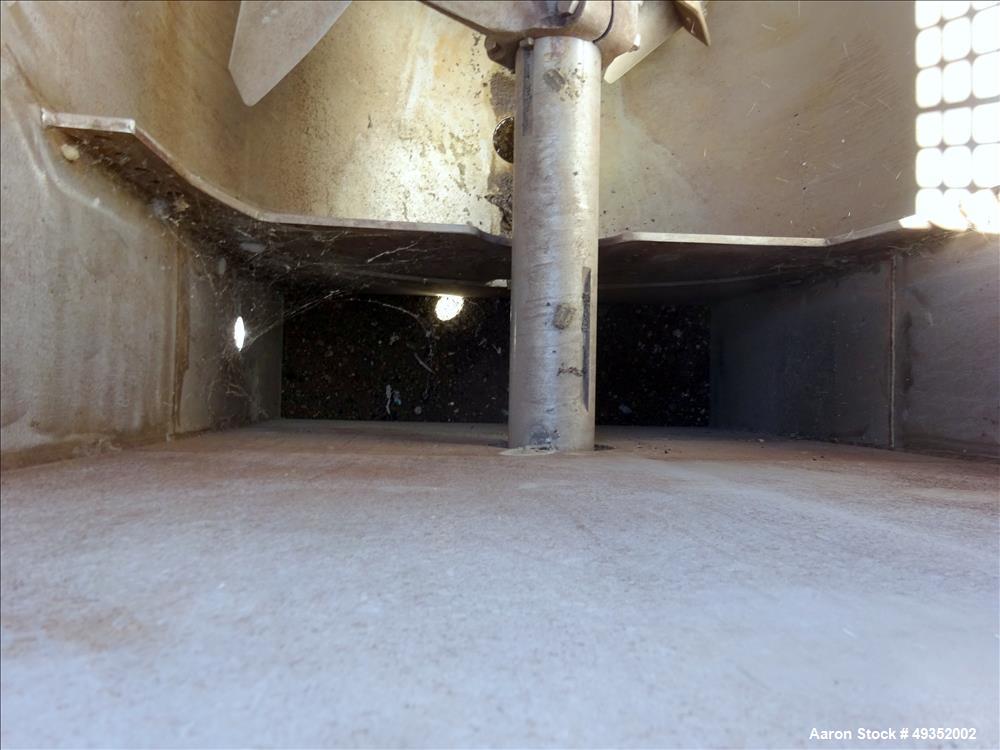

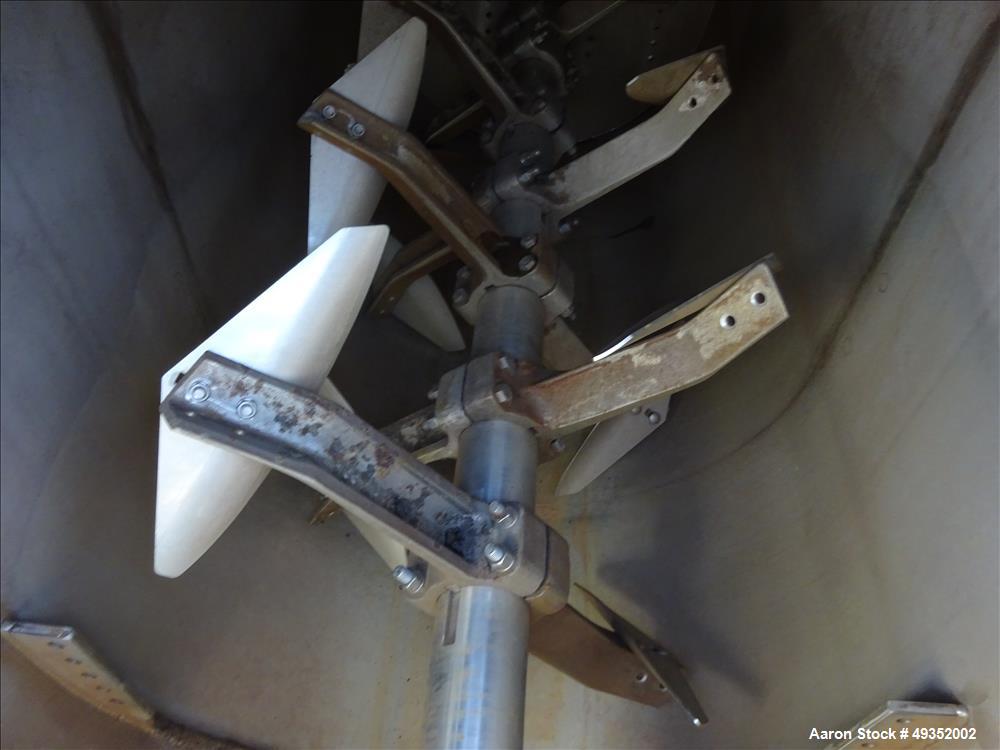

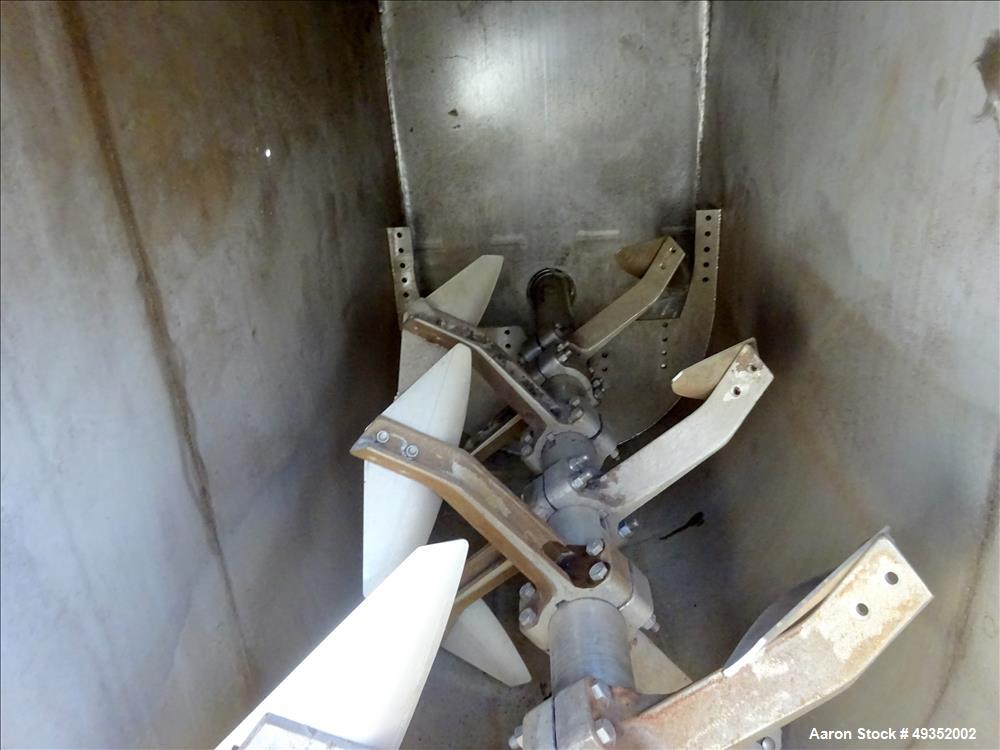

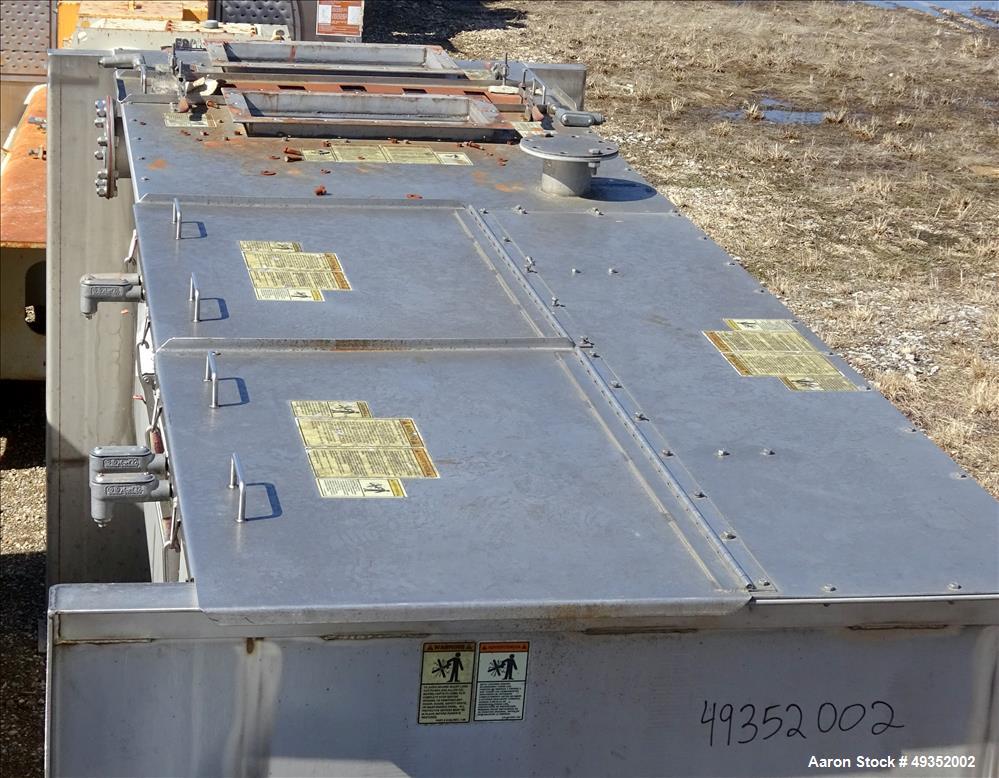

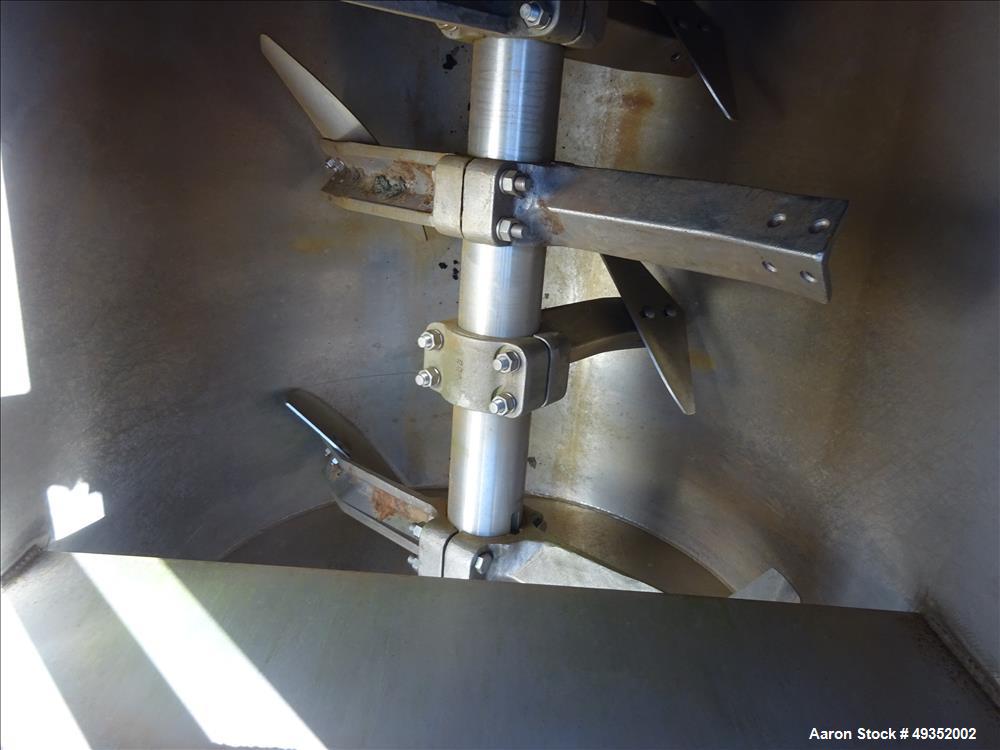

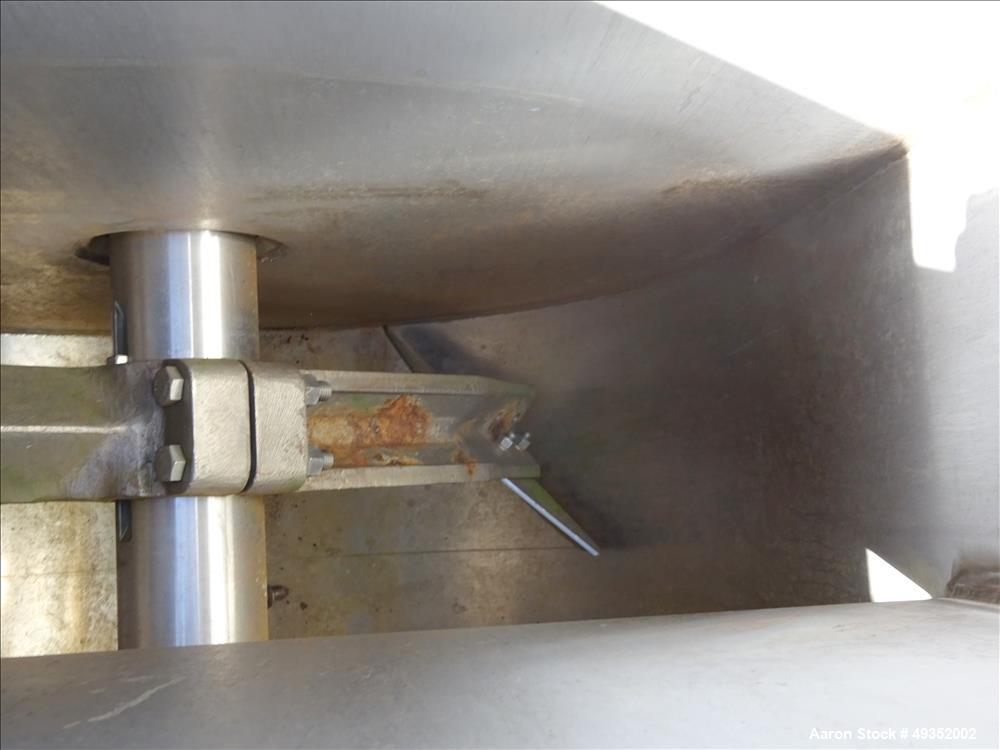

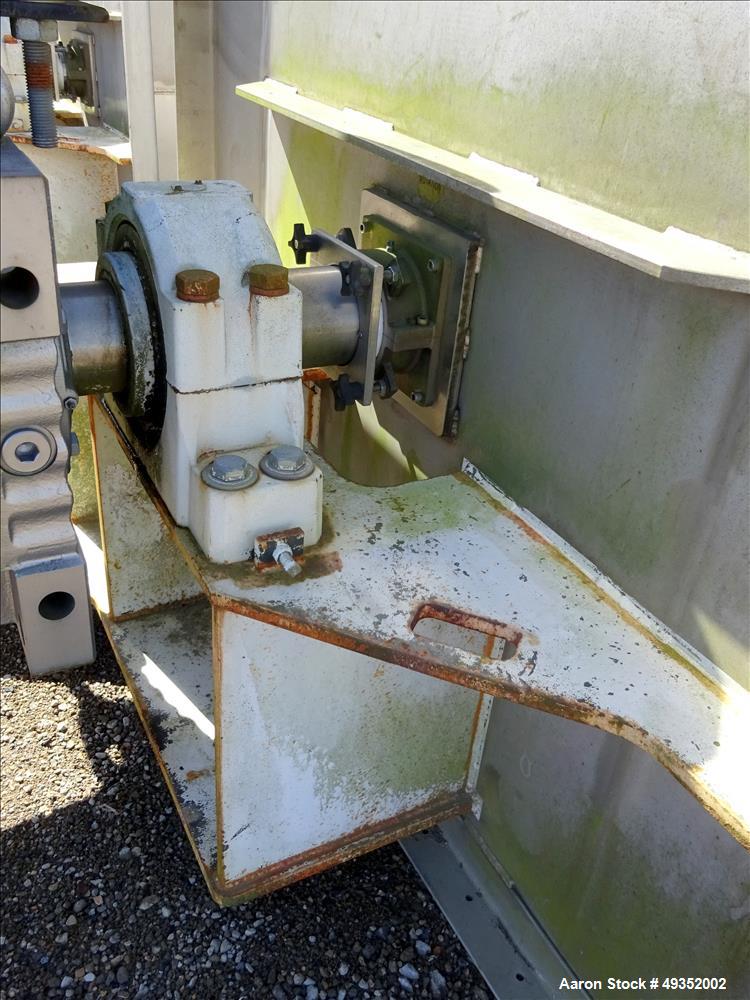

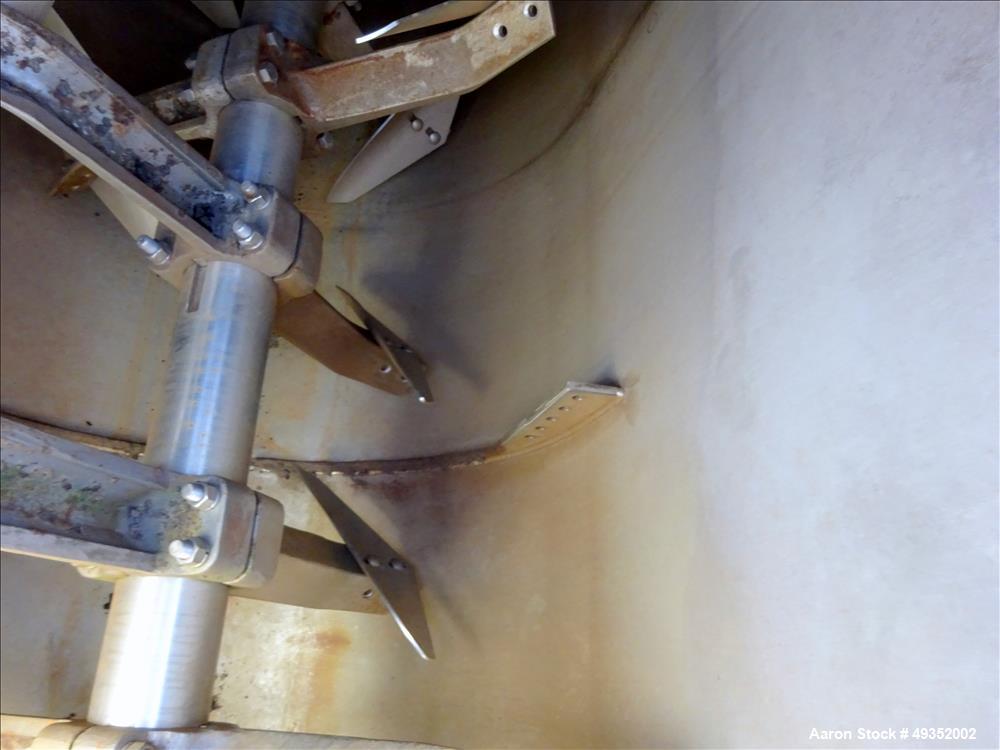

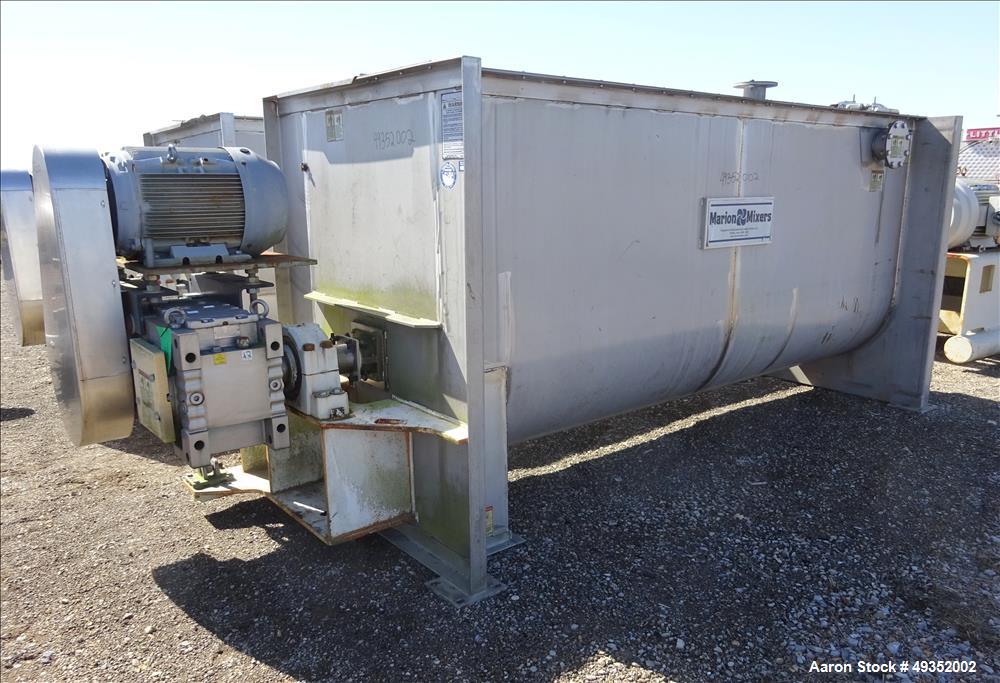

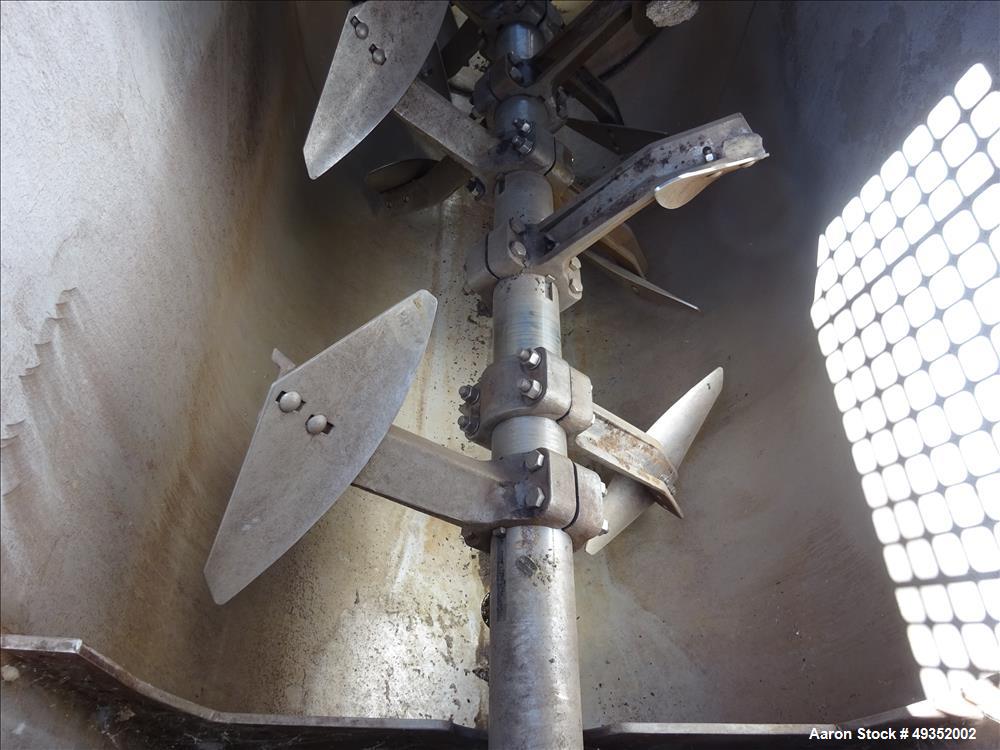

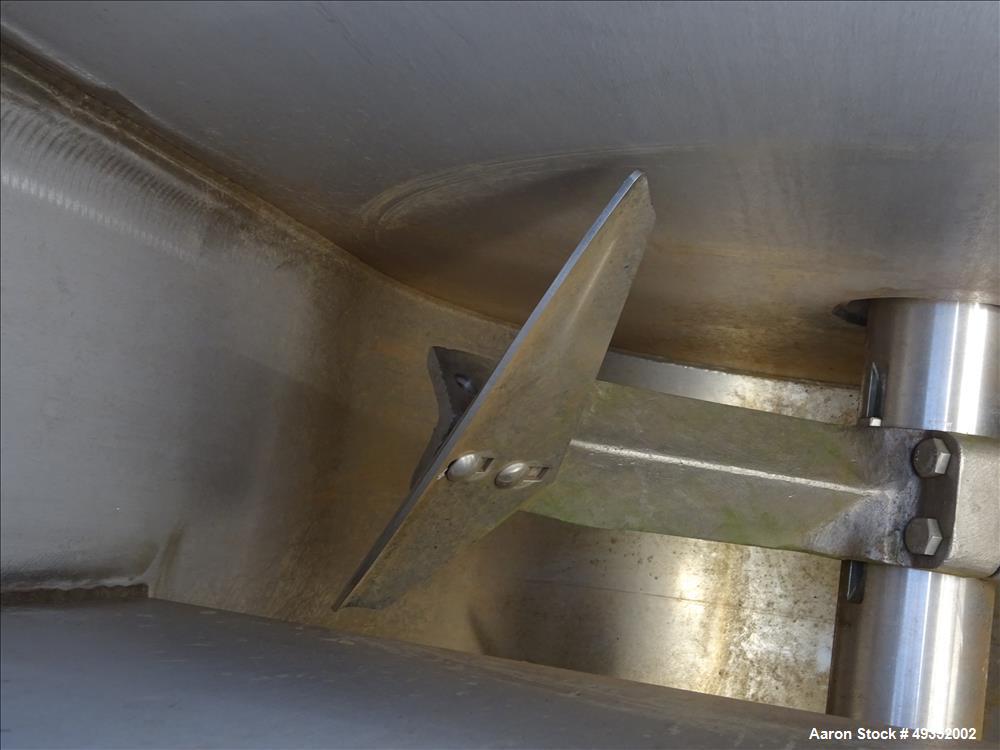

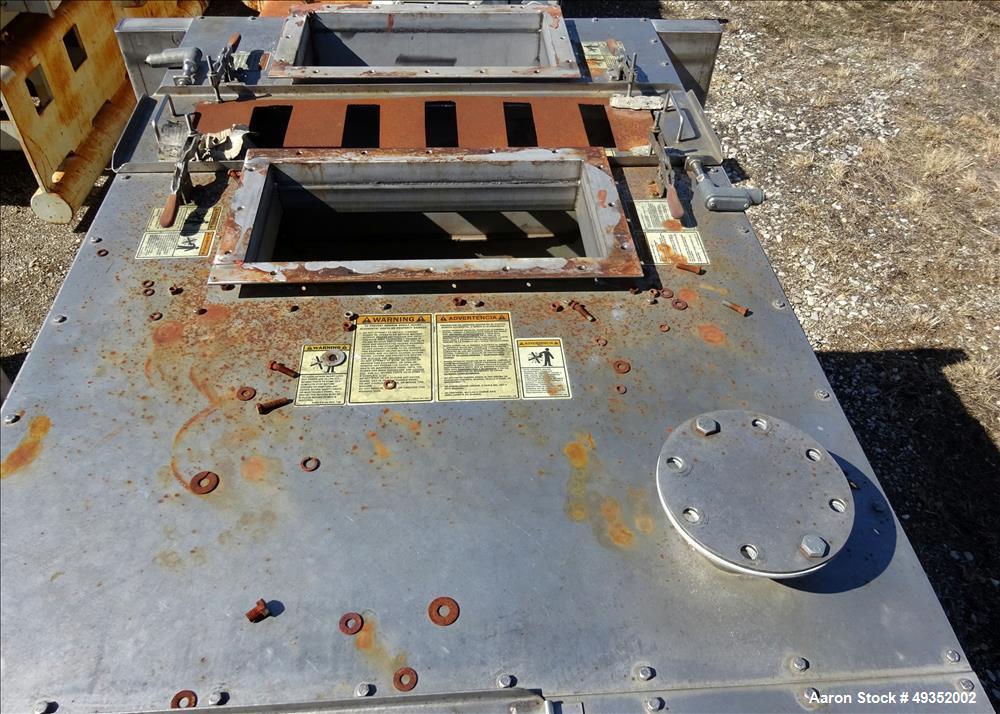

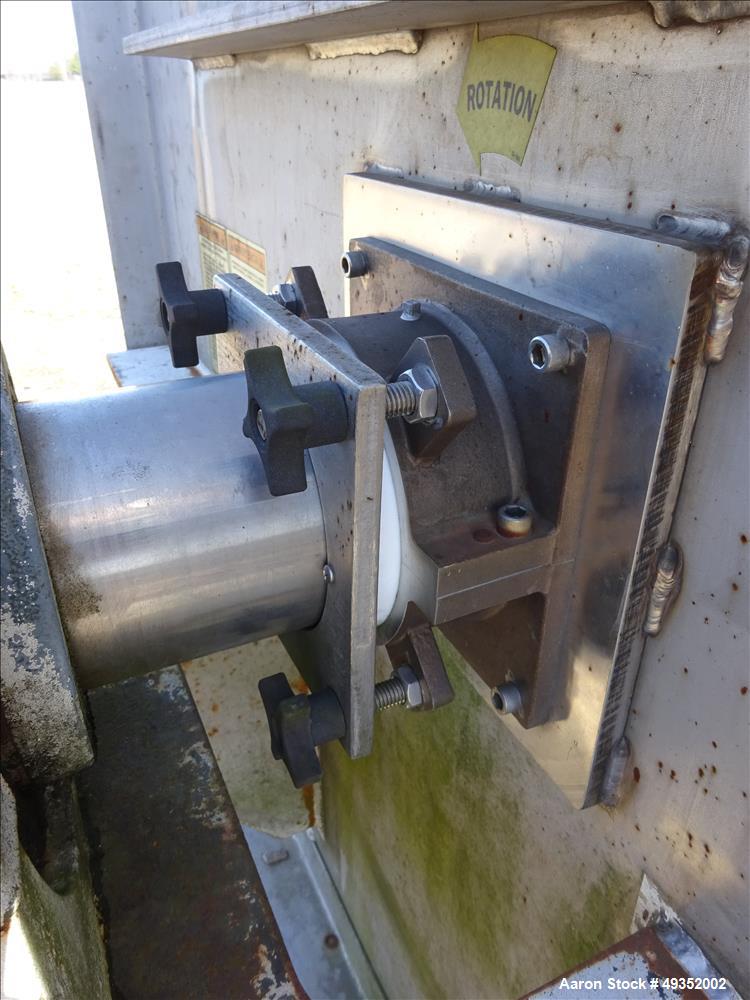

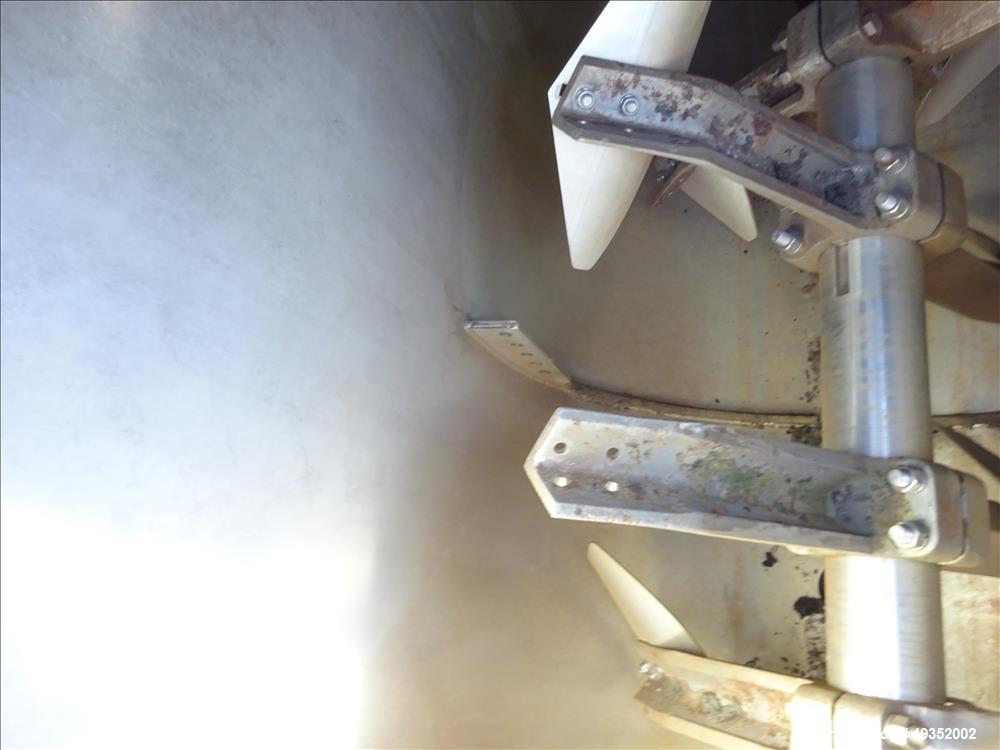

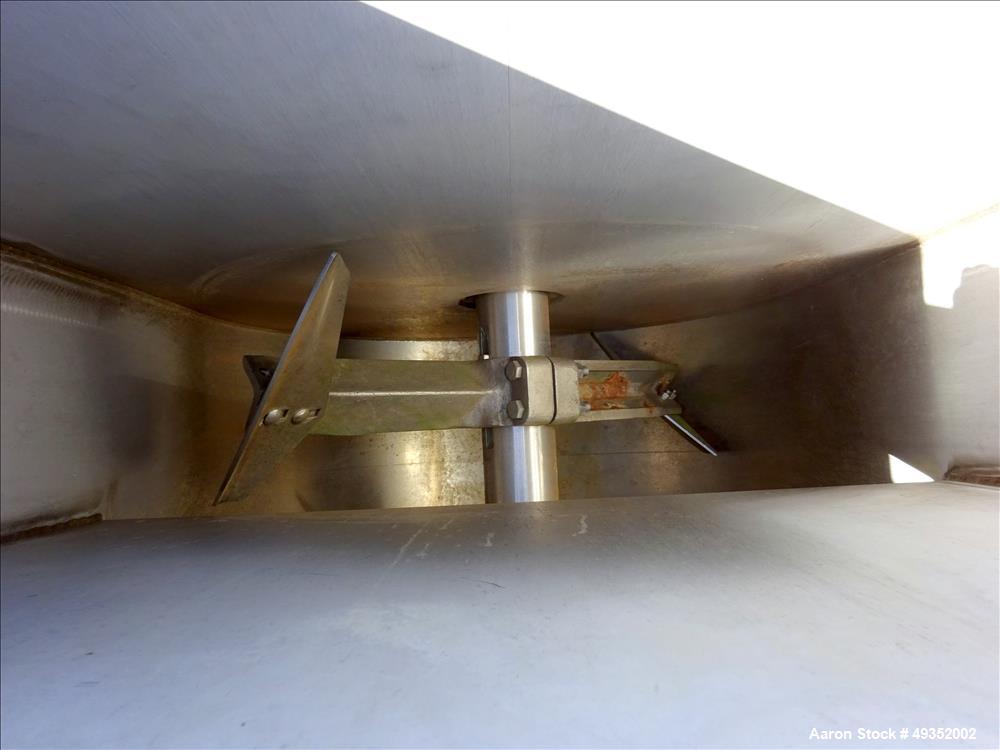

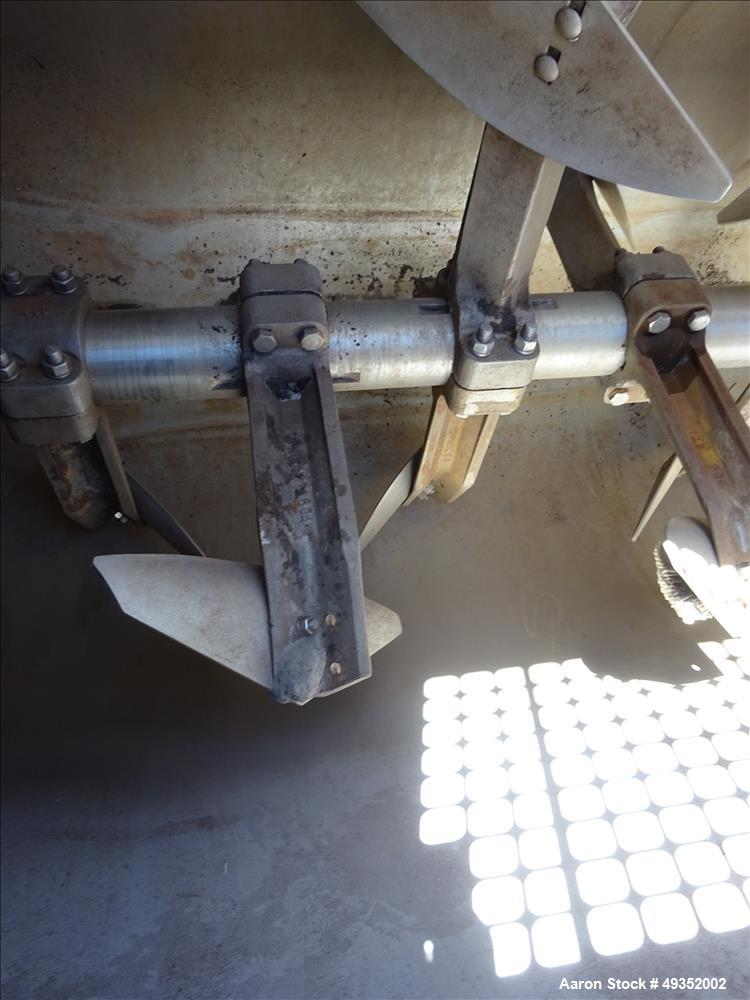

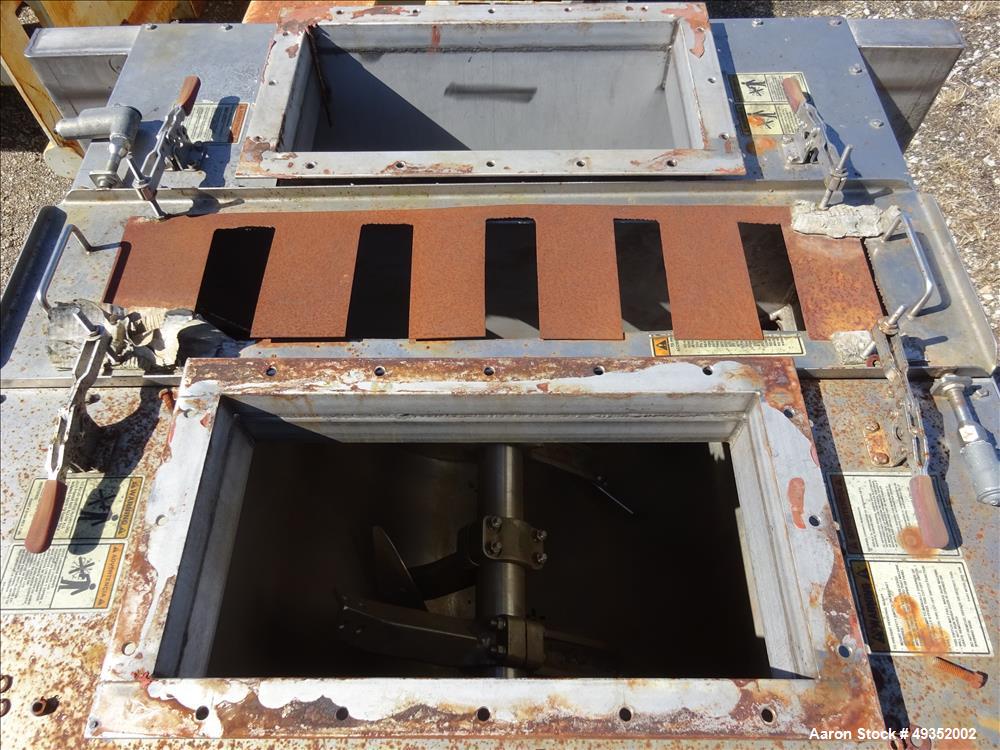

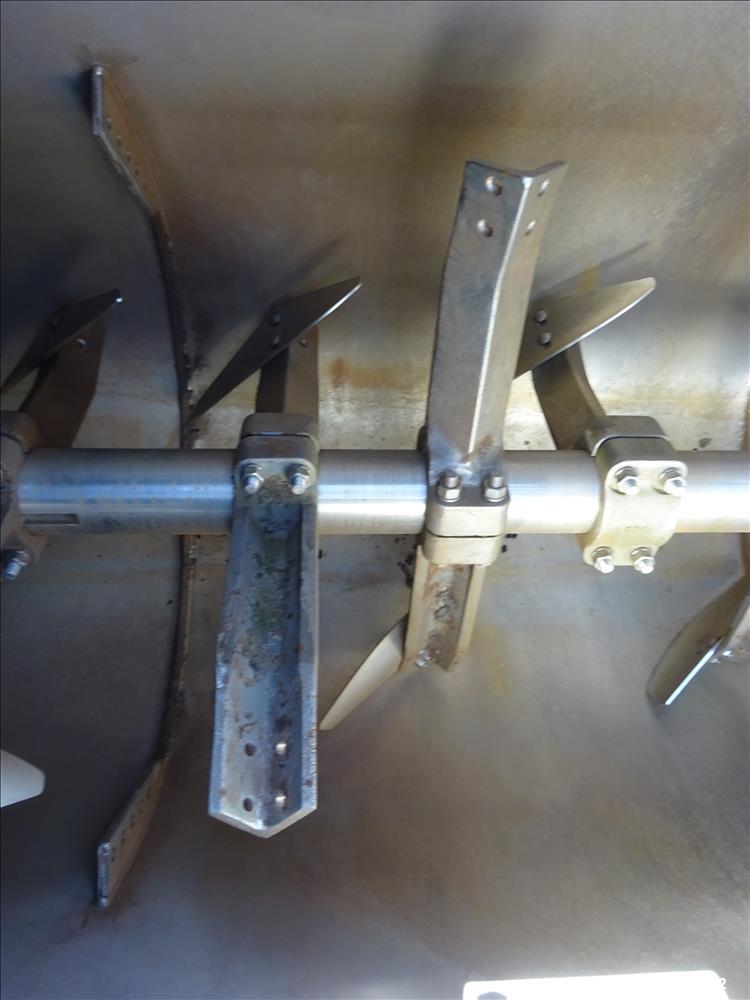

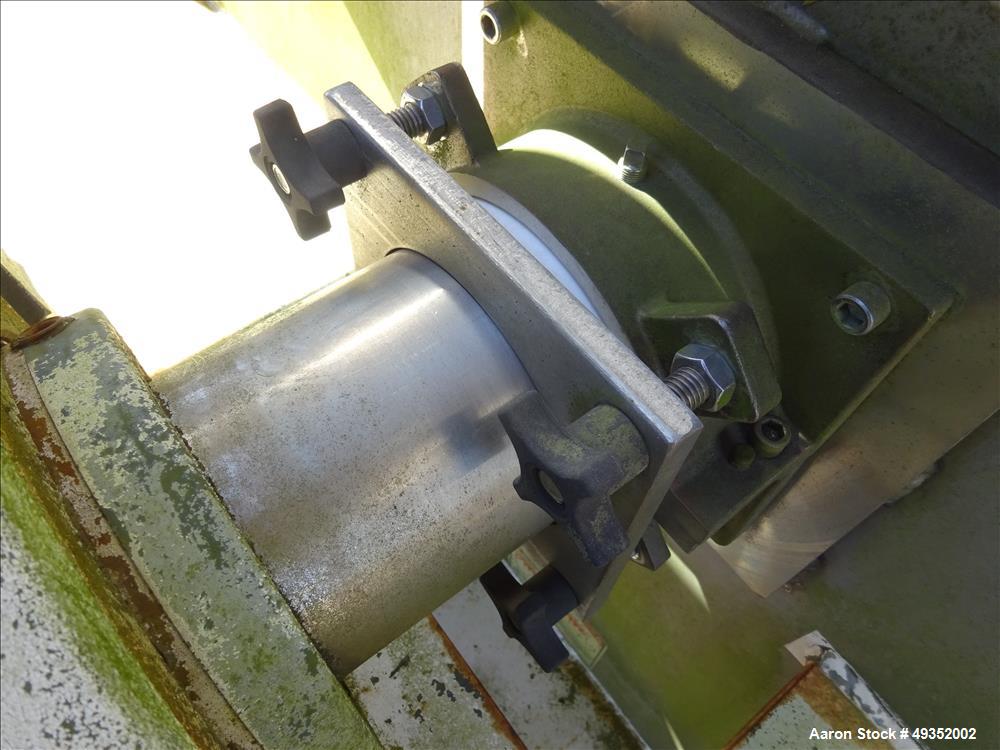

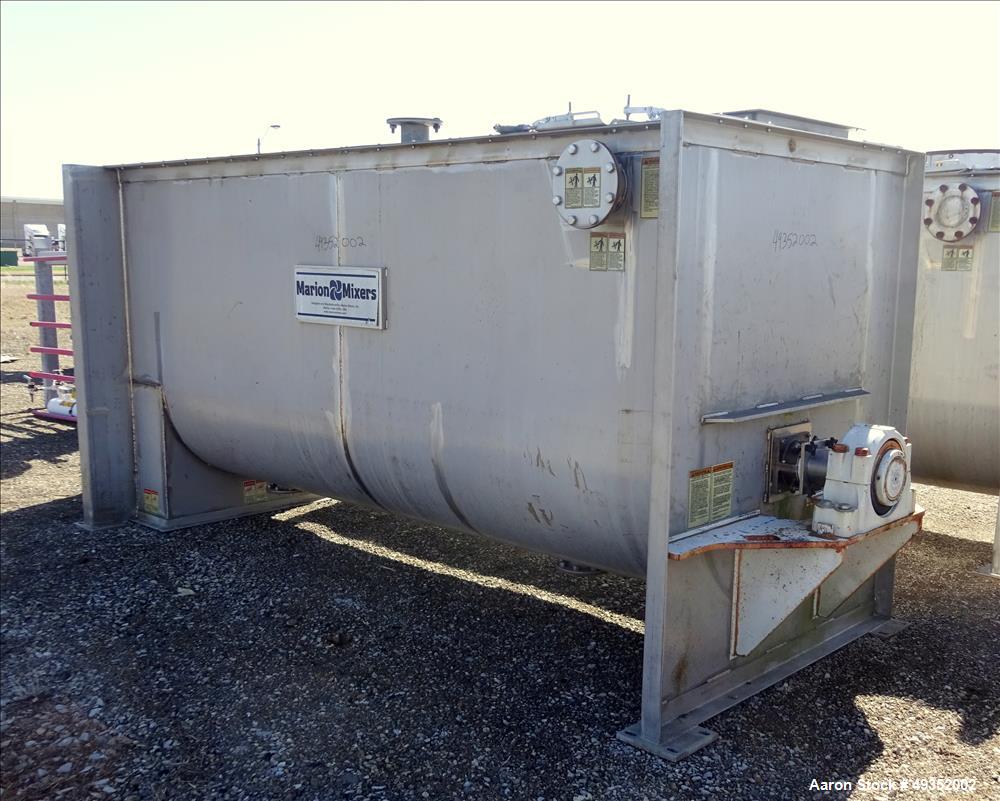

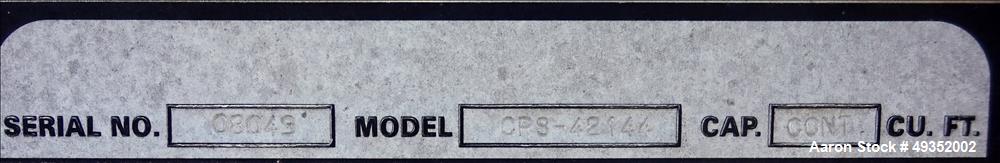

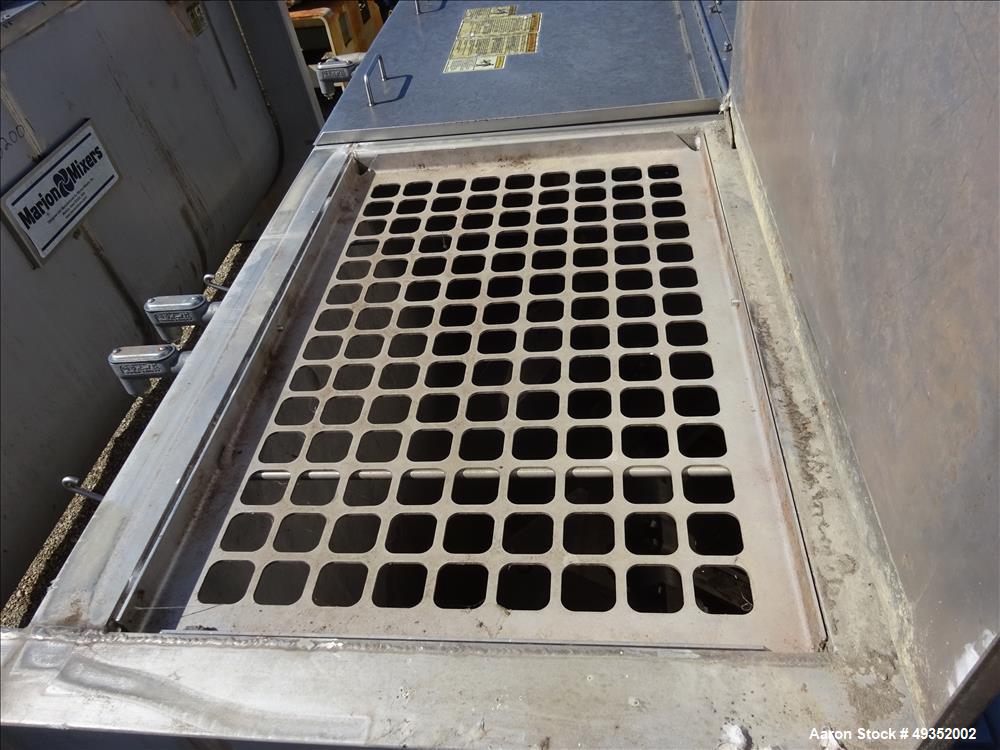

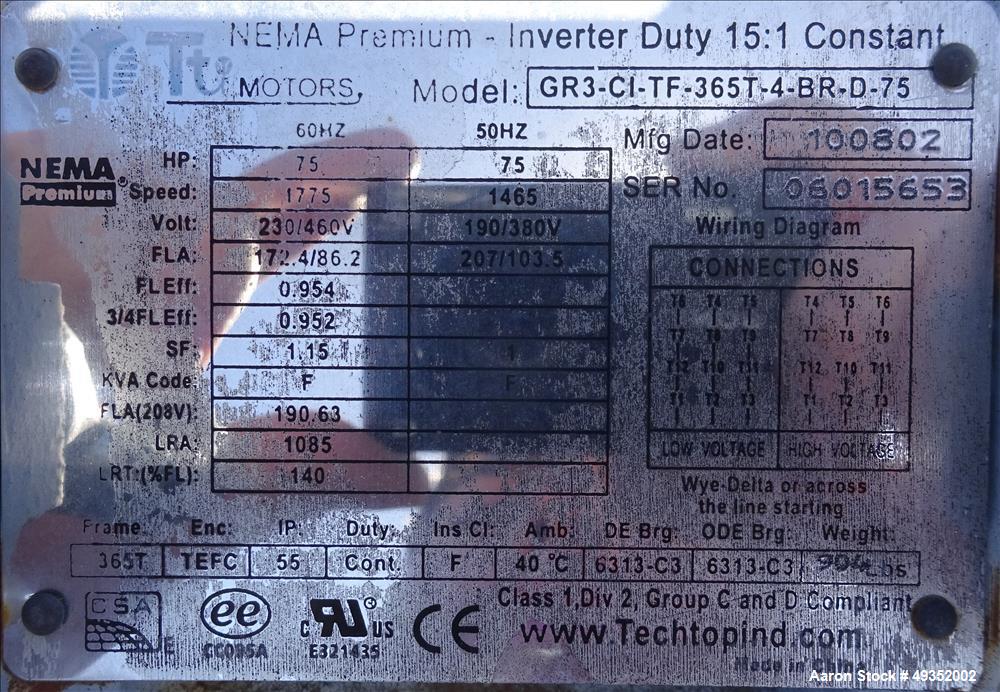

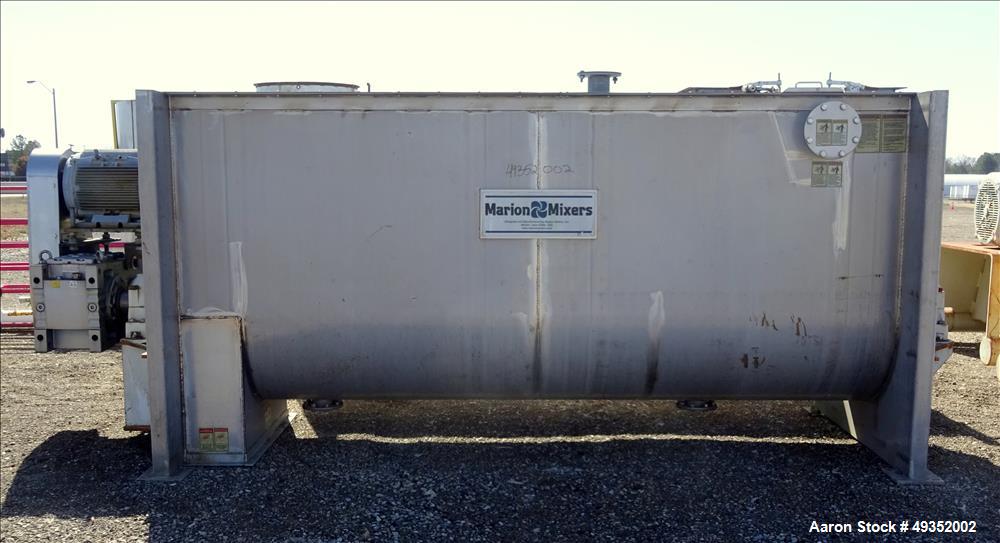

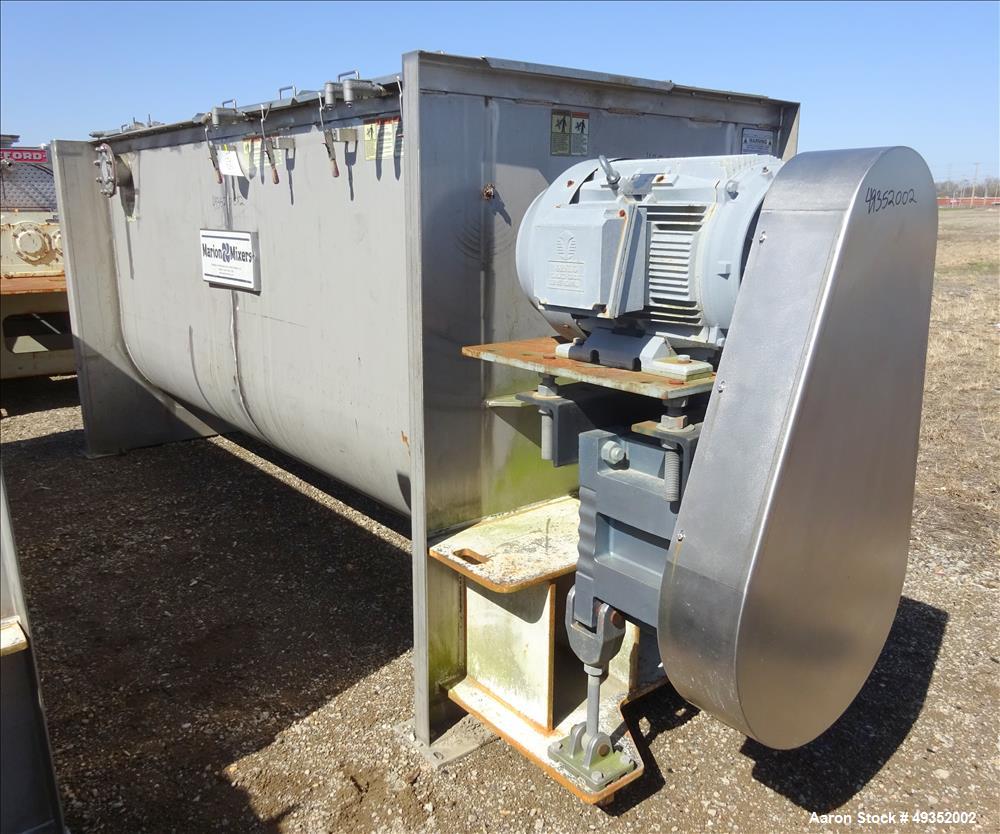

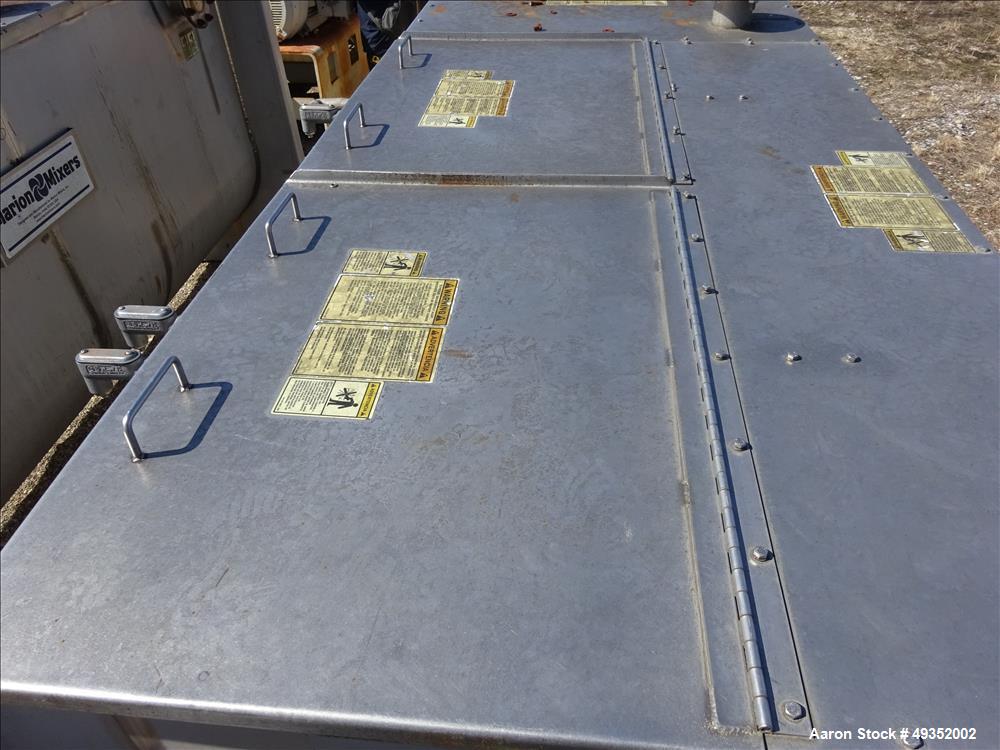

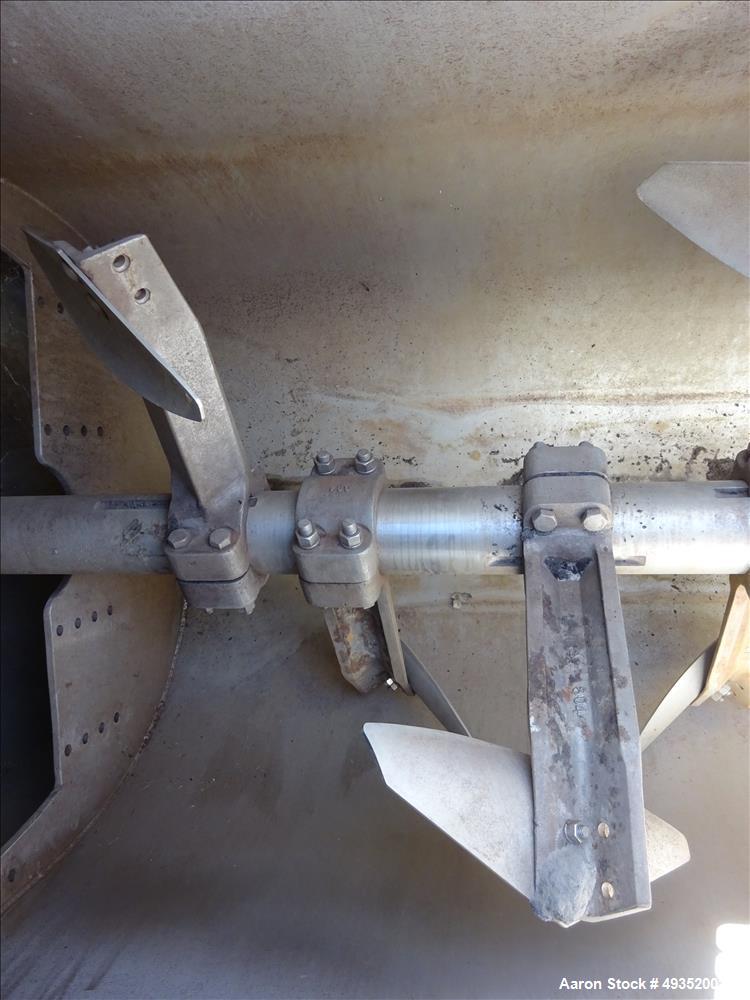

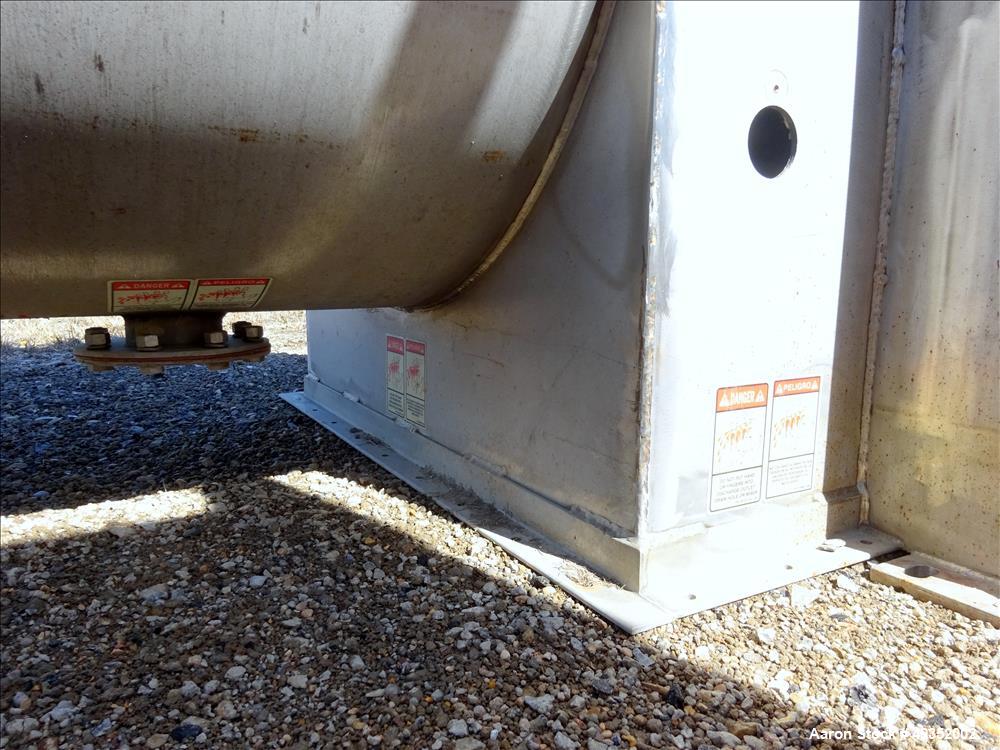

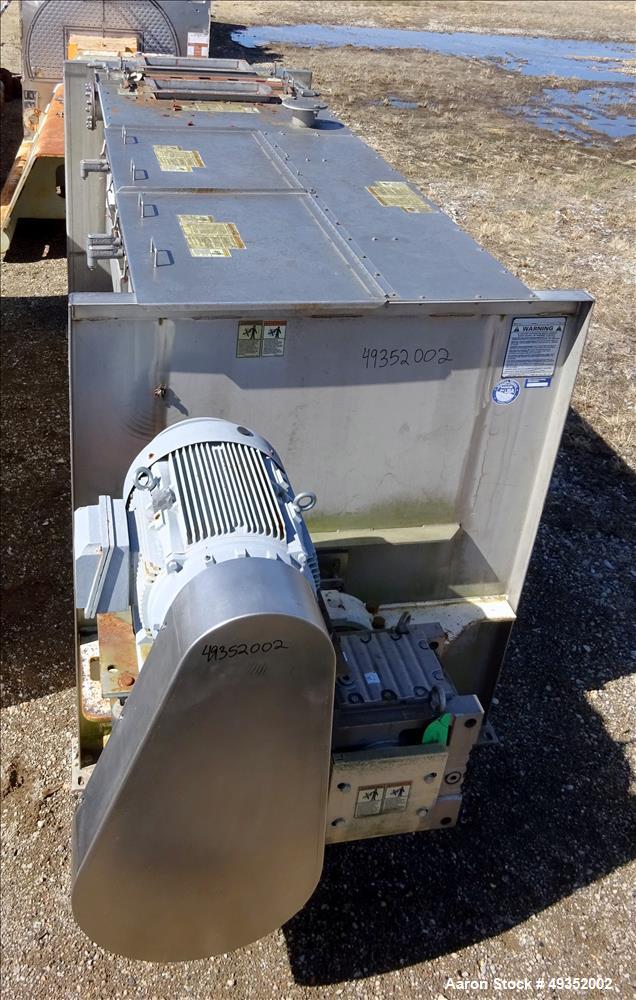

Used Marion Continuous Paddle Mixer, Model CPS-42144, 94.5 Cubic Feet Capacity, 304 Stainless Steel. Non-jacketed trough 42" wide x 144" long x approximately 64" deep. Approximate 4-15/16" diameter shaft with (16) bolt-on paddles (2 missing). Driven by a 75 hp, 3/60/230/460 volt, 1,775 RPM TEFC motor through a SEW-Eurodrive (MC3PLHT06) shaft mounted torque arm reducer, ratio 29.6108 to 1, approximate output 38.4 rpm. Top cover has two 24" x 36" access doors with safety grates. Openings top: 42" x 9", (2) 24" x 12", (1) 4", side: (2) 6". (2) 4" Bottom outlets, bottom end discharge with wear plate, 42" x 12". Outboard roller bearings and style E split and adjustable stuffing box main shaft seals are included. Serial# 08043. Product data (Normal Flow, Maximum Flow, Density): Wet Cake 29,205 LB/HR; 37,965 LB/HR; 35 LB/FT3. Syrup 26,835 LB/HR; 34,890 LB/HR; 72 LB/FT3 Distillers dried grains with solubles 105,725 LB/HR; 169,160 LB/HR; 35-48 LB/FT3.
Used Marion Continuous Paddle Mixer, Model CPS-42144, 94.5 Cubic Feet Capacity, 304 Stainless Steel. Non-jacketed trough 42" wide x 144" long x approximately 64" deep. Approximate 4-15/16" diameter shaft with (16) bolt-on paddles (2 missing). Driven by a 75 hp, 3/60/230/460 volt, 1,775 RPM TEFC motor through a SEW-Eurodrive (MC3PLHT06) shaft mounted torque arm reducer, ratio 29.6108 to 1, approximate output 38.4 rpm. Top cover has two 24" x 36" access doors with safety grates. Openings top: 42" x 9", (2) 24" x 12", (1) 4", side: (2) 6". (2) 4" Bottom outlets, bottom end discharge with wear plate, 42" x 12". Outboard roller bearings and style E split and adjustable stuffing box main shaft seals are included. Serial# 08043. Product data (Normal Flow, Maximum Flow, Density): Wet Cake 29,205 LB/HR; 37,965 LB/HR; 35 LB/FT3. Syrup 26,835 LB/HR; 34,890 LB/HR; 72 LB/FT3 Distillers dried grains with solubles 105,725 LB/HR; 169,160 LB/HR; 35-48 LB/FT3.
