Used Paul O Abbe Stainless Steel Fluidizer – 0.7 Cu Ft for Sale

Manufacturer Information:

• Brand: Paul O Abbe
• Material: Stainless Steel
• Serial Number: A45254

Description:

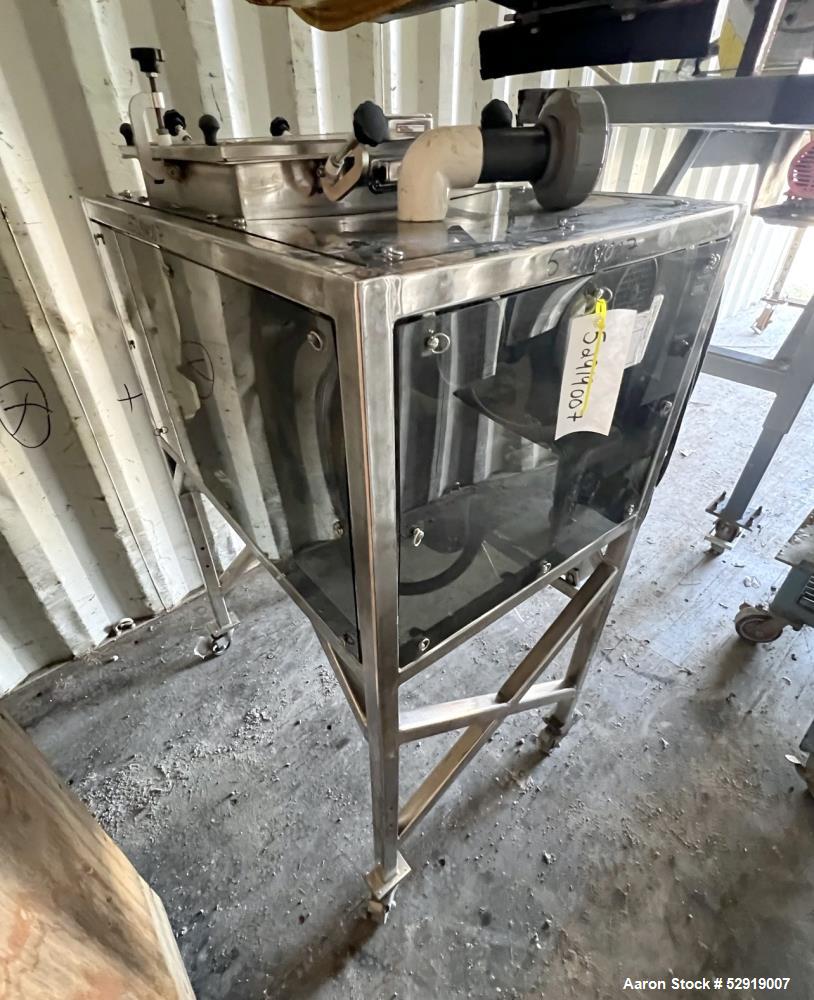

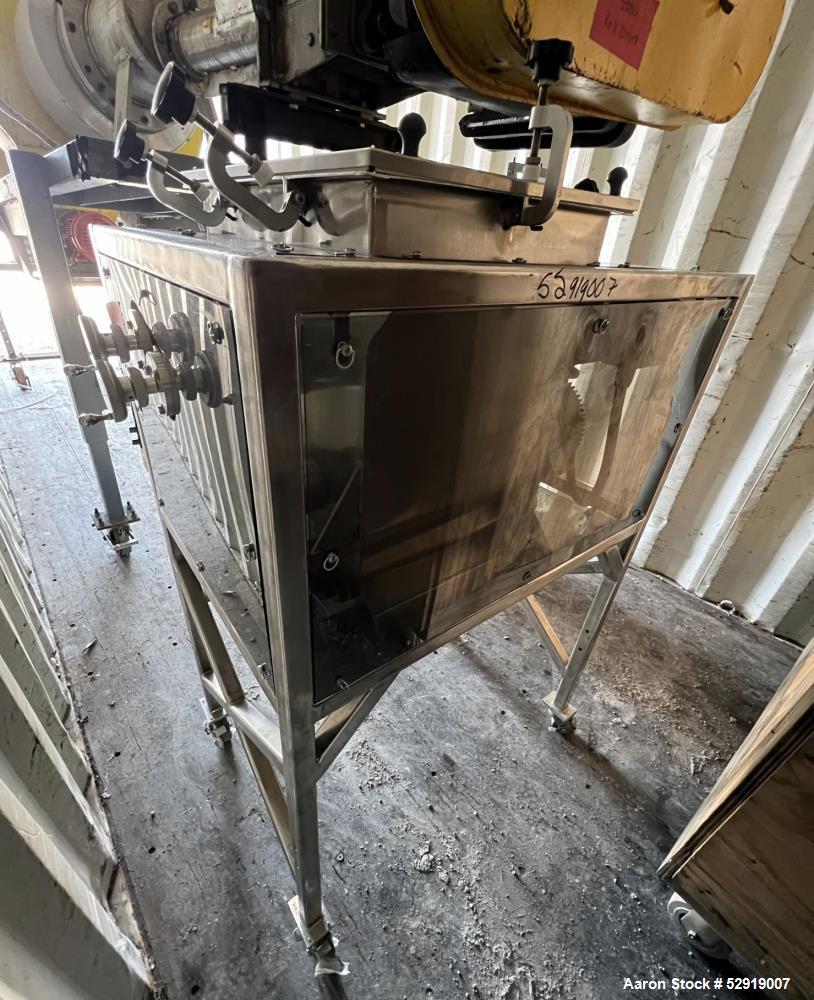

The Paul O Abbe Stainless Steel Fluidizer is a high-performance mixing and blending machine, designed for efficient fluidization of powders, granules, and other materials in industries such as pharmaceuticals, chemicals, food, and specialty materials.

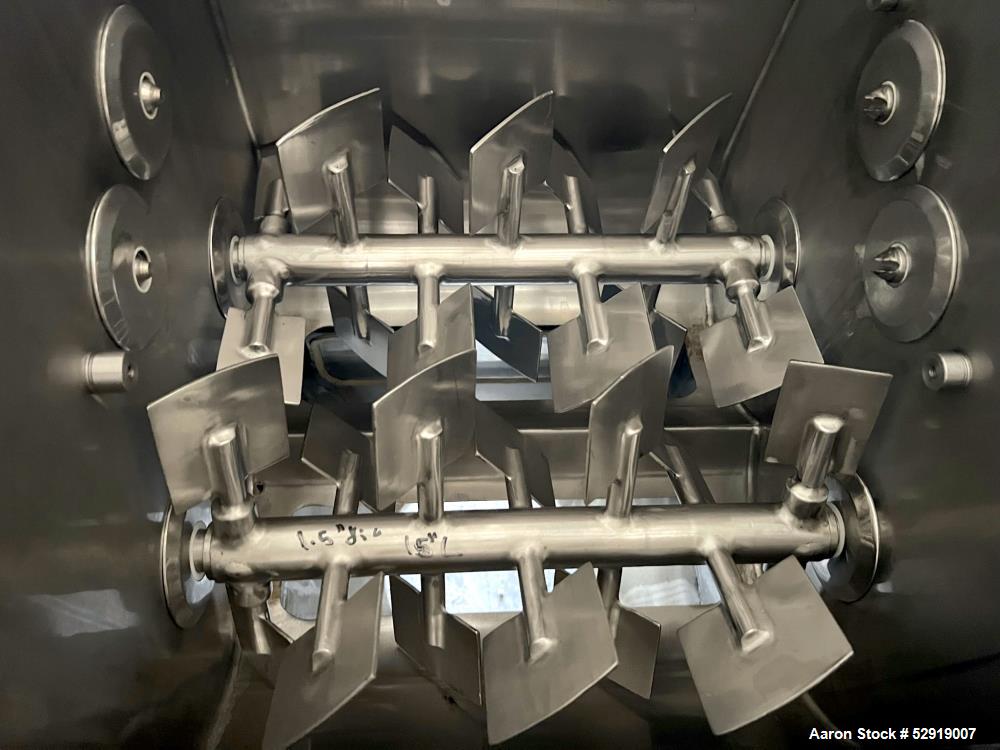

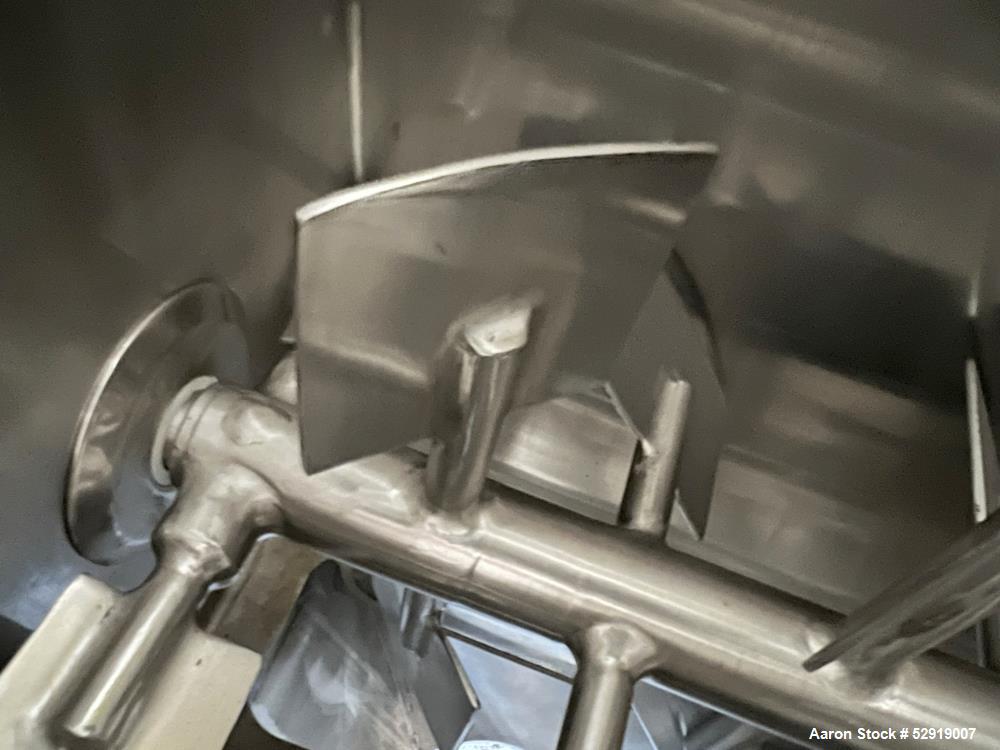

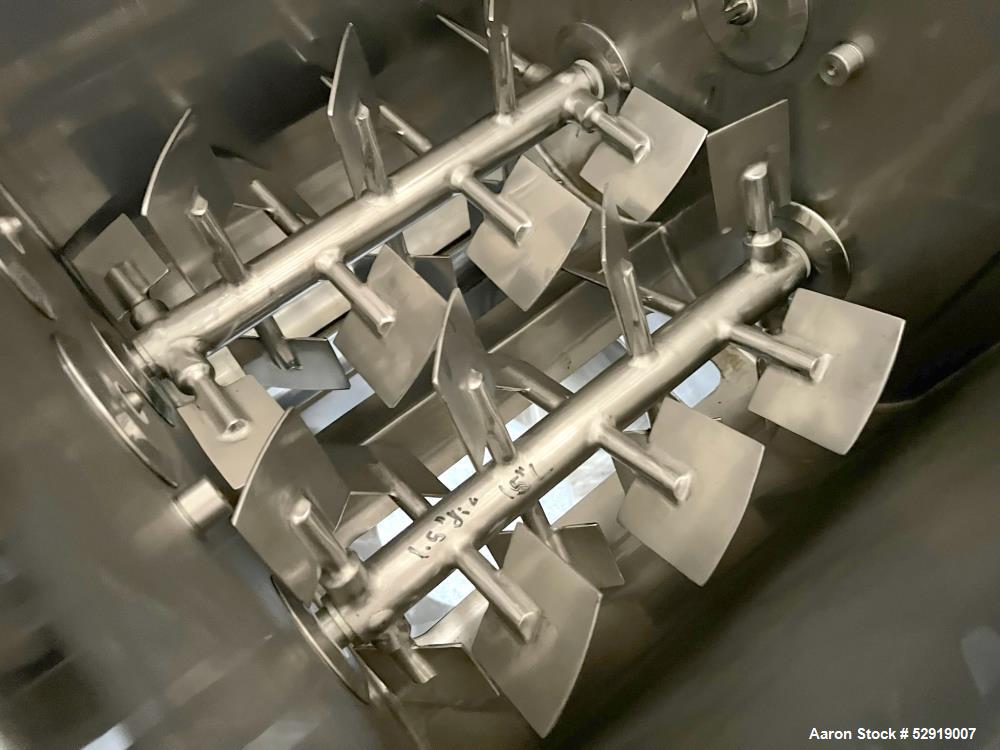

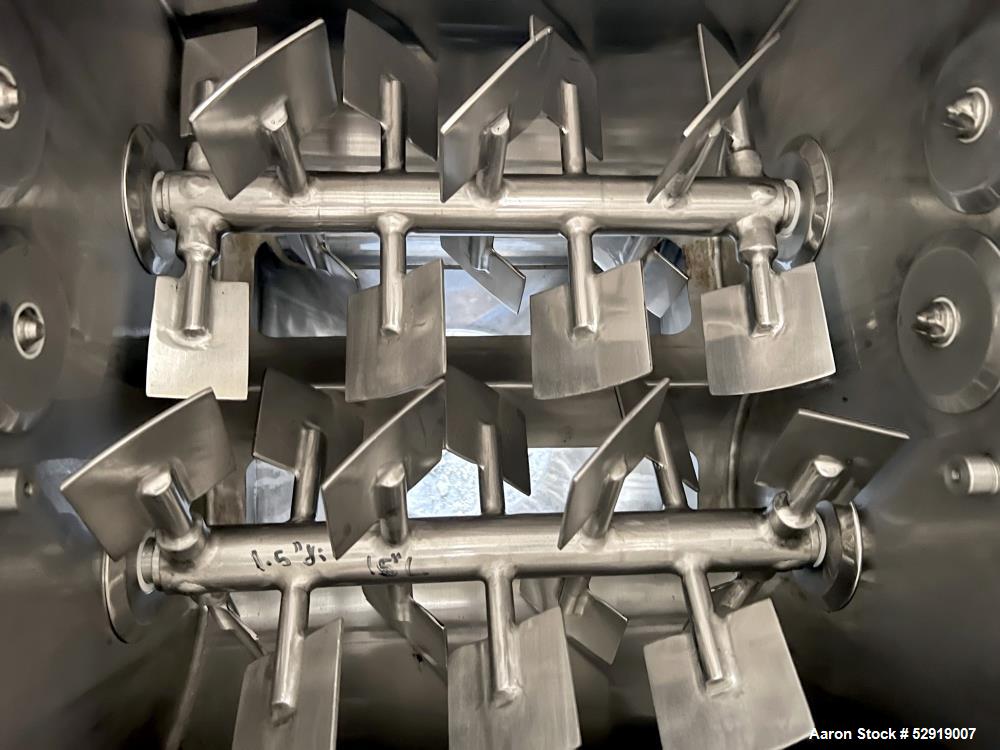

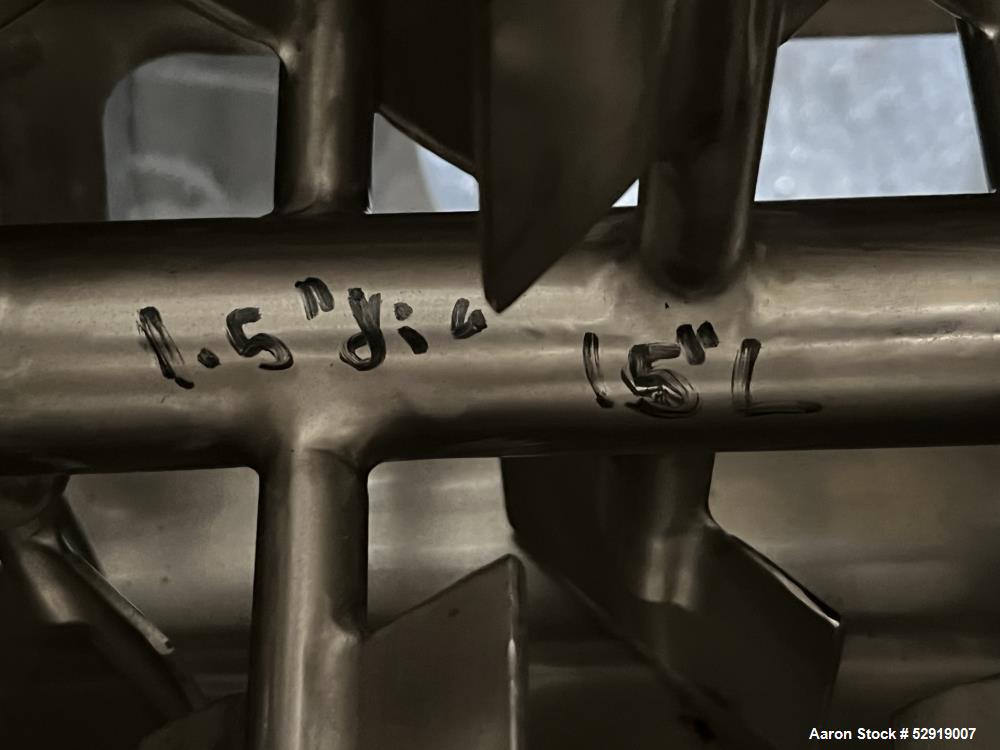

This unit features a 0.7 cubic foot (20-liter) non-jacketed trough, measuring 16” wide x 18.5” long x 18.5” deep. The fluidizing action is achieved using two 1.5” diameter x 15” long shafts, each fitted with fourteen (14) 3” x 3” x 1/8” thick paddles, mounted on 1/2” diameter posts for optimal mixing efficiency.

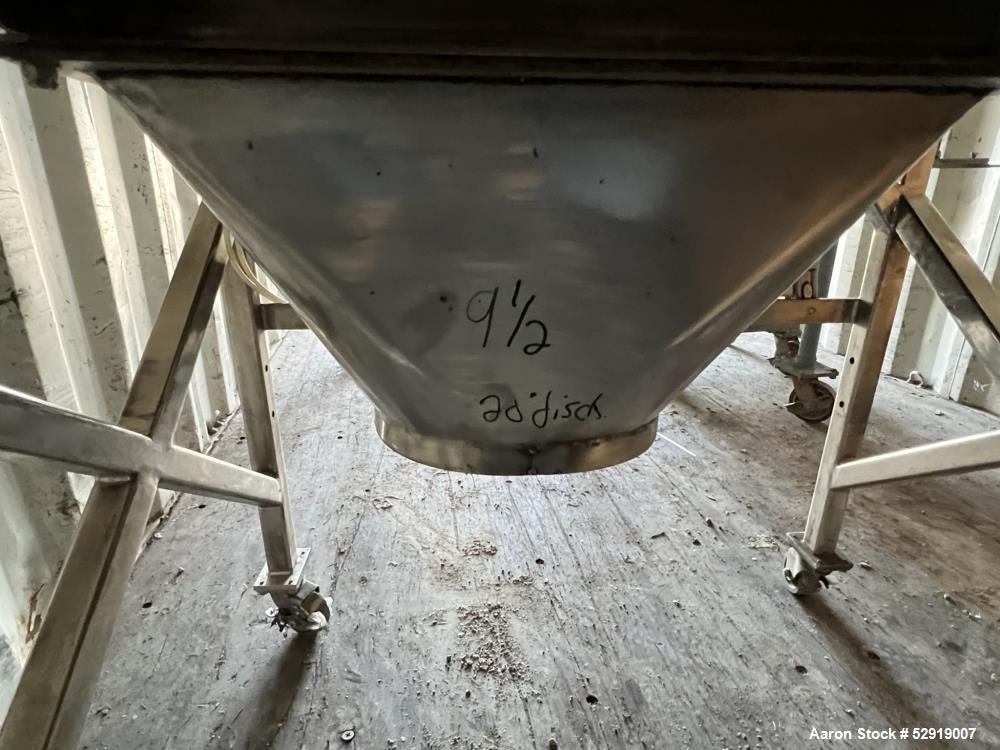

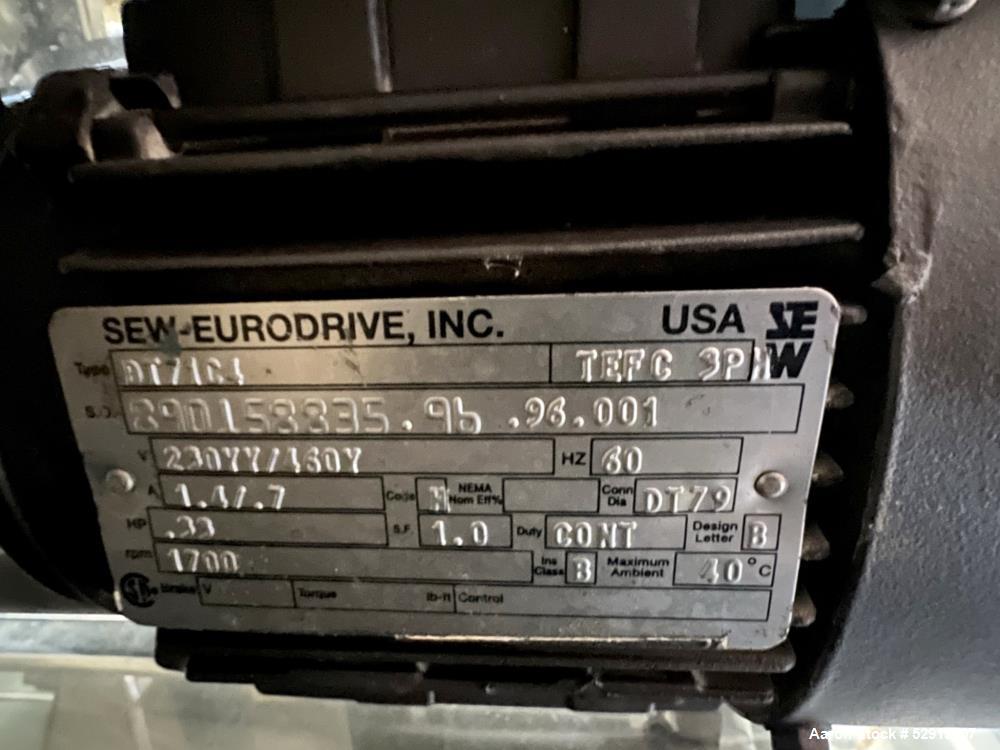

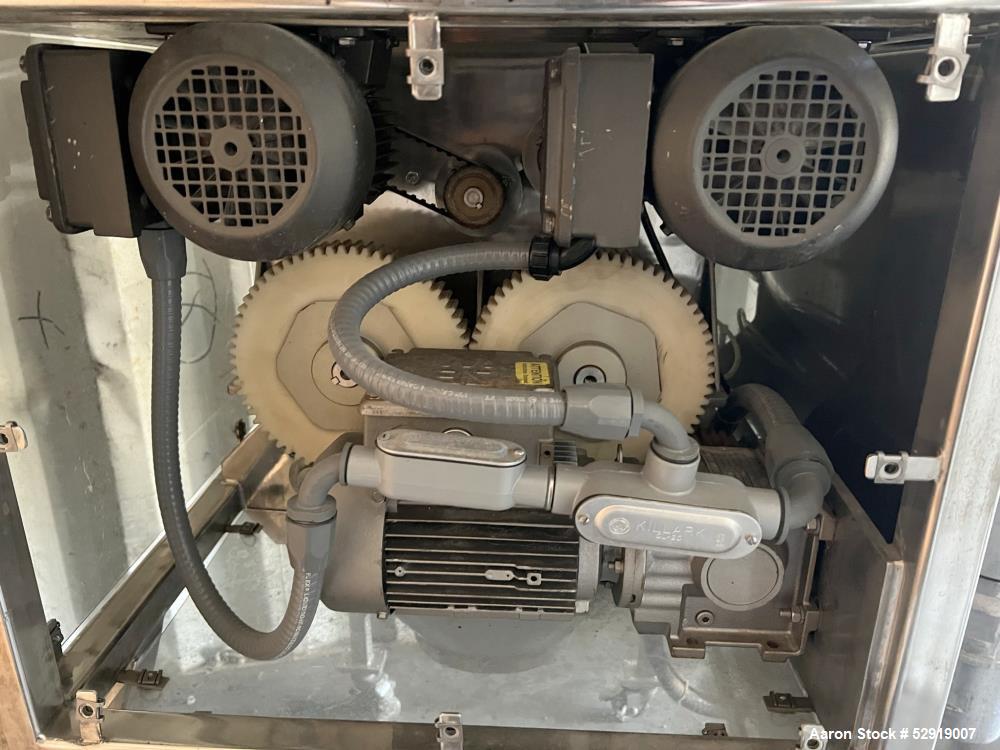

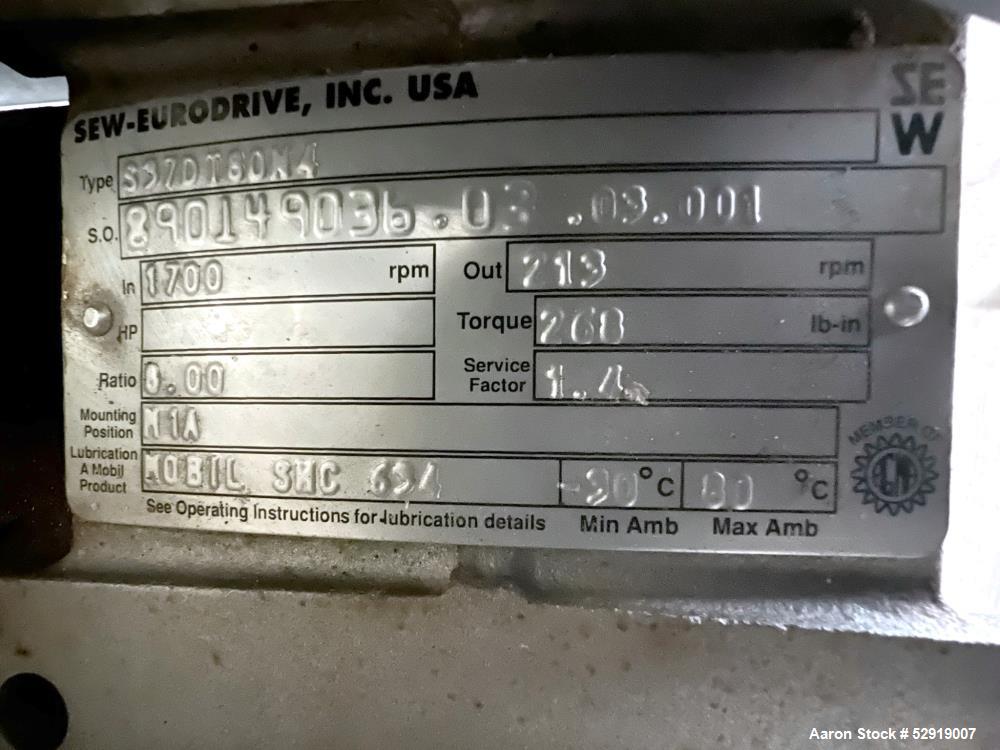

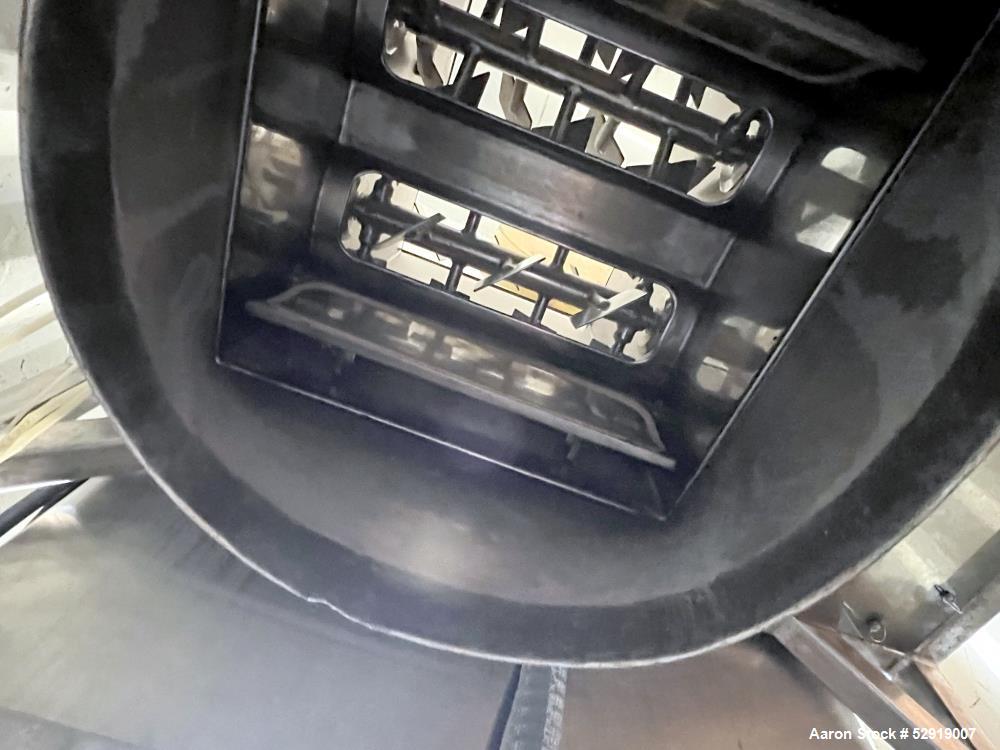

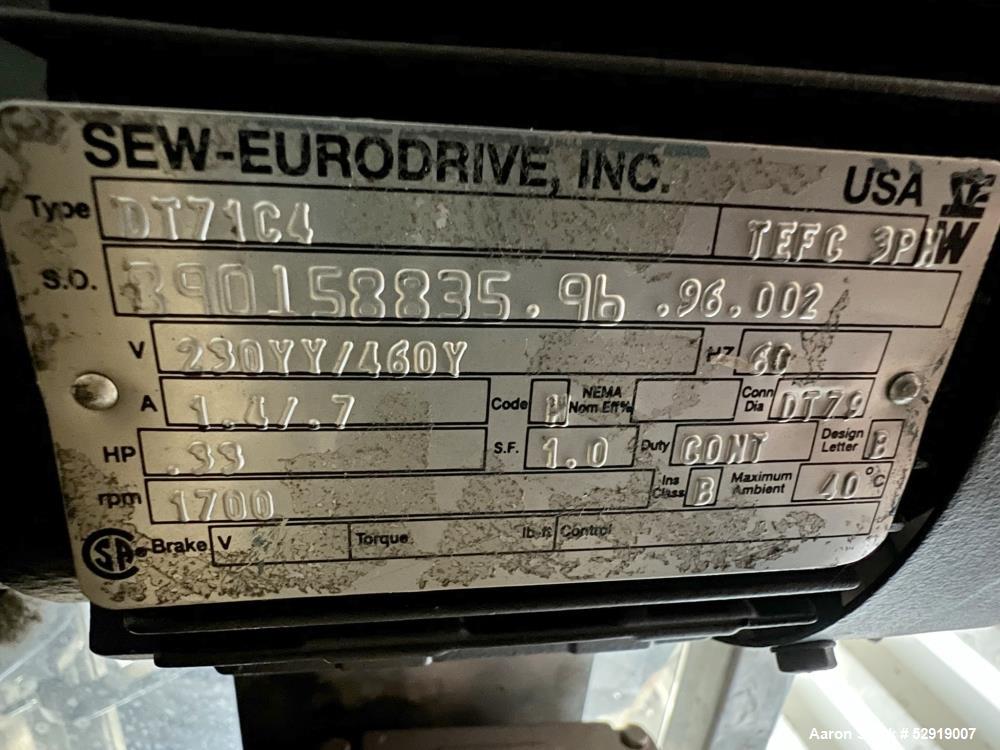

The mixing system is powered by two .33 HP, 3/60/230/460V, 1700 RPM motors, operating through an 8:1 reducer, ensuring precise and controlled fluidization. Material is discharged via bottom bombay doors into a 9.5” diameter bottom discharge, positioned at a 20” discharge height.

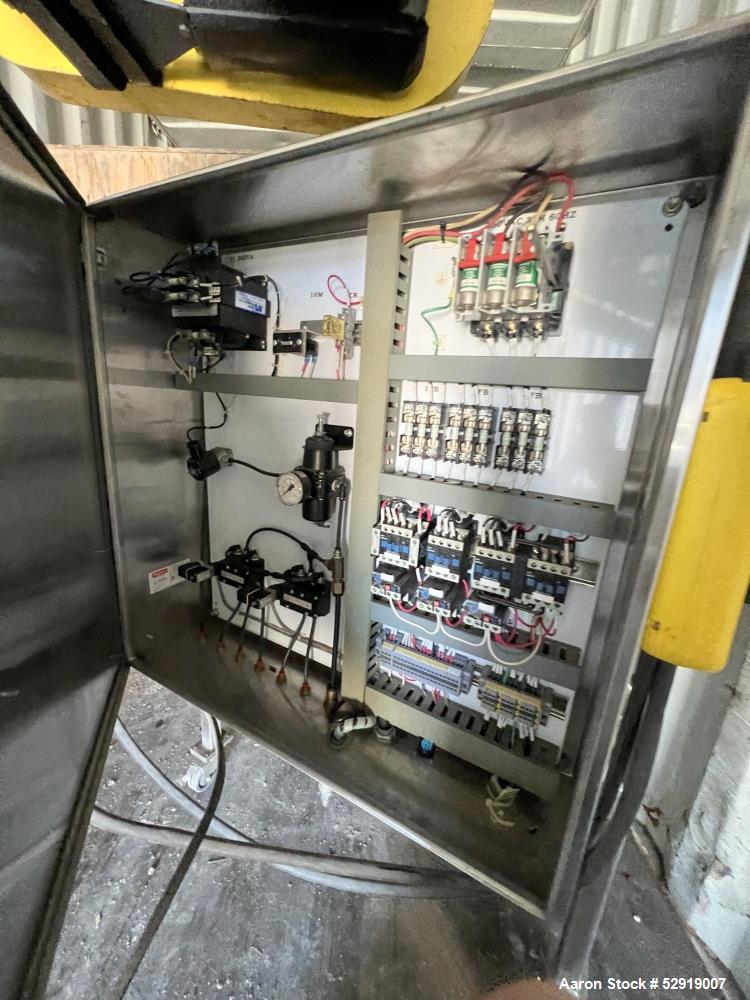

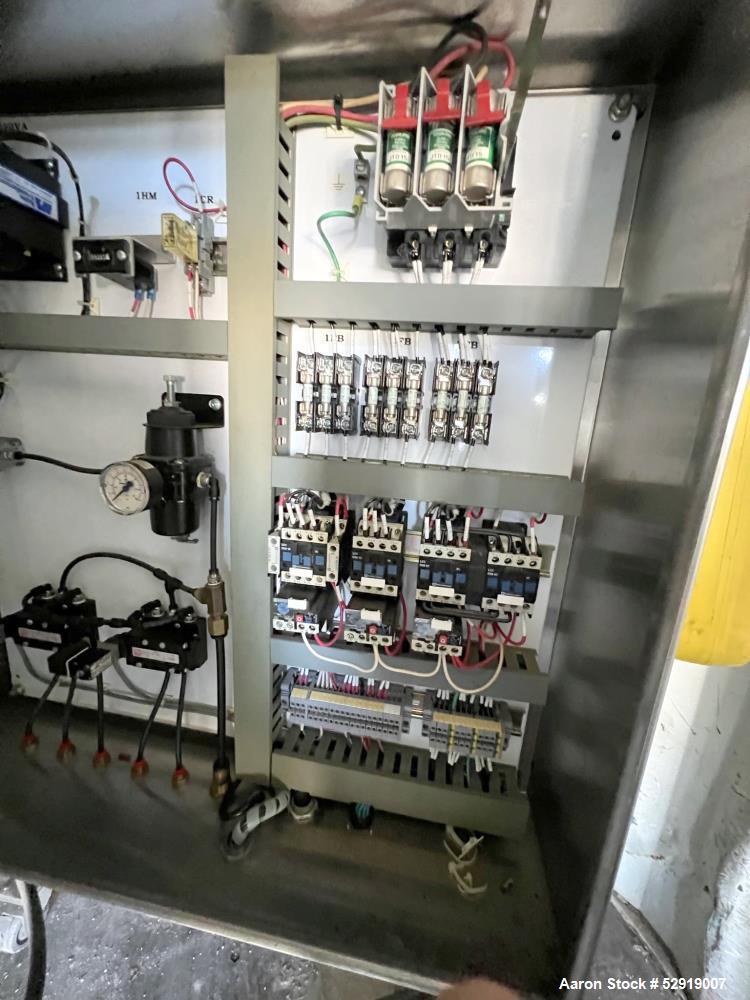

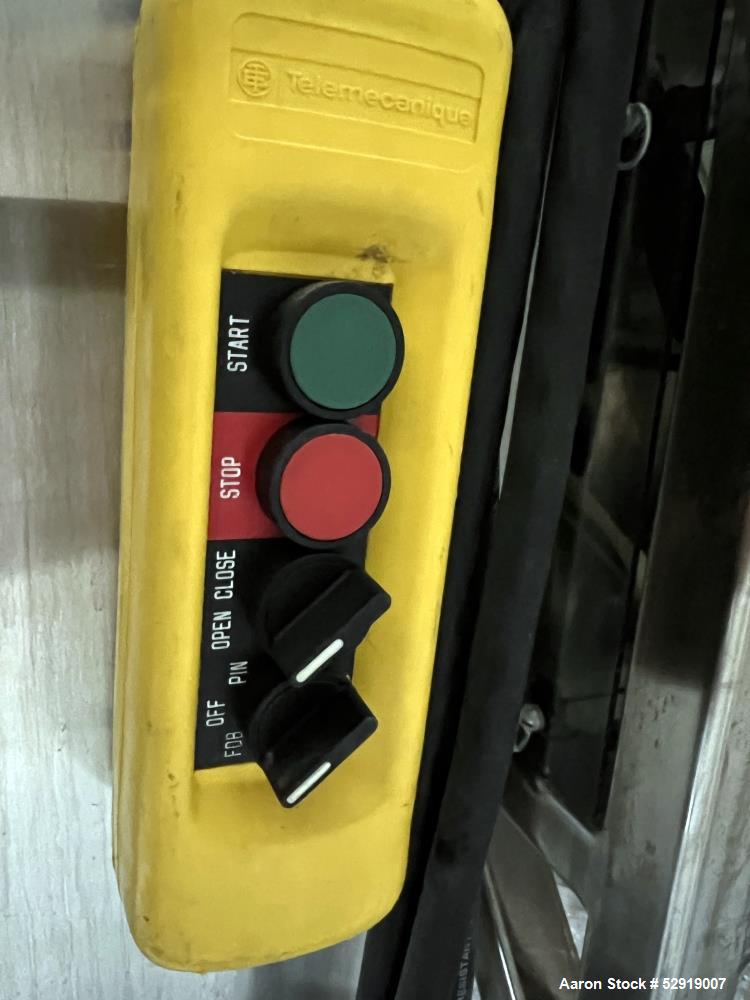

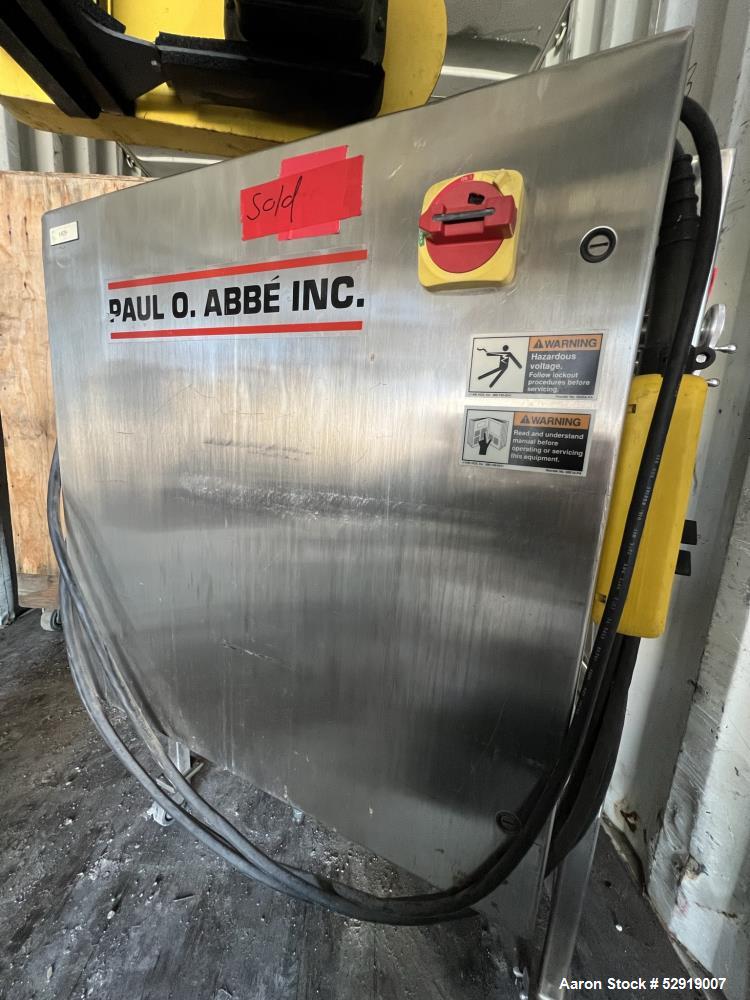

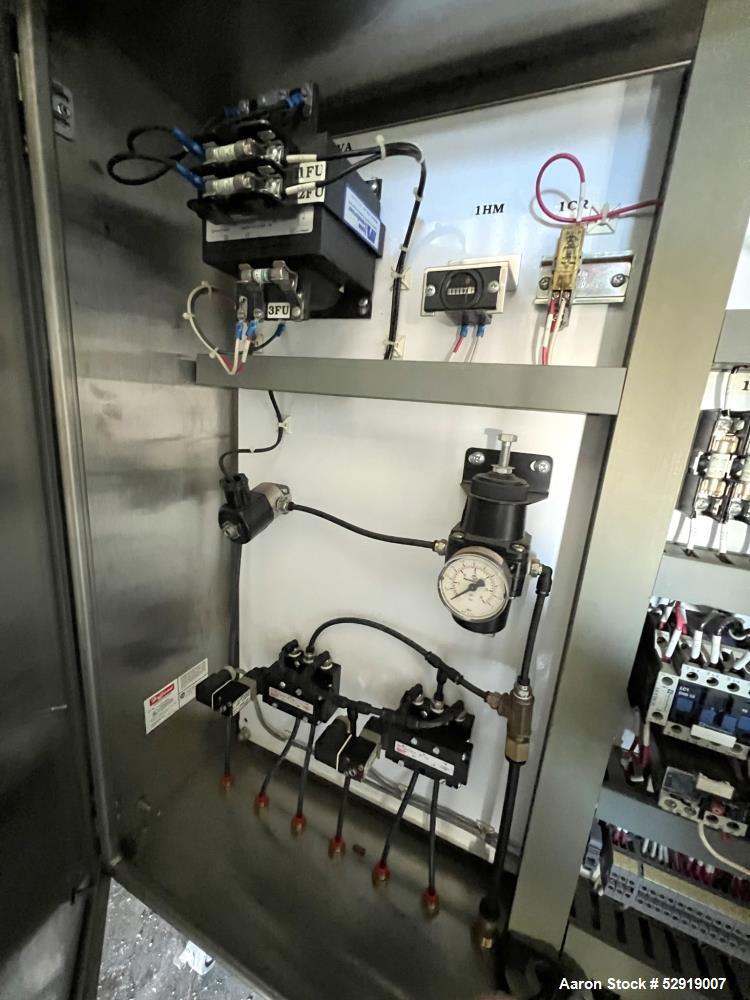

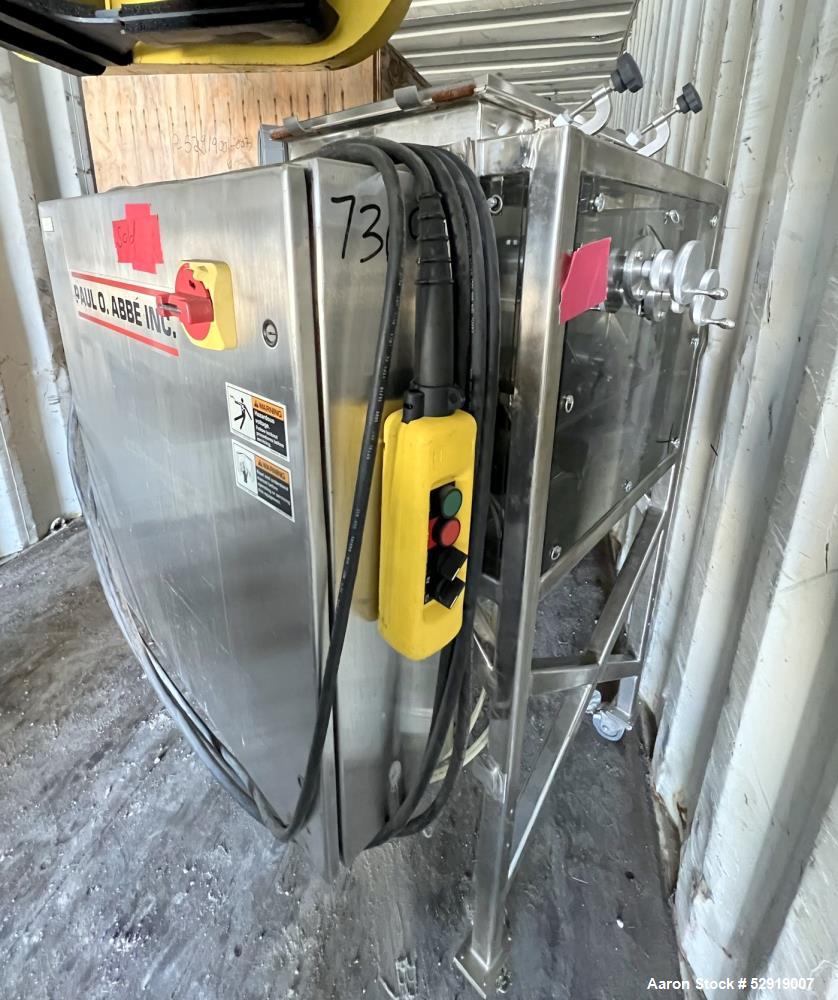

The unit includes a mounted control panel for user-friendly operation and is mounted on four casters, allowing for easy mobility within industrial facilities.

Key Features:

• 0.7 Cubic Feet (20L) Stainless Steel Trough for efficient mixing
• Non-Jacketed Mixing Chamber (16” W x 18.5” L x 18.5” D)
• Dual 1.5” Diameter x 15” Long Shafts with (14) paddles each
• Paddle Dimensions: 3” L x 3” W x 1/8” Thick on 1/2” Diameter Posts
• Powered by (2) .33 HP Motors (3/60/230/460V, 1700 RPM)
• 8:1 Reducer for Controlled Mixing Speed
• Bottom Bombay Doors for Easy Discharge
• 9.5” Diameter Bottom Discharge at 20” Height
• Includes Mounted Control Panel for operational control
• Mounted on (4) Casters for mobility and convenience

Specifications:

• Machine Type: Fluidizer / Paddle Mixer
• Brand: Paul O Abbe
• Material: Stainless Steel
• Trough Capacity: 0.7 Cubic Feet (20 Liters)
• Trough Dimensions: 16” W x 18.5” L x 18.5” D
• Mixing Shafts: (2) 1.5” Diameter x 15” Long Shafts
• Paddle Size: 3” x 3” x 1/8” Thick on 1/2” Posts
• Motor Power: (2) .33 HP Motors (3/60/230/460V, 1700 RPM)
• Reducer Ratio: 8:1
• Discharge: 9.5” Diameter Bottom Discharge at 20” Height
• Additional Features: Bottom Bombay Doors, Mounted Control Panel
• Mobility: Mounted on (4) Casters
• Serial Number: A45254

Applications:

• Pharmaceutical Blending: Powder and granule fluidization
• Chemical Processing: Mixing of fine chemicals and specialty materials
• Food & Beverage: Dry ingredient blending, spice mixing
• Cosmetics & Personal Care: Powdered formulations and specialty compounds
• Powder & Bulk Solids Processing: Homogeneous blending of dry materials

What Products Would This Be Used For?

• Pharmaceutical powders and excipients
• Fine chemical powders and specialty materials
• Dry food ingredients and spice blends
• Powdered cosmetic formulations
• Bulk solids mixing and blending
