Used 2022 Marion OX-15-CS 15 Cu. Ft. Paddle Mixer – 7.5 HP Carbon Steel Batch Blender with 8" Discharge

Manufacturer Information

Marion Process Solutions

Marion Process Solutions manufactures industrial mixing and blending equipment for processing powders, granules, pastes, and other bulk materials. Paddle mixers are commonly used for batch blending where consistent material distribution and efficient movement of bulk solids are required.

This Marion Model OX-15-CS was built in 2022 and provides a 15 cubic foot capacity with carbon steel product-contact components.

Description

Available for sale is a used 2022 Marion Process Paddle Mixer, Model OX-15-CS, with a 15 cubic foot mixing capacity.

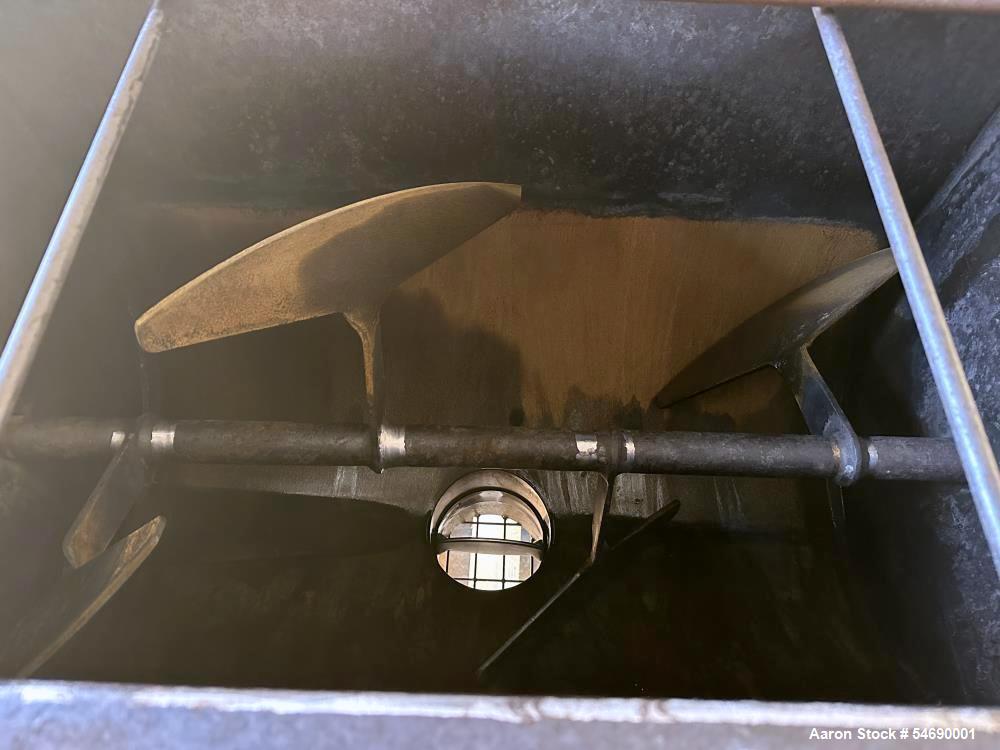

The mixer features a 2-3/16" diameter carbon steel main shaft with welded mixing blades. Blade clearance is stated at approximately 1/8 inch, allowing the paddle assembly to move material efficiently throughout the mixing chamber.

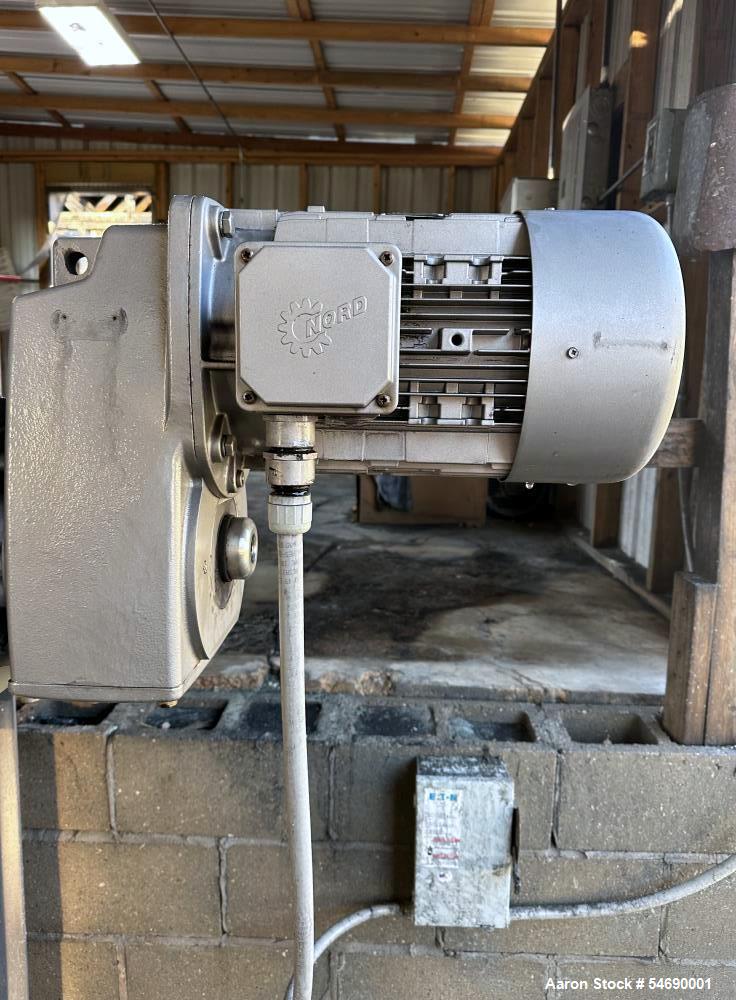

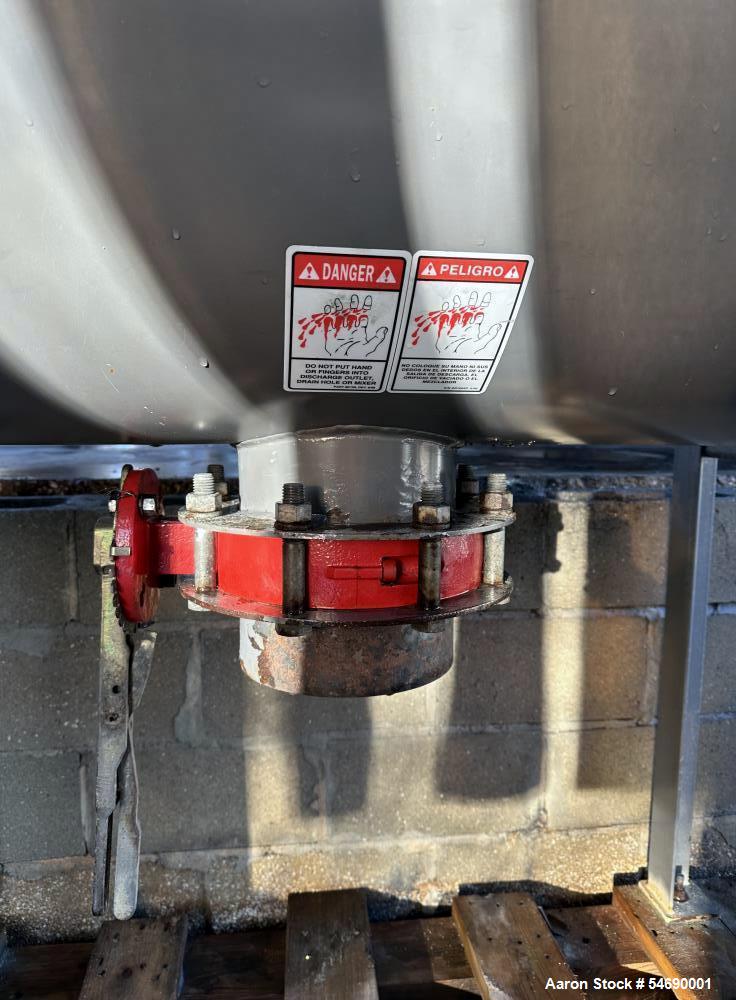

The unit is powered by a 7.5 HP motor and has an approximately 27" wide x 48" long mixing chamber opening. Product discharge is through an 8" diameter lever-actuated butterfly valve.

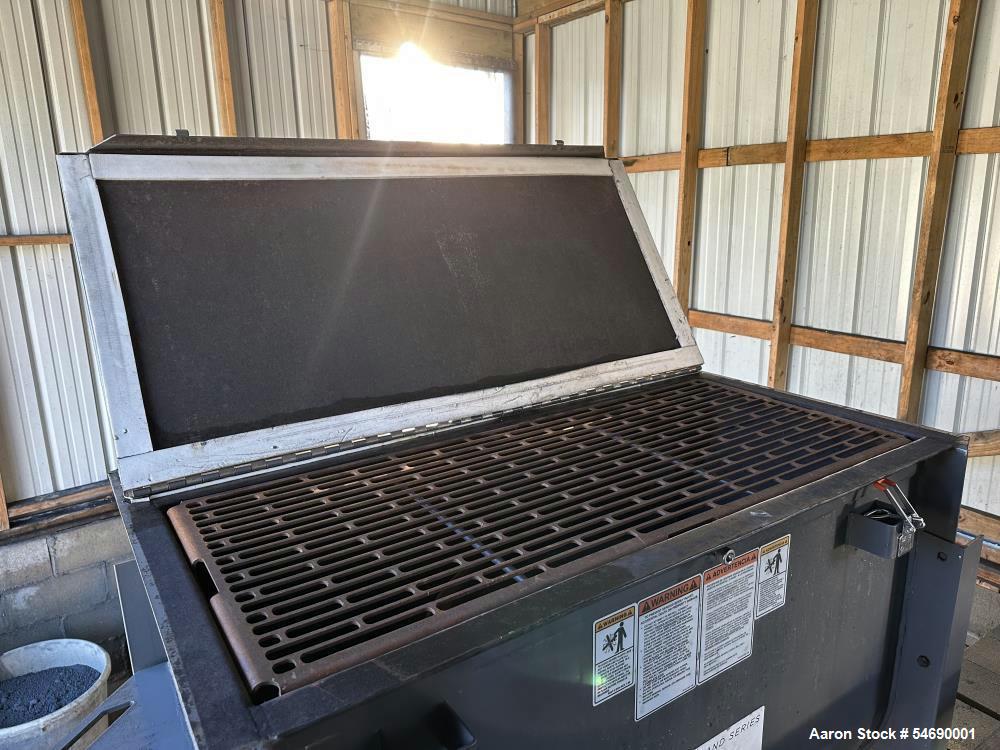

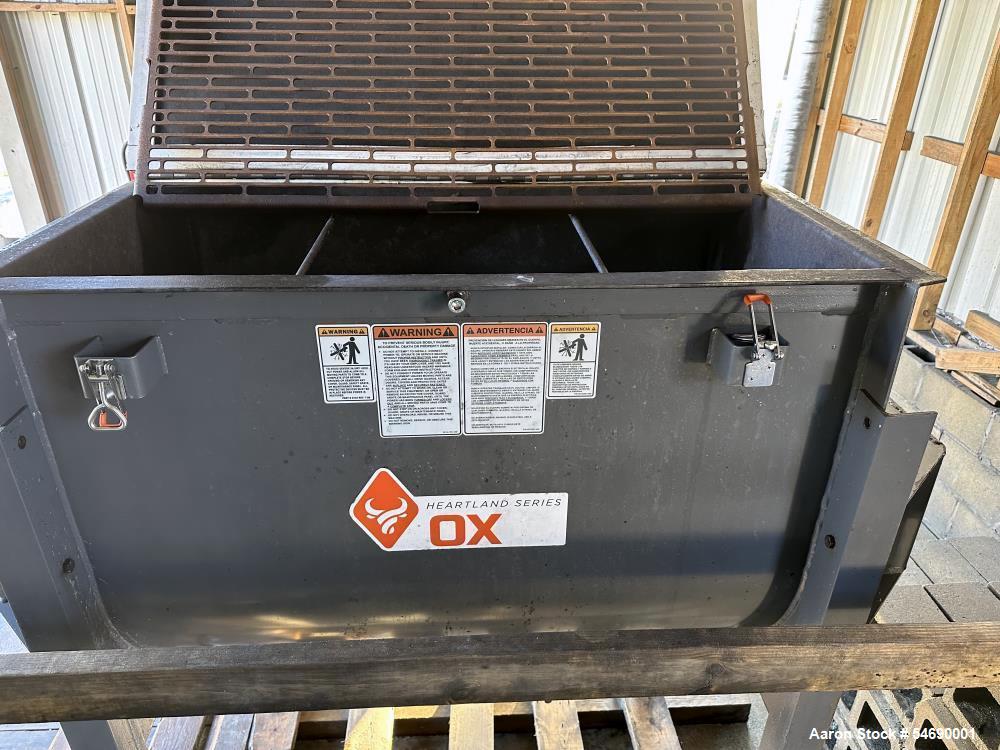

Additional features include a 21" x 48" safety grate, 3" OD vent tube with safety guard, removable seal-access covers, and a 240V control panel with start/stop and emergency-stop controls.

The mixer is supported on four carbon steel legs. Serial number is 22014.

Potential applications include batch mixing and blending of compatible chemical powders, plastic resins, minerals, agricultural materials, dry ingredients, granules, and other free-flowing or moderately cohesive bulk solids.

Specifications

Typical Applications

• Powder blending
• Batch mixing
• Granule blending
• Chemical processing
• Plastics compounding
• Mineral blending
• Agricultural product mixing
• Dry ingredient blending
• Bulk solids processing
• Additive incorporation
• Homogeneous dry blending
• Industrial material preparation

Products This Paddle Mixer Could Be Used For

• Chemical powders
• Plastic resins
• Polymer pellets
• Mineral powders
• Agricultural materials
• Fertilizer ingredients
• Granulated products
• Dry additives
• Pigment blends
• Powdered compounds
• Free-flowing bulk solids
• Moderately cohesive dry materials

Actual suitability and batch capacity depend on material bulk density, particle characteristics, moisture content, cohesiveness, required blend uniformity, fill level, and equipment condition. Carbon steel compatibility should also be evaluated for the intended product.

Frequently Asked Questions

• What is the capacity of this Marion paddle mixer? The OX-15-CS has a stated capacity of 15 cubic feet. Actual batch weight depends on the bulk density and recommended working fill level of the material.
• What size motor drives the mixer? The mixer is equipped with a 7.5 HP drive motor.
• What are the mixing chamber dimensions? The chamber opening measures approximately 27 inches wide x 48 inches long.
• How does the mixer discharge product? Material is discharged through an 8-inch diameter lever-actuated butterfly valve.
• What safety and control features are included? The mixer includes a 21" x 48" safety grate, guarded 3" OD vent, removable seal-access covers, and a 240V control panel with start/stop and emergency-stop controls.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning for this Marion paddle mixer.
