Used Phlauer / A&J Mixing Modular Paddle Mixer – 74 Cu. Ft., 30 HP, 304 Stainless Steel

Description

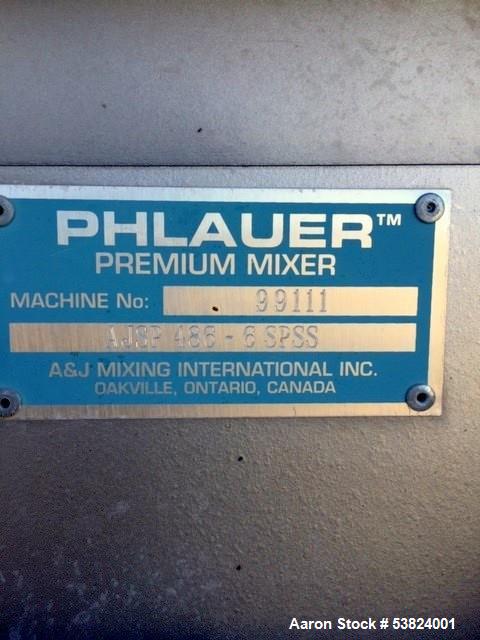

The Used Phlauer / A&J Mixing Modular Paddle Mixer, Model AJSP 486-6 SPSS, is a high-capacity industrial mixer designed for efficient blending of powders, granules, and bulk materials. With a 74 cubic foot capacity, this mixer features a 304 stainless steel non-jacketed trough, measuring 48” wide x 78” long x 44” deep.

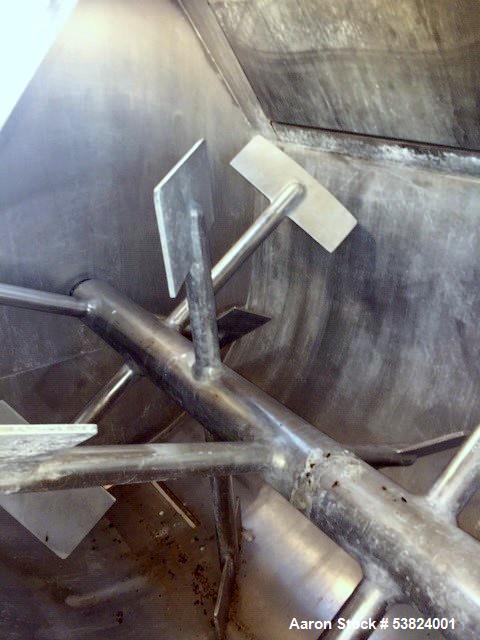

Equipped with a robust 5" diameter shaft and (16) welded 13-3/4" x 6-3/4" paddles on 2" diameter posts, this mixer ensures thorough, uniform mixing. The system is driven by a powerful 22kW (30 HP) gear motor, running at 1770 RPM with a 75.69:1 ratio, final RPM of 23.

Designed for easy operation and maintenance, the unit includes:

• Multiple top and side access openings (4 hinged inspection doors)

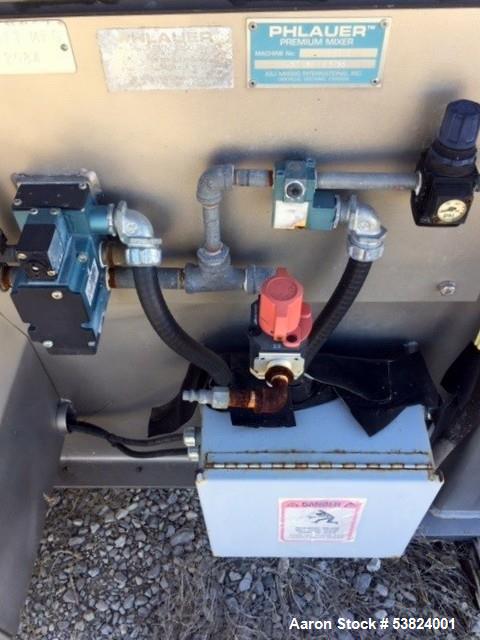

• 14” x 8” bottom discharge with a pneumatic discharge valve

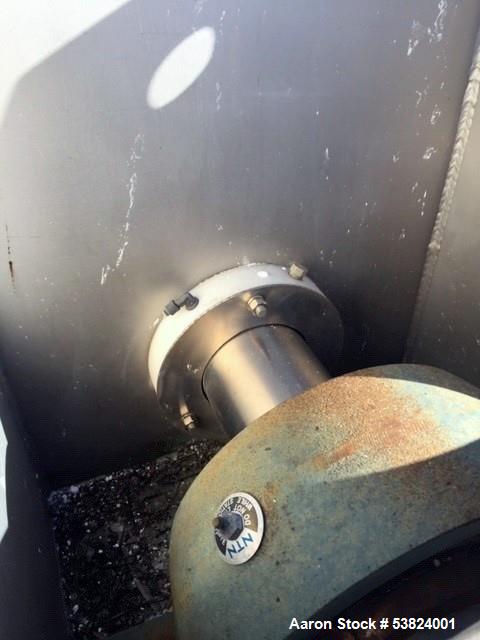

• Outboard roller bearings & air seals for durability

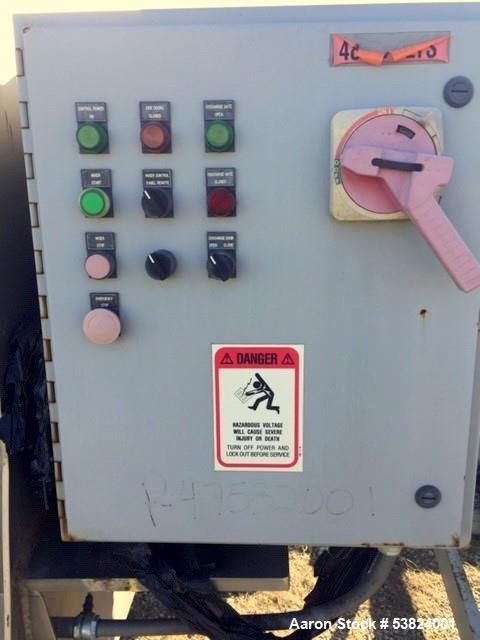

• Control panel for efficient operation
• Stainless steel legs for sturdy support

This mixer is ideal for high-volume batch mixing in industries like food processing, chemical production, and pharmaceuticals.

Specifications

• Capacity: Approx. 74 cubic feet
• Construction: 304 Stainless Steel
• Trough Dimensions: 48" W x 78" L x 44" D
• Shaft: 5" Diameter

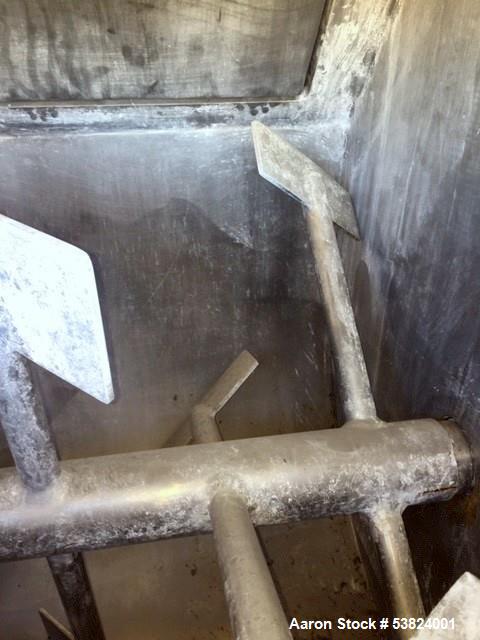

• Paddles: (16) 13-3/4" x 6-3/4" x 3/8" thick paddles welded on 2" diameter posts

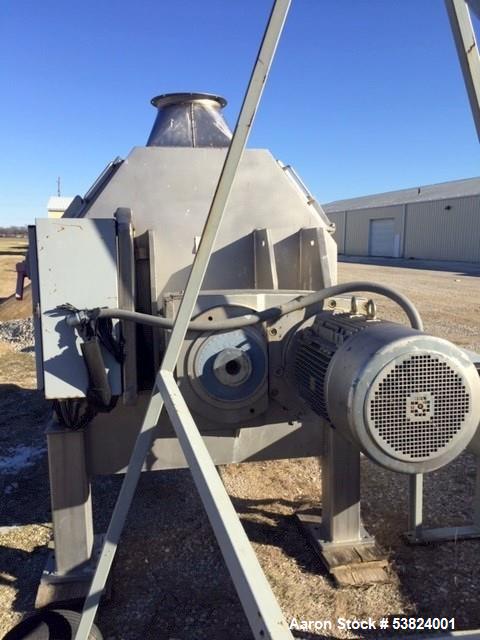

• Motor: 22kW (30 HP), 3/60/230/460V, 1770 RPM
• Gear Ratio: 75.69:1, final RPM 23
• Access Openings:
  • Top: 12", 2-3/4"

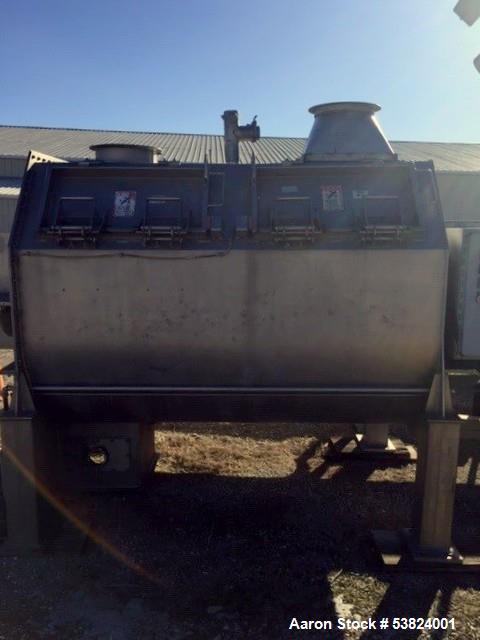

  • Side: (4) 30" x 15-1/2" hinged inspection doors

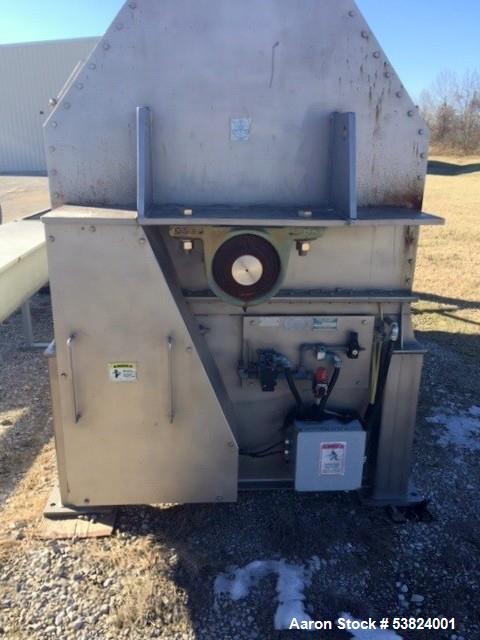

• Discharge: 14” x 8” end bottom discharge with pneumatic valve
• Additional Features:
  • Outboard roller bearings
  • Air seals
  • Control panel
  • Mounted on (4) stainless steel legs

Applications

This paddle mixer is well-suited for high-capacity batch mixing in industries such as:

• Food processing (flour blends, baking ingredients, seasonings)
• Chemical mixing (powders, industrial chemicals, detergents)
• Pharmaceutical blending (bulk powders, granules, excipients)
• Nutritional supplement production
• Plastics and composite materials

What Products Would This Be Used For?

• Powdered food ingredients and spice blends
• Industrial powders and dry chemicals
• Pharmaceutical bulk powders
• Dry mortar and cement additives
• Plastic resin and pellet blending
