Used- Marion 45 Cubic Foot Paddle Mixer, Model 4020

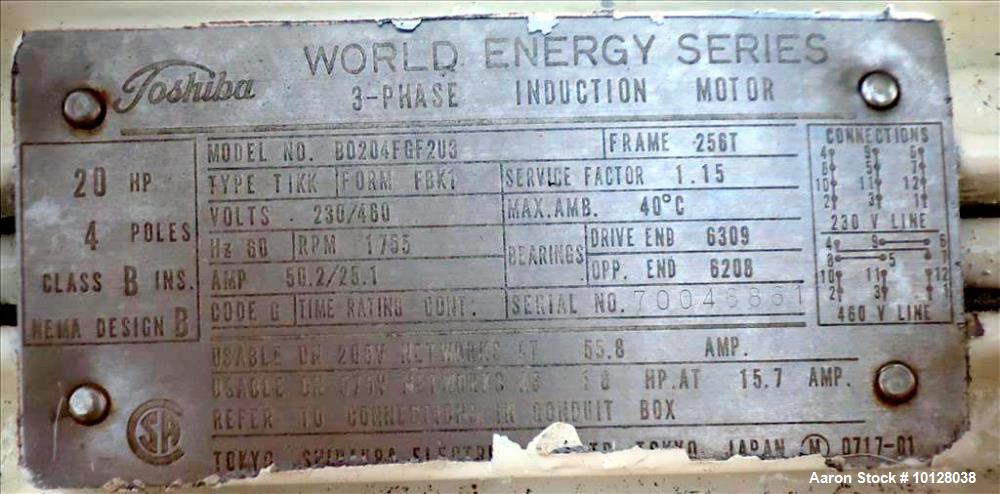

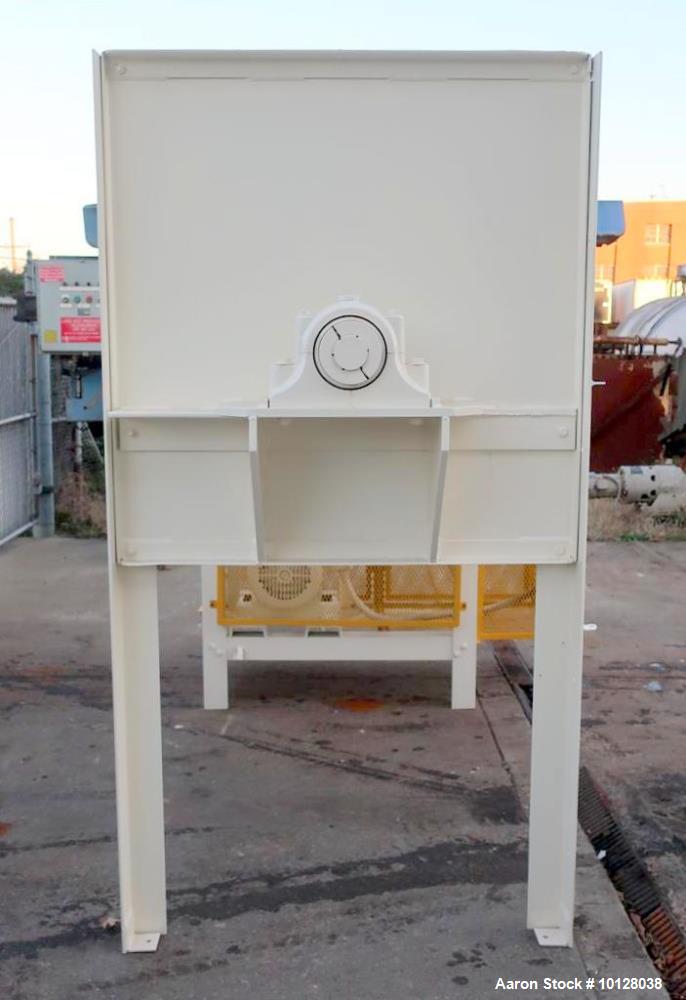

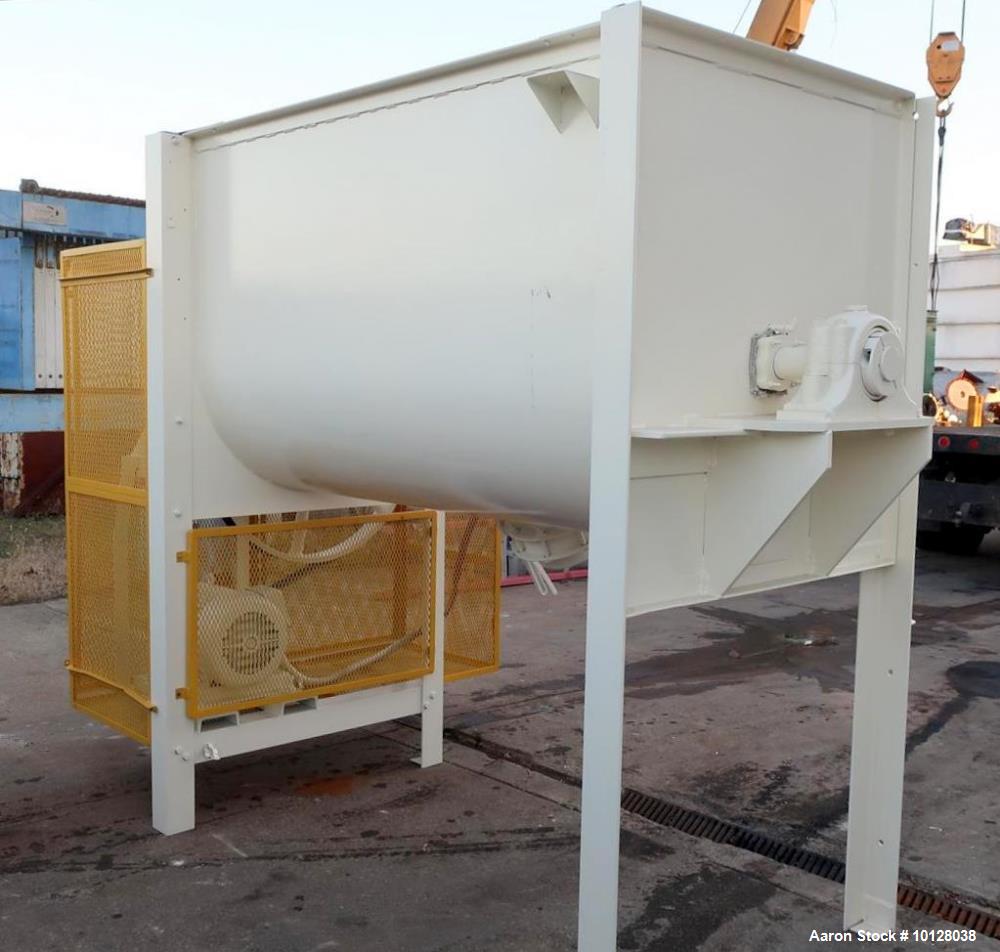

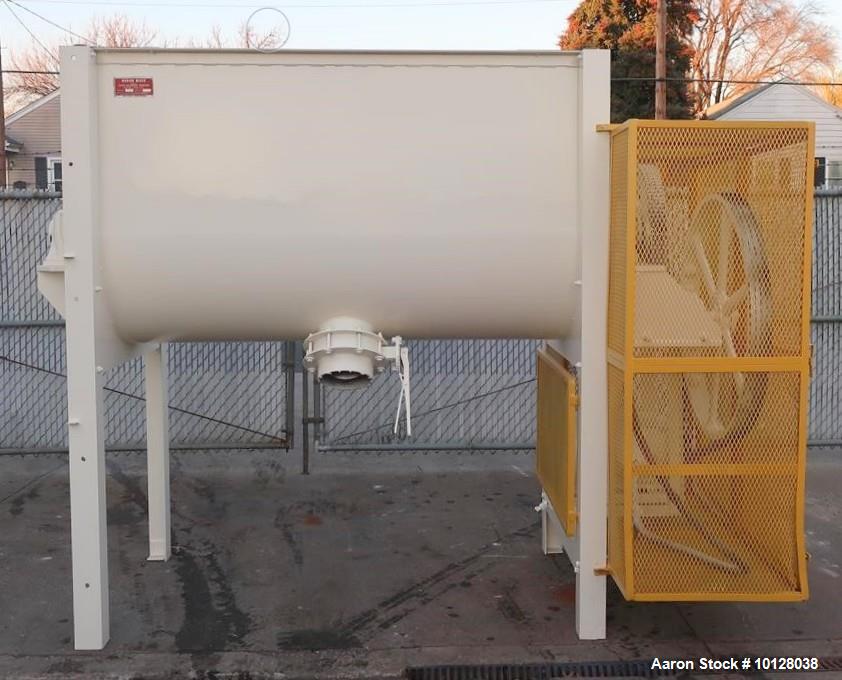

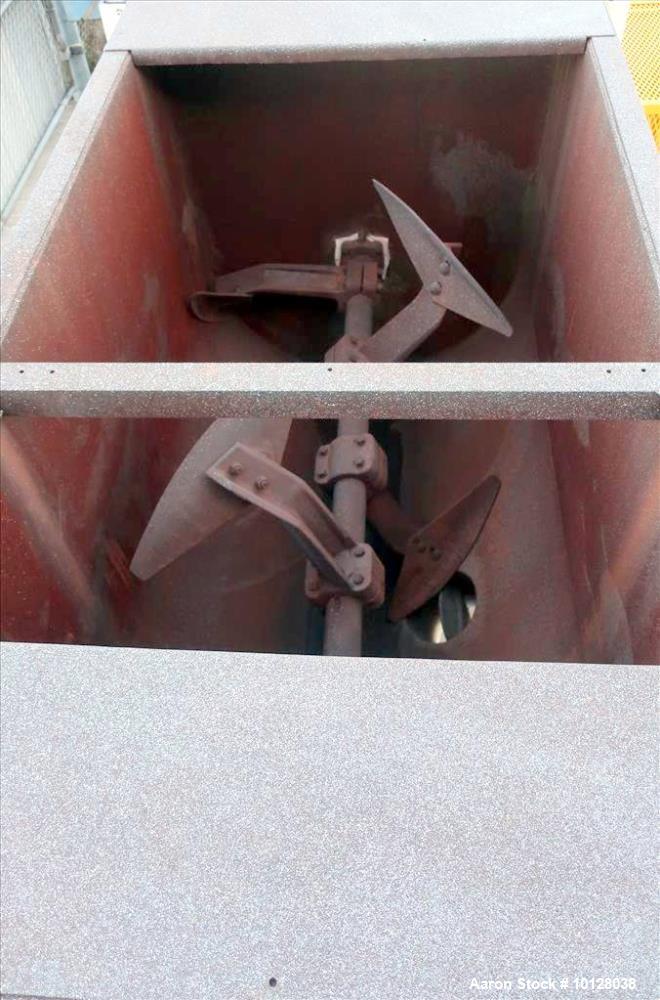

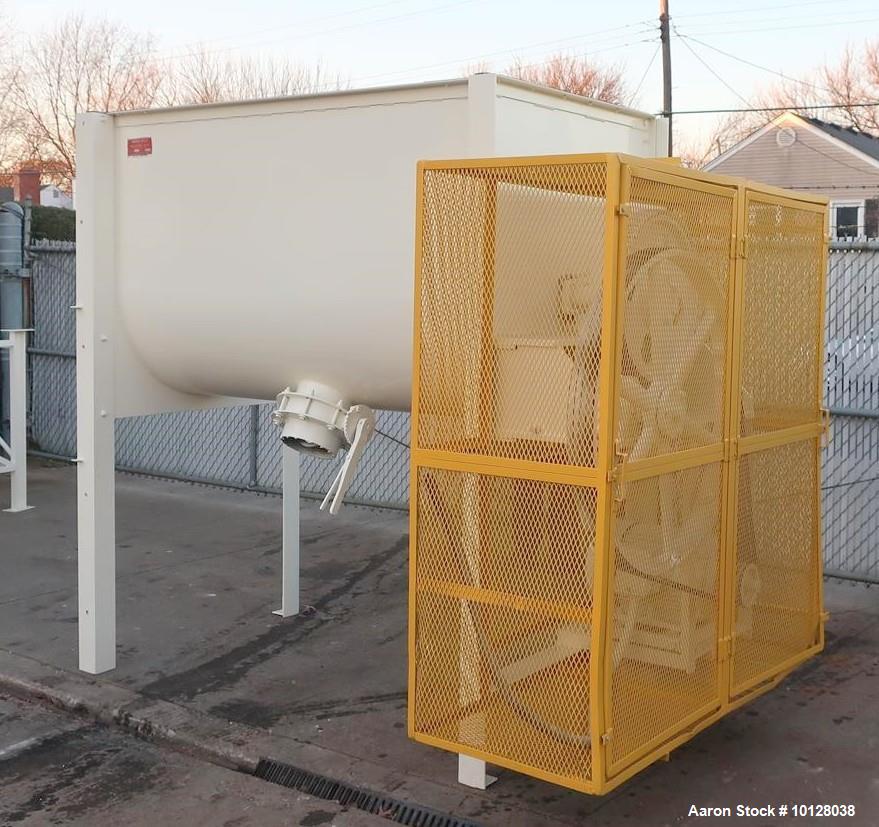

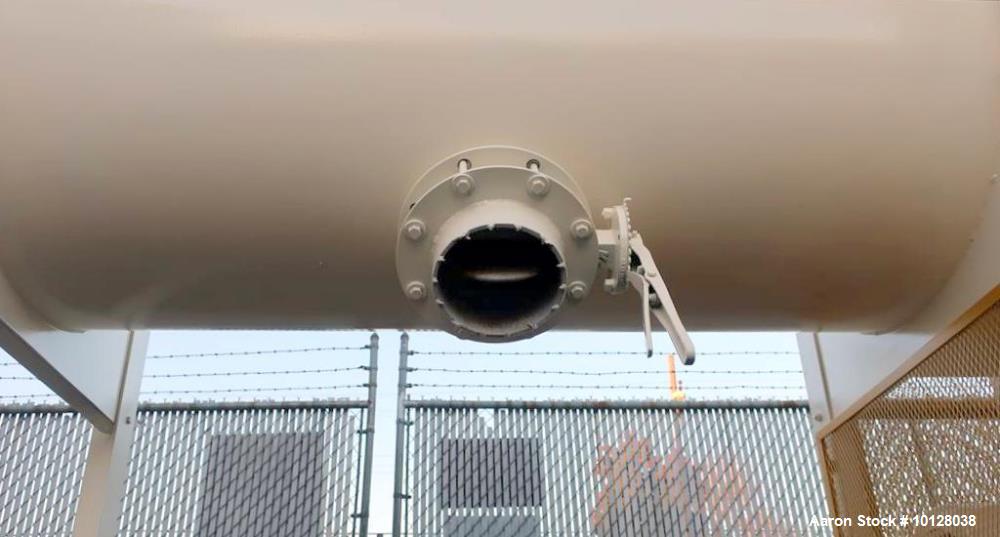

Used- Marion 45 Cubic Foot Paddle Mixer, Model 4020. Series 4000. 45 cubic foot working capacity, 62 cubic foot total volume. Mixer is driven by a 20 hp 1755 rpm motor through gear reducer down to 38 rpm. The mixer is an open top with a 36" x 35.75" opening and a 36" x 14.25" opening. The mixer bottom has an 8" diameter flanged center discharge with butterfly valve 32" from ground. The mixer has 36" diameter paddles with a 2.75" diameter shaft. Mixing chamber is 72" long x 36" wide x 45" deep. Overall dimensions are 56" wide x 114" long x 85" tall. Requires 230/ 460 vac 3 phase electrical supply.
