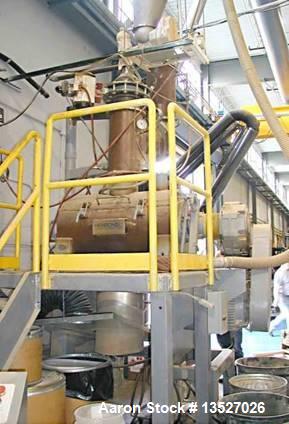

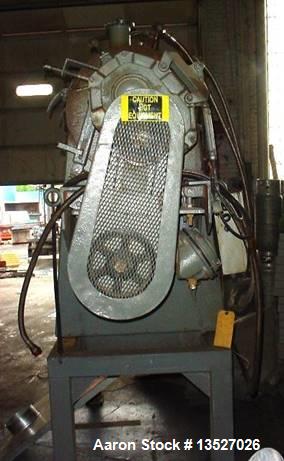

Used Henschel Horizontal Mixer, 300 Liter, Model HVD300. Stainless steel contact parts. Driven by a 40 HP/XP 3/60/230/460V, 102/51 amp motor to gearbox. Clamp down swing open top cover with 3/4 HP 115/230V electric hydraulic unit and control panel for lid close/lid open. Pneumatic top inlet valve approximately 10-1/2" tapered down to 4-1/2" Top 10" opening and 4" opening. Side outlet has concentric fittings with 14" outer opening and 4-1/2" inner opening (Appears to be for a high speed chopper - missing). Secondary side outlet has 2" diameter. Interior dimensions are approximatley 22" diameter x 44" long. Approximate 20" diameter center bottom discharge. Approximately 5 ft. of under clearance. Carbon steel jacket certified by Hartwick Metal Fabricators: MAWP 60 psi at 100 deg F. MDMT -20 deg. F at 60 psi. Mounted on base that is approximatley 74" wide x 34" deep x 33" high. Maximum operating pressure 100. Control volts: 115. Temperature range of 100 to 500. Mfg. 1990.
Used Henschel Horizontal Mixer, 300 Liter, Model HVD300. Stainless steel contact parts. Driven by a 40 HP/XP 3/60/230/460V, 102/51 amp motor to gearbox. Clamp down swing open top cover with 3/4 HP 115/230V electric hydraulic unit and control panel for lid close/lid open. Pneumatic top inlet valve approximately 10-1/2" tapered down to 4-1/2" Top 10" opening and 4" opening. Side outlet has concentric fittings with 14" outer opening and 4-1/2" inner opening (Appears to be for a high speed chopper - missing). Secondary side outlet has 2" diameter. Interior dimensions are approximatley 22" diameter x 44" long. Approximate 20" diameter center bottom discharge. Approximately 5 ft. of under clearance. Carbon steel jacket certified by Hartwick Metal Fabricators: MAWP 60 psi at 100 deg F. MDMT -20 deg. F at 60 psi. Mounted on base that is approximatley 74" wide x 34" deep x 33" high. Maximum operating pressure 100. Control volts: 115. Temperature range of 100 to 500. Mfg. 1990.
