Stock #
50697011

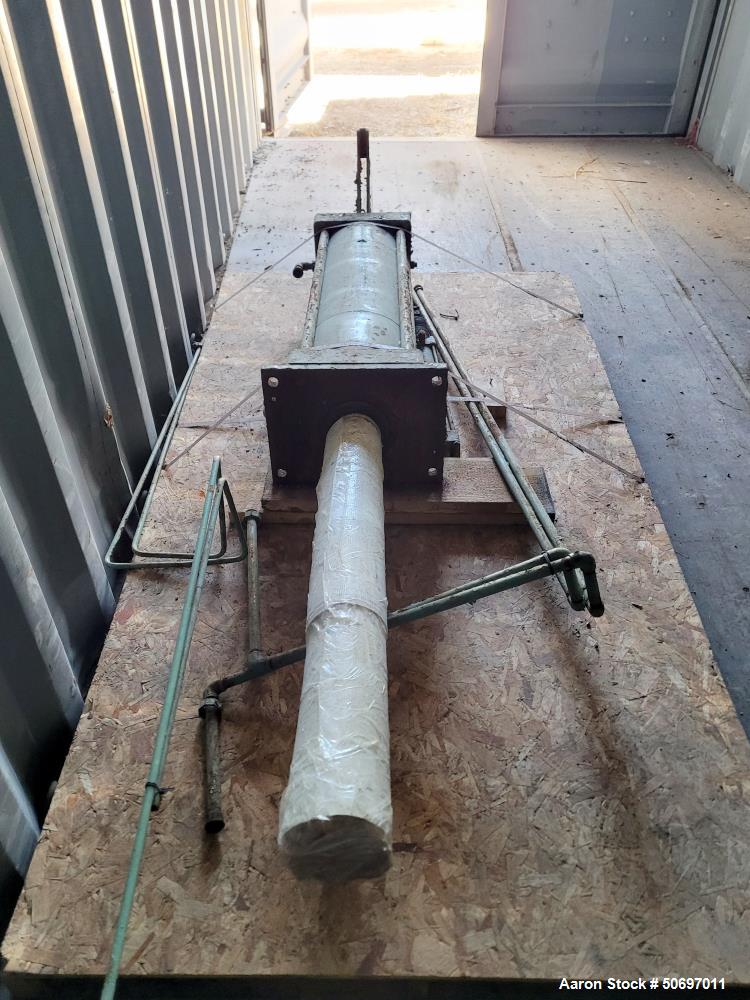

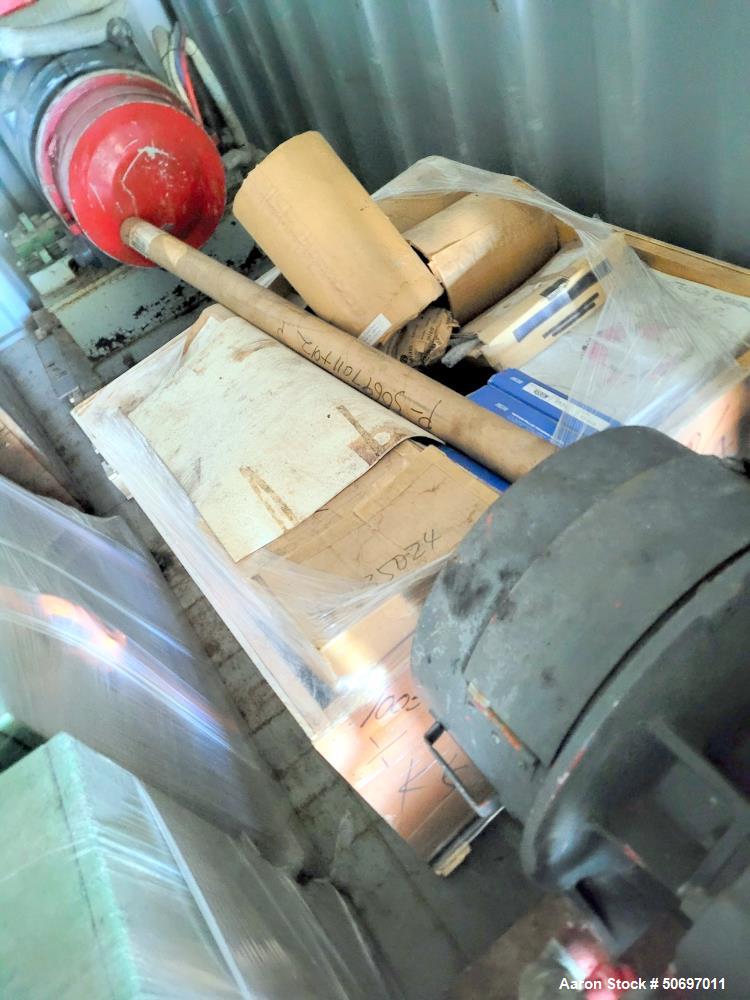

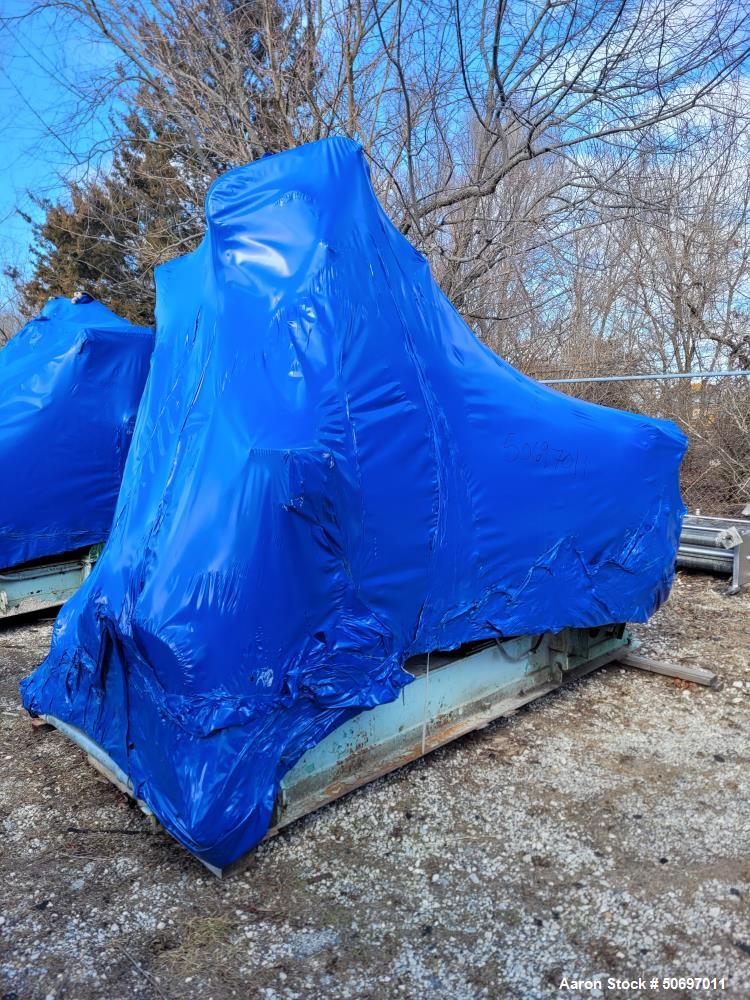

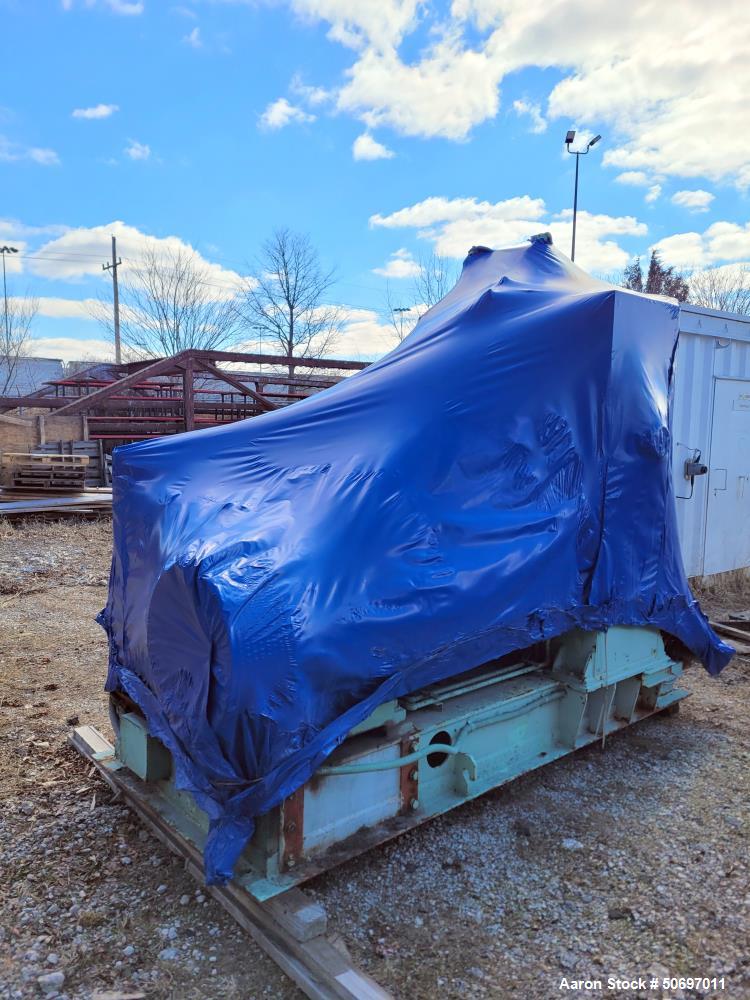

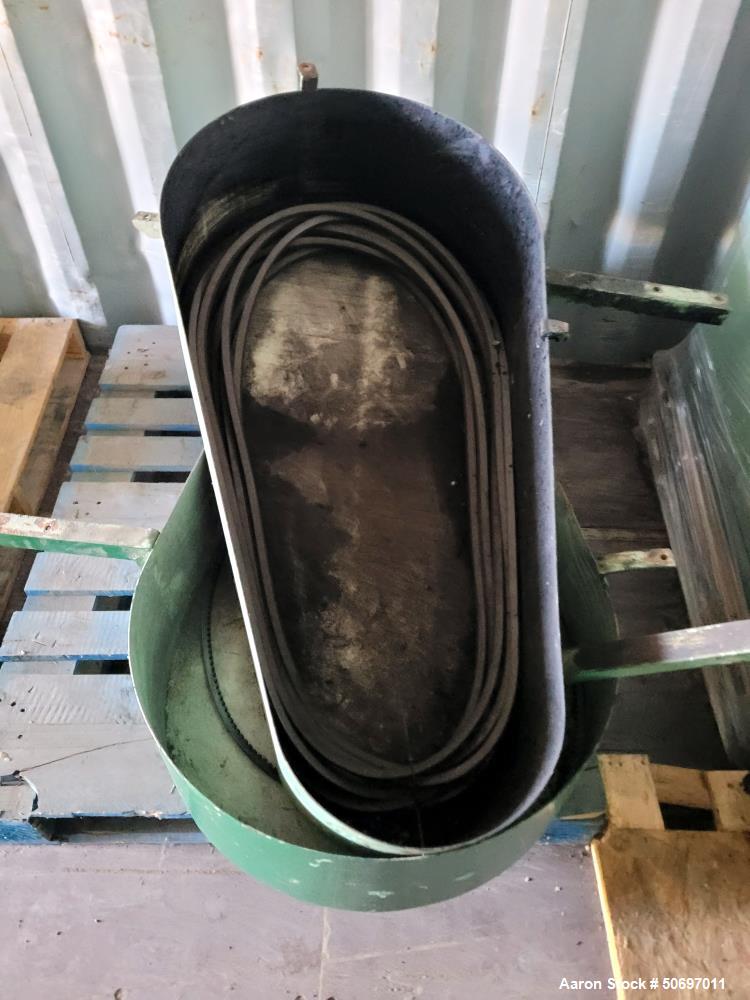

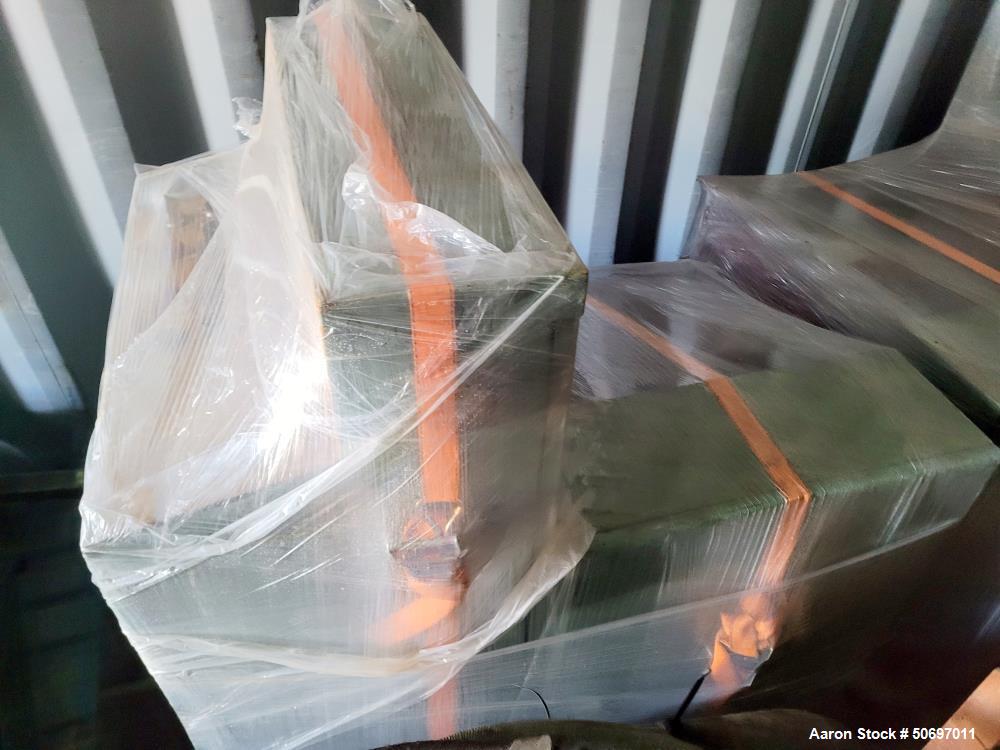

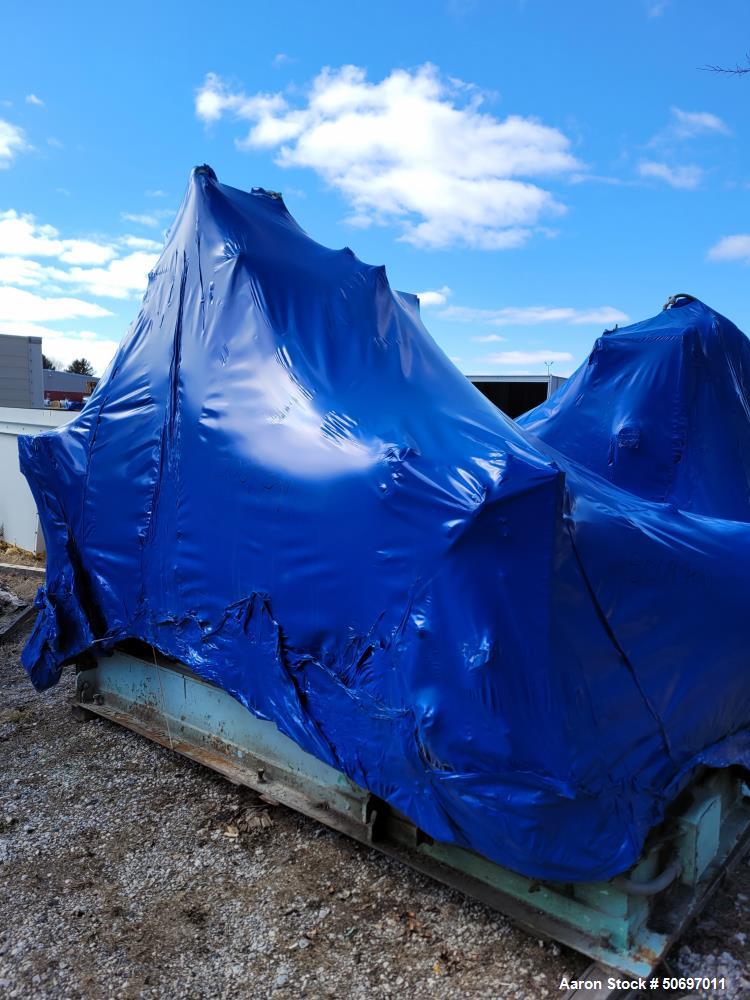

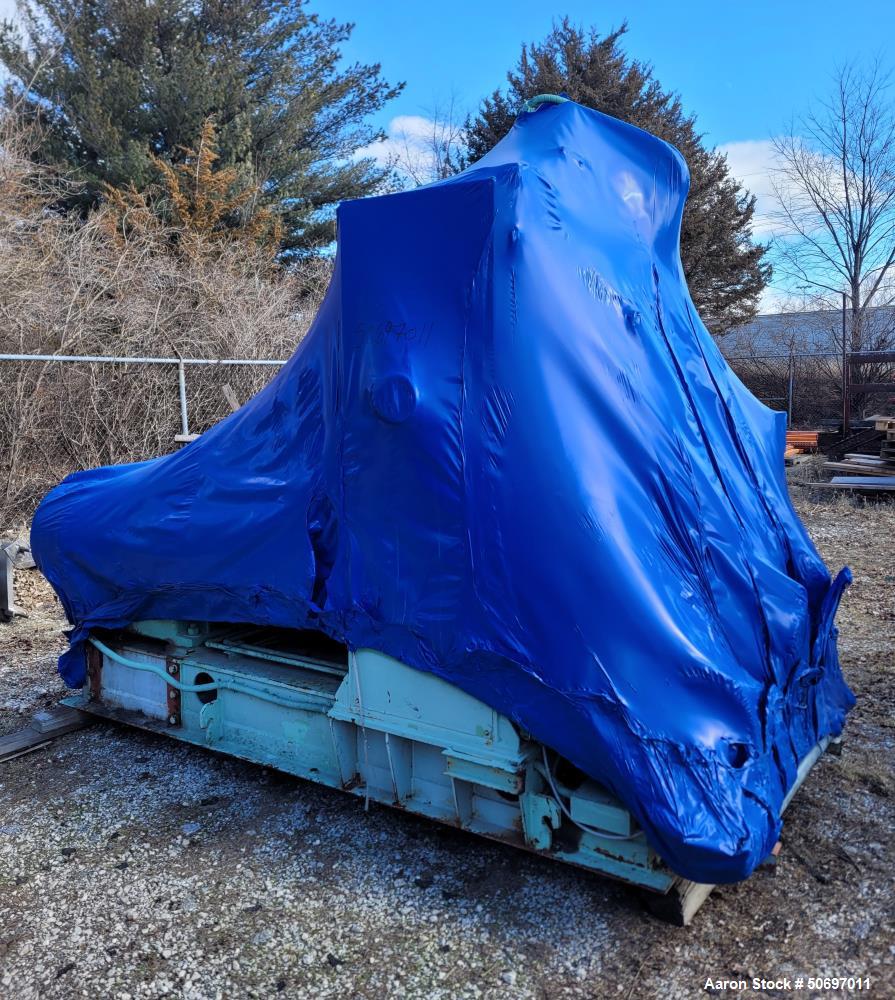

Used Toshin Double Arm Dispersion Mixer, Model TDS75-100MF, Stainless Steel. 75 Liter (19.8 gallon) working capacity, 150 liter (39.6 gallon) total. Jacketed bowl approximate 22" left to right x 23" front to back x approximately 20" deep rated 213 maximum psi at 302 degrees F. Cored masticator blades, front rotor 27 rpm, rear rotor 23 rpm, geared one end, top air operated pressure cap, air operated dust hood, motorized bowl screw tilt with a 2.2kw motor. Mixer driven by a 75kw (100hp), 3/60/480 volt, 1760 rpm motor thru a reducer no ratio. Includes an operator panel and control panel. Mounted on a base. Serial # 916. For Chewing Gum.
Used Equipment Facts About This Machine
Manufacturer Information:
- Brand: Toshin
- Model: TDS75-100MF
- Type: Double Arm Dispersion Mixer
- Material: Stainless Steel
- Serial #: 916
Description:
This used Toshin TDS75-100MF double arm dispersion mixer is a high-performance industrial mixing system, designed for heavy-duty dispersion, kneading, and blending of high-viscosity materials in chemical, food, pharmaceutical, and industrial applications.
With a working capacity of 75 liters (19.8 gallons) and a total capacity of 150 liters (39.6 gallons), this mixer features a jacketed stainless steel bowl (22” L x 23” W x 20” D), rated for up to 213 PSI at 302°F, ensuring precise temperature control for heat-sensitive materials.
Equipped with cored masticator blades, the front rotor runs at 27 RPM, while the rear rotor operates at 23 RPM, ensuring efficient and uniform mixing. The unit is geared on one end and features an air-operated pressure cap and air-operated dust hood for sealed mixing applications.
The mixer includes a motorized bowl screw tilt mechanism powered by a 2.2 kW motor, allowing for easy discharge of mixed materials. It is driven by a powerful 75 kW (100 HP), 3/60/480V, 1760 RPM motor through a reducer (no ratio specified), ensuring high-torque mixing for dense, high-viscosity materials.
The unit also includes an operator panel and control panel, providing precise control over mixing parameters. Mounted on a durable base, this mixer is built for long-term industrial use.
Specifications:
- Model: TDS75-100MF
- Working Capacity: 75 Liters (19.8 Gallons)
- Total Capacity: 150 Liters (39.6 Gallons)
- Material: Stainless Steel
- Bowl Dimensions: 22” L x 23” W x 20” D (Jacketed)
- Jacket Rating: 213 PSI at 302°F
- Blades: Cored Masticator Blades
- Blade Speeds:
- Front Rotor: 27 RPM
- Rear Rotor: 23 RPM
- Tilt Mechanism: Motorized Bowl Screw Tilt (2.2 kW Motor)
- Lid Features:

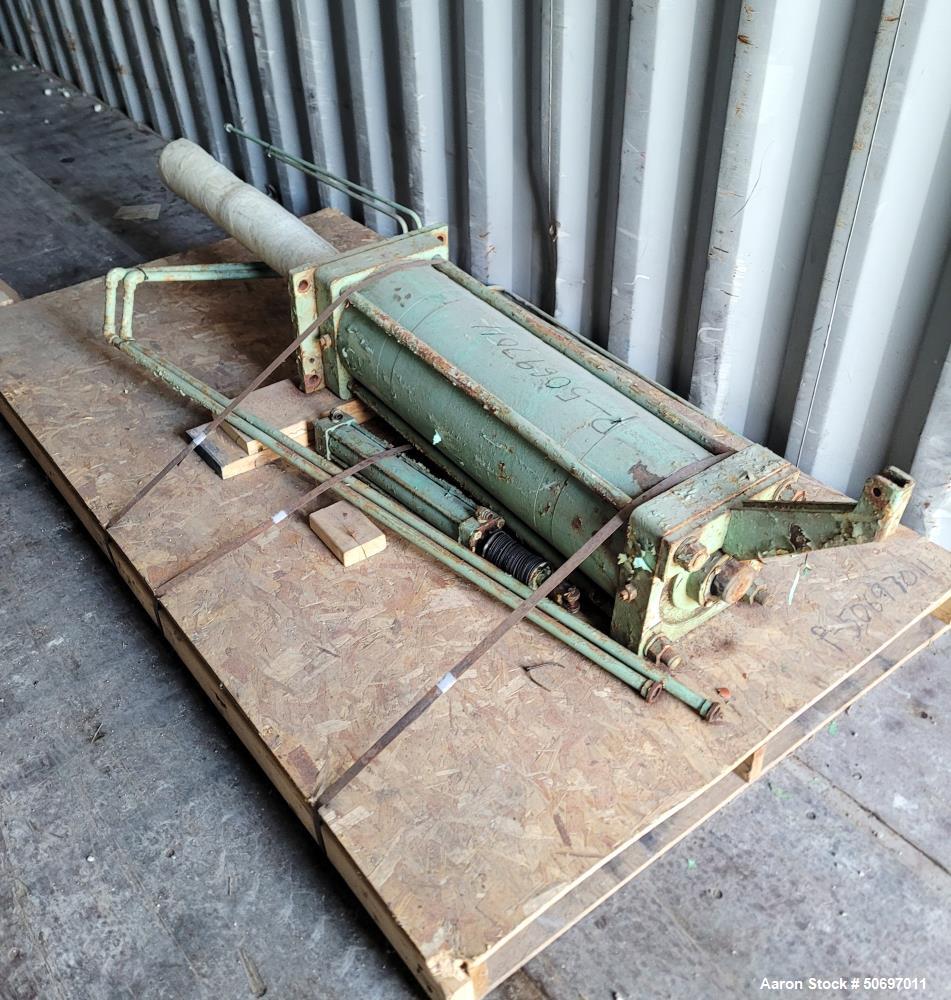

- Air-Operated Pressure Cap

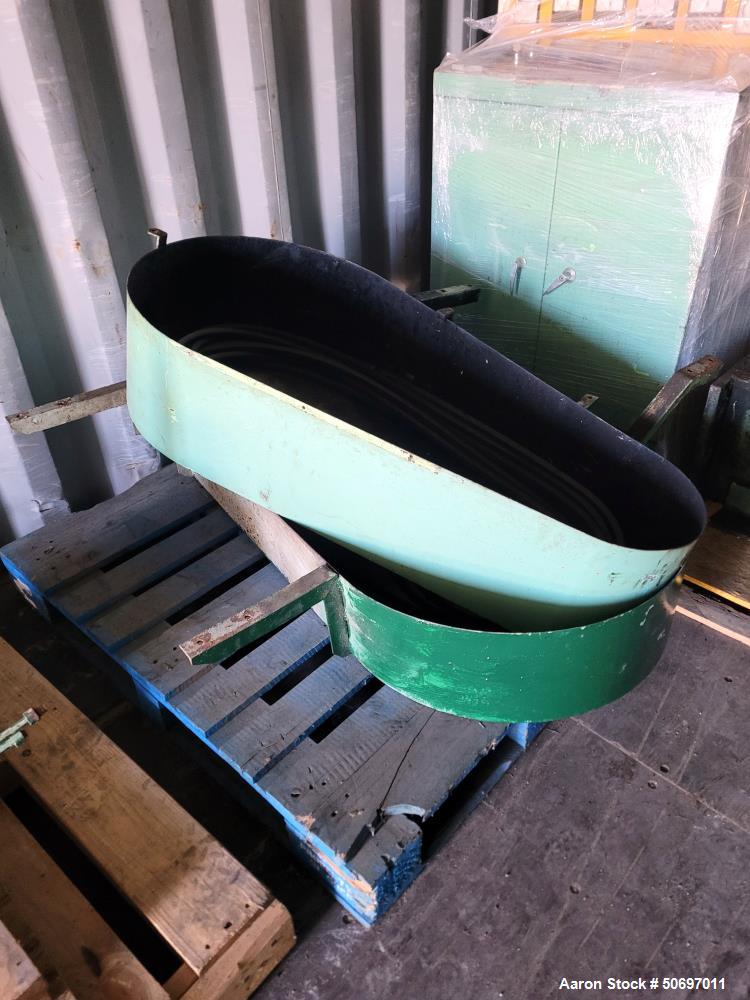

- Air-Operated Dust Hood

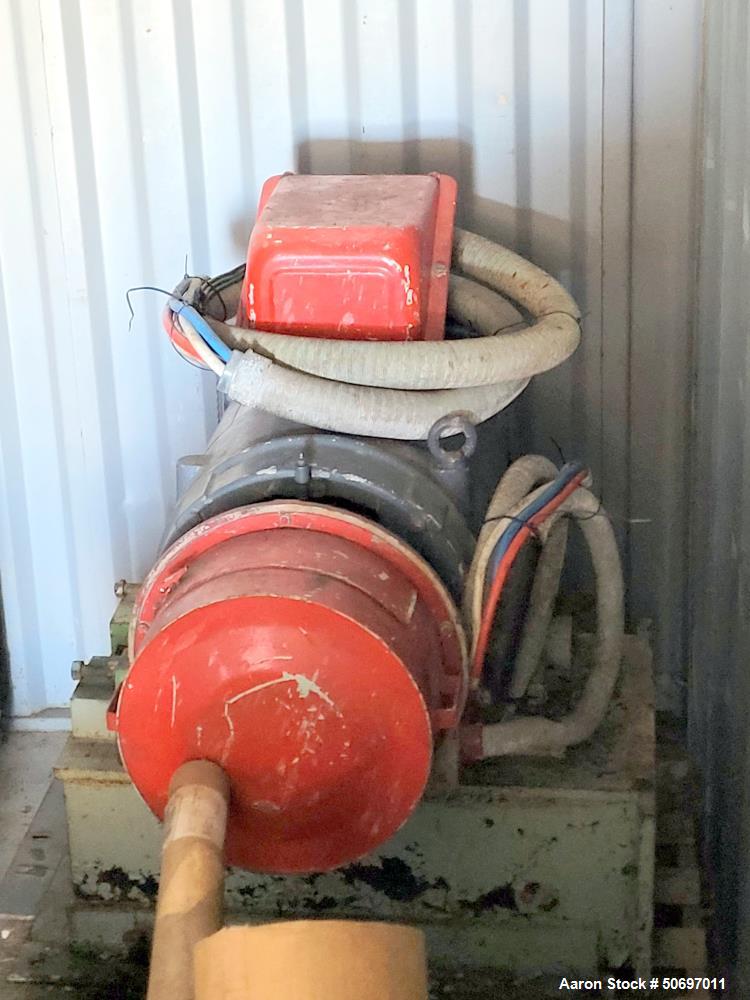

- Mixer Motor: 75 kW (100 HP), 3/60/480V, 1760 RPM (through reducer, no ratio)

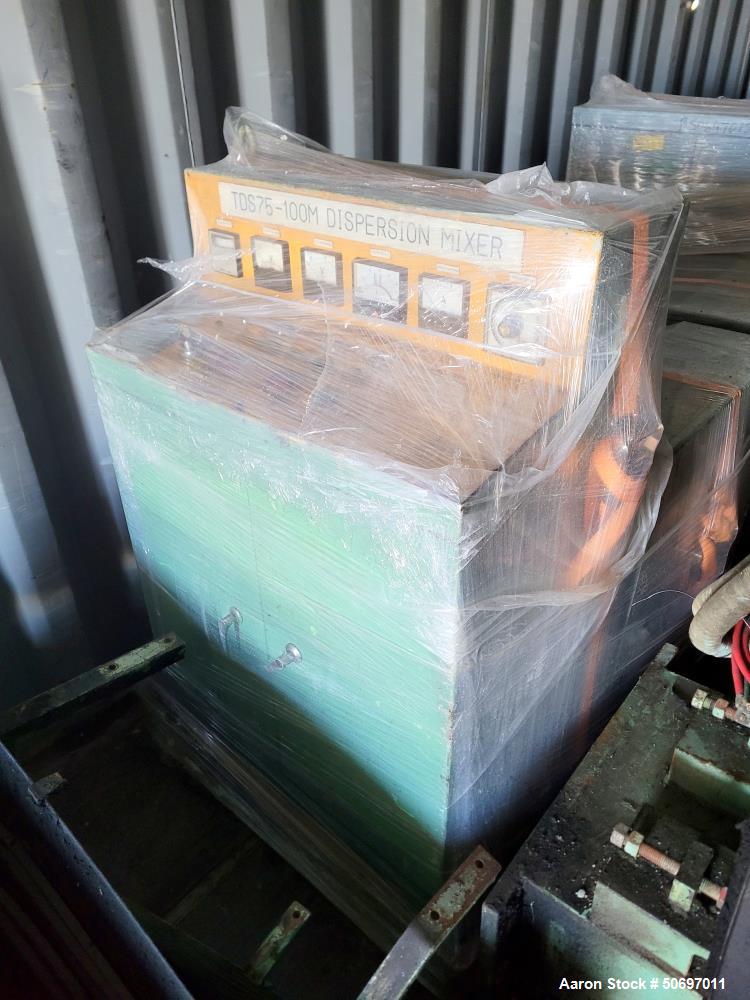

- Controls: Operator Panel & Control Panel
- Mounting: Base Mounted
- Serial #: 916
Applications:
- Chemical Processing – High-viscosity adhesives, sealants, and reaction compounds
- Food Processing – Thick pastes, doughs, and emulsions
- Pharmaceutical & Biotech – Creams, ointments, and high-density formulations
- Plastics & Polymers – Mixing of resins, putties, and composite materials
- Cosmetics & Personal Care – Skincare formulations, balms, and emulsions
What Products Would This Be Used For?
- High-viscosity adhesives, resins, and sealants
- Pharmaceutical creams, gels, and ointments
- Industrial coatings, pigments, and dispersions
- Confectionery pastes, doughs, and food emulsions
- Cosmetic lotions, balms, and personal care products
- Chewing Gum
