THIS ITEM HAS SOLD! View similar equipment

Stock No.: 50697010

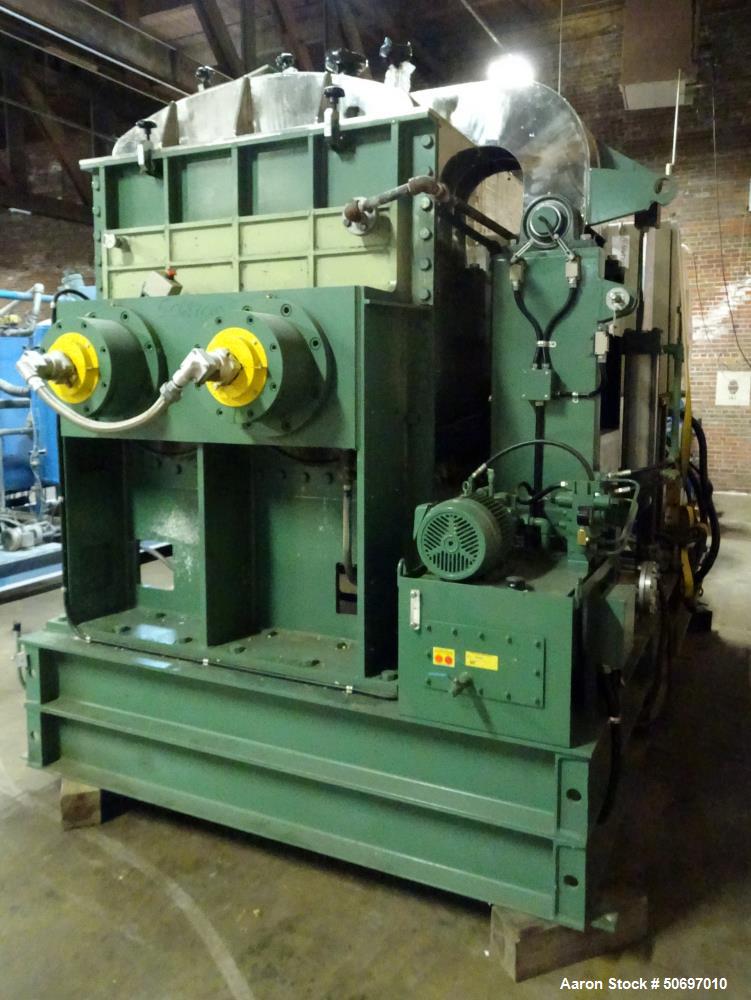

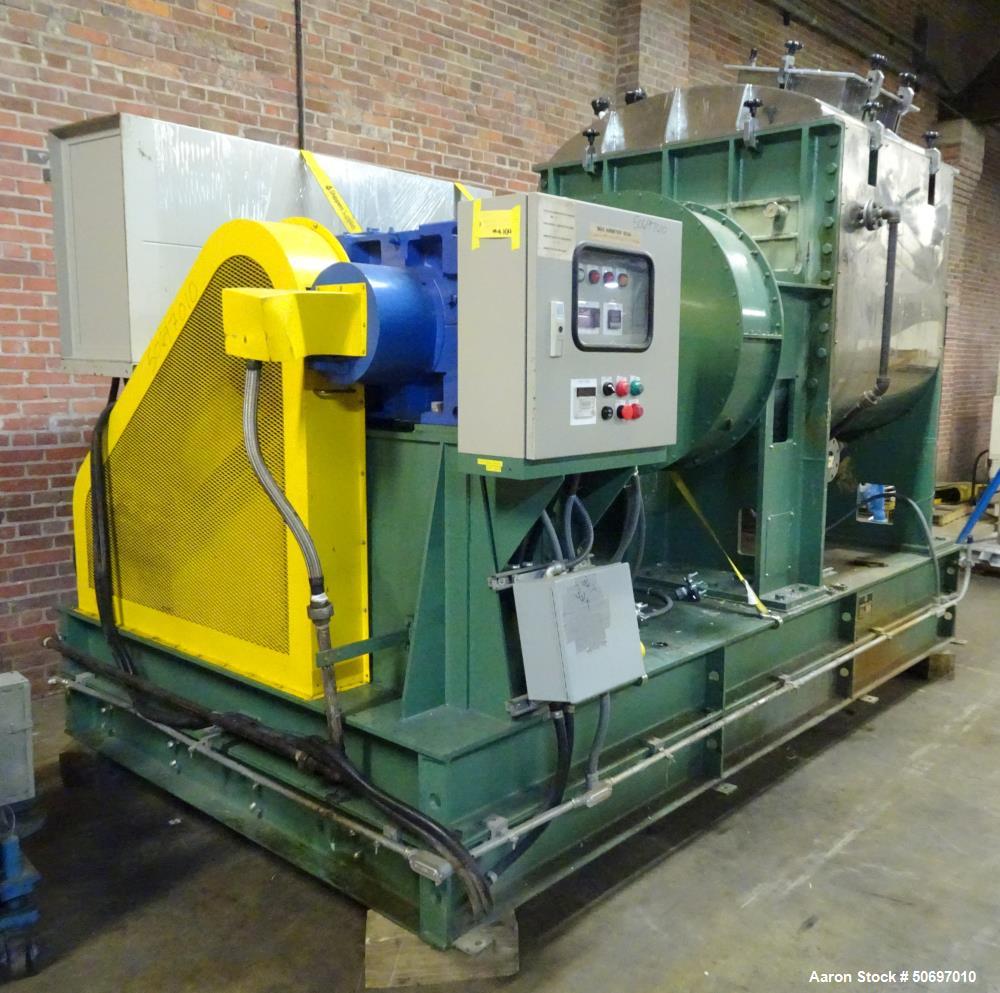

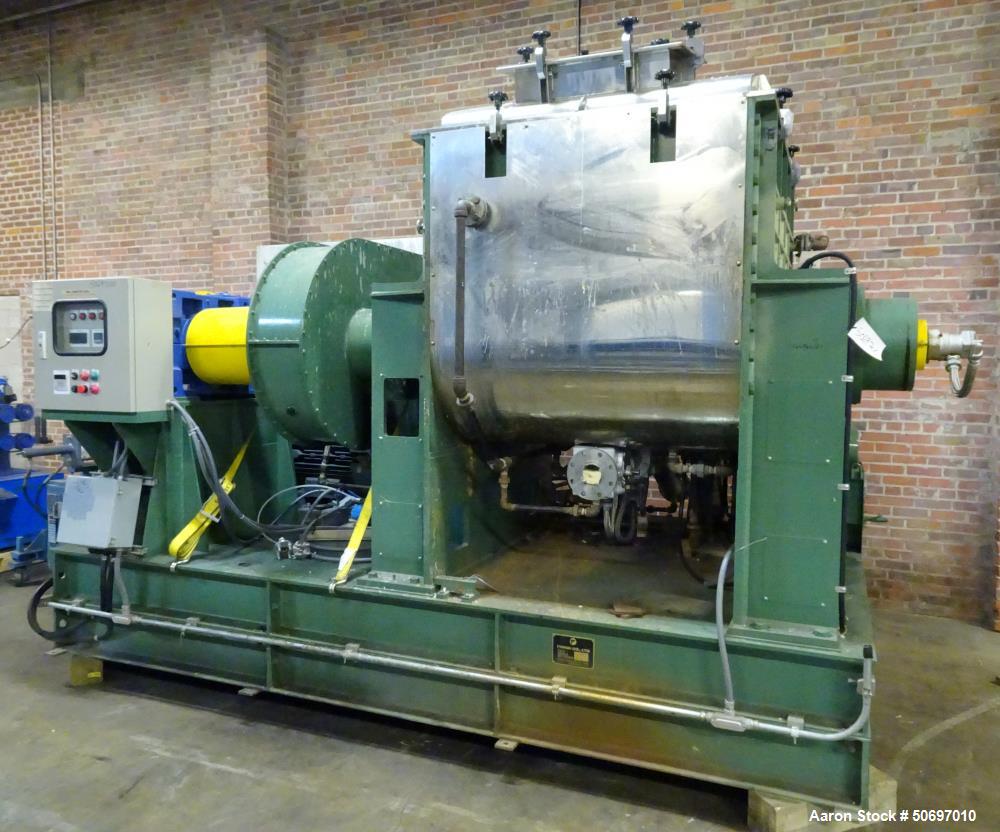

Used Toshin Co. Double Arm Mixer, Model TKB1600-100, Approximately 1600 Liter

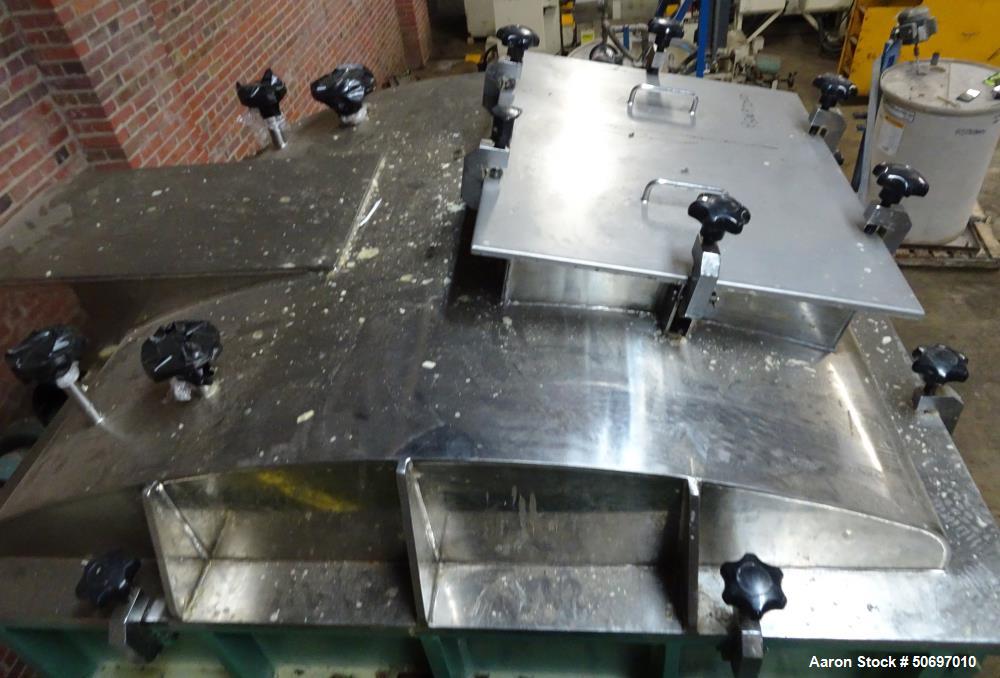

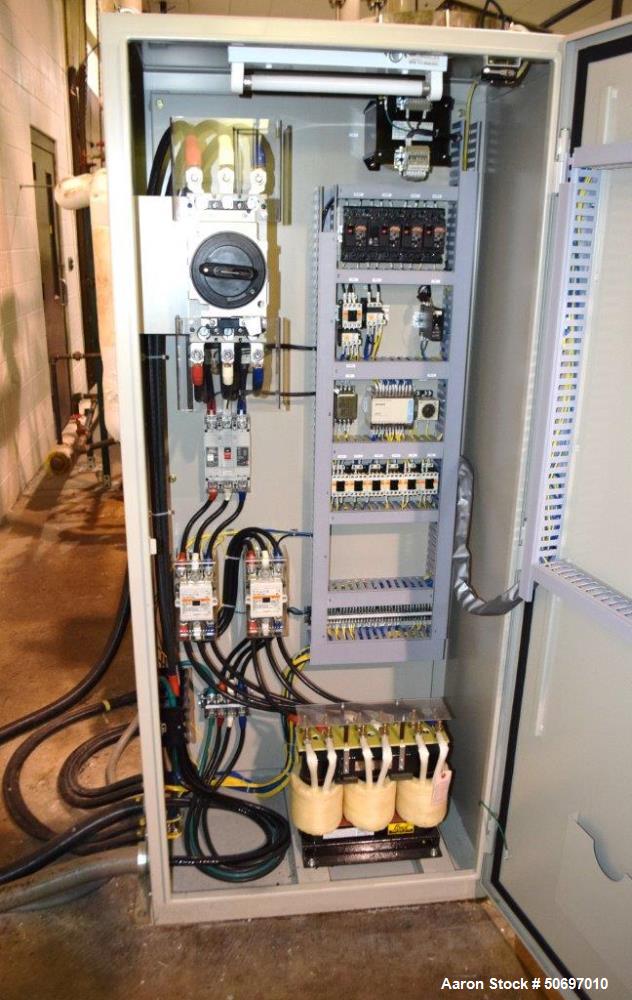

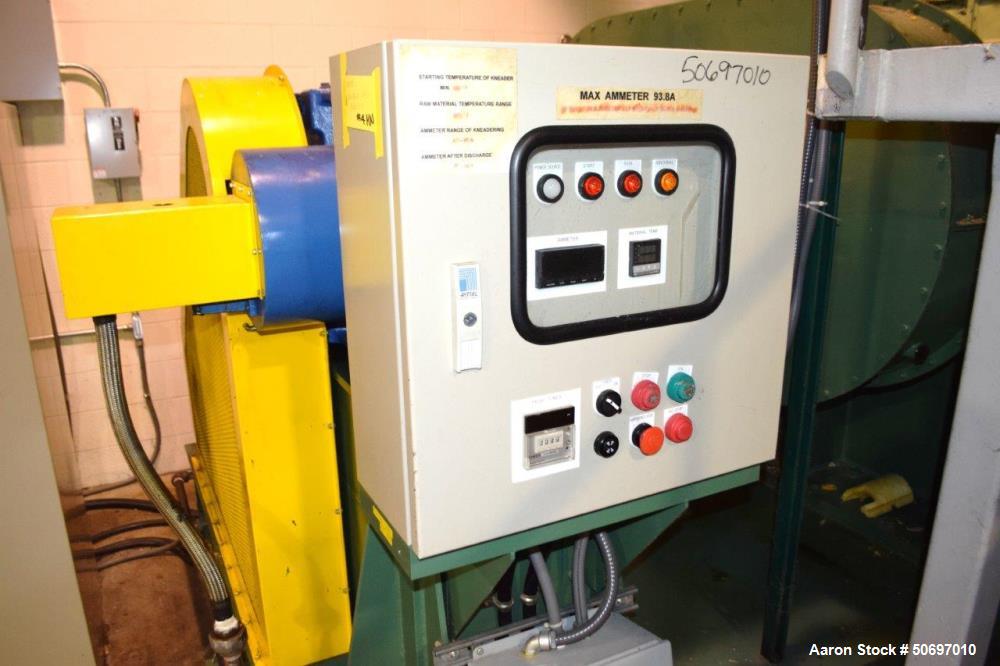

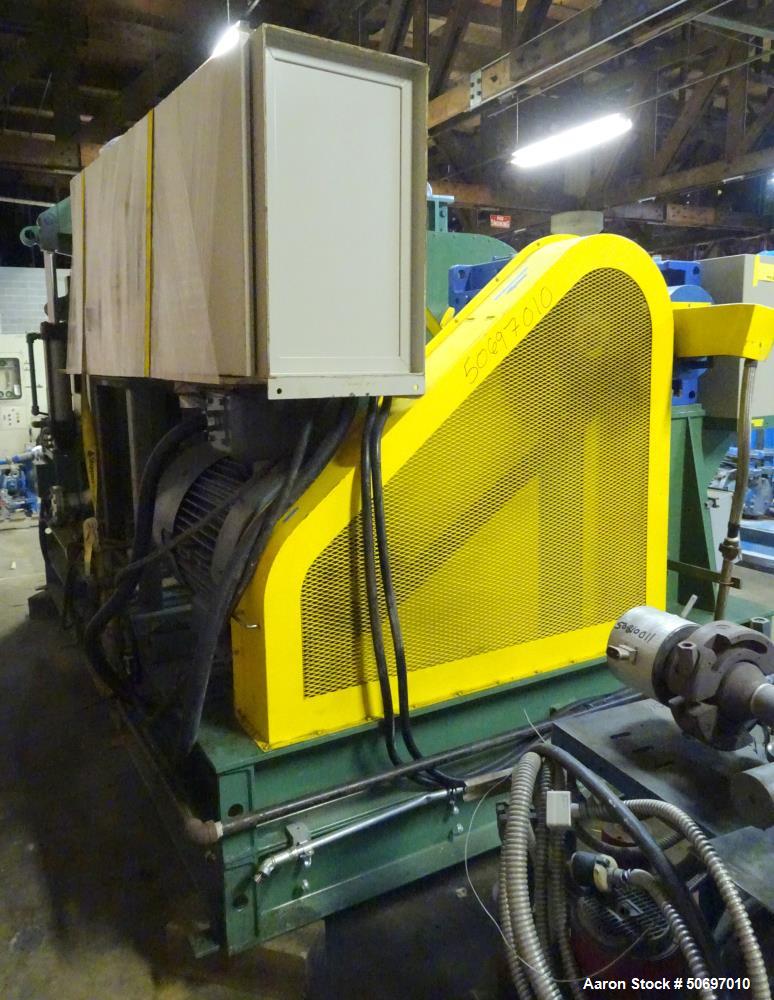

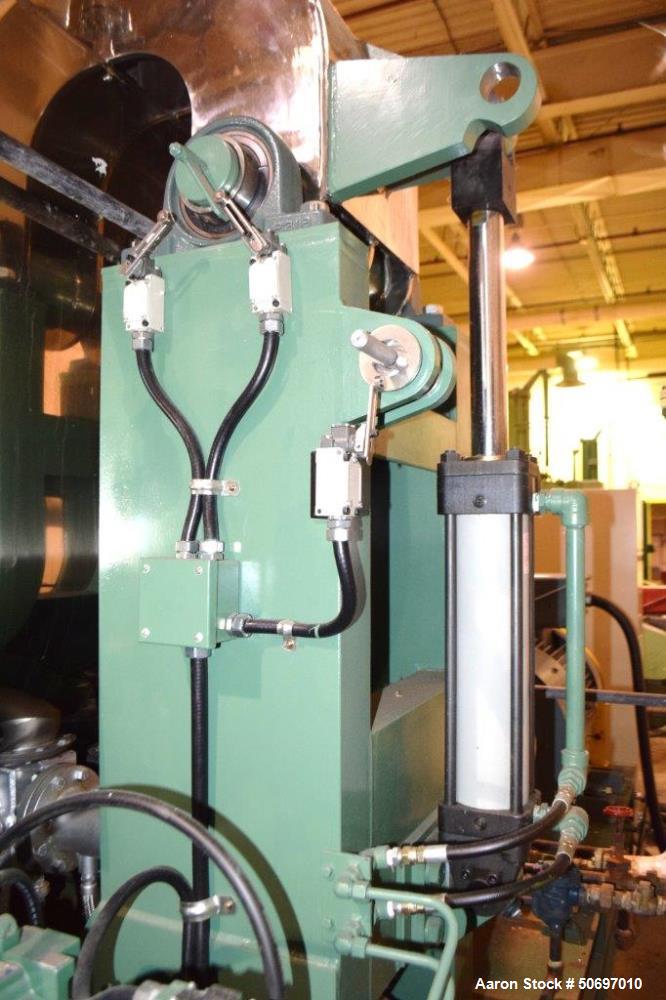

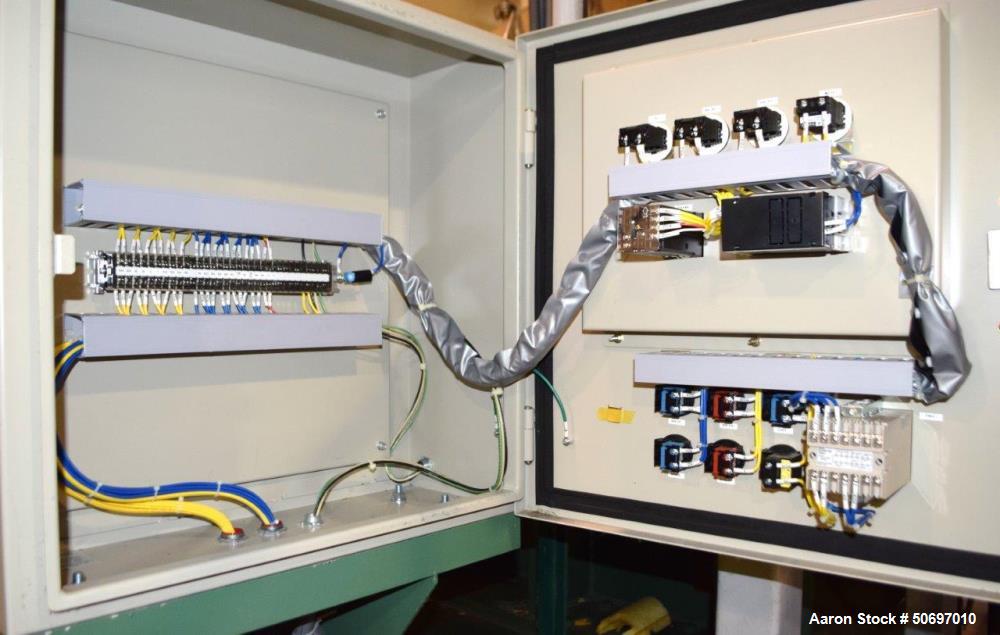

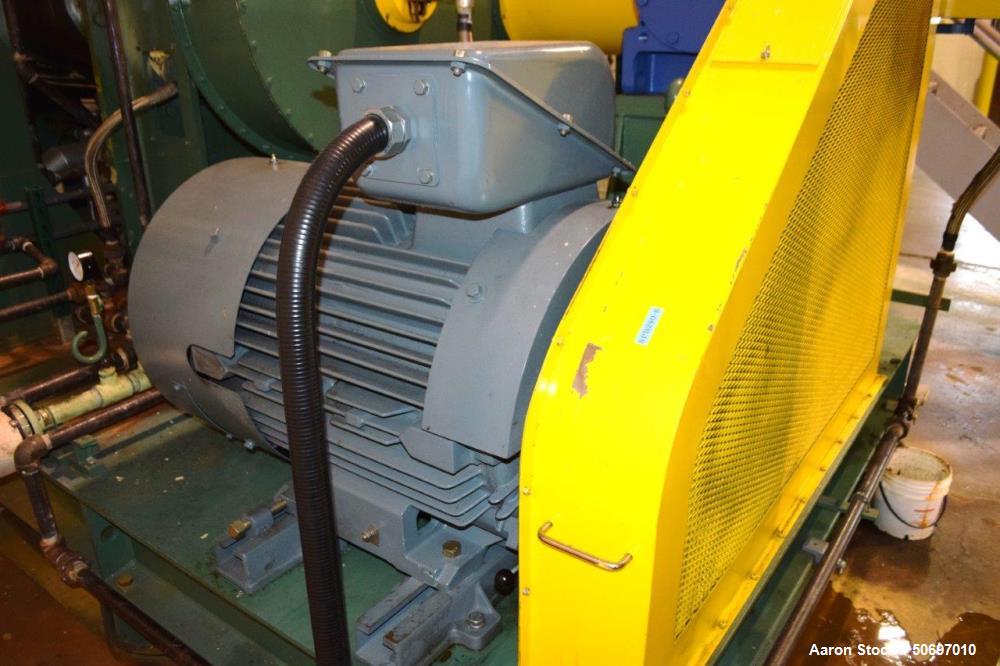

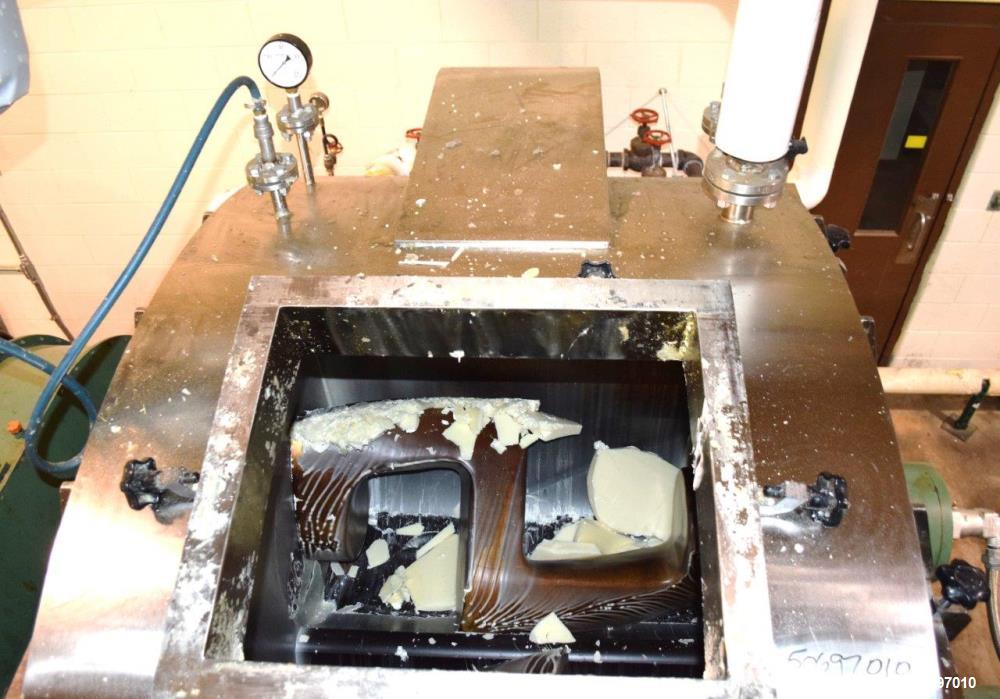

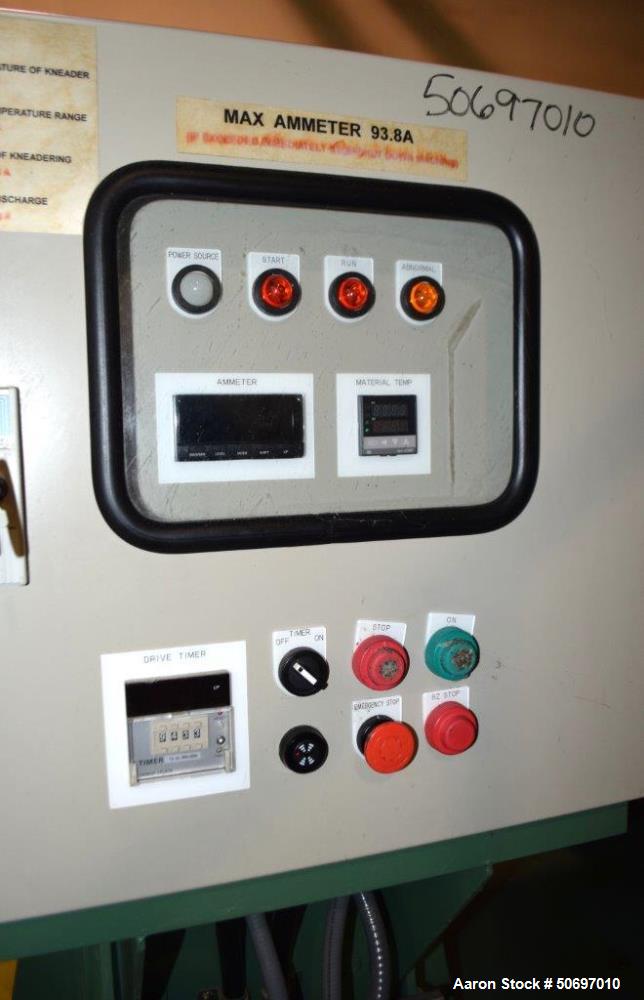

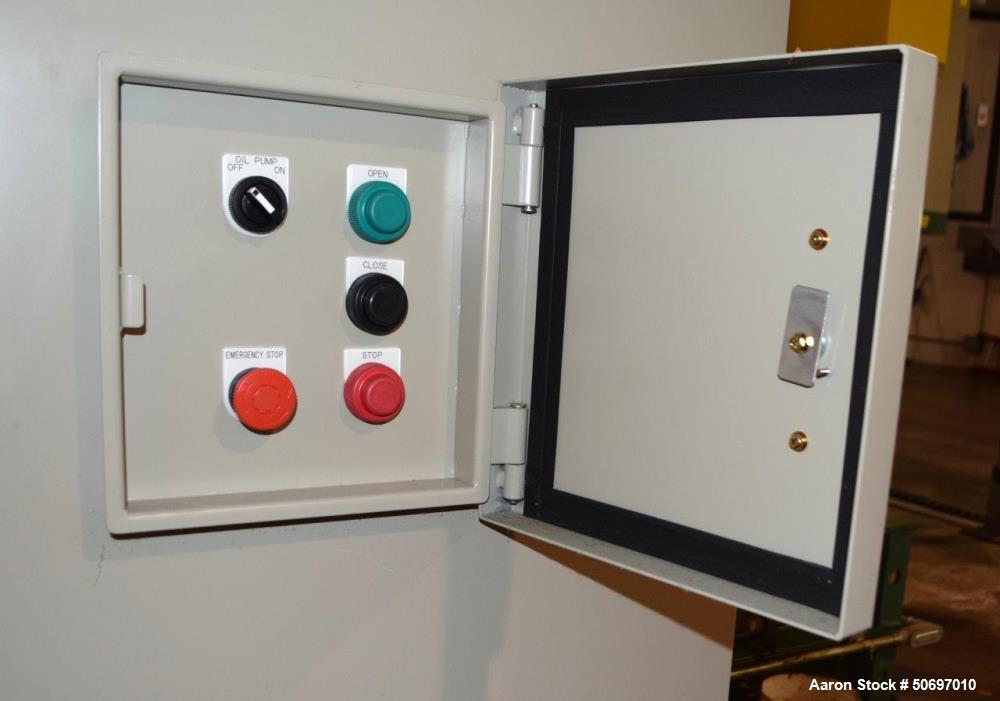

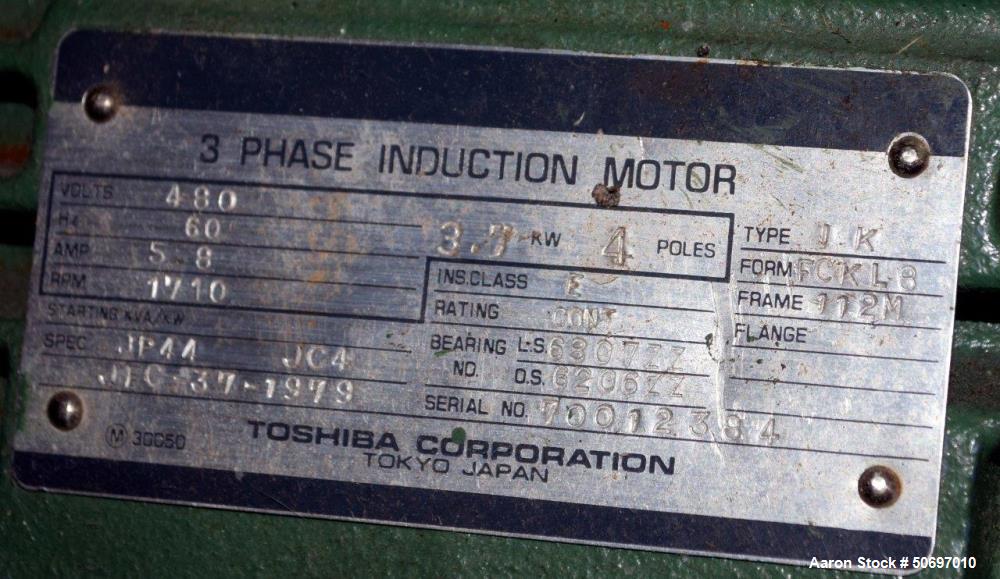

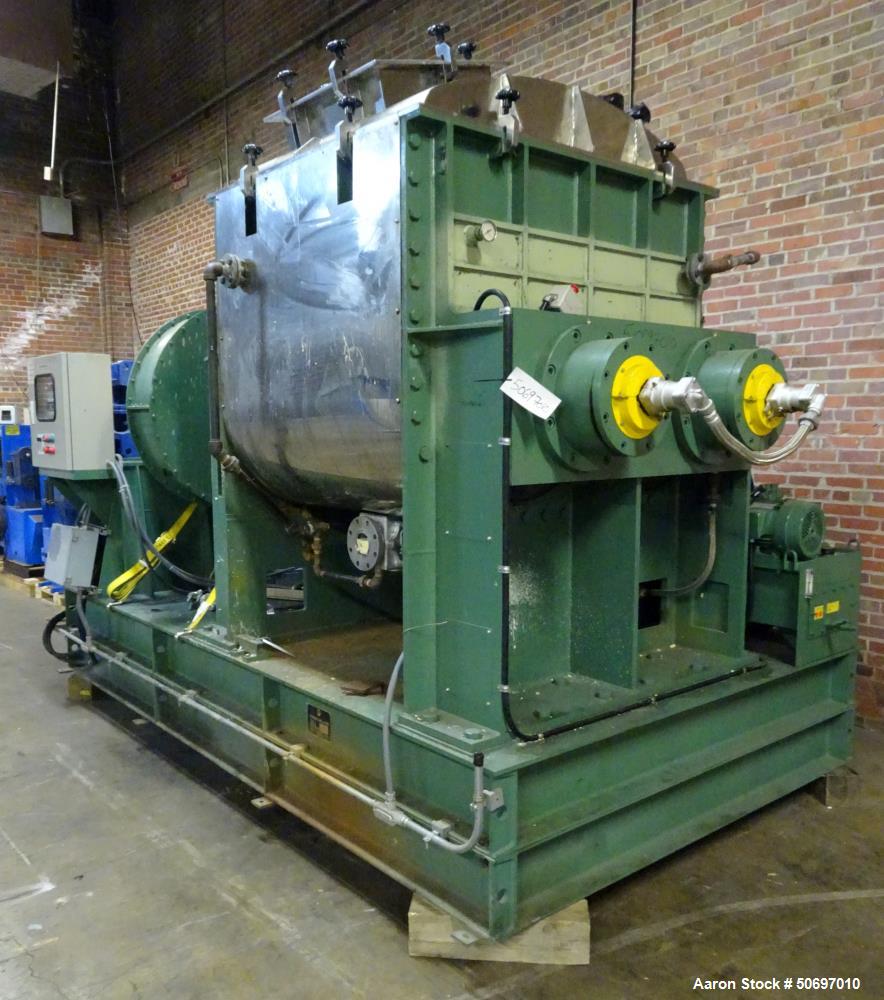

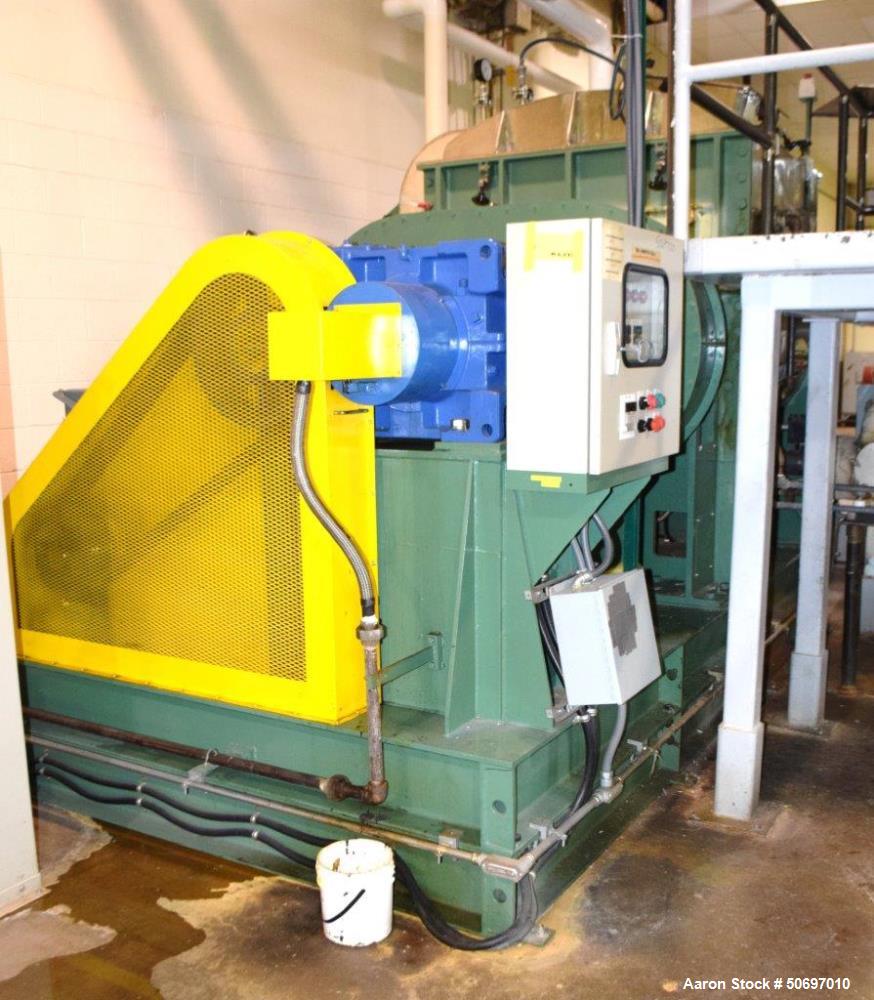

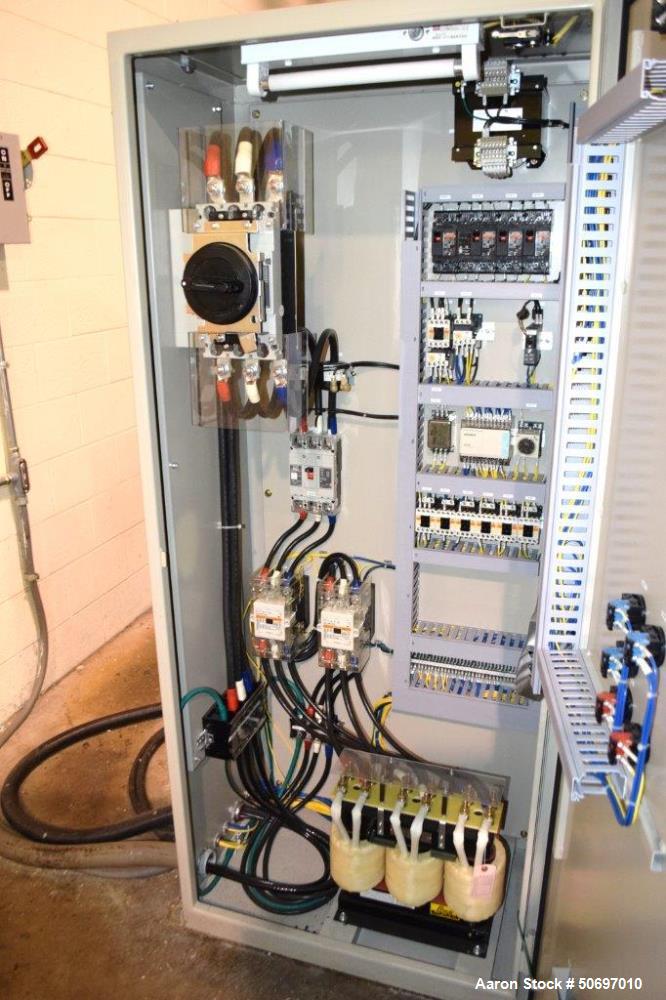

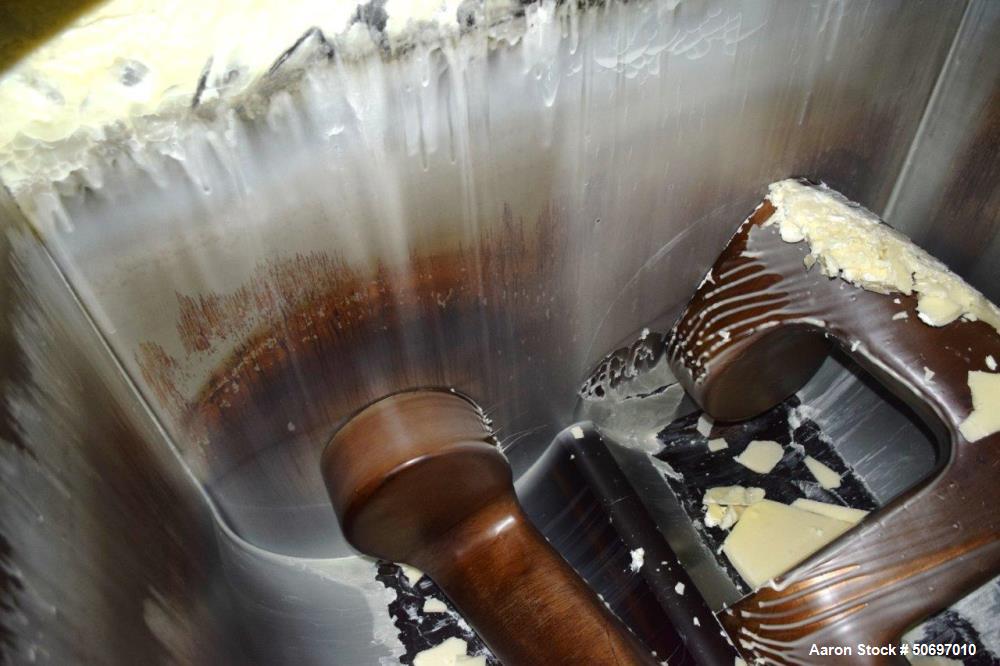

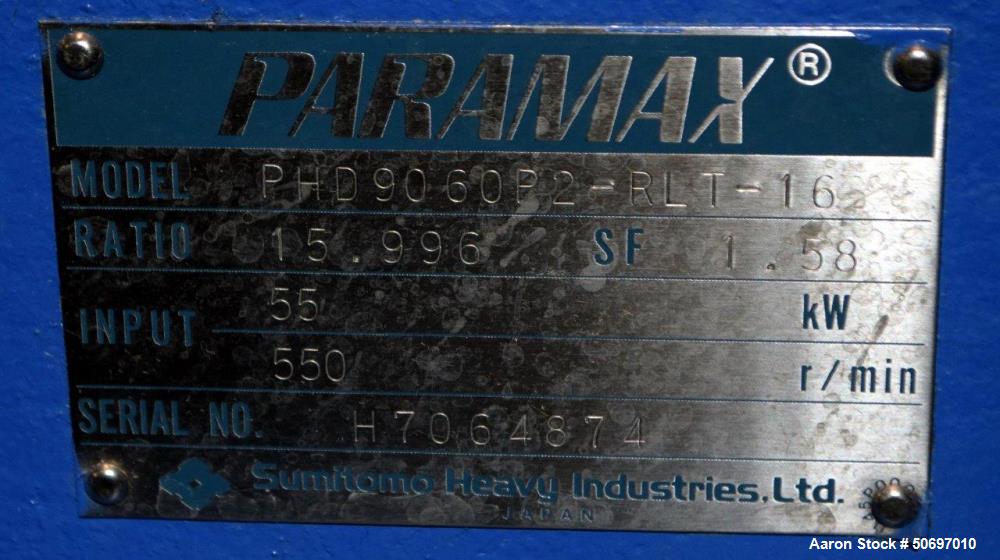

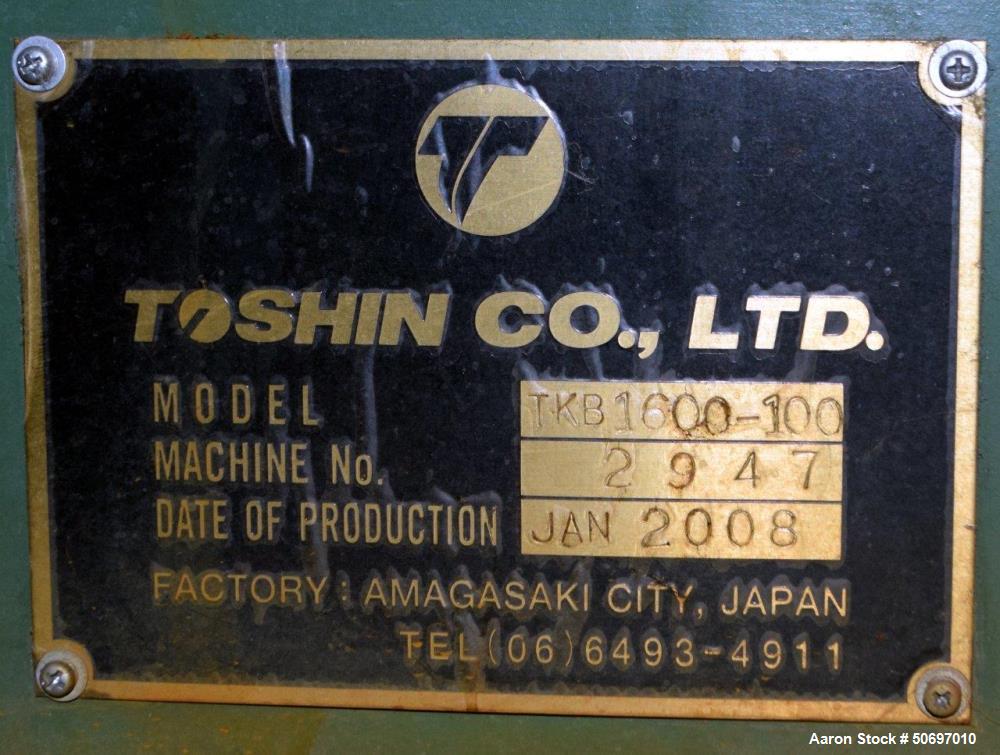

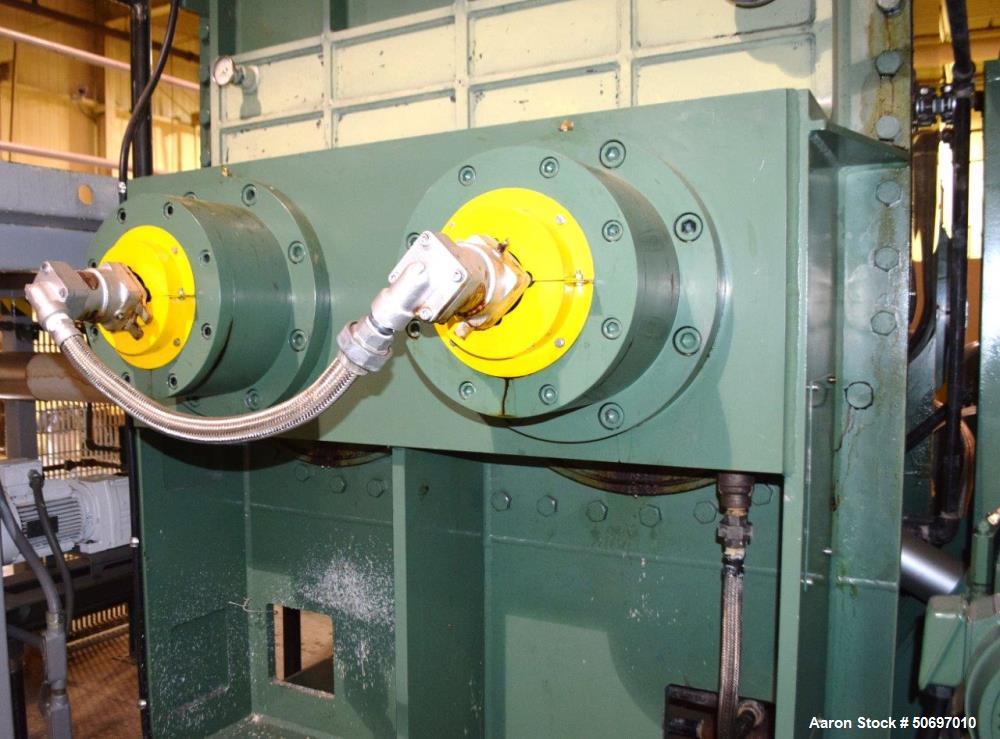

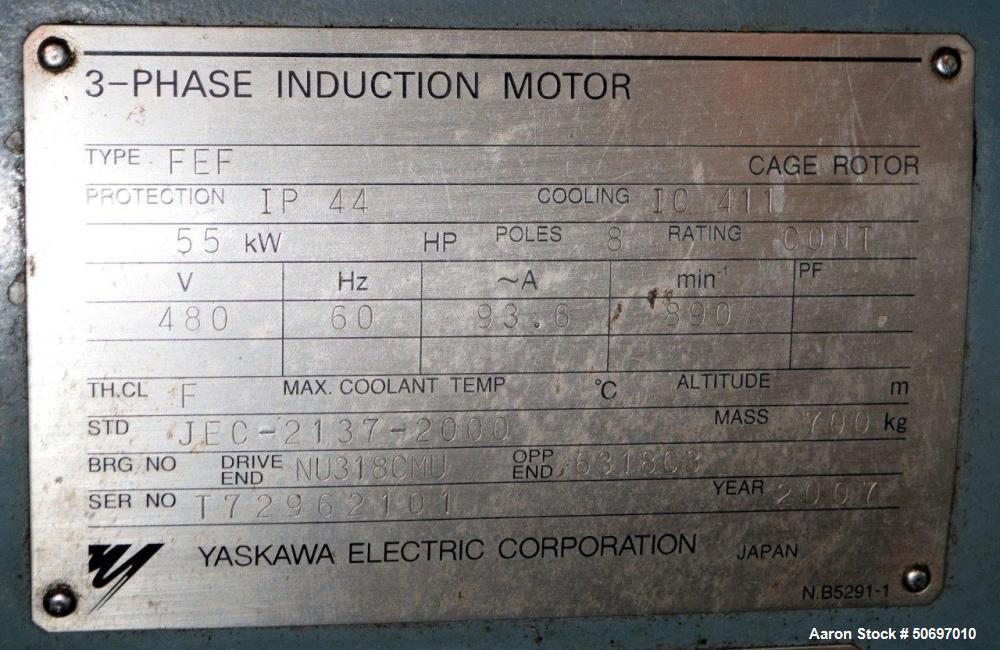

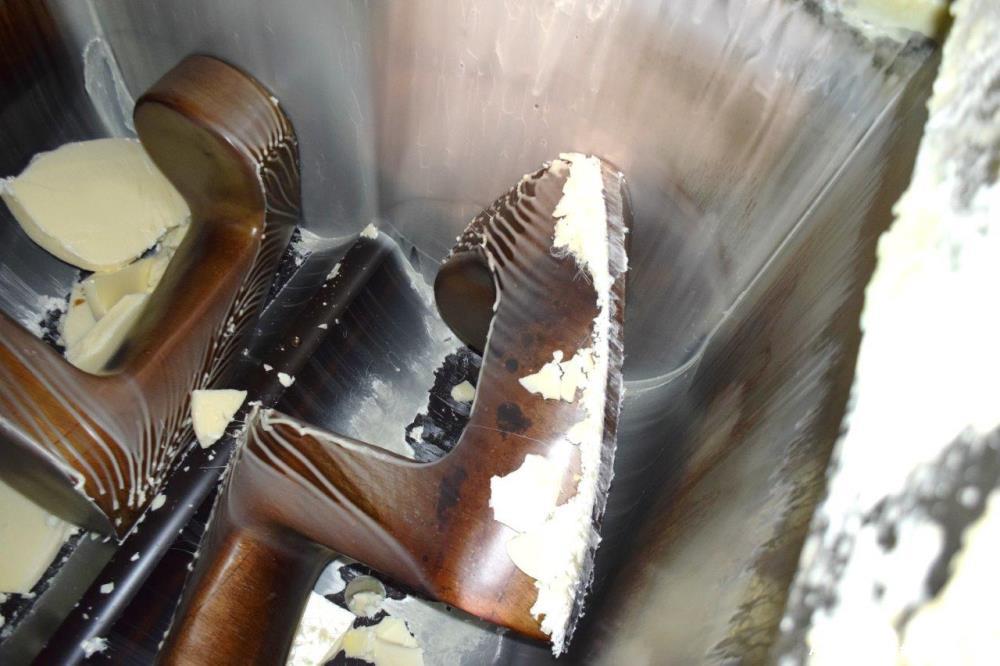

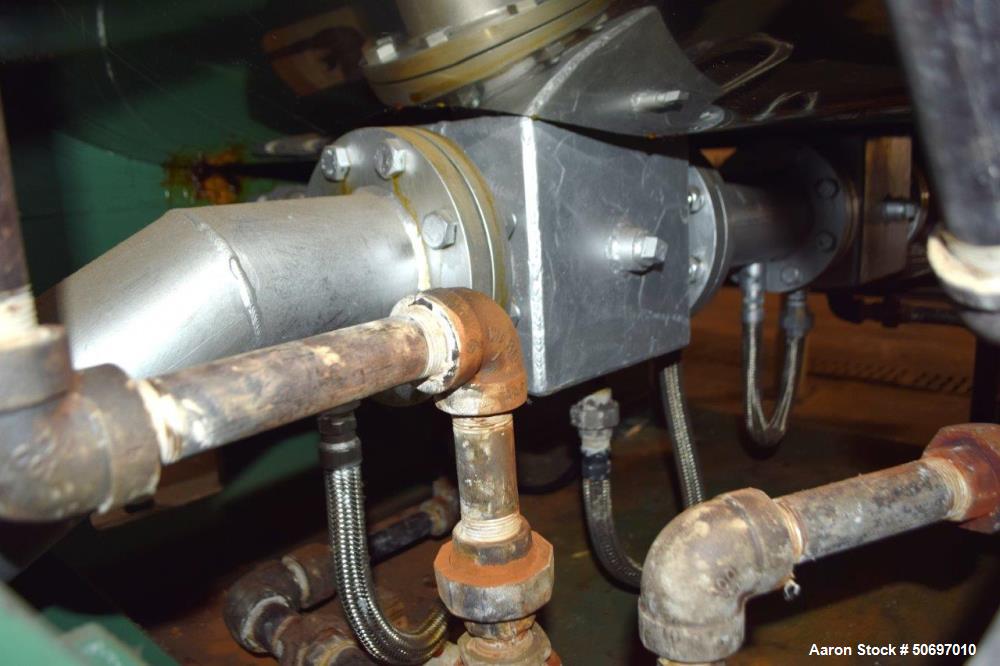

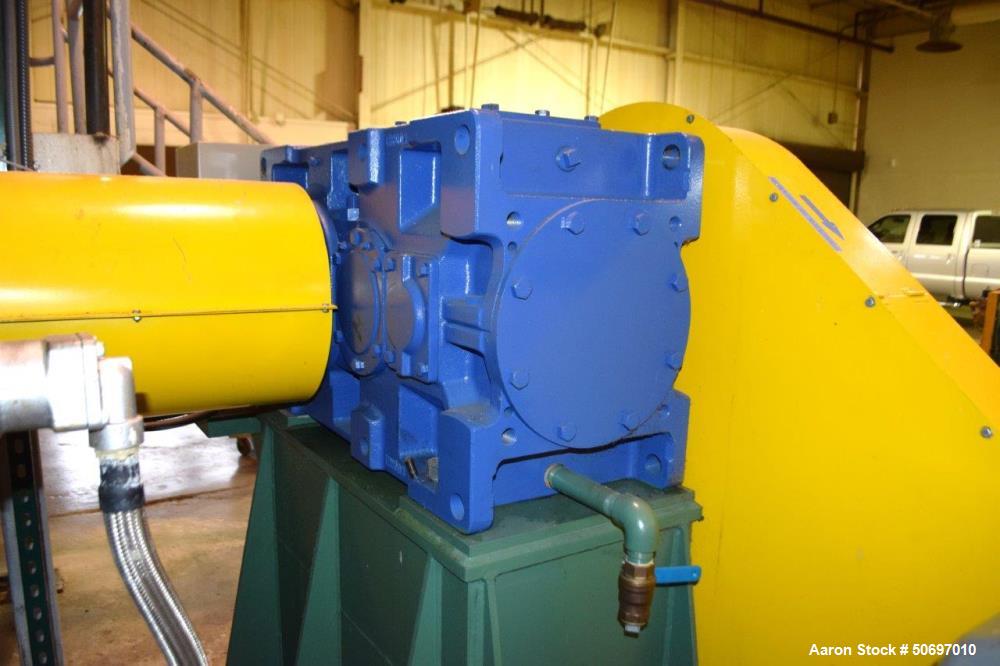

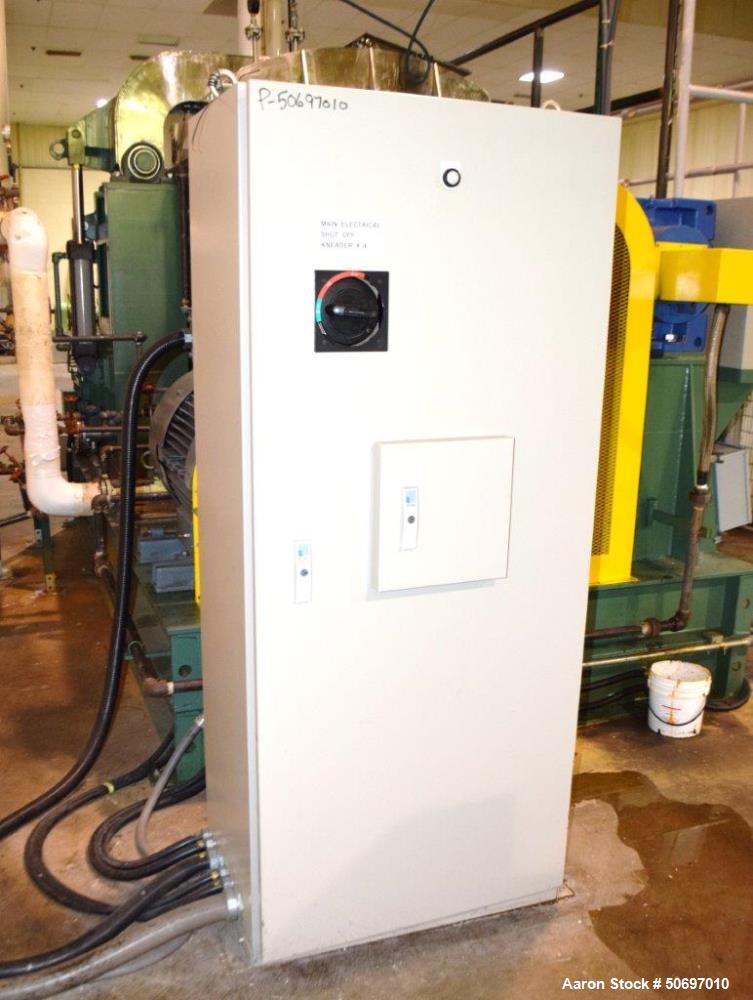

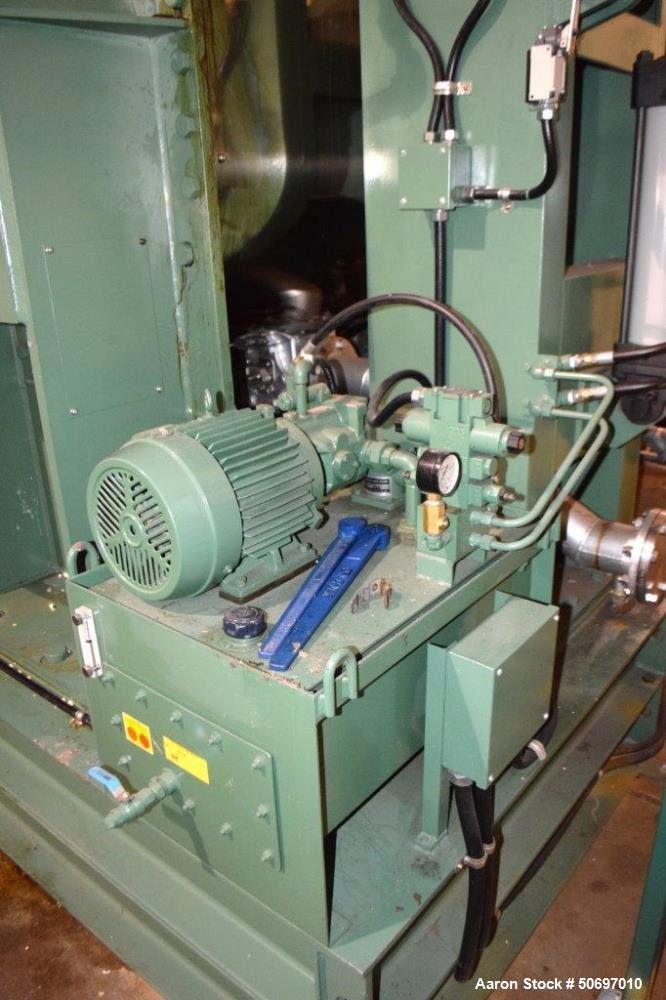

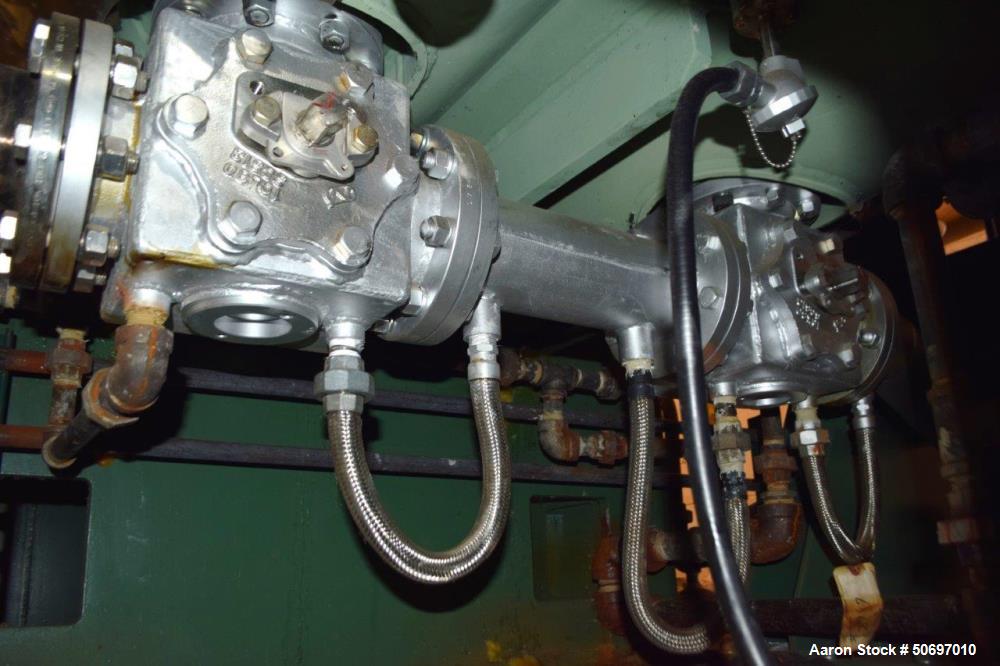

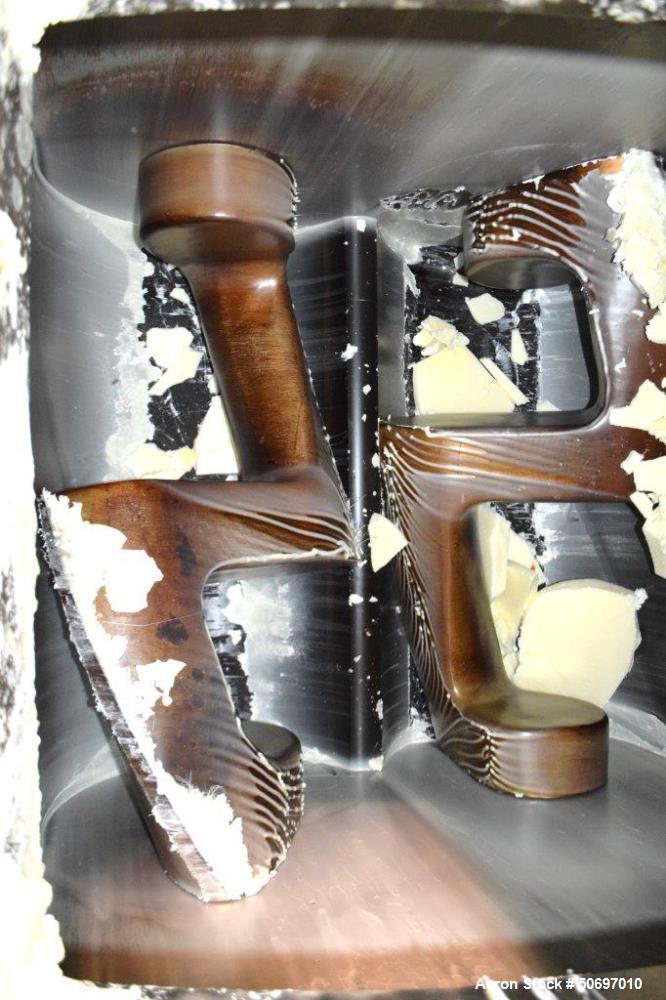

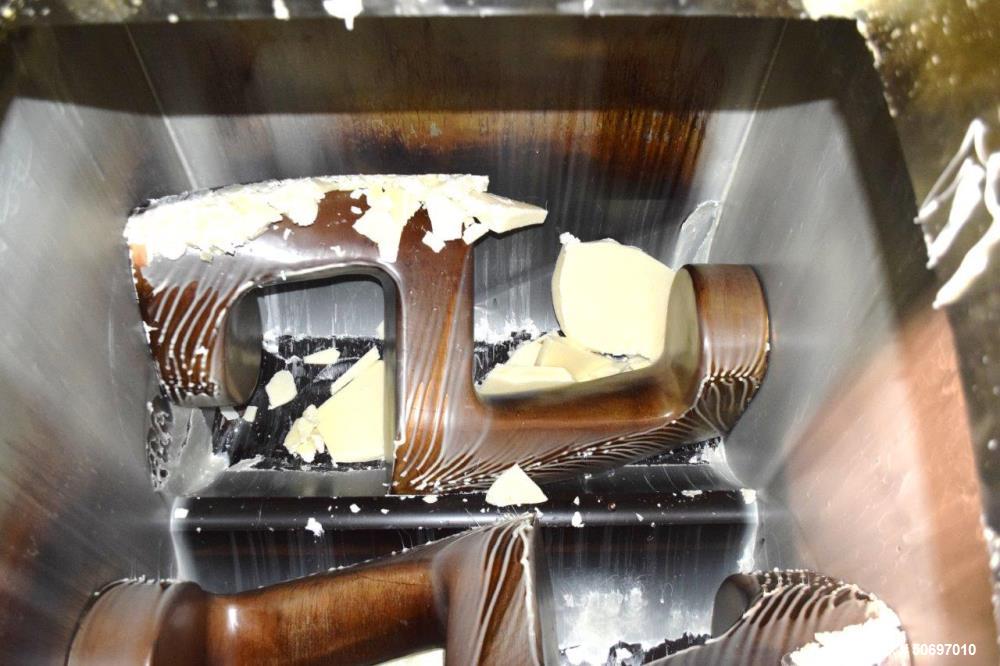

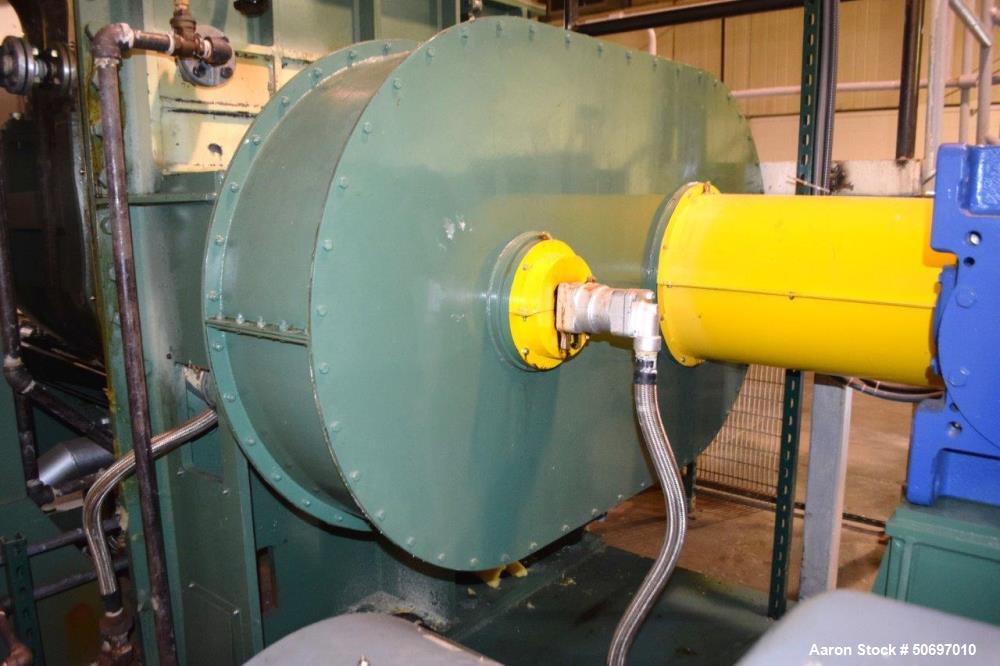

Used- Toshin Double Arm Mixer, Model TKB1600-100, 304 Stainless Steel. 1000 Liter (264 gallon) working capacity, 1600 liter (422 gallon) total. Carbon steel jacketed bowl approximate 48" left to right x 52" front to back x approximately 38" deep. Cored tangential SUS13 stainless steel sigma blades, rear blade speed 34 rpm, front blade speed 18.5 rpm, geared one end. Domed top cover suitable for vacuum with hydraulic pedestal stand with a 3.7 kw power pack. Mixer driven by a 55 kw (75 hp), 3/60/480 volt, 890 rpm motor thru a Sumitomo reducer, ratio 15.996 to 1. Bottom discharge. Includes an operator and control panel. Mounted on a base. Serial # 2947. Built 2008.

ManufacturerToshin
Serial #2947
CategoryMixers
SubcategoryDouble Arm Mixer

We offer a variety of finance programs. Please contact your sales person for more information.
