Used- Jacketed Double Arm Mixer

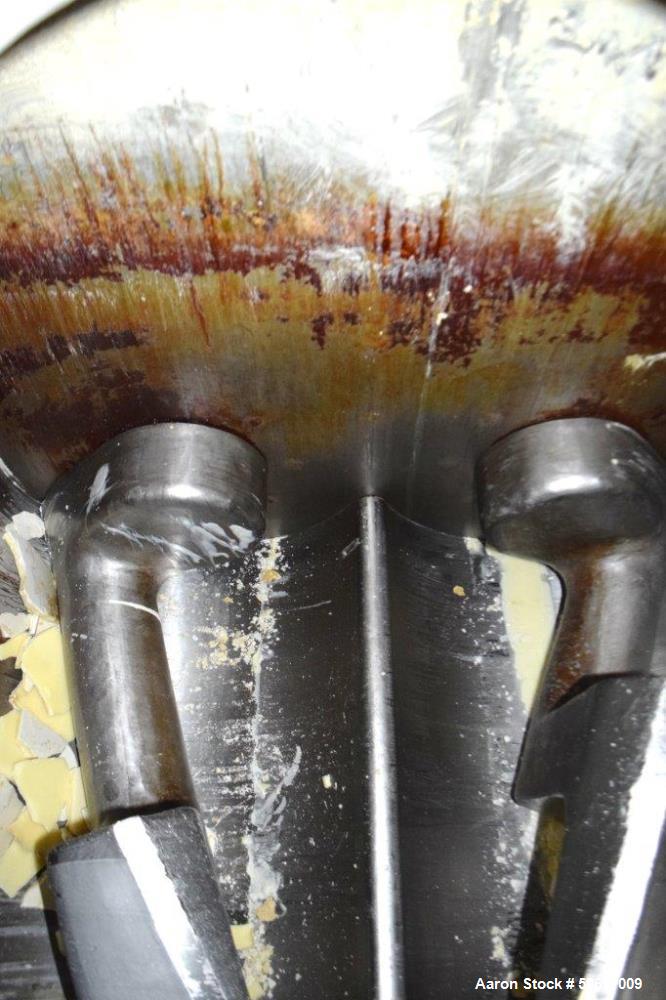

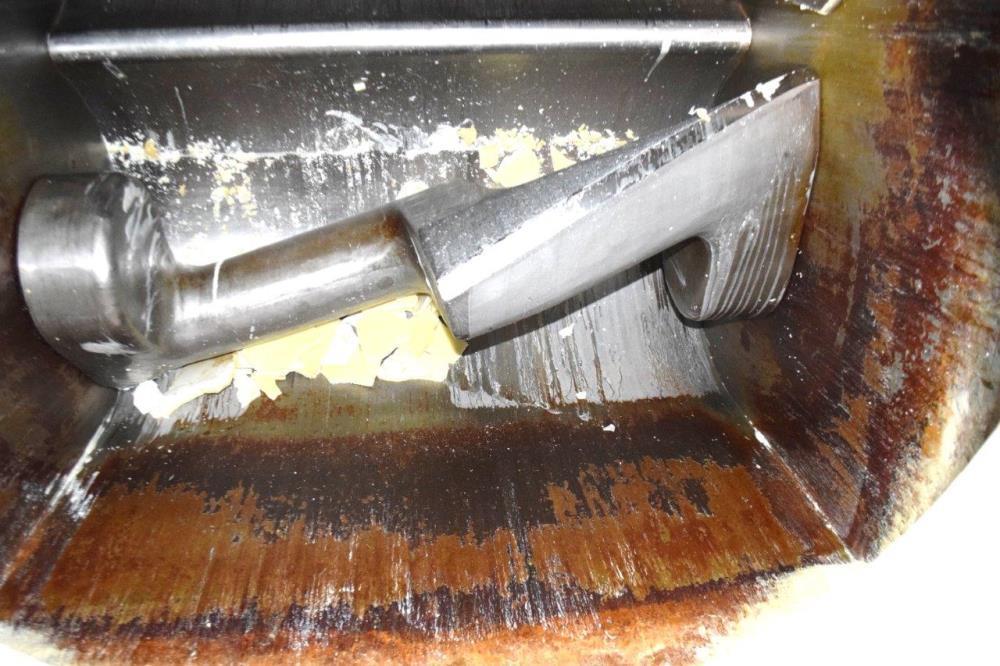

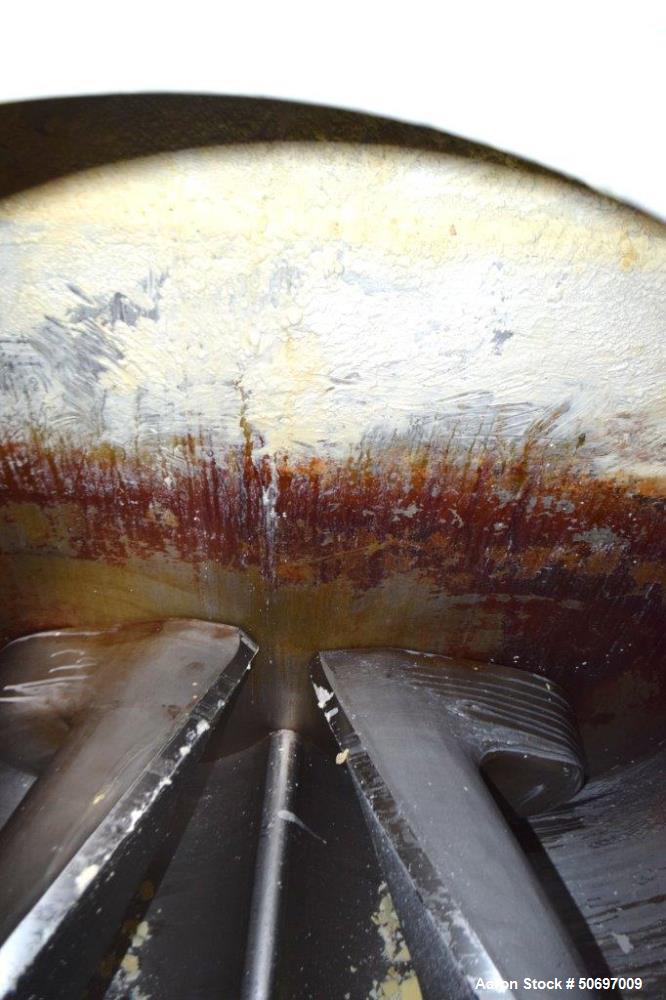

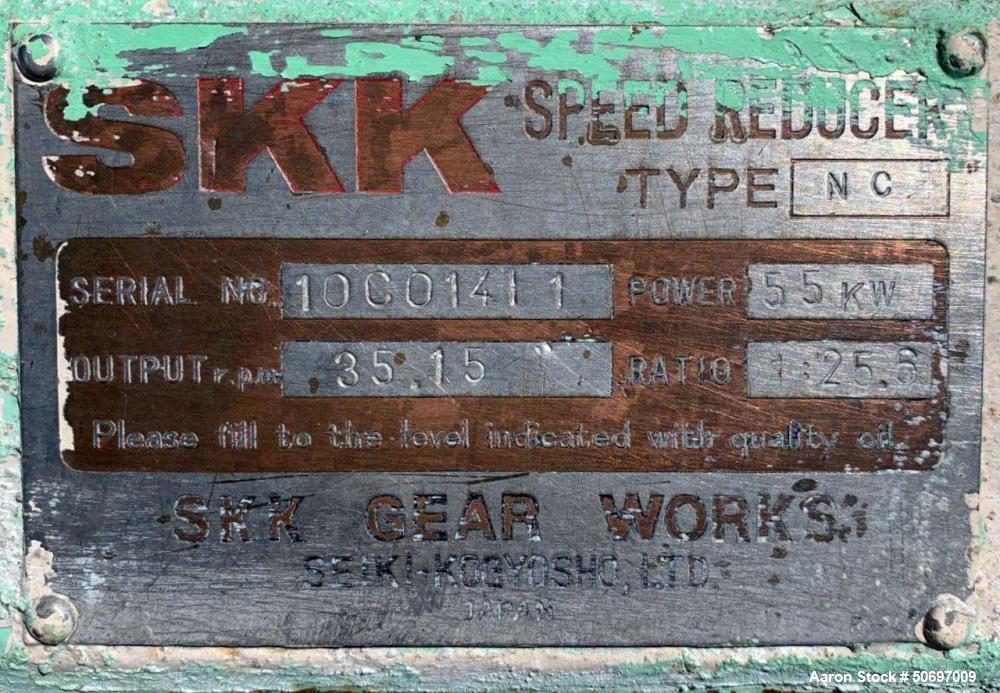

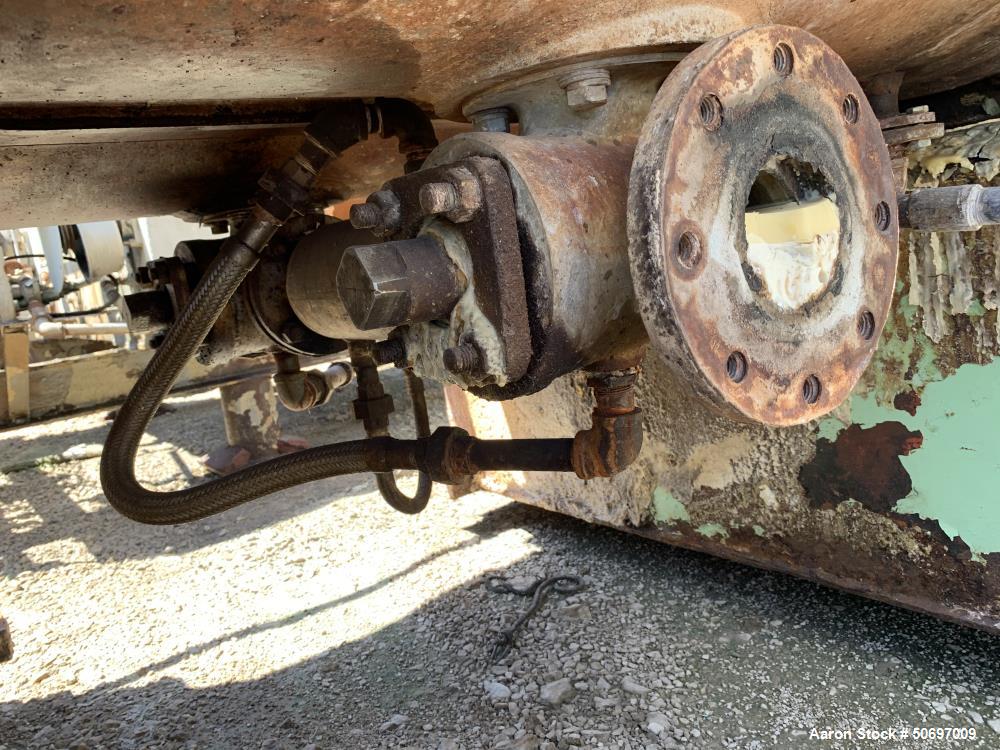

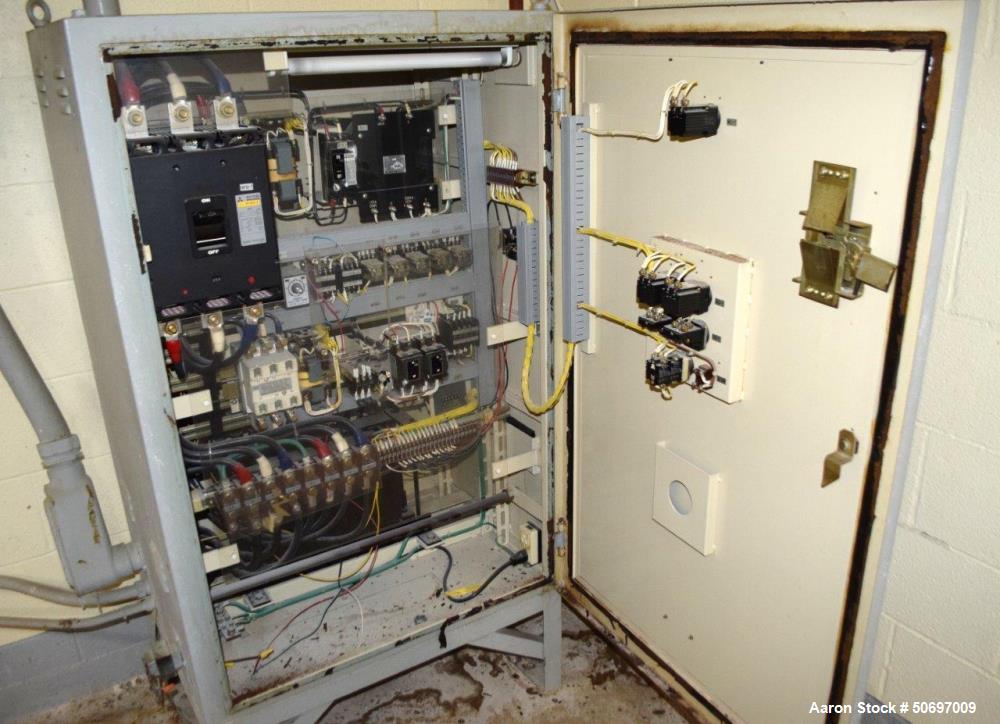

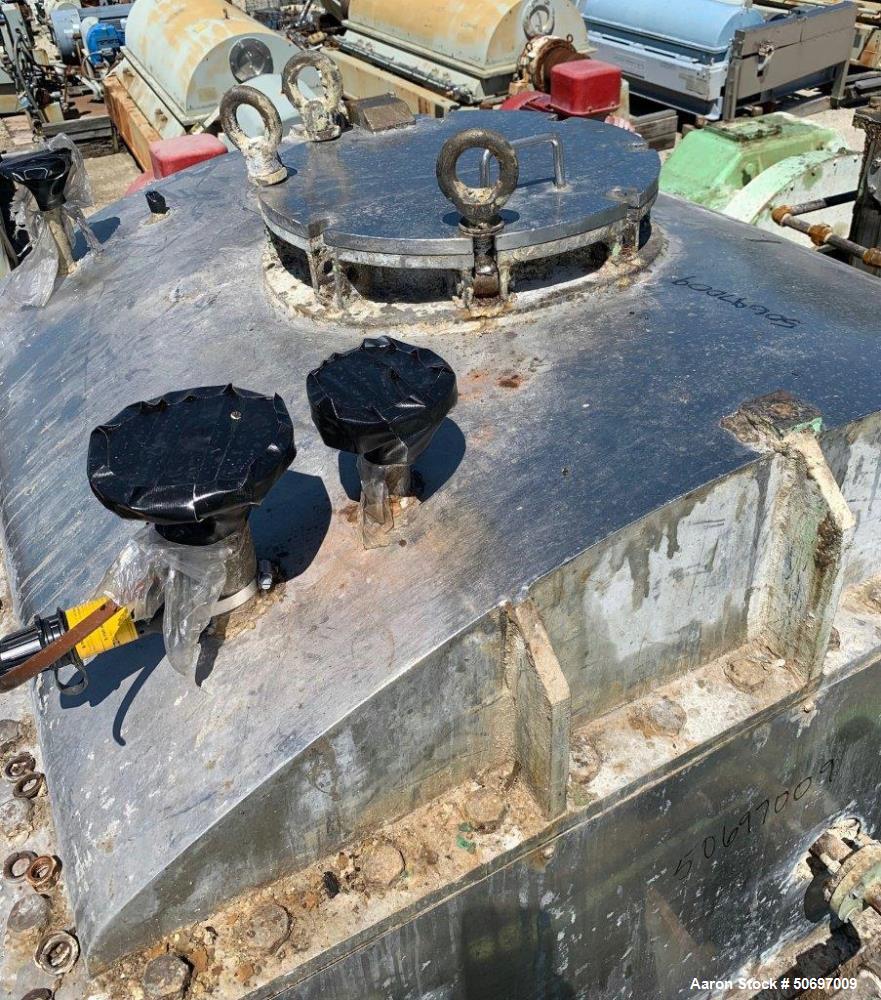

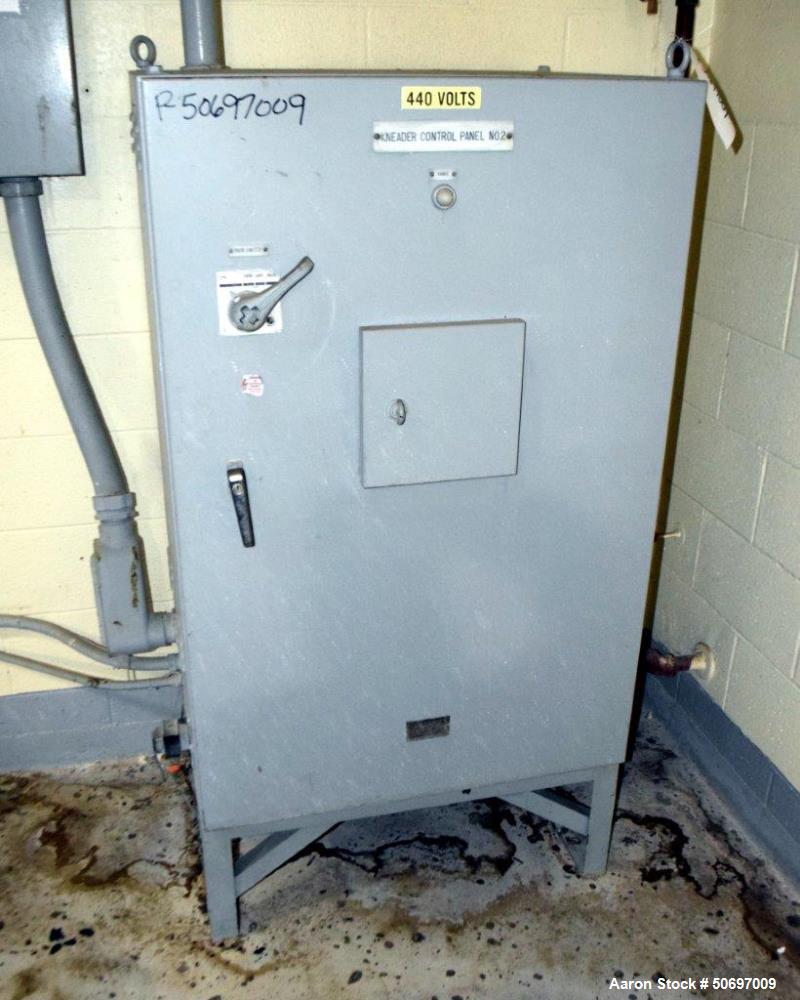

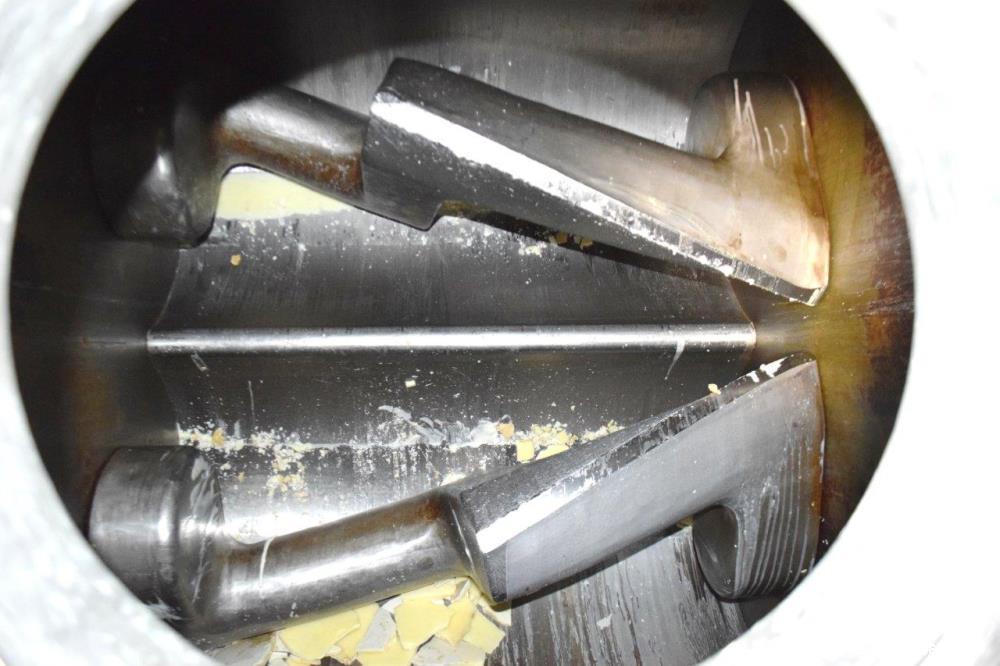

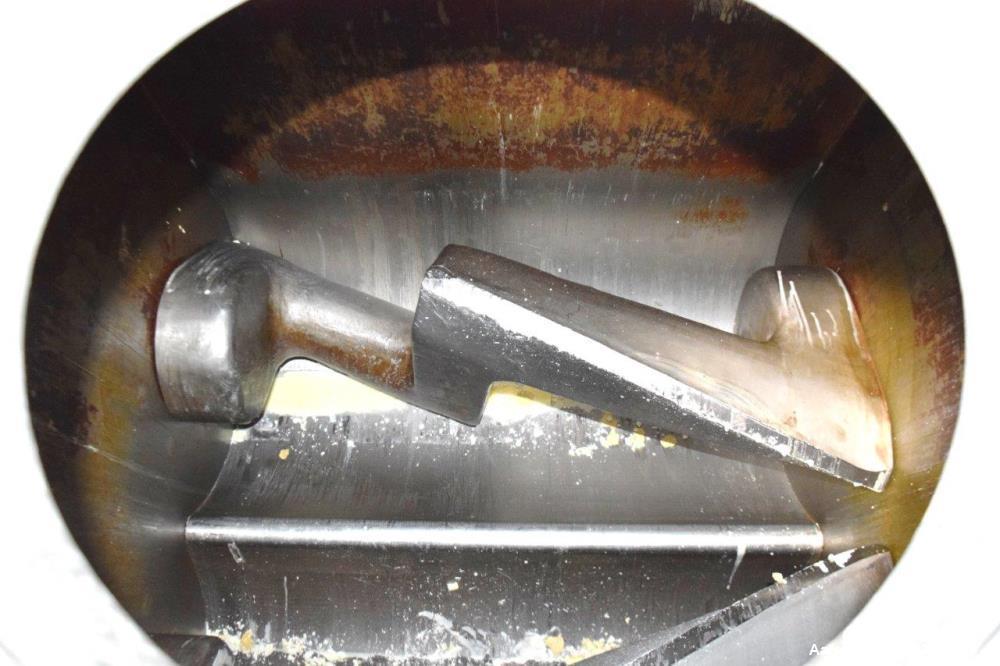

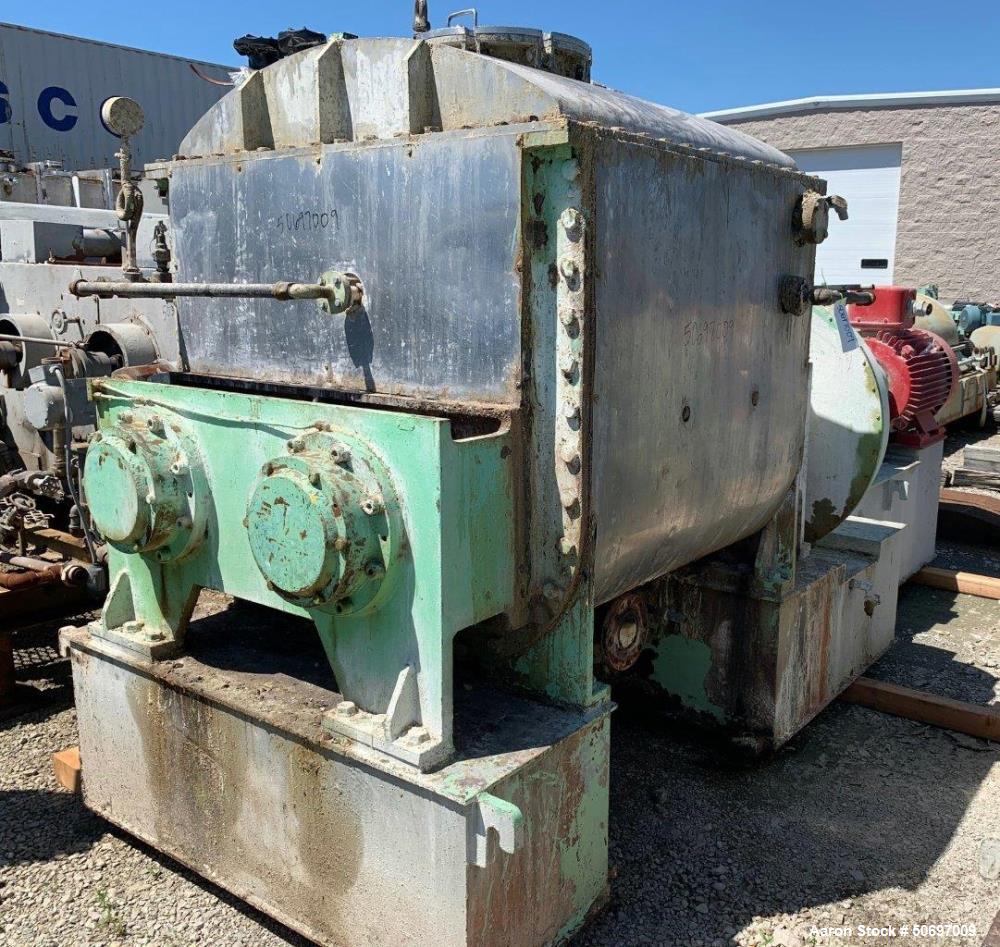

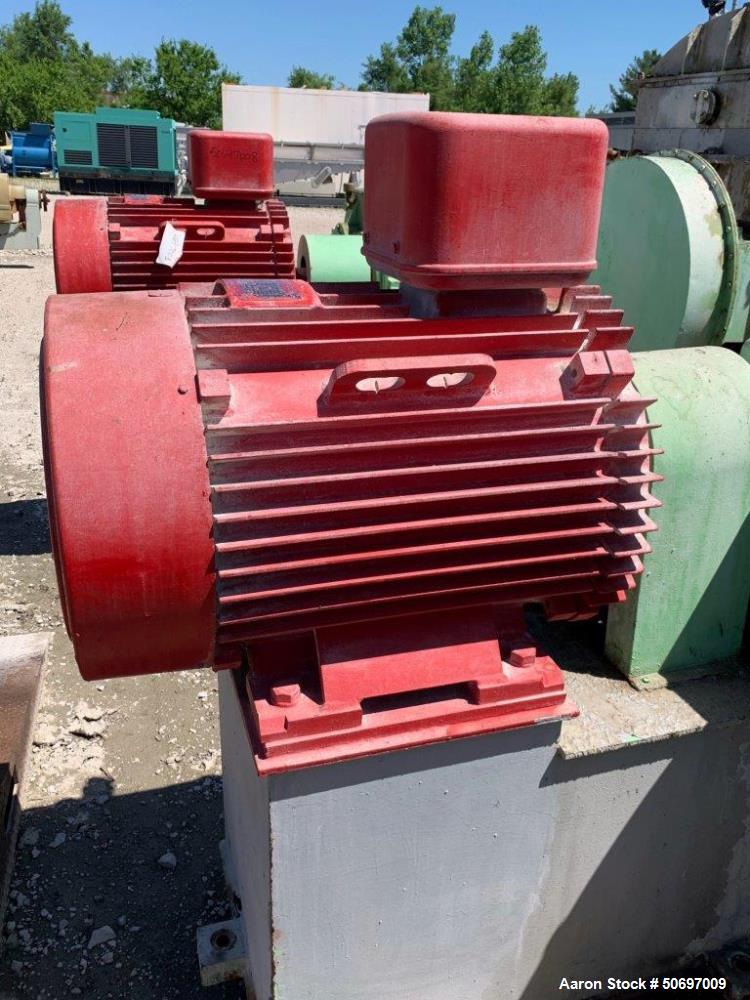

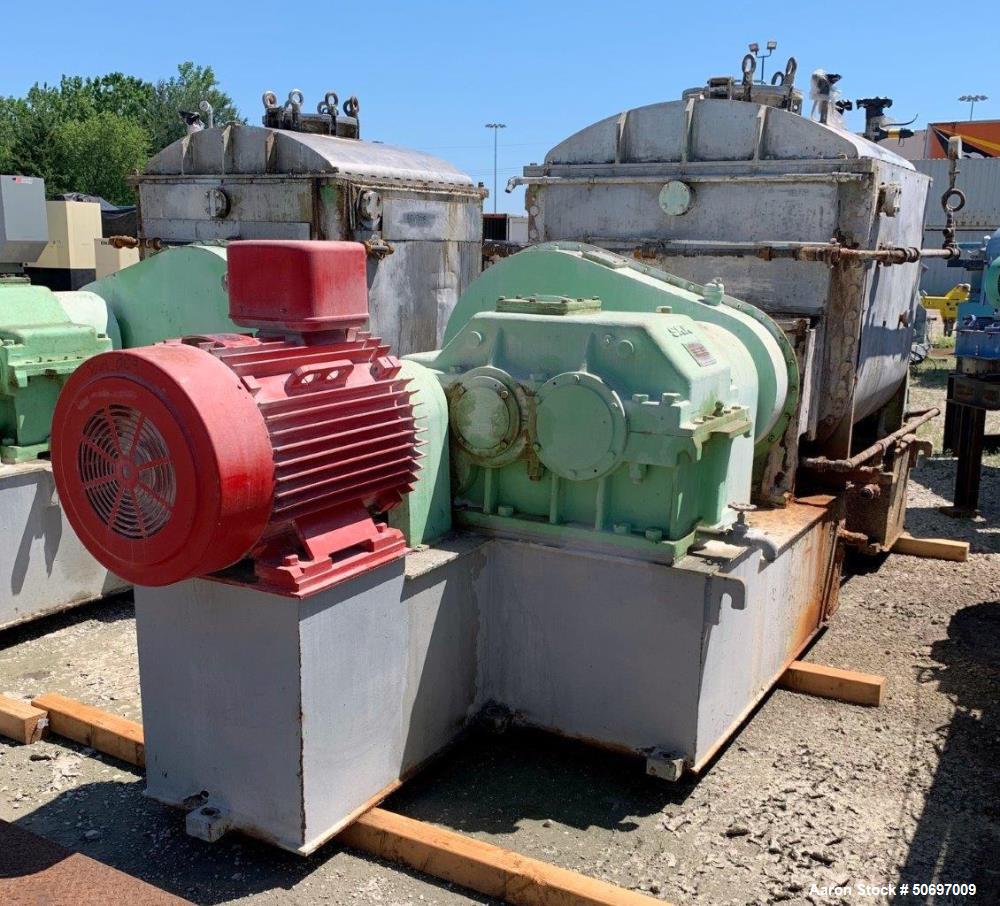

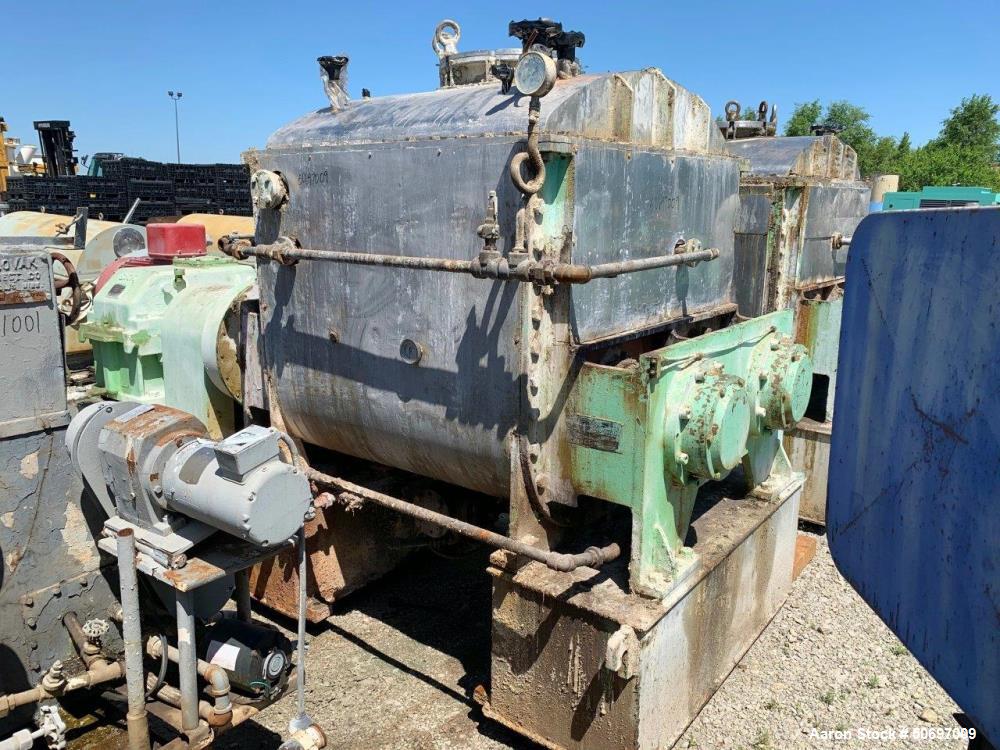

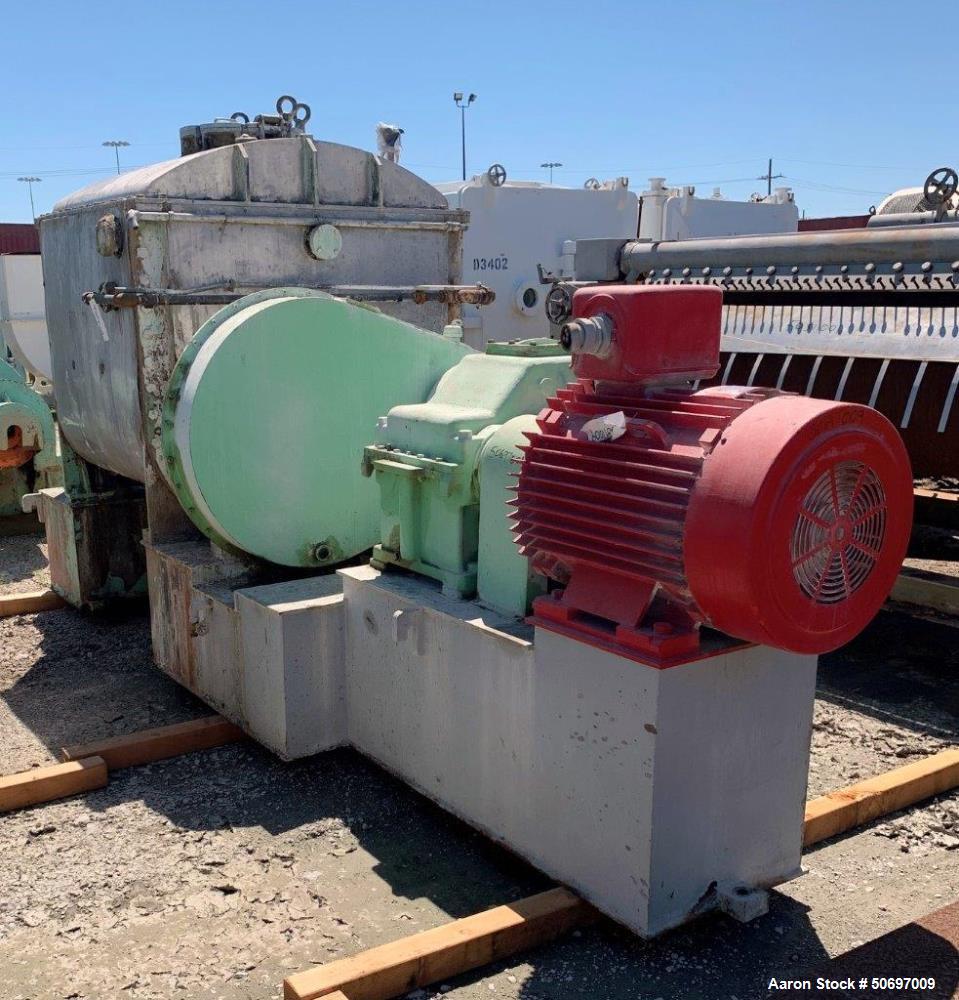

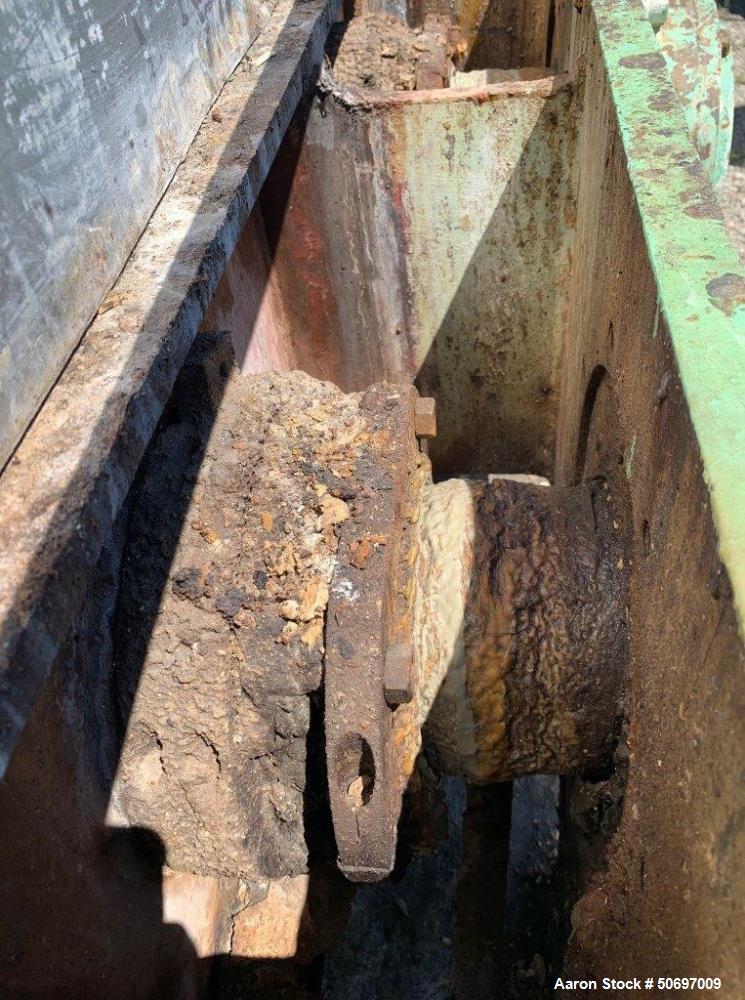

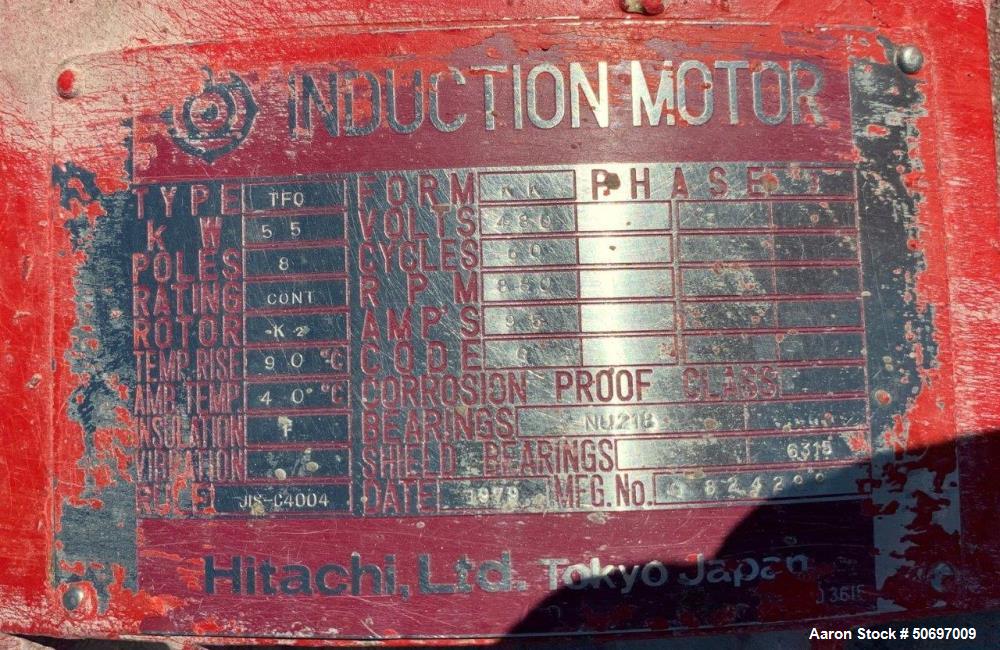

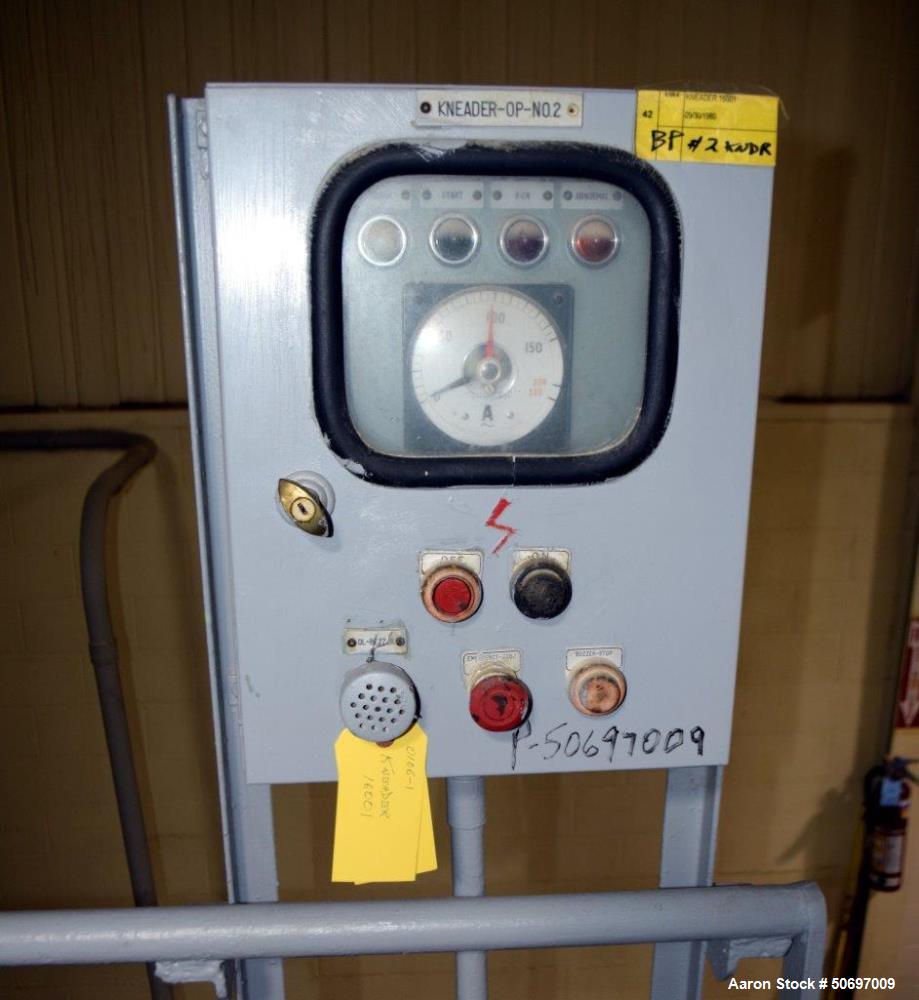

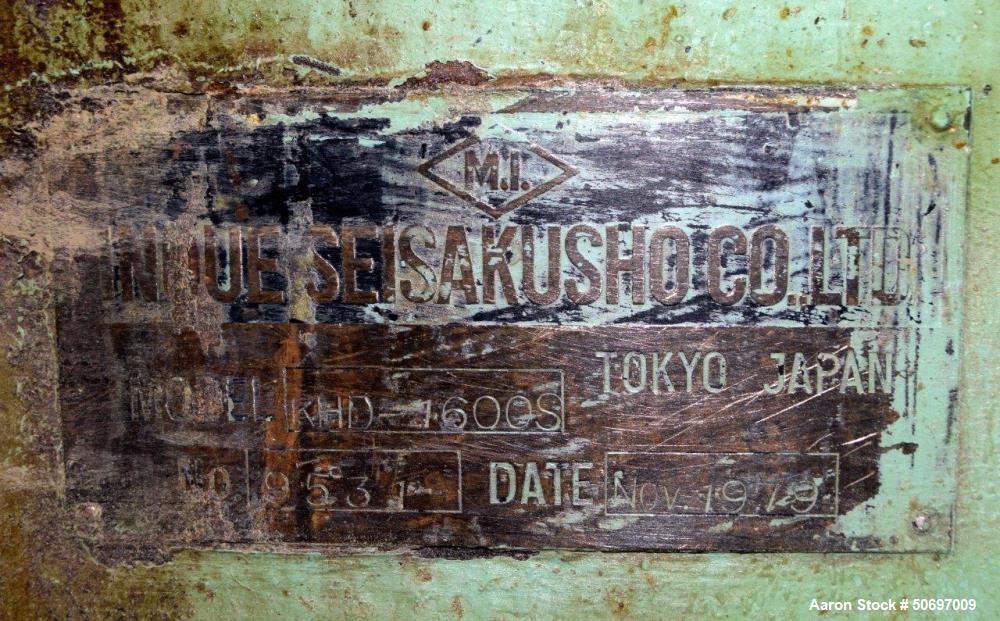

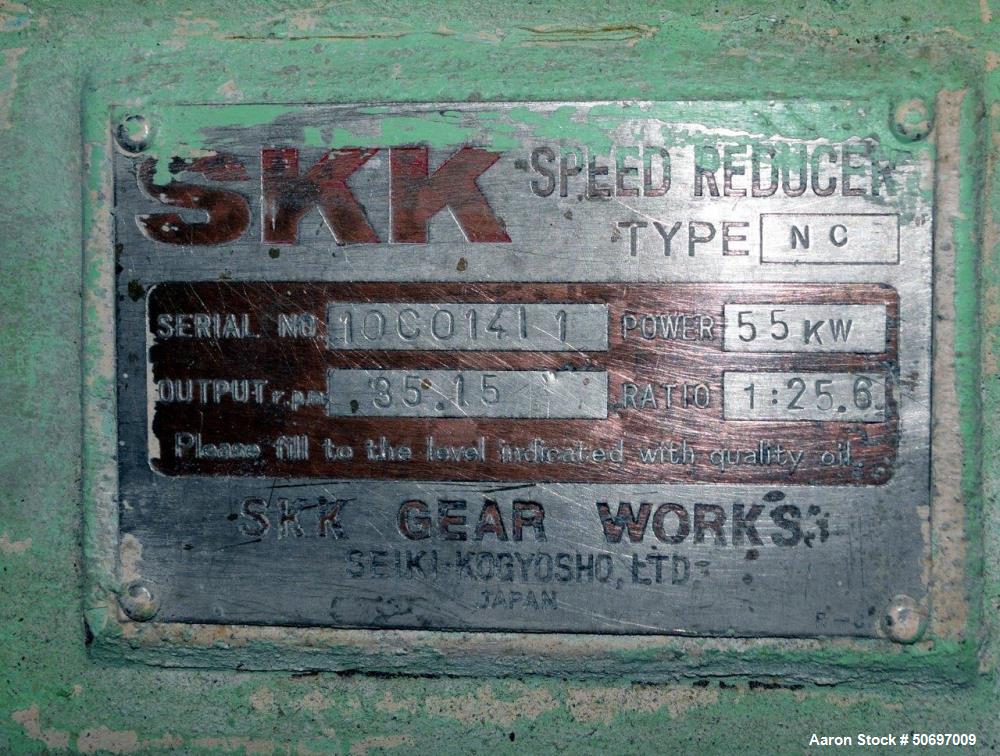

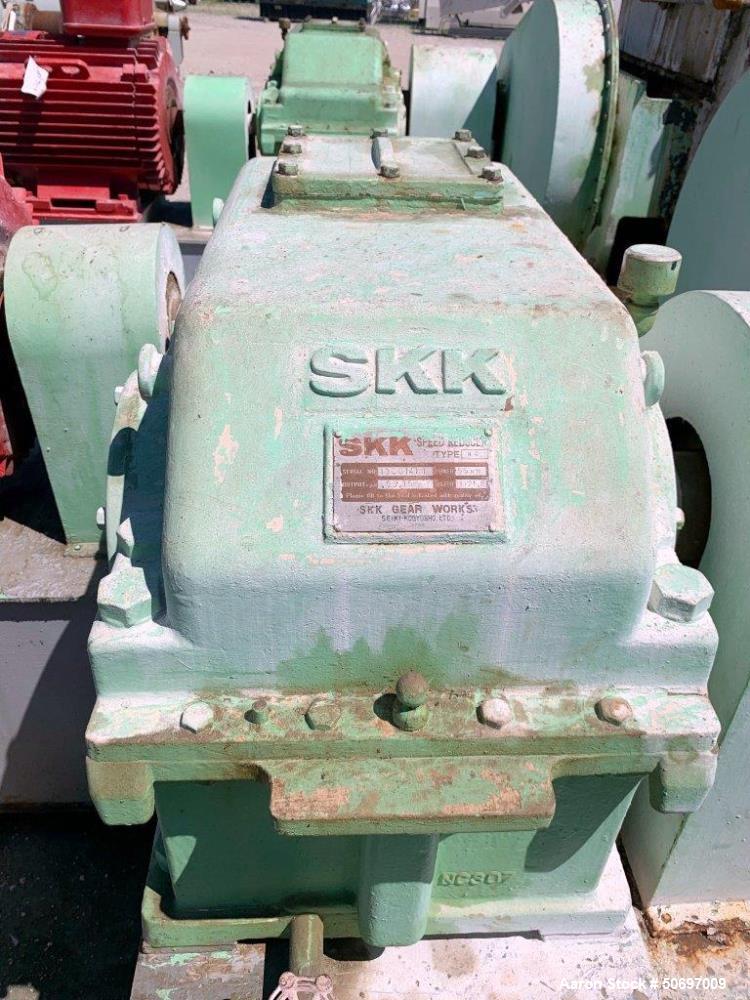

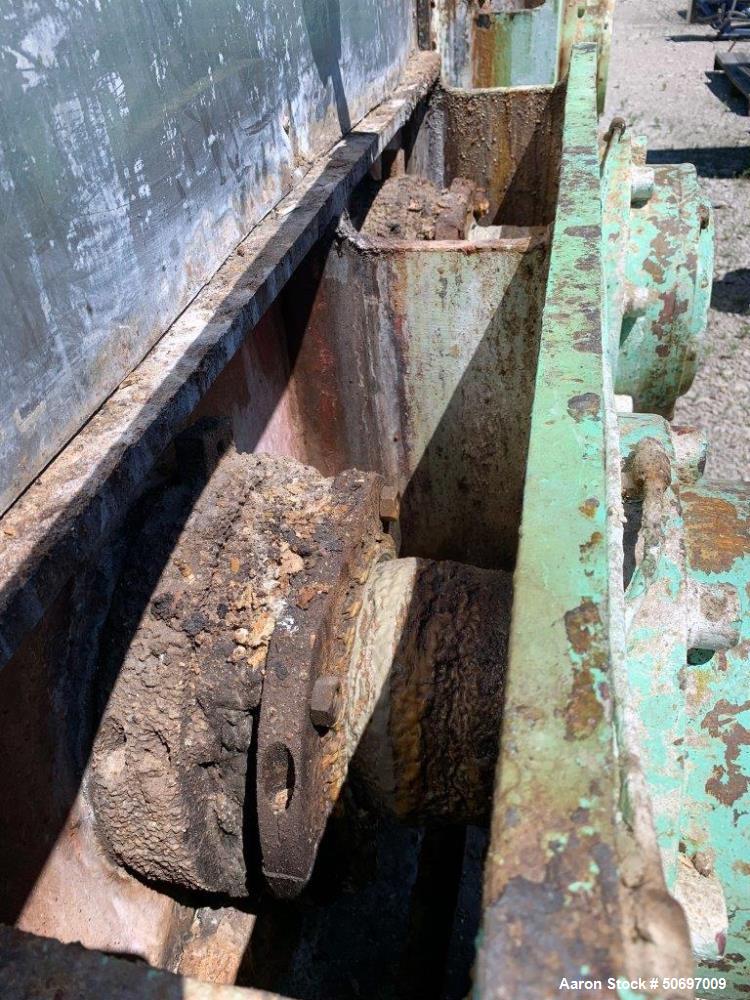

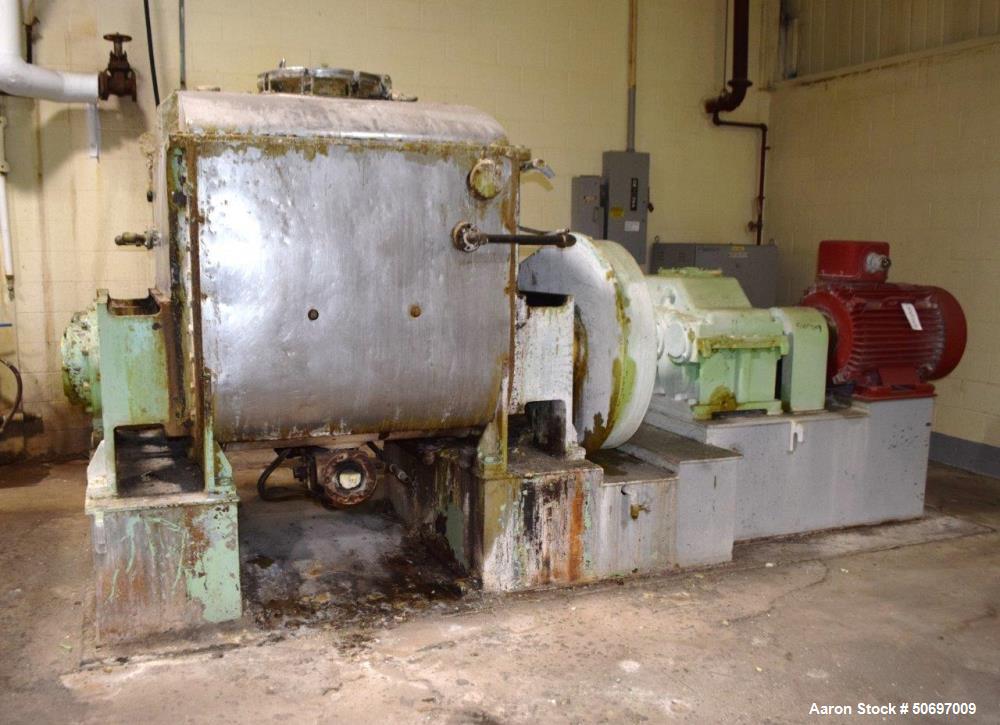

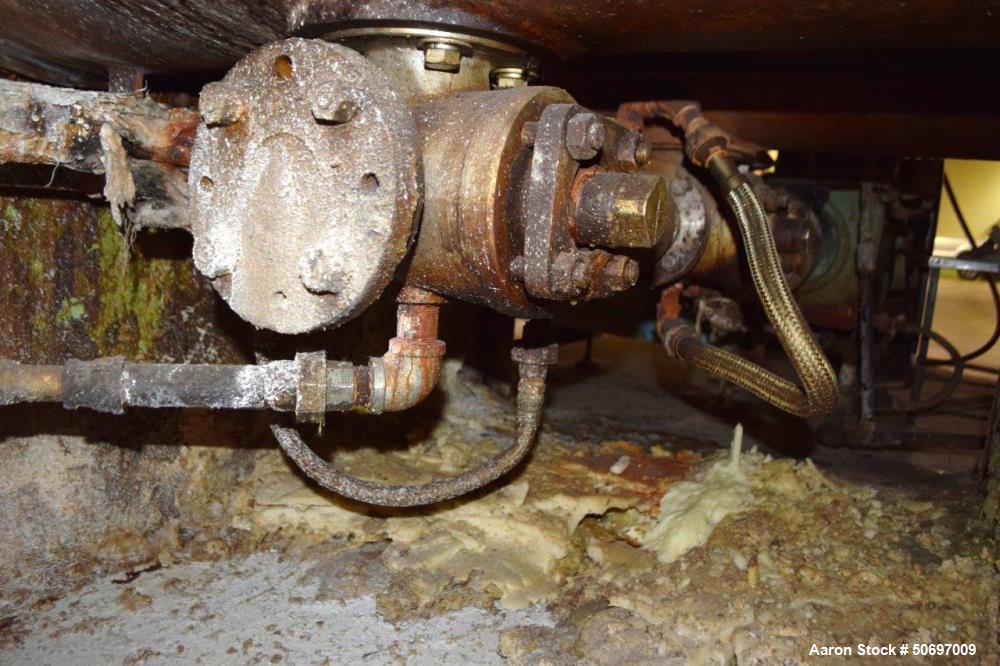

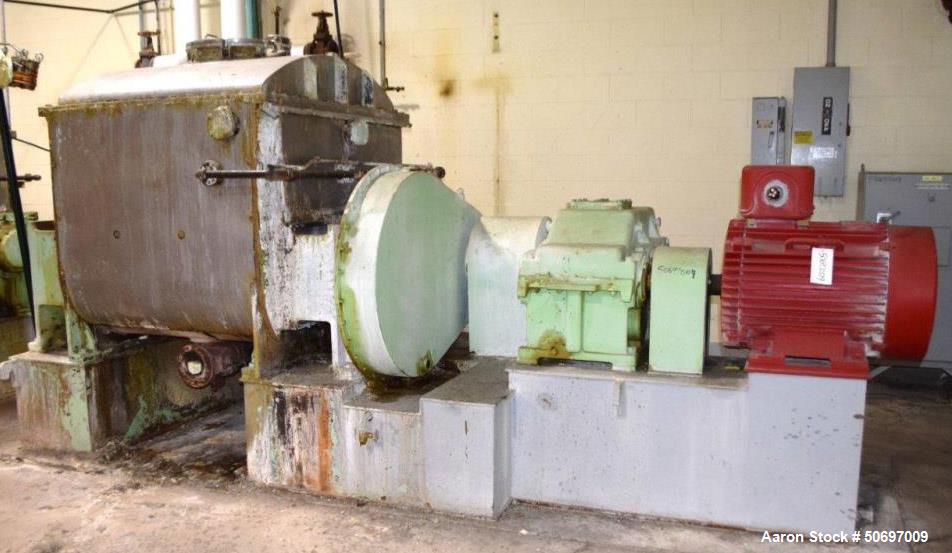

Used- Inoue Seisakusho Double Arm Mixer, Model KHD-1600S, Stainless Steel. 900 Liter (237 gallon) working capacity, 1600 liter (422 gallon) total. Carbon steel jacketed bowl approximate 48" left to right x 52" front to back x approximately 36" deep, rated 42 psi. Cored tangential sigma blades, rear blade speed 34 rpm, front blade speed 18.5 rpm, geared one end. Bolt on domed top cover suitable for vacuum, dual bottom outlets. Mixer driven by a 55 kw (75 hp), 3/60/480 volt, 880 rpm motor thru a SKK reducer, ratio 25.6 to 1. Includes an operator and control panel. Mounted on a base. Serial # 9521. Built 1979.
