Used Fitzpatrick FitzMill DKAS012 Stainless Steel Hammer Mill – 25 HP Pharmaceutical & Food Grade Mill

Manufacturer

The Fitzpatrick Company is a globally recognized manufacturer of precision milling, size reduction, and particle processing equipment for the pharmaceutical, food, nutraceutical, chemical, and personal care industries. FitzMill processors are known for delivering consistent particle size reduction, gentle product handling, and reliable performance in sanitary manufacturing environments.

Description

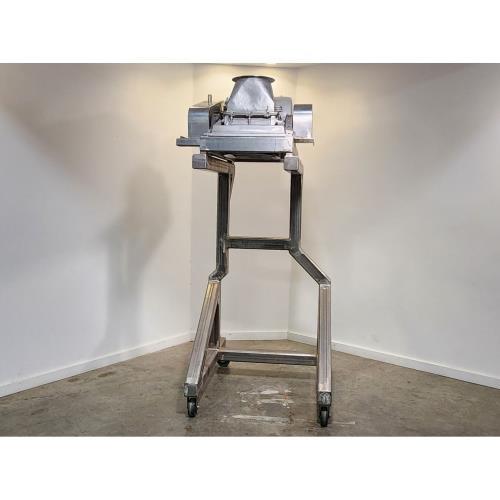

The Used Fitzpatrick FitzMill, Model DKAS012, is a heavy-duty stainless steel hammer mill designed for efficient size reduction, granulation, deagglomeration, and milling of a wide variety of dry products. Constructed with stainless steel product contact surfaces, this versatile mill is ideal for pharmaceutical, food, nutraceutical, chemical, and industrial processing applications requiring sanitary operation and consistent particle sizing.

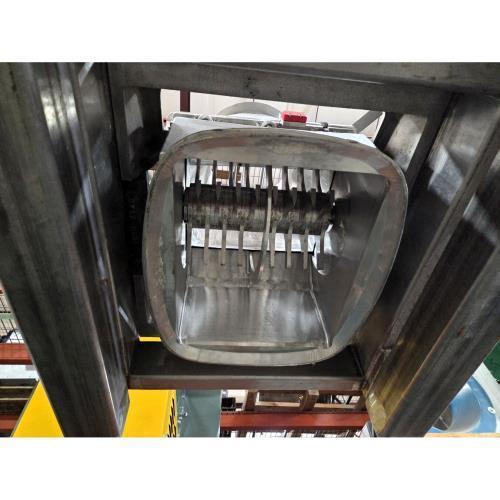

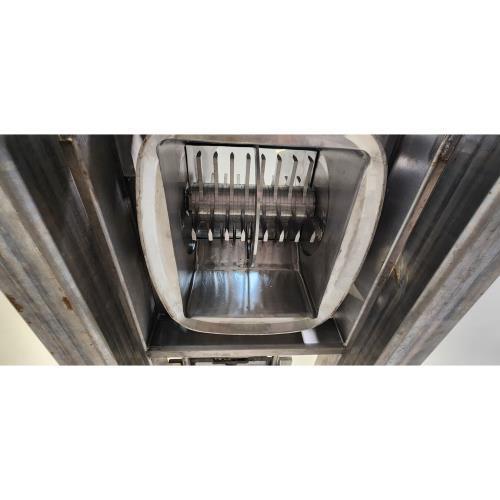

The milling chamber measures approximately 12.5 inches wide by 15.37 inches long and incorporates a center screen support bar. The mill is equipped with 32 reversible fixed milling blades featuring blunt flat-edge and knife-edge cutting surfaces, allowing operators to optimize milling performance based on product characteristics while extending blade service life.

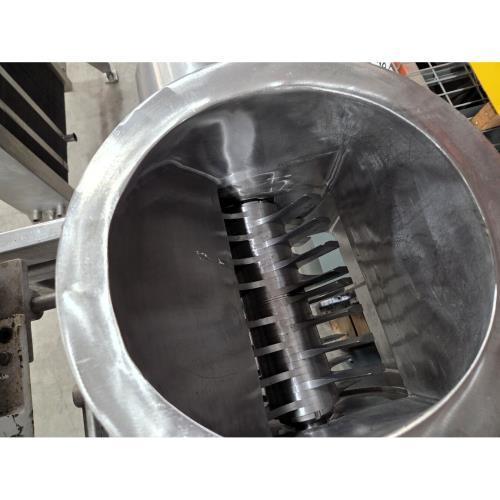

Material enters through a 10-inch flanged inlet and discharges through a large 16-inch × 19-inch oval outlet with a banding groove, positioned approximately 75.5 inches above the base for convenient integration with downstream conveying or collection equipment.

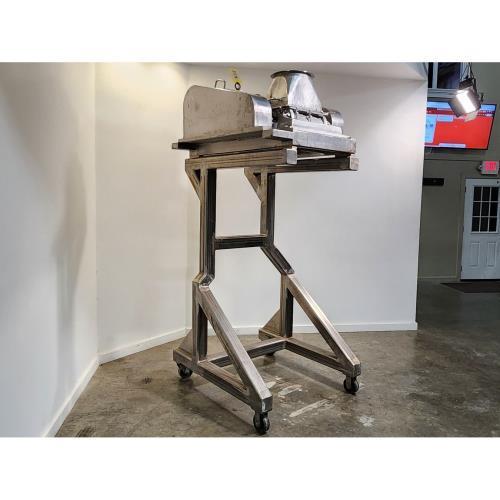

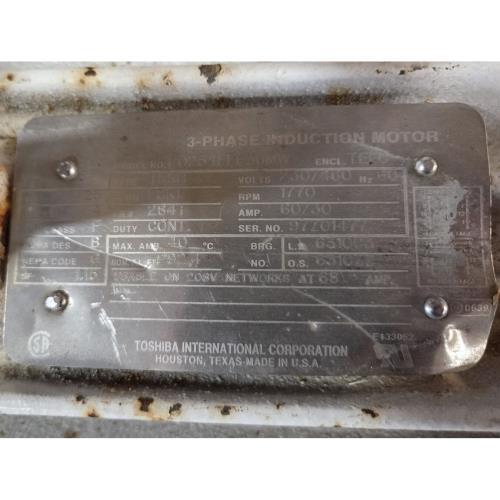

The unit is powered by a 25 HP, 1,770 RPM motor suitable for 230/460 Volt, 3 Phase, 60 Hz electrical service. The mill is mounted on a robust welded stainless steel portable frame fabricated from 4-inch box tubing, providing excellent mobility and durability.

Note: Screens are not included, allowing users to select screen perforations appropriate for their desired particle size and application.

Specifications

Applications

This FitzMill is commonly used for:

• Pharmaceutical milling
• Food ingredient size reduction
• Nutraceutical processing
• Chemical powder milling
• Granulation
• Deagglomeration
• Spice grinding
• Herbal processing
• Cosmetic ingredient milling
• Powder conditioning
• Dry product processing
• Ingredient preparation

Common Products Processed

• Pharmaceutical powders
• Tablets
• Dry granulations
• Nutritional supplements
• Spices
• Herbs
• Sugar
• Salt
• Food ingredients
• Chemical powders
• Resins
• Mineral products

Features & Benefits

• Stainless steel sanitary construction
• Heavy-duty FitzMill design
• Large 12.5-inch × 15.37-inch milling chamber
• 32 reversible milling blades
• Blunt and knife-edge blade configuration
• Large 10-inch flanged inlet
• Oversized oval discharge opening
• 25 HP industrial drive motor
• Portable welded stainless steel frame
• Flexible screen selection for various particle sizes
• Ideal for pharmaceutical, food, and chemical processing
• Designed for reliable, continuous production

Frequently Asked Questions

What industries commonly use the FitzMill DKAS012?

The FitzMill DKAS012 is widely used in pharmaceutical, nutraceutical, food, chemical, cosmetic, and specialty materials manufacturing for size reduction and granulation.

Are screens included with this mill?

No. Screens are not included, allowing users to install the perforation size best suited for their specific particle size requirements.

What type of blades are installed?

The mill is equipped with 32 reversible fixed blades featuring both blunt flat-edge and knife-edge cutting surfaces, providing flexibility for different milling applications.

What motor powers the mill?

The unit is driven by a 25 HP, 1,770 RPM motor designed for 230/460 Volt, 3 Phase, 60 Hz electrical service.

Is the mill portable?

Yes. The FitzMill is mounted on a welded stainless steel portable frame constructed from heavy-duty 4-inch box tubing, making repositioning within a facility easier.

Can Aaron Equipment assist with shipping and logistics?

Yes. Aaron Equipment offers complete domestic and international shipping services, including freight coordination, export documentation, customs assistance, rigging, and door-to-door logistics for milling equipment and complete processing systems.
