Used Fitzmills for Sale
Fitzmills are high-speed comminuting mills designed for size reduction, granulation, and particle conditioning of powders and bulk solids. Utilizing a rotor with interchangeable blades and screens, Fitzmills reduce particle size through impact and shear, producing controlled, uniform output. These mills are widely used in pharmaceutical, food, chemical, and nutraceutical industries where consistent particle size and product quality are critical. Used Fitzmills offer a cost-effective solution for reliable size reduction and processing. Aaron Equipment offers used Fitzmills for sale in a range of capacities, rotor configurations, and screen sizes to meet various production needs.
Stock No.:
54406001Used Fitzpatrick FitzMill DKASO6 – Stainless Steel Hammer Mill with Screw Feeder & Explosion Proof Motor
Used- Fitzpatrick Fitzmill, Model DKASO6. Stainless steel construction. Screw feeder with hopper. 15 HP explosion proof (XP) motor. Portable base on casters. Includes separate Control panel on casters. Serial# 11497.
MFR: Fitzpatrick
Stock No.:
54687088Used Fitzmill carbon steel communitor mill. Mill has 10" rotor with 32 knife edged fixed blades. The opening is 11.25" x 13.25" infeed and discharge openings. Rotor is driven by 15 hp motor. Mill i...
Used-Fitzmill carbon steel communitor mill. Mill has 10" rotor with 32 knife edged fixed blades. The opening is 11.25" x 13.25" infeed and discharge openings. Rotor is driven by 15 hp motor. Mill is fed by 9" diameter x 6' long carbon steel feed screw (missing the gear reducer and motor). Unit also has a 9" diameter x 7' long take away screw with a 40" discharge height. Requires 230/460 vac 3 ph electrical supply.
MFR: Fitzpatrick
Stock No.:
50366004Used Fitzpatrick FitzMill DKAS012 Stainless Steel Hammer Mill – 25 HP Pharmaceutical & Food Grade Mill
Used Fitzpatrick FitzMill DKAS012 Stainless Steel Hammer Mill 25 HP Pharmaceutical & Food Grade Mill. Chamber: 12.5" wide x 15.37" long, with center screen support bar, screens not included. 32 milling blades, fixed blunt flat-edge/knife edge, reversible. 10" flange inlet. 16" x 19" oval discharge with banding groove, 75.5" above base elevation. Driven by a 25 HP, 3/60/230/460 Volt, 1770 RPM motor. Welded stainless steel portable base frame (4" box tubing), 42"W X 48"L. Serial# 9084.
MFR: Fitzpatrick
Stock No.:
10211226Used Fitzpatrick Fitzmill Model D Comminuting Machine – 3 HP, Stainless Contact, Gravity Fed
Used- Fitzpatrick Fitzmill Comminuting Machine, Model D. Stainless steel material in contact with product. 3HP. Unit is gravity fed with slanted inlet throat with an opening of 4.75"H X 5.75"W. 6" wide milling chamber with a 10" diameter rotor. Mill Rotor: 16 pivoting blades, plain bars 1" wide X 0.25" thick. Bottom discharge hopper with 7.75" flange, 42.25" above base elevation. Portable carbon steel stand with a base area of 42" X 46". 3HP two-speed v-belt drive, 1750 RPM TEFC motor. Supply power: 115/230V, 60Hz, single phase AC. Bottom sizing screens not included.
MFR: Fitzpatrick
Stock No.:
54687052Used The Fitzpatrick Company Fitzmill stainless steel GuiloRiver mill. Model 59. The GuiloRiver mill is used for pre-breaking or sizing frozen food products. The mill has 15" diameter x 20" wide roto...
Used-The Fitzpatrick Company Fitzmill stainless steel GuiloRiver mill. Model 59. The GuiloRiver mill is used for pre-breaking or sizing frozen food products. The mill has 15" diameter x 20" wide rotor, a 11.75" x 20.25" infeed hopper that is 74" from the ground, and a 17.5" x 21" discharge that is 36.5" from the ground. Rotor is driven by 50 hp 1770 rpm motor. Overall dimensions are 45" wide x 95" long x 92" tall. Serial number GR-20-538. Requires 208-220/440 vac 3 phase electrical supply.
MFR: Fitzpatrick
Stock No.:
54687180Used Fitzmill model F, series 2600 comminuting machine. Stainless Steel. 16 rotating, fixed blades. Top loading bin 24"W x 36"L x 10 1/2"H. 5.25"x 8" throat opening. Stand 39"W x 64"L x 46"H. Overall...
Used-Fitzmill model F, series 2600 comminuting machine. Stainless Steel. 16 rotating, fixed blades. Top loading bin 24"W x 36"L x 10 1/2"H. 5.25"x 8" throat opening. Stand 39"W x 64"L x 46"H. Overall 40"W x 69"L x 85"H. The motor is missing its tag but its our guess is that its 50 hp. Carbon steel legs.
MFR: Fitzpatrick
Stock No.:

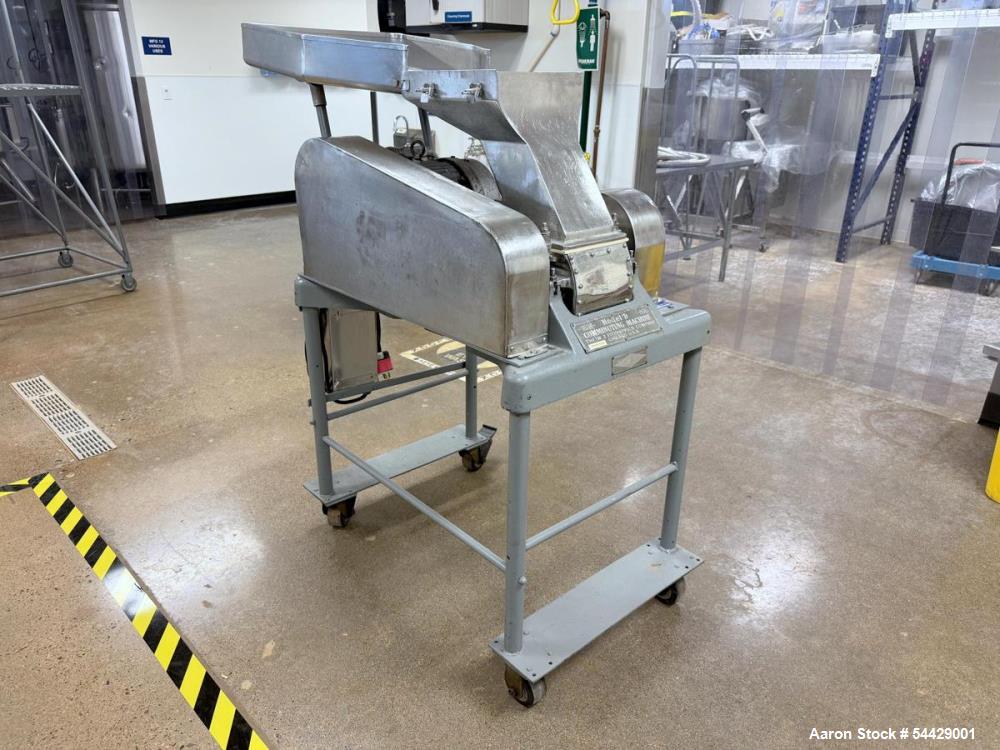

54429001Used Fitzpatrick Fitzmill Model D Hammer Mill on Mobile Frame with 7.5 HP Motor
Used Fitzpatrick Fitzmill, Model D,. Stationary knives, reversible blade assembly with knives. pan fed, variable speed. Mounted on a frame with casters. Driven by a 7.5 hp, 3/60/130-460V, 1740 rpm motor. Approximate OAD 59" x 26" x 58".
MFR: Fitzpatrick
Stock No.:
11059358Used Fitzpatrick DAS06 FitzMill Hammer/Knife Mill – Explosion Proof (XP) Motor
Used- Fitzpatrick DAS06 Fitzmill Hammer/Knife Mill. Stainless Steel; Pan Feed; Driven by 7.5 HP, 230/460V, 1740 rpm Explosion Proof (XP) motor. Serial# 10321. Mounted on stainless steel cart with wheels.
MFR: Fitzpatrick
Stock No.:
53656001Used Fitzpatrick DAS06 Stainless Steel Hammer Mill with Screw Feeder
Used Fitzpatrick FitzMill Model DAS06 Stainless Steel Hammer Mill With Screw Feeder, 7.5 HP Drive And 749 Lbs/Hour Capacity. Industrial size reduction mill designed for controlled grinding, milling, granulation and particle size reduction of compatible dry powders, granules and bulk solid materials. Rated for processing capacities up to 749 lbs per hour, depending on material characteristics, screen selection and application, with a stated operating speed range of 1,000 to 4,600 RPM. Features an approximately 15" long x 15" wide x 10" deep feed hopper with an integrated screw feeder measuring approximately 2-1/2" diameter x 58" long. Screw feeder is driven by a 0.33 HP gear motor rated at 1,725 RPM, operating on 208230/460 volts, 3-phase, 60 Hz electrical service, through a 4.88:1 reduction gearbox. Milling chamber measures approximately 11-1/4" long x 6" wide x 16" deep and contains (16) fixed blades with blunt and knife edges, each measuring approximately 1" wide x 3-3/4" long x 1/2" thick. Main milling assembly is driven by a 7.5 HP motor rated at 1,760 RPM, operating on 230/460 volts, 3-phase, 60 Hz electrical service. Equipped with an approximately 9-1/2" long x 5-1/2" wide bottom discharge opening with screen for controlling discharged particle size. Mounted on a mobile stainless steel frame with casters. Serial #7964. Possible applications include dry powder milling, granule sizing, deagglomeration, lump breaking and particle size reduction of compatible pharmaceutical powders, nutraceutical ingredients, food powders, spices, seasonings, powdered chemicals, pigments, mineral powders, polymer additives and other suitable dry bulk solids.
MFR: Fitzpatrick
Stock No.:
11059359Used Fitzpatrick Fitzmill Hammer Mill, Model M5A
Used Fitzpatrick FitzMill Model M5A Hammer Mill. Equipped with a variable-speed drive for size reduction and milling applications. Serial #1987. This unit was last used in a sanitary pharmaceutical plant. The FitzMill M5A is a compact hammer mill platform commonly associated with controlled particle size reduction and pharmaceutical processing applications.
MFR: Fitzpatrick
Stock No.:
53778001Used Fitzpatrick Fitzmill VFS-D6A Hammer Mill for Sale – 1000 kg/hr
Used- Fitzpatrick Fitzmill, Model VFS-D6A-PCS-LB / VFS D6-PCS-0401 Hammer Mill. Throughput rates of 200 - 1,000 kg/hr (depending on product). 10" gravity Feed hopper with 3" diameter x 18" long metering screw. 6" wide x 10" diameter Chamber with (16) 4" long x 1" wide x 3/16" thick blades on a fixed blade rotor. Direct drive. XP Controls, Allen Bradley SLC 5/03 PLC, A/B HMI, A/B Powerflex 70 drive. Stainless steel construction. Mounted on casters. Serial# 11839.
MFR: Fitzpatrick
Fitzmill Applications & Typical Use Cases
Used Fitzmills are commonly used in applications requiring particle size reduction and material conditioning. Typical use cases include:
Pharmaceutical granulation and powder sizing
Food ingredient milling such as spices, sugars, and starches
Chemical powder processing and conditioning
Nutraceutical and supplement production
Pre-processing for blending, tableting, or encapsulation
These systems are ideal for achieving consistent particle size distribution and improving downstream processing efficiency.
When to Choose a Fitzmill
Fitzmills are best suited for processes requiring controlled size reduction with minimal heat generation and flexible output sizing. They are typically selected when precise particle size control is needed for downstream applications such as blending, compression, or packaging. Compared to hammer mills, Fitzmills offer more controlled milling and are often preferred for applications requiring tighter particle size distribution.
Used Fitzmill Buying Considerations
When evaluating a used Fitzmill, consider:
Rotor type and speed: Impacts milling intensity and throughput
Screen size and configuration: Determines final particle size distribution
Material of construction: Stainless steel for sanitary or corrosive applications
Feed system design: Gravity or controlled feed impacts consistency
Condition and wear components: Inspect blades, screens, and housing for wear
Why Buy Used Fitzmills
Purchasing a used Fitzmill can significantly reduce capital investment while maintaining reliable size reduction performance. Many units are available for immediate delivery, helping facilities avoid long lead times associated with new equipment. Used Fitzmills also provide access to proven designs widely used in regulated and industrial environments.
Sell Your Used Fitzmills
Aaron Equipment purchases surplus and used Fitzmills from a variety of manufacturers and configurations. Whether you are upgrading processing equipment, closing a facility, or selling idle assets, our team can assist with buyouts or consignment opportunities.
A Fitzmill is a comminuting mill used for size reduction and granulation of powders and bulk materials. It uses rotating blades and screens to control particle size and consistency.
Fitzmills are used for milling, granulating, and sizing powders in pharmaceutical, food, chemical, and nutraceutical applications. They help achieve uniform particle size for downstream processing.
Fitzmills provide more controlled size reduction with interchangeable screens and rotor configurations, while hammer mills typically offer more aggressive, less controlled grinding.
The cost of a used Fitzmill depends on capacity, configuration, manufacturer, and condition. Larger or specialized units typically command higher prices.
Yes. Aaron Equipment purchases used Fitzmills across a range of sizes and configurations. If you have equipment available for sale, submit your details to receive an evaluation.
