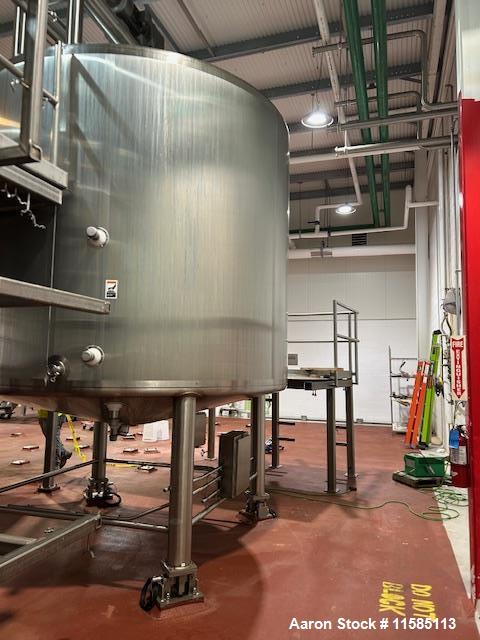

Used Walker 316L Stainless Steel 4000 Gallon Kettle, Model PZ-CB-CXR. Dished top and bottom heads. Atmospheric Internal. Jacket rated 75 PSI @ 320 degrees F., -20 @ 75 PSI, Jacketed sides and bottom, Double motion agit sweep 5 HP, 15 RPM, 10 HP 60 RPM (4) 2 prop agitator blades, Both motor 3/60/230/460v, (4) 3 1/2" tri clover top inlets, (1) 4" breather, 20" top manway with CIP spray balls, (4) stainless steel legs. Vessel 9' 5" diameter 10' Overall Dia with inlets for jacket X 16' hgih. #4 Sanitary Polished welds inside and out. Built 2018. Last used for food product.
Manufacturer | WalkerWalker |
Model | PZ-CB-CXR |
Category | KettlesKettles |
Subcategory | Stainless Steel 1000-4999 GallonStainless Steel 1000-4999 Gallon |
Manufacturer: Walker
Model: PZ-CB-CXR
Year Built: 2018
Last Used For: Food product processing
This used Walker 4000 gallon kettle is constructed of high-quality 316L stainless steel, offering excellent corrosion resistance and sanitary finish ideal for food-grade applications. Featuring a dished top and bottom, this kettle is jacketed on the sides and bottom, rated at 75 PSI @ 320°F, making it suitable for precise thermal processing.

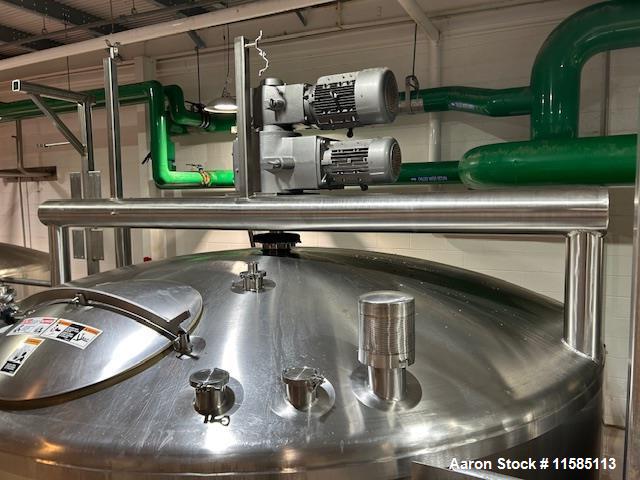

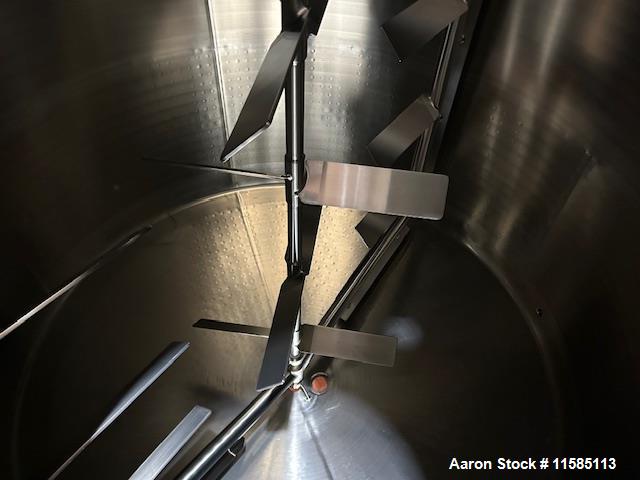

Equipped with a double motion agitator — a 5 HP sweep (15 RPM) and a 10 HP agitator (60 RPM) with four 2-blade propellers, this vessel ensures efficient mixing. The unit includes (4) tri-clamp 3.5” top inlets, a 4” breather, a 20” manway with CIP spray balls, and is mounted on four stainless steel legs for stable support. The vessel is #4 sanitary polished inside and out, ensuring hygienic standards are met.
Capacity: 4000 gallons
Material: 316L Stainless Steel
Internal Pressure: Atmospheric
Jacket Rating: 75 PSI @ 320°F / -20°F @ 75 PSI
Agitation:
5 HP sweep, 15 RPM
10 HP center agitator, 60 RPM
(4) Two-blade propeller agitators
Voltage: 3/60/230/460V
Inlets: (4) 3.5" Tri-Clamp
Breather: (1) 4"
Manway: 20” with CIP spray balls
Dimensions:
Vessel Diameter: 9' 5"
Overall Diameter with inlets: 10'
Height: 16'
Finish: #4 Sanitary Polish (inside and out)
Mounting: (4) Stainless Steel Legs
This kettle is ideal for sanitary and high-volume thermal and mixing applications in industries including:
Food processing (sauces, soups, jams, dairy)
Beverage (juices, syrups)
Pharmaceuticals (ointments, gels)
Nutraceuticals
Cosmetic creams and lotions
Biotech fermentation prep
Chemical heating & mixing
Specialty ingredients blending
Sauce & marinade formulation
Batch pasteurization
Tomato sauce
Yogurt
Herbal extracts
Protein shakes
Cream-based soups
Fruit jams
Cosmetic emulsions
Nutraceutical blends
Sugar syrups
Liquid soaps
