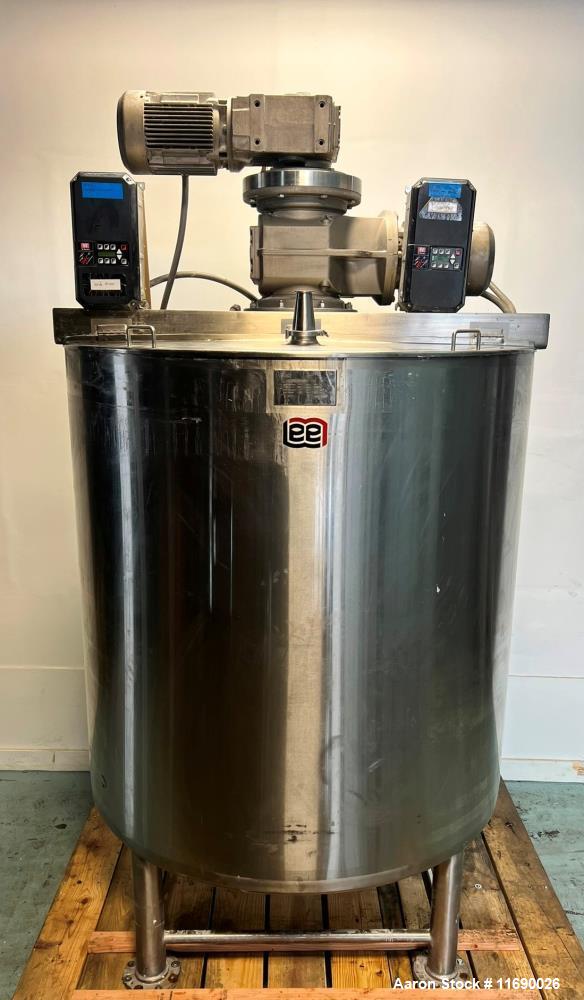

Used Lee 1,000 Gallon Double Motion Jacketed Agitated Tank – 316L SS Scraper Mixer with Dual 10 HP Drives

Manufacturer: Lee Industries
Model: 1000U9MS
Serial Number: 41807-1
National Board #: 10427
Year Built: 2005

Product Description

The Lee 1,000 Gallon Double Motion Jacketed Tank is a high-performance, industrial mixing vessel engineered for precise blending, heating, and agitation of viscous and temperature-sensitive materials. This used unit features a dual-motion agitation system with counter-rotating inner agitator and outer scraper agitator, powered by dual stacked 10 HP drives for superior mixing efficiency and product consistency.

Constructed with 316L stainless steel contact surfaces and a sanitary internal finish of 20–30 RA, the tank is ideal for hygienic processing environments such as food, pharmaceutical, and chemical industries. Welds are ground smooth and flush, ensuring cleanability and compliance with sanitary standards.

The jacketed design supports controlled heating up to 338°F at 100 PSI, making it suitable for thermal processing applications. A dished bottom with a center outlet allows for complete product discharge, while the hinged stainless steel cover and agitator support channel provide accessibility and ease of operation. The system includes two VFDs for independent control of agitator speeds, offering process flexibility and precision.

Specifications

• Manufacturer: Lee Industries
• Model: 1000U9MS
• Condition: Used
• Year: 2005
• Capacity: 1,000 Gallons
• Construction: 316L Stainless Steel (product contact surfaces)
• Internal Finish: 20–30 RA sanitary finish

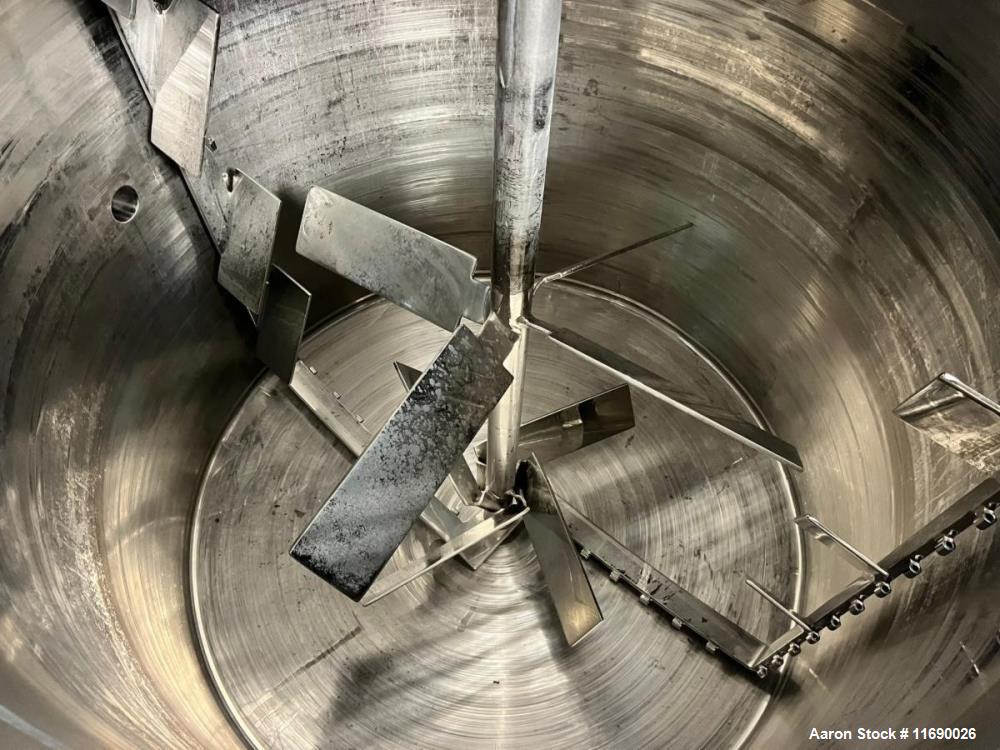

• Agitation Type: Double motion (inner agitator + outer scraper)

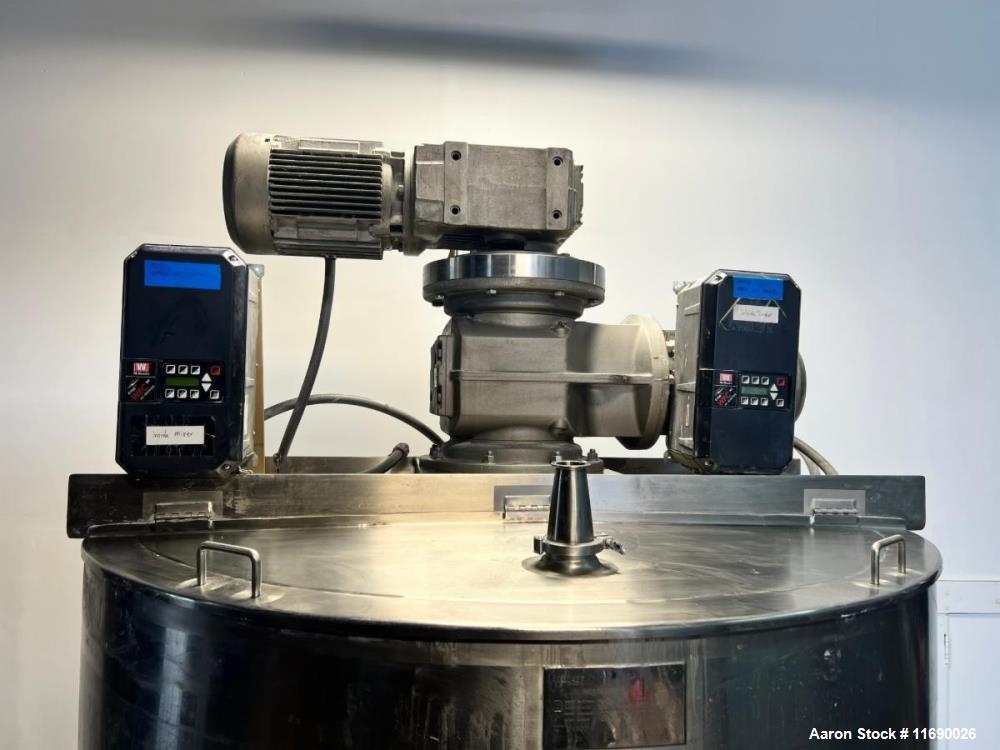

• Drive System: Dual stacked 10 HP motors
• Agitator Function: Counter-rotating mixing system
• Jacket Pressure Rating: 100 PSI
• Maximum Temperature: 338°F
• Bottom Design: Dished bottom with center outlet
• Top Cover: Two-piece hinged stainless steel cover
• Controls: (2) Variable Frequency Drives (VFDs)
• Weld Finish: Ground smooth and flush
• Mounting: Agitator support channel

Applications

• High-viscosity product mixing
• Heated mixing and blending processes
• Food and beverage production
• Pharmaceutical batch processing
• Cosmetic and personal care formulation
• Chemical mixing and reactions
• Adhesive and polymer blending
• Thermal processing and emulsification
• Sanitary processing environments
• Batch manufacturing systems

What Products Would This Be Used For

• Sauces and syrups
• Creams and lotions
• Pharmaceutical gels
• Adhesives and sealants
• Polymer compounds
• Food pastes and spreads
• Cosmetic formulations
• Chemical slurries
• Emulsified products
• High-viscosity liquids
