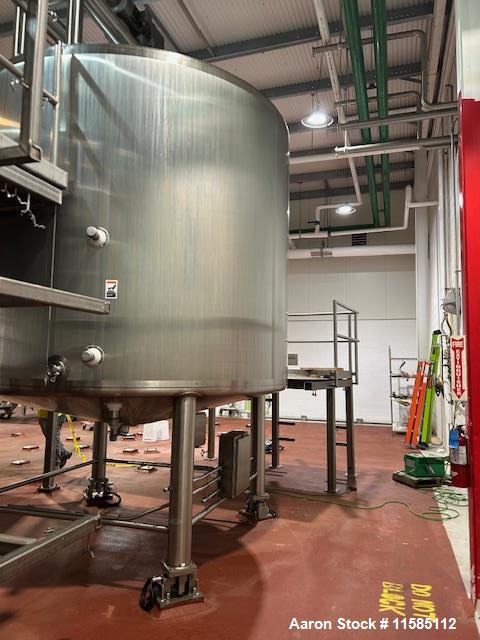

Used Walker 4000 Gallon 316L Stainless Steel Kettle – Jacketed, Double Motion Agitator, CIP, Polished, 2018

Manufacturer Info:

• Manufacturer: Walker

• Model: PZ-CB-CXR

• Capacity: 4000 gallons

• Material: 316L Stainless Steel (product contact)

• Year Built: 2018

• Mounting: (4) stainless steel legs

• Finish: #4 sanitary polished (interior & exterior welds)

• Last Use: Food product

Product Description:

This Used Walker 4000 Gallon Kettle, model PZ-CB-CXR, is a high-capacity, food-grade jacketed mixing vessel constructed entirely of 316L stainless steel with a polished sanitary finish inside and out. Designed for atmospheric pressure operation, it features jacketed sides and bottom rated for 75 PSI at 320°F and -20°F at 75 PSI, ideal for precise thermal processing in food, beverage, and sanitary production environments.

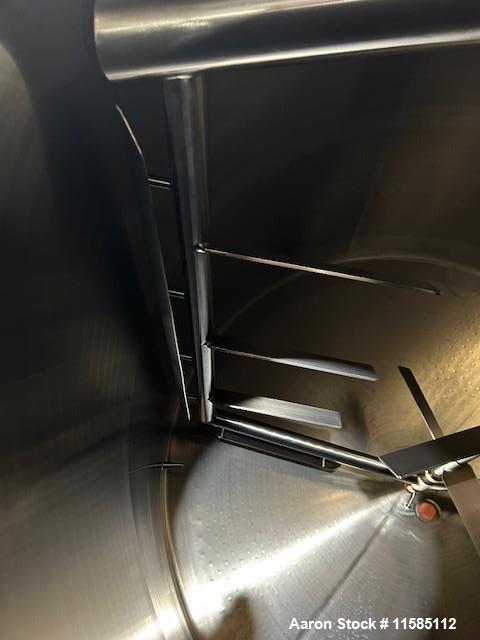

Equipped with a double-motion agitation system, the kettle includes:

• A 5 HP, 15 RPM agitator sweep motor

• A 10 HP, 60 RPM agitator motor

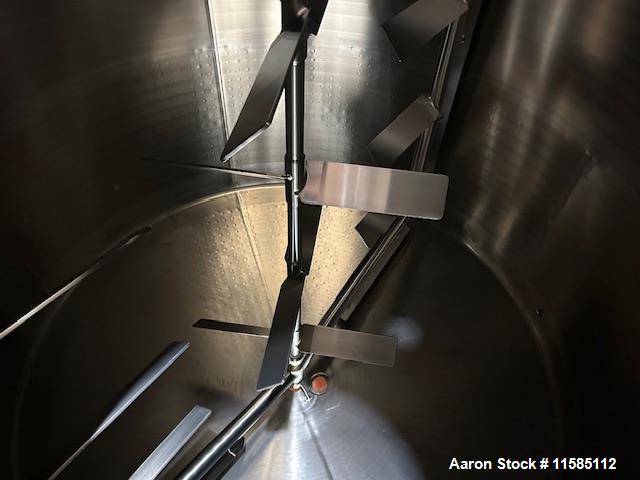

• (4) 2-blade prop agitator blades

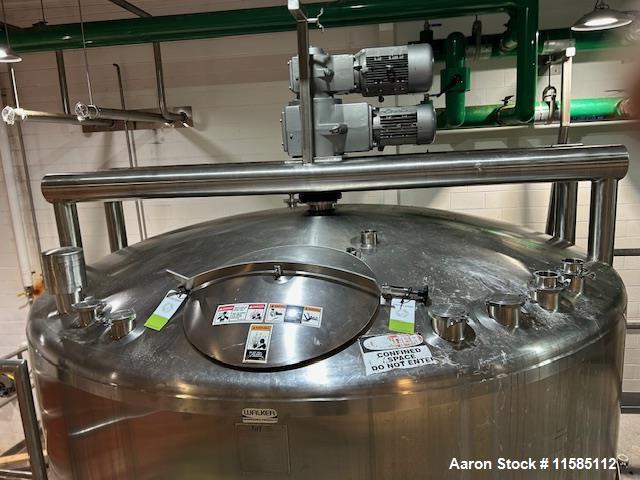

The vessel features a dished top and bottom, a 20" manway with CIP spray balls, (4) 3.5" Tri-Clamp top inlets, a 4" breather, and inlet ports for jacket service. Measuring 9’5” diameter (10’ overall) and 16’ high, this robust mixing tank is supported by (4) stainless legs for clean, floor-mounted installation.

Key Specifications:

• Capacity: 4000 gallons

• Model: PZ-CB-CXR

• Material: 316L Stainless Steel

• Pressure Rating:

  • Internal: Atmospheric

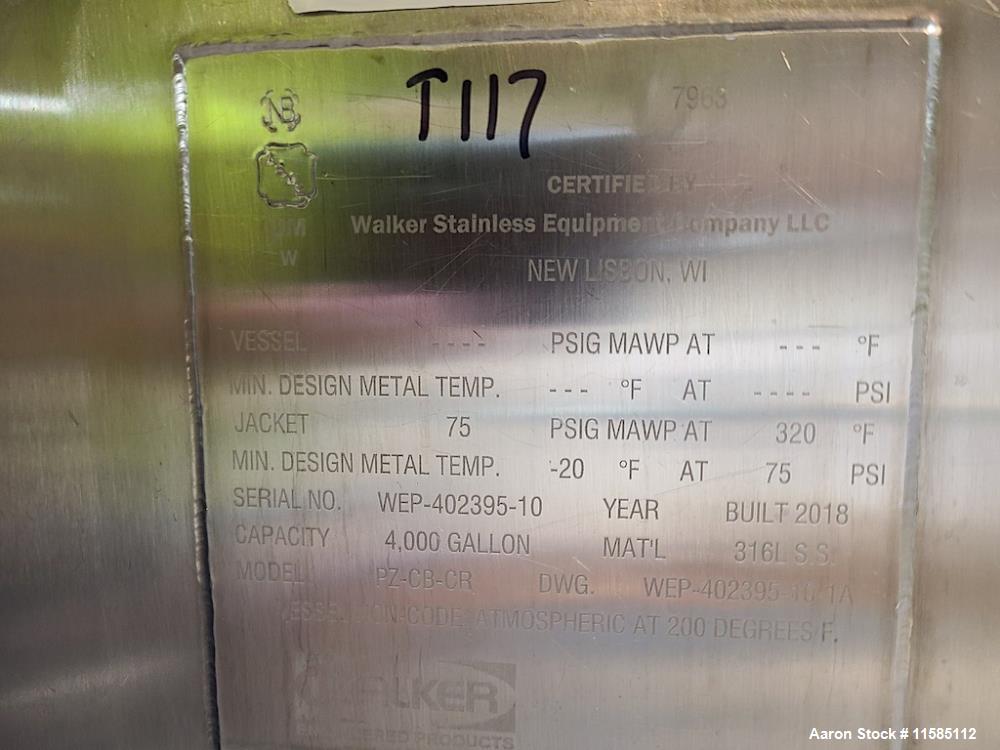

  • Jacket: 75 PSI @ 320°F, -20°F @ 75 PSI

• Jacketed: Sides and bottom

• Agitators:

  • 5 HP, 15 RPM sweep

  • 10 HP, 60 RPM high-speed

  • Motors: 3/60/230/460V

  • (4) 2-blade agitator props

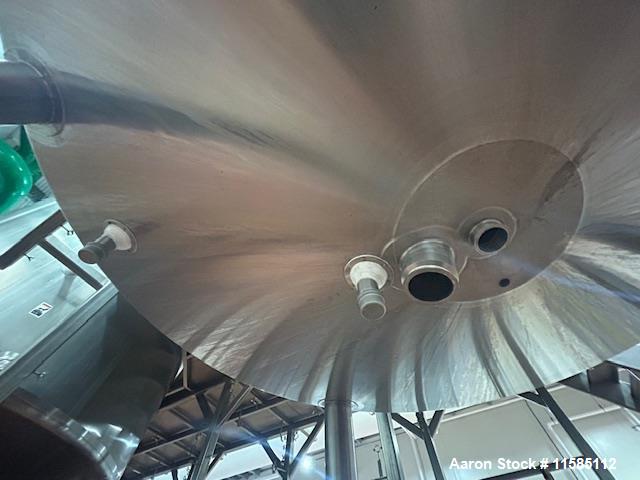

• Vessel Heads: Dished top and bottom

• Top Inlets: (4) 3.5" Tri-Clamp

• Vent: 4" breather

• Access: 20” top manway with CIP spray balls

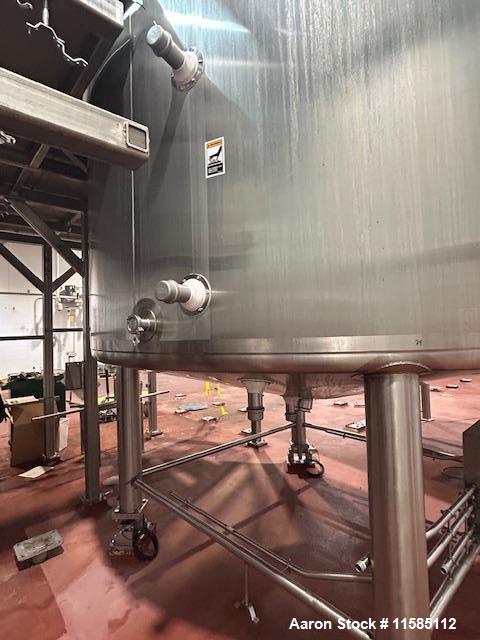

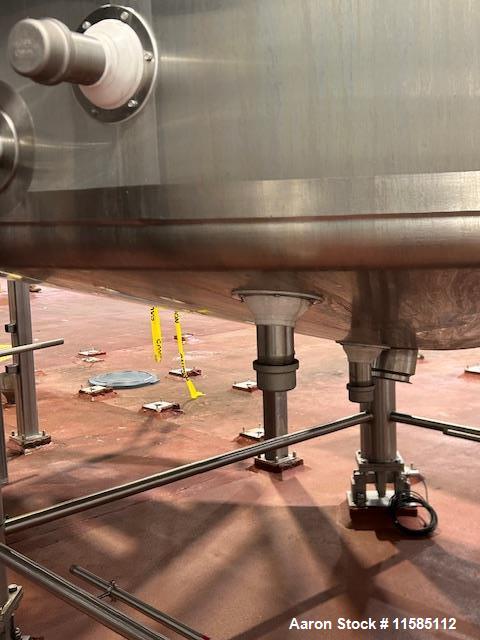

• Mounting: (4) stainless steel legs

• Finish: #4 sanitary polish inside and out

• Dimensions:

  • Diameter: 9'5" (10' overall)

  • Height: 16'

• Built: 2018

• Application: Last used for food product

Applications:

• Food and beverage ingredient blending

• Dairy, flavor, or sweetener processing

• Sanitary liquid product storage and mixing

• Pharmaceutical and nutraceutical production

• Creams, sauces, and semi-viscous products

• RTD (ready-to-drink) beverage batch production

• Cosmetic and personal care liquid blending

• Pasteurization or thermal conditioning

• Chocolate, syrup, or concentrate handling

• Brewery and fermentation heating/mixing

What Might This Be Used For?

This kettle is ideal for sanitary, high-volume batch production, requiring precise agitation and jacketed heating/cooling. Its double-motion agitation, sanitary welds, and CIP system make it perfect for food-grade manufacturing, beverage processing, nutraceuticals, or cleanroom liquid blending applications.
