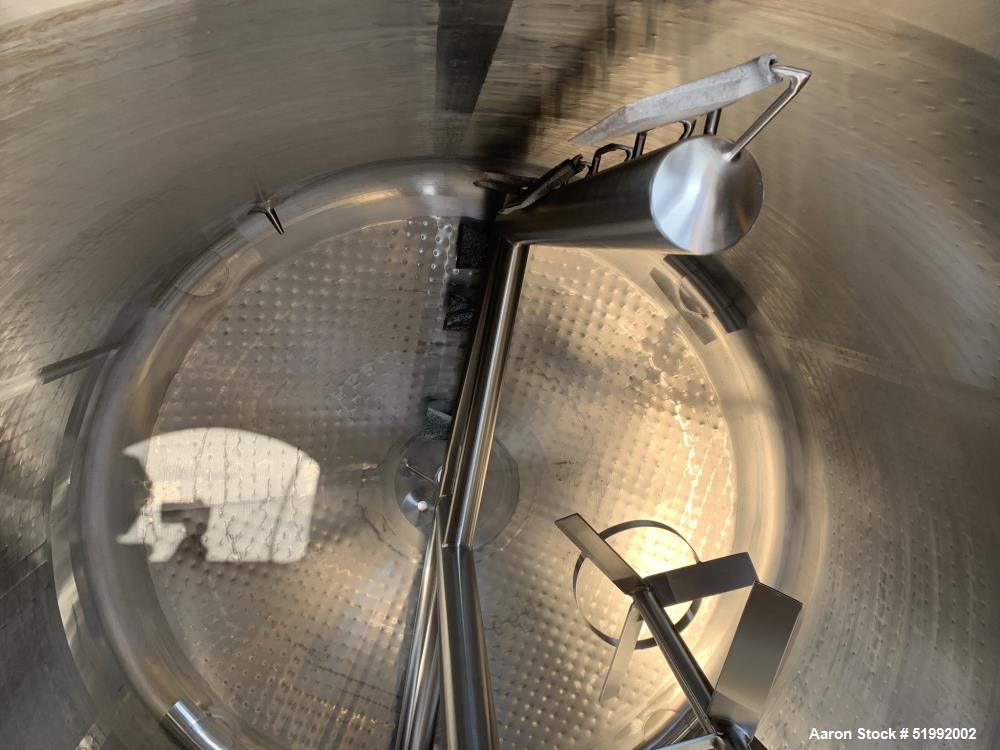

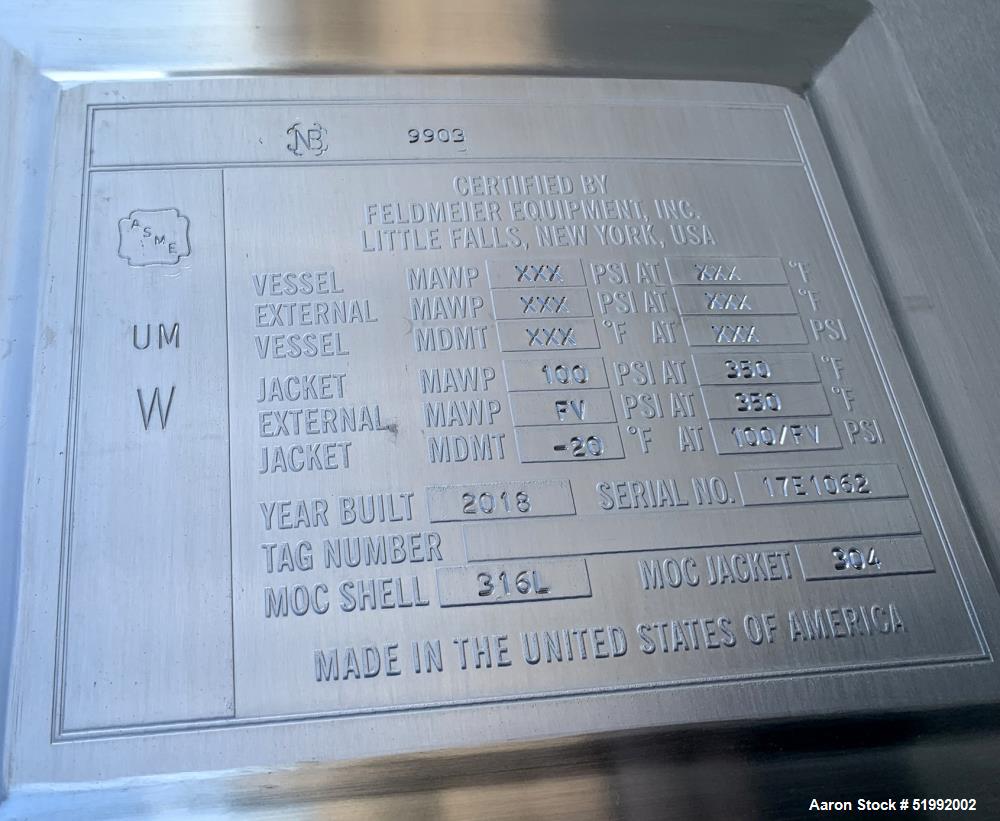

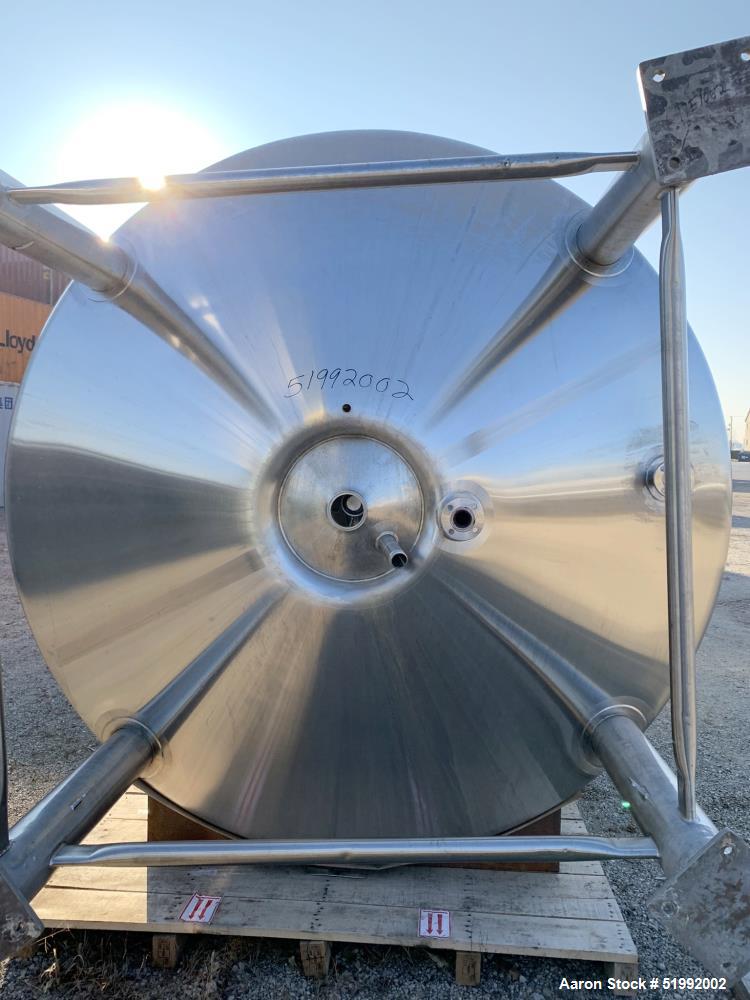

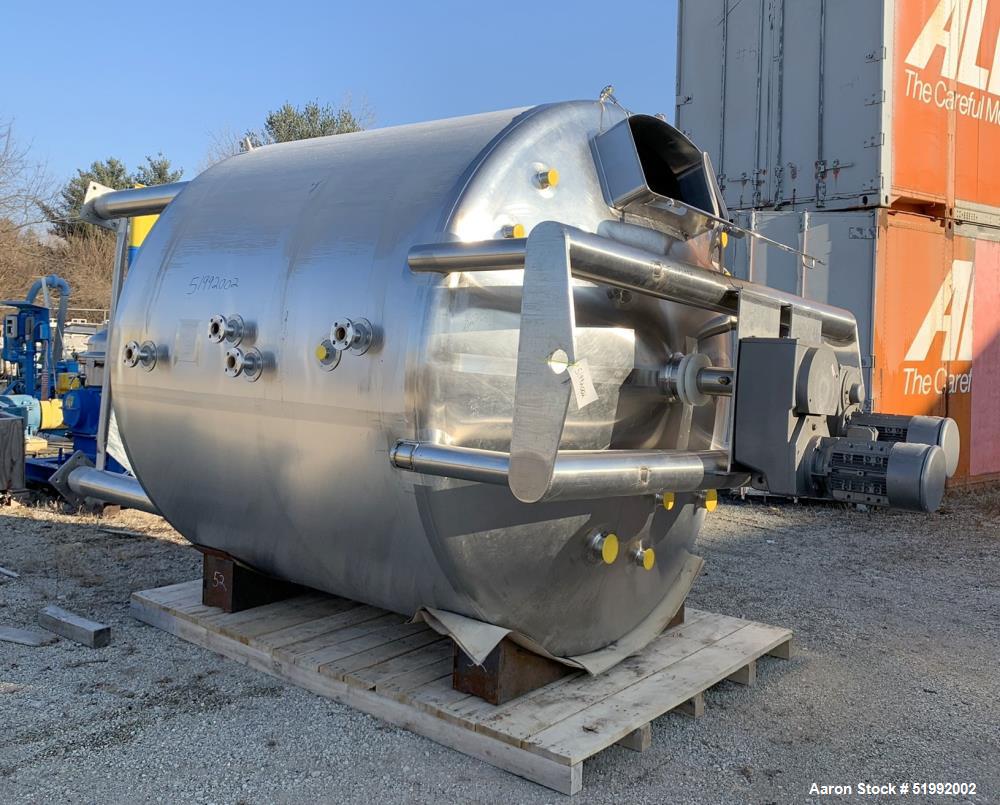

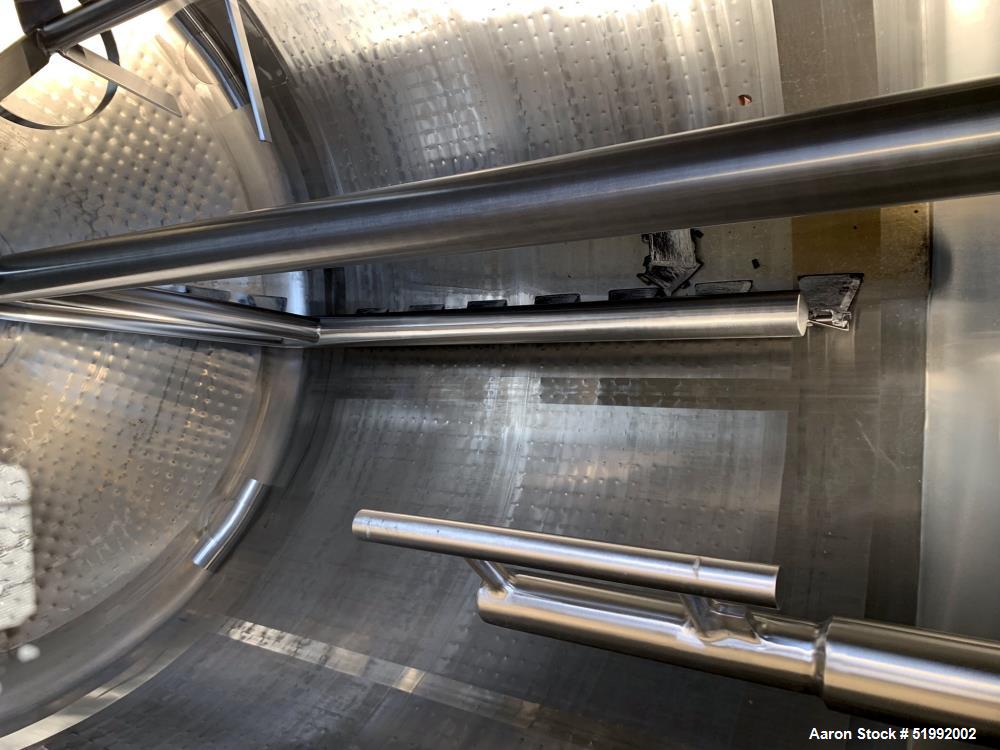

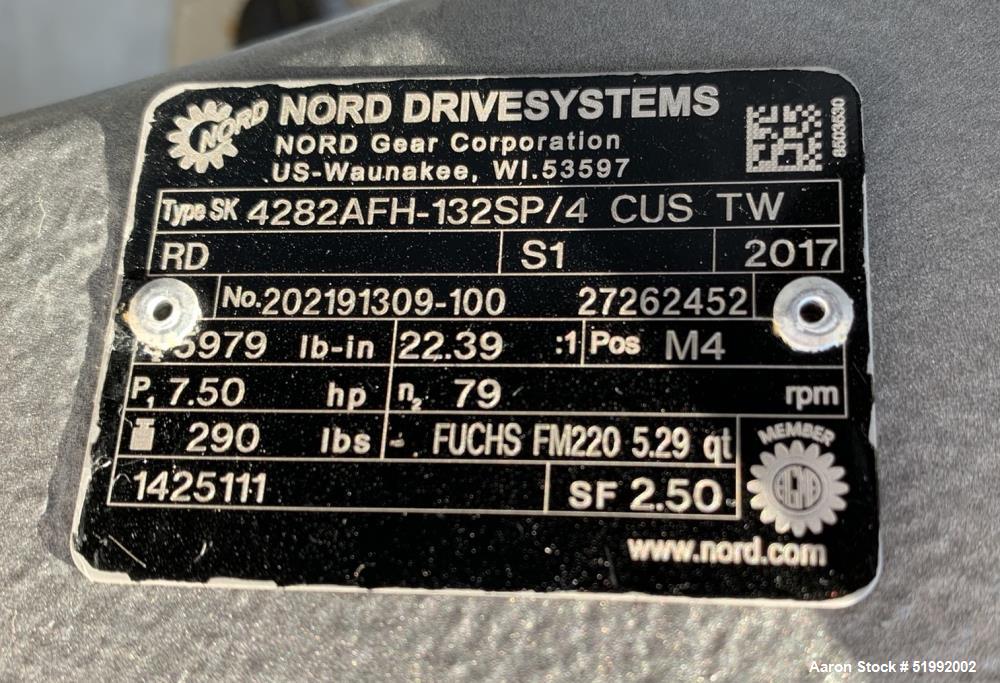

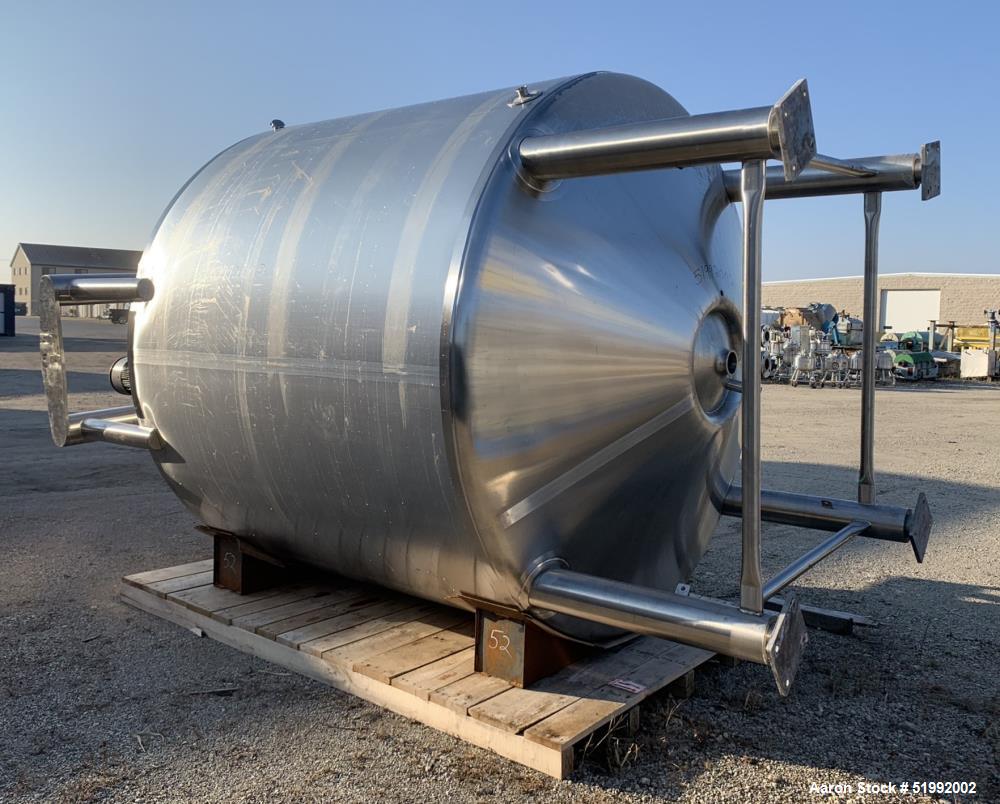

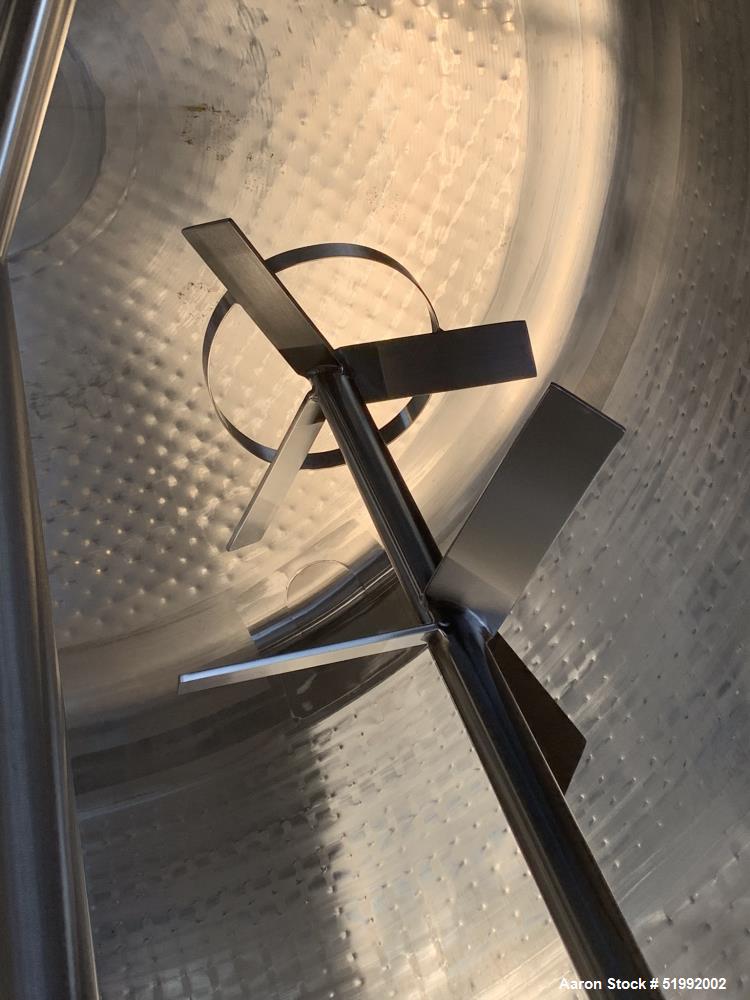

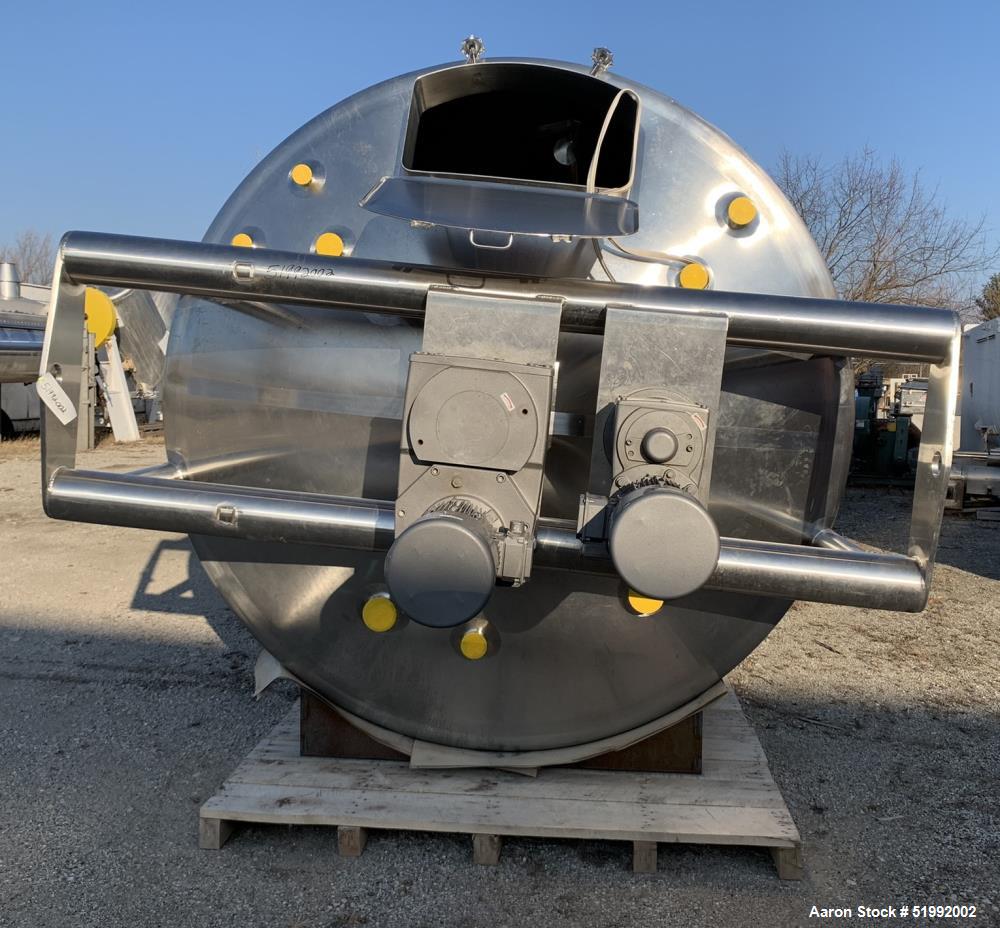

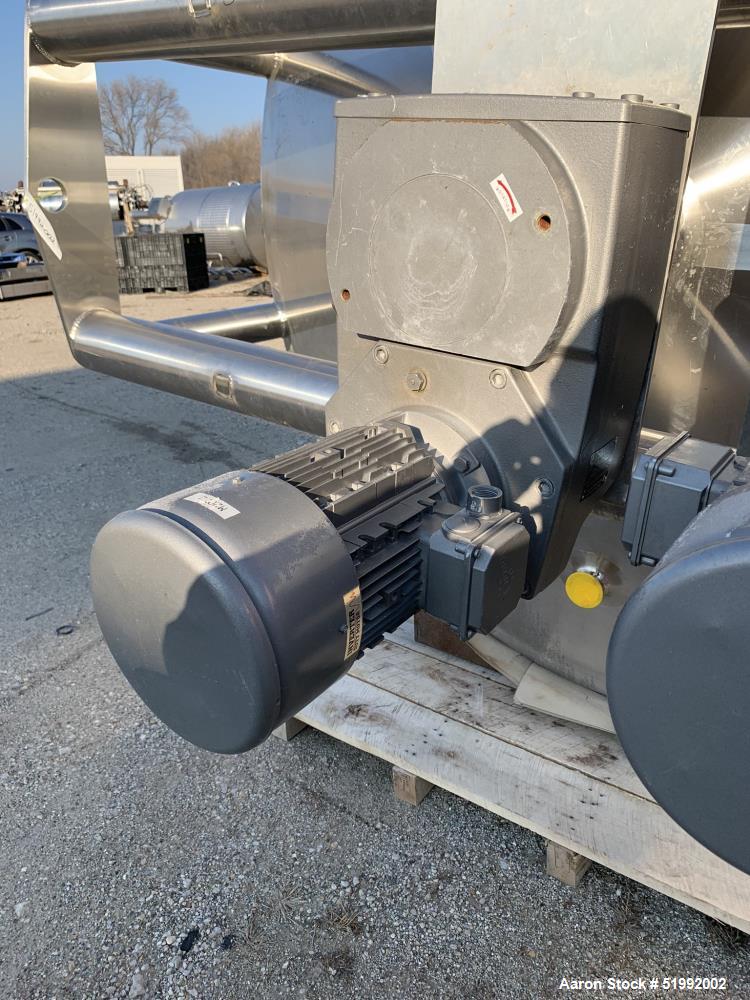

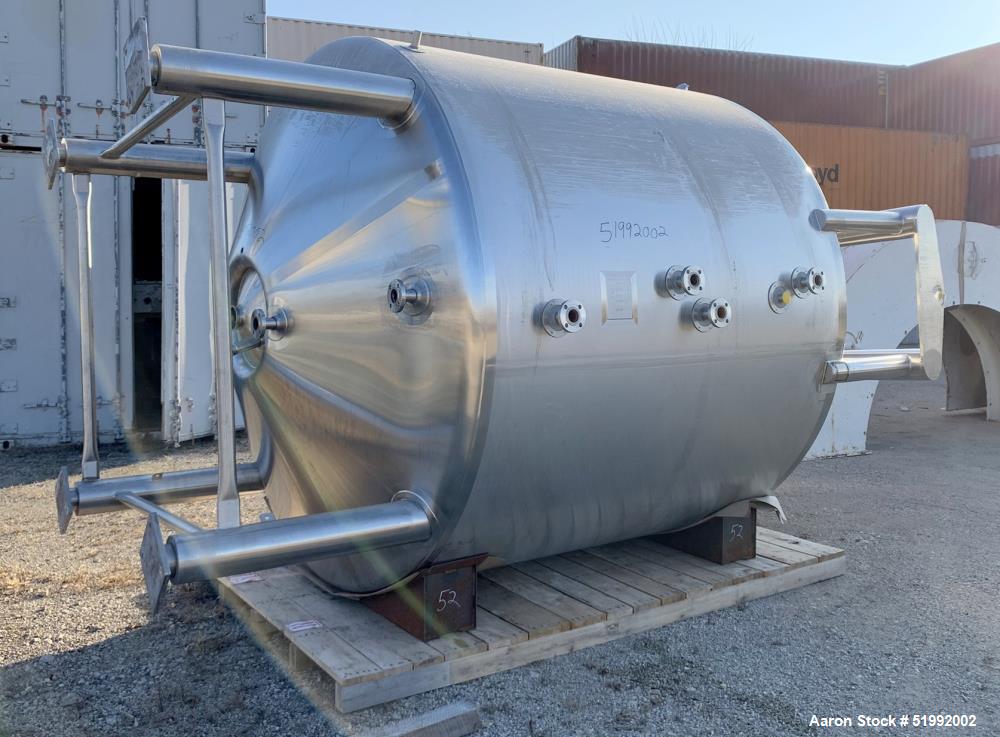

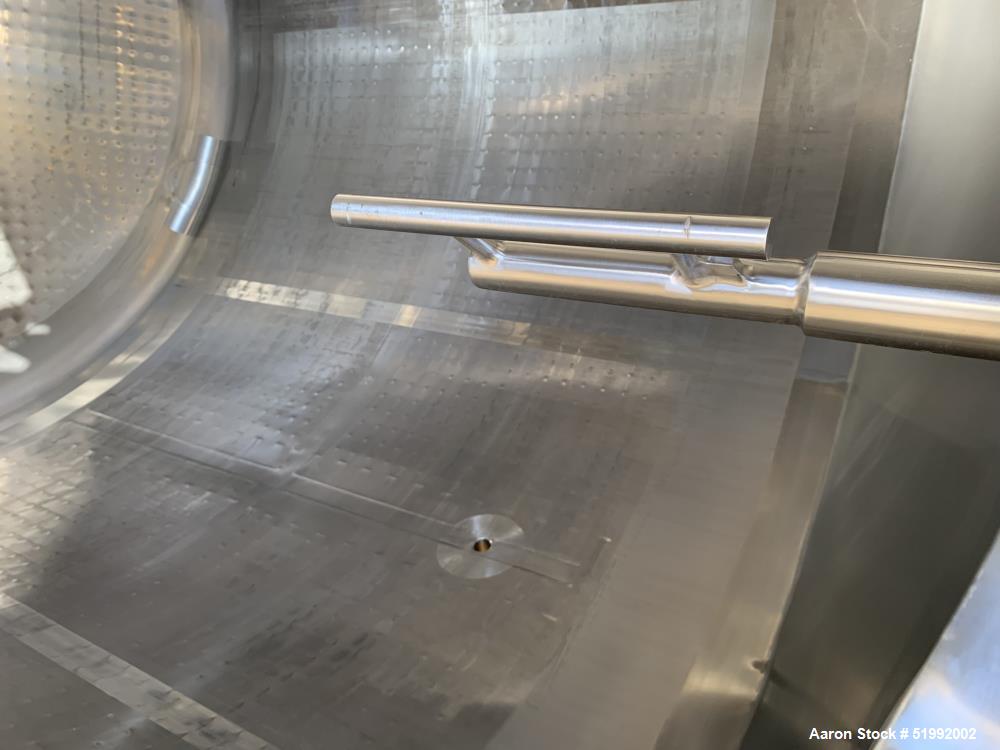

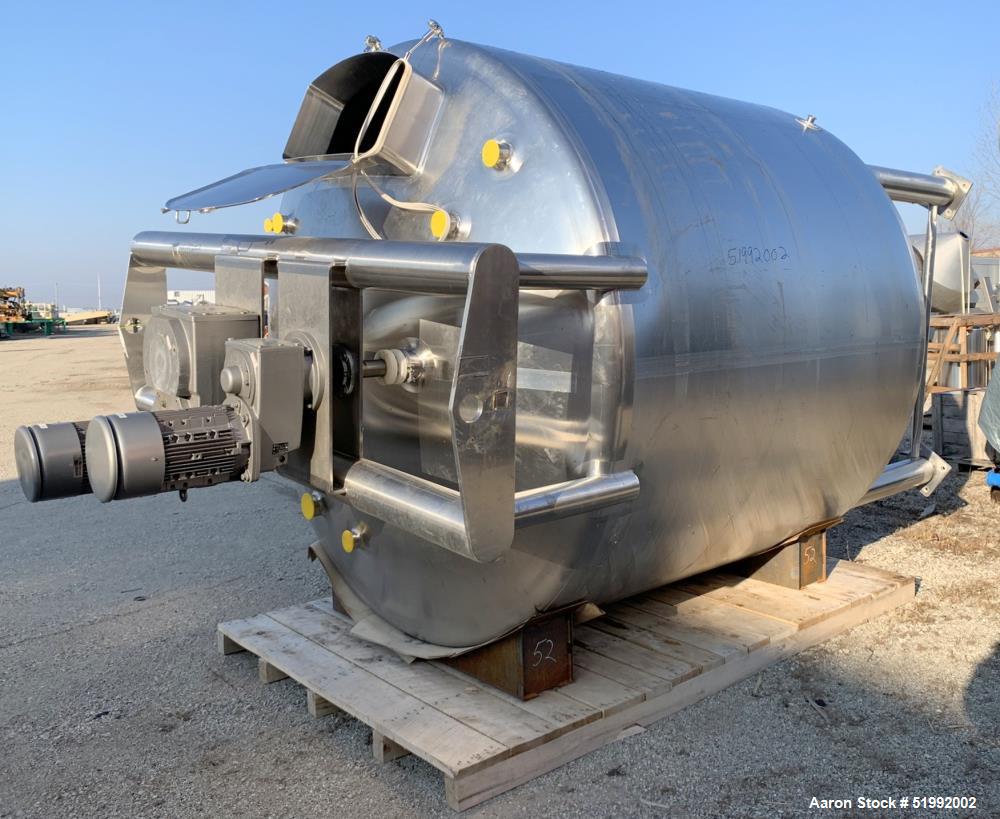

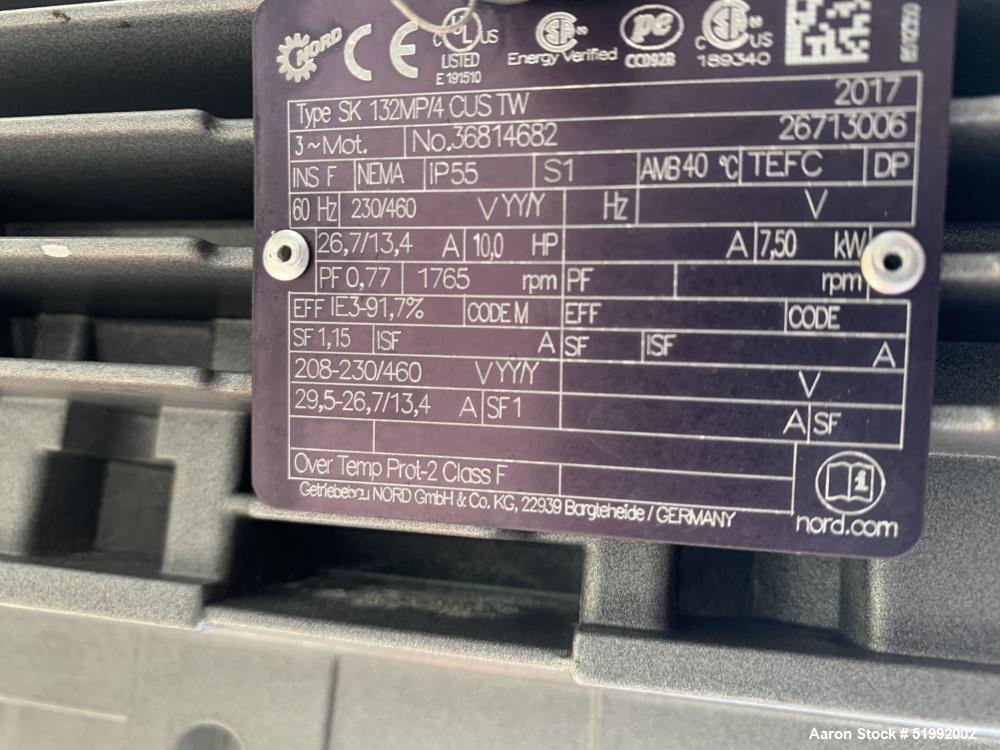

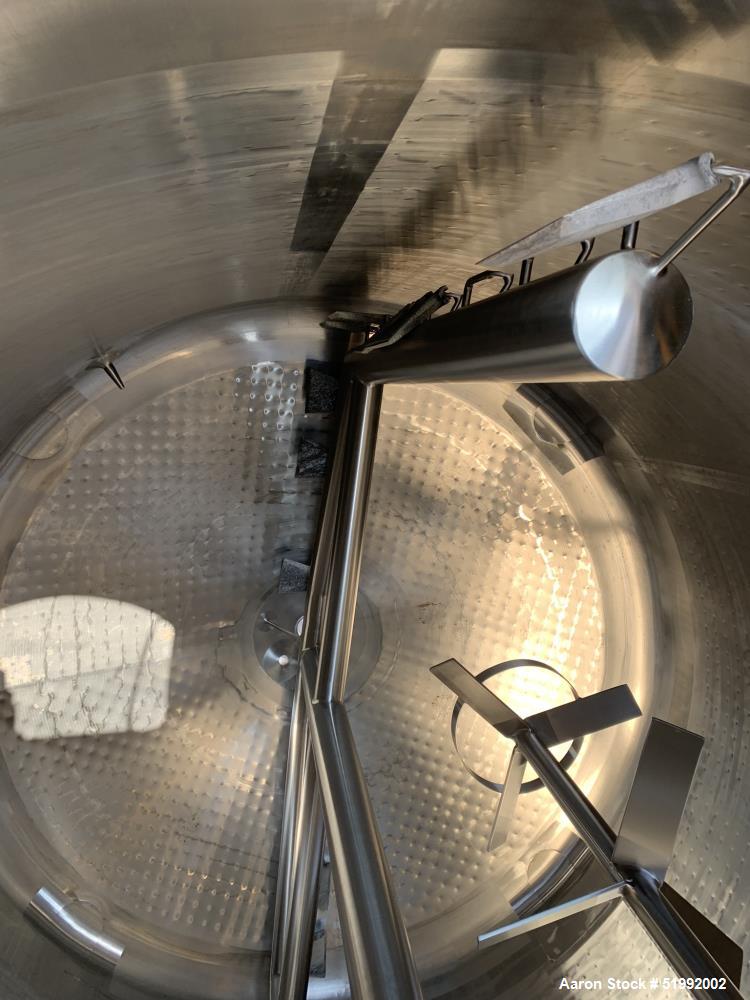

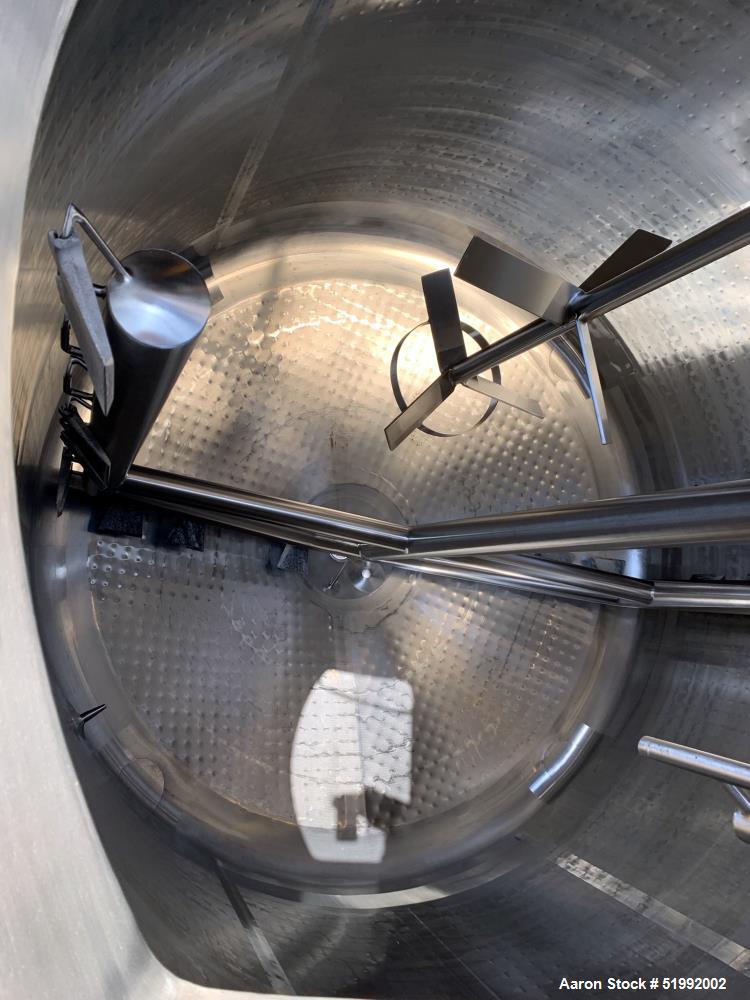

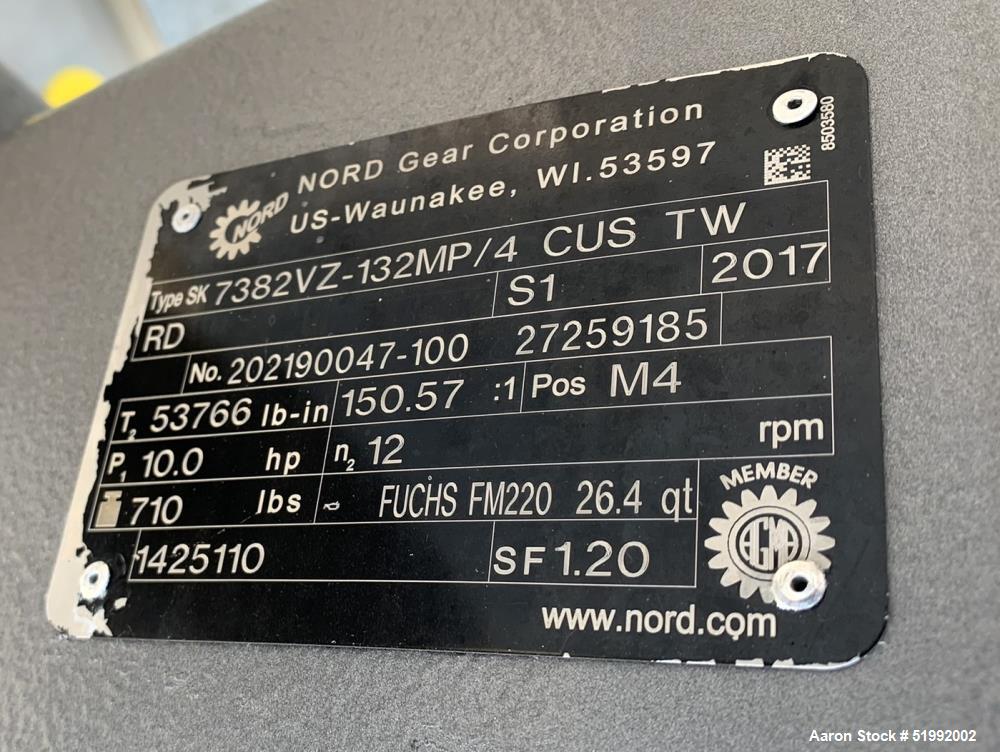

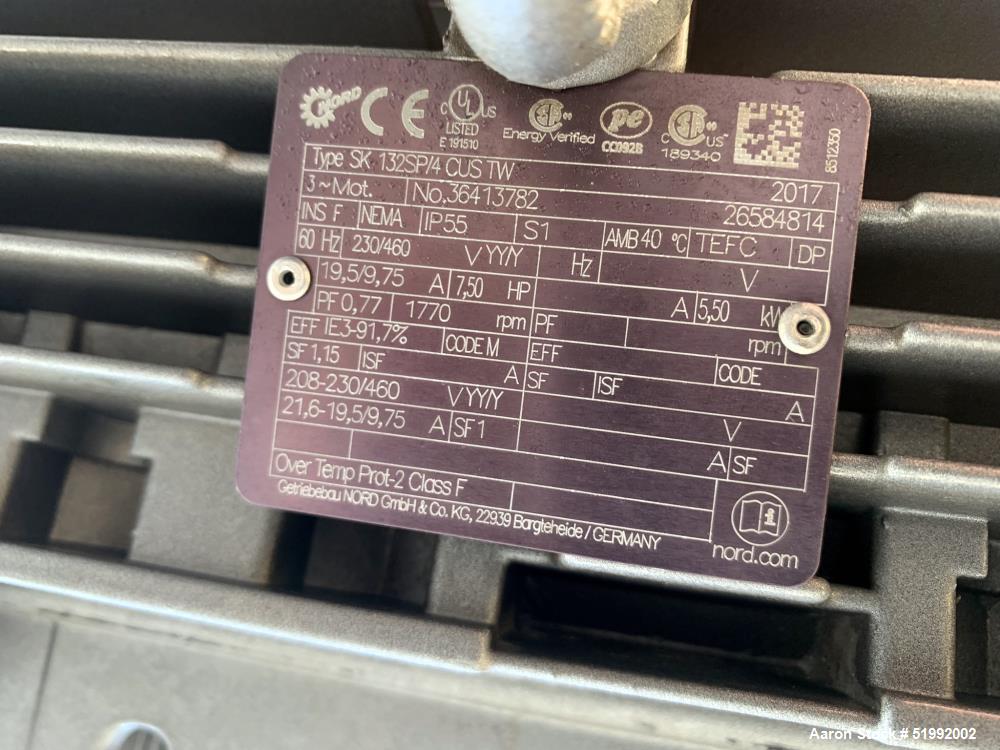

Used Feldmeier 2,500 Gallon Jacketed Mix Tank, 316L Stainless Steel, Vertical. Approximate 96" diameter x 84" straight side. Dished top, cone bottom. 304 Stainless steel dimple jacket rated 100 psi / FV at -20 to 350 degrees F. Top center entering anchor style agitator with sidewall and bottom scrapers, driven by a 10hp, 3/60/230/460 volt gear motor, approximate 12 output rpm, bottom supported. Offset turbine agitator, (2) 26" diameter 3-blade turbines, driven by a 7.5hp, 3/60/230/460 volt gear motor, approximate 79 output rpm. Openings top: 18" x 30" manway, (2) 4", (2) 3", (2) 2". 4" Center bottom outlet. Insulate 3" Chloride & asbestos free fiberglass. (1) Sidewall baffle, (3) Spray balls. Mounted on (4) legs. Serial# 17E1062, National Board# 9903, Built 2018.
