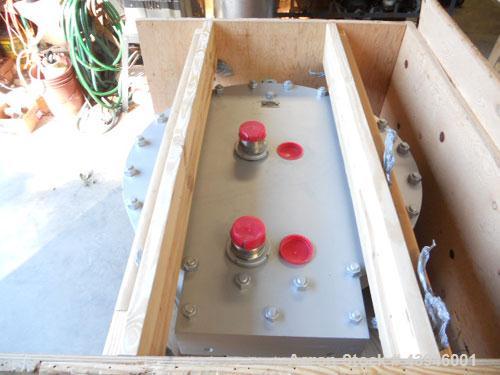

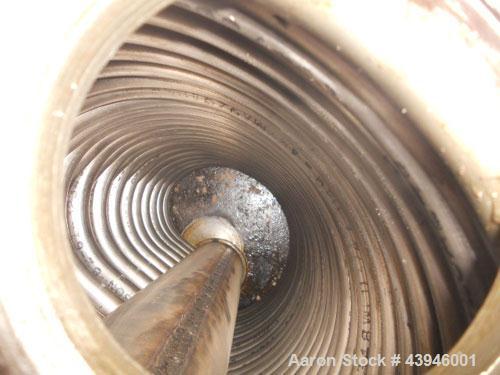

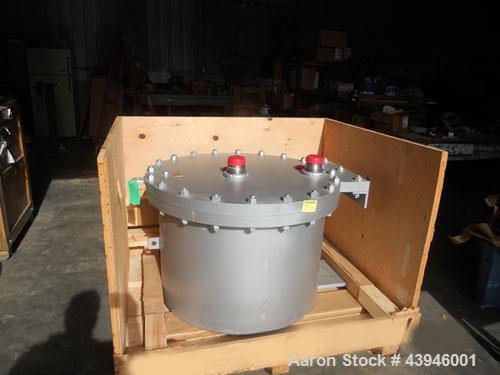

Unused-Heliflow Heat Exchanger, Graham Manufacturing Co. Grade 304 stainless steel tubes. 304 Stainless steel manifolds. Tubes to manifold joint welded. Gaskets nonasbestos. Fabricated carbon steel casing and baseplate. Maximum allowable working pressure 75 psig at 650 deg F shell side and 300 psig at 450 deg F tube side. Unit has been hydro tested to 115 psig shell and 450 psig tubes. Tube side connections are 3" NPT male outlet (NS) and 3" NPT male inlet (NS). Shell side connections are 3" NPT female outlet (NS) and 3" NPT female inlet (NS). Unit is in unused condition. Tube section consists of 30 coils, 3/4" diameter, 18 gauge and 47'10" length giving a heat transfer surface area of approsimately 282 square feet.
Unused-Heliflow Heat Exchanger, Graham Manufacturing Co. Grade 304 stainless steel tubes. 304 Stainless steel manifolds. Tubes to manifold joint welded. Gaskets nonasbestos. Fabricated carbon steel casing and baseplate. Maximum allowable working pressure 75 psig at 650 deg F shell side and 300 psig at 450 deg F tube side. Unit has been hydro tested to 115 psig shell and 450 psig tubes. Tube side connections are 3" NPT male outlet (NS) and 3" NPT male inlet (NS). Shell side connections are 3" NPT female outlet (NS) and 3" NPT female inlet (NS). Unit is in unused condition. Tube section consists of 30 coils, 3/4" diameter, 18 gauge and 47'10" length giving a heat transfer surface area of approsimately 282 square feet.
