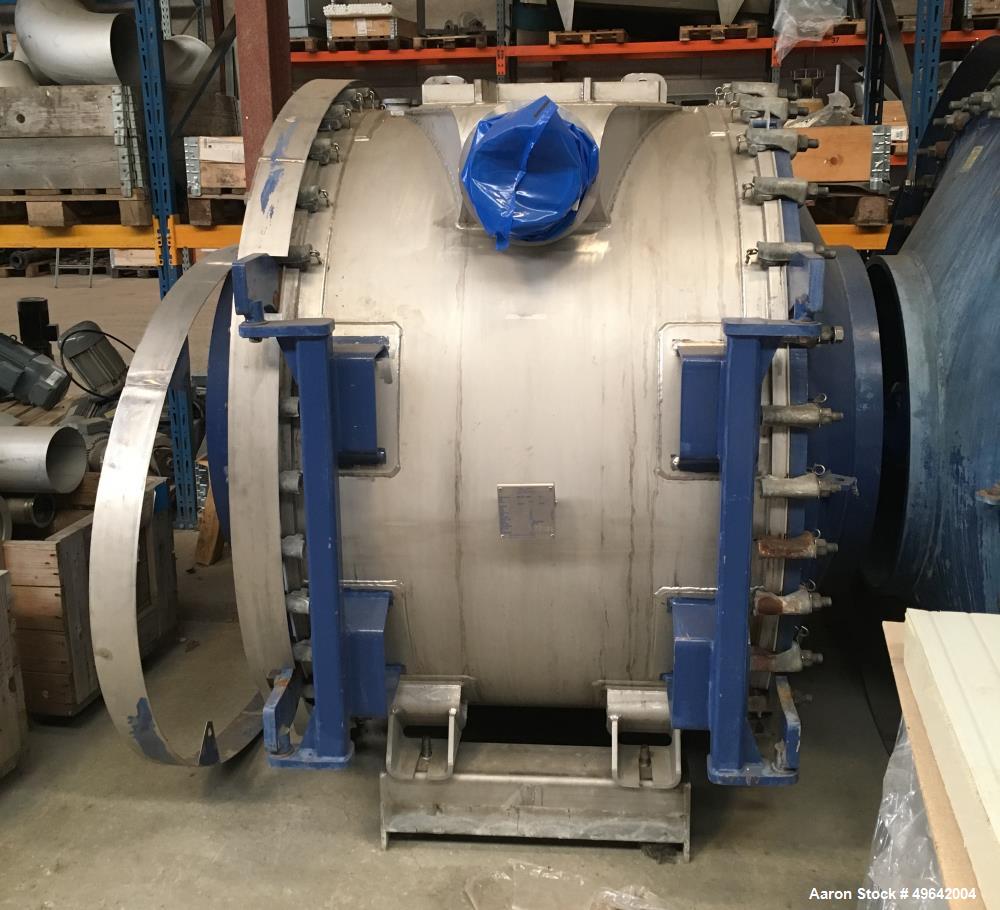

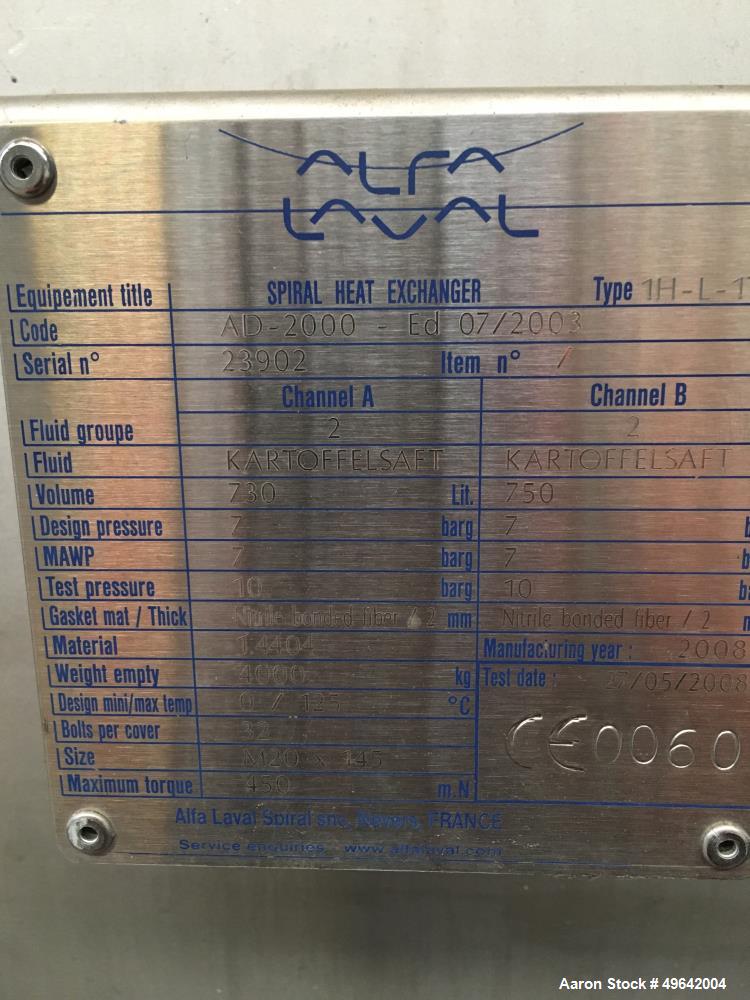

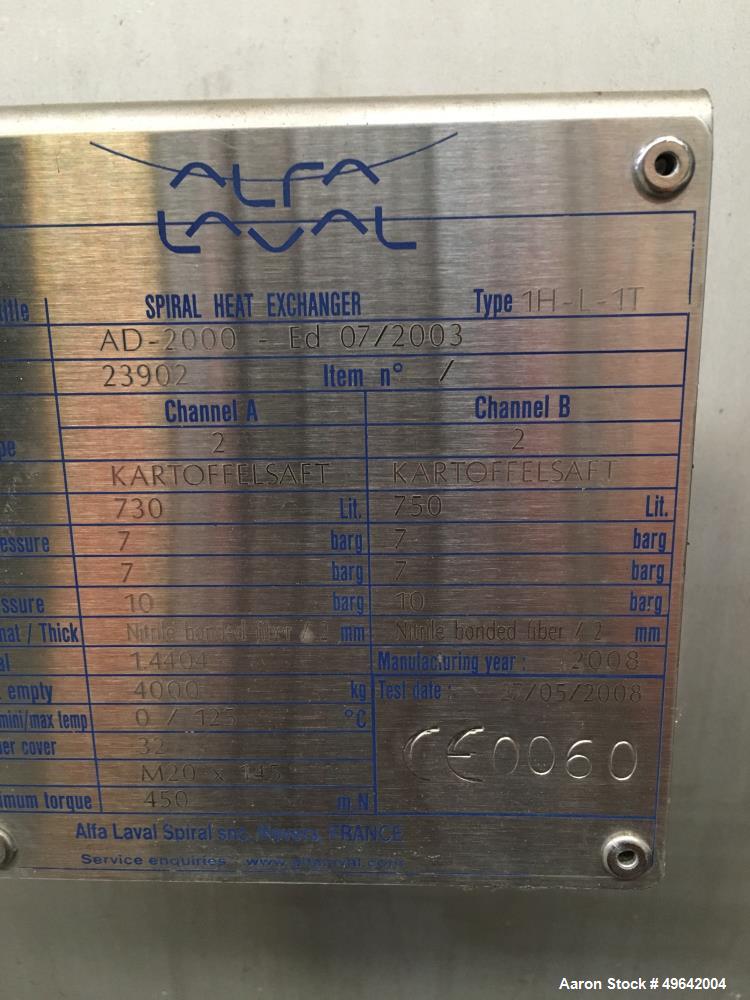

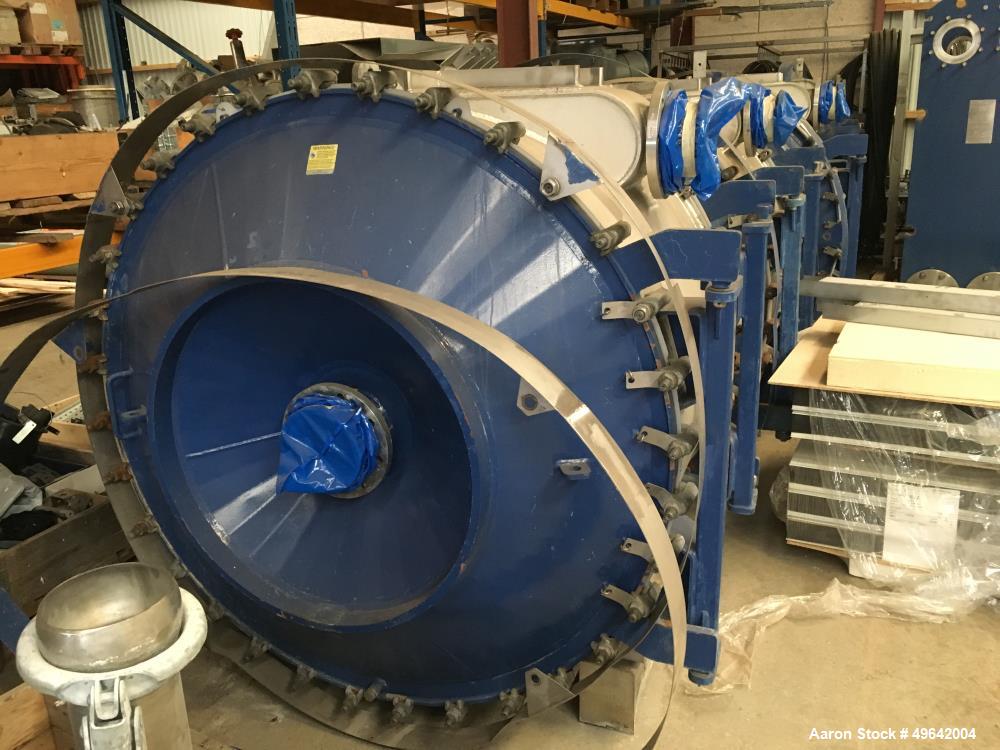

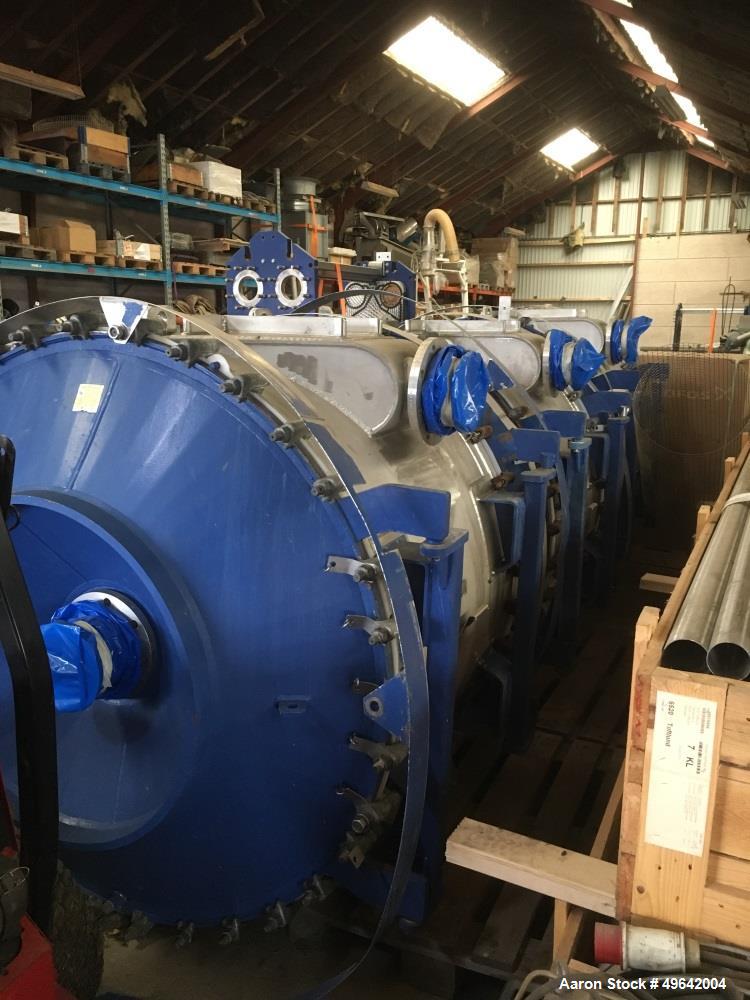

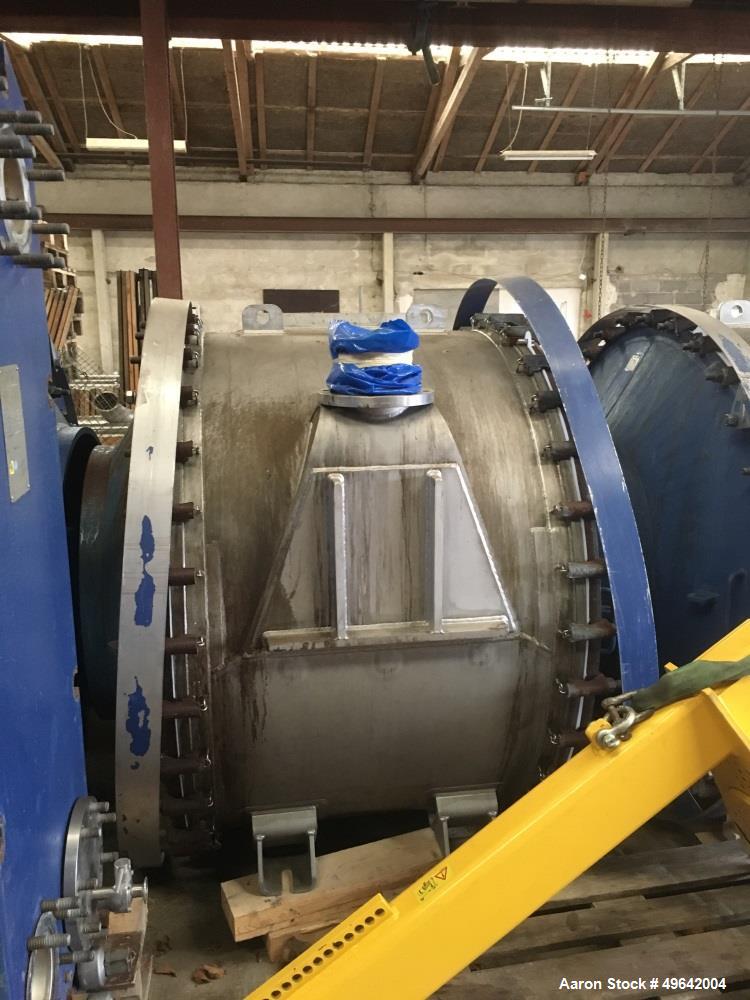

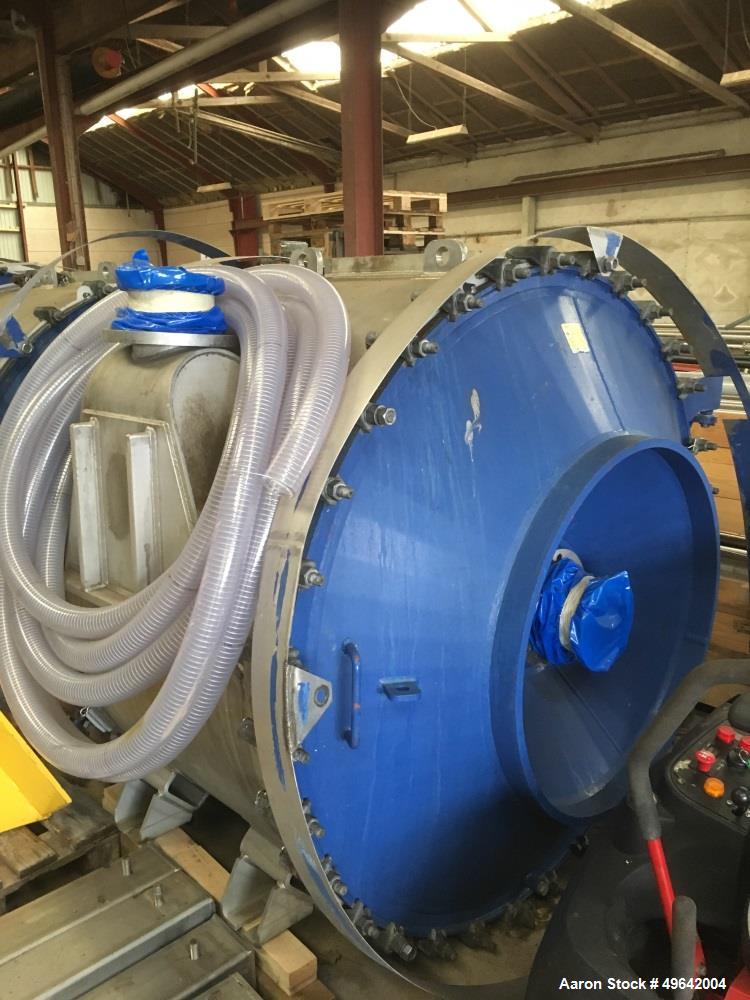

Used Alfa Laval Stainless Steel Spiral Heat Exchanger, Model 1H-L-1T. Material of construction is stainless steel 316L shell on product contact parts. Stainless steel body. 1170.03 square feet (108.7 m2) heat transfer surface. Capacity 10582-14550 gallon/hr. (40000-55000 liter/40-55 m3/hr). (2) 5.8”. 150 mm diameter inlet/outlet. Inlet temp. 142-242.6 deg F (61-117 deg C), Outlet temp 176.5-210.2 deg F (80.3-99 deg C). Design temp 257 deg. F (125 deg. C). Rated for 105 psi (7 bar) on both hot and cold side. (2) Removable ends with clamps. On 4 legs. New year 2008. Overall dimensions 5’2” (1610 mm) diameter x 4’6” (1400 mm) long, Weight: 4.327 tonnes empty.
Used Alfa Laval Stainless Steel Spiral Heat Exchanger, Model 1H-L-1T. Material of construction is stainless steel 316L shell on product contact parts. Stainless steel body. 1170.03 square feet (108.7 m2) heat transfer surface. Capacity 10582-14550 gallon/hr. (40000-55000 liter/40-55 m3/hr). (2) 5.8”. 150 mm diameter inlet/outlet. Inlet temp. 142-242.6 deg F (61-117 deg C), Outlet temp 176.5-210.2 deg F (80.3-99 deg C). Design temp 257 deg. F (125 deg. C). Rated for 105 psi (7 bar) on both hot and cold side. (2) Removable ends with clamps. On 4 legs. New year 2008. Overall dimensions 5’2” (1610 mm) diameter x 4’6” (1400 mm) long, Weight: 4.327 tonnes empty.
