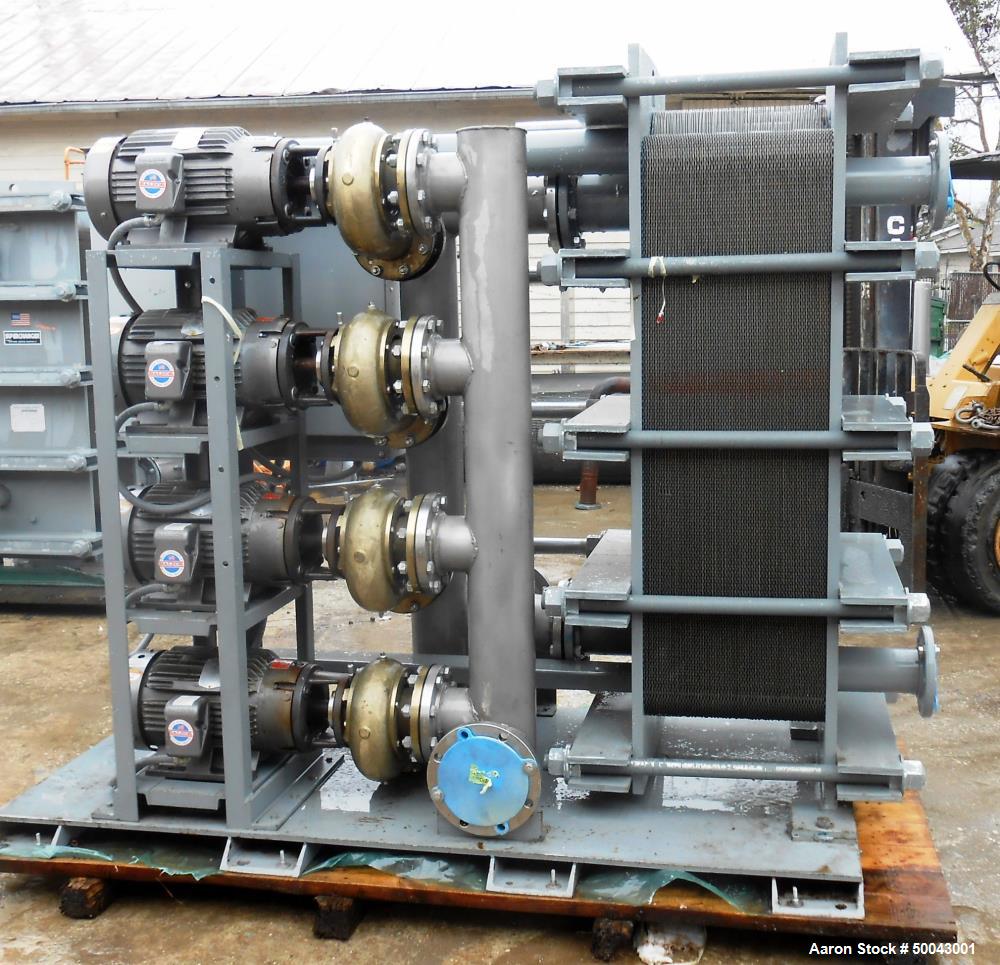

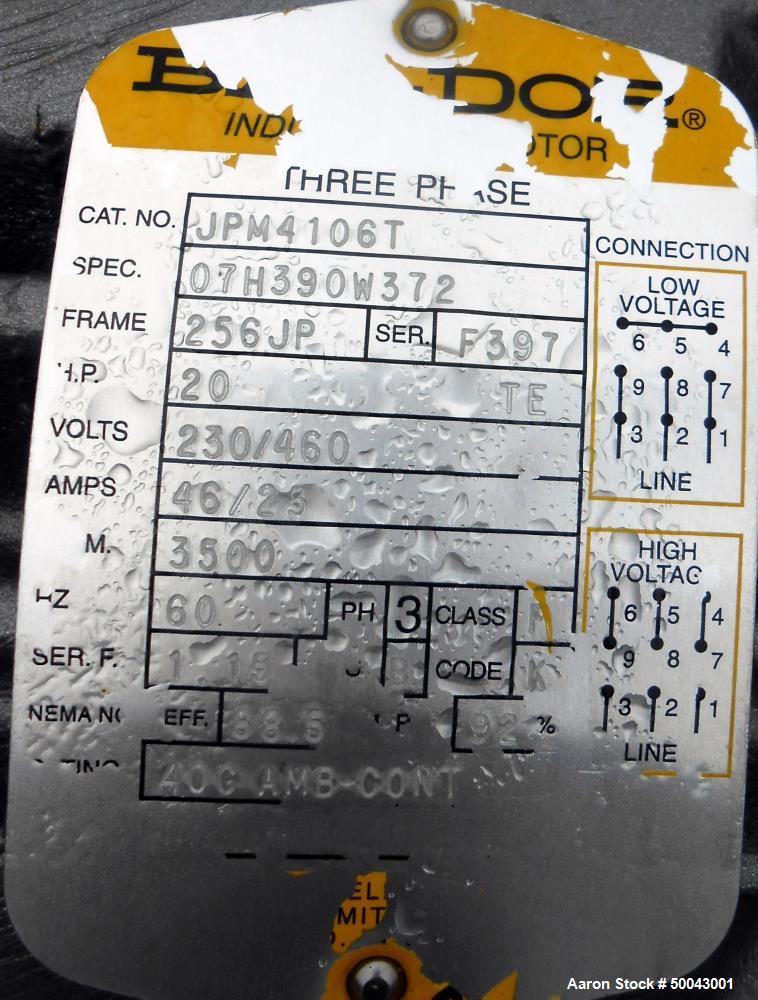

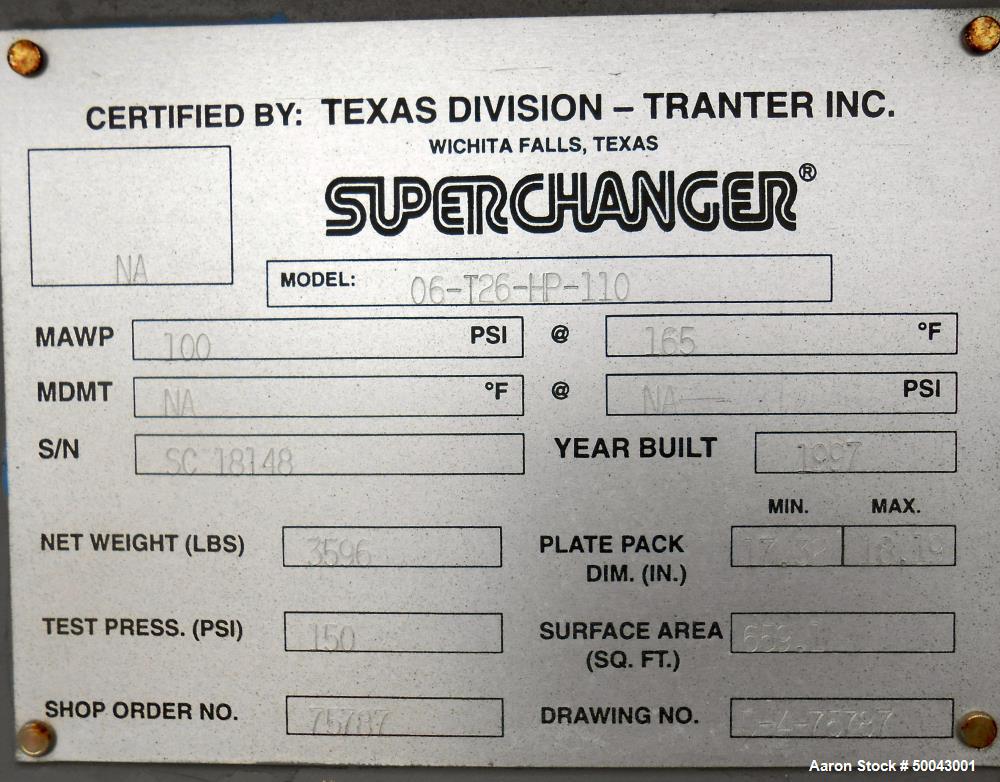

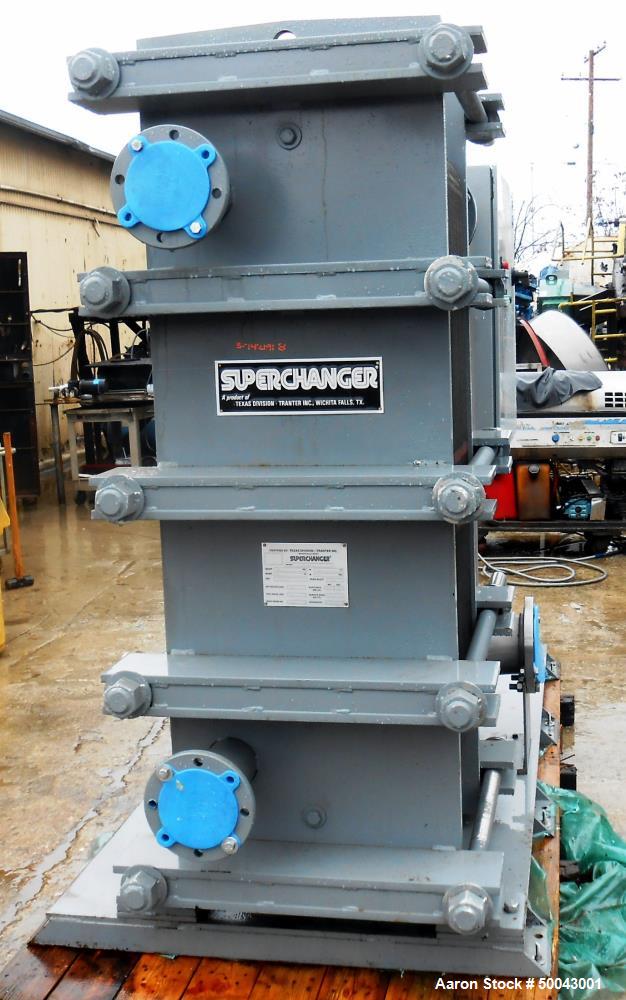

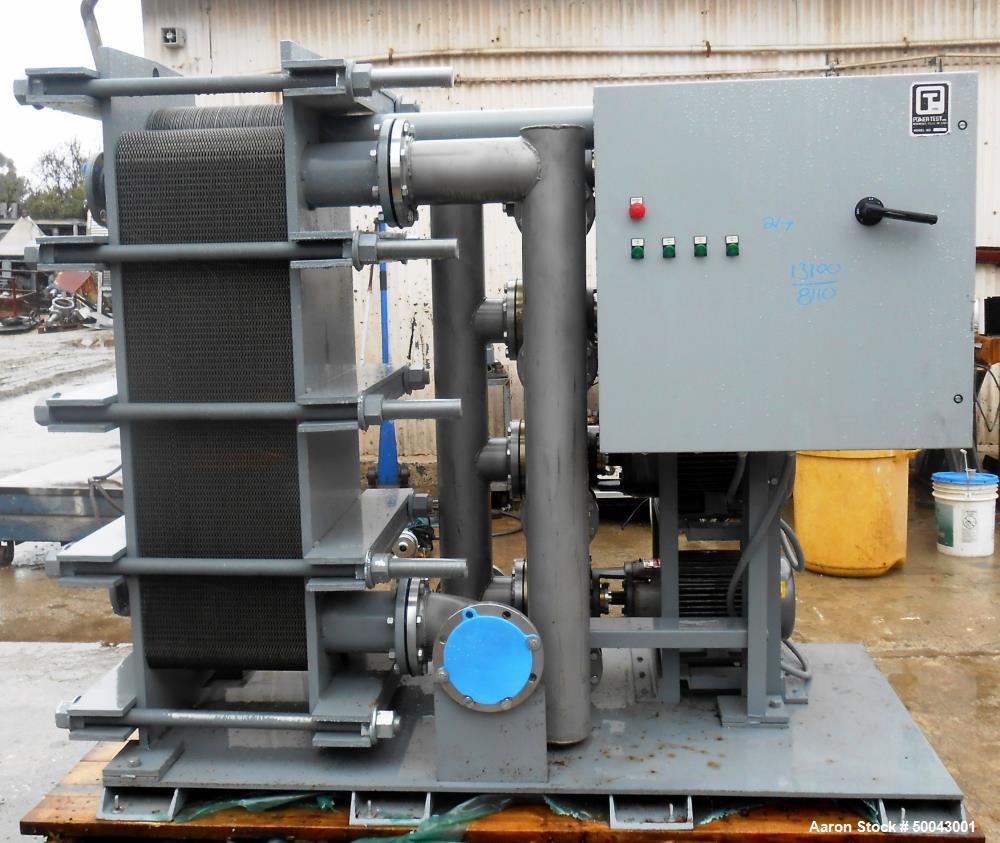

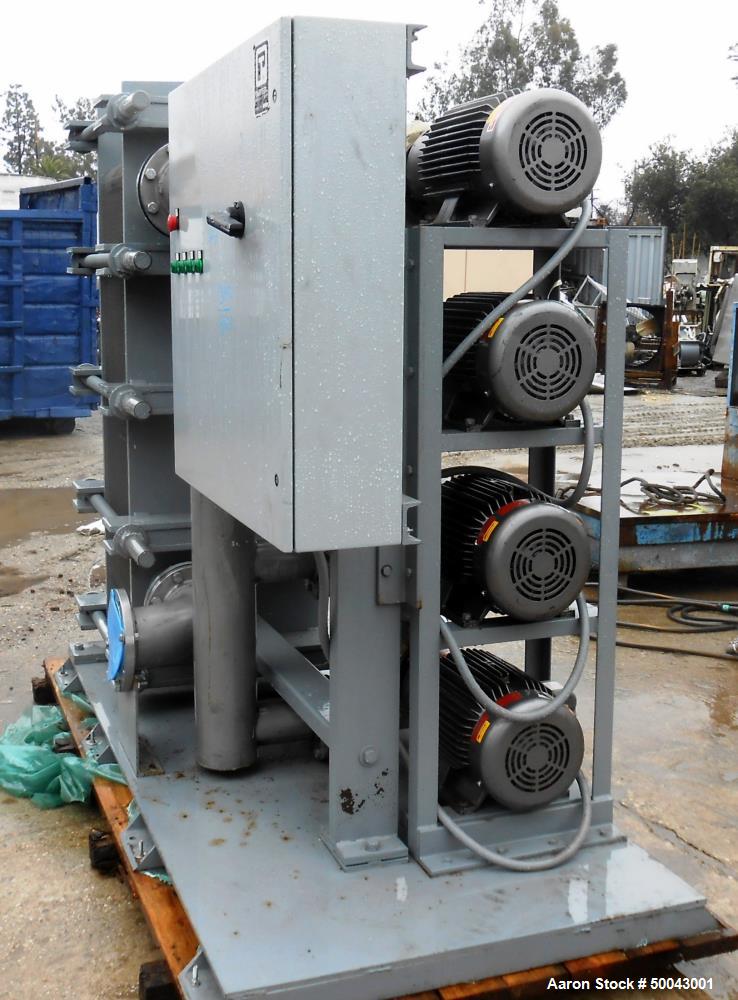

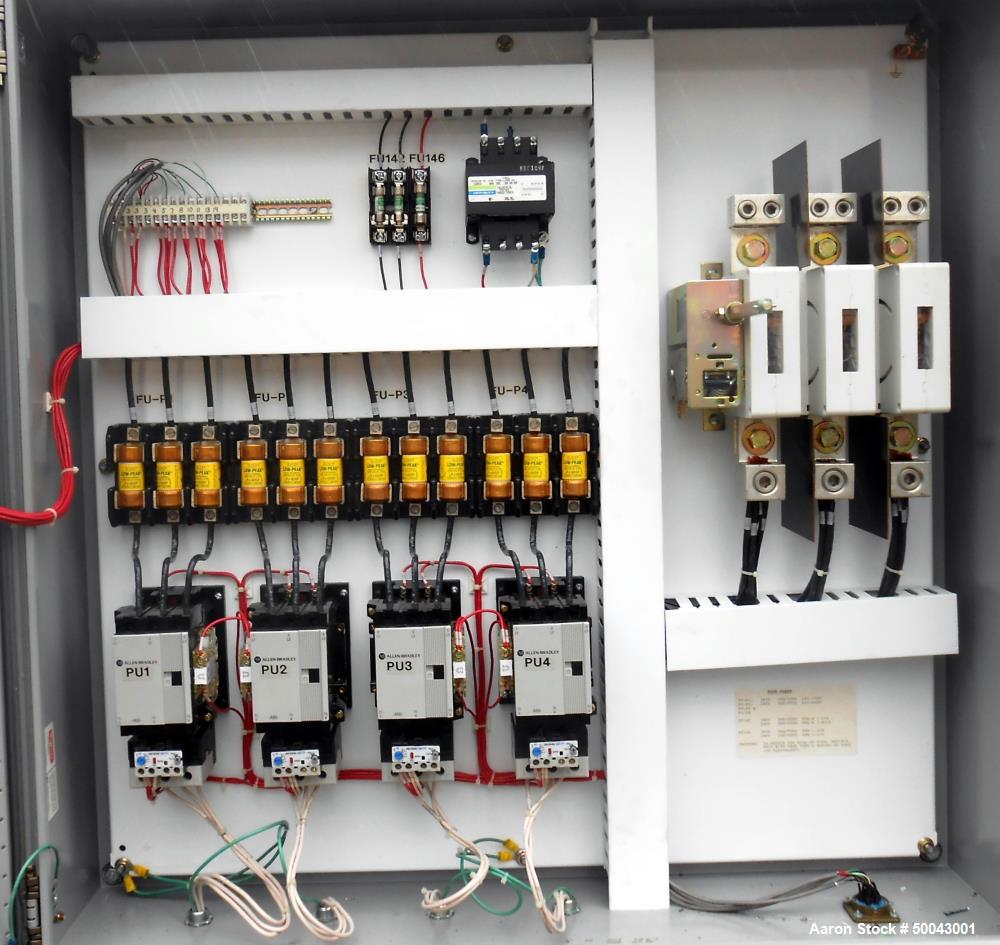

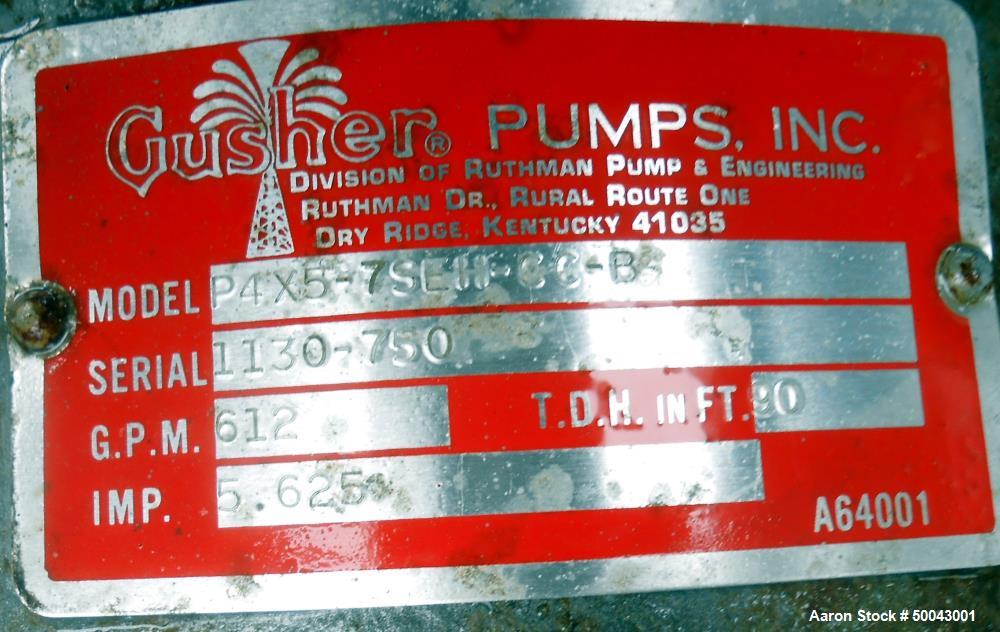

Unused- Heat Exchanger and Pump Skid. Containing (1) Tranter SuperChanger Plate Heat Exchanger, Model 06-T26-HP-110, 659 square feet. Rated 100 psi at 165 degrees F. Approximate (110) 24" wide x 56" tall stainless steel plates, plate pack 17.32" min, 18.19" max. 4" inlet, 6-1/2" outlet. Serial # SC 18148. Pump system includes (4) Gusher model P4X5-7SEH-CC-B centrifugal pumps. 612 GPM at 90' TDH. 5.625" Impeller diameter. Driven by 20hp, 3/60/230/460 volt motors. Electrical Control Panel. Mounted on a painted carbon steel base. Built 1997.
Unused- Heat Exchanger and Pump Skid. Containing (1) Tranter SuperChanger Plate Heat Exchanger, Model 06-T26-HP-110, 659 square feet. Rated 100 psi at 165 degrees F. Approximate (110) 24" wide x 56" tall stainless steel plates, plate pack 17.32" min, 18.19" max. 4" inlet, 6-1/2" outlet. Serial # SC 18148. Pump system includes (4) Gusher model P4X5-7SEH-CC-B centrifugal pumps. 612 GPM at 90' TDH. 5.625" Impeller diameter. Driven by 20hp, 3/60/230/460 volt motors. Electrical Control Panel. Mounted on a painted carbon steel base. Built 1997.
