Stock No.: 54112001
Used Thermaline T13 Plate Heat Exchanger – Stainless Steel, 975,672 BTU/Hr

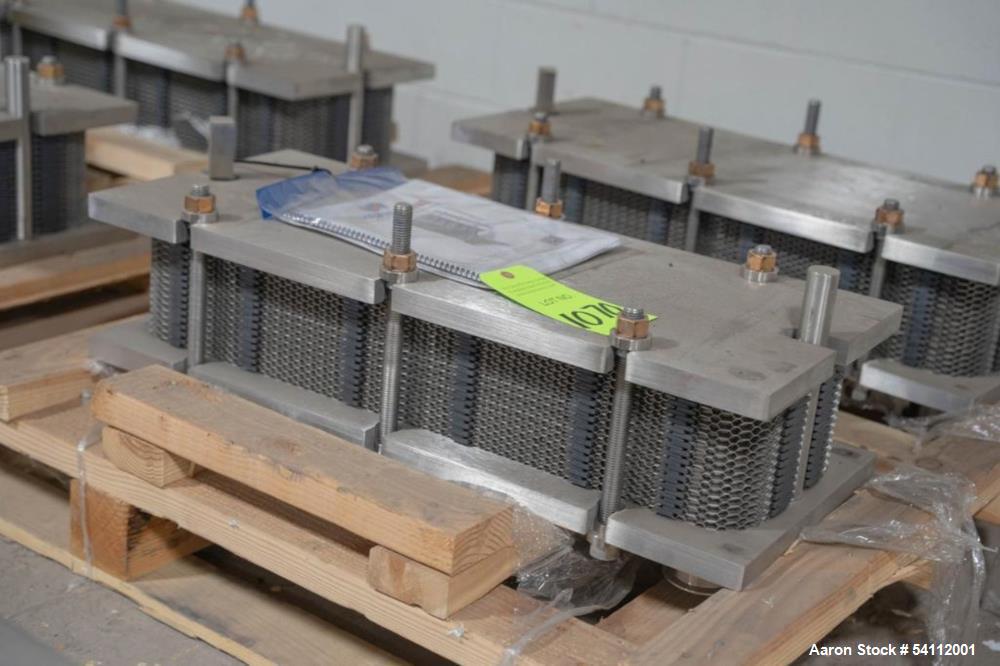

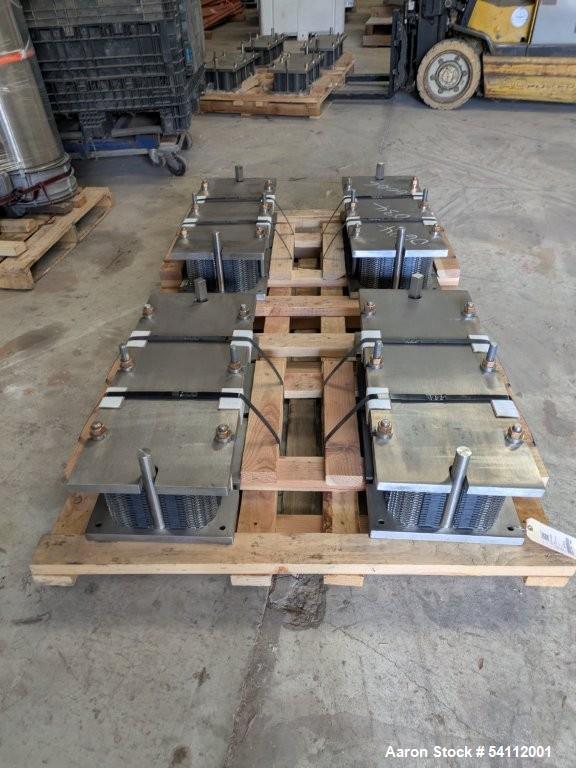

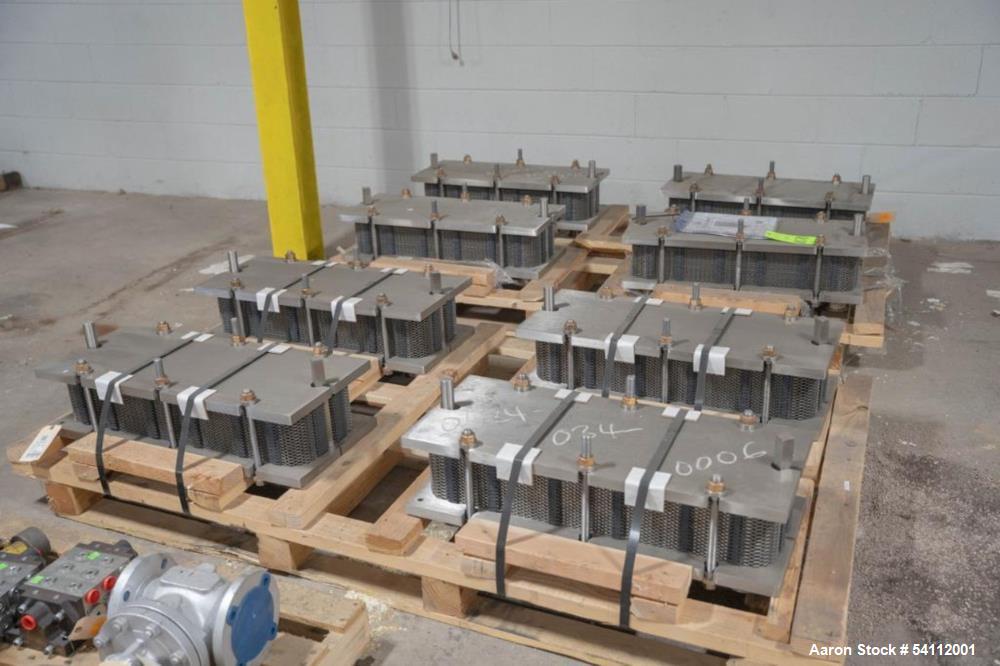

Submit Offer $3,950Used- Thermaline Plate Heat Exchanger, Model T13, Stainless Steel. Approximately 42.9 square feet. Flow rate: 44 GPM (Process Side), 145 GPM (Service process). Heat exchanged 975,672 BTU/Hr. Designed temperature 150 psi at 300 degrees F. Gasket material EPDM, CLIP. (33) Plate material 0.6mm, 316 Stainless Steel, CDX. Frame material 304 stainless steel. Serial# 27423-21.
-
ModelT13
-

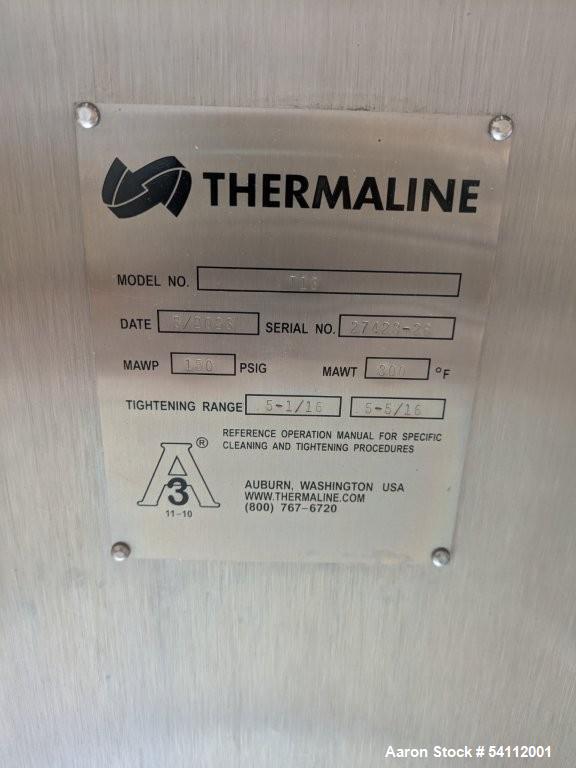

Serial #27423-21
-
CategoryHeat Exchangers
-
SubcategoryPlate Type
Used equipment facts about this machine
Manufacturer Information
🔧 Manufacturer Information:
Manufacturer: Thermaline, Inc.
Model: T13
Country of Manufacture: USA
Industry Reputation: Known for high-efficiency, sanitary, and industrial-grade heat exchangers.
📄 Product Description:
This Used Thermaline Plate Heat Exchanger (Model T13) features high-efficiency heat transfer using 33 plates made of 0.6mm thick 316 stainless steel (CDX finish), held in a durable 304 stainless steel frame. Designed for sanitary or industrial applications, it provides a heat exchange capacity of 975,672 BTU/hr, with flow rates of 44 GPM (process side) and 145 GPM (service side). It’s built to handle 150 psi at 300°F, and uses EPDM CLIP gaskets for reliable sealing. Ideal for a variety of heat exchange applications including food, beverage, chemical, and pharmaceutical processing.
📐 Technical Specifications:
-
Model: T13
-
Plate Material: 316 Stainless Steel, 0.6mm thick, CDX
-

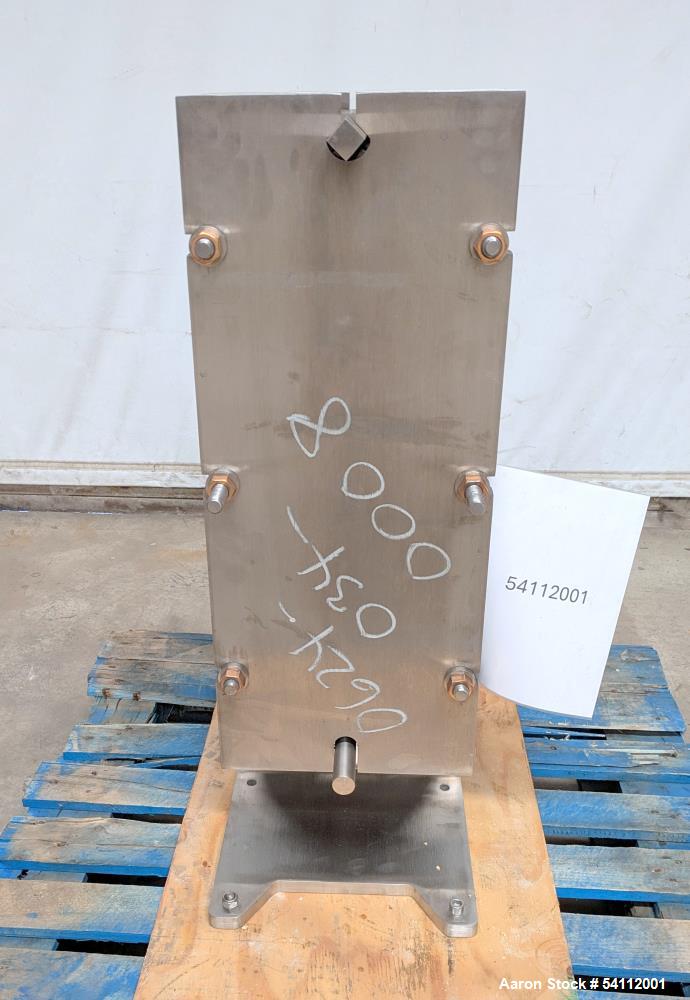

Frame Material: 304 Stainless Steel
-
Number of Plates: 33
-
Flow Rate: 44 GPM (Process Side), 145 GPM (Service Side)
-
Heat Exchanged: 975,672 BTU/Hr
-
Design Pressure/Temp: 150 psi @ 300°F
-
Gasket Material: EPDM CLIP
-
Serial Number: 27423-21
-
Condition: Used, inspected and in working condition
🧪 Common Applications:
-
Heat recovery systems
-
Dairy & beverage pasteurization
-
Brewery wort chilling
-
Food & beverage processing
-
Pharmaceutical temperature control
-
HVAC and hydronic heating systems
-
Chemical process control
-
Clean-in-place (CIP) systems
-
Water-to-water or glycol-to-water exchange
-
Industrial cooling loops
🛠️ Products This Unit Could Be Used With:
-
Chillers
-
Boilers
-
Fermentation tanks
-
Pasteurizers
-
Hot water systems
-
Cooling towers
-
CIP systems
-
Storage tanks
-
Mixing vessels
-
Pharmaceutical reactors
