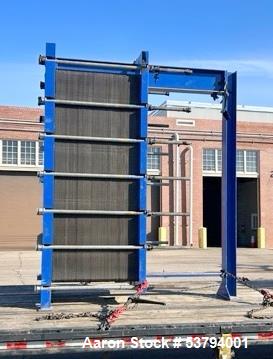

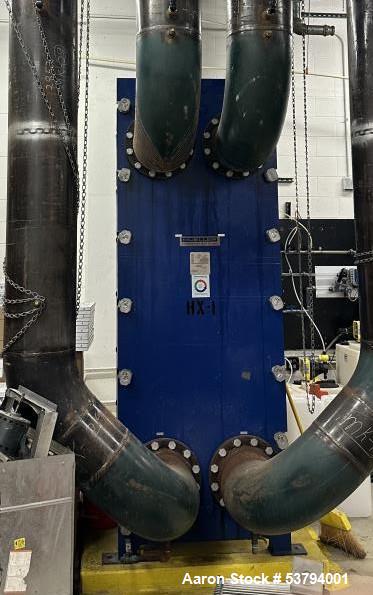

Used Paul Mueller Accu-Therm Model AT130 B-20 Plate Type Stainless Steel Heat Ex
Used Paul Mueller Accu-Therm Plate Type Heat Exchanger, Model AT130 B-20. Approximately 3,250 Square Feet. Designed for efficient heat transfer in various industrial applications. (238) 304 stainless steel plates, approximately 0.20" thick. Rated 150 psi at 32 to 150 degrees F. Approximate 4,452 GPM volume flow rate. (4) 10" diameter inlet and outlet ports. Mounted on a painted carbon steel expandable frame. National Board# 30241, Serial# 240242, Year 1999.
General Information:
The Paul Mueller Accu-Therm AT130 B-20 Plate Heat Exchanger is designed for high-efficiency heat transfer in various industrial applications. It consists of stainless steel plates assembled within an expandable carbon steel frame, allowing for thermal efficiency, easy maintenance, and long service life.
Specifications:
- Model: AT130 B-20
- Manufacturer: Paul Mueller
- Type: Plate Type Heat Exchanger
- Plate Material: 304 Stainless Steel
- Number of Plates: 238
- Plate Thickness: 0.20 inches
- Design Pressure: 150 psi
- Operating Temperature Range: 32°F to 150°F
- Inlet/Outlet Size: (4) 10-inch diameter ports
- Frame Material: Painted Carbon Steel (Expandable)

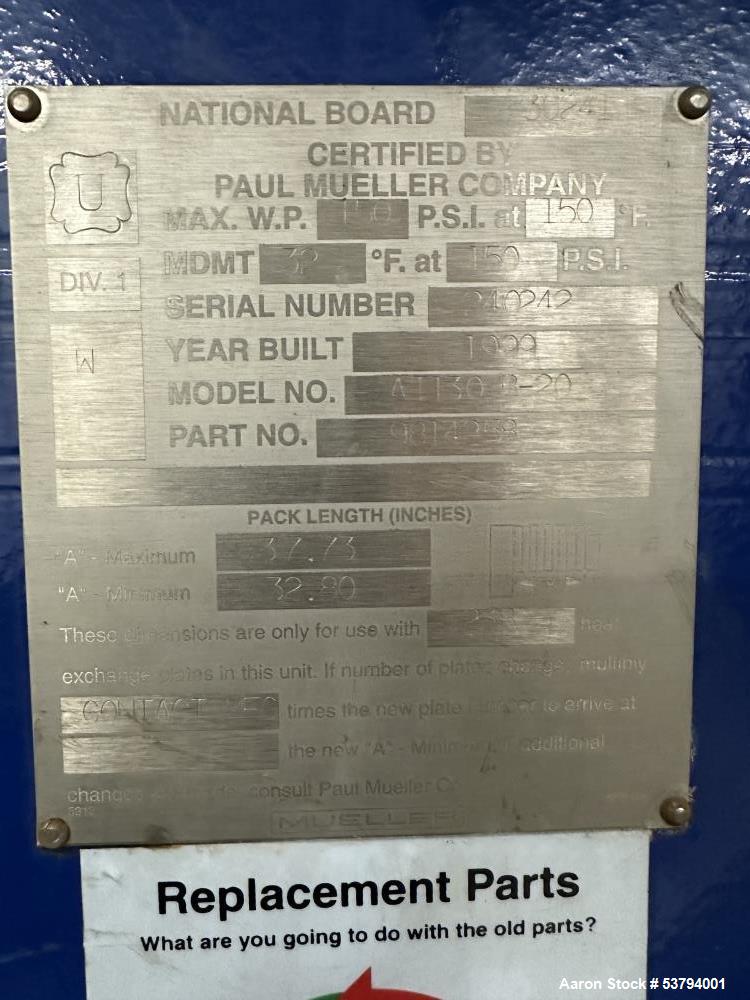

- National Board Number: 30241
- Serial Number: 240242
- Manufacturing Year: 1999
Applications:
The Mueller Accu-Therm AT130 B-20 plate heat exchanger is used across multiple industrial sectors for efficient thermal energy transfer. Some common applications include:
-
Food & Beverage Processing:
- Pasteurization of dairy products, juices, and beer
- Cooling of processed food products
- Heating of process water in beverage manufacturing
-
Pharmaceutical & Biotech:
- Temperature regulation in pharmaceutical production
- Sterile heating and cooling applications
-
HVAC & Refrigeration:
- Chilled water systems
- Condenser and evaporator applications
-
Chemical & Petrochemical Processing:
- Heat recovery and energy efficiency in chemical processing
- Cooling of process fluids
-
Power Generation & Energy Recovery:
- Cooling of lubricants and hydraulic fluids
- Heat recovery for cogeneration systems
-
Industrial Manufacturing:
- Process fluid heating and cooling in various production lines
- Temperature control in metal processing and paper industries
