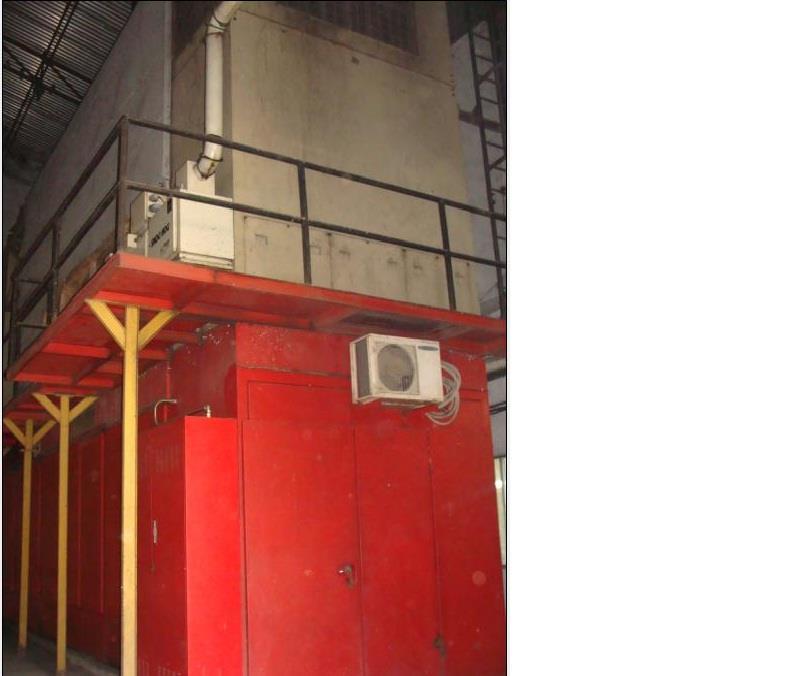

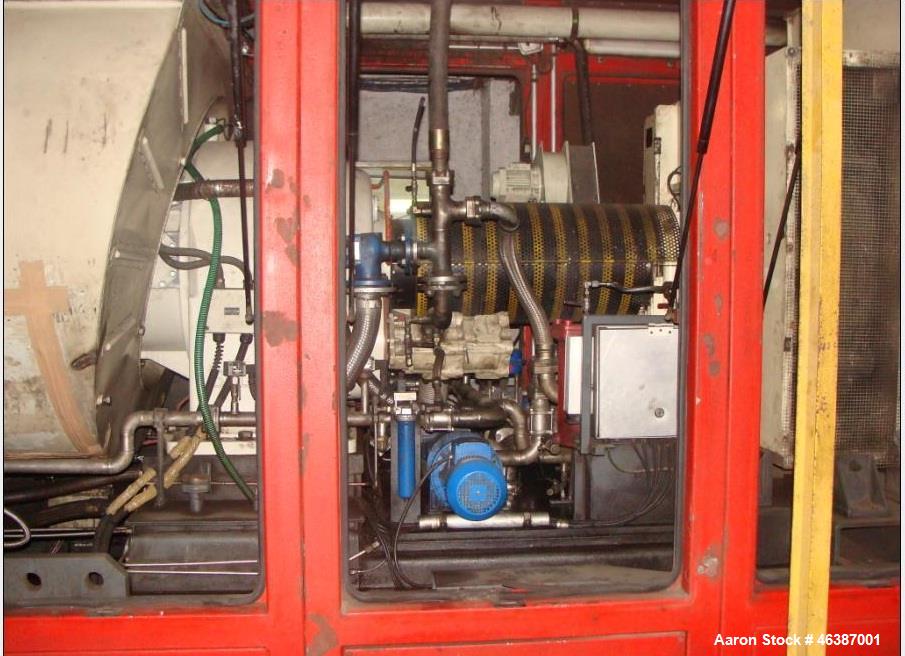

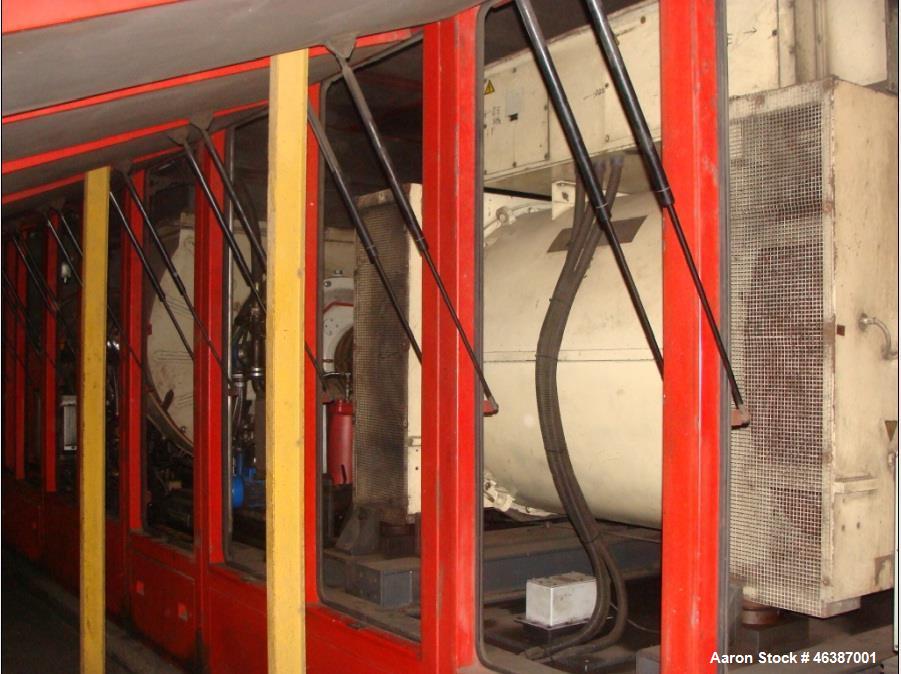

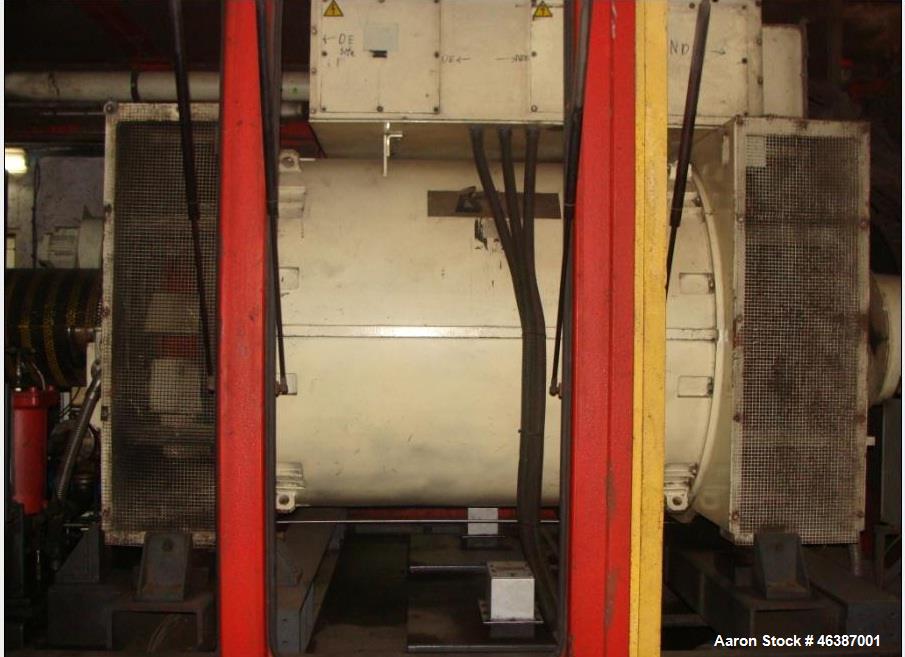

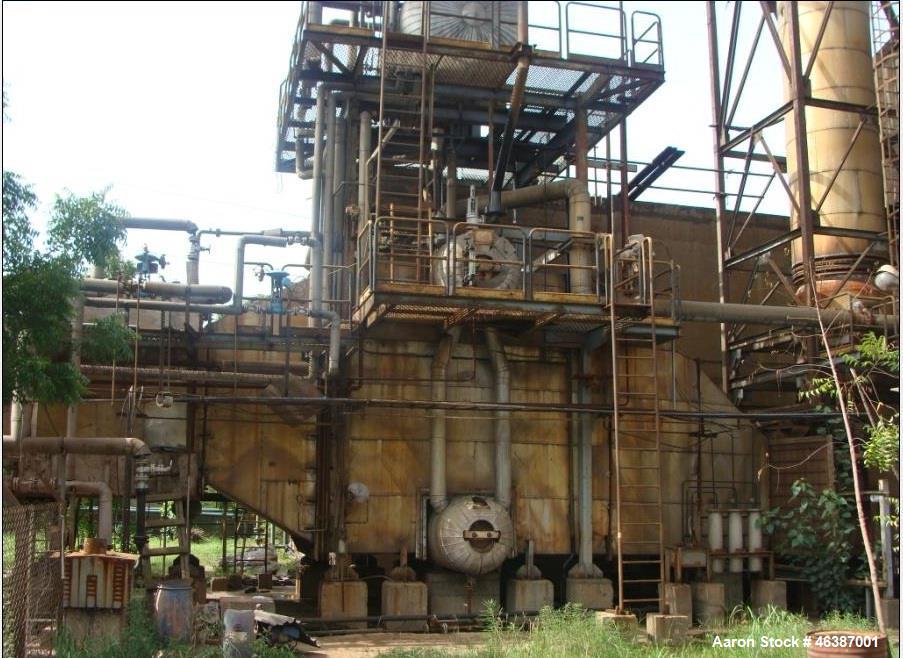

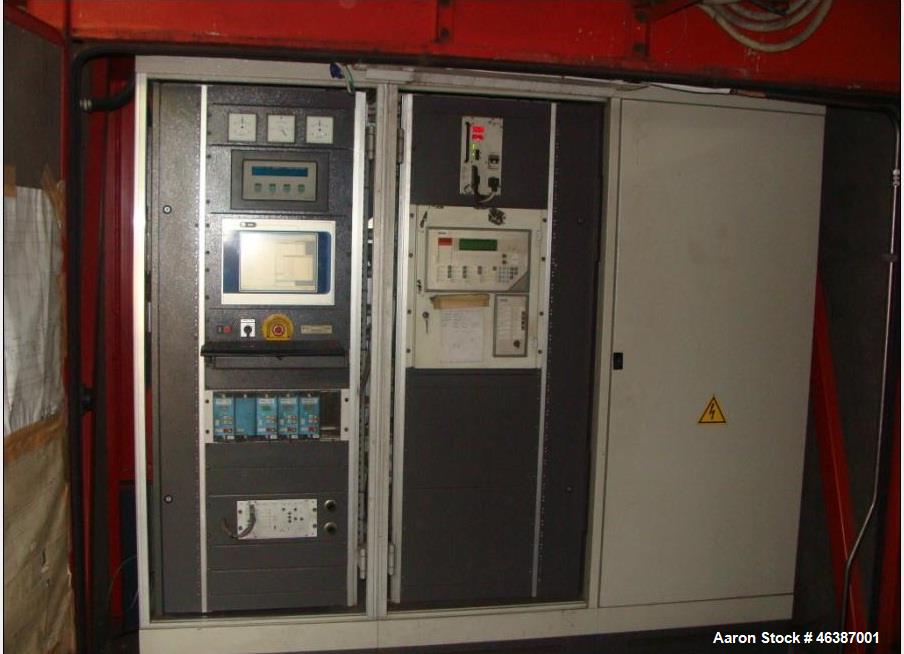

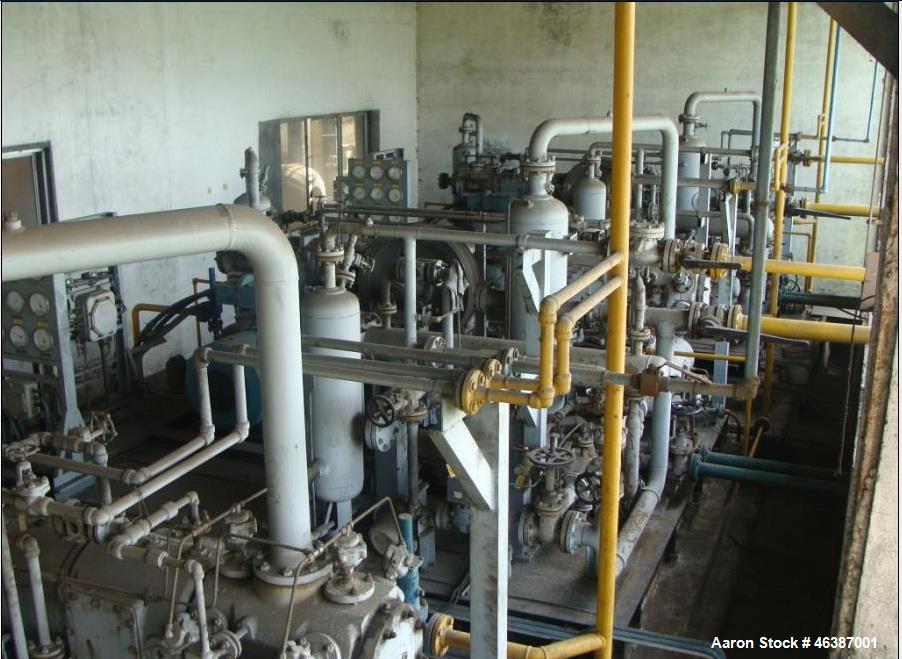

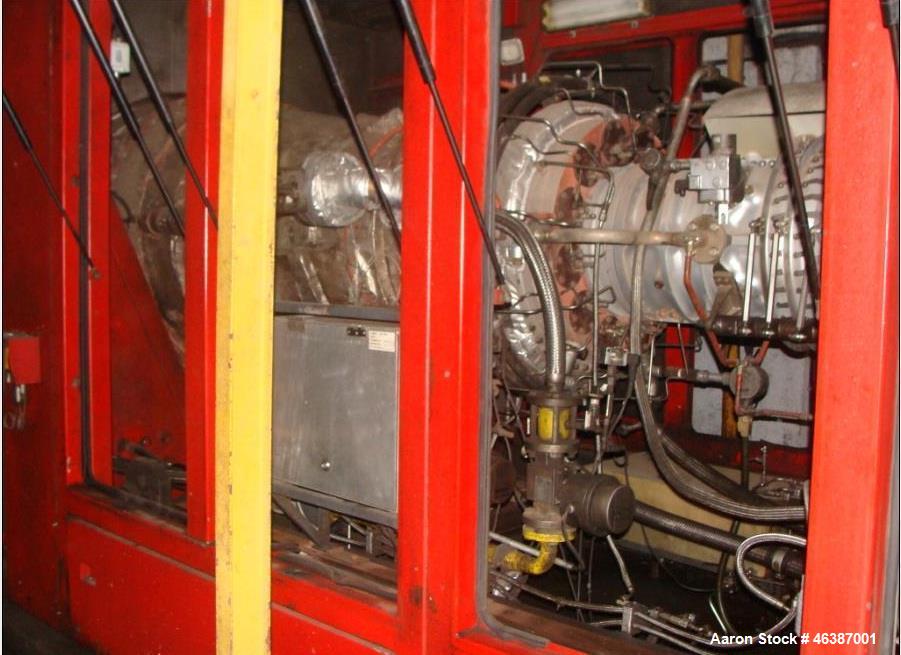

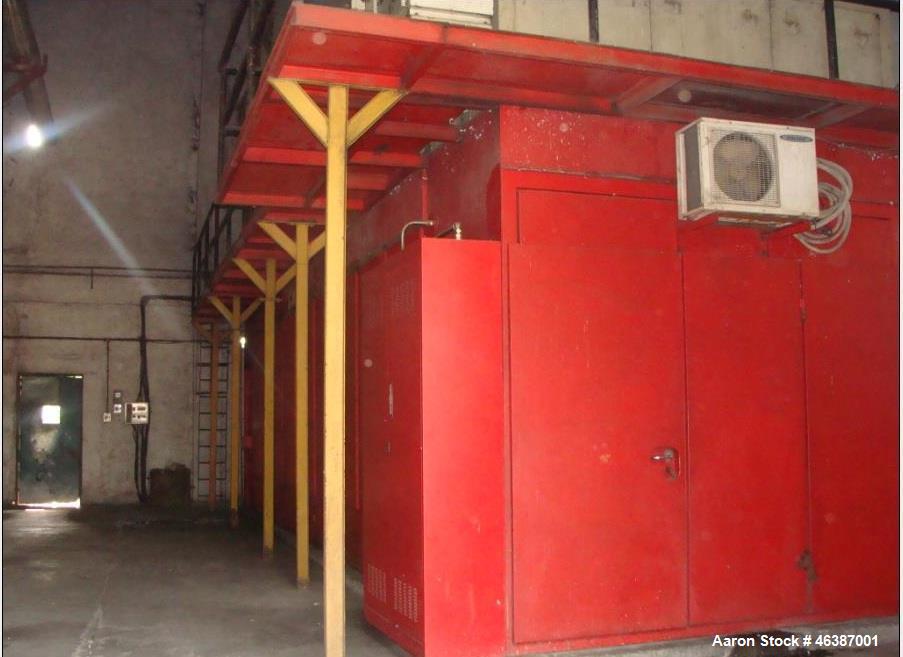

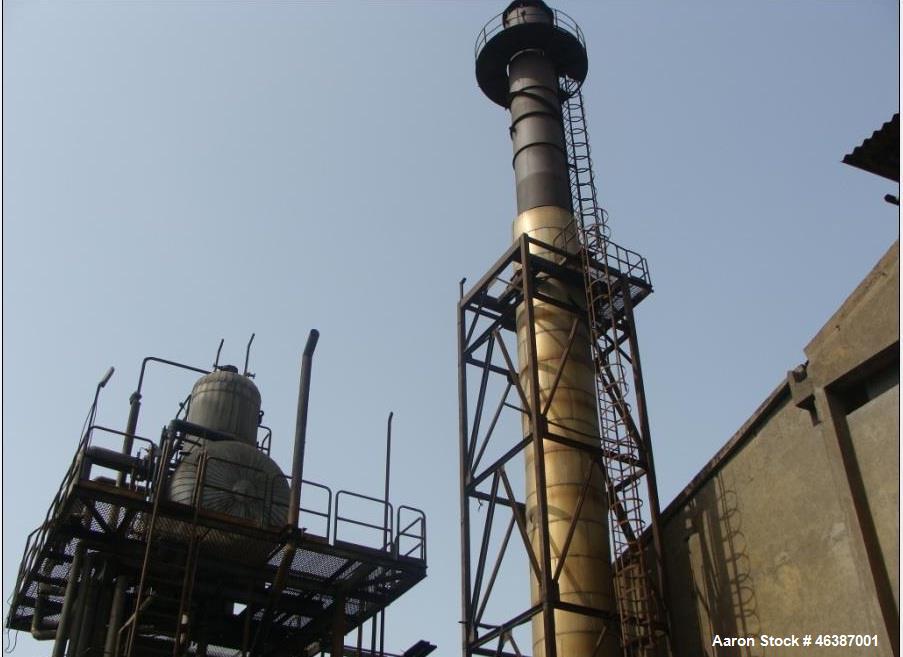

Used Power Plant with Auxiliaries. Includes: Solar Taurus 70 gas turbine generator; Solonox type 7.5 MW natural gas, generating power at 6.6 KV, 50 Hz. Remote PC gas primary shut-off valve unit. Packager: Turbomach Switzerland. Package running hours: 58,100. Turbine running hours : 14,652. Power: 7520 KWE (ISO). Version: 10301S. Gear box: Solar Turbines. Gear box running hours: 250. Generator: Leroy Somer; voltage level: 6600V. Control system: TTS3; (3) gas compressor units. Make: Dress Rand, Model: 7PHE-2NL-2. Stroke: 7 inches. No of stage: 02, No of throw: 02. Inlet pressure: 3.9 min / 5.0 max. Discharge: 40 Barg; RPM: 600. Motor: 110KW, Gas receiver bottle (1800 ltrs). PCC panel for gas compressor chilling coil filter structure. Motorized flue gas diverter valve. Flue gas chimney - SS flue gas chimney - MS. Air receiver bottle (2000 ltrs). Waste heat recovery boiler (WHRB). Make: Cethar vessels, type of boiler: water tube. Design pressure: 16.3 Kg/Cm2. Outlet pressure: 13.2 Kg/Cm2. Total heat surface: 3434 M2. Outlet temp: 232 deg C. Evaporation capacity: 14,200 Kgs/Hr. Operating pressure: 13.2 kg, Capacity: 14.2 Ton/Hr. PCC panel for boiler auxiliary transformer 750 KVA and breaker. Mfg 2004.
