Used Gas-Powered Lead Melting Furnace & Casting Conveyor – 44,000 lb Melt | 7 TPH Casting | PLC Controls | NACS + Economy Industrial
Used Gas-Powered Melting Furnace and Casting Conveyor Machine: North American Construction Services, Ltd., (NACS) Lead Melting Furnace; Furnace melt rate of 44,000 lbs. of a 96% lead / 4% tin alloy in approximately three (3) to four (4) hours; hold molten metal at a working temperature of 700 to 750F, for single shift casting operation; FivesNA natural gas combustion and control system with a maximum heating capacity of 2.7 MM Btu/h input designed in accordance with the relevant sections of NFPA 86, 2015 edition; include (2) gas burners, mounted tangentially in the furnace; Furnace has one (1) heating zone with one (1) furnace thermocouple, one (1) bath thermocouple, and one (1) furnace excess temperature interlock thermocouple. Economy Industrial 7 TPH Lead ingot Casting Machine, Model MC-20 (20 feet in length) will cast seven (7) tons in 60 minutes. The casting machine will have nine (6) inch pith chain. Each mould will cast one (1) 60 lb ingots for a total weight per mould of 60 lbs. drawing will be submitted under separate cover. Automatic control system (PLC) (control caster and hot metal pump at same station), Top cooling sprays connection for future installation, Bottom Cooling sprays. System includes corresponding equipment (customized pumps, working stands, controls, etc).
| Manufacturer | North AmericanNorth American |
| Category | FurnacesFurnaces |
| Subcategory | FurnacesFurnaces |
Manufacturer Information:
-
Melting Furnace Manufacturer: North American Construction Services, Ltd. (NACS)
-
Casting Machine Manufacturer: Economy Industrial
-
Casting Model: MC-20
-
Fuel Source: Natural Gas
-
System Type: Industrial Lead Melting and Casting Line
-
Condition: Used
-
Furnace Melt Rate: 44,000 lbs (96% lead / 4% tin alloy in 3–4 hrs)
-
Casting Capacity: 7 tons/hour (60 lb ingots)
Description:

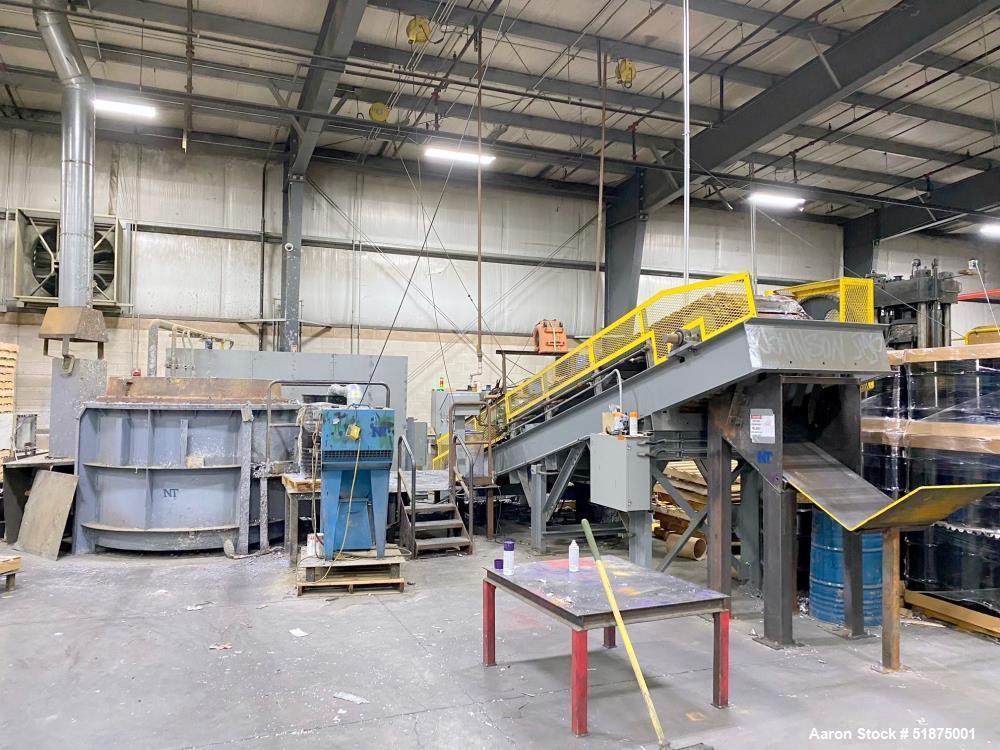

This Used Gas-Powered Melting Furnace and Lead Casting Conveyor System includes a North American Construction Services (NACS) high-capacity gas-fired melting furnace and an Economy Industrial MC-20 casting conveyor, engineered to provide a continuous, high-throughput lead ingot production system. Capable of melting 44,000 lbs of 96/4 lead-tin alloy in 3–4 hours and casting 7 tons per hour of 60 lb ingots, this fully integrated system is ideal for non-ferrous foundries, lead battery recycling, and heavy alloy production.
The system includes (2) tangential gas burners, a FivesNA combustion and control system (2.7MM BTU/hr) built to NFPA 86, 2015 standards, and automated PLC-based controls that operate both the caster and hot metal pump from a unified station.

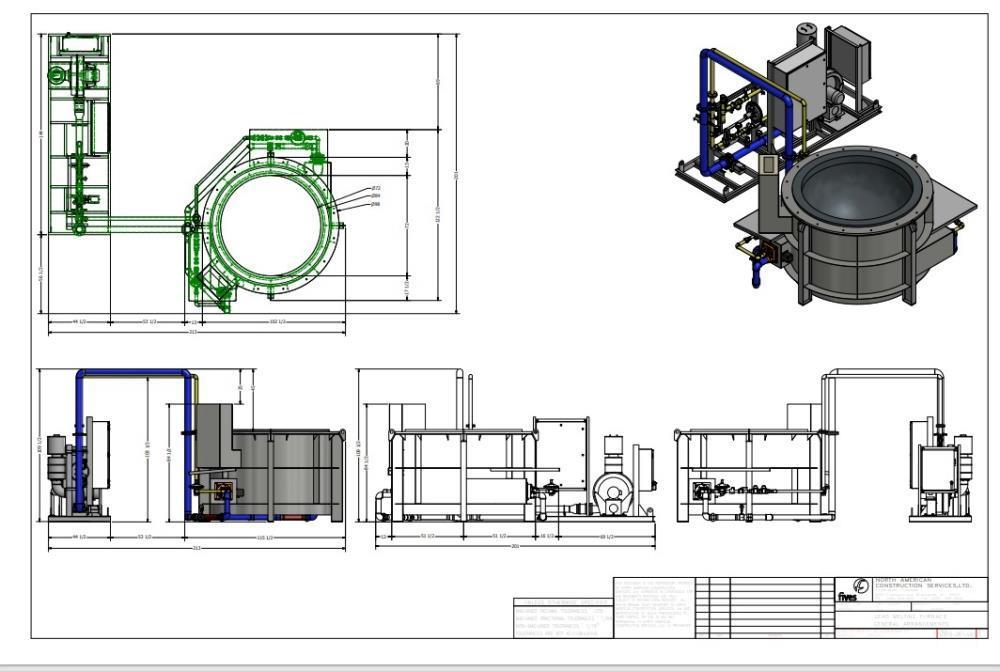

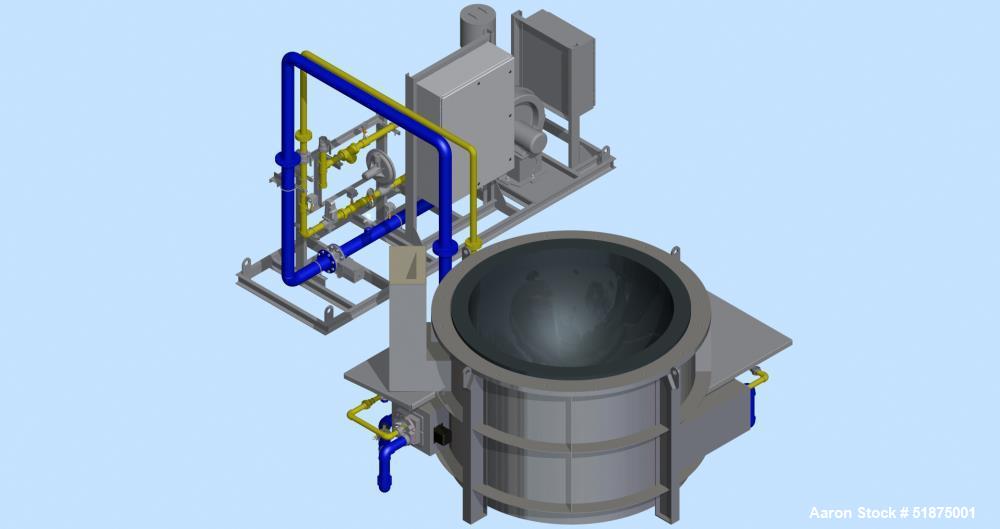

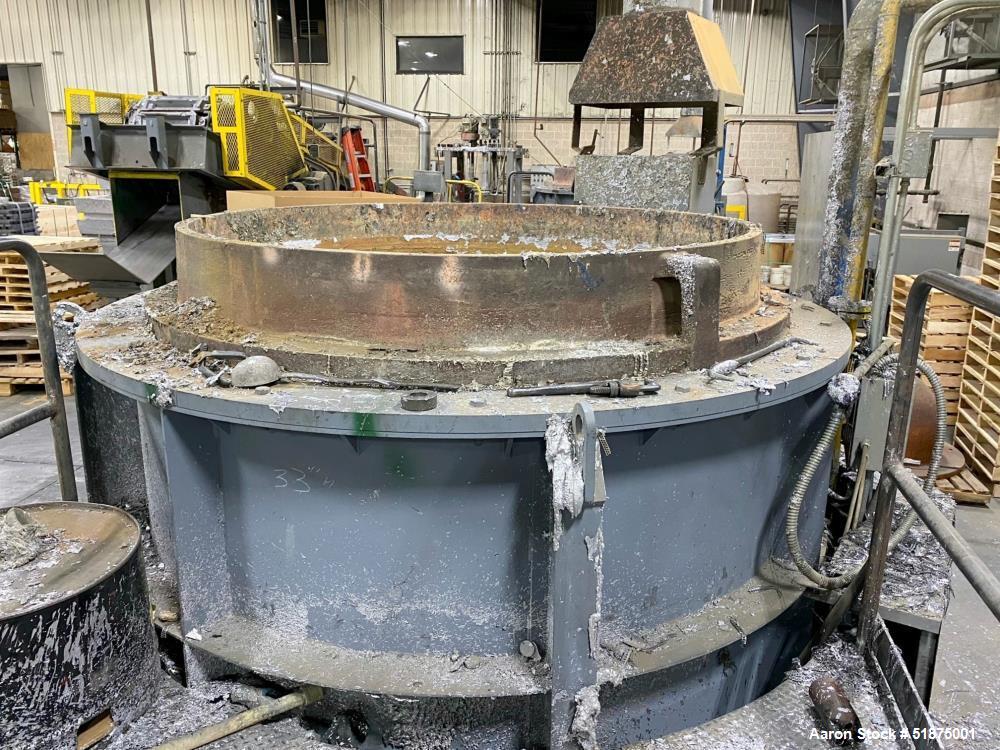

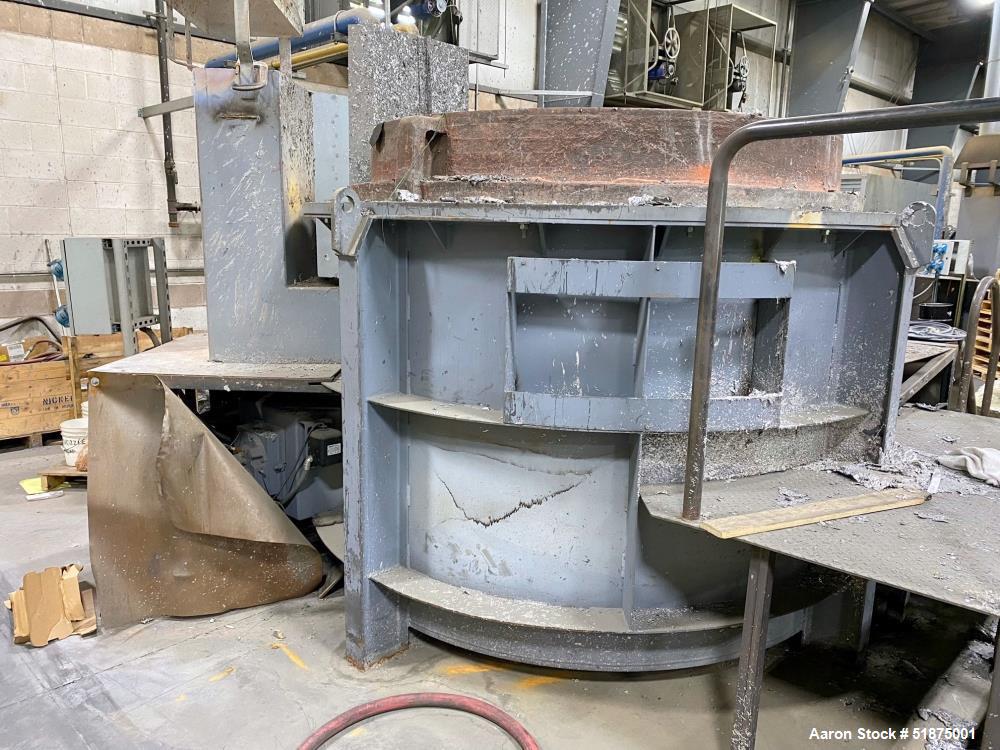

Specifications – Furnace:
-
Manufacturer: North American Construction Services, Ltd. (NACS)
-
Fuel Type: Natural Gas
-
Melt Rate: 44,000 lbs (96% lead / 4% tin alloy) in approx. 3–4 hrs
-
Working Temperature: 700°F to 750°F
-
Burners: (2) Natural gas burners, tangentially mounted
-
Heating Capacity: 2.7 MM BTU/hr
-
Heating Zone: Single-zone configuration
-
Thermocouples:
-
(1) Furnace thermocouple
-
(1) Bath thermocouple
-
(1) Excess temperature interlock thermocouple
-
-
Combustion System: FivesNA, NFPA 86 compliant (2015 edition)

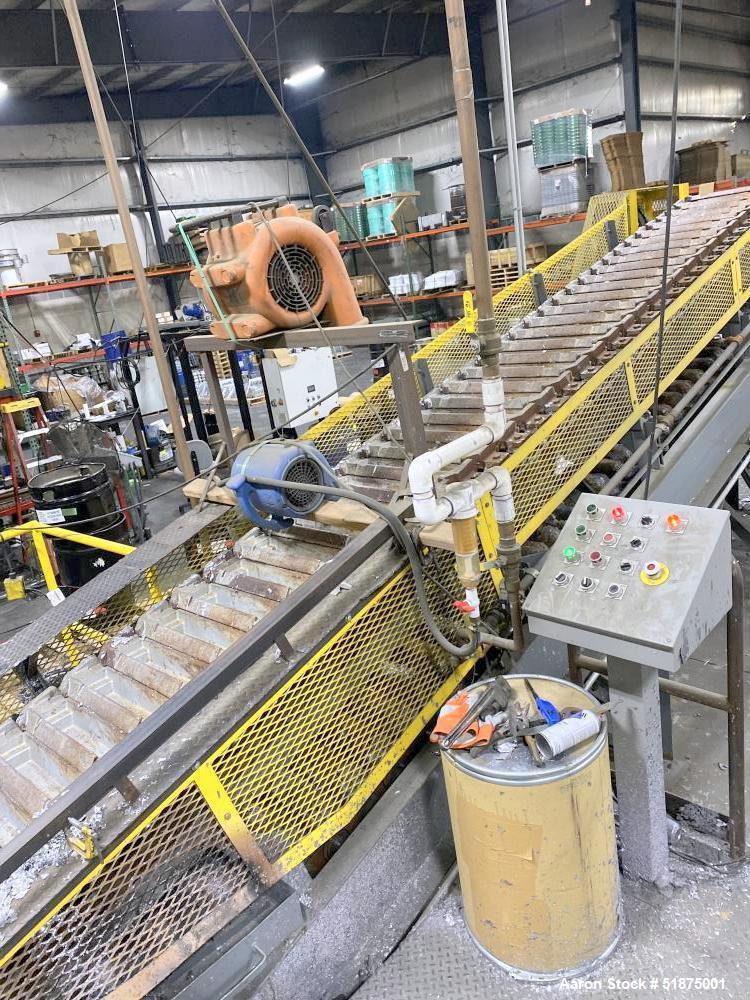

Specifications – Casting Conveyor:
-
Manufacturer: Economy Industrial
-
Model: MC-20
-
Length: 20 feet
-
Casting Capacity: 7 TPH (tons per hour)
-

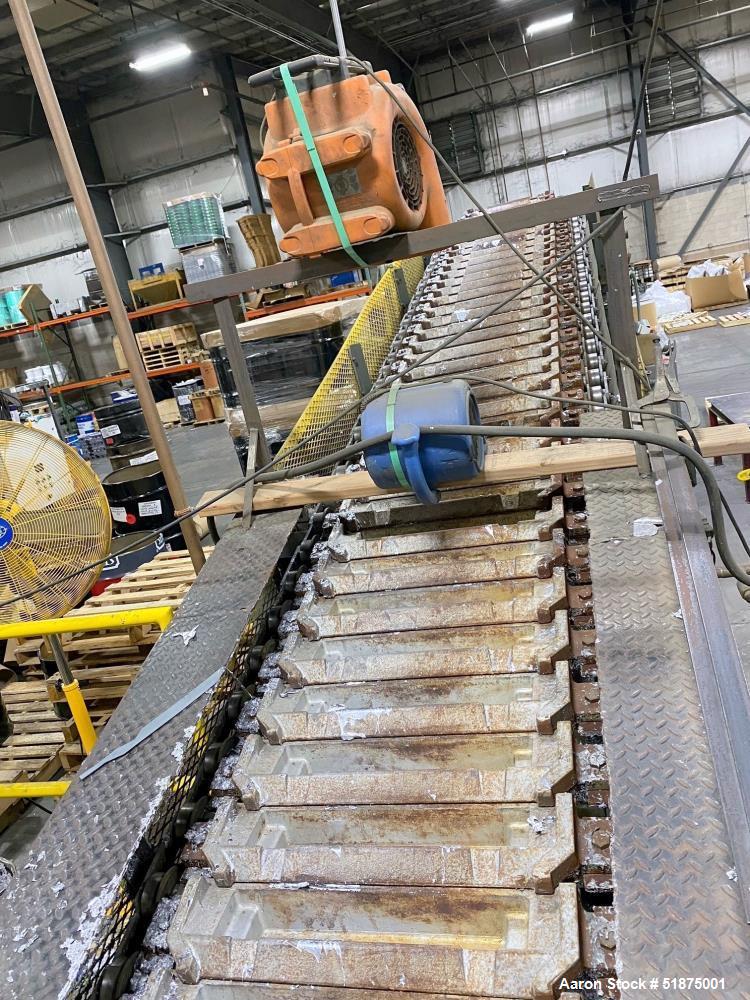

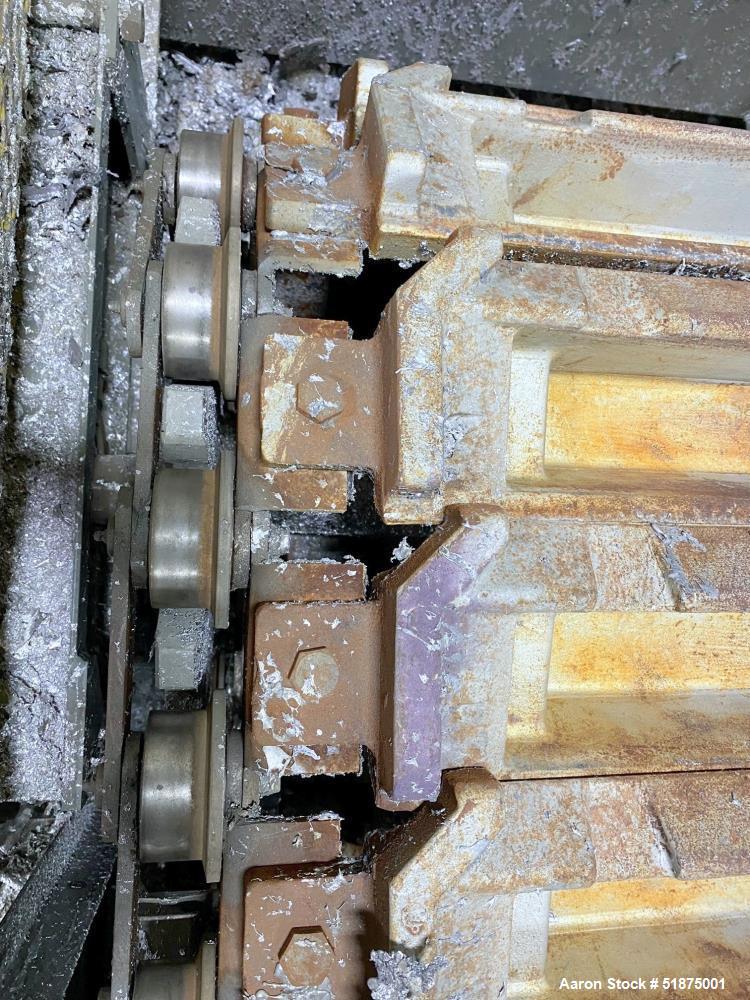

Mould Configuration:
-
6" pitch chain
-
1 x 60 lb lead ingot per mould
-
-
Casting Output: 60 lb x multiple moulds = 7 tons/hour
-
Cooling System:
-
Bottom cooling sprays
-
Top cooling sprays plumbed for future installation
-
Control System & Auxiliary Equipment:
-
Automation: PLC-controlled system
-
Control Panel: Unified control for casting and hot metal pump
-
Pump: Customized hot metal pump (included)
-
Additional Equipment:
-
Working stands
-
Custom controls
-
Integrated components for casting workflow
-
-
System Integration: Single-shift casting operation
Features:
-
High-efficiency natural gas furnace with dual-burner configuration
-
Heavy-duty casting line produces 60 lb ingots at 7 TPH
-
PLC automation ensures precise temperature and flow control
-
Fully integrated with pump, caster, cooling sprays, and controls
-
Built for lead alloy operations (96% Pb / 4% Sn)
-
Designed for continuous, industrial-duty production
-
Easily adaptable for additional cooling upgrades
-
FivesNA combustion safety system and thermocouple monitoring
-
Ideal for non-ferrous metal foundries, battery recyclers, and smelters
Applications:
-
Lead battery recycling and secondary smelting
-
Foundries producing lead-based alloys
-
Large-scale lead ingot casting operations
-
Manufacturing of shot, ballast, or radiation shielding products
-
Continuous casting operations in non-ferrous metal sectors
-
Production of uniform weight lead ingots for resale or remelt
-
Facilities requiring efficient molten metal handling and forming
What might this be used for?
-
Melting and casting high-volume lead alloy ingots for resale or internal use
-
Operating a lead recycling process with energy-efficient gas combustion
-
Automating ingot production for commercial lead handling or manufacturing
-
Producing consistent 60 lb ingots for further refining or distribution
-
Scaling up foundry operations with integrated casting and melting system
-
Replacing aging batch furnaces with continuous flow melting and casting line
-
Enhancing worker safety and throughput with automated controls and thermocouples
-
Deploying in facilities processing dense metals with high melting points
-
Customizing a turnkey lead processing line with minimal operator intervention
-
Managing large-scale alloy production with minimal thermal losses and downtime
-
