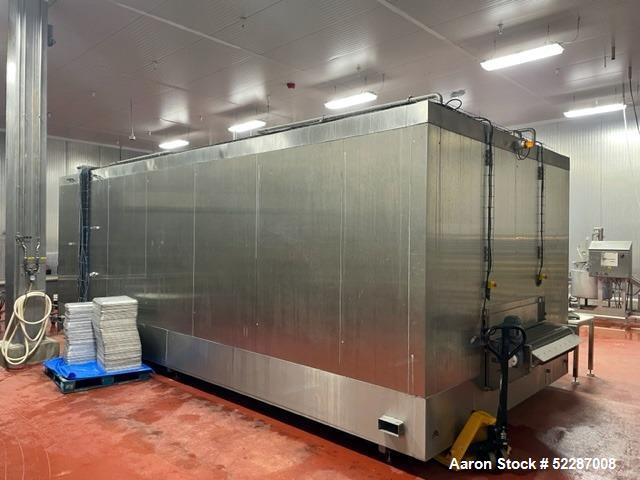

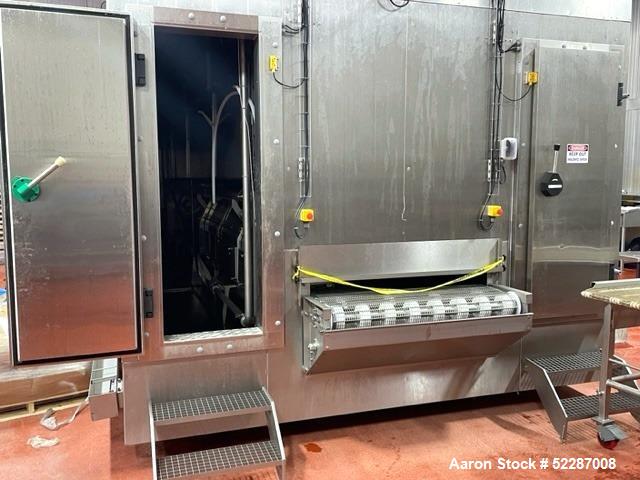

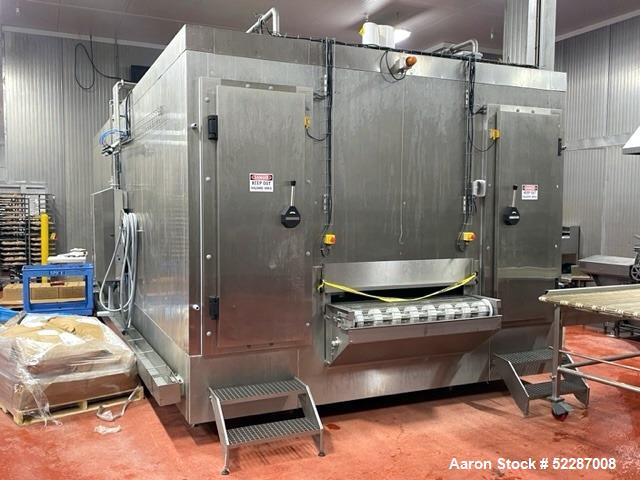

Unused - Frigoscandia Advantec Impingement Freezer with Model 1.5M-1250-2-R12 ADF Conveyor; Conveyor includes: 2x 625mm wide, Stainless Steel Conveyor Belt 28.4" Belt Length, 22.9" Active Impingement Plenum Length; M13 x 2.5 Wire Mesh, 7.28" maximum product clearance; Double Impingement Airflow; Twin Belt / Straight-Through Layout; Spray-galvanized motors with variable speed; Belt Drive Horsepower- 0.33HP; Evaporator and Fans include: 12 Row Deep Stainless Steel Tube/Aluminum Fin Evaporator; Stainless Steel Evaporator Stand; Refrigeration requirement of 30 tons of refrigeration (TR) at -40F evaporation temperature measured at the coil (incl. 10% Safety Factor); Ammonia refrigerant; Hot Gas and/or Water Defrost; Pipes for water defrost w/ valves; (3) Aluminum Centrifugal Fanwheels and Inlet Cones; Aluminum Fan Motors; 10 HP; Enclosure and Floors include: Fully Welded Stainless Steel Insulated Modular Floor; Water drainage, two drains per side for each module; Level 1 - Caulked Seam Insulated Enclosure with 4" thick Polyurethane walls; Inspection doors w/door heat; Fluorescent (or LED) lighting; Stainless Steel interior and exterior; Approximate Enclosure Dimensions: 25'-5 " X 11 '- 6" X 9'-8"; Approximate lnfeed/Outfeed elevation:37 "; Stainless Steel Adjustable Legs; 460VAC/3/60Hz, 24VDC Controls; NEMA 4X Stainless Steel Sloped Top Enclosure; PLC Controls with Touch Screen HMI Interface; Allen Bradley PLC; Belt Rinse System w/ stain less steel pipe and brass nozzles; Marine coating/surface treatment, i.e. 2-component epoxy top coat, for fan and/or belt drive motors; Air Defrost System (ADF) for Extended Runtimes; Adsorption Dryer, complete w/liquid and dust filter; Support frame w/wheels and drive mechanism; Air distributor complete w/ brass nozzles; ADF receiver (ASME approved) with ADF valves
Unused - Frigoscandia Advantec Impingement Freezer with Model 1.5M-1250-2-R12 ADF Conveyor; Conveyor includes: 2x 625mm wide, Stainless Steel Conveyor Belt 28.4" Belt Length, 22.9" Active Impingement Plenum Length; M13 x 2.5 Wire Mesh, 7.28" maximum product clearance; Double Impingement Airflow; Twin Belt / Straight-Through Layout; Spray-galvanized motors with variable speed; Belt Drive Horsepower- 0.33HP; Evaporator and Fans include: 12 Row Deep Stainless Steel Tube/Aluminum Fin Evaporator; Stainless Steel Evaporator Stand; Refrigeration requirement of 30 tons of refrigeration (TR) at -40F evaporation temperature measured at the coil (incl. 10% Safety Factor); Ammonia refrigerant; Hot Gas and/or Water Defrost; Pipes for water defrost w/ valves; (3) Aluminum Centrifugal Fanwheels and Inlet Cones; Aluminum Fan Motors; 10 HP; Enclosure and Floors include: Fully Welded Stainless Steel Insulated Modular Floor; Water drainage, two drains per side for each module; Level 1 - Caulked Seam Insulated Enclosure with 4" thick Polyurethane walls; Inspection doors w/door heat; Fluorescent (or LED) lighting; Stainless Steel interior and exterior; Approximate Enclosure Dimensions: 25'-5 " X 11 '- 6" X 9'-8"; Approximate lnfeed/Outfeed elevation:37 "; Stainless Steel Adjustable Legs; 460VAC/3/60Hz, 24VDC Controls; NEMA 4X Stainless Steel Sloped Top Enclosure; PLC Controls with Touch Screen HMI Interface; Allen Bradley PLC; Belt Rinse System w/ stain less steel pipe and brass nozzles; Marine coating/surface treatment, i.e. 2-component epoxy top coat, for fan and/or belt drive motors; Air Defrost System (ADF) for Extended Runtimes; Adsorption Dryer, complete w/liquid and dust filter; Support frame w/wheels and drive mechanism; Air distributor complete w/ brass nozzles; ADF receiver (ASME approved) with ADF valves
