Used Praxair Model SDBP Nitrogen Freeze Tunnel – 24” Wide x 22’ Long Conveyor

Manufacturer Information:

• Manufacturer: Praxair
• Model: SDBP
• Condition: Used

Description:

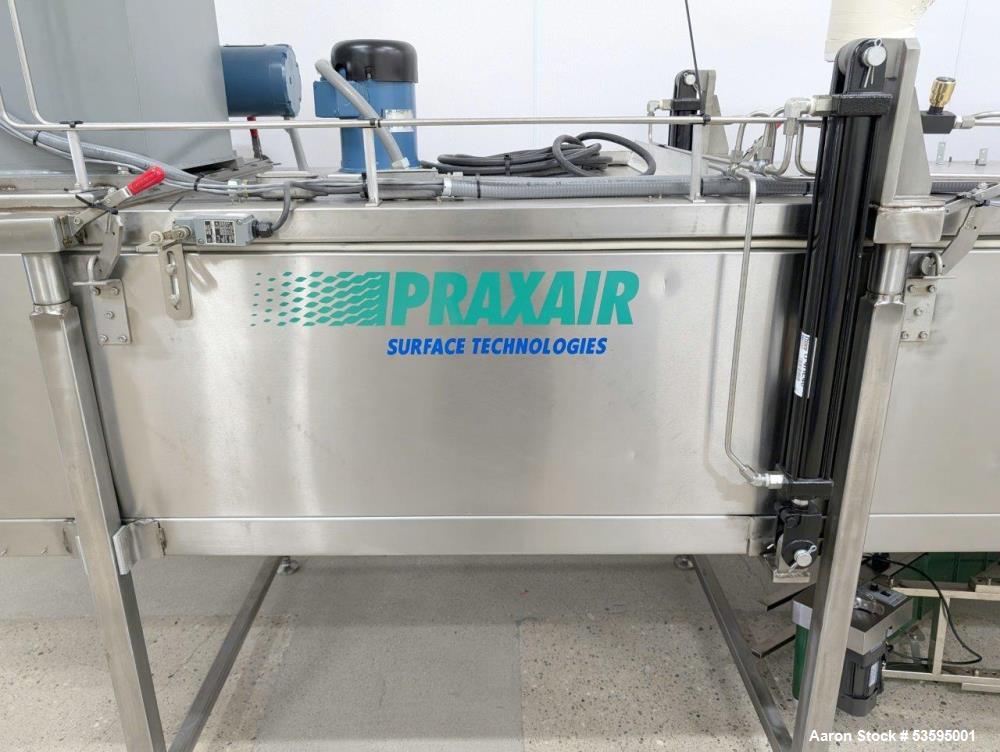

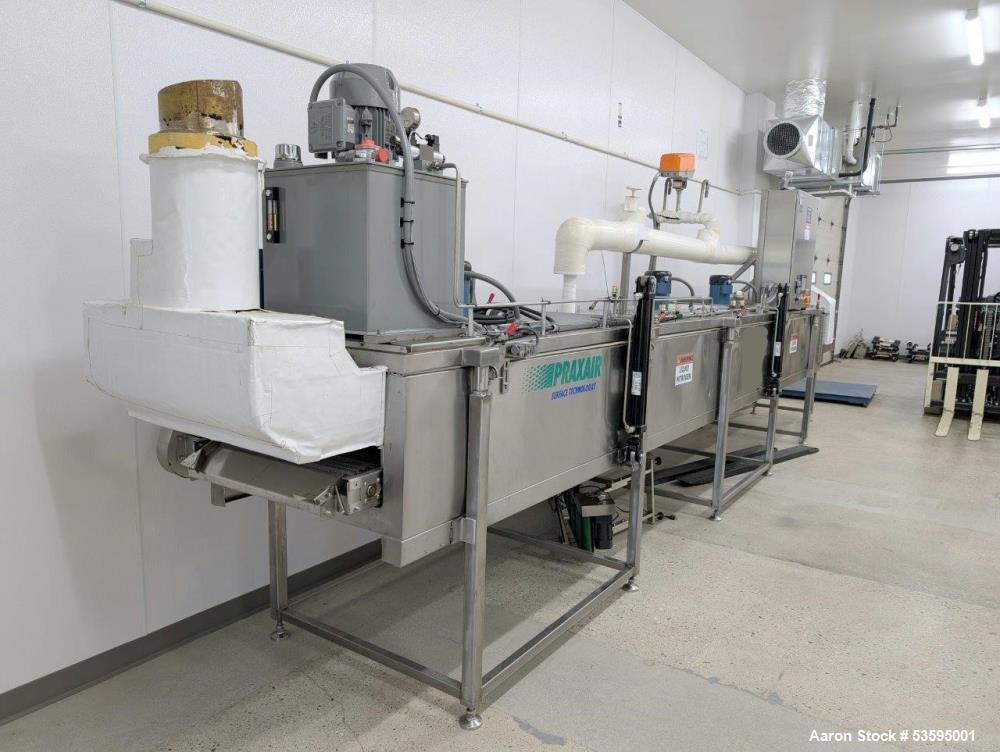

The Praxair Model SDBP Nitrogen Freeze Tunnel is a high-capacity industrial cryogenic freezing system, designed for efficient and rapid freezing of food products. This system is constructed from stainless steel and features a 24” wide x 22’ long mesh conveyor belt with a 6” high aperture, providing ample space for high-volume processing.

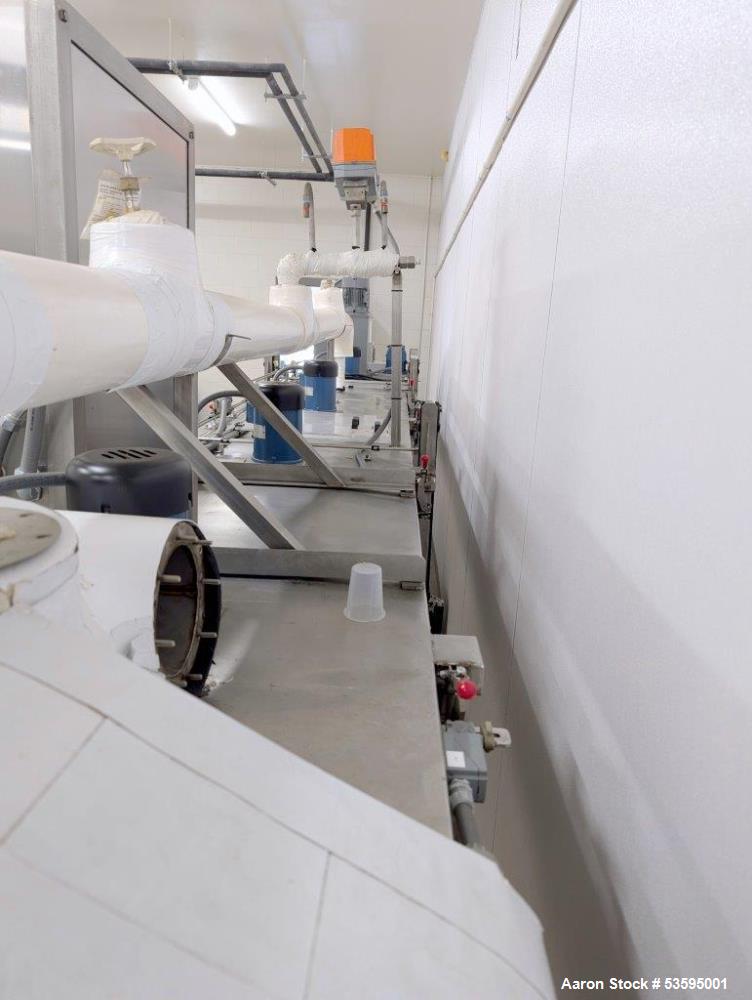

Equipped with three (3) 1/2 HP top-mounted motor-driven fans and eleven (11) discharge nozzles, this freezer ensures even and rapid cooling for various food products. A Foxboro temperature controller allows for precise temperature regulation, while the bounce pan system helps manage product movement within the freezing tunnel.

Designed for operator convenience and safety, the unit includes two doors (one on each side), a single-door access across the quadrants, and a control panel with push-button controls and emergency stops (e-stops). The system is mounted on a 12-leg base frame, ensuring stability and durability.

This unit operates on a 1 HP, 3-phase, 60 Hz, 480V power supply, making it suitable for high-demand industrial applications.

Specifications:

• Model: SDBP
• Freezing Type: Nitrogen Freeze Tunnel
• Material: Stainless Steel

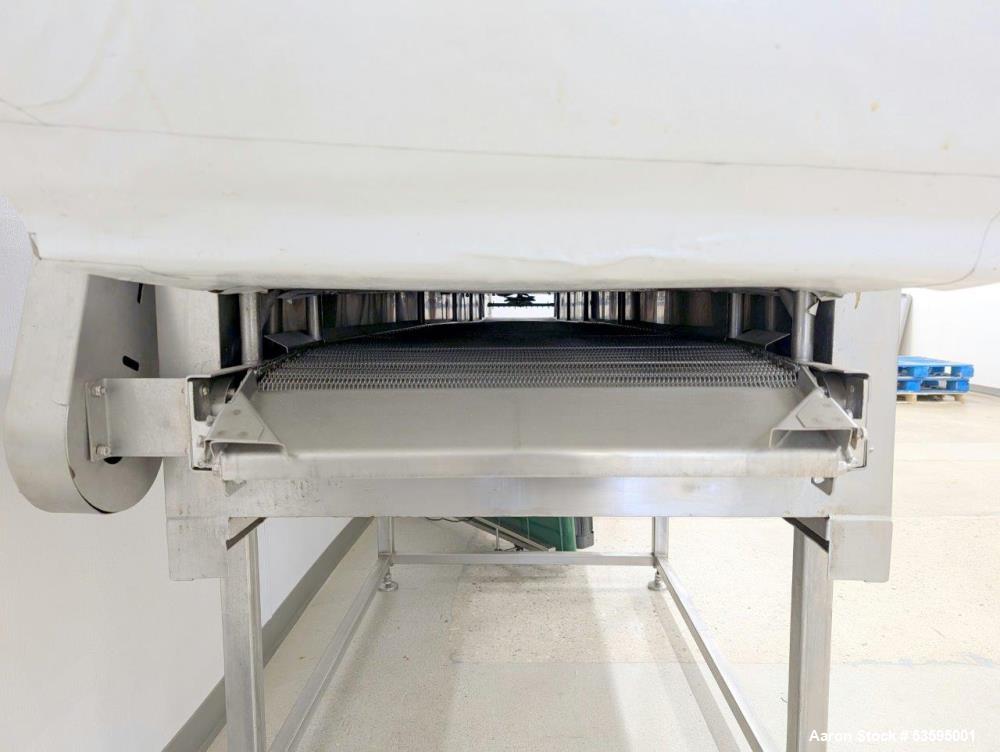

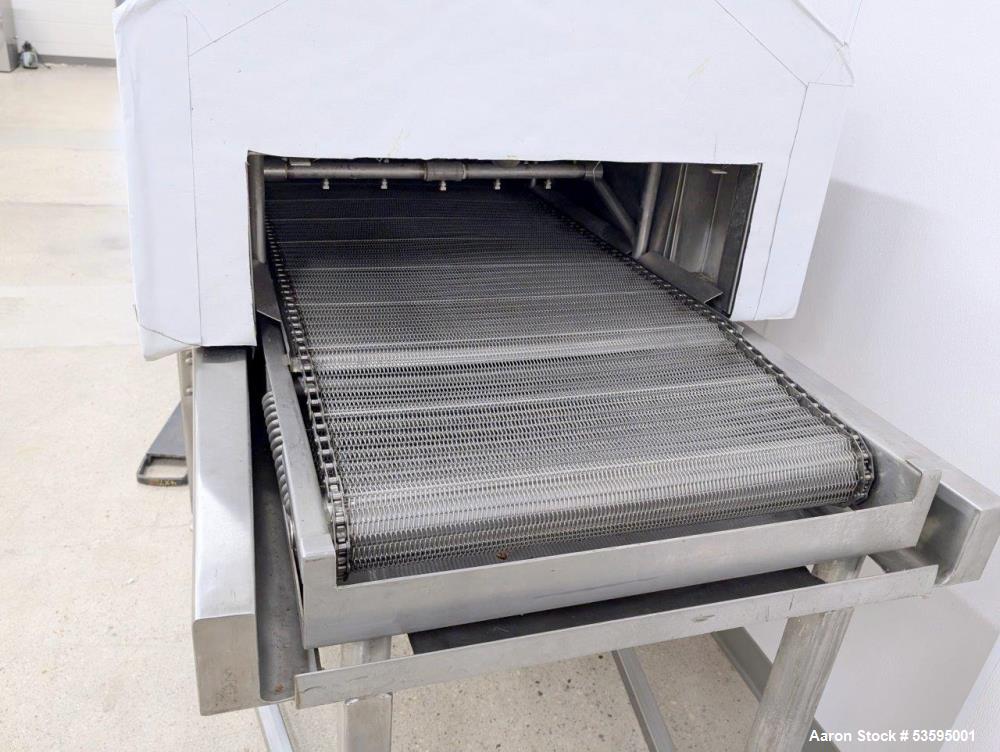

• Conveyor Belt: 24” Wide x 22’ Long Mesh Belt (6” High Aperture)
• Fans: (3) 1/2 HP Top-Mounted Motor-Driven Fans

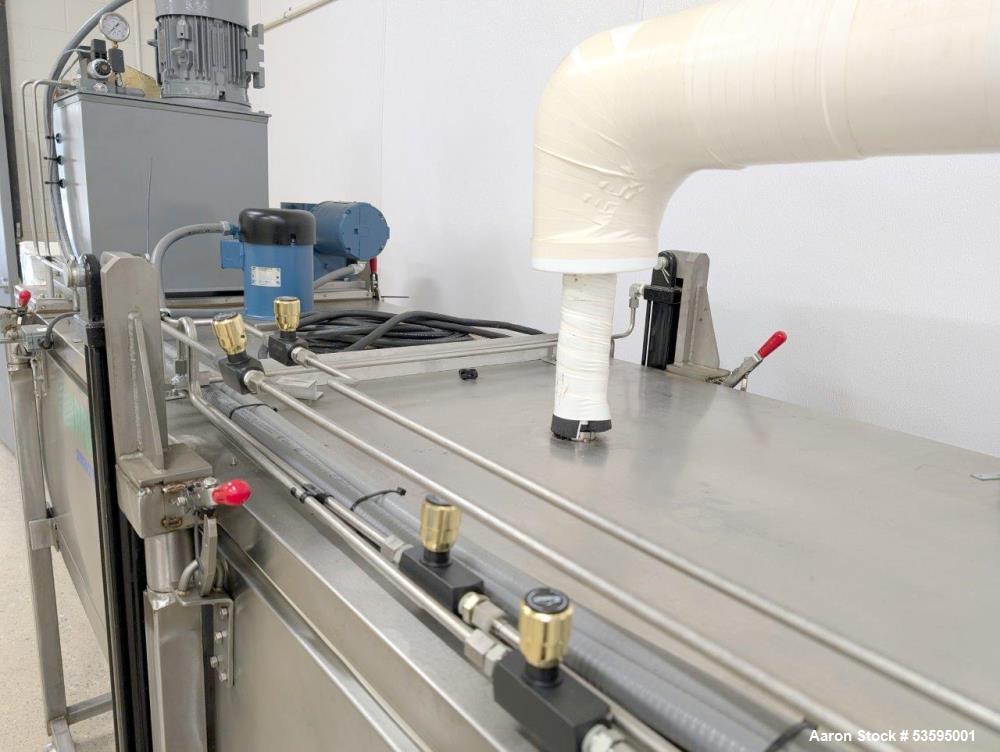

• Discharge Nozzles: (11) for Even Freezing
• Temperature Control: Foxboro Temperature Controller
• Access Doors:
  • (1) Single-Door Access Across Quadrants
  • (2) Side Doors (One on Each Side)

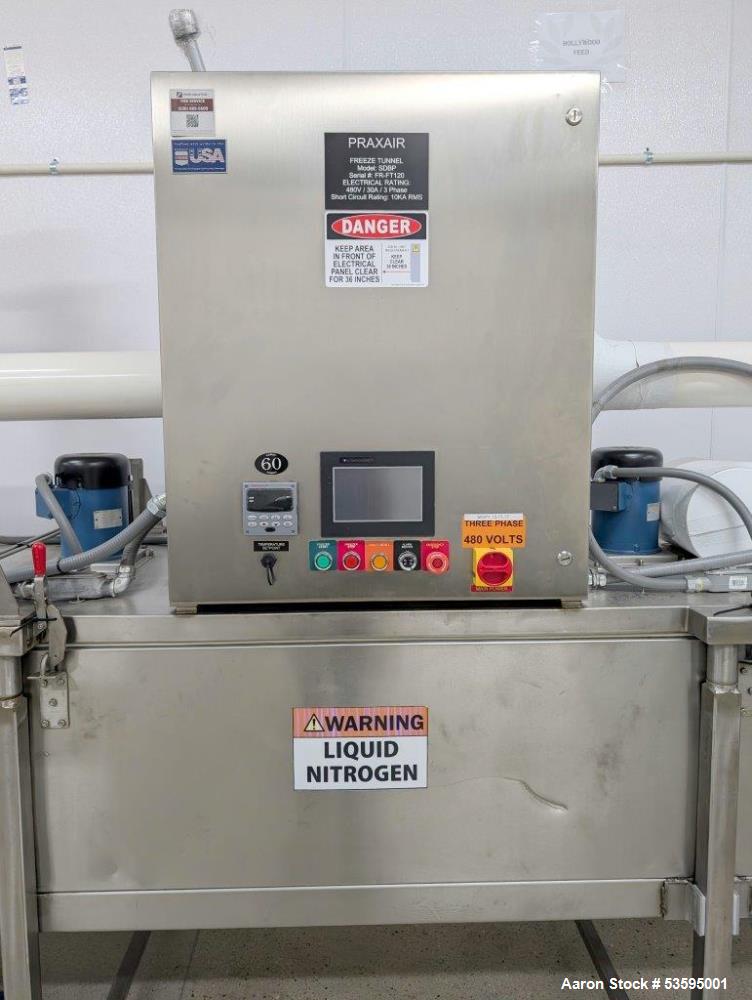

• Control System: Push-Button Controls with E-Stops
• Frame: Mounted on a 12-Leg Base Frame
• Power Requirements: 1 HP, 3-Phase, 60 Hz, 480V
• Overall Dimensions (OAD): 24’ L x 40” W x 84” H
• Condition: Used

Applications:

The Praxair SDBP Nitrogen Freeze Tunnel is ideal for cryogenic freezing applications in industries such as:

• Food Processing & Manufacturing
• Meat, Poultry & Seafood Processing
• Bakery & Confectionery Production
• Ready-to-Eat Meal Processing
• Dairy & Frozen Dessert Production

What Products Would This Be Used For?

• Frozen bakery goods (bread, cakes, pastries)
• Meat, poultry, and seafood products
• Pre-cooked meals and ready-to-eat foods
• Dairy products and frozen desserts
• Fruits, vegetables, and frozen produce
