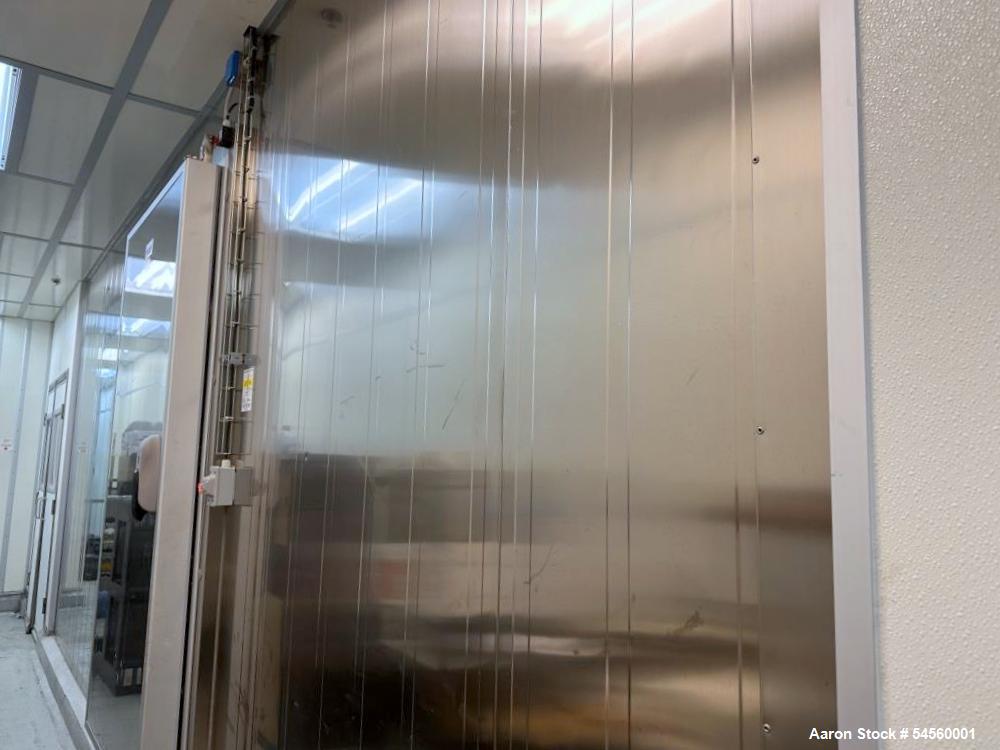

Used Alit 32-Tier Spiral Freezer with Compressor – Stainless Steel Food Processing Spiral Freezing System
Used Alit 32 Tier Spiral Freezer. Stainless steel construction. -40 degrees C (-40 degrees F) ambient temperature. 375mm (approx. 14.7") belt width, 345mm (approx. 13.6") effective belt width. 198 meter (approx. 650') belt length, 192 meter (approx. 630') useful belt length. 8-12 meters/minute (approx. 26'-39') speed range. 140mm layers inter-axe distance. 80mm free space trough layers. 70mm maximum product height. Low inlet/outlet position. 100mm panel thickness. (2) 90x185cm doors. 21'4" x 8'5" overall footprint. 3kw electric power. 3/60/575V. With Compressor. Built 2005. previously used in a food application.
| Serial # | A-191/2005-QS |
| Category | FreezersFreezers |
| Subcategory | Spiral FreezerSpiral Freezer |
Manufacturer
Alit manufactures industrial spiral freezing systems designed for continuous freezing of food products in high-capacity processing facilities. Alit spiral freezers are engineered to maximize production throughput while minimizing floor space, making them ideal for food processors requiring efficient cryogenic or mechanical freezing solutions.
Description
The Used Alit 32-Tier Spiral Freezer is a heavy-duty stainless steel continuous spiral freezing system designed for freezing a wide range of food products while maximizing production within a compact footprint. Previously operated in a food processing application, this freezer maintains an ambient operating temperature of -40°C (-40°F) to rapidly freeze products while preserving quality, texture, and appearance.

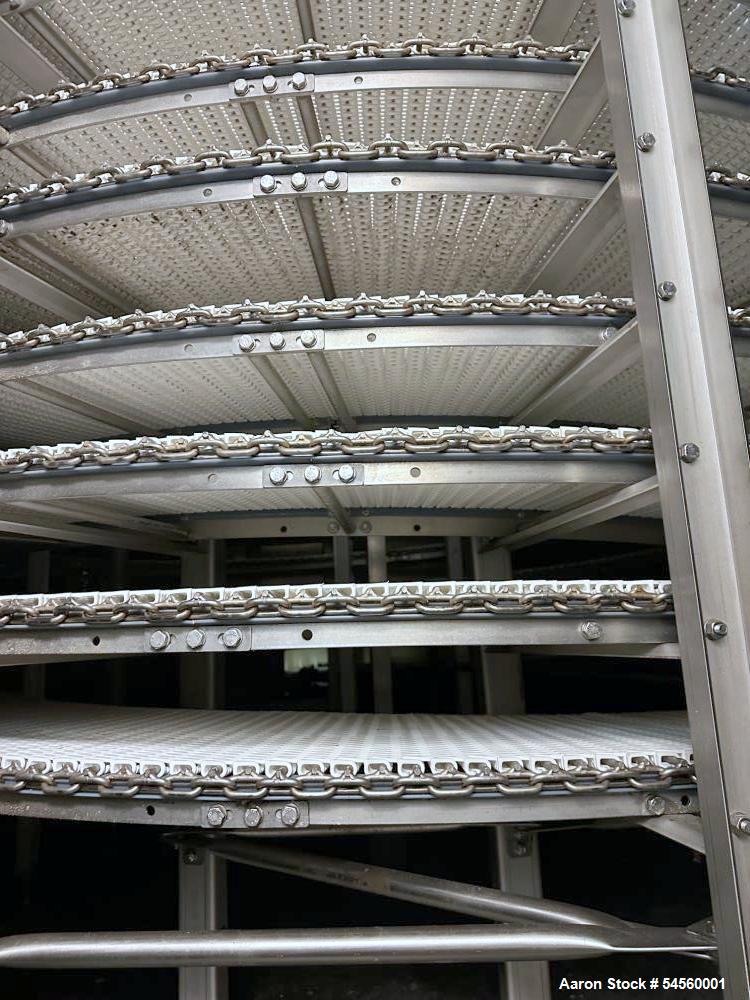

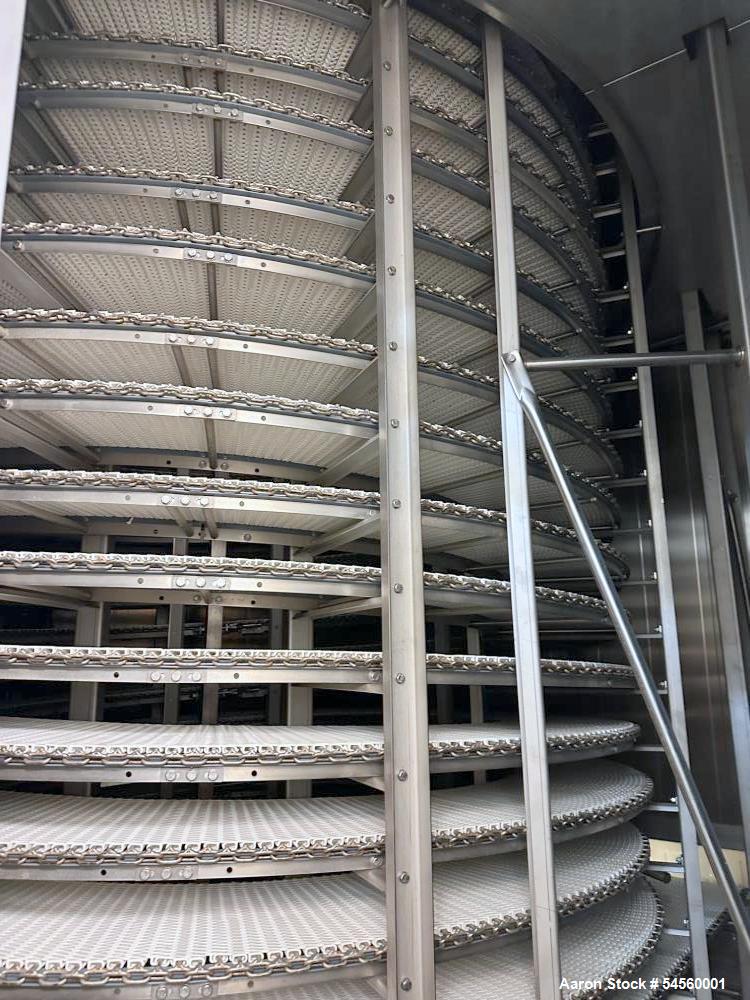

The freezer features a 32-tier spiral conveyor with a 375 mm (14.7-inch) belt width and 345 mm (13.6-inch) effective belt width. The spiral conveyor provides approximately 198 meters (650 feet) of total belt length, with approximately 192 meters (630 feet) of usable conveying length, allowing extended product residence time for efficient freezing.
Variable belt speeds ranging from 8 to 12 meters per minute (26–39 feet per minute) provide flexibility to accommodate various products and production rates. The freezer incorporates 140 mm tier spacing, 80 mm free space between tiers, and accommodates products up to 70 mm (2.75 inches) in height.

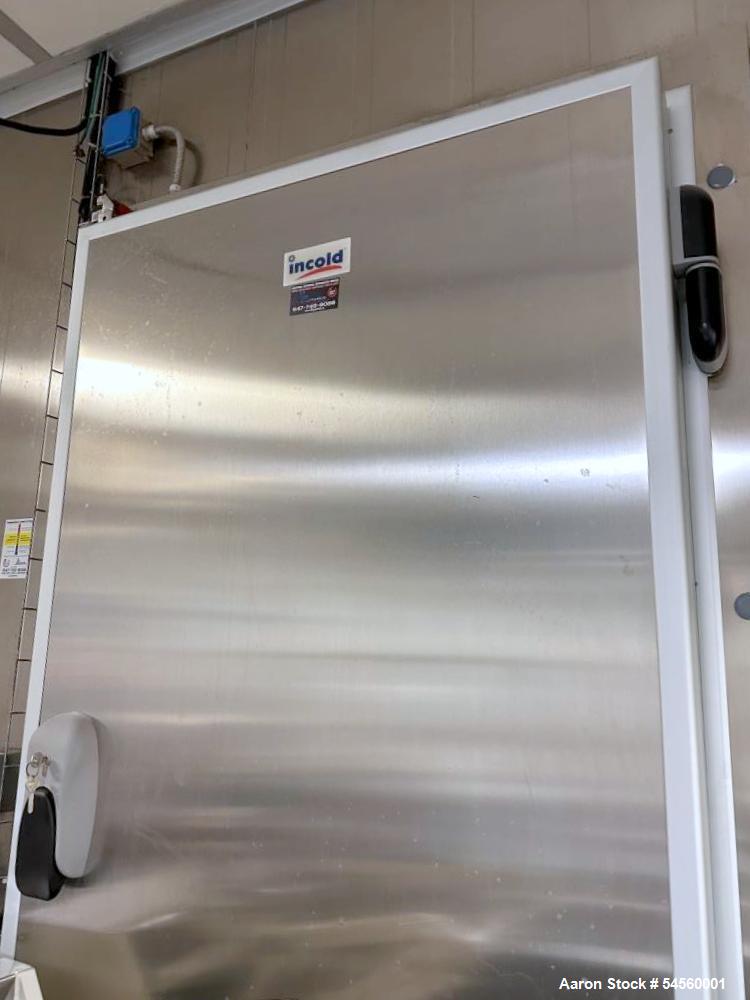

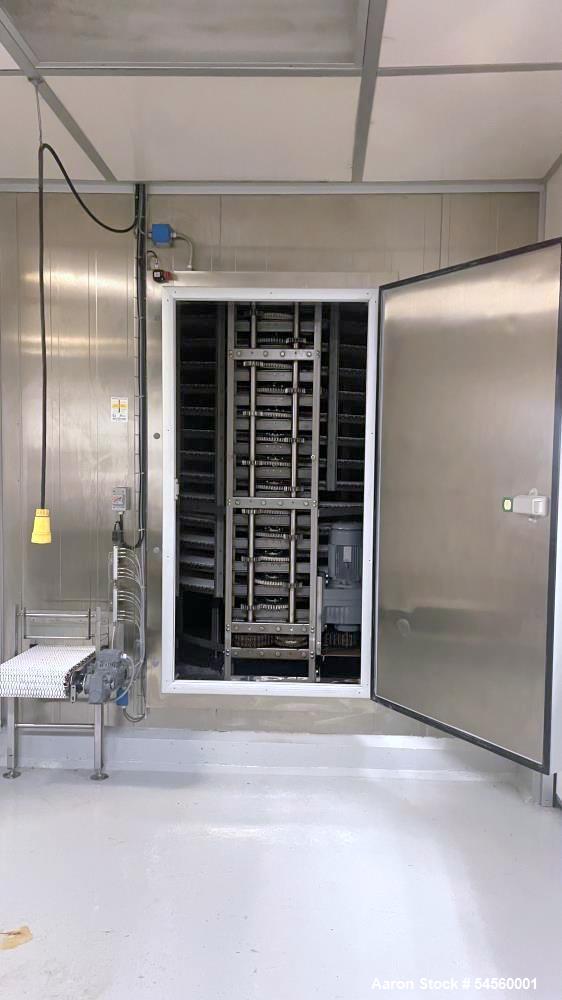

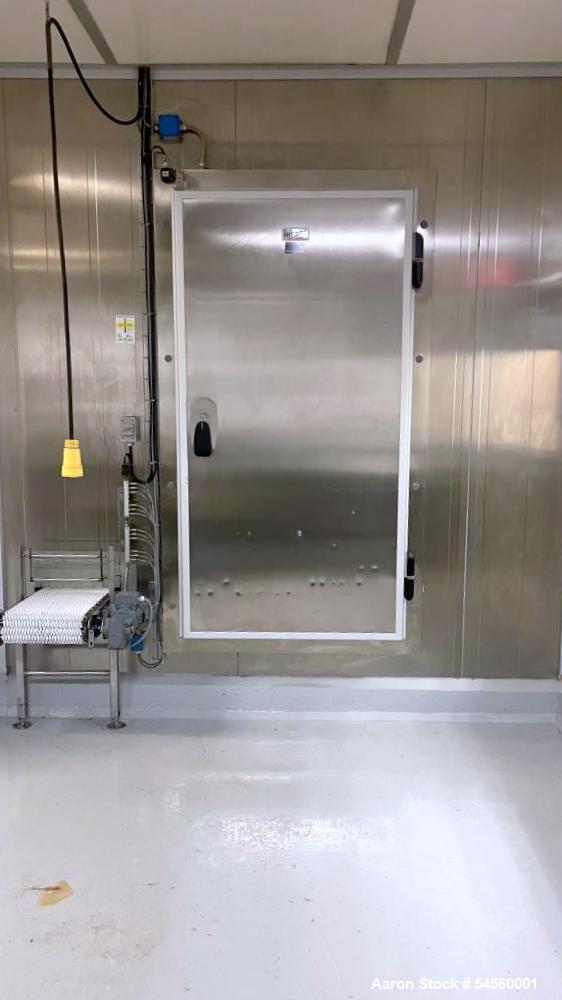

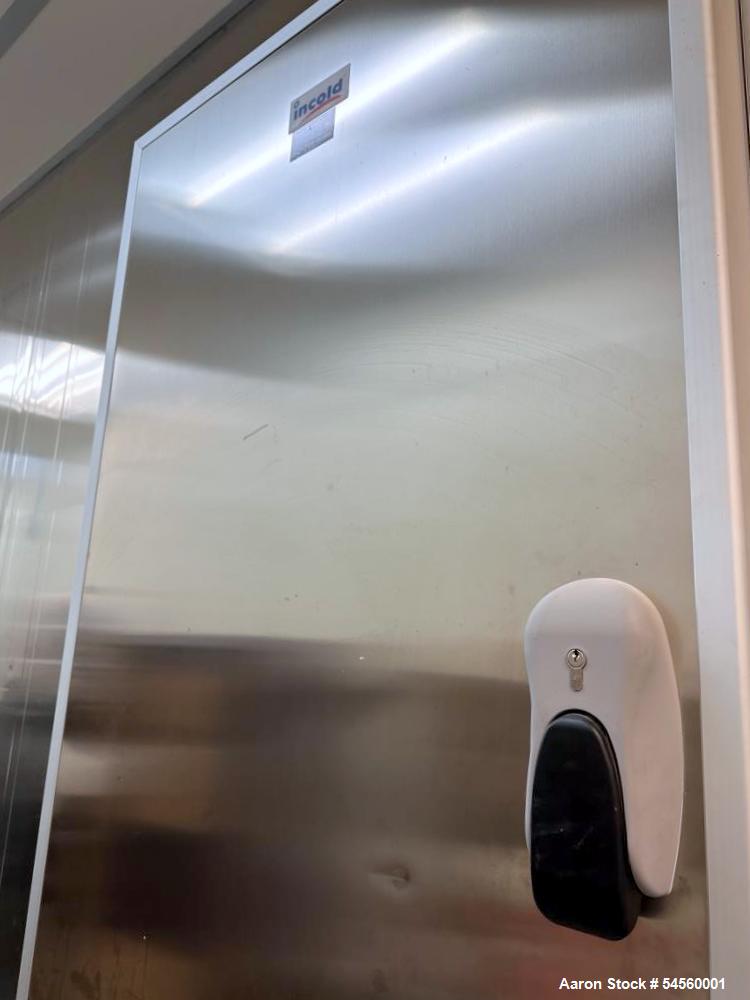

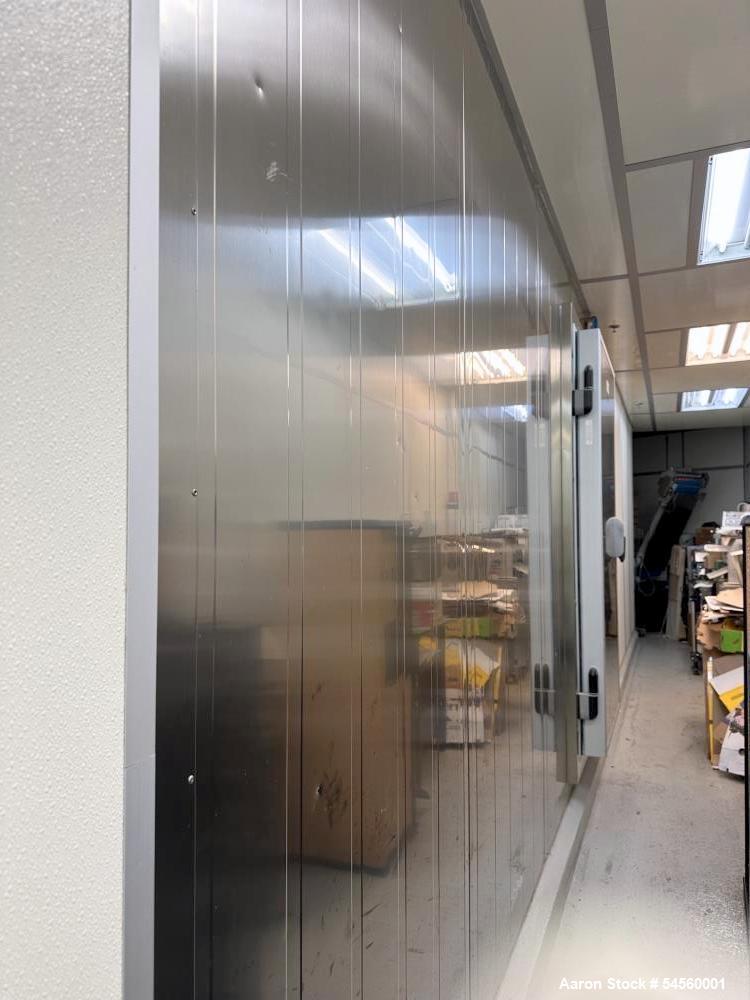

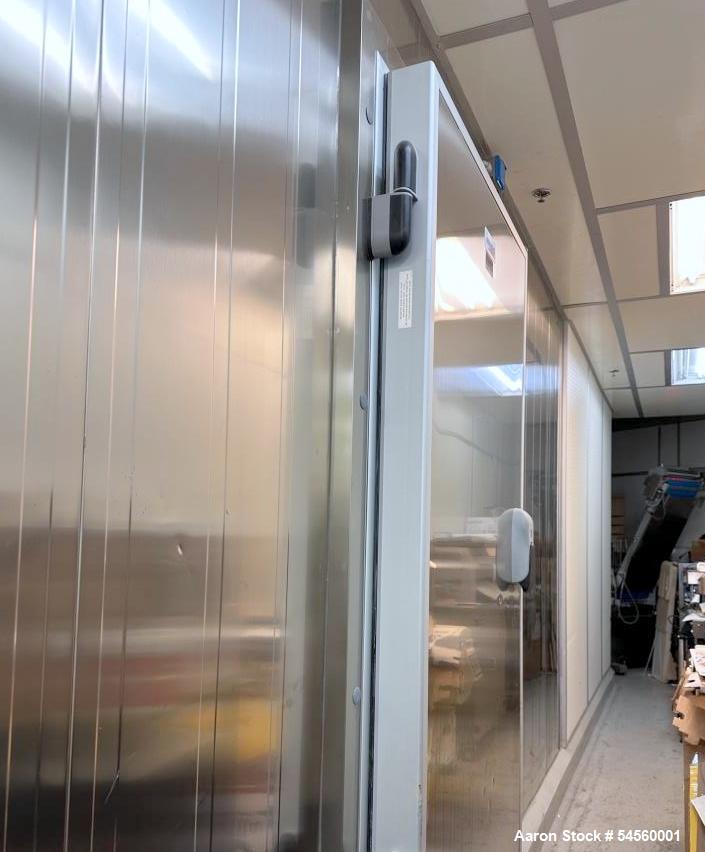

The insulated enclosure features 100 mm thick insulated panels, two large access doors (90 x 185 cm), and a compact footprint of approximately 21 ft. 4 in. × 8 ft. 5 in. The package includes a compressor, making it a complete freezing solution ready for installation.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Alit |
| Equipment Type | Spiral Freezer |
| Construction | Stainless Steel |
| Number of Tiers | 32 |
| Previous Service | Food Processing |
| Operating Temperature | -40°C (-40°F) |
| Belt Width | 375 mm (Approx. 14.7 in.) |
| Effective Belt Width | 345 mm (Approx. 13.6 in.) |
| Total Belt Length | Approximately 198 m (650 ft.) |
| Usable Belt Length | Approximately 192 m (630 ft.) |
| Belt Speed | 8–12 m/min (Approx. 26–39 ft./min) |
| Tier Center Distance | 140 mm |
| Free Space Between Tiers | 80 mm |
| Maximum Product Height | 70 mm |

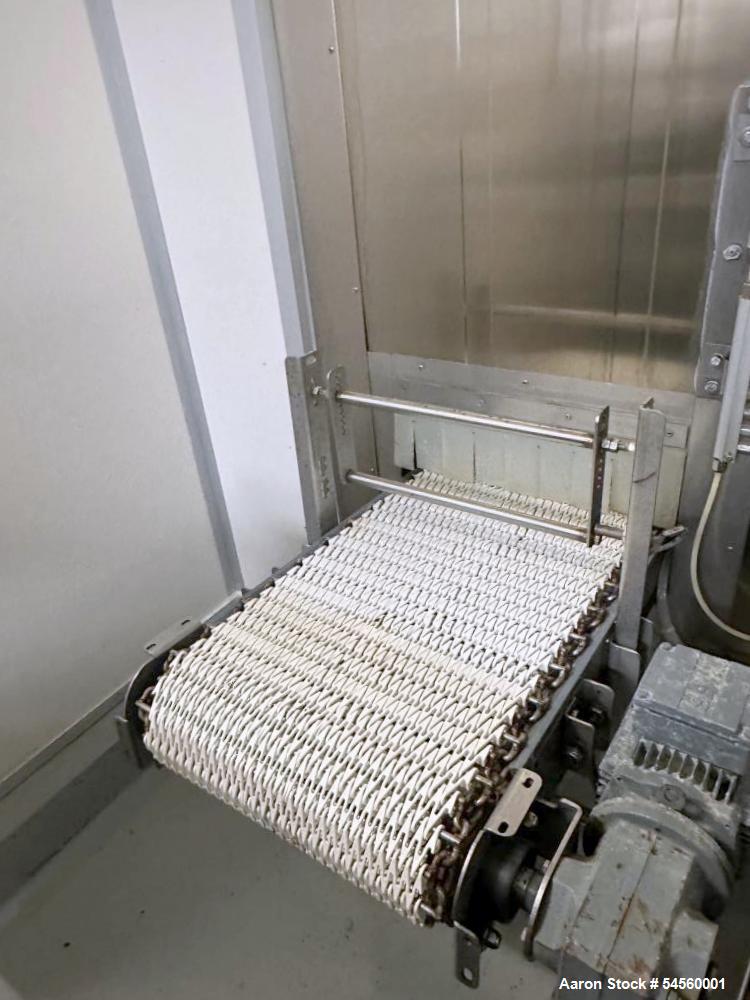

| Inlet/Outlet Position | Low Inlet / Low Outlet |
| Insulated Panel Thickness | 100 mm |
| Access Doors | Two (2) – 90 × 185 cm |
| Overall Footprint | Approximately 21 ft. 4 in. × 8 ft. 5 in. |
| Electrical Power | 3 kW |

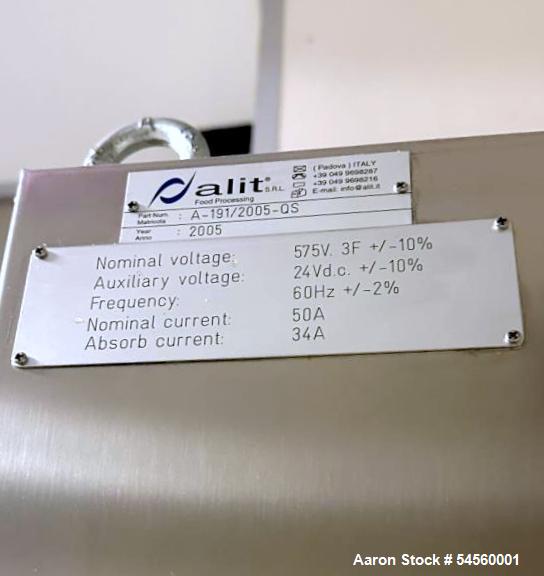

| Electrical Service | 3 Phase, 60 Hz, 575 Volt |
| Refrigeration | Includes Compressor |
| Year Manufactured | 2005 |
| Condition | Used |
Applications
This spiral freezer is commonly used for:
- Frozen food production
- Poultry processing
- Meat processing
- Seafood processing
- Bakery products
- Prepared meals
- Pizza manufacturing
- Fruit freezing
- Vegetable freezing
- Dairy products
- Snack food production
- Food contract manufacturing
Common Products Frozen
- Chicken products
- Beef patties
- Seafood
- Shrimp
- Fish fillets
- Pizza
- Bread
- Pastries
- Vegetables
- Fruits
- Ready meals
- Snack foods
Features & Benefits
- Continuous 32-tier spiral freezing system
- Stainless steel sanitary construction
- Designed for food processing applications
- -40°C (-40°F) operating temperature
- Approximately 650 feet of conveyor belt
- Adjustable belt speed from 8–12 m/min
- Compact footprint with high production capacity
- Low product inlet and outlet design
- 100 mm insulated wall panels
- Two large access doors for maintenance
- Includes refrigeration compressor
- Efficient space-saving spiral conveyor design
Frequently Asked Questions
What products can this spiral freezer process?
The freezer is suitable for poultry, meat, seafood, bakery products, prepared meals, fruits, vegetables, pizzas, snack foods, and many other frozen food products.
What is the operating temperature?
The system is designed to operate at an ambient temperature of approximately -40°C (-40°F) for efficient continuous freezing.
Does the freezer include refrigeration equipment?
Yes. This package includes the compressor, providing a more complete freezing system for installation.
How long is the conveyor belt?
The spiral conveyor has approximately 198 meters (650 feet) of total belt length, with approximately 192 meters (630 feet) of usable conveying length.
What is the maximum product height?
The freezer accommodates products up to approximately 70 mm (2.75 inches) in height.
Can Aaron Equipment assist with shipping and logistics?
Yes. Aaron Equipment provides complete domestic and international shipping services, including heavy-haul transportation, export documentation, rigging coordination, and logistics support for industrial refrigeration and food processing equipment.
