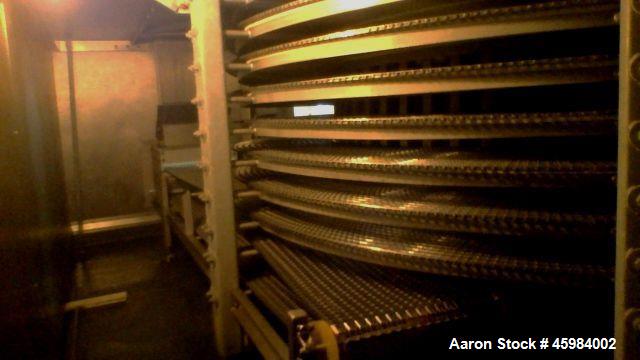

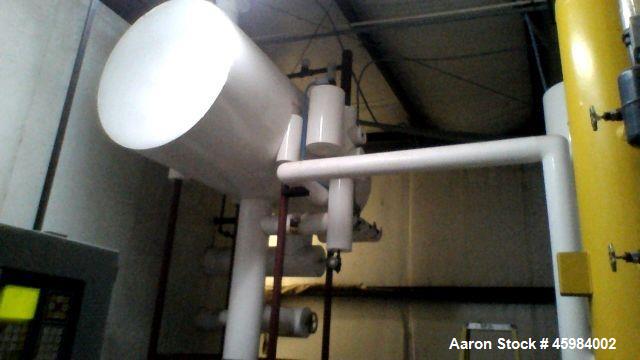

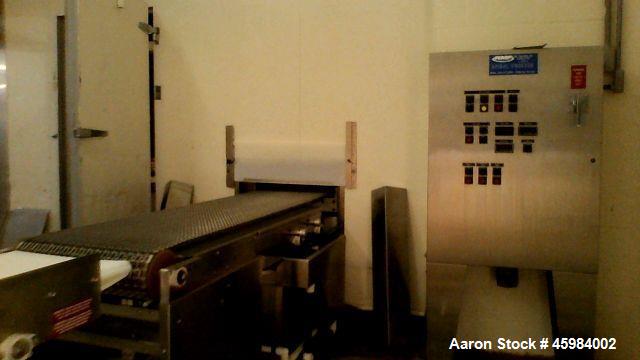

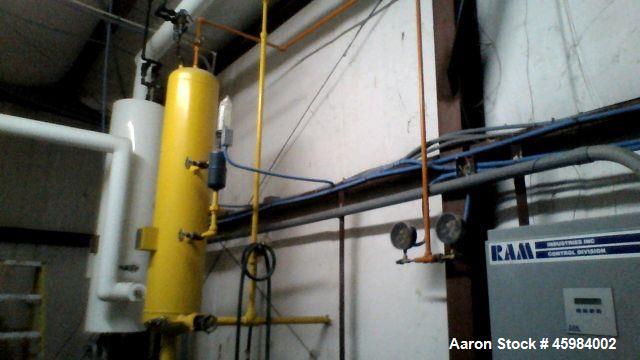

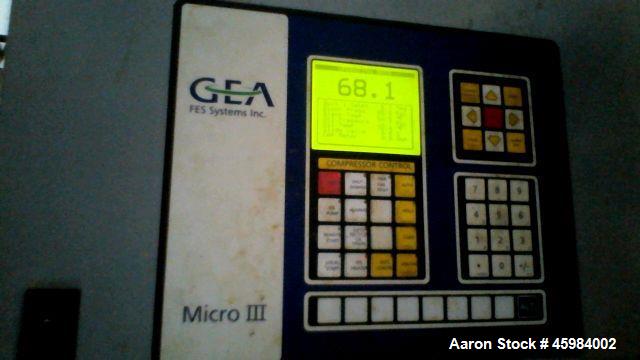

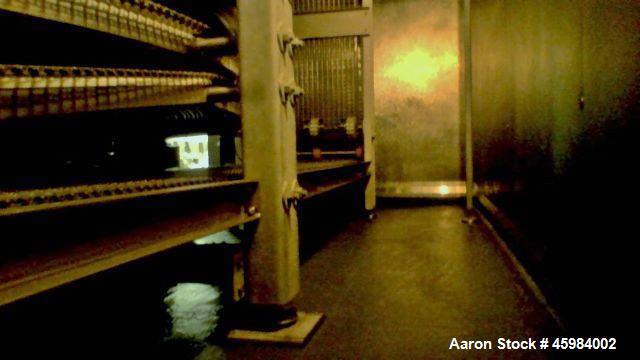

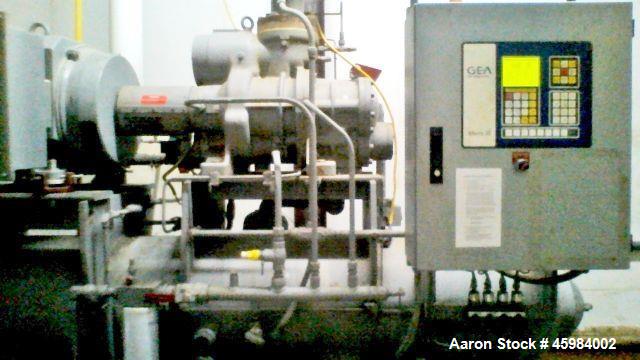

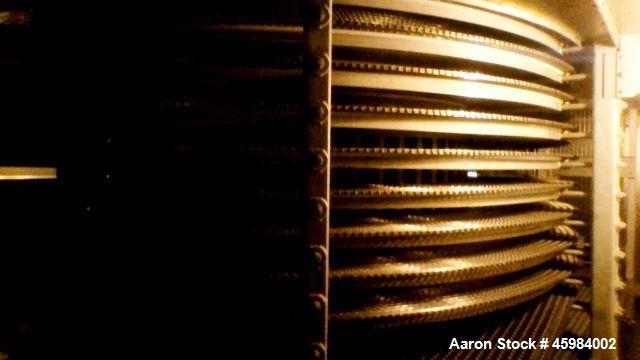

Used RMF Spiral Freezer, Model 2414-47-CCW18. 24“ wide belt, 14.5 active tiers. Useable belt width: 23”. Belt specification: E-2 Omniflex. Active belt length: 583 linear feet. Total belt length: 698 linear feet. Design belt speed: 16.7 feet per minute. Conveyor drive horsepower: 3 hp. Tier spacing: 5.5”. Product clearance: 2.75”. Capacity – 31.7 tons at 10°F TD and -40 FET. Refrig – Flooded R-717 (5:1 Rate). Defrost – Water (80 GPM Total). Coil – Aluminum tubes and fins. Charge – 13.8 cubic feet int. vol. Air flow – 44,296 CFM W7 .375 ESP. Fans (2) – 42’’ Diameter prop. type. Motor (2) – 7 1/2 HP, 1160 RPM (254T) 460/60/3 T.E.F.C. at 9.03 BHP each motor. Also includes: FES Model 160 GME 200HP economized screw compressor. BAC Model CXV 77 evaporative condenser with 7 1/2 HP fan motor and 1 1/2HP water pump. 36’’ x 6’ long horizontal surge drum vessel. 20’’ x 10’long high pressure receiver vessel. Intercooler vessel.
