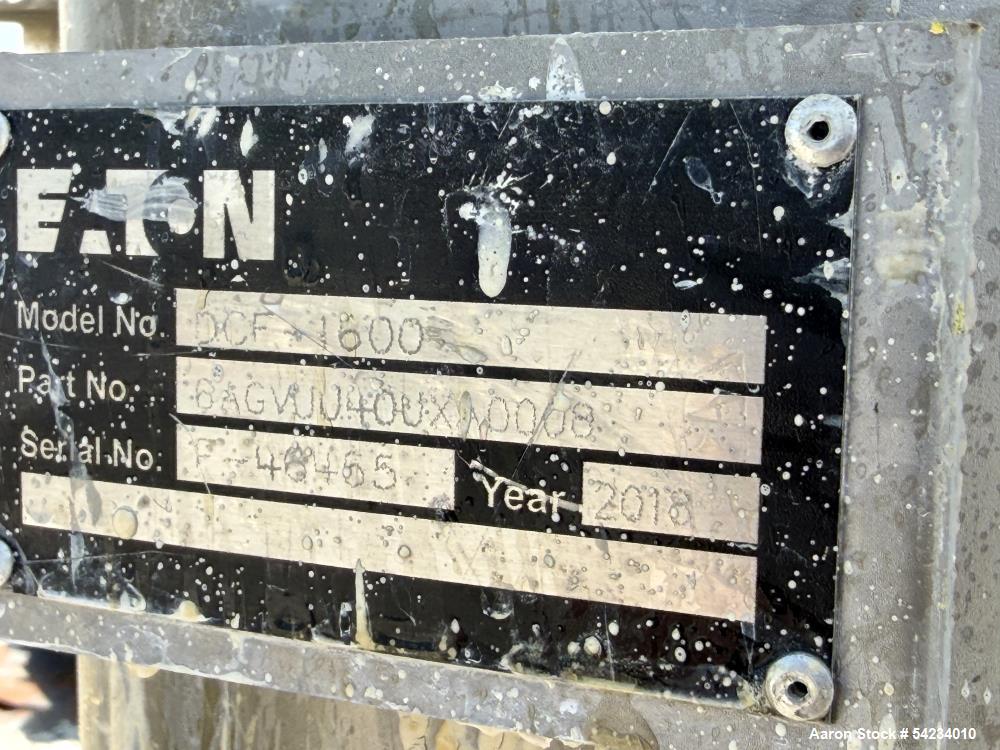

Manufacturer Information

Manufacturer: Eaton Filtration
Model: DCF-1600
Equipment Type: Disc Cleaning Filter (DCF)

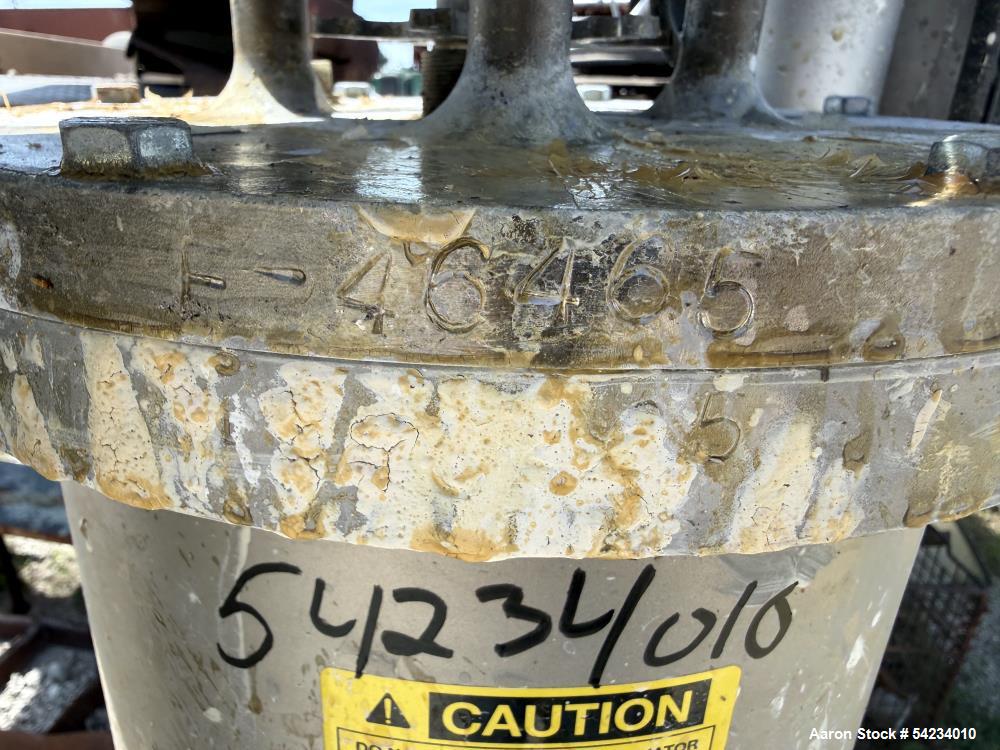

Serial Number: F-46465
Year Built: 2018
Material of Construction: 316 Stainless Steel
Condition: Used

Description

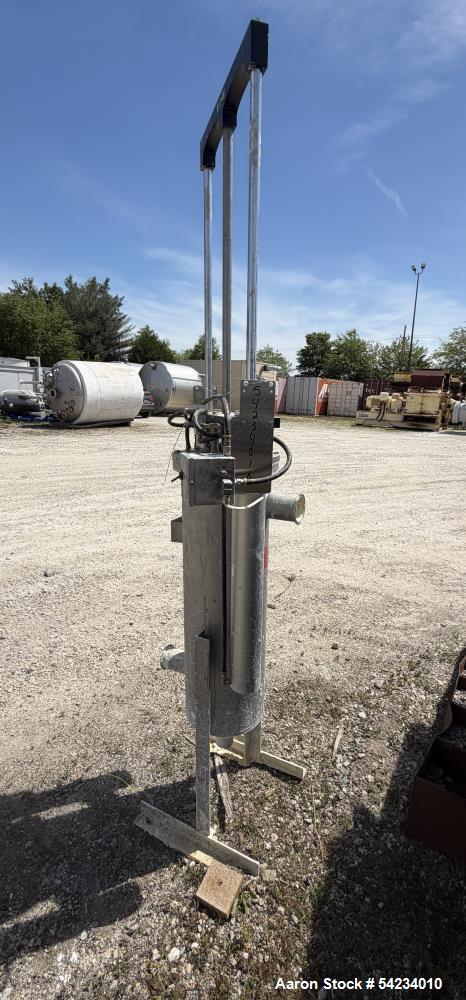

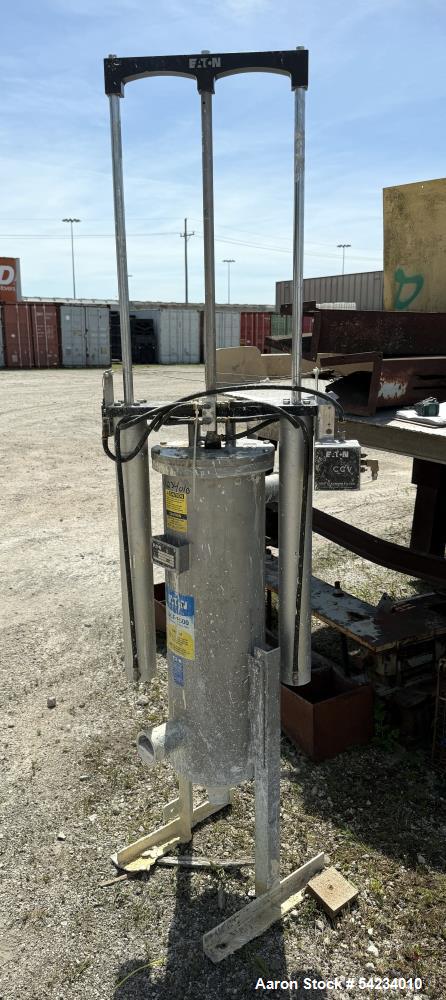

Available for sale is a used Eaton Model DCF-1600 Disc Cleaning Filter, a high-performance automatic self-cleaning filtration system designed for continuous liquid filtration applications. Constructed entirely of 316 stainless steel, this industrial filter provides efficient removal of solids and contaminants while minimizing downtime associated with manual filter cleaning and replacement.

The DCF-1600 utilizes Eaton's disc cleaning filtration technology, allowing continuous operation with automated cleaning cycles. The system features a 10-inch diameter by 33-inch long filter chamber, approximately 48.5 liters of liquid volume, and 3,995 cm² of filtration surface area. The filter is capable of processing flow rates up to 40 m³/hr at 100 micron filtration.

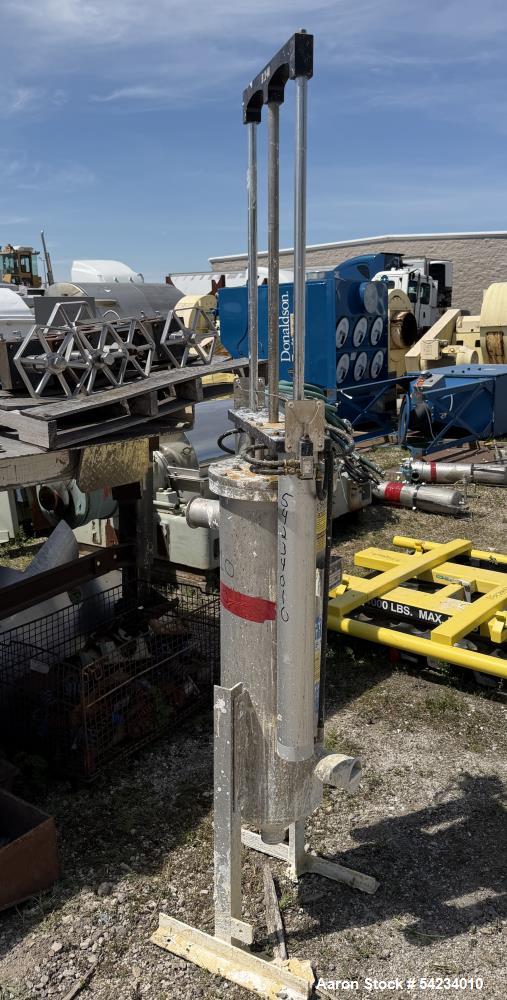

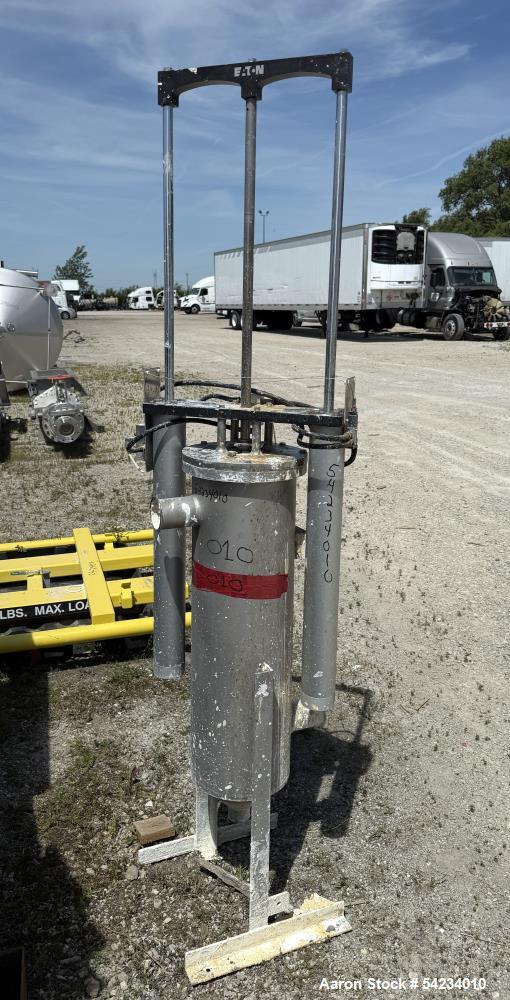

This unit includes a top bolt-on cover with air-operated lift system, providing approximately 28.5 inches of lifting height for maintenance access. Mounted on stainless steel support legs, the DCF-1600 is suitable for demanding food, beverage, pharmaceutical, chemical, water treatment, and industrial processing applications.

Specifications

General Information

• Manufacturer: Eaton Filtration
• Model: DCF-1600
• Serial Number: F-46465
• Year Built: 2018
• Equipment Type: Disc Cleaning Filter
• Condition: Used

Construction

• Material of Construction: 316 Stainless Steel
• Stainless Steel Support Legs
• Industrial Sanitary Design
• Corrosion Resistant Construction

Filter Chamber

• Chamber Diameter: 10 Inches
• Chamber Length: 33 Inches
• Liquid Volume: Approximately 48.5 Liters
• Filtration Surface Area: 3,995 cm²

Performance

• Maximum Flow Rate:
  • 40 m³/hr at 100 Micron Filtration
• Continuous Filtration Operation
• Self-Cleaning Filter Design

Operating Parameters

Pressure Rating

• Minimum Operating Pressure: 1.5 Bar
• Maximum Operating Pressure: 10 Bar

Temperature Rating

• Operating Temperature Range:
  • 10°C to 200°C
  • (Approximately 50°F to 392°F)

Connections

Inlet

• 3 Inch Diameter

Outlet

• 3 Inch Diameter

Bottom Outlet / Drain

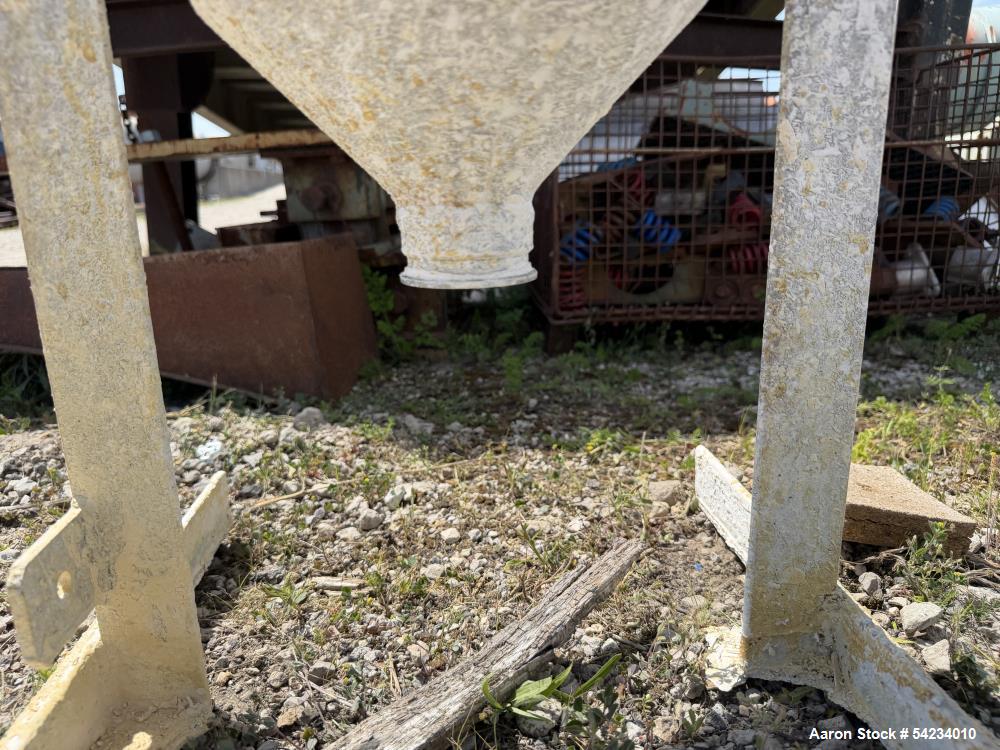

• 2 Inch Center Bottom Outlet

Cover System

• Top Bolt-On Cover
• Air Operated Lift Mechanism
• Lift Height: Approximately 28.5 Inches
• Simplified Maintenance Access

Mounting

• Stainless Steel Leg Mounted
• Floor Mounted Design
• Self-Supporting Structure

Applications

• Process liquid filtration
• Food processing filtration
• Beverage filtration
• Chemical filtration
• Pharmaceutical filtration
• Water treatment
• Wastewater processing
• Cooling water filtration
• Process water filtration
• Industrial liquid purification
• Product recovery systems
• Continuous manufacturing processes

Products This Equipment Would Be Used For

• Process water
• Beverage products
• Syrups
• Liquid food ingredients
• Chemicals
• Solvents
• Pharmaceutical liquids
• Process streams
• Cooling water
• Wastewater streams
• Specialty liquids
• Industrial fluids

Frequently Asked Questions

• What type of filter is the Eaton DCF-1600?
  The DCF-1600 is an automatic self-cleaning disc cleaning filter designed for continuous liquid filtration applications.
• What material is the filter constructed from?
  The unit is fabricated from 316 stainless steel for superior corrosion resistance and sanitary operation.
• What is the maximum flow rate?
  The filter is rated for flow rates up to 40 m³/hr at 100-micron filtration.
• What is the filtration surface area?
  The DCF-1600 provides approximately 3,995 cm² of filtration area.
• What are the chamber dimensions?
  The filter chamber measures approximately 10 inches in diameter by 33 inches long.
• What pressure range can the filter operate under?
  The system is rated for operating pressures from 1.5 to 10 bar.
• What temperature range can the filter handle?
  The filter is rated for temperatures from approximately 10°C to 200°C (50°F to 392°F).
• What size process connections are installed?
  The filter includes 3-inch inlet and outlet connections and a 2-inch center bottom outlet.
• What is the purpose of the air-operated lift system?
  The air-operated lift provides safe and convenient access to the filter chamber for inspection and maintenance.
• What industries commonly use self-cleaning filters?
  Food processing, beverage production, pharmaceuticals, chemicals, water treatment, and industrial manufacturing facilities commonly use self-cleaning filtration systems.
• Can Aaron Equipment assist with shipping and logistics?
  Yes, Aaron Equipment can coordinate inspections, rigging, loading, transportation, export preparation, and worldwide logistics services.
• Does Aaron Equipment buy and sell used filtration equipment?
  Yes, Aaron Equipment actively purchases and sells used filters, centrifuges, separators, process equipment, water treatment systems, and complete manufacturing facilities worldwide.
