Used Cartridge Filters

Stock# 11453420

Used- One Pall Tangential Flow Membrane Filtration Skid, Type Centrasette 10, Model C-10. Stainless steel cassette holder with (6) Hyro -.2 UM fliters, with G & H rotary lobe pump, model GHPD-632, stainless steel construction, 2" inlet/outlet driven by 2 hp, 230/460 volt motor. Yula shell and tube heat exchanger, model WCV-6AA-36AAS, stainless steel tubes, tube sheets, rated 150 psi at 300 f tube side. 150 psi at 300 f shell side, skid mounted on common base with control panel with Allen Bradley SLC5/04 plc controller and pump motor vfd controller. Serial # 97-046. Built 1998.

Stock# 50986001

Used- Tequatic Plus F-150 Filter, B-Series Skid. Can handle high TSS from 10010,000 mg/L and greater, and filter down to 15 microns. Maximum Inlet Pressure 100 psi. Maximum Temperature 140 degrees F. Minimum Temperature 45 degrees F; pH 5-9 continuous. Maximum Particle Size 1/16"; 440 V, 50/60 Hz, 3 phase, 20 Amps. Approximately 2330 pounds dry, 3230 pounds wet.

Stock# 51008001

Used- Russell Finex Liquid ECO Filter, Model 803. 316 Stainless steel. Self-Cleaning. Internal Wiper system providing continuous cleaning of filter surface. Approximately 1/3 hp 116v-single phase. Filter is designed for finest cleaning. For use in the Food and Pharmaceutical industries. New cost was $36k.

Stock# 45176010

Used- Tetra Pak Filter System, consisting of (1) Stainless Steel Tank, Approximately 125 Gallons, 2" Center Bottom Outlet, (2) Millipore Filters, Approximately 4" Diameter x 11" Housing. Skid Mounted.** SALE SUBJECT TO SELLER'S APPROVAL **

Stock# 51094104

Used- Rosedale Products High Capacity Basket Strainer Filter Housing, Model 6302RFWN2825C-C, Carbon Steel. Approximate 6" diameter x 30" straight side, internal rated 825 psi at -20 to 450 degrees F. Serial# RD-13347, National Board# 4353, built 2013. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****

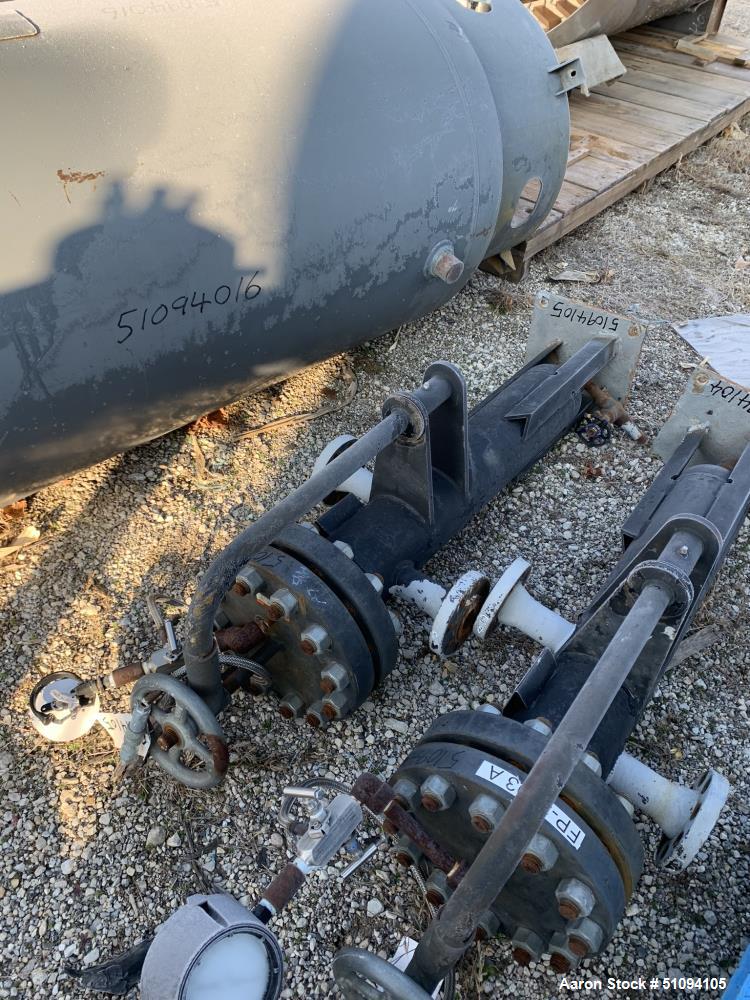

Stock# 51094105

Used- Rosedale Products High Capacity Basket Strainer Filter Housing, Model 6302RFWN2825C-C, Carbon Steel. Approximate 6" diameter x 30" straight side, internal rated 825 psi at -20 to 450 degrees F. Serial# RD-13346, National Board# 4352, built 2013. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****

Stock# 51094119

Used- Velcon Filter Skid, Model VX-3, Carbon Steel. Approximate 8" diameter x 60" straight side. Internal rated 250 psi at -20 to 200 degrees F., flow rate 204 gallons per minute. Serial# 150472-2. (1) Smith Meter inline strainer, model S2-1-ST-N-40-00-0, serial# 75-1860-5. (1) FMC Technologies flow meter, model 2ST15C1P0GF200GU, serial# 1337E10030. Base mounted.

Stock# 51094033

Used- Shelco Bag Filter Housing, Model BFS-2SB-2F, Stainless Steel. Approximate 8" diameter x 36" straight side. Internal rated 150 psi. Serial# 164261. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****

Stock# 51094034

Used- Shelco Bag Filter Housing, Model USB-2SB-304-2F-B, 304 Stainless Steel. Approximate 8" diameter x 34" straight side. Internal rated 150 psi at -20 to 300 degrees F. National Board# 20, serial# 159080-01, built 2014. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****

Stock# 89388

Used- Allegheny Bradford Sanitary 3 Round Opt 1 Clean Filter, 316 Stainless Steel, Vertical. 8" diameter x 19" deep non-jacketed housing, rated 90 psi and FV at 350 deg F. Bolt on dished top, flat bolt on bottom. 7/8" tri clamp inlet/outlet. Mounted on a cart with casters. Unit requires filter cartridges. Built 2001.

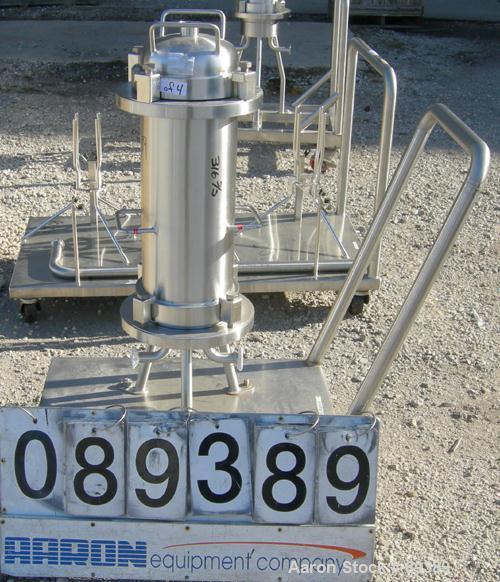

Stock# 89389

Used- Allegheny Bradford Sanitary 3 Round Opt 1 Clean Filter, 316 Stainless Steel, Vertical. 8" diameter x 19" deep non-jacketed housing, rated 90 psi and FV at 350 deg F. Bolt on dished top, flat bolt on bottom. 7/8" tri clamp inlet/outlet. Mounted on a cart with casters. Unit requires filter cartridges. Built 2001.

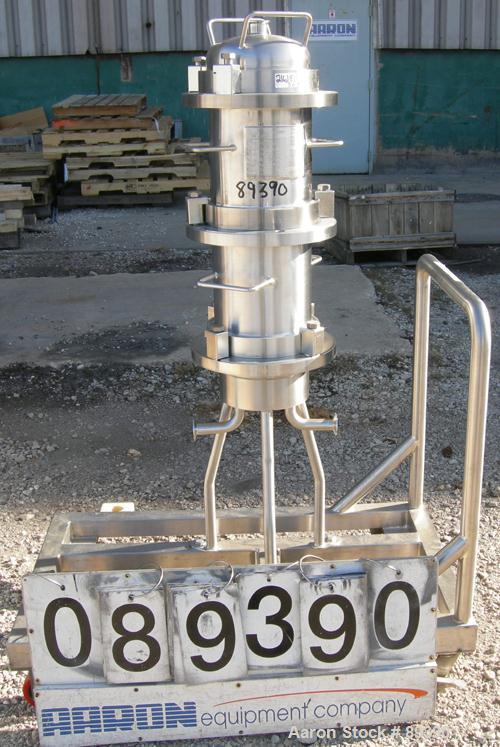

Stock# 89390

Used- Allegheny Bradford Sanitary 3 Round Opt 1 Clean Filter, Model OCT03-QT10142-1, 316 Stainless Steel, Vertical. 8" diameter x 20" deep (2) section non-jacketed housing, rated 90 psi and FV at 350 deg F. Bolt on dished top, flat bolt on bottom. 7/8" tri clamp inlet/outlet. Mounted on a cart with casters. Unit requires filter cartridges. Built 2003.

Stock# 51094008

Used- Rosedale Products High Capacity Basket Strainer Filter Housing, Model 8-15-3P-2-150-SBSPB, 304 Stainless Steel. Approximate 8" diameter x 22" straight side, internal rated 150 psi. Serial# 292129, built 2014.** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****

Stock# 51094009

Used- Rosedale Products High Capacity Basket Strainer Filter Housing, Model 8-15-3F-2-150-SBSPB, 304 Stainless Steel. Approximate 8" diameter x 22" straight side, internal rated 150 psi. Serial# 135031, built 2001. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****

Stock# 51094012

Used- Rosedale Products High Capacity Basket Strainer Filter Housing, Model 8-15-3F-2-150-SBSPB. 304 Stainless Steel. Approximate 8" diameter x 22" straight side, internal rated 150 psi. Serial # 292474. Built 2014.

Stock# 45905028

Used- Pall Trinity Micro Filter, 316L Stainless Steel. 12" Diameter x 7" deep. Rated 100 psi Full Vacuum at -20 to 300 degrees F. Serial#64901. Built 1996.

Stock# 44625038

Used- Stainless Fluid Products Cartridge Filter Housing, 3.25 Cubic Feet Capacity, 316 Stainless Steel. Requires filter cartridges. Quick release clamp design chamber rated 150 psi at -20 to 300 degrees F. 1-1/2" Tri-clamp bottom inlet/outlet. Mounted on 4 stainless steel legs.

Stock# 44625039

Used- Stainless Fluid Products Cartridge Filter Housing, 3.25 Cubic Feet Capacity, 316 Stainless Steel. Requires filter cartridges. Quick release clamp design chamber rated 150 psi at -20 to 300 degrees F. 1-1/2" Tri-clamp bottom inlet/outlet. Mounted on 4 stainless steel legs.

Stock# 44625040

Used- Stainless Fluid Products Cartridge Filter Housing, 3.25 Cubic Feet Capacity, 316 Stainless Steel. Requires filter cartridges. Quick release clamp design chamber rated 150 psi at -20 to 300 degrees F. 1-1/2" Tri-clamp bottom inlet/outlet. Mounted on 4 stainless steel legs.

Stock# 44625041

Used- Stainless Fluid Products Cartridge Filter Housing, 3.25 Cubic Feet Capacity, 316 Stainless Steel. Requires filter cartridges. Quick release clamp design chamber rated 150 psi at -20 to 300 degrees F. 1-1/2" Tri-clamp bottom inlet/outlet. Mounted on 4 stainless steel legs.

Stock# 44629008

Used- Allegheny Bradford Opti-Clean Dual Filter System, 316 Stainless Steel. Consisting of: (1) Allegheny Bradford Opti-Clean filter housing, model 3 Rd. x 3 High. Rated 150 psi at -20 to 300 degrees F, National Board #5735, serial #030038-1-1-1, built 2010. (1) Allegheny Bradford Opti-Clean filter housing, model 9 Rd. x 3 High. Rated 150 psi at -20 to 300 degrees F, National Board #5746, serial #030038-5-1-1, built 2010. Both mounted on a stainless steel frame with casters. No cartridges.

Stock# 87010

Used- Millipore Cartridge Filter, Model 12RX1H, 316L Stainless Steel. Approximate 14" diameter x 12" straight side, dish top, flat bolt-on bottom. Internal rated 145 psi at 250 deg F. Unit requires cartridges. Mounted on a stainless steel frame with casters. Built 2004.

Stock# 87015

Used- Millipore Jacketed Cartridge Filter, Model CESH23080, 316 Stainless Steel. Approximate 14" diameter x 32" straight side, dish top, flat bolt-on bottom. Internal rated 100 psi/FV at -20 to 350 deg F, stainless jacket rated 50 psi at -20 to 350 deg F. Unit requires cartridges. Mounted on a stainless steel frame with casters.

Stock# 40037756

Used- Filterite Basket Filter, 316 stainless steel construction, Type 66MS03-316-4FD-C150, 15" diameter x 30" deep tank, rated 150 psi at 200 degrees F, serial #91037.

Stock# 44625031

Used- Cotter Brothers Cartridge Filter Housing, 316L Stainless Steel. Requires filter cartridges. Quick release clamp design chamber rated 75 psi/ full vacuum at -20 to 300 degrees F. 1-1/2" Tri-clamp bottom inlet/outlet. Mounted on 4 stainless steel legs and a cart with casters.

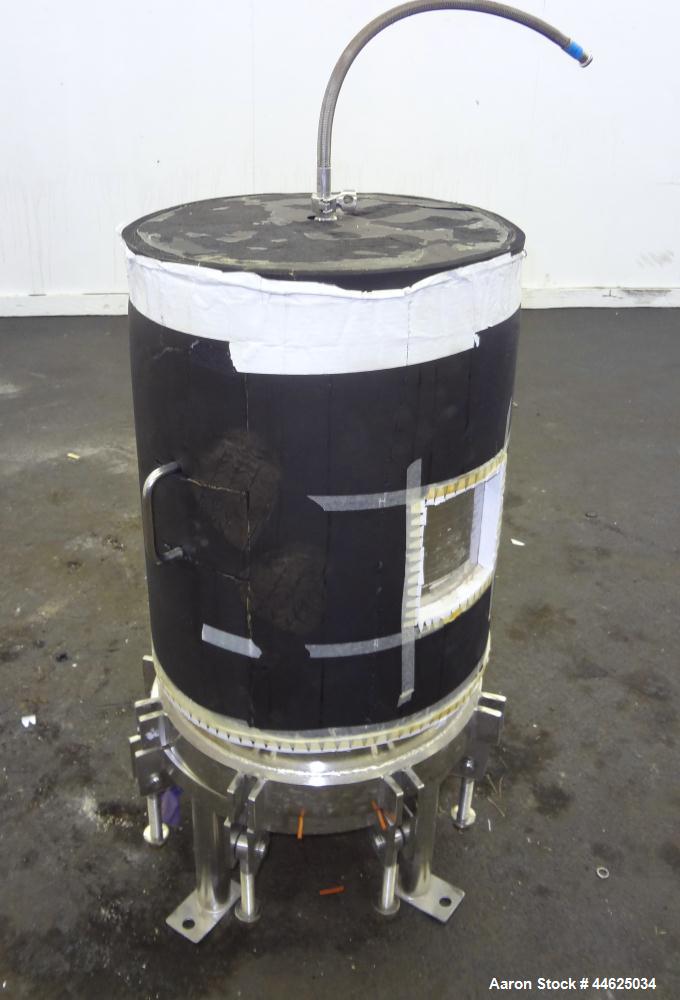

Stock# 44625034

Used- Stainless Fluid Products Cartridge Filter Housing, 3.8 Cubic Feet Capacity, 316 Stainless Steel. Requires filter cartridges. Quick release clamp design chamber rated 45 psi at -20 to 150 degrees F. 1-1/2" Tri-clamp bottom inlet/outlet. Mounted on 4 stainless steel legs.

Stock# 44625035

Used- Stainless Fluid Products Cartridge Filter Housing, 3.8 Cubic Feet Capacity, 316 Stainless Steel. Requires filter cartridges. Quick release clamp design chamber rated 45 psi at -20 to 150 degrees F. 1-1/2" Tri-clamp bottom inlet/outlet. Mounted on 4 stainless steel legs.

Stock# 44625036

Used- Stainless Fluid Products Cartridge Filter Housing, 3.8 Cubic Feet Capacity, 316 Stainless Steel. Requires filter cartridges. Quick release clamp design chamber rated 45 psi at -20 to 150 degrees F. 1-1/2" Tri-clamp bottom inlet/outlet. Mounted on 4 stainless steel legs.

Stock# 44625037

Used- Stainless Fluid Products Cartridge Filter Housing, 3.8 Cubic Feet Capacity, 316 Stainless Steel. Requires filter cartridges. Quick release clamp design chamber rated 45 psi at -20 to 150 degrees F. 1-1/2" Tri-clamp bottom inlet/outlet. Mounted on 4 stainless steel legs.

Stock# 51094035

Used- Ironhide Manufacturing Polish Filter, Carbon Steel. Approximate 20" diameter x 36" straight side, dished bolt on top, dished bottom. Internal rated 100 psi at -20 to 250 degrees F. Serial# IMI1405005, National Board# 0005, built 2014. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****

Stock# 51094030

Used- Ironhide Manufacturing Bulk Purifier Media Vessel, Model BMV-1500, Carbon Steel. Approximate 36" diameter x 60" straight side, dished bolt on top, dished bottom. Internal rated 100 psi at -20 to 250 degrees F. Manual vessel tilt with discharge chute. Mounted on a carbon steel frame with bottom drip pan. Serial# IMI1405002, National Board# 0002, built 2014. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****

Stock# 51094031

Used- Ironhide Manufacturing Bulk Purifier Media Vessel, Model BMV-1500, Carbon Steel. Approximate 36" diameter x 60" straight side, dished bolt on top, dished bottom. Internal rated 100 psi at -20 to 250 degrees F. Manual vessel tilt with discharge chute. Mounted on a carbon steel frame with bottom drip pan. Serial# IMI1405003, National Board# 0003, built 2014. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****

Stock# 51094032

Used- Ironhide Manufacturing Bulk Purifier Media Vessel, Model BMV-1500, Carbon Steel. Approximate 36" diameter x 60" straight side, dished bolt on top, dished bottom. Internal rated 100 psi at -20 to 250 degrees F. Manual vessel tilt with discharge chute. Mounted on a carbon steel frame with bottom drip pan. Serial# IMI1405004, National Board# 0004, built 2014. ** This will not be available for delivery until 1st Quarter of 2021. Price includes loading. Inspections by appointment only. Located in Sedgwick, KS. ****
