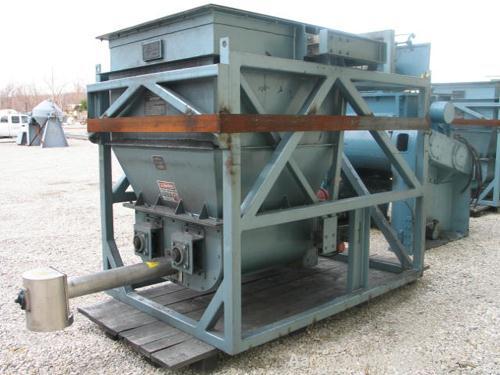

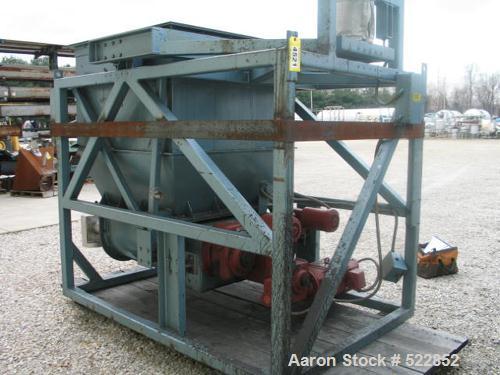

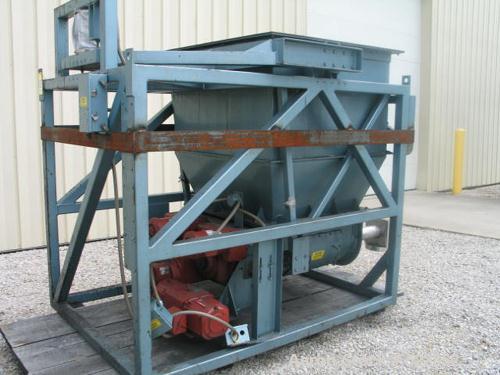

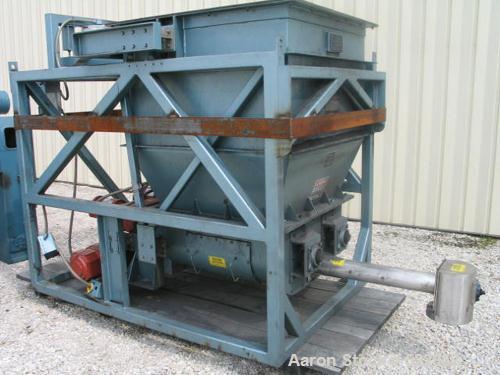

USED: 4" Acrison Loss in Weight Screw Feeder, Model 403B-6000/600/2500-BDF3-N. Feeder drive is a Reliance 3 hp,1750 rpm, 180 volt DC motor, model RPM III with a maximum safe speed 5000 rpm. Speed reducer is Acrison model 6MSF, input rpm is 1800, maximum input hp is 4.05, date 1/93. Output torque is 1770 inch pounds, ratio 15:1. Feeder comes with hopper and dual shaft bridge breaker. Each shaft of bridge breaker is driven by a 1.5 hp, 208-230/460 volt, 1725 rpm General Electric AC motor, model 5K45SG1071B, catalog #K257. Bridge breaker gear reducer is Acrison speed reducer model 8MSFD, typical serial #RB3810144XOP5. Input rpm 1800, input hp maximum 1.5, built 5/93. Output torque 12251 inch pounds, gear ratio 750. Screw is stainelss steel, hopper is carbon steel. Hopper measures 48" x 48" x 32" straight side. Cone on hopper is 18" tall and slopes down to 36" X 36". Hopper has closed top with approximately 14" square inlet in center. Unit is load cell mounted with flex sures. Screw protrudes out past the frame approximately 39". Frame dimensions are 93" front to back, 62" in width across the screw, and 79" in height to top of hopper. Load cell frame protrudes approximately 7" above top of hopper on drive end.
