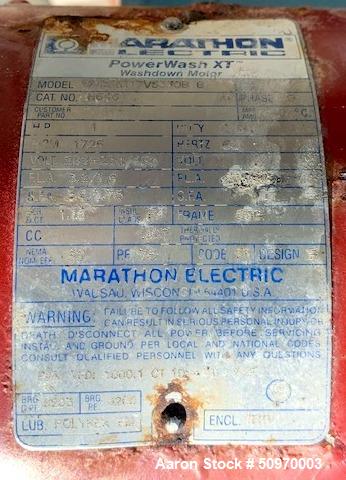

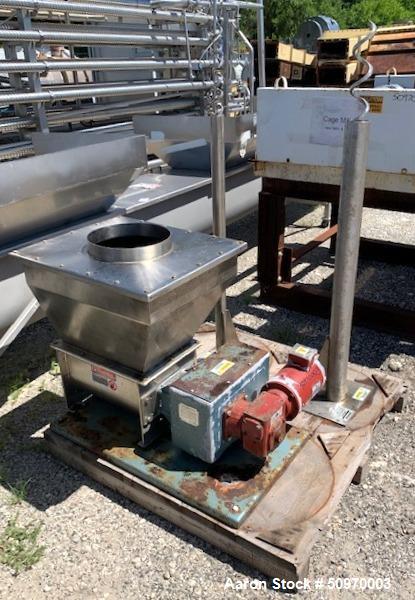

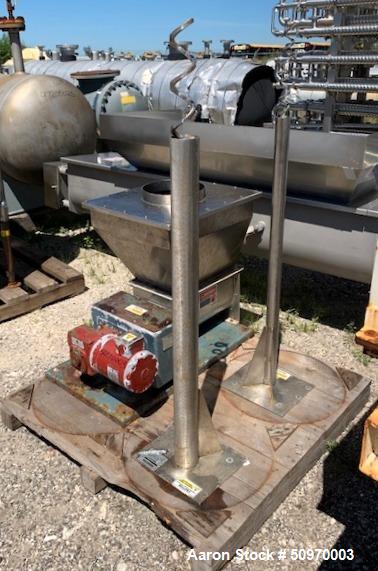

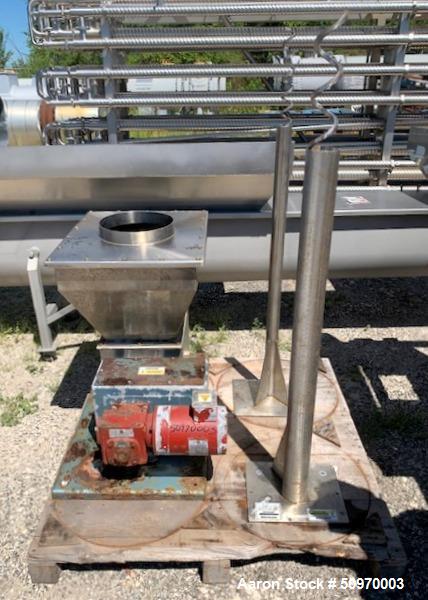

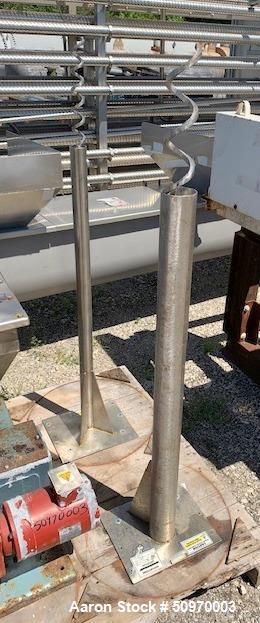

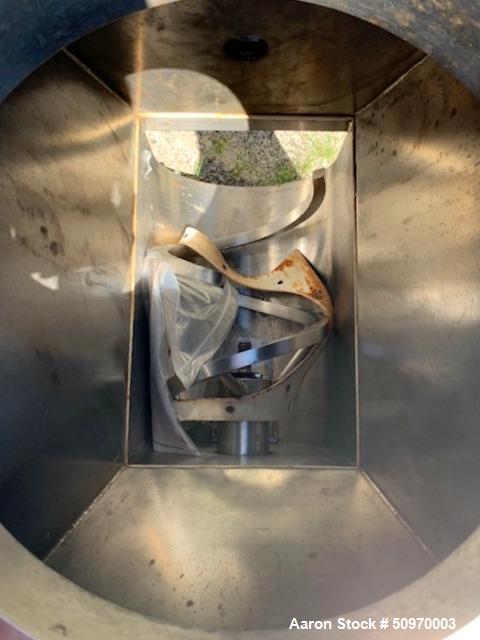

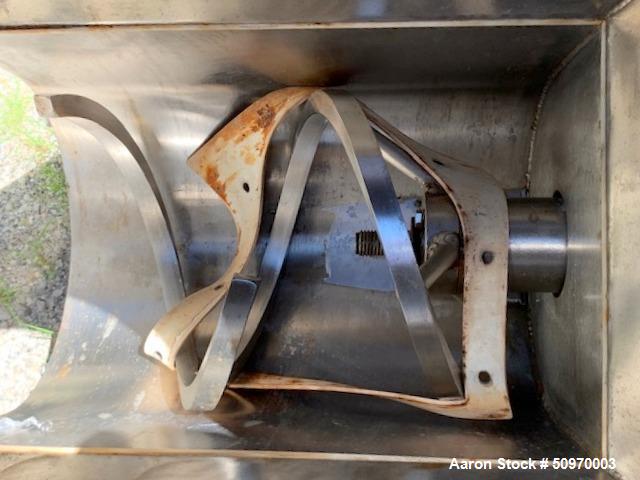

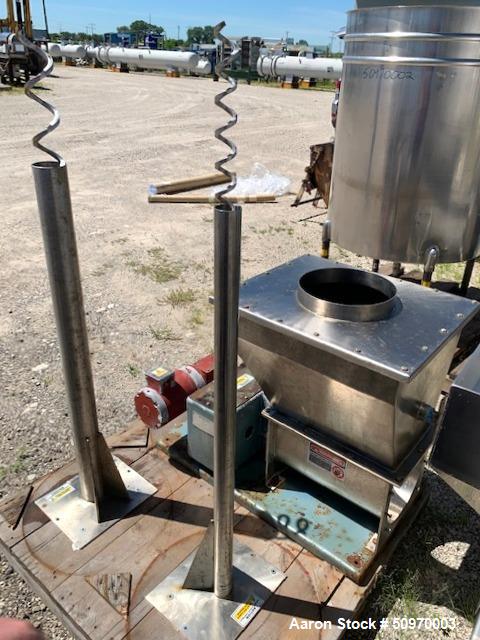

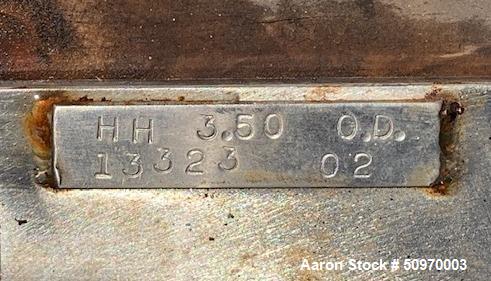

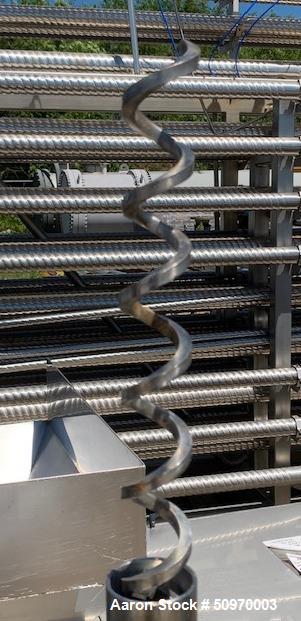

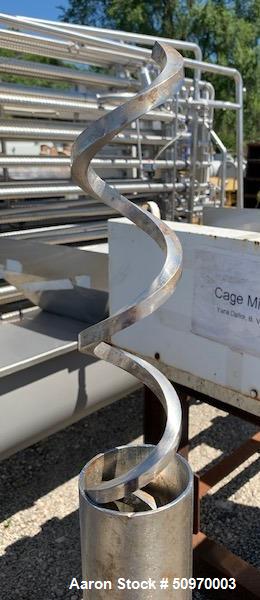

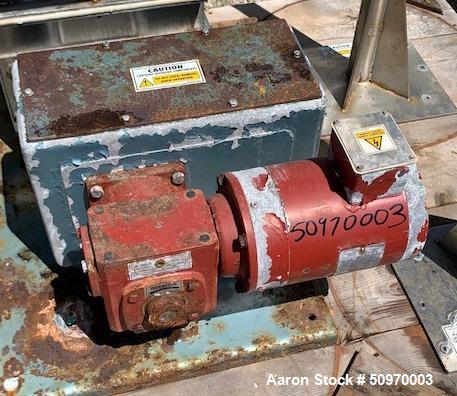

Used Acrison Volumetric Feeder, Model 105Z-F/2,304 Stainless Steel. Feed rate range from 0.0012 to 202 cubic feet per hour depending on different size metering augers. Chamber approximately 17-3/4" x 11" wide x 9-1/4" deep. Approximate 8" diameter intromitter auger. (2) Metering augers with discharge cylinder. (1) Approximate 3" diameter x 60" long metering auger with 3-1/2" diameter x 47-1/2" long discharge cylinder. (1) Approximate 1-3/4" diameter x 60" long metering auger with 2-1/4" diameter x 47-1/2" long discharge cylinder. Driven by a 1 hp, 3/60/208-230/460 volt, 1725 rpm motor thru gearbox 30 to 1 ratio. Feed hopper approximately 24" x 20-1/2" x 17" deep with top cover and 12" inlet. Mounted on a carbon steel base. Serial# 13323-02.
